Creation of geometries by Coordinate system methods using AutoCad

AIM: To create the geometries from P1 to P2 using all the coordinates system methods, to use the Line tool and circle to create the geometries. TYPES OF COORDINATE SYSTEM Absolute Coordinates Relative rectangular coordinates Relative polar coordinates Direct distance entry. INTRODUCTION The main objective of this challenge…

    • KRISHNADAS K DAS

      updated on 07 Jun 2021

    AIM:

    To create the geometries from P1 to P2 using all the coordinates system methods, to use the Line tool and circle to create the geometries.

    TYPES OF COORDINATE SYSTEM

    • Absolute Coordinates
    • Relative rectangular coordinates
    • Relative polar coordinates
    • Direct distance entry.

    INTRODUCTION

    The main objective of this challenge is to gain knowledge on how to plot lines using the various coordinates systems available. The challenge is divided into four parts and in each part certain figures are to be drawn using the line and circle tool based on the four coordinates systems.

    In each part the figures will be drawn based on that particular coordinate system and the procedure for doing will be given for all questions.

    PART 1: ABSOLUTE COORDINATE SYSTEM

    Absolute coordinates refers to a Cartesian System that uses x-axis, y-axis, and sometimes a z-axis to establish a point some distance from a common origin. As an example, in a CAD program you could draw a line using absolute coordinates. To do this start by entering the (x,y) value of your origin point. Let us plot a figure using this coordinate system

    PART 2: RELATIVE RECTANGULAR COORDINATES

    Relative coordinates are based on the last point entered. Use relative coordinates when you know the location of a point in relation to the previous point.

    To specify relative coordinates, precede the coordinate values with an @ sign. For example, entering @3, 4 specifies a point 3 units along the X axis and 4 units along the Y axis from the last point specified.

    PART 3: RELATIVE POLAR COORDINATES

    Relative coordinates are also based on the last point entered. Use relative coordinates when you know the location of a point in relation to the previous point.

    To specify relative coordinates, precede the coordinate values with an @ sign. For example, entering @1<45 specifies a point at a distance of 1 unit from the last point specified at an angle of 45 degrees from the X axis.

    PART 4: DIRECT DISTANCE ENTRY

    Locates the next point at a specified distance in the direction of your cursor

    At a prompt to locate a point, enter a numeric value

    With direct distance entry, you can quickly specify a point relative to the last point you entered. At any prompt for a point location, you move the cursor first to specify the direction, and then enter a numeric distance.

    PROCEDURE TO DRAW A LINE:

    Line

    To Draw Line simple lines or series of lines segments .access to command line by one way of the following:

    1. Command Line: Line or L
    2. Menu Bar: Draw- Line
    3. Draw Bar
    4. Tool palettes: Draw- Line
    5. Ribbon: Home- Draw panel -Line

    When execute command line the program requires specify first point, display in command line:

    Specify first Point:

    Specify next point or [Undo]:

    Specify next point or [Close/Undo]:

    Options:

    • C: this option close series of lines, connect first point with last point by line.
    • U: enter U for undo. AutoCAD backs up one segment, undoing it so that you can recreate it.

    Let us understand the coordinates with the help of a few example questions.

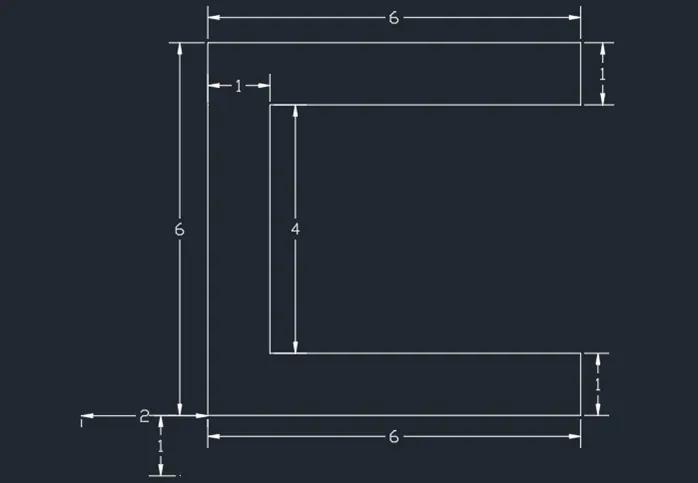

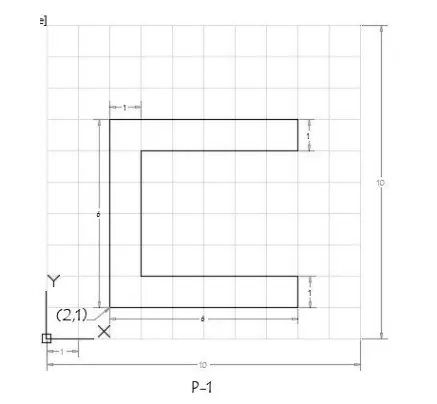

    QNS 1)

    To draw the above figure the coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line



    Line



    Line



    Specify first point:

    2, 1

    2, 1

    2, 1

    2, 1

    Specify next point:

    8, 1

    @6, 0

    @6<0

    6 and point right

    Specify next point:

    8, 2

    @0, 1

    @1<90

    1 and point up

    Specify next point:

    3, 2

    @-5, 0

    @5<180

    5 and point left

    Specify next point:

    3, 6

    @0, 4

    @4<90

    4 and point up

    Specify next point:

    8, 6

    @5, 0

    @5<0

    5 and point right

    Specify next point:

    8, 7

    @0, 1

    @1<90

    1 and point up

    Specify next point:

    2, 7

    @-6, 0

    @6<180

    6 and point left

    Specify next point:

    2, 1 or C

    @2, 1 or C

    @6<270 or c

    6 and point down or C



     RESULT

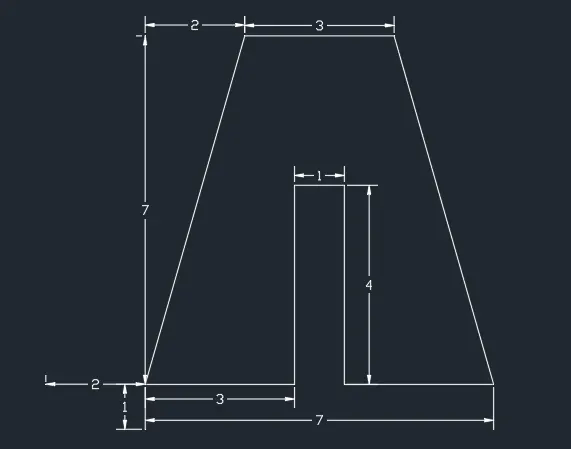

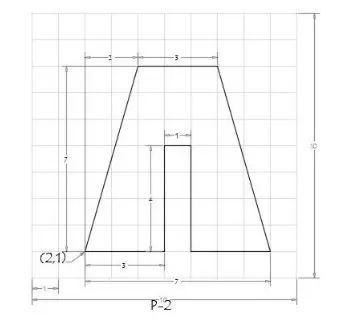

    QNS 2)

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    2, 1

    2,1

    2, 1

    2,1

    Specify next point:

    5, 1

    @3, 0

    @3<0

    3 and point right

    Specify next point:

    5, 5

    @0, 4

    @4<90

    4 and point up

    Specify next point:

    6, 5

    @1, 0

    @1<0

    1 and point right

    Specify next point:

    6,1

    @0, -4

    @4<270

    4 and point down

    Specify next point:

    9, 1

    @3, 0

    @3<0

    3 and point right

    Specify next point:

    7, 8

    @-2, 7

    @7<90 (line ab)

    7 and point up (line ab)

    Specify next point:

    4, 8

    @-3, 0

    @2<180 (line bc)

    2 and point left (line bc)

    Specify next point:

    2, 1 or C

    @-2, -7 or C

    @3<180

    3 and point left

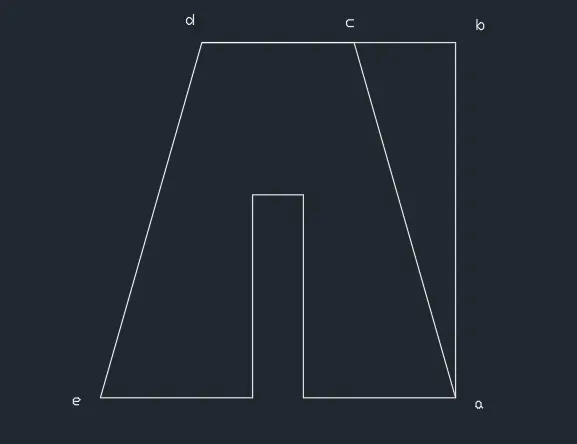

    Delete line ab and bc

    Delete line ab and bc







    Connect a and c  and e and d using line command

    Connect a and c  and e and d using line command

     RESULT

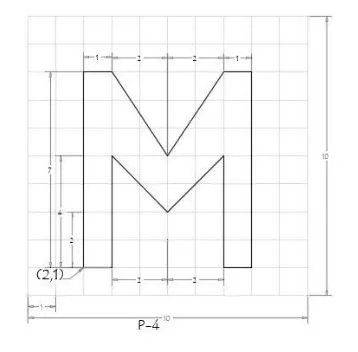

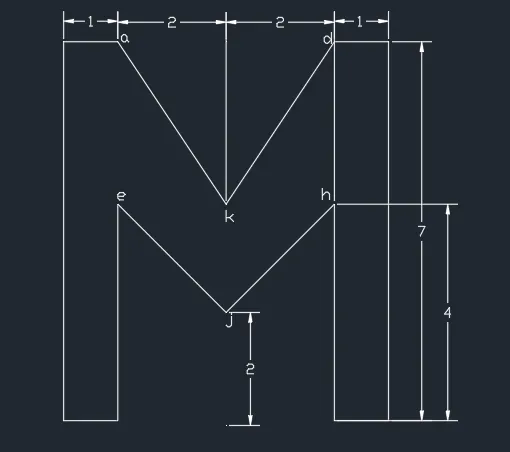

    QNS 3)

    To draw the above figure using the coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    2, 1

    2,1

    2, 1

    2,1

    Specify next point:

    2,8

    @0, 7

    @7<90

    7 and point up

    Specify next point:

    3, 8

    @1, 0

    @1<0

    1 and point right

    Specify next point:

    5, 5

    @2, -3

    @2<0 (line ab)

    2 and point right

    Specify next point:

    7, 8

    @2, 3

    @2<0 (line bc)

    2 and point right

    Specify next point:

    8, 8

    @1, 0

    @1<0

    1 and point right

    Specify next point:

    8,1

    @0, -7

    @7< 270

    7 and point down

    Specify next point:

    7,1

    @-1, 0

    @1<180

    1 and point left

    Specify next point:

    7, 5

    @0, 4

    @4<90

    4 and point up

    Specify next point:

    5, 3

    @-2, -2

    @2<180 (Line de)

    2 and point left (Line de)

    Specify next point:

    3, 5

    @-2, 2

    @2<180 (Line ef)

    2 and point left (Line ef)

    Specify next point:

    3,1

    @0, -4

    @4<270 (Line fh)

    4 and point down (Line fh)

    Specify next point:

    2, 1 or C

    @2, 1 or C

    @1<180 or C

    1 and point left

    Command





    Line

    Line

    Specify first point:





    2,1

    2, 1

    Specify next point:





    @3<0 (line gi)

    3 point and right (line gi)

    Specify next point:





    @2<90 (line ij)

    2 point and right (line ij)

    Specify next point:





    @2<90 (line je)

    2 and point up (line je)

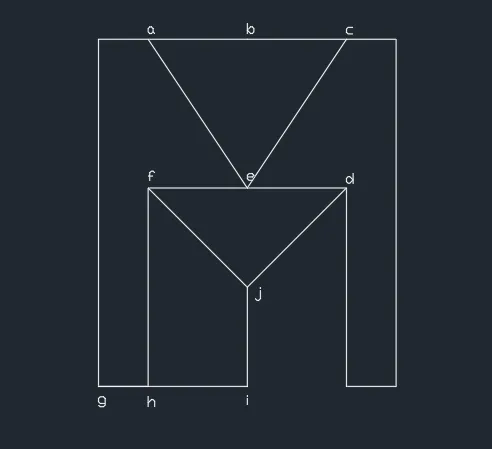

    Connect ae,ec, fj and jd

    Connect ae,ec, fj and jd







    Delete lines ab, bc, fe, ed,gh, hi and ij

    Delete lines ab, bc, fe, ed,gh, hi and ij

     RESULT

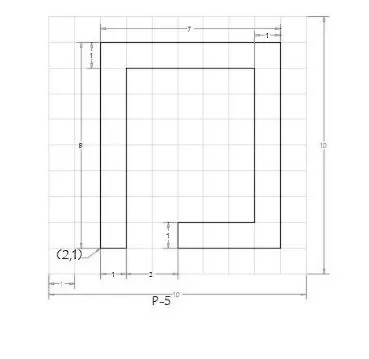

    QNS 4

    To draw the above figure using the coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    2, 1

    2,1

    2, 1

    2,1

    Specify next point:

    2,9

    @0, 8

    @8<90

    8 and point up

    Specify next point:

    9, 9

    @7, 0

    @7<0

    7 and point right

    Specify next point:

    9, 1

    @0, -8

    @8<270

    8 and point down

    Specify next point:

    5, 1

    @-4, 0

    @4<180

    4 and point left

    Specify next point:

    5, 2

    @0, 1

    @1<90

    1 and point up

    Specify next point:

    8, 2

    @3, 0

    @3< 0

    3 and point right

    Specify next point:

    8, 8

    @0, 6

    @6<90

    6 and point up

    Specify next point:

    3, 8

    @-5, 0

    @5<180

    5 and point left

    Specify next point:

    3, 1

    @0, -7

    @7<270

    7 and point down

    Specify next point:

    2, 1 or C

    @-1, 0 or C

    @1<180 or C

    1 and point left or C

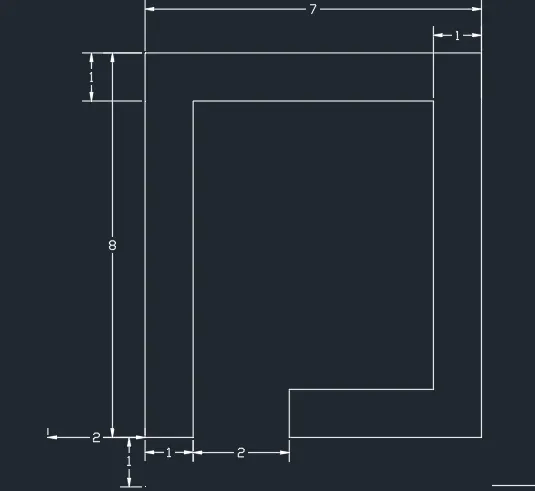

     RESULT

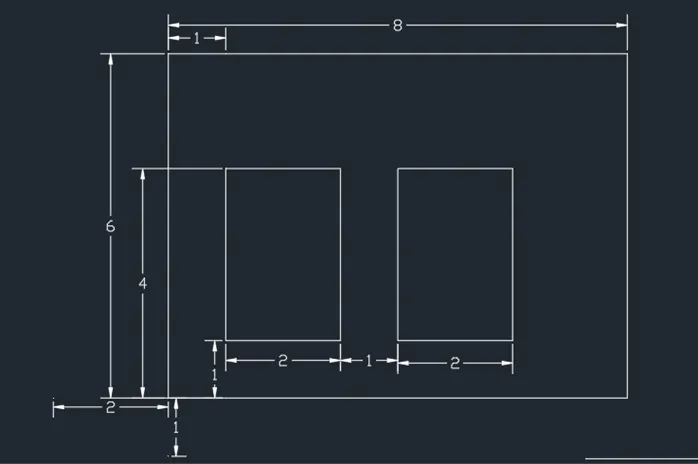

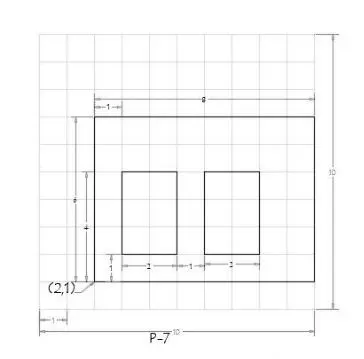

    QNS 5)

    To draw the above figure using absolute coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    2, 1

    2,1

    2, 1

    2,1

    Specify next point:

    2,7

    @0, 6

    @6<90

    6 and point up

    Specify next point:

    10, 7

    @8, 0

    @8<0

    8 and point right

    Specify next point:

    10, 1

    @0, -6

    @6<270

    6 and point down

    Specify next point:

    2, 1 or C

    @-8, 0

    @8<180

    8 and point left

    COMMAND

    Line

    Line

    Line

    Line

    Specify first point:

    3, 2

    3, 2

    3, 2

    3, 2

    Specify next point:

    3, 5

    @0, 3

    @3<90

    3 and point up

    Specify next point:

    5, 5

    @2, 0

    @2<0

    2 and point right

    Specify next point:

    5, 2

    @0, -3

    @3<270

    3 and point down

    Specify next point:

    3, 2 or C

    @-2, 0 or C

    @2<180 or C

    2 and point left

    COMMAND

    Line

    Line

    Line

    Line

    Specify first point:

    6, 2

    6, 2

    6,2

    6,2

    Specify next point:

    6, 5

    @0, 3

    @3<90

    3 and point up

    Specify next point:

    8, 5

    @2, 0

    @2<0

    2 and point right

    Specify next point:

    8, 2

    @0, -3

    @3<270

    3 and point down

    Specify next point:

    6,2 or C

    @-2, 0 or C

    @2<180 or C

    2 and point left

     RESULT

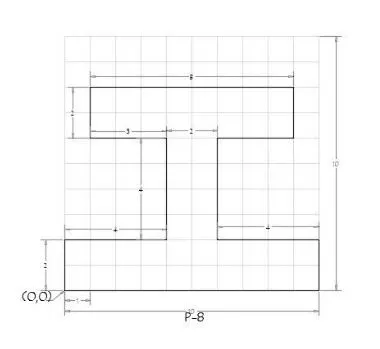

    QNS 6)

    To draw the above figure using absolute coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    0, 0

    0,0

    0, 0

    0, 0

    Specify next point:

    10, 0

    @10, 0

    @10<0

    10 and point right

    Specify next point:

    10, 2

    @2, 0

    @2<90

    2 and point up

    Specify next point:

    6, 2

    @-4, 0

    @4<180

    4 and point left

    Specify next point:

    6, 6

    @0, 4

    @4<90

    4 and point up

    Specify next point:

    9, 6

    @3, 0

    @3<0

    3 and point right

    Specify next point:

    9, 8

    @0, 2

    @2<90

    2 and point up

    Specify next point:

    1, 8

    @-8, 0

    @8<180

    8 and point left

    Specify next point:

    1, 6

    @0, -2

    @2<270

    2 and point down

    Specify next point:

    4, 6

    @3, 0

    @3<0

    3 and point right

    Specify next point:

    4, 2

    @0, -4

    @4<270

    4 and point down

    Specify next point:

    0, 2

    @-4, 0

    @4<180

    4 and point left

    Specify next point:

    0, 0 or C

    @0, -2 or C

    @2<270 or C

    2 and point down or C

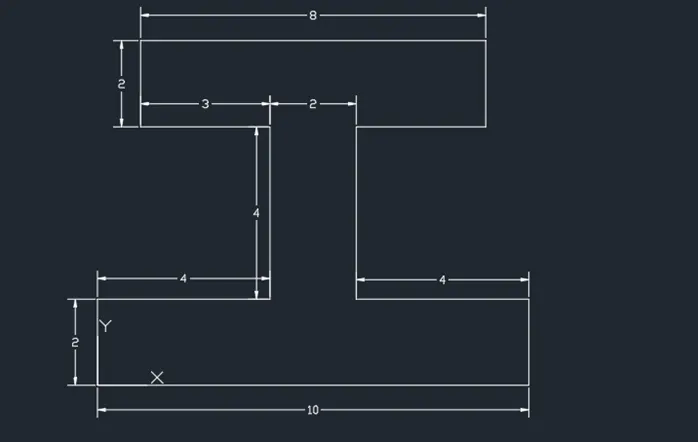

     RESULT

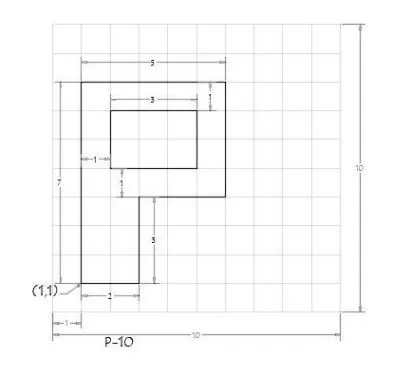

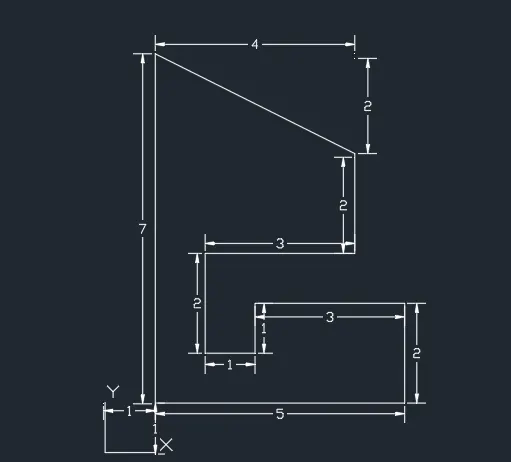

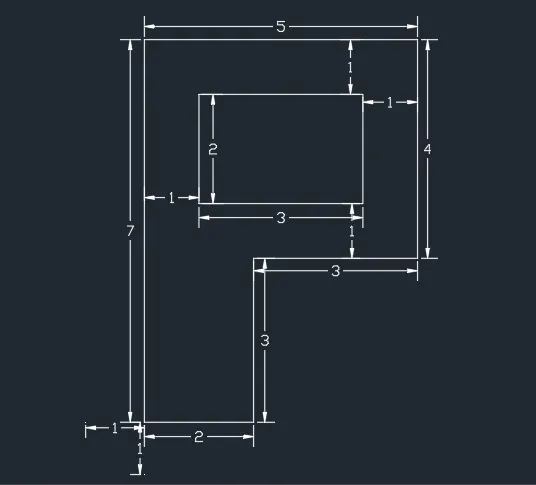

    QNS 7)

    To draw the above figure using the coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    1,1

    1,1

    1,1

    1,1

    Specify next point:

    6, 1

    @5, 0

    @5<0

    5 and point right

    Specify next point:

    6, 3

    @2, 0

    @2<90

    2 and point up

    Specify next point:

    3, 3

    @-3, 0

    @3<180

    3 and point left

    Specify next point:

    3, 2

    @0, -1

    @1<270

    1 and point down

    Specify next point:

    2, 2

    @-1, 0

    @1<180

    1 and point left

    Specify next point:

    2, 4

    @0, 2 (a)

    @2<90 (a)

    2 and point up (a)

    Specify next point:

    5, 4

    Line

    Line

    Line

    Specify next point:

    5, 6

    1, 1

    1, 1

    1, 1

    Specify next point:

    1, 8

    @0, 7 (b)

    @7<90 (b)

    7 and point up (b)

    Specify next point:

    1, 1 or C

    Join a and b

    Join a and b

    Join a and b

     RESULT

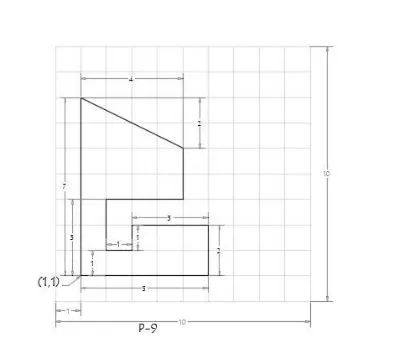

    QNS 8)

    To draw the above figure using the coordinate system follow these steps

    COMMAND

    Absolute Coordinates

    Relative rectangular coordinates

    Relative polar coordinates

    Direct distance entry.

    COMMAND

    Line

    Line

    Line

    line

    Specify first point:

    1, 1

    1,1

    1,1

    1,1

    Specify next point:

    3, 1

    @2, 0

    @2<0

    2 and point right

    Specify next point:

    3, 4

    @0, 3

    @3<90

    3 and point up

    Specify next point:

    6, 4

    @3, 0

    @3<0

    3 and point right

    Specify next point:

    6, 8

    @0, 4

    @4<90

    4 and point up

    Specify next point:

    1, 8

    @-5, 0

    @5<180

    5 and point left

    Specify next point:

    1, 1 or C

    @0, -7 or C

    @7<270 or C

    7 and point down or C

    Command

    Line

    Line

    Line

    Line

    Specify first point:

    2, 5

    2,5

    2, 5

    2,5

    Specify next point:

    5, 5

    @3, 0

    @3<0

    3 and point right

    Specify next point:

    5, 7

    @0, 2

    @2<90

    2 and point up

    Specify next point:

    2, 7

    @-3, 0

    @3<1800

    3 and point left

    Specify next point:

    2, 5 or C

    @0, -2 or C

    @2<270

    2 and point down

     RESULT

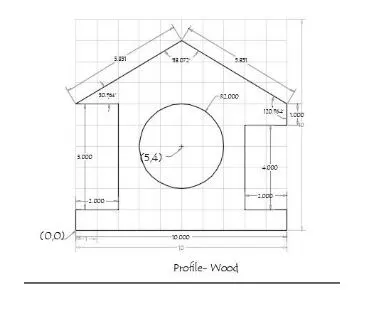

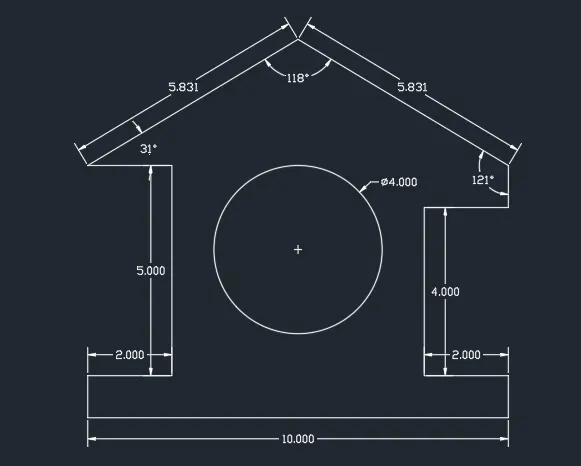

    QNS 9)

    To draw the above figure using absolute coordinate system follow these steps

    Command: Line

    Specify first point: 0, 0

    Specify next point: 10, 0

    Specify next point: 10, 1

    Specify next point: 8, 1

    Specify first point: 8, 5

    Specify next point: 10, 5

    Specify first point: 10, 6

    Specify next point: 5, 9

    Specify next point: 0, 6

    Specify next point: 2, 6

    Specify first point: 2, 1

    Specify next point: 0, 1

    Specify next point: 0, 0 or C

    Command: Circle

    Specify centre point for circle: 5, 4

    Specify radius of circle: 2

    RESULT

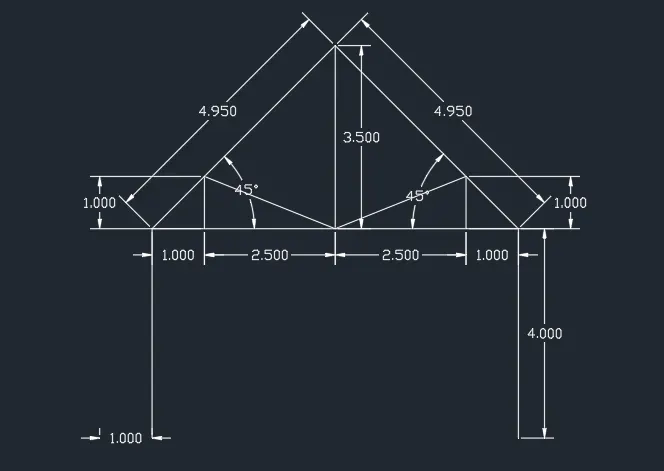

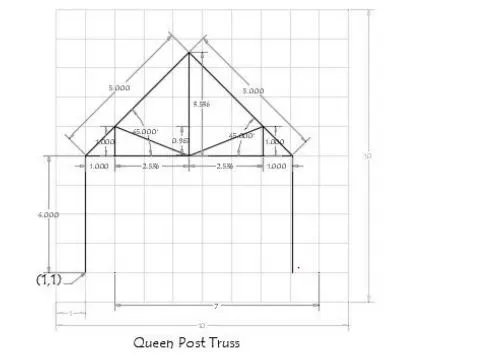

    QNS 10)

    To draw the above figure using absolute coordinate system follow these steps

    Command: Line

    Specify first point: 1, 1

    Specify next point: 1, 5

    Specify next point: 4.5, 8.5

    Specify next point: 8, 5

    Specify first point: 8, 1

    Command: Line

    Specify first point: 1, 5

    Specify next point: 8, 5

    Command: Line

    Specify next point: 2, 5

    Specify first point: 2, 6

    Specify next point: 4.5, 5

    Specify next point: 7, 6

    Specify next point: 7, 5

    Command: Line

    Specify first point: 4.5, 5

    Specify next point: 4.5, 8.5

    RESULT

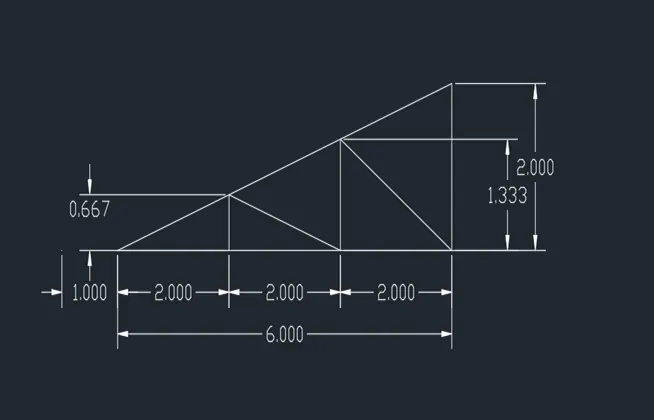

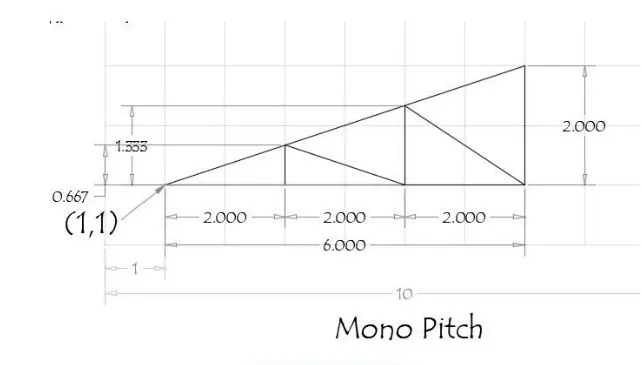

    QNS 11)

    Command: Line

    Specify first point: 1, 1

    Specify next point: 7, 1

    Specify next point: 7, 3

    Specify next point: 1, 1 or C

    Command: Line

    Specify first point: 3, 1

    Specify next point: 3, 1.667

    Specify next point: 5, 1

    Specify next point: 5, 2.333

    Specify next point: 7, 1

    RESULT





    RESULTS:

    Created the geometries from P1 to P2 using all the coordinates system methods and used Line tool and circle tool to create the geometries.

    Appendix:

    Qns 2) Additional lines with names for finding the end points of figure are provided here

    Qns 3) Additional lines with names for finding the end points of figure are provided here

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by KRISHNADAS K DAS (48)

    Project 1_Analyze and design a steel building to 10T CRANE as per IS standard code using TEKLA STRUCTURAL DESIGNER.

    Objective:

    Analyze and design a steel building to 10T CRANE as per IS standard code using TEKLA STRUCTURAL DESIGNER.   AIM: To analyze and design a steel building to 10T CRANE as per IS standard code using TEKLA STRUCTURAL DESIGNER. INTRODUCTION: Tekla Structural Designer is an integrated model-based 3D tool for analysis…

    calendar

    03 Feb 2022 05:56 AM IST

    • BIM
    • DESIGN
    • Tekla Structural Designer
    Read more

    To Analysis and Design of Steel Structures using TSD

    Objective:

    To Analysis and Design of Steel Structures using TSD AIM: To Summarize the study for the bending moment, shear force and deflection diagrams for the elements of the model and Based on the analysis to design the members and to outline the thought process in selecting the member sizes along with the foundation design. INTRODUCTION:…

    calendar

    23 Jan 2022 04:07 AM IST

    • Steel Structures
    • Tekla Structural Designer
    Read more

    To calculate wind load for industrial steel structures and to apply it by using TSD

    Objective:

    To calculate wind load for industrial steel structures and to apply it by using TSD AIM: PART I: To Generate manual wind loading in the design report based IS code as per the following input Basic wind speed = 39m/s Terrain category 2 Based on the above calculation apply the loadings on the model PART II: On a separate…

    calendar

    18 Jan 2022 02:56 PM IST

    • Buildings
    Read more

    To calculate dead and live load for industrial steel structures and to apply them using TSD

    Objective:

    AIM: To calculate dead and live load for industrial steel structures and to apply them using TSD Introduction: Tekla Structural Designer is an integrated model-based 3D tool for analysis and design (of both concrete and steel members) in multi-material structures. Features include interactive modeling, automated structural…

    calendar

    15 Jan 2022 07:31 AM IST

    • Tekla Structural Designer
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecard

    Design loads considered on bridges

    Recently launched

    10 Hours of Content

    coursecard

    Design of Steel Superstructure in Bridges

    Recently launched

    16 Hours of Content

    coursecard

    Design for Manufacturability (DFM)

    Recently launched

    11 Hours of Content

    coursecard

    CATIA for Medical Product Design

    Recently launched

    5 Hours of Content

    coursecardcoursetype

    Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

    Recently launched

    0 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
