LUXURY YACHT
objective:
The designing and Assembly of the yacht by using productive 3D CAD software tool of Solidworks.
Introduction:
Designed the Yacht using productive 3D CAD software tool of Solidworks. 2D Sketches , 3D Modeling, Surface Modeling and part desingns , Assemblies of the Yacht.

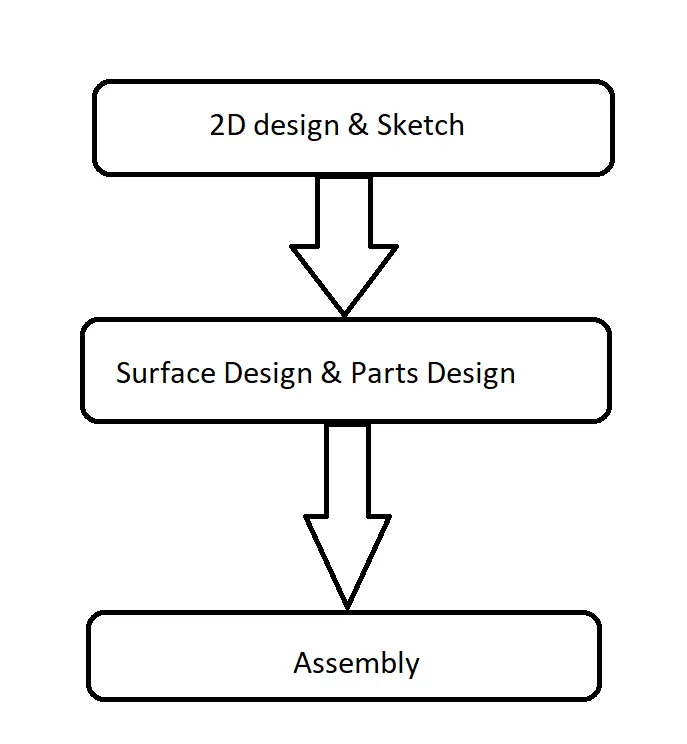

Design Methodology Flowchart:
Description:
_1610386561.png)
Part Name: Radar.
Tool used: Sketches, Sketch-Pattern.
Features: Boss Extrude, Fillet, Cut-Extrude, Mirror, Split.
_1610387120.png)

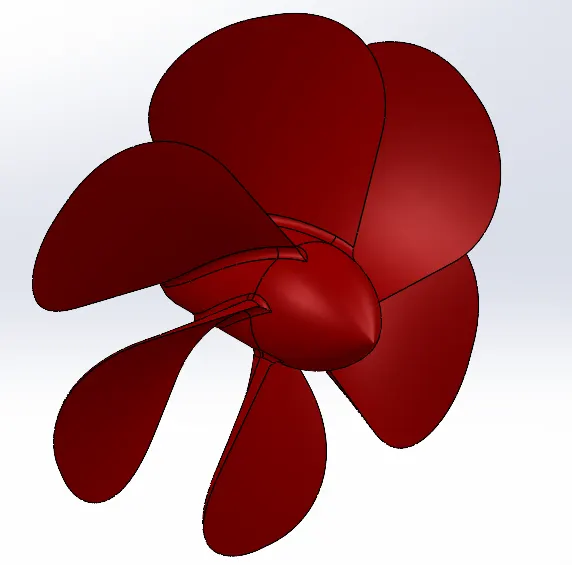

Part Name: Propeller.
Tool used: Sketches.
Features: Revolve, Loft, Fillet, Cut-extrude, Cirpattern.
_1610387453.png)

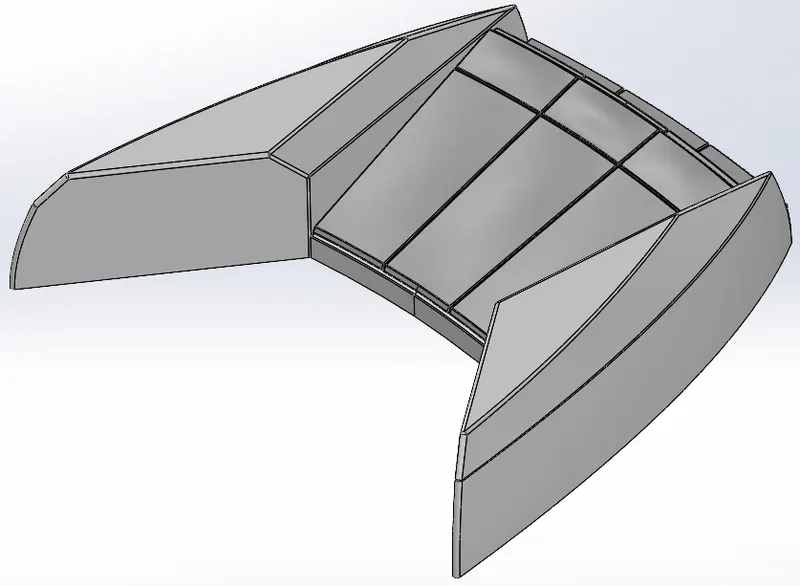

Part Name: Front_Seat.
Tool used: Sketches.
Features: Revolve, Chamfer, Cut-Extrude, Fillet, Dome, Mirror.
Surface: Surface-Extrude, Surface-Sweep, Surface-Trim, Surface-Loft, Surface-Fill, Surface-knit.
_1610388002.png)
Part Name: Middle_Seat.
Tool used: Sketches.
Features: Boss-Extrude, Cut-Extrude, Chamfer, Fillet, Mirror, Reference Plane.
_1610389048.png)
Part Name: Rear_Seat.
Tool used: Sketches.
Features: Boss Extrude, Cut-extrude, Chamfer, Fillet, Sweep, Revolve, Mirror, Reference Plane.
Surface: Surface-Sweep, Surface-Offset, Surface-Trim, Surface-knite, Surface-Loft, Surface-Extrude.
_1610390051.png)

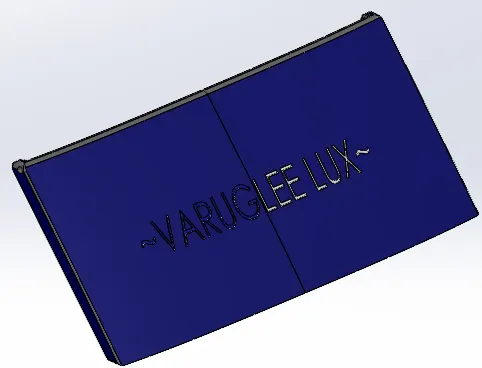

Part Name: Garriage_Door.
Tool used: Sketches.
Features: Cut-Extrude, Mirror, Refrence plane, Fillet.
_1610390341.png)

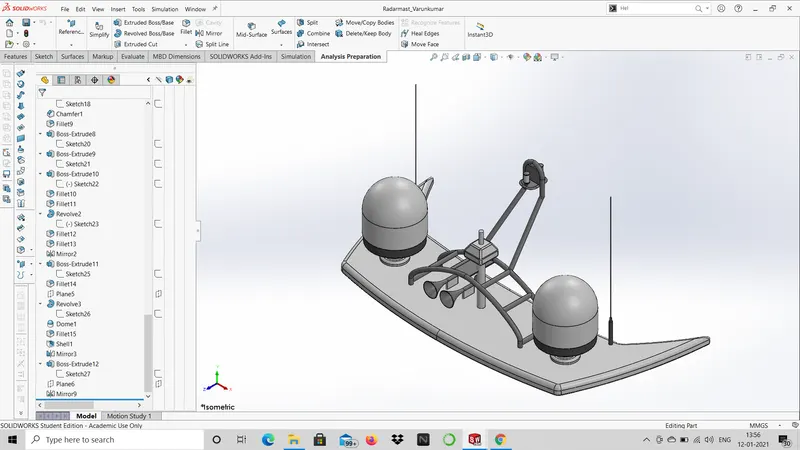

Part Name: Radarmast.
Tool used: Sketches.
Features: Boss Extrude, Revolve, Fillet, Sweep, Reference Plane, Chamfer, Mirror , Dome, Shell.
_1610390775.png)
Part Name: Super_structure.
Tool used: Sketches.
Features: Boss Extrude, Fillet, Reference Plane, Cut-Extrude, Dome, Sweep, Split, Mirror, Chamfer, Projective Curve.
Surface: Surface-Extrude, Surface-Sweep, Ruled Surface, Surface-trim, Surface-knite, Surface-loft, Surface Fill, Surface Offset, Thicken.
_1610391511.png)

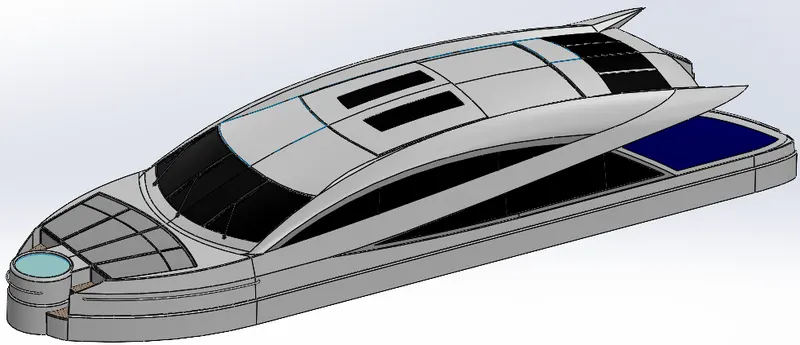

Part Name: Hull.
Tool used: Sketches.
Features: Boss Extrude, Cut-extrude, Chamfer, Shell, Fillet, Reference plane, Sweep, Dome, Linear Pattern, Extrude-Thine, Mirror, Combaine, Helix, Revolve, Split.
Surface: Surface-Extrude, surface-Loft, Surface-Fill, Surface=Knit, Surface-offset.
Assembly Model:

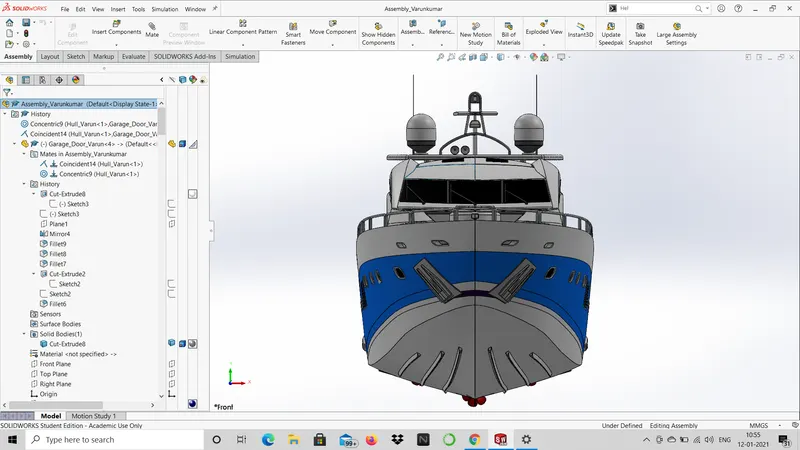

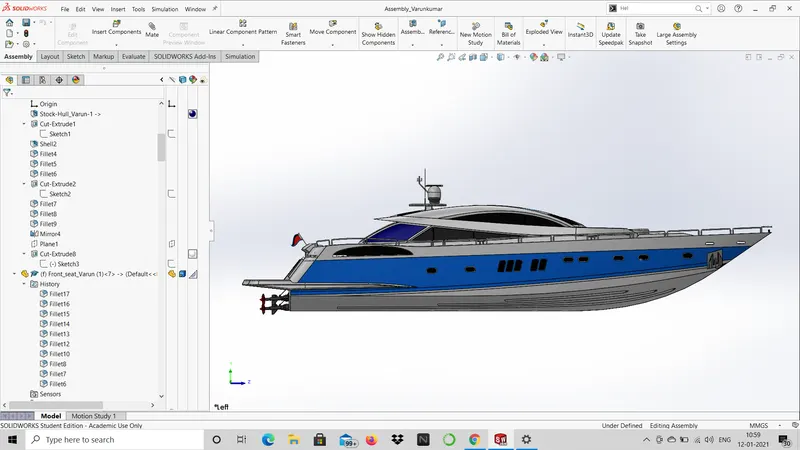

(i) Front view of the Yacht Assembly.
_1610429255.png)

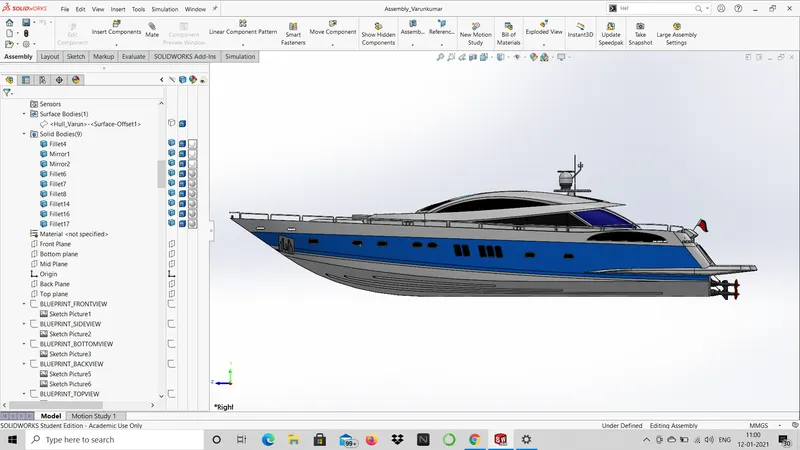

(ii) Left view of the Yacht Assembly.
_1610429351.png)
(iii) Right view of the Yacht Assembly.
_1610429437.png)

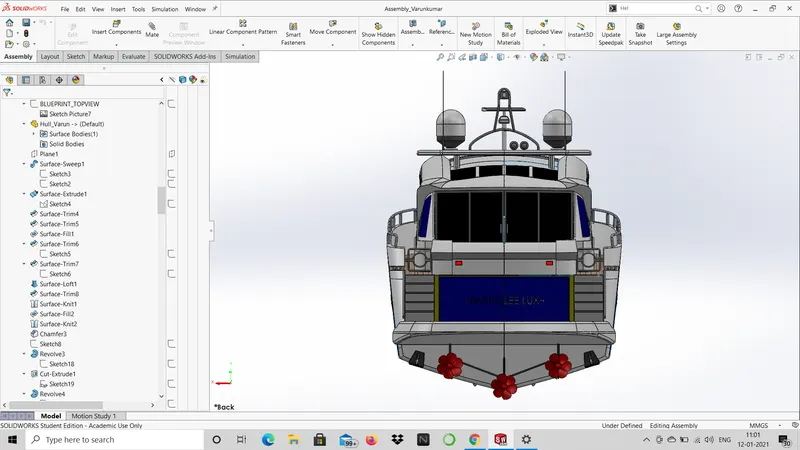

(iv) Back view of the Yacht Assembly.
_1610429518.png)

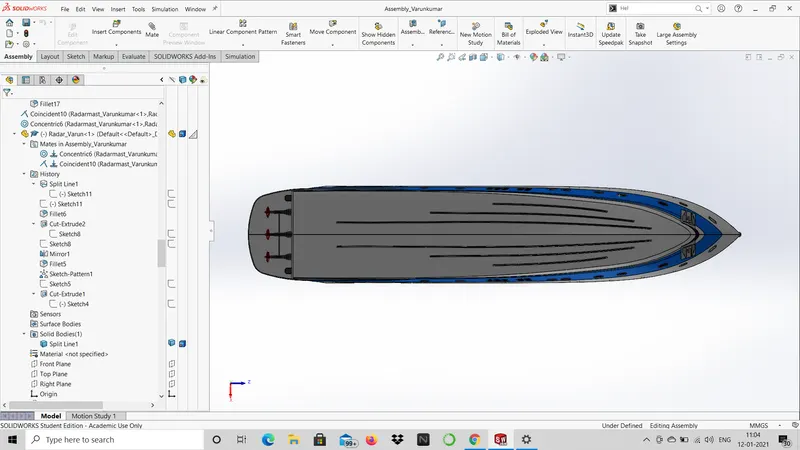

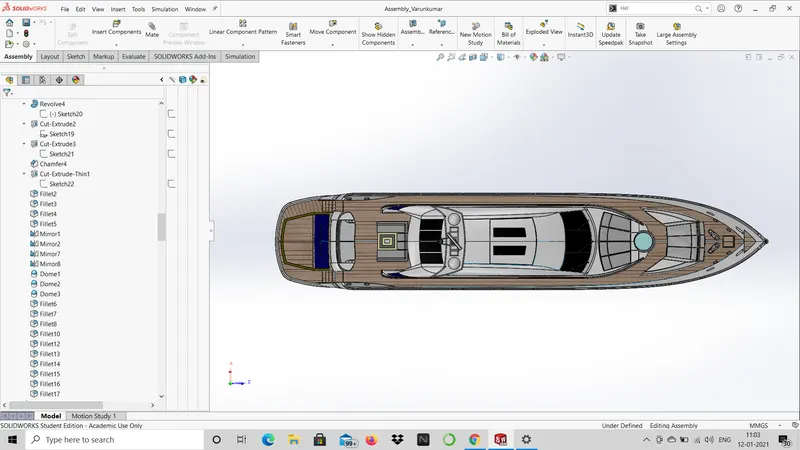

(v) Top view of the Yacht Assembly.
_1610429621.png)
(vi) Bottom view of the Yacht Assembly.
_1610429703.png)

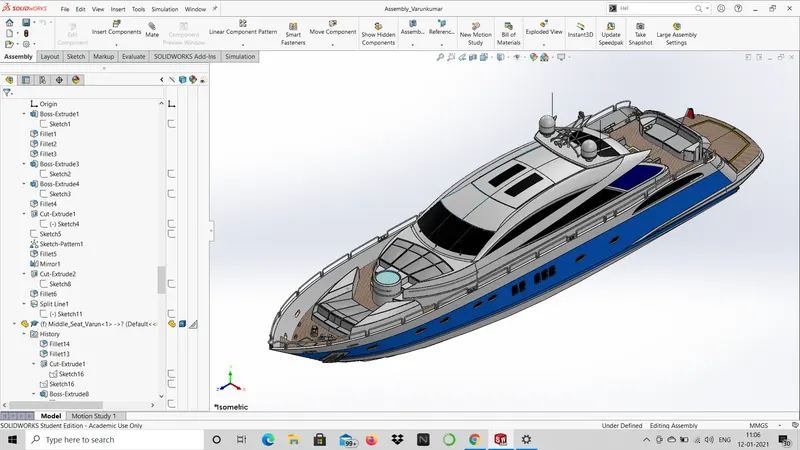

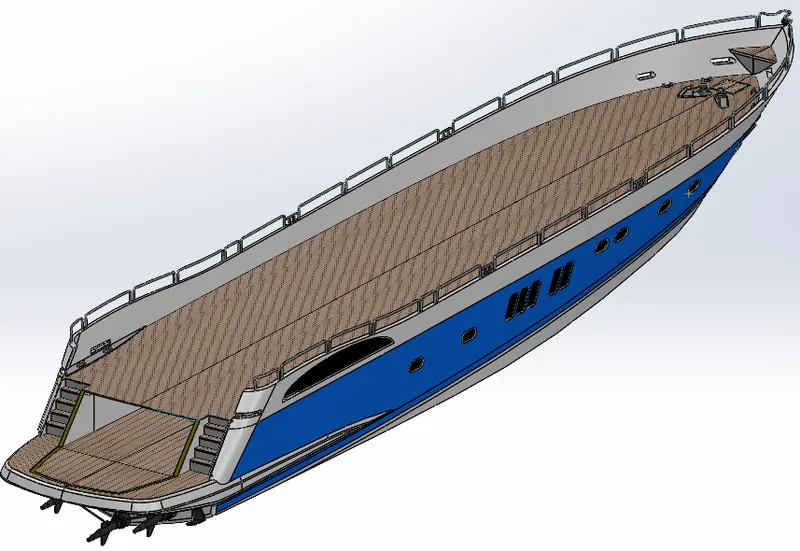

(vii) Isometric view of the Yacht Assembly.
_1610429782.png)

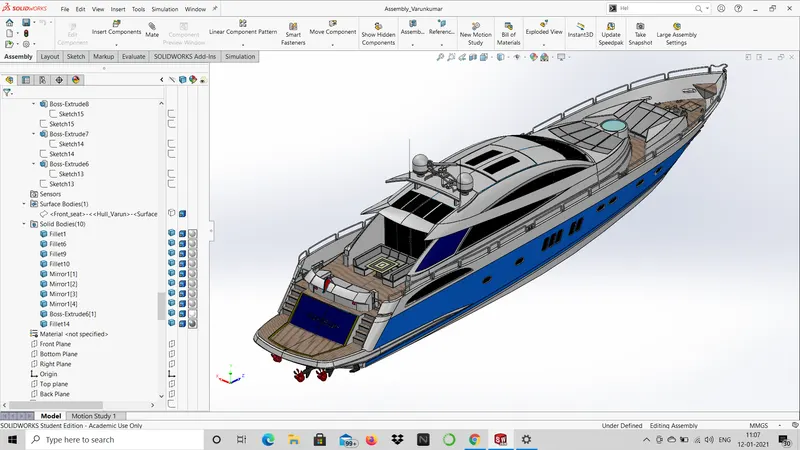

(viii) From Rear side Isometric view of the Yacht Assembly.
_1610429927.png)

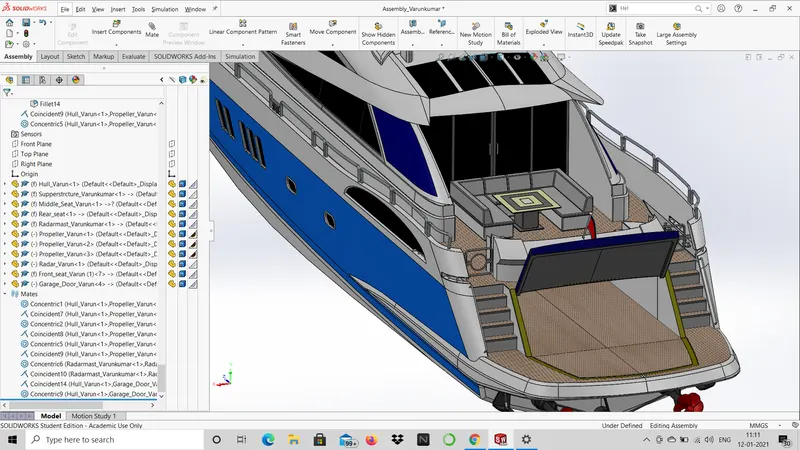

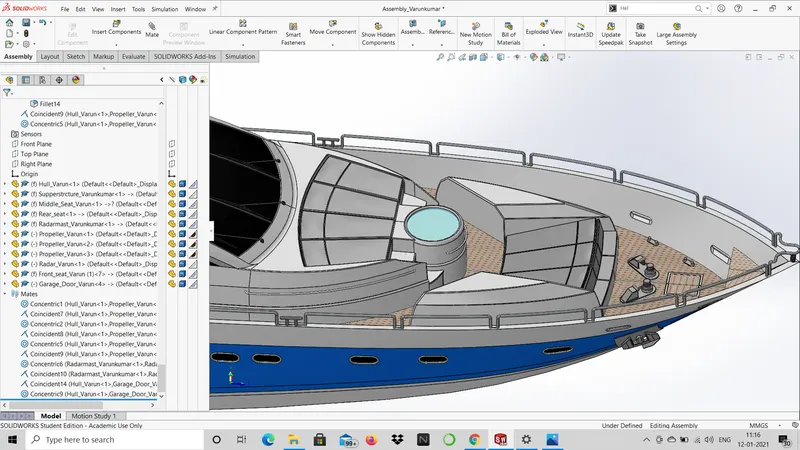

(ix) Carriage view of the Yacht Assembly.
_1610430190.png)

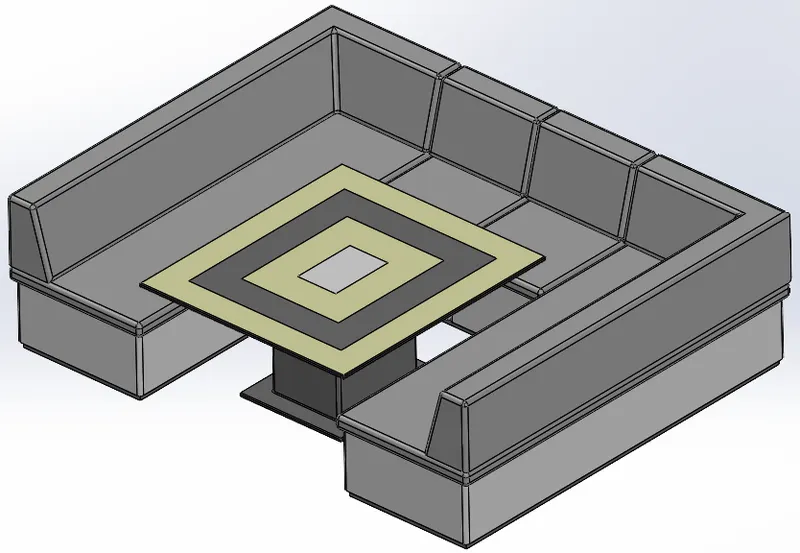

(x) Middle Seat and Back Seat view of the Yacht Assembly.
_1610430333.png)

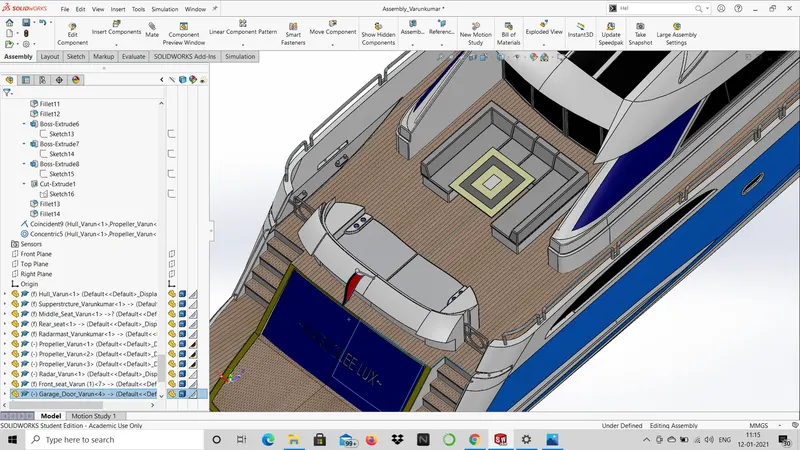

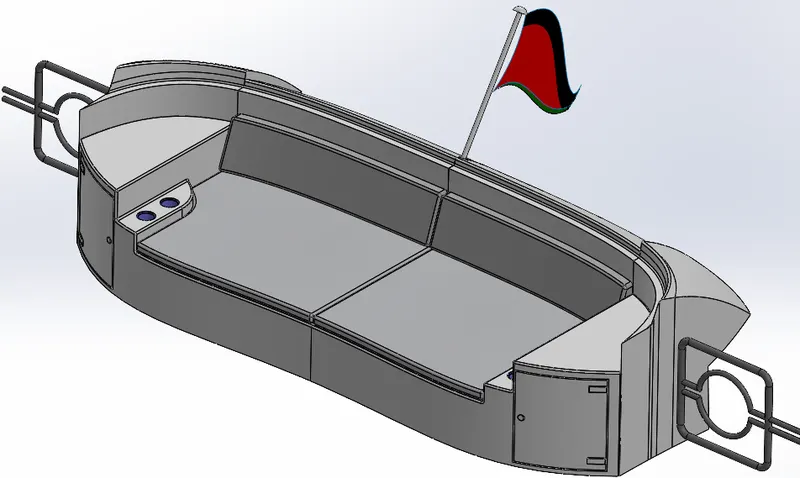

(xi) Front Seat and Waterpool view of the Yacht Assembly.
_1610430465.png)
Rendering Images of Assembly in Solidworks Visuavlize :
(i) Running LUXURY YACHT on Sea.
(ii) Racing LUXURY YACHT with Water Bikes.
(iii) Front Rendering Image of LUXURY YACHT.
(iv) Some other Rendering Image of LUXURY YACHT.
Conclusion.
I here by end my report with good and complete model of LUXURY YACHT.
2.Radar Mast

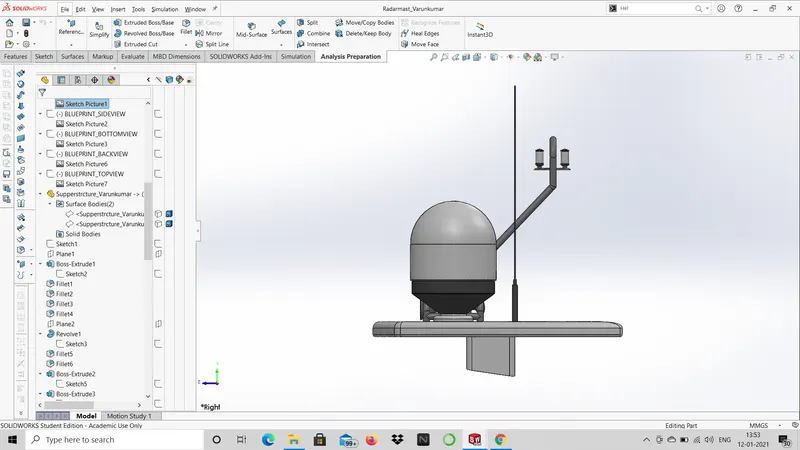

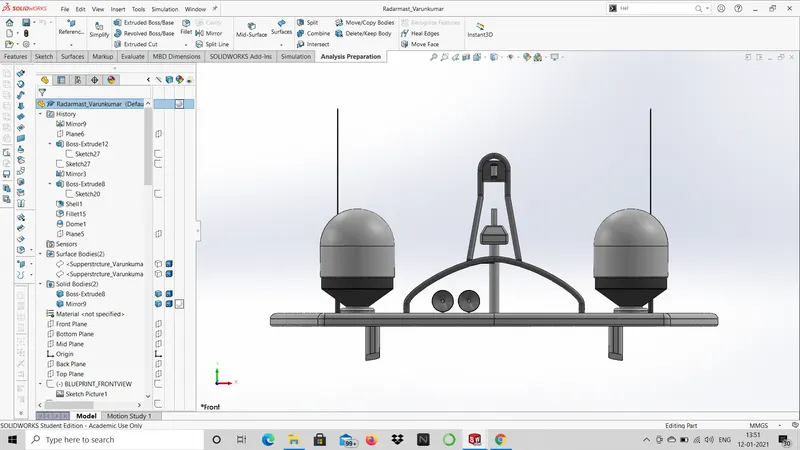

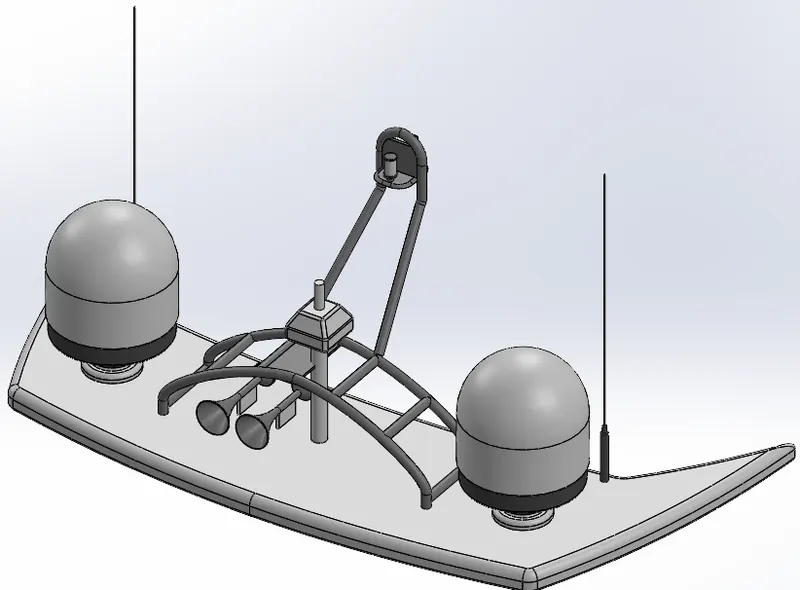

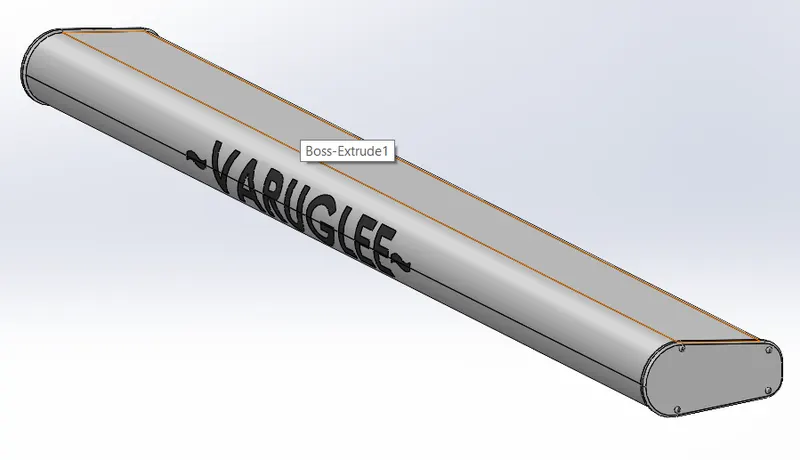

(i) Front view of the Radar Mast.
_1610439786.png)
(ii) Side view of the Radar Mast.
_1610439865.png)

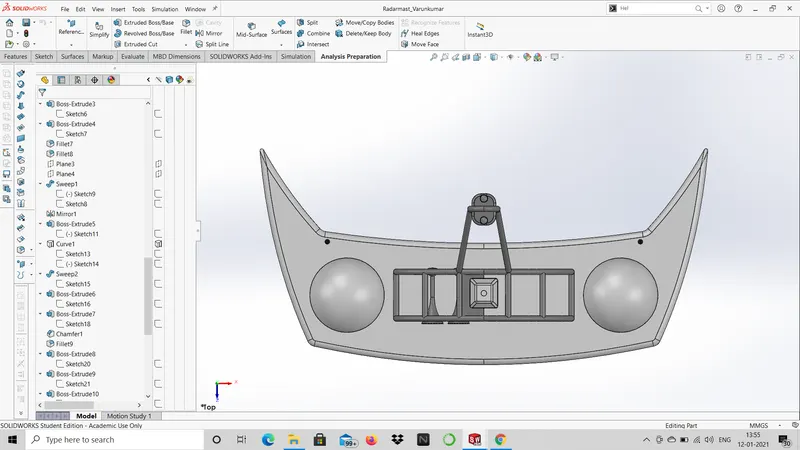

(iii) Top view of the Radar Mast.
_1610439933.png)
(iv) Isometric view of the Radar Mast.
_1610440025.png)
