Understanding Plastic Deformation Mechanisms in Crystals

In our daily lives, we interact with countless materials that are subject to wear, tear, and reshaping. From stretching a rubber band to bending a metal rod, these changes in shape are called deformations. Some materials bounce back to their original state, while others undergo permanent changes. This behavior is fundamental to how materials function and are used in engineering applications. When materials are stressed beyond their limits, they undergo permanent deformation—a concept that plays a crucial role in fields like material science and mechanical engineering. This blog will delve into plastic deformation mechanisms, especially in crystals, to explain how materials behave under stress and what that means for their real-world applications.

What is Plastic Deformation?

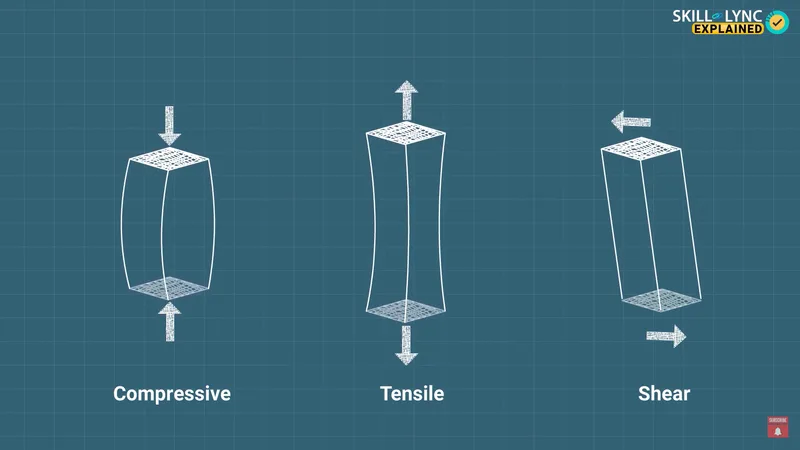

Plastic deformation refers to the permanent change in the shape or size of a material when subjected to stress beyond its elastic limit. While elastic deformation is reversible, plastic deformation is not. Once the material is stressed beyond a certain point, it cannot return to its original shape. This concept is crucial in understanding the behavior of metals and other materials under various types of loads, such as tensile, compressive, or shear forces.

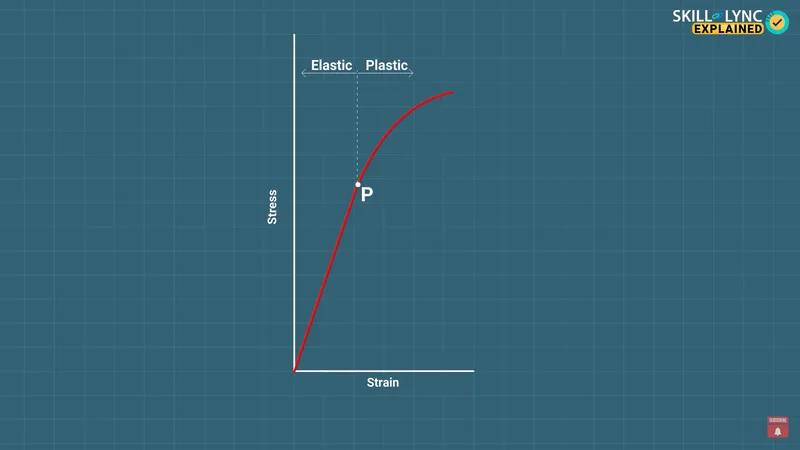

The plastic deformation graph shows the relationship between the applied stress and the resulting strain. Initially, the material deforms elastically, but after exceeding the elastic limit, the deformation becomes plastic, eventually leading to potential fracture if the stress continues.

Mechanisms of Plastic Deformation in Crystals

In crystalline solids, plastic deformation occurs through two primary mechanisms: slip and twinning. Both of these mechanisms involve atomic movements within the crystal structure, leading to changes in the material's shape. Let’s explore each in detail.

1. Slip Mechanism

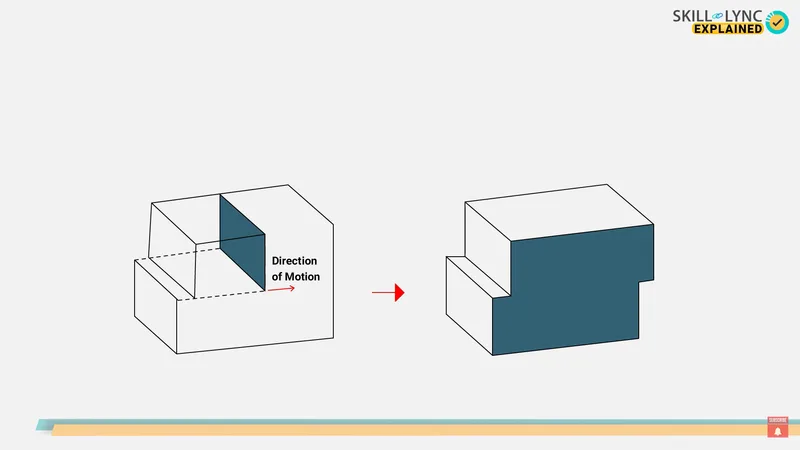

The most common mechanism of plastic deformation in metals is the slip mechanism. In this process, different parts of the crystal glide over each other. Imagine it like sliding cards in a deck – the atoms in one section of the crystal slide over another section.

During slip, dislocations occur within the crystal structure. These are defects or misalignments in the atomic arrangement. Dislocations can arise due to two different causes:

• Edge dislocation: This occurs when there is a distortion due to an extra half-plane of atoms in the crystal structure.
• Screw dislocation: In this case, the line of distortion passes through the center of the atomic plane.

Slip deformations are continuous and occur throughout a single crystal structure. However, in polycrystalline materials, grain boundaries influence the direction of slip, leading to deformations in different orientations.

The slip plane is the plane where the slip occurs, and the slip direction is the direction along which atoms move during slip. Together, these form the slip system. For face-centered cubic (FCC) crystals, the plane with the highest atomic density acts as the slip plane.

2. Twinning Mechanism

Another important mechanism of plastic deformation by twinning occurs when a shear force is applied, resulting in atomic displacement that mirrors one side of the crystal with the other. The twin plane is the area where this mirror-like transformation happens. In some cases, more than one twin plane may exist during the twinning process.

Twinning requires higher shear force than the slip mechanism, but it is crucial in situations where slip is limited, such as in materials with Hexagonal Close-Packed (HCP) structures.

Plastic Deformation in Metals

In metals, plastic deformation mechanisms are essential for shaping and forming materials for various industrial applications. The ability of metals to undergo plastic deformation without breaking makes them highly versatile for manufacturing processes such as forging, rolling, and extrusion.

When metals deform plastically, their crystal structures may change or remain the same. In most cases, x-ray diffraction studies reveal that the crystal structure stays intact even after deformation, although dislocations and defects occur.

Applications and Importance of Understanding Plastic Deformation

Understanding plastic deformation is critical in fields like materials science and engineering. By studying how materials deform under different stresses, engineers can prevent failures due to plastic deformation and ensure the structural integrity of components in industries such as automotive, aerospace, and construction.

For example, in metalworking processes, controlling plastic deformation allows for the production of materials with desired mechanical properties. Additionally, understanding plastic deformation in metals helps in predicting when a material will fracture, allowing for the design of safer and more reliable products.

Conclusion

Plastic deformation is a key concept in understanding how materials, particularly metals, respond to stress. By knowing the mechanisms behind plastic deformation, such as slip and twinning, we can better predict the behavior of materials in different conditions and design more durable and efficient structures.

We hope this blog helped you understand the plastic deformation definition and its importance. If you're studying or working in the field of materials science, this is an essential topic to grasp. Stay tuned for more insightful content on material properties and engineering!
