Types of Steel Structural Connections: A Guide for Civil Engineers

Structural steel connections are crucial to any steel structure, which is vital in forming a stable and secure connection. Over the years, various steel connections have been developed, each designed for a specific purpose. The importance of proper steel connections cannot be overstated, as they directly impact a steel structure's integrity and overall safety. By selecting the appropriate connection type for a given application and ensuring it is appropriately installed, engineers can ensure that a steel structure will perform as intended, even under extreme conditions.



Today, skilled structural engineers are in high demand in many parts of the world, particularly in areas experiencing significant growth and development. According to the US Bureau of Labor Statistics, employment of civil engineers, including structural engineers, is projected to grow 2% from 2019 to 2029, adding about 11,100 new jobs.

With the increasing need for infrastructure and new construction projects, many opportunities are available for skilled and knowledgeable structural engineers. A report by the consulting firm Deloitte highlights the growing demand for infrastructure globally and notes that the construction industry will require new talent, including structural engineers, to support this growth.

What Are Steel Structural Connections?

Steel structural connections are vital to modern structures, providing the strength and stability to support heavy loads and withstand lateral forces. There are numerous types of steel connections, including rivets, bolts, and welds, each designed for specific purposes and applications.

Proper selection and installation of steel connections are critical to ensure teh safety of a building. Installing steel connections requires careful planning and execution. Poor installation can lead to structural failure and compromise the safety of the building occupants. Therefore, following the manufacturer's instructions and industry standards when installing steel connections is essential.

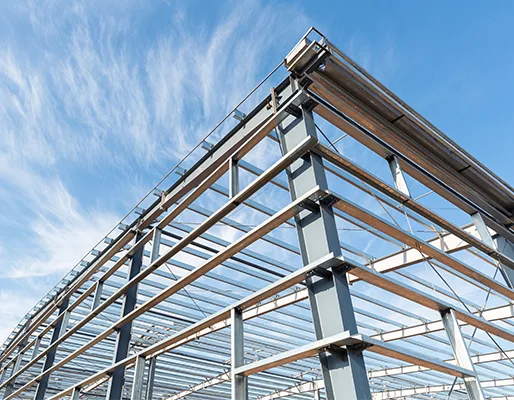

Types of Steel Structural Connections

There are several types of steel structural connections commonly used in construction. The selection of a particular type of connection depends on various factors, including the design requirements, load transfer, and the nature of the structure. Here are some of the most common types of steel structural connections:

• Welded Connections

These are widely used and effective steel connections in modern construction. By melting and fusing two or more steel members, a welded connection creates a solid and permanent joint that requires no additional support or bracing to maintain its strength. Additionally, welding is a relatively simple and cost-effective method for connecting steel members, making it an attractive choice for various applications.

Several types of welds are commonly used in joining two or more metal components. A butt weld is used when the members to be joined are lined up in the same plane. This type of weld is often used for longitudinal joints. A fillet weld is used when two surfaces intersecting at an angle are welded together. This type of weld is commonly used for corner joints, T-joints, and lap joints. A slot or plug weld involves cutting a slot or hole into one of the plates to be joined and welding around the perimeter. This type of weld is used to join two plates or sheets together.

Welded joints are typically more rigid compared to bolted joints because of cross-section continuity.

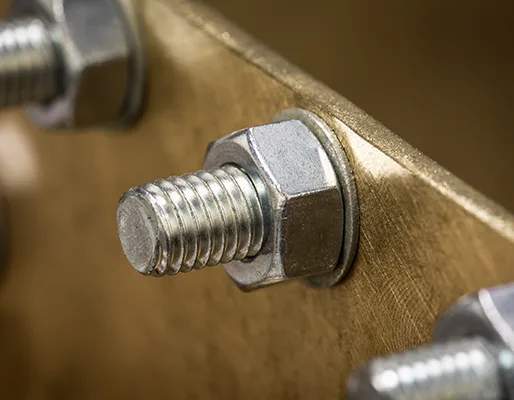

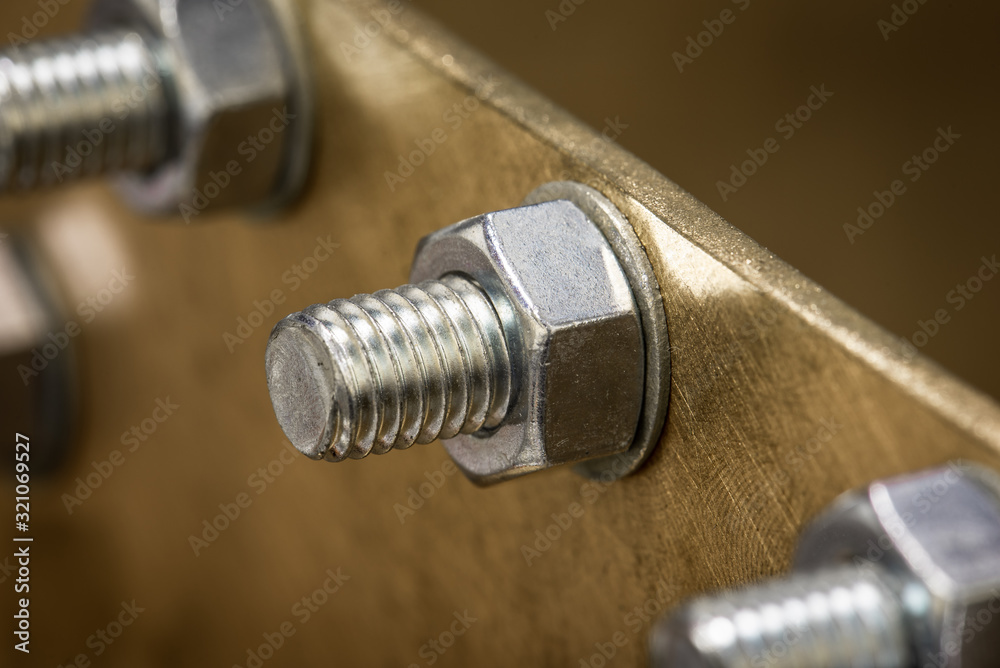

• Bolted Connections

These are tried and true steel connection methods used for centuries. This type of connection involves securing two or more steel members together using heavy-duty bolts and nuts. Bolted connections are highly effective, and their strength depends on the size and grade of the bolts used. Unlike welded connections, bolted connections require additional support or bracing to maintain stability over time. The bolts may loosen or become damaged under certain conditions, and proper maintenance is necessary.

• Riveted Connections

These steel connections use rivets to join two or more steel members together. This method is similar to bolted connections, but rivets, unlike bolts and nuts, create a permanent connection between the members. Riveting provides a strong and durable connection but requires extra support or bracing to maintain its strength over time. Due to its slower installation time than welding or bolting, riveting is typically reserved for larger projects where strength and longevity are more important than speed.

The classification of rivets is based on their installation method and location. Hot-driven rivets are installed in hot conditions, shop rivets in a workshop, and field rivets are installed on-site or in the field. On the other hand, cold-driven rivets are limited in their application due to the high pressure required to form the head at room temperature.

• Lapped Connections

These are unique types of steel connections that do not require any fasteners. Instead, they use two overlapping plates welded along their edges to create a strong bond between two steel members. Lapped connections are typically used when space is limited, or other fastening methods are not feasible because of environmental conditions such as corrosion or moisture buildup on the joined surfaces.

Conclusion

The U.S. Bureau of Labor Statistics predicts that the demand for skilled civil engineers will increase by 2% annually till 2029. To take advantage of this booming career opportunity, acquiring relevant skills and experience through industrial projects is essential.
