Menu

Executive Programs

Workshops

Projects

Blogs

Careers

Student Reviews



More

Academic Training

Informative Articles

Find Jobs

We are Hiring!


All Courses

Choose a category

Loading...

All Courses

All Courses

logo

Design and Analysis of Piperack Structures using STAAD.Pro

Get specialised in designing steel pipe racks for any application using STAAD.Pro by learning the expert-curated course on pipe rack structure. You will master the techniques and modern industry-standard practices through the mentor-led pipe rack design course.

Book a Class, for FREE

RELATED RECENT PLACEMENTS

Jayesh Suryawanshi

Volkswagen (I) Pvt. Ltd.,

RMD Sinhgad

Mithin SanthaKumar

Timetooth Technology

Cochin University of Science and Technology University in Kochi, Kerala

Manthan Waghaye

Altigreen Propulsion Labs Pvt Ltd

Shri Sant Gajanan Maharaj College Of Engineering

Hemant Sagar

KN Associates

PM polytechnic, Delhi ncr , sonipat

Jangaiah Chikonda

LTTS

ANURAG GROUP OF INSTITUTIONS

sai dinesh

LTTS

usharama college of engineering and technology

Vadapalli A S Krishna Maruthi Srinivas

advance technologies

Jawaharlal Nehru Technological University, Kakinada

Manas Metar

Sphinix World Biz Limited

University of Wolverhampton

Syllabus

This course is full of best-in-class content by leading faculty and industry experts in the form of videos and projects

Course Overview

  • In this course, you will learn about the designing process of pipe racks in the structural engineering software, STAAD Pro.
  • Modelling the pipe rack and applying loads can be complex and confusing in the beginning but in this course, you will get to study details about pipe racks with no worry.
  • No prior experience in STAAD Pro and steel structures is required

Course Syllabus

On a daily basis we talk to companies in the likes of Tata Elxsi and Mahindra to fine tune our curriculum.

Week 01 - Fundamental Aspects of Pipe Racks

  • In this session, you will learn
    • The most fundamental aspects of pipe rack design
    • Introduction to pipe racks
    • Design criteria
      • Shape
      • Future Space
      • Width
      • Clearance

Week 02 - Types of Loads

  • In this session, you will learn
    • Introduction to STAAD.Pro
    • The geometry, application of properties, and material in STAAD.Pro for closed structure pipe rack
    • The load applications in STAAD.Pro for closed structure pipe rack
    • Computing the results and performing trial and error design for closed structure pipe rack
    • The design of pedestal and foundation (typical)
    • The design of the base plate and preparation of the report



Week 03 - Steps in analysis and design of Pipe Racks

  • In this session, you will learn
    • The step by step process of design and analysis of pipe racks
    • The detailed explanation on each step of analysis and design of pipe racks by Indian standards with respect to closed and open structure project
      • Modelling
      • Application of material properties
      • Loads for Closed pipe rack
      • Loads for open pipe rack

Week 04 - Introduction to STAAD.Pro GUI

  • In this session, you will learn about
    • Introduction to STAAD.Pro and connect edition
    • GUI
    • Explanation of various tools in the GUI-Graphic User Interface

Week 05 - STAAD.Pro for Closed Pipe Racks-phase 1 (Geometry Prep)

  • In this session, you will learn
    • Different types of loads such as thermal loads, friction loads etc. acting on the closed pipe rack
    • Geometry preparation
    • Application of properties and materials in STAAD.Pro for closed structure pipe rack.

Week 06 - STAAD.Pro for Closed Pipe Racks-phase 2 (Load application)

  • In this session, you will learn
    • The load applications in STAAD.Pro for closed structure pipe rack
    • The analysis of closed structure pipe rack

Week 07 - STAAD.pro for Closed Pipe Racks-phase 3 (Result computation)

  • In this session, you will learn
    • To compute results
    • To apply a trial and error approach for the design to arrive at the best outcome

Week 08 - STAAD.Pro for Open Pipe Racks-phase 1(Geometry Prep)

  • In this session, you will learn
    • Environmental loads such as wind loads, and external temperature loads acting on an open pipe rack structure
    • Geometry modelling
    • The application of properties and material in STAAD.Pro for open structure pipe rack

Week 09 - STAAD.Pro for Open Pipe Racks-phase 2(Load application)

  • In this session, you will learn
    • Load applications in STAAD.Pro for open structure pipe rack

Week 10 - STAAD.pro for Open Pipe Racks-phase 3 (Result Computation)

  • In this session, you will learn
    • To compute results
    • To apply trial and error approach for the design to arrive at the best outcome

Week 11 - Design of Foundations using STAAD.Pro

  • In this session, you will learn
    • The design of typical foundations
    • Design of pedestal and foundation (typical)

Week 12 - Design of base plate using STAAD.Pro

  • In this session, you will learn
    • To design base plate
    • The steps to present a report

Our courses have been designed by industry experts to help students achieve their dream careers

Industry Projects

Our projects are designed by experts in the industry to reflect industry standards. By working through our projects, Learners will gain a practical understanding of what they will take on at a larger-scale in the industry. In total, there are 2 Projects that are available in this program.

Modelling of a closed pipe rack situated in Ahmedabad

A closed pipe rack has to be modelled incorporating the concepts learned in this course, using STAAD.Pro software. The students will be given dimensions for the design and taking those design considerations into account, the students will have to complete the project and submit the report.

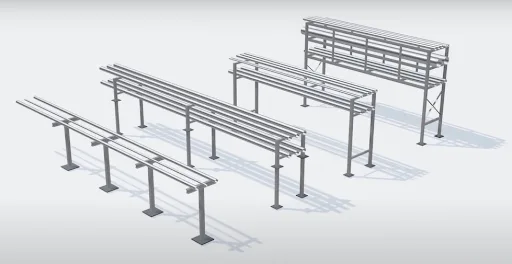

Modelling of an open pipe rack situated in Chennai

An open pipe rack is modelled according to Chennai conditions. The students will be given dimensions for the design and taking gravity, lateral, thermal and friction loads into account, the students will have to complete the project and submit the report.

Our courses have been designed by industry experts to help students achieve their dream careers

Ratings & Reviews by Learners

Skill-Lync has received honest feedback from our learners around the globe.

Google Rating
4.8

Design and Analysis of Piperack Structures Using STAAD.Pro

Pipe racks are structures meant to support pipes, power cables, and instrument cable trays in chemical, petrochemical, and power plants. They form the core arteries of a processing unit. That is why such structures need to have a flawless design. But the design requirements that are found in building codes don't clearly explain how they are applicable to pipe racks. Without this knowledge, it can be a challenge for engineers to create pipe rack designs.

Design and Analysis of Piperack Structures Using STAAD.Pro is an intensive course that teaches you the detailed concepts and procedures needed to create a pipe rack structure for any application. The course summarizes the industry practice design criteria and other design considerations followed in the industry. You learn how to design pipe racks in the structural engineering software STAAD Pro.

Who Should Take Up This Design and Analysis of Piperack Structures Course?

This Design and Analysis of Piperack Structures Course is for candidates from a Civil Engineering background. This course is open to students of all years pursuing their Civil Engineering or Structural Engineering degree.

Anyone who is pursuing post-graduation in Civil Engineering or Structural Engineering of steel can also take up this pipe rack structural design course. They can opt for this as a refresher course if they are planning to make an entry into the Structural Engineering field.

The piperack design structures course is also open for working professionals from a relevant field. If you are employed under a Civil Engineering firm and want to improve your skills in this subject area for your career growth, you can opt for this course.

What Will You Learn?

This STAAD.Pro course will help you to learn how to design pipe racks using the structural engineering software STAAD Pro. You will start with the basics of the pipe racks designing concept and proceed step by step towards the advanced topics. When you enrol in the course, you will learn the following:

  • Fundamental Aspects of Pipe Racks and focus on design criteria including shape, width, future space, and clearance.
  • Types of loads and introduction to STAAD.Pro, connect edition. Focus on geometry and load application in STAAD.Pro for closed and open structure pipe racks. Computing the results and making a trial and error design for closed and open structure pipe racks.
  • Steps in analysis and design of Pipe Racks with detailed explanation for each step concerning closed and open structure projects.
  • Introduction to STAAD.Pro GUI and explanation of various tools in the GUI.
  • Pro for Closed Pipe Racks concerning geometry preparation, load application, and result computation.
  • Pro for Open Pipe Racks concerning geometry preparation, load application, and result computation.
  • Design of typical foundations using STAAD.Pro, including pedestal as well.
  • Design of base plate using STAAD.Pro and step by step process of report preparation and presentation.

Skills You Will Gain

  • You will have hands-on experience in working with STAAD.Pro connect edition.
  • You will also learn GUI (graphic user interface) in STAAD.Pro.
  • You will develop the ability to carry out detailed analysis and step-by-step design of pipe rack structures for any application using the software program quickly and efficiently.

Key Highlights of The Program

  • Merit certificate to be awarded to the top 5% of students, and completion certificates will be provided to all students.
  • The course is of 3 months duration.
  • This course provides a support system of highly experienced professionals Available.
  • The program offers the option of flexible course fee payment.

Career Opportunities After Taking the Course

This course will broaden your perspective of civil engineering. It is a career-oriented course that can widen your chances of establishing your career in the field of structural engineering. You can apply the knowledge acquired through this course to complete your project activities and improve your chances of getting a job in top companies like L&T, Reliance, KEC International, TCE, etc.

Apart from joining a company that employs civil engineering candidates, you can explore another rewarding career option. You can establish your engineering consultancy firm and provide services as a design consultant.

The theoretical knowledge and analytical skills gained through this course will also help you in advancing your academic career and pursuing higher degrees, such as postgraduate studies or PhD degrees.

FAQs on Design and Analysis of Piperack Structures using STAAD.Pro

  1. What software skills are taught in the course?
    This course equips you with STAAD.Pro skills for design and analysis of pipe racks.
  2. What is included in this course?
    The course includes the analysis and design of pipe racks as per Indian standards.
  3. Is the course career-oriented?
    Yes, it is a career-oriented course.
  4. How will this course help me in higher education?
    This course provides you with the analytical skills that are desirable for higher education.
  5. Who can enrol in this course?
    Graduates and postgraduates from the Civil Engineering field and Structural Engineering students can take up this course. It is open to students from first to final years.
  6. What is the mode of instruction in this course?
    The mode of instruction in this course is video-based.
  7. Is this a certification course?
    Yes, this is a certification course.
  8. What is the minimum time needed to complete this course?
    You will need a minimum of 12 weeks to complete this course.

Flexible Pricing

Talk to our career counsellors to get flexible payment options.

Premium

INR 40,000

Inclusive of all charges


Become job ready with our comprehensive industry focused curriculum for freshers & early career professionals

  • 1 Year Accessto Skill-Lync’s Learning Management System (LMS)

  • Personalized Pageto showcase Projects & Certifications

  • Live Individual & Group Sessionsto resolve queries, Discuss Progress and Study Plans.

  • Personalized & Hands-OnSupport over Mail, Telephone for Query Resolution & Overall Learner Progress.

  • Job-Oriented Industry Relevant Curriculumavailable at your fingertips curated by Global Industry Experts along with Live Sessions.

Instructors profiles

Our courses are designed by leading academicians and experienced industry professionals.


1 industry expert

Our instructors are industry experts along with a passion to teach.


9 years in the experience range

Instructors with 9 years extensive industry experience.


Areas of expertise

  • Structural Engineering

Similar Courses

Got more questions?

Talk to our Team Directly

Please fill in your number & an expert from our team will call you shortly.

Please enter a valid number
