Mastering Form and Location Tolerances in AutoCAD

logo

Skill-Lync

Welcome to our in-depth look into form and location tolerances as part of the AutoCAD Essentials for Mechanical Engineers blog series. Understanding these tolerances is crucial when working with CAD software to ensure that parts meet design specifications and function effectively in assemblies. This guide explores straightness, flatness, circularity, cylindricity, and their applications in AutoCAD mechanical drawings.


Form Tolerances

Form tolerances define the shape accuracy of individual elements on a part and are vital in AutoCAD 2D and 3D CAD programs. These tolerances ensure that parts fit together properly, especially in high-precision engineering.

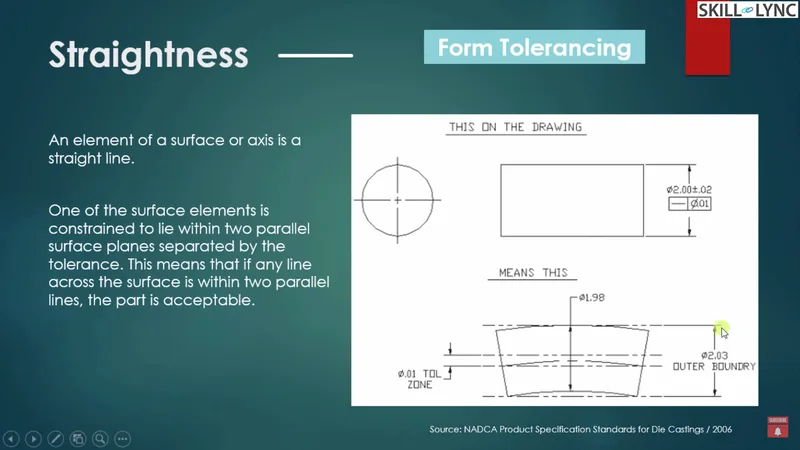

Straightness

Straightness tolerance controls the allowable variation along a straight line on a part's surface. This form tolerance is symbolized by a straight line. When applied to a circular shaft, for example, straightness constrains the shaft’s cross-section within two parallel planes spaced by a specified tolerance.

For example:

Suppose a circular shaft has a straightness tolerance of ±0.01 mm. This means that the shaft’s centerline must remain within a tolerance zone of 0.01 mm, ensuring that no point deviates beyond this limit. Straightness tolerances are essential in components like shafts where precision alignment is necessary.

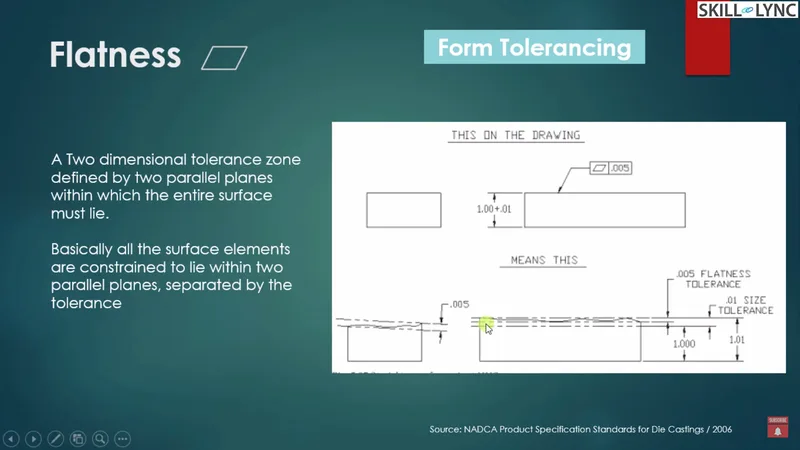

Flatness

Flatness extends straightness to a 2D surface. Represented by two parallel planes, this tolerance ensures that all surface points remain within a specified flatness zone. In AutoCAD essentials or AutoCAD mechanical crash courses, students learn that flatness ensures no single point protrudes beyond the allowed zone, keeping parts level and stable.

Example:

For a surface with a base dimension of 1 mm and a flatness tolerance of ±0.05 mm, every point on the surface must lie within a zone defined by these planes, ensuring stability and precision.

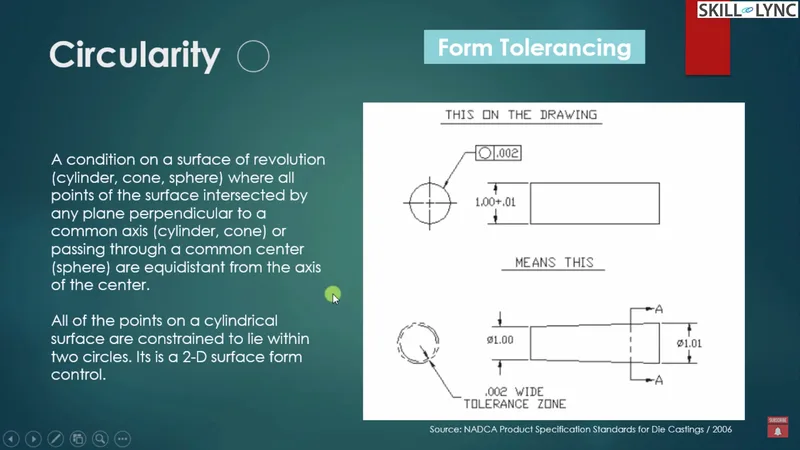

Circularity

Circularity, or roundness, is represented by a circle and applies to revolved surfaces like cylinders or cones. This tolerance ensures that all points on a circular cross-section lie within two concentric circles, maintaining the part's symmetry.

Example:

A cylinder with a size tolerance of 1 ± 0.1 mm and circularity tolerance of 0.02 mm must have all surface points within two circles spaced 0.02 mm apart, preserving the cylinder’s roundness.

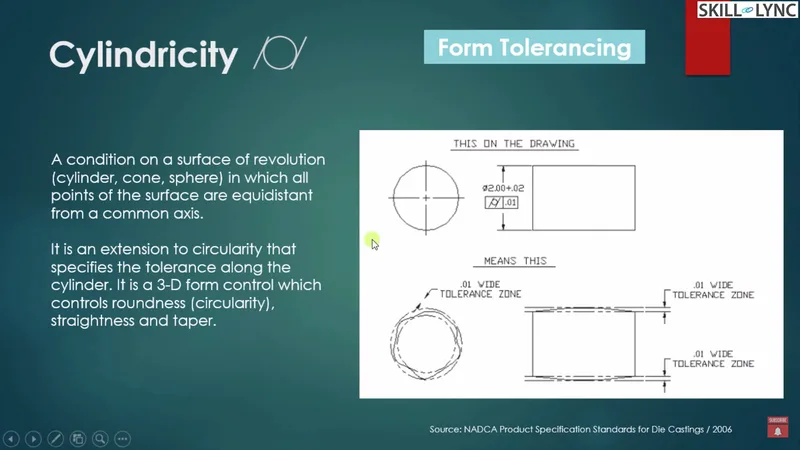

Cylindricity

Cylindricity extends circularity to three dimensions, controlling a cylindrical surface’s form accuracy along its length. In AutoCAD for mechanical engineers, this tolerance is crucial for components like precision shafts and tubes.

Example:

A shaft with a diameter of 2 mm and cylindricity tolerance of 0.01 mm must maintain its roundness and straightness within a tolerance zone, ensuring consistent diameter across the entire length.

Location Tolerances

While form tolerances control individual features, location tolerances manage the positioning of features relative to a datum or reference frame, which is foundational in AutoCAD essential training.

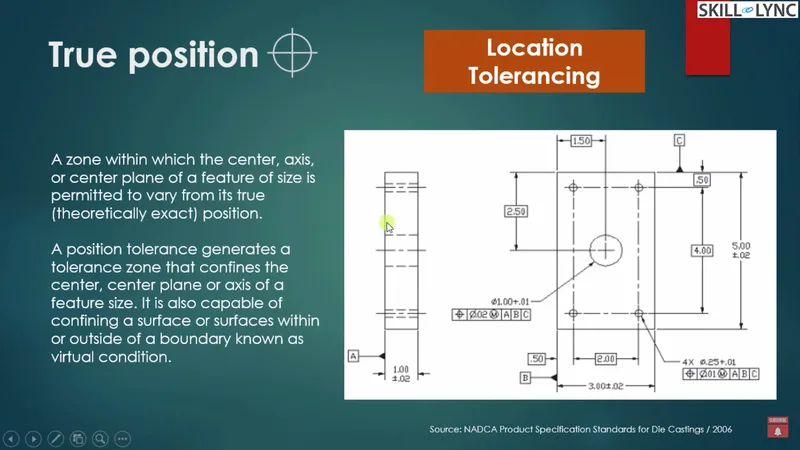

Position Tolerance

Position tolerance confines the location of a feature’s centerline within a specific tolerance zone. In AutoCAD 2D drawings for beginners, position tolerance is introduced to manage the allowable deviation from an exact location.

Example

If a hole on a rectangular plate must be positioned within 0.02 mm of a specified datum, the centerline must remain within this tolerance zone, ensuring precise alignment with surrounding features.

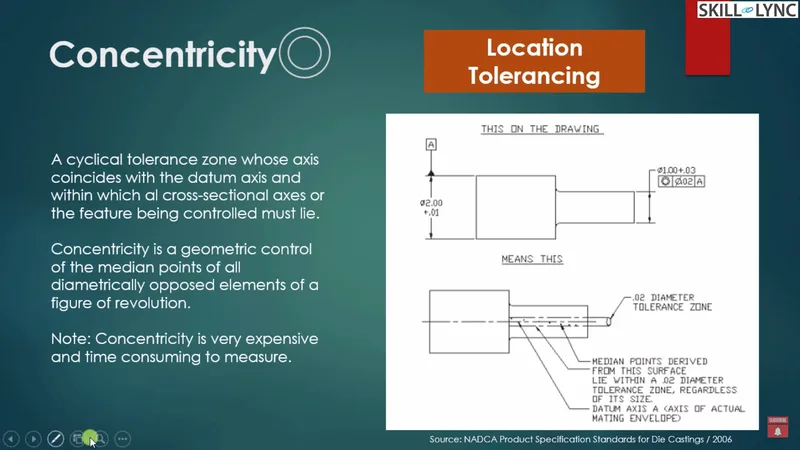

Concentricity

Concentricity controls the center axis alignment of two or more features. The concentricity tolerance zone is a cylindrical area within which all center points of the features must lie.

Example

For a shaft with concentricity tolerance of 0.2 mm, all median points of the shaft must remain within a diameter of 0.2 mm relative to a datum axis. Concentricity is a complex, often costly measurement, reserved for critical features.

Symmetry

Symmetry tolerance is applied to ensure that two features are symmetrically aligned. It requires that all median points on opposite features remain equidistant from a datum centerline, maintaining balance and alignment.

Example

For two surfaces with a symmetry tolerance of 0.02 mm aligned along a central plane, all median points must lie within this zone, ensuring balance across assemblies.


Orientation Tolerances

Orientation tolerances define the relationship between features by controlling the angles between surfaces, essential in assemblies where alignment impacts functionality.


Perpendicularity, Parallelism, and Angularity

These orientation tolerances manage how well surfaces relate to each other, with perpendicularity ensuring a 90-degree angle, parallelism keeping surfaces evenly spaced, and angularity setting a specific angle. These tolerances provide control over angles and planes, crucial in AutoCAD mechanical applications.


Practical Application in AutoCAD

Integrating these tolerances in AutoCAD ensures that every part meets functional and quality requirements, aligning with international standards. For anyone exploring AutoCAD training or online courses with certificates, understanding form, location, and orientation tolerances is vital for professional growth.

By mastering these elements, AutoCAD for engineers becomes more than just drawing software; it transforms into a powerful tool for creating precise, functional designs. Whether you’re studying AutoCAD 2D or AutoCAD 3D applications, using these tolerances effectively ensures your projects maintain professional standards.

In our next blog, we’ll dive into the specifics of GD&T symbols and material condition modifiers. Stay tuned for more insights, and explore our AutoCAD online course with certification to master these essentials and build a strong foundation in mechanical engineering design!


This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
