Exploring the Different Aircraft Tail Designs

Hey everyone! Welcome to our blog. Today, we’re diving into an intriguing topic that any frequent flyer or aircraft enthusiast may have noticed—different types of aircraft tail designs. If you've ever traveled by air, you’ve likely observed that airlines use larger turbojet aircraft for long-haul flights and smaller propeller planes for shorter trips. But did you know there’s something peculiar about the tail sections of these different aircraft?

Before we get into the specifics of aircraft tail types, let’s first familiarize ourselves with some basic aircraft terminologies.

Understanding Key Aircraft Components

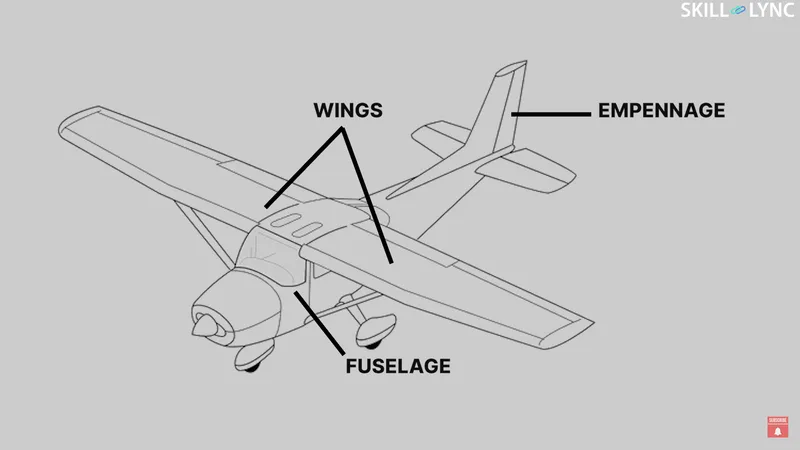

An airplane is generally divided into three main parts during the manufacturing process:

• Fuselage – This is the hollow body of the aircraft, designed to carry passengers or cargo.
• Wings – These provide lift to keep the aircraft airborne.
• Empennage – Also known as the tail section, this part is responsible for providing directional stability and control to the aircraft.

In this blog, we’ll specifically discuss various aircraft tail configurations, focusing on five of the most widely used designs across the aviation industry.

Why Aircraft Tail Wings Matter

The aircraft tail wings, or the empennage, are crucial for maintaining stability during flight. They ensure that the plane flies straight and responds correctly to pilot inputs. However, aircraft are built with different design parameters, meaning the wings, body, and tail section vary according to the aircraft’s intended function. This results in several distinct aircraft tail designs. While there are over ten types of aircraft tail configurations used globally, we will focus on the five most common ones.

The 5 Most Common Aircraft Tail Designs

1. Conventional Empennage Design

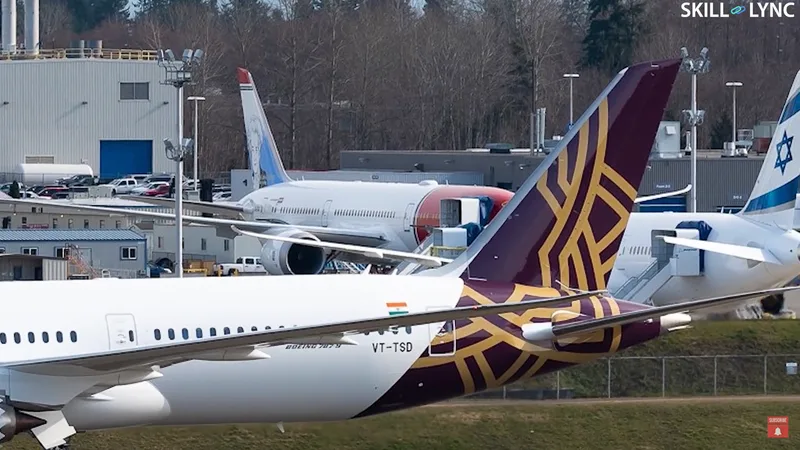

The conventional tail design is by far the most commonly used in commercial aircraft, accounting for roughly 70% of planes worldwide. This aircraft tail design is popular because it is lightweight, easy to manufacture, and simpler to maintain. However, one notable drawback is its size—conventional tails can be quite large. Take the Airbus A380, for example, where the aircraft tail section is significantly taller than the fuselage itself.

2. T-Tail Design

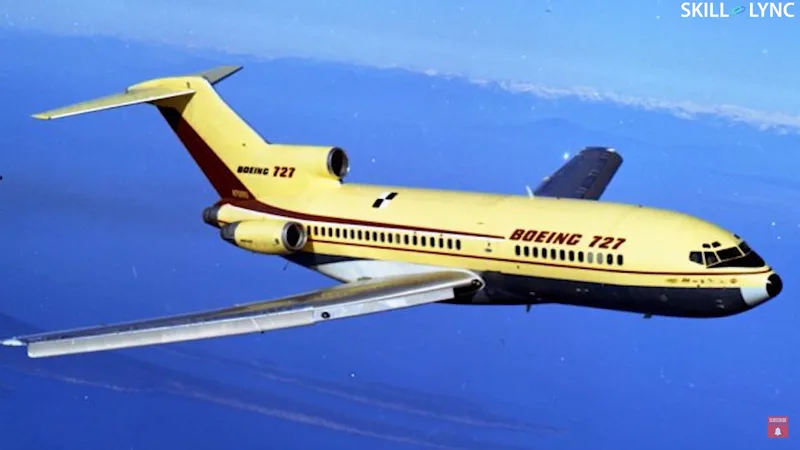

Next up is the T-tail design, which is frequently found on smaller business jets and tri-jets. A prime example of this is the Boeing 707. In tri-jets, the T-tail configuration allows for engines to be mounted on the fuselage, improving aerodynamics and stability. Smaller aircraft also use this design due to limited ground clearance, which prevents engines from being mounted below the wings.

3. H-Tail Design

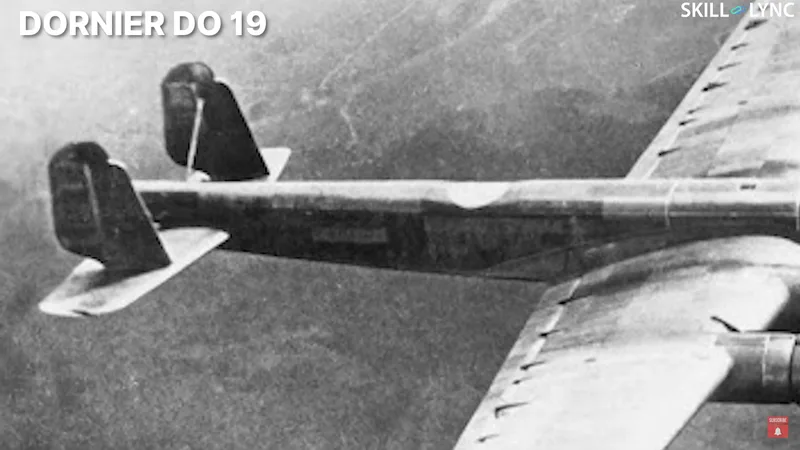

The H-tail design was widely used in older piston-engine aircraft, especially during World War II. One significant advantage of the H-tail configuration is its ability to leverage the end plate effect, which helps reduce the sideways flow of air over the wings. Additionally, placing the rudders directly behind the propellers increased stability by harnessing the propeller’s airflow. This aircraft tail configuration allowed for greater control during flight, making it a popular choice for military planes of that era.

4. Twin-Tail Design

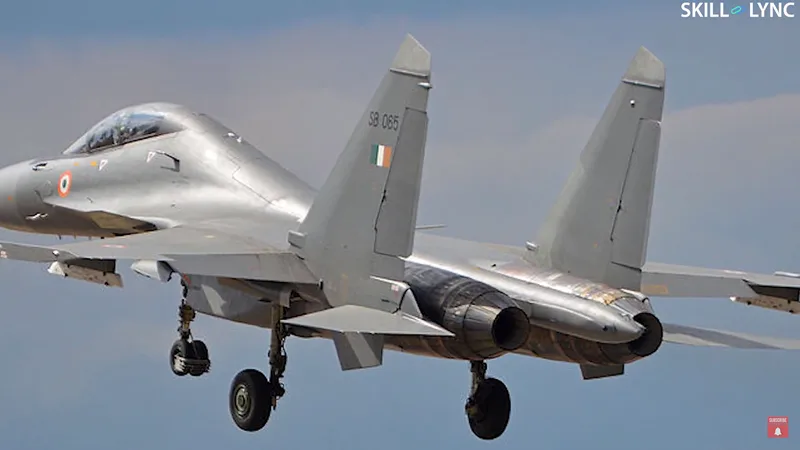

The twin-tail design is primarily used in fighter jets, and for good reason. Fighter jets need large vertical stabilizers for stability, but having a large rudder increases the radar cross-section, making them easier to detect. By splitting one large rudder into two smaller ones, the twin-tail configuration reduces the radar cross-section, which is essential for stealth. Additionally, this design decreases the aircraft's height, which is particularly beneficial for carrier-based aircraft where hangar space is limited.

5. V-Tail Design

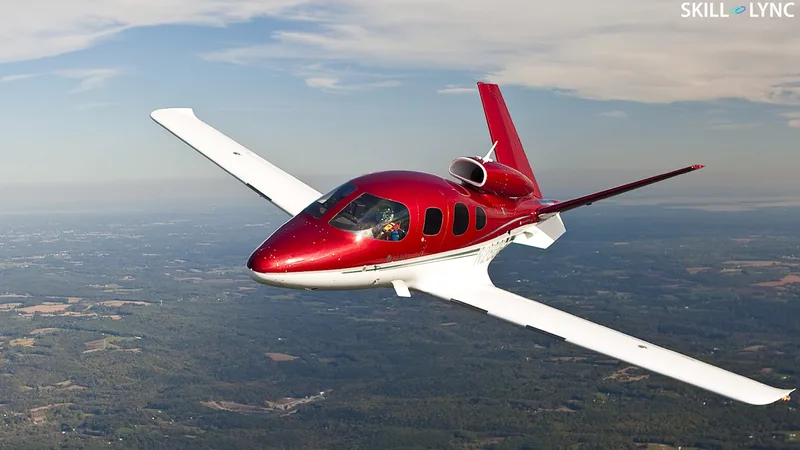

Lastly, we have the V-tail design, also known as the “ruddervator” design. This tail structure combines the functions of both the rudder and elevator into one control surface, reducing the number of components and, consequently, the overall weight of the aircraft. This aircraft tail design is common in ultralight planes, drones, and some unmanned aerial vehicles (UAVs). Its lightweight nature makes it ideal for aircraft where minimizing weight is a priority.

Conclusion

Each aircraft tail engineer carefully selects a tail design based on the specific needs of the plane, balancing factors like weight, stability, radar visibility, and manufacturing ease. Whether it’s the common conventional tail or the more specialized V-tail, each aircraft tail section plays a vital role in ensuring smooth, controlled flights.

That's all for today’s discussion on aircraft tail parts and configurations. Stay tuned for our next blog.

Happy Reading!
