Week 9 - Project 1 - Door Trim Lower with Engineering Features

AIM The objective of this project is to design a butterfly valve and apply GD&T to it's components and final assembly using Siemens NX INTRODUCTION  A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn.…

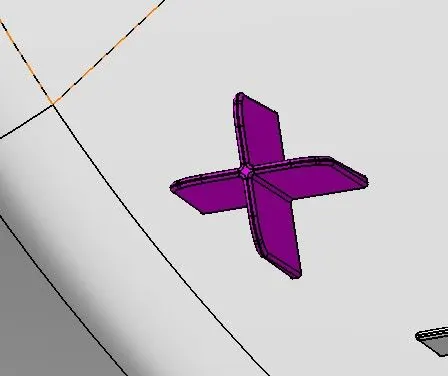

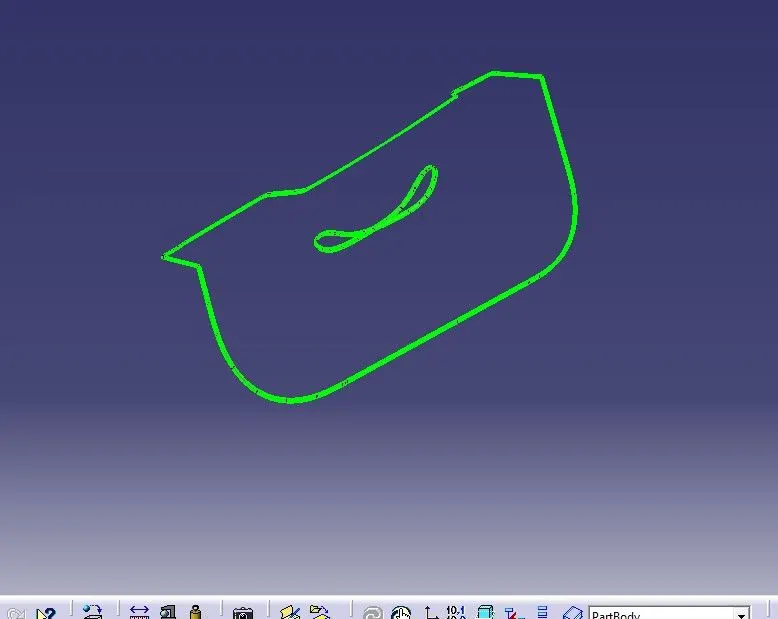

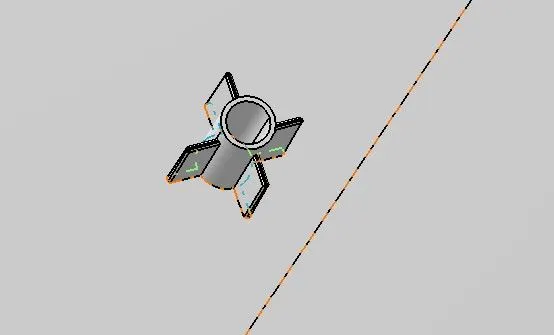

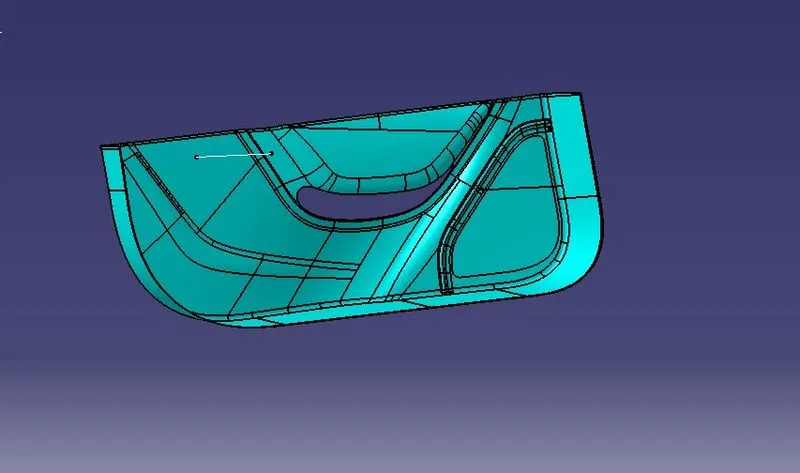

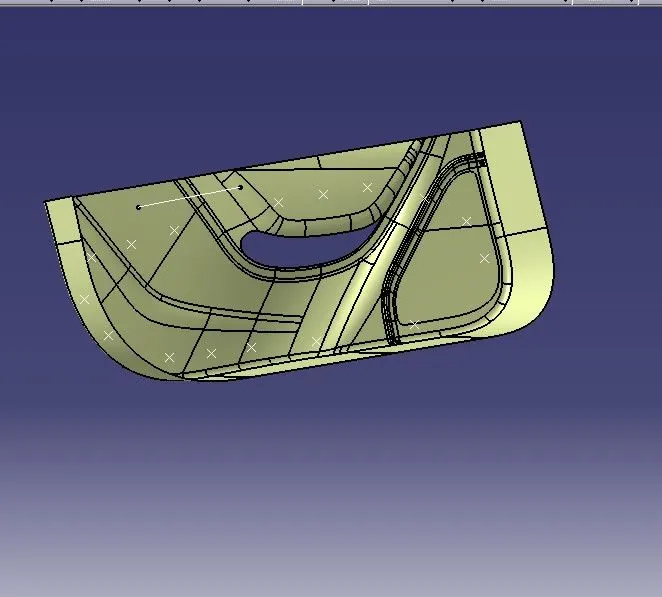

AIM:- To create a solid body of Side Door plastic trim including the engineering features using CATIA V5 tool using the  given Class A surface and master section and adding thickness to the component Objective:  Creation of side door trim panle from given class A surface . Apply thickness to it and use attachment features…

AIM:- To create a solid body of Side Door plastic trim including the engineering features using CATIA V5 tool using the  given Class A surface and master section and adding thickness to the component Objective:  Creation of side door trim panle from given class A surface . Apply thickness to it and use attachment features…

AIM:- To create a solid body of Side Door plastic trim including the engineering features using CATIA V5 tool using the  given Class A surface and master section and adding thickness to the component Objective:  Creation of side door trim panle from given class A surface . Apply thickness to it and use attachment…

Aim      Route the Wiring Harness on given Car body and prepare flatten view drawing in Catia V5 Objective               The objective of this project is to route the wiring harness and prepare flatten view drawing for the tailgate of the car. All types of packaging rules…

AIM: To design and develop the Wire Harness Routing for the given V16 Engine by following the design and packaging rules.   OBJECTIVE: To define all the connectors electrically and save it in the Catalogue. To place all the connectors and cavities at the required position. To place P Clamps and Fir Tree clips at the…

AIM: TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY. HARNESS ASSEMBLY: HARNESS FLATTENING: WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS. WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE. CHOOSING A SUITABLE PLANE WE FLATTEN…

AIM-   Route two electrical harnesses as per the given layout and interconnect them as a single harness assembly and then check for bundle continuity, bundle warnings, and then give annotations to the final harness assembly. CONTENT- The following steps are to be done to complete this project. STEP 1 Define all…

The following was defined for all the connectors: Connector connection point  bundle connection point axis system at the connector connection point define all the connectors as electrical components The connectors were assembled as the given diagram We use the multi branchable to add all the necessary brances , branch…

Q1. Download following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties. Hellarmann Tyton – 21160129 process: Create two points one as entry and another as exit point. create planes at two points and another at base. Switch to Electric…

AIM:  Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.       CONNECTOR DEFINATIONS IN CATIA V5 1. Deutsch DT06 – 08SA Connector connection point: Create midpoint on…

Bar Quick Return Mechanism: First we have to create the all parts of this mechanism and then assemble this Creation of First part: Creation of second part: Creation of third part: Creation of fourth part:   Creation of fifth part: Assembly of all parts   Creation of CV JOINT: First we have to create the all parts…

Aim:  To create a A Piller Plastic Component through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface and final plastic component.…

Aim:  To create a Dog house Plastic Component through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface and…

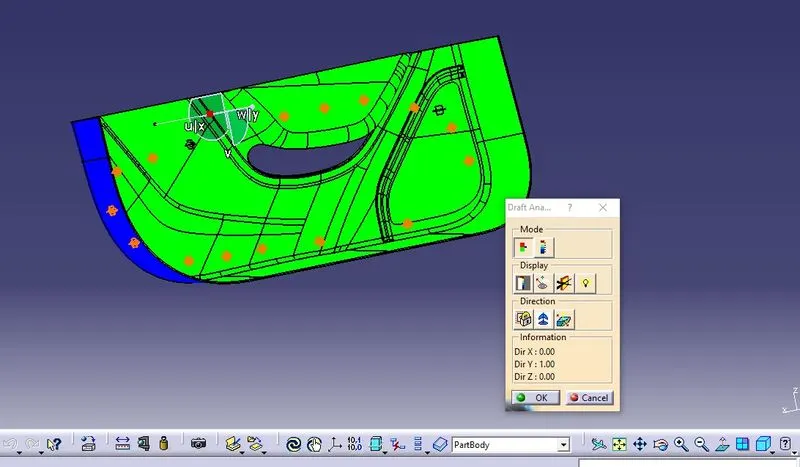

Aim:  To create a Door Trim Lower with Engineering Features through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class…

AIM: -  TO CREATE THE RIB FOR THE DRILL HANDLE CONSIDERING DESIGN RULE.      Rib & Screw Boss are the Engineering Features which is on "B surface”, They have some Design Rules to avoid Plastic defects.             1)RIBS: - Ribs are usually designed…

AIM: To create the core and cavity for the switch bezel considering all design rules.   TOOLING AXIS: IT IS THE AXIS IN WHICH THE DIRECTION CORE AND CAVITY OPEN. THIS IS THE VERY IMPORTANT FOR PRODUCTION OF PLASTIC COMPONENT. MOST OF THE DEFECT WILL DONE IMPROPER TOOLING AXIS CREATION BY THE PLASTI DESIGNER.  …

Aim:  To create a Bumper Plastic Component through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface and final…

Aim:  To create a Coin Holder Component through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface and final…

Aim:  To create a Switch Bezel Plastic Component through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface…

Aim:  To create a Base Bracket Plastic Component through a given Class A Surface and perform Draft Analysis on the final plastic component.   Objectives:   Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface…

Aim   To design the back door of the car using the appropriate design methodologies providing the necessary reinforcement and emboss in the inner panel for strength. Parts and design methodologies:   Outer Panel:     The outer panel is the styling surface of the back door. It is a source of the…

Roof:    An automobile roof or car top is portion of an Automobile that sits above the passenger compartment, Protecting the vehicle Occupants from sun, wind, rain and other external elements. The roof itself may be considered of soft or Rigid materials. Soft tops are made of vinyl, canvas or other textile material…

Aim:    To calculate the section modulus of their previously designed hood for analyzing its strength And also Optimizing the design to see the difference in the bending strength of the hood. Higher the section modulus of structure the more the resistive it becomes to bending. Section modules:  Section modulus.…

Aim: To design the car fender according to the given decent parameter related to industry standards. Fender: The part of an Automobile that cover the wheel to prevent sand, Stone. Liquid and other. Roadside materials to be thrown into air by rotating type. This helps to secure pedestrians from Accidents and engines compartment…

Aim:        To create a report on fender regulation and to calculate the wheel area and prove whether the car will pass the standard are not by using the European standards. Fender:          A fender is the part of the car that product and frames its wheels and keeps mud from…

Introduction:                         Bonnet is an important component of the front portion of the car which is used for many purposes. Bonnet is used decorate front portion of the car and to add luxurious…

Underbody coating automotive Underbody coating provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion   Process of underbody coating automotive Underbody coating…

What is benchmarking  Benchmarking involves a structured comparison between similar products, services or processes on some dimensions of performance. For example it can be used to compare the availability and delivery of features in a product and in this form often provides the basis of consumer tests and reviews…
