Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM: -

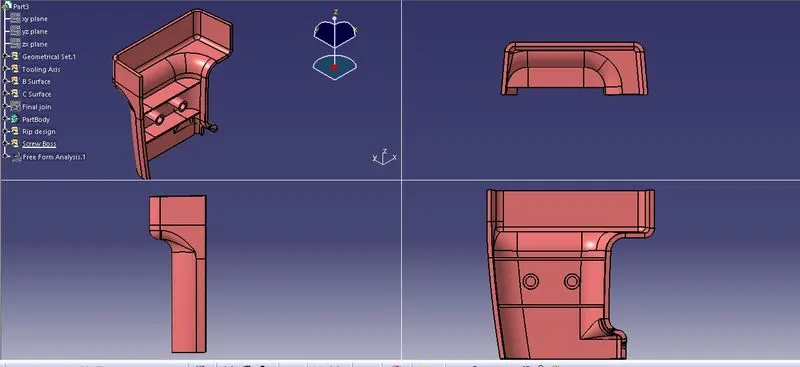

TO CREATE THE RIB FOR THE DRILL HANDLE CONSIDERING DESIGN RULE.

Rib & Screw Boss are the Engineering Features which is on "B surface”, They have some Design Rules to avoid Plastic defects.

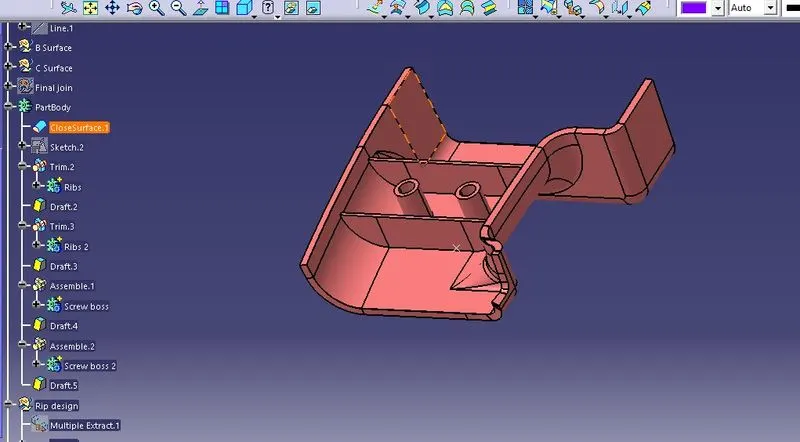

1)RIBS: - Ribs are usually designed to Improve Strength of Plastic Part without increasing the thickness of the component.

2)Screw Boss: - It helps to screw component together. Screws are secondary features which is on B surface. Bosses are used to attached & assembly features of many components.

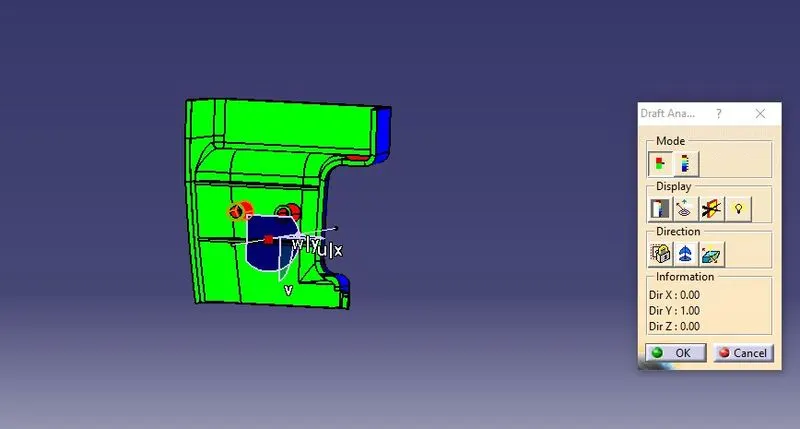

DRAFT ANALYSIS: - Draft analysis is required to check if a part has required draft or not. The Draft analysis refers to a Tool that allows us to determine if we can remove the part, we are designing from the tool being used to design it.

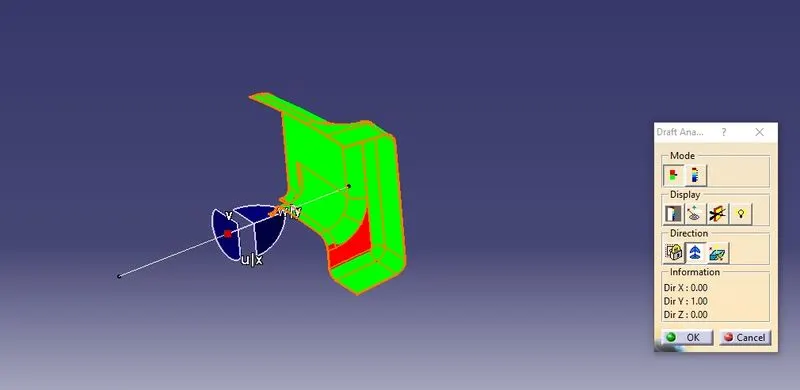

Here I did Draft analysis with two values. Below I will show the difference through picture’s

TOOLING AXIS: -

The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces. Basically, we have a Cavity & Core side. The Core pulls apart from the Cavity.
