Week 8 - Challenge 4 - Bumper
Aim:- Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Take the Thickness of the component to be 3 mm

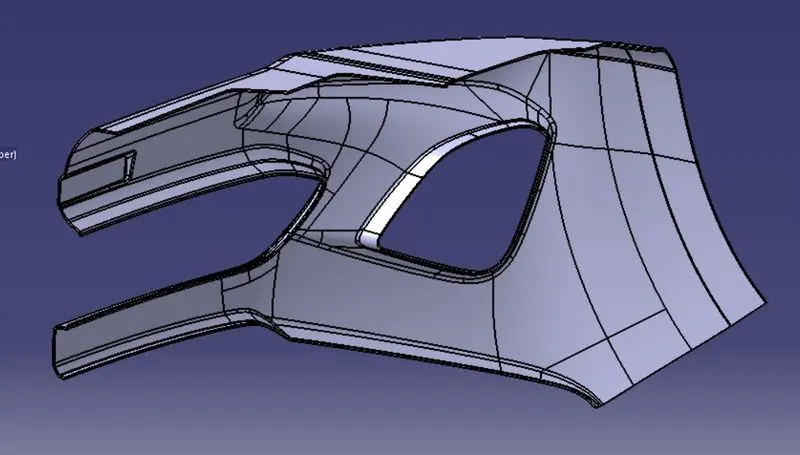

Class A Surface

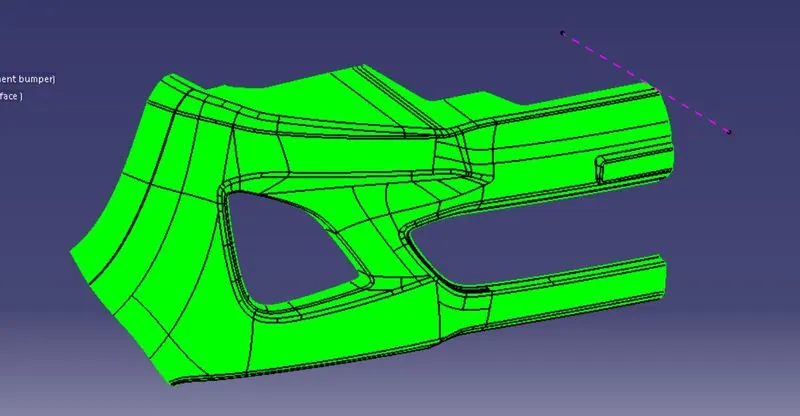

Tooling Axis:-

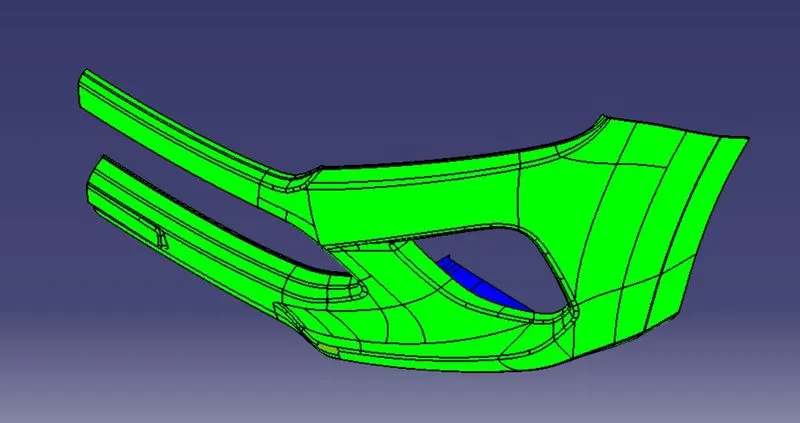

The coloured line is tooling axis and is created by taking a line in X direction to the surface

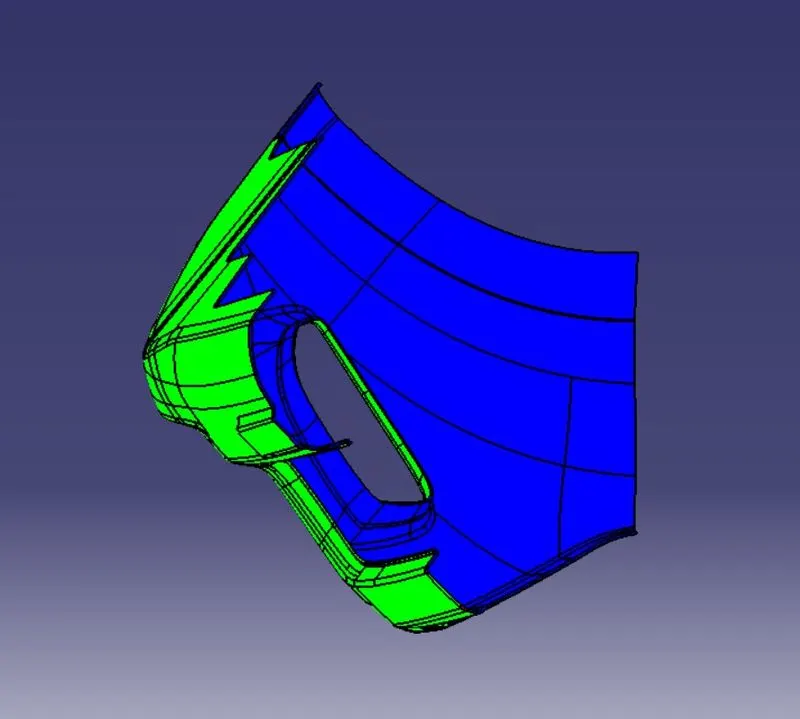

Class B Surface
Take a offset of Class A surface and then surfaces that are not connected or missing make it using extract, extraplolate, boundary,trim command and also give proper fillets
Class C surface

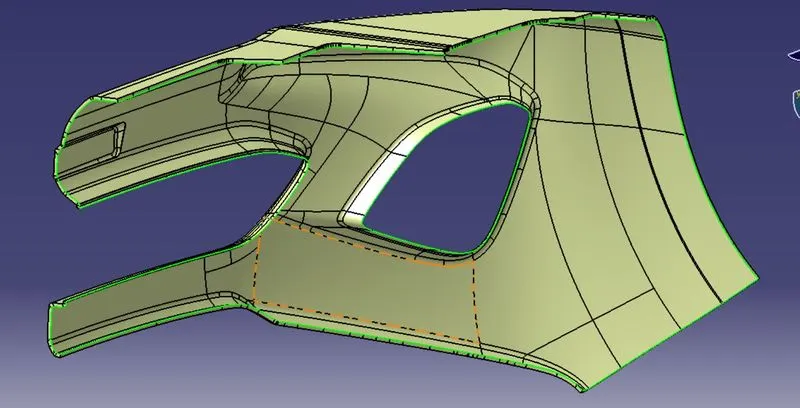

Join of surface A and C

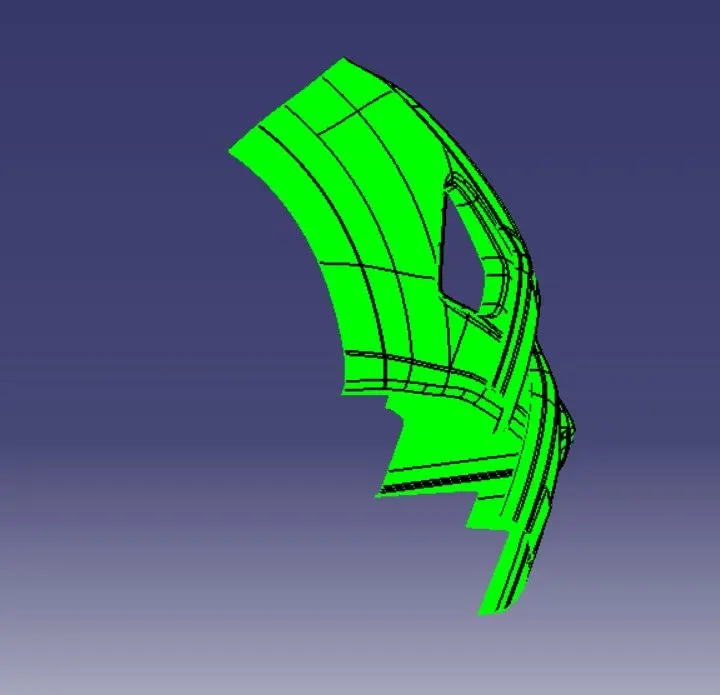

Final element surface
The final surface created by trimimg join AC with B surface

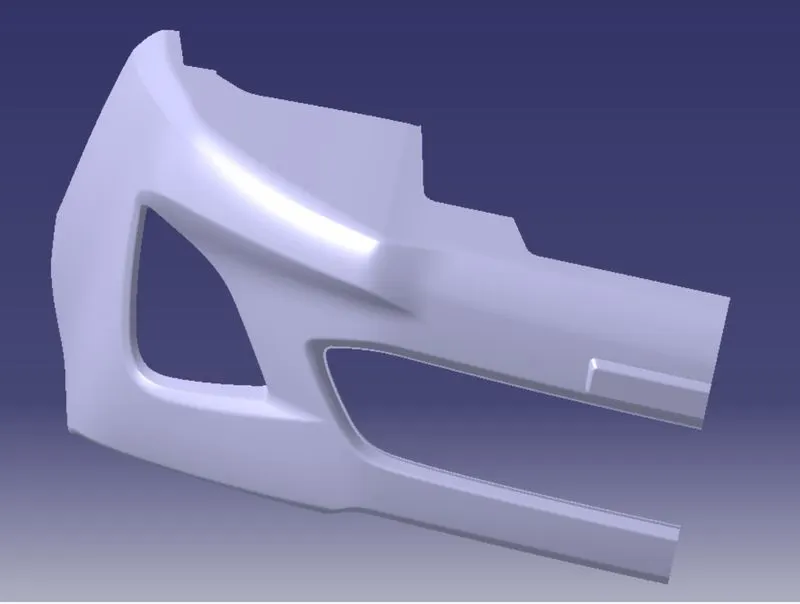

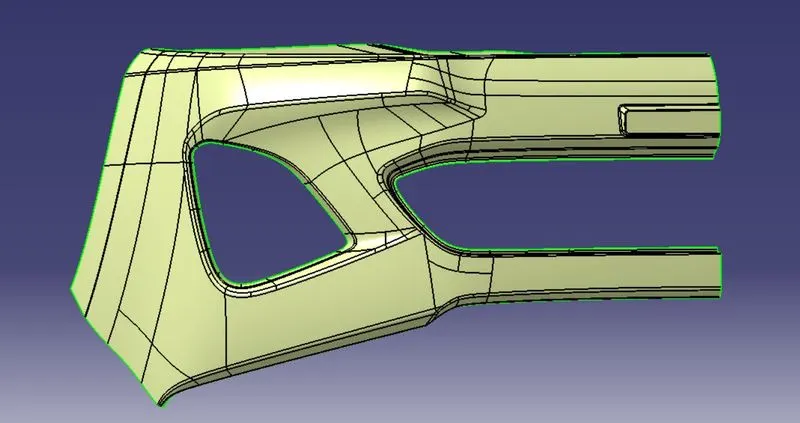

closed Final element bumper
DRAFT ANALYSIS

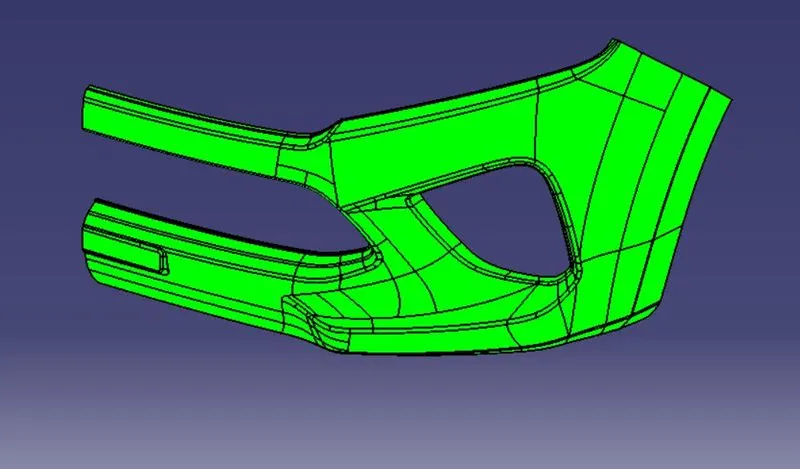

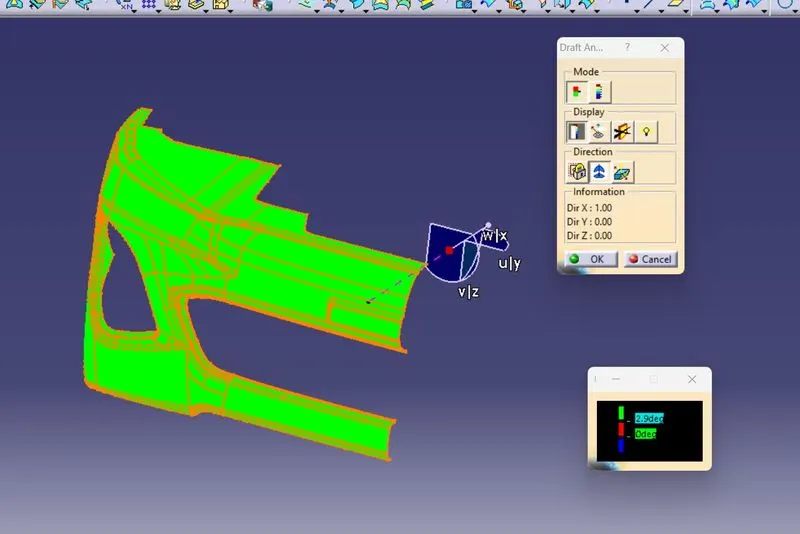

Draft analysis of Class A surface(draft angle 2.9 degree)

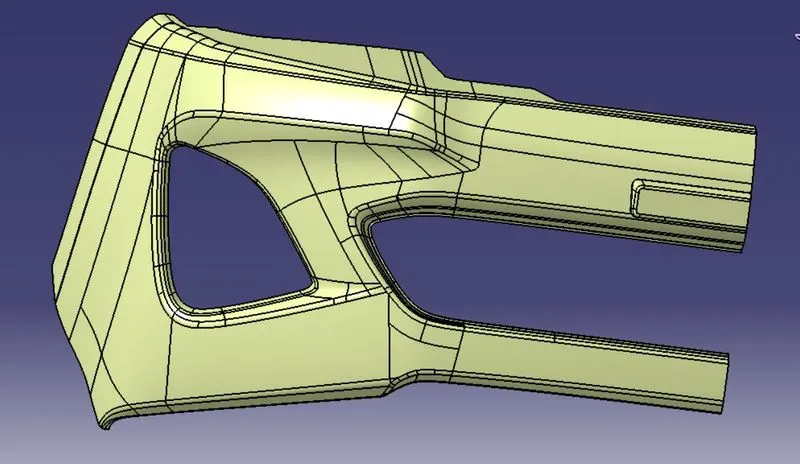

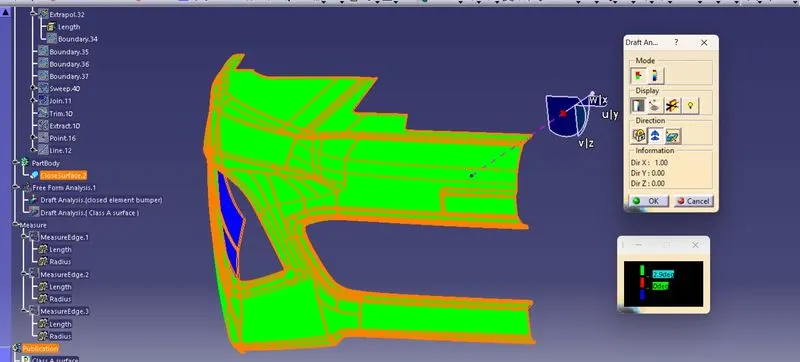

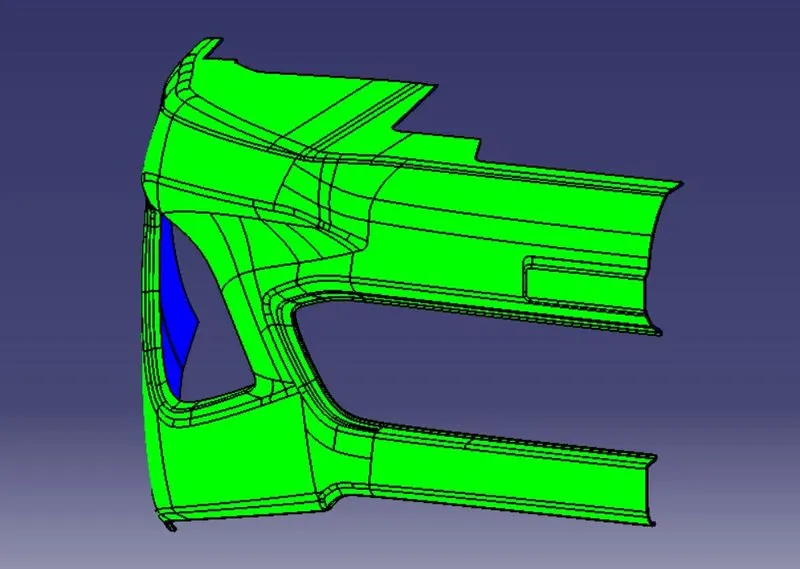

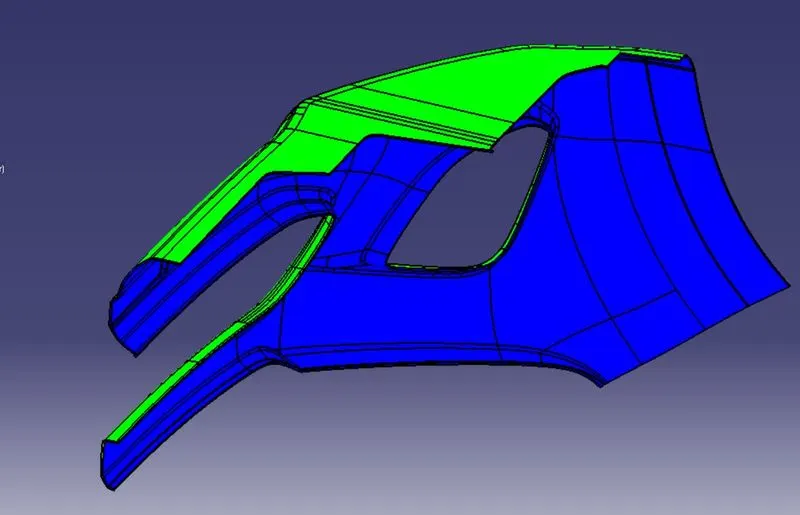

Draft analysis of final close elemet bumper(draft angle 2.9 degree)
Views

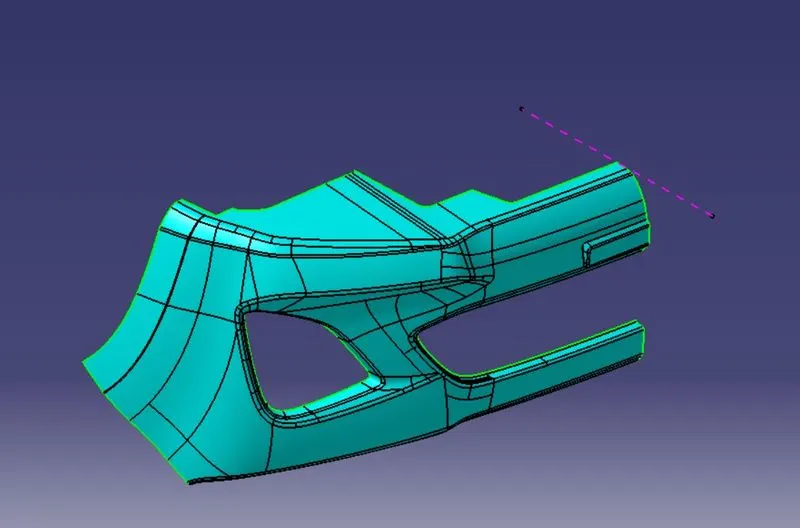

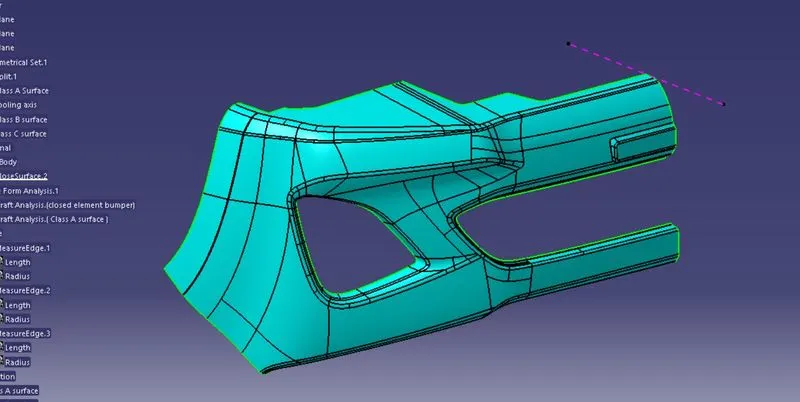

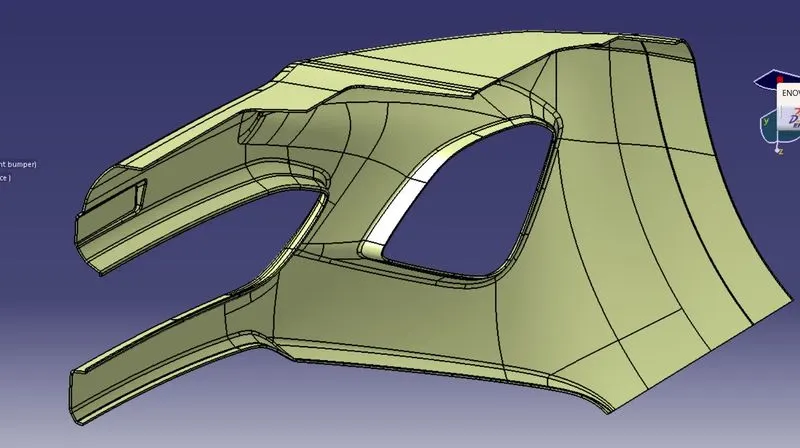

Iso view

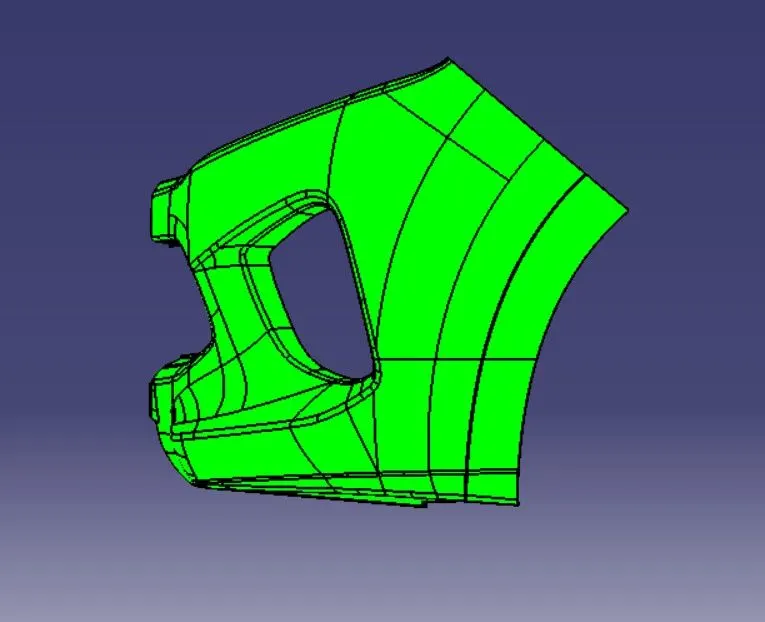

front view

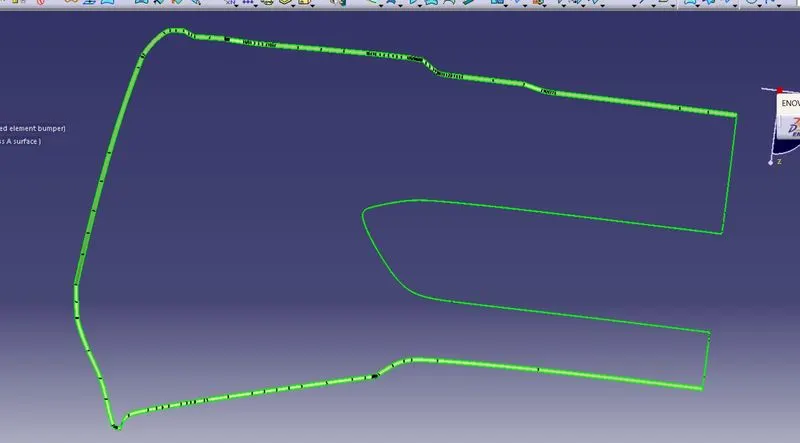

top view

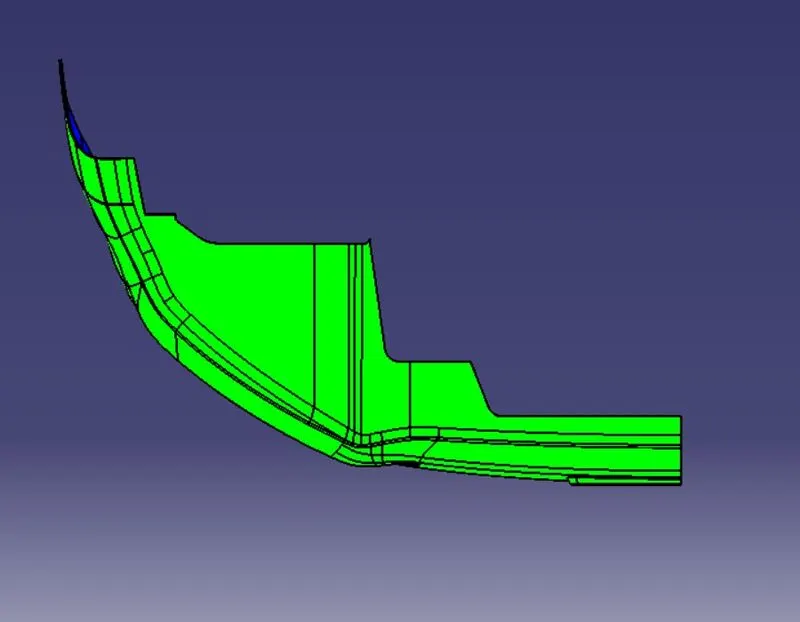

side view

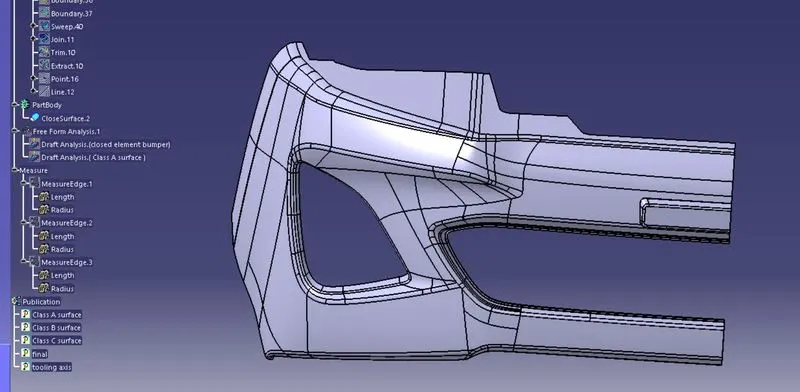

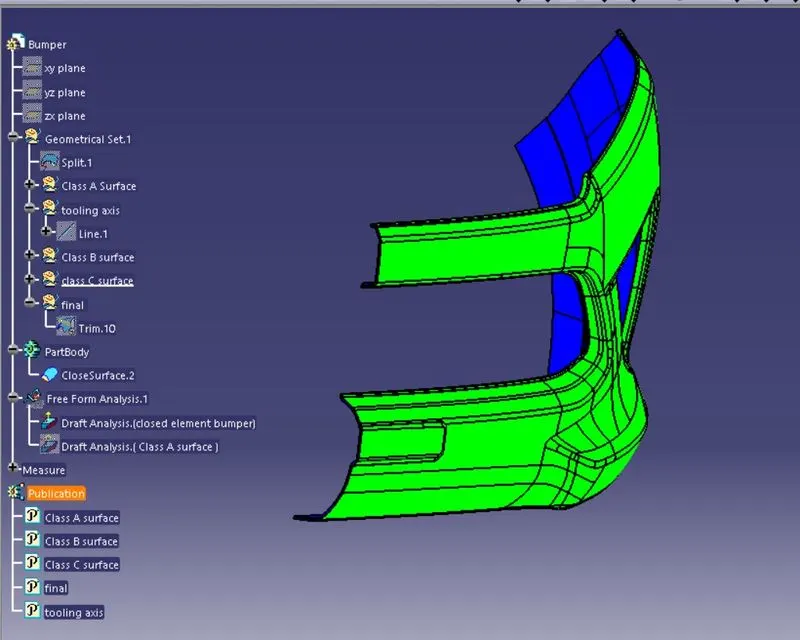

Tree Structure
