A PROJECT Report On “Research and Design of Lopifit Treadmill Walking Bicycle”   Summitted By PAVAN RAJKUMAR MESHRAM Guided By Tony Thampy For the Skill-Lync March-2023   DECLARATION:          The project titled “Research and Design of Lopifit Treadmill Walking Bicycle”…

Create the Screw boss for the Drill Handle considering the design rules mentioned in the video.  General Guidelines for Bosses:   Draft  - 0.5 degrees on the walls of boss   Thickness -  Typically 40%* of the nominal wall at the base.   Height to Diameter Ratio -  3:1   Radii…

Roof: Front Roof Rail: Real Roof Rail: Bow Roof Rail 1: Center Roof Rail: Bow Roof Rail 2:   Assembly:   Calculation Part: Bow–Roof Prediction Formula W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8)  x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68             Where, L = Roof…

Top Outer Pannel : Bottom Outer Pannel : Inner Pannel : Hamming : Assembly : Stricker : Hinges : BackDoor :

Top Outer Pannel : Bottom Outer Pannel : Inner Pannel : Hamming : Assembly : Stricker : Hinges : BackDoor :

Fender Design :

Section modulus :   S=I/Y Here, S = Section modulus I= Moment of Inertia (Unit mm 4) Y= Distance from Neutral axis to the extreme end (unit mm) The Unit of a “section modulus” is (mm3) Elastic section modulus For general design, the elastic section modulus is used, applicable up to the yield point for…

  Make The Inner Pannel :   Hemming Data: Relief rear section:  Front relief:   Outer Pannel Assembly Striker Assembly Hinge Assembly

1) Japan Standards : Draw a Line as shown in above drawing As per standard the 10.00mm values is satisfy. As per standard the -10.00mm values is Not satisfy. As per standard the -10.00mm values is Not satisfy.   2)European standards: Make the drawing As per standard the SD= 0.00mm values is Not satisfy. As per…

For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB. Ans: All 10 battery cells are connected in series with help of temperature sensor, thermal referance, ps-simulink convertor, simulink-ps converter,…

Underbody Coating :        The main purpose of undercoating is to check rust especially in the body components like frame rails along with other exposed metal parts. Underbody coating can also reduce wear and tear. In Indian roads car underbody is prone to rust easily as because of the seasonal…

Tata Tiago EV Summary Price ₹ 8.49 Lakh onwards Fuel Type Electric Driving Range 250 to 315 km Safety 4 Star (Global NCAP) Transmission Automatic Seating Capacity 5 Seater Battery Capacity 19.2 to 24 kWh Variants  The Tata Tiago EV is available in four variant options: XE, XT, XZ+, and XZ+ Tech Lux.  Market…

  First Download the data sheet: Calculation: Battery pack capacity: 18 kWh 1) single cell energy = cell capacity * cell voltage                           = 2.5*3.3                          …

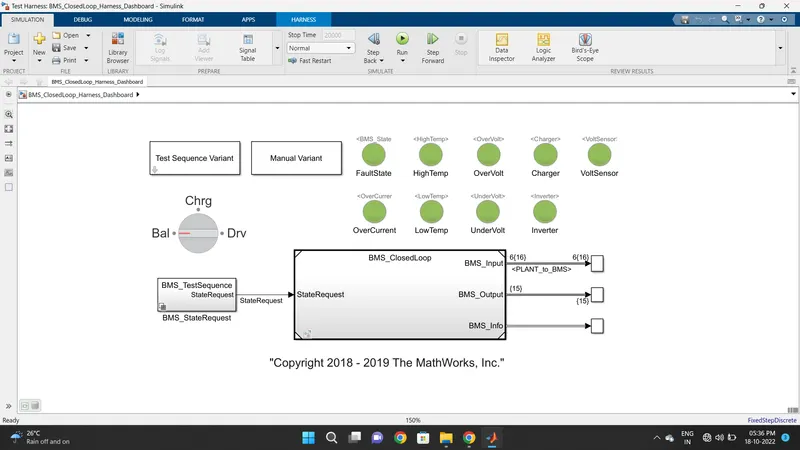

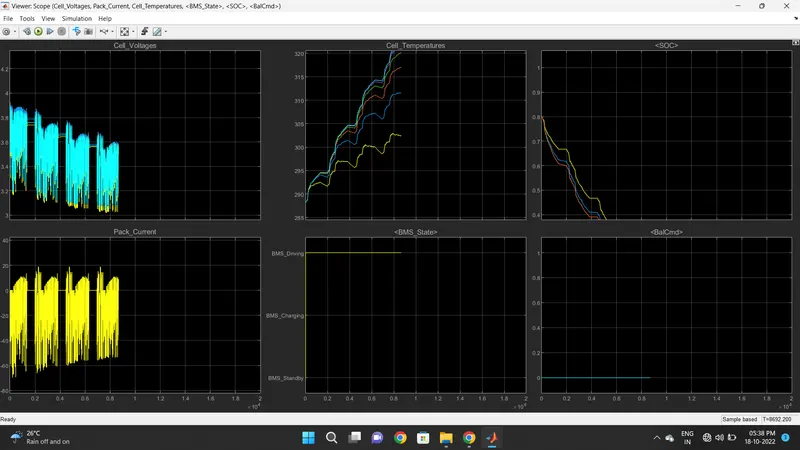

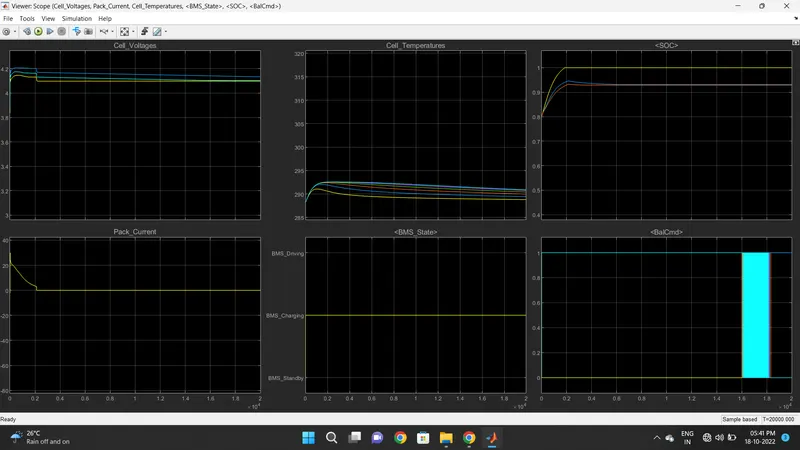

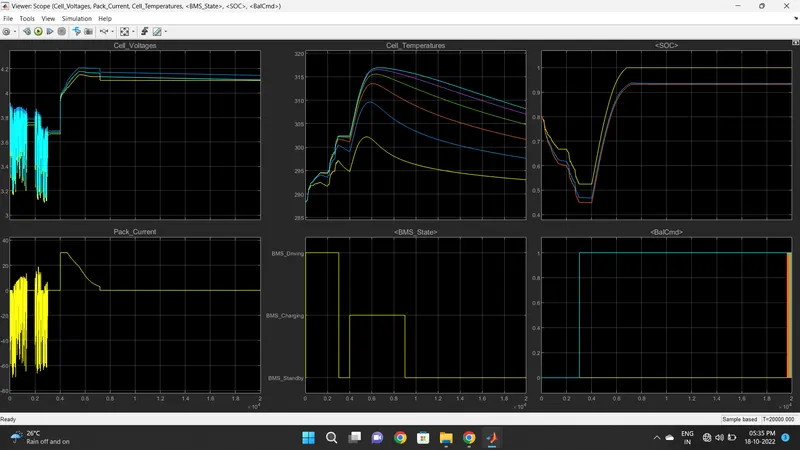

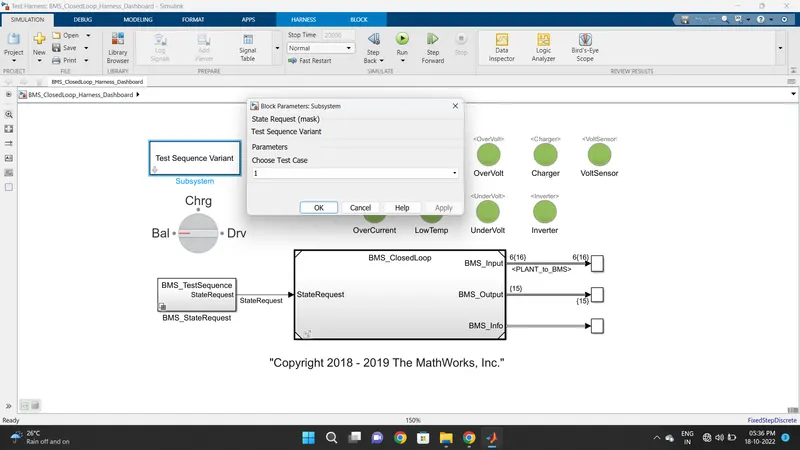

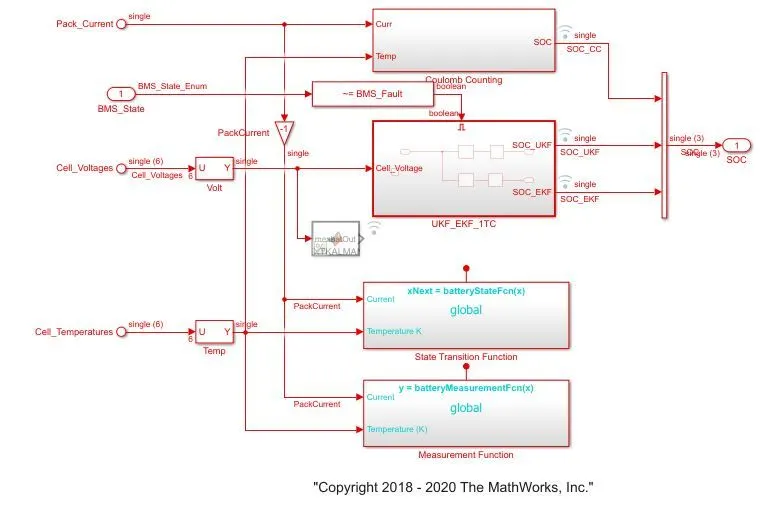

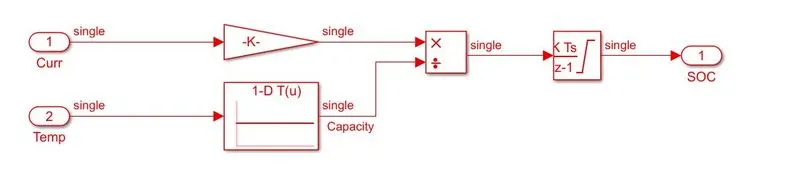

01) First Test Sequence Variant 01 : All the green lights are blowing thats mean there is no fault found. While driving and charging the temperature is increase show in cell_Temperature Plot. BMS State-standbymode is 0,After the charging mode it reaches to the standby mode which can be seen from the BMS state plot  …

1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it Main Types Of Lithium Batteries :- Lithium batteries are more popular today than ever before. You’ll find them in…

Model Vehicle Details: Terminal voltage: SOC Estimate: Engine: CrankHub: EM Control Unit: Powertrain: Mode Selection: Controller: Vehicle Model: Generate The Matlab Code:   %%data from simulink Time=out.tout; %timeA_pedal=out.Acc_Pdl; %Acclerator positionB_pedal=out.Brk_Pdl; %Brake pedalPositionEf=out.Eng_Fuel_Consumption;…

 Hybrid Drives Development: Data:   %Skill-Lync -> Hybrid Drives Development% Project 1 - Conventional Vehicle Model% Description:%% Initialization File% Initialization file for loading the variables for the Conventional vehicle simulation model %% Vehicle ParametersM = 1500; % Vehicle weight [kg]Cr = 0.015;…

Aim  Develop a double-acting actuator model using Simscape Multibody and Simscape components. The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components. The mechanical part of the…

Statement of assignment: Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector 3D data can be used, or you can…

Project 01 Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector 3D data can be used, or you can download the connectors…

Q1. Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view.     First Create Assembly Sketch Connect All The Connectors Wiring Apply Protection Apply Flattening Setting…

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing, Check the bundle Continuity. Add snap of result in submission Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc…

  Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram. Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)   Download…

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties. Define points and planes Define Support Part Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define…

Q1. Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip. CONNECTOR 1- Without Clip attachment- C-DT06-08SA the Geometrical Parameter to the part The Bundle…

      name error found and solve

Aim : Data analysis in Python Objective : To write and plot the graph to analysic the given data Solution : formula Area under the P-V curve = Work done per cycle - T Output Power P = Work done * speed assume 4-stroke engine  P = T*(N/2*60*1000) kW Mass flow(F)= f*(N/120)*1e-6 [g/s] Brake…

1) popt = the command use for the return or remove the elements from index or data file and it's minimuze the sum of squre of residual cvov = 2d array for rhe covariance of popt. The diagonals provide the variance of the parameter estimate. use for the compare one standard deviation errors on the parameters. 2)np.array…

I = 0.01; % momemt of inertiaF = 0.1; % motor frictionKb = 0.01; % back emfKt = 0.01; % Motor torque constantRa = 1.0; % aramture resistanceLa = 0.5; % aramture inductance % Simulink Model OF DC Motor

  fileidl=fopen('C:\users\pavan/OneDrive/Desktop/VI.xlsx','r') fileid=fopen('C:\users\pavan/OneDrive/Desktop/VI.xlsx','w')VVolt=-17.3:0.1:0.9; VV =[-17.2 -17.1 -13.8 -13.5 -13.0 -12.5 -11 -9 -5.76 -6 -1 0.11 0.25 0.5 0.61];c=interp1(VV,VVolt); fprintf(fileid,'%d',VV) plot((-28:-14),VV,'-',VVolt,c); ylabel('voltage');…

1) Battery, Starter, Fuse, Ignition coil, Ammeter  2) Battery- it is use for power storage and starting purpose Fuse- it is use for safety purpose and also it's stopped diffulter current Ammeter- its use for the dc or ac current. 3) 15A 4) power is 500 W × 24h = 12 kWh 12000/12V=1000Ah Battery is sufficient.…
