Project 2 Thermal modeling of battery pack

For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB.

Ans:

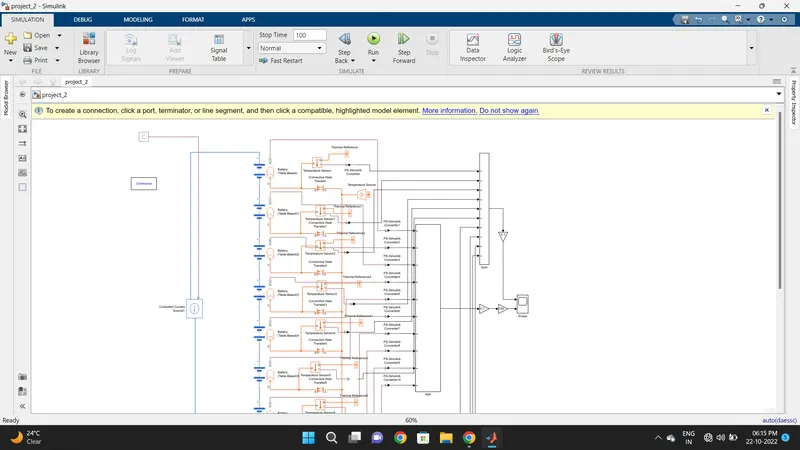

All 10 battery cells are connected in series with help of temperature sensor, thermal referance, ps-simulink convertor, simulink-ps converter, gain block,powergui, ps constant, controlled voltage sourse,add block, convective heat transfer etc.

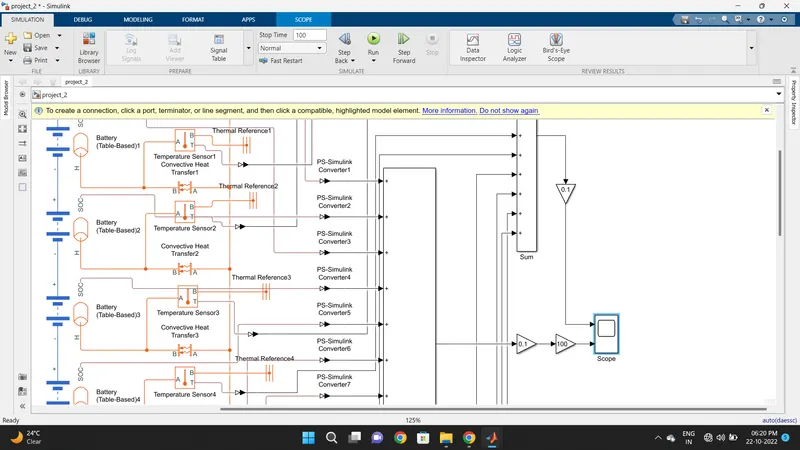

Gain block is use for the divided all the value for the result of temperature and SOC value for the use of gain block is divide and convert to % of the value.

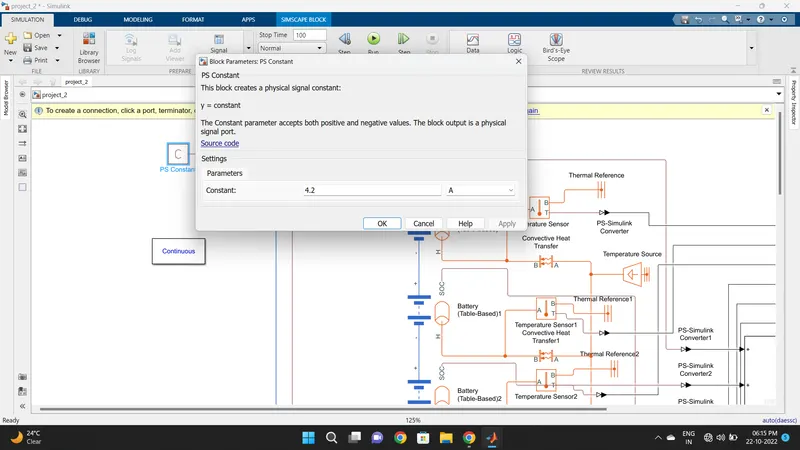

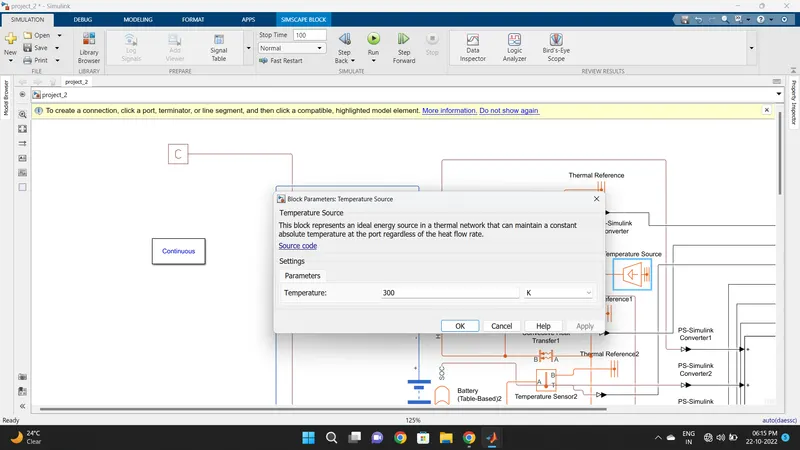

1st case: At PS Constant 4.2 and Temperature 300K

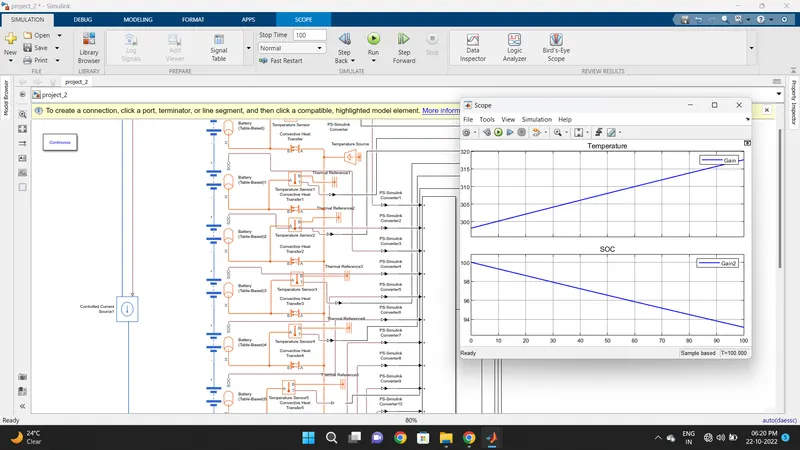

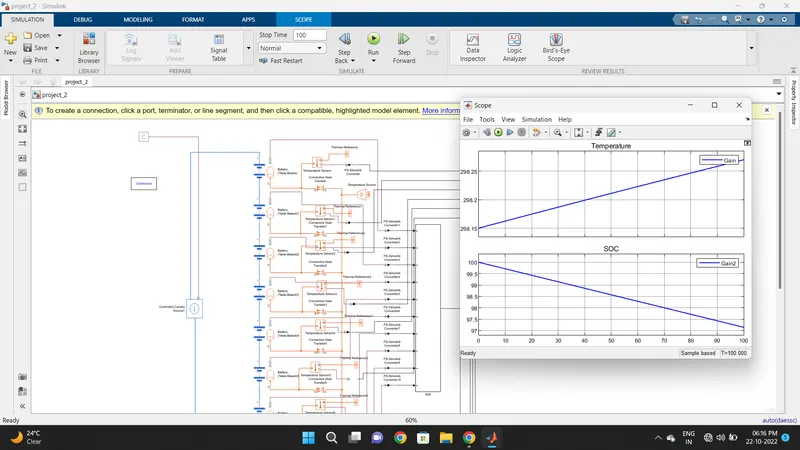

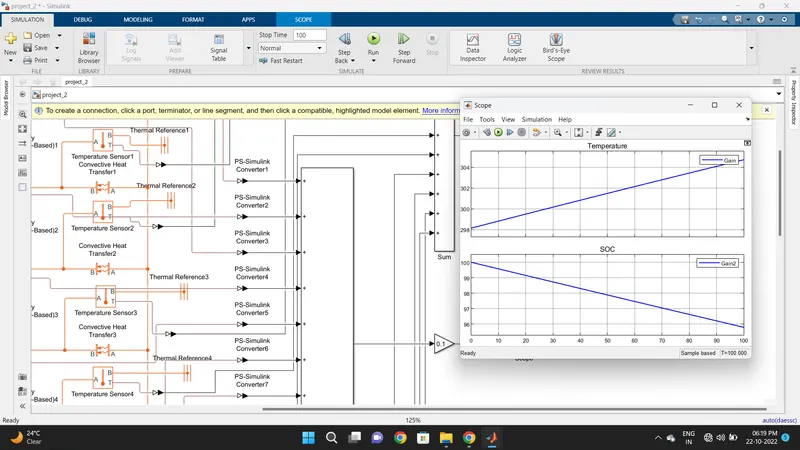

Result:

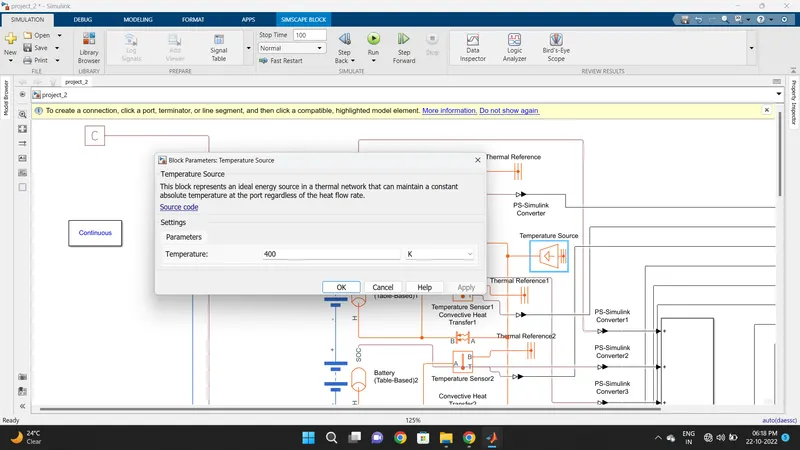

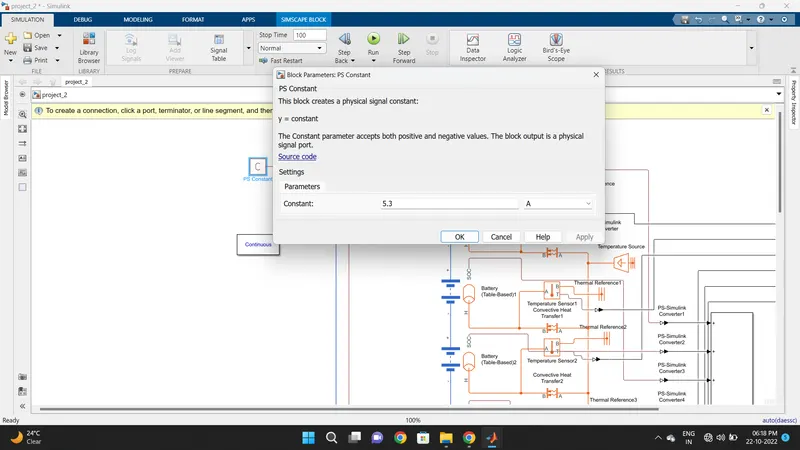

1st case: At PS Constant 5.3 and Temperature 400K

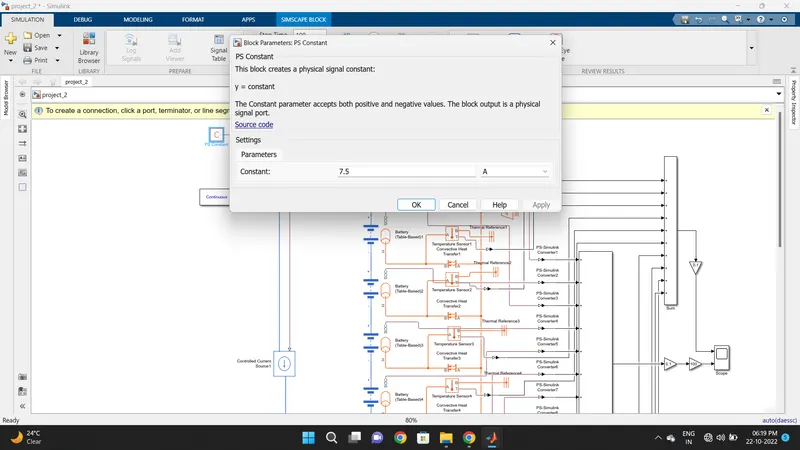

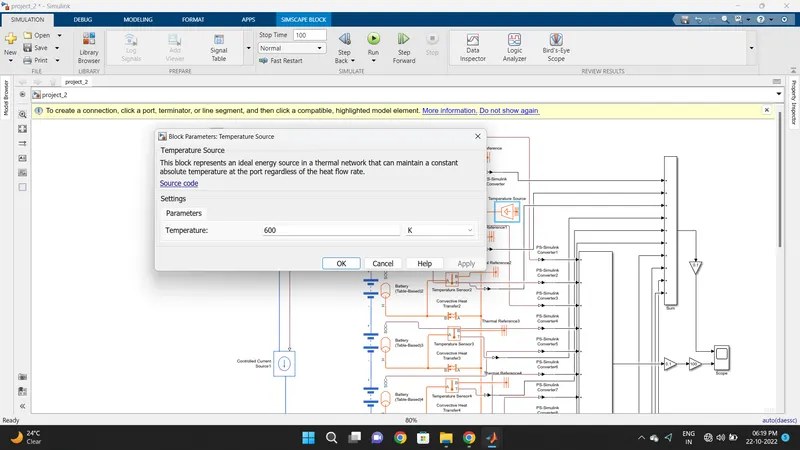

3rd case: At PS Constant 7.5 and Temperature 600K
