  3. Week 7 - Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

Week 7 - Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

Aim:               To Simulate the isentropic flow through a Quasi 1D subsonic nozzle by deriving both the conservation and non-conservation forms of the governing equations and solve them by implementing the MacCormack's technique using MATLAB. Objective:   …

  • CFD
  • HTML
  • MATLAB

  • JAYA PRAKASH

    updated on 21 Sep 2022

Aim:

              To Simulate the isentropic flow through a Quasi 1D subsonic nozzle by deriving both the conservation and non-conservation forms of the governing equations and solve them by implementing the MacCormack's technique using MATLAB.

Objective:

            Determine the steady-state temperature distribution for the flow-field variables and to investigate the difference between the two forms of governing equations by comparing their solutions along with the plots stated below.

  1. Steady-State distribution of primitive variable inside the nozzle.
  2. Time-wise variation of the primitive variable.
  3. Variation of Mass rate distribution inside the nozzle at different time steps during the time-marching process.
  4. Comparision of Normalized mass flow rate distributions of both forms.



Explanation:

                 We consider the study, isentropic flow through a convergent divergent nozzle. The flow at the inlet to the nozzle comes from reservoir. The cross section area of the reservoir is very large and hence velocity is very small. The flow is locally subsonic the convergent section of the nozzle, Sonic at the throat and Supersonic at the divergent section.

A nozzle is a type of device designed to control the direction or characteristics of fluid flow at the exit of a pipe (or such system). A nozzle is often a pipe or tube of varying cross-sectional area, thus can be used to direct or modify flow of a fluid.

A convergent-divergent nozzle (also known as CD nozzle or de Laval nozzle) is a device used to accelerate a hot, pressurized gas passing through it to a higher supersonic speed in the axial direction by converting heat energy of the flow to kinetic energy. Hence, such nozzles are widely used in steam turbines, supersnic jet engines and rocket engine nozzles. Its operation relies on the different properties of gases flowing at subsonic, sonic and supersonic speeds.

In the field of CFD, MacCormack method is a prominent discretization scheme for obtaining numerical solutions of hyperbolic partial differential equations. (based on second-order finite difference method). It is the variation of two-step Lax-Wendroff scheme but much simple in application.

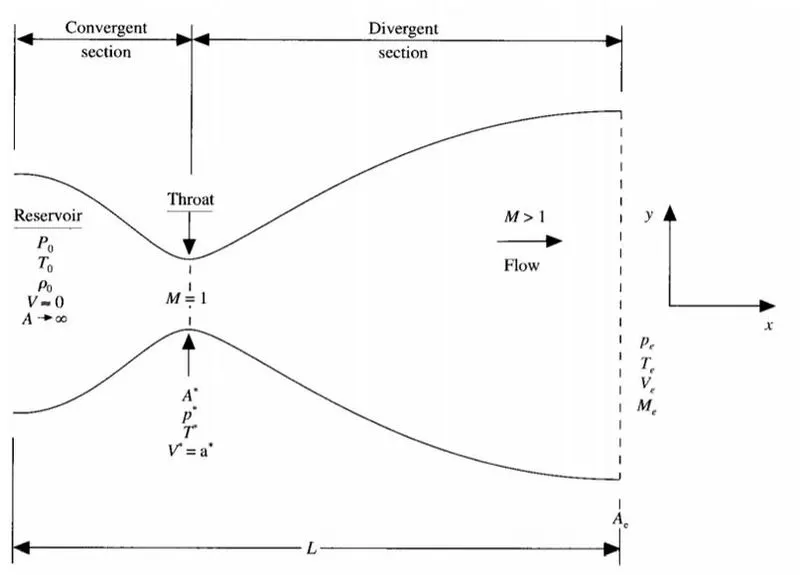

Nozzle diagram with sections:

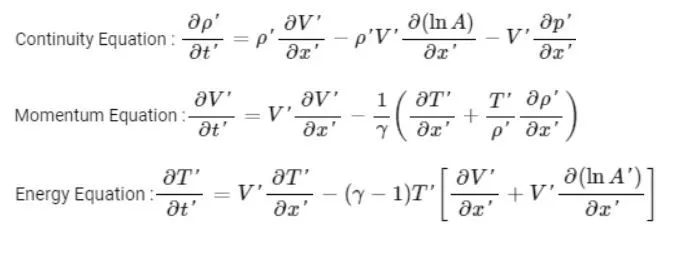

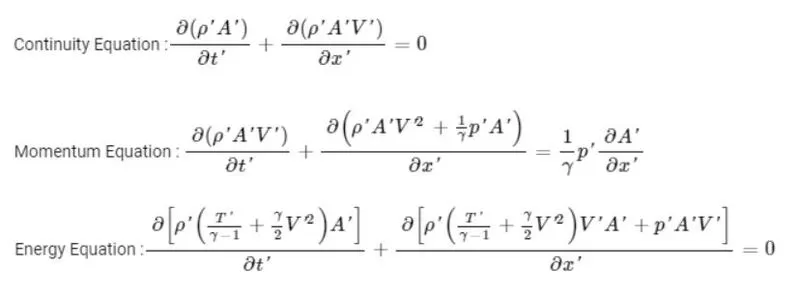

Non Conservative Form:



Conservative Form:





These equations are solved by Macormack method using time marching process

Mach number:

Mach number  is a dimensionless quantity in fluid dynamics representing the ratio of flow velocity past a boundry to the local speed of sound.

where:

M  is the local Mach number,
u  is the local flow velocity with respect to the boundaries (either internal, such as an object immersed in the flow, or external, like a channel), and
c  is the speed of sound in the medium, which in air varies with the square root of the thermodynamics temeprature.

For air at standard conditions, γ=1.4">γ=1.4

γ=1.4">where γ">γ is the ratio of specific heat

MacCarmack method:



              To discretize the numerical solution we use the technique called MacCarmack method. The MacCormack method is a variation of the two-step Lax-Wendroff Scheme but is much simpler in application.

The application of MacCormack method proceeds in two steps; a predictor step which is followed by a corrector step.

1.inital profile:

                  Before the calculation, the initial profile for all the flow field variables which are velocity, density and temperature has to be determined. These are guess values but should be specified with more awareness on the problem.

2.Predictor step:

               In the predictor step, a "provisional" value of u at time level n+1 (denoted by u_i^{overline{n+1}}) is estimated obtained by replacing the spatial and temporal derivatives in the previous first order equation using Forward Difference Scheme. Delta t is used for Timestep.

3.solution update:





fp=">fp=Flow field variables calculated after the predictor step

                  fInitial=">fInitial=flow field variable in the initial step

                  Δt=">Δt=time step size

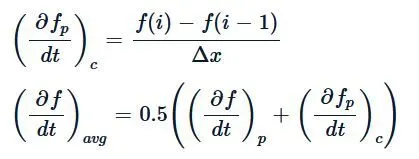

4.Corrector step:

                In the corrector step, the predicted value u_i^{overline{n+1}} is corrected according to the equation. Note that the corrector step uses Backward Difference Scheme for spatial derivative. The time-step used in the corrector step is Delta t/2 in contrast to the Delta t used in the predictor step.

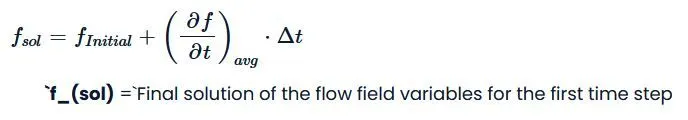

5. Final solution update:



Main Code:


NON CONSERVATIVE FORM:


close all
clear all
clc

%Input values


L=3; %length of nozzle
n=31; %number of grid points
x=linspace(0,L,n);
dx = x(2)-x(1);
CFL = 0.5; %number of time steps
nt = 1400; %number of time steps
gamma = 1.4;

tic;
[Mass_flow_rate_NC, Pressure_NC, Mach_number_NC, rho_NC, v_NC, T_NC, rho_throat_NC, v_throat_NC, T_throat_NC, Mass_flow_rate_throat_NC, Pressure_throat_NC, Mach_number_throat_NC] = Non_conservative_form(x, dx, n, gamma, nt, CFL);
Time_Period_NC = toc;
fprintf('Time Period for Non Conservative form: %0.4f', Time_Period_NC);
hold on

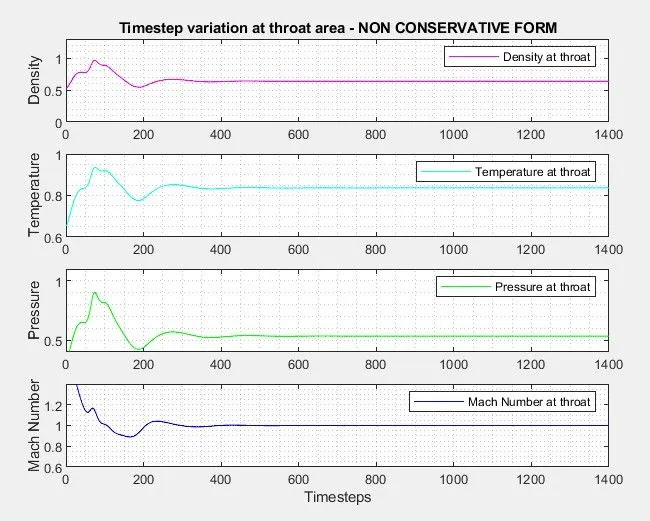

% PLOTTING

figure(2)


%Density


subplot(4,1,1)
plot(linspace(1,nt,nt),rho_throat_NC,'color','m')
ylabel('Density')
legend({'Density at throat'});
axis([0 1400 0 1.3]);
grid minor;
title('Timestep variation at throat area - NON CONSERVATIVE FORM')

%Temperature


subplot(4,1,2)
plot(linspace(1,nt,nt),T_throat_NC,'color','c')
ylabel('Temperature')
legend({'Temperature at throat'});
axis([0 1400 0.6 1]);
grid minor;

%Pressure


subplot(4,1,3)
plot(linspace(1,nt,nt),Pressure_throat_NC,'color','g')
ylabel('Pressure')
legend({'Pressure at throat'});
axis([0 1400 0.4 1.1]);
grid minor


%Mach Number


subplot(4,1,4)
plot(linspace(1,nt,nt),Mach_number_throat_NC,'color','b')
xlabel('Timesteps')
ylabel('Mach Number')
legend({'Mach Number at throat'});
axis([0 1400 0.6 1.4]);
grid minor;

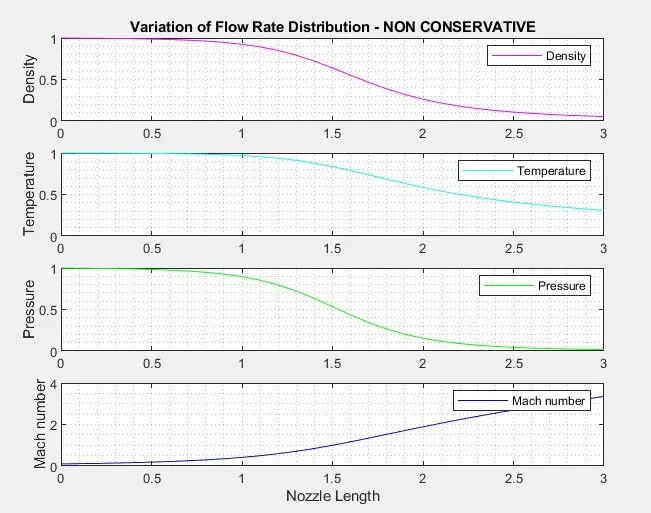

%Steady state simulation for primitve values for Non Conservative form


figure(3);
%Density
subplot(4,1,1);
plot(x,rho_NC,'color','m')
ylabel('Density')
legend({'Density'});
axis([0 3 0 1])
grid minor;
title('Variation of Flow Rate Distribution - NON CONSERVATIVE')


%Temperature


subplot(4,1,2);
plot(x,T_NC,'color','c')
ylabel('Temperature')
legend({'Temperature'});
axis([0 3 0 1])
grid minor;


%Pressure


subplot(4,1,3);
plot(x,Pressure_NC,'color','g')
ylabel('Pressure')
legend({'Pressure'});
axis([0 3 0 1])
grid minor;


%Mach number


subplot(4,1,4);
plot(x,Mach_number_NC,'color','b')
xlabel('Nozzle Length')
ylabel('Mach number')
legend({'Mach number'});
axis([0 3 0 4])
grid minor;

%Function for Non-Conservative form

function [Mass_flow_rate_NC, Pressure_NC, Mach_number_NC, rho_NC, v_NC, T_NC, rho_throat_NC, v_throat_NC, T_throat_NC, Mass_flow_rate_throat_NC, Pressure_throat_NC, Mach_number_throat_NC] = Non_conservative_form(x, dx, n, gamma, nt, C)

%Intial boundary conditions


rho_NC = 1 - 0.3146*x;
T_NC = 1 - 0.2341*x;
v_NC = (0.1 + 1.09*x).*T_NC.^0.5;

%Area & Throat profiles


a = 1 + 2.2*(x - 1.5).^2;
throat = find(a==1);


%Outer Time Loop


for k = 1:nt


%Time-step control


dt = min(C.*dx./(sqrt(T_NC) + v_NC));

%Saving a copy of Old Values


rho_old = rho_NC;
T_old = T_NC;
v_old = v_NC;

%Predictor Method


for j = 2:n-1

%Simplifying the Equation's spatial terms


dv_dx = (v_NC(j + 1) - v_NC(j))/dx;
drho_dx = (rho_NC(j + 1) - rho_NC(j))/dx;
dT_dx = (T_NC(j + 1) - T_NC(j))/dx;
dlog_a_dx = (log(a(j + 1)) - log(a(j)))/dx;

%Continuity Equation


drho_dt_P(j) = -rho_NC(j)*dv_dx - rho_NC(j)*v_NC(j)*dlog_a_dx - v_NC(j)*drho_dx;

%Momentum Equation


dv_dt_P(j) = -v_NC(j)*dv_dx - (1/gamma)*(dT_dx + (T_NC(j)*drho_dx/rho_NC(j)));

%Energy Equation


dT_dt_P(j) = -v_NC(j)*dT_dx - (gamma - 1)*T_NC(j)*(dv_dx + v_NC(j)*dlog_a_dx);


%Solution Update


rho_NC(j) = rho_NC(j) + drho_dt_P(j)*dt;
v_NC(j) = v_NC(j) + dv_dt_P(j)*dt;
T_NC(j) = T_NC(j) + dT_dt_P(j)*dt;

end


%Corrector Method


for j = 2:n-1

%Simplifying the Equation's spatial terms


dv_dx = (v_NC(j) - v_NC(j - 1))/dx;
drho_dx = (rho_NC(j) - rho_NC(j - 1))/dx;
dT_dx = (T_NC(j) - T_NC(j - 1))/dx;
dlog_a_dx = (log(a(j)) - log(a(j - 1)))/dx;

%Continuity Equation


drho_dt_C(j) = - rho_NC(j)*dv_dx - rho_NC(j)*v_NC(j)*dlog_a_dx - v_NC(j)*drho_dx;

%Momentum Equation


dv_dt_C(j) = - v_NC(j)*dv_dx - (1/gamma)*(dT_dx + (T_NC(j)*drho_dx/rho_NC(j)));

%Energy Equation


dT_dt_C(j) = - v_NC(j)*dT_dx - (gamma - 1)*T_NC(j)*(dv_dx + v_NC(j)*dlog_a_dx);

end

%Compute Average Time derivative


drho_dt = 0.5.*(drho_dt_P + drho_dt_C);
dv_dt = 0.5.*(dv_dt_P + dv_dt_C);
dT_dt = 0.5.*(dT_dt_P + dT_dt_C);

%Final Solution Update


for i = 2:n-1
rho_NC(i) = rho_old(i) + drho_dt(i)*dt;
v_NC(i) = v_old(i) + dv_dt(i)*dt;
T_NC(i) = T_old(i) + dT_dt(i)*dt;

end

%Applying Boundary Conditions


% Inlet


rho_NC(1) = 1;
v_NC(1) = 2*v_NC(2) - v_NC(3);
T_NC(1) = 1;

% Outlet


rho_NC(n) = 2*rho_NC(n-1) - rho_NC(n - 2);
v_NC(n) = 2*v_NC(n - 1) - v_NC(n - 2);
T_NC(n) = 2*T_NC(n - 1) - T_NC(n - 2);


%Defining Mass flow rate, Pressure and Mach number


Mass_flow_rate_NC = rho_NC.*a.*v_NC;
Pressure_NC = rho_NC.*T_NC;
Mach_number_NC = (v_NC./sqrt(T_NC));

%Calculating Variables at throat section


rho_throat_NC(k) = rho_NC(throat);
T_throat_NC(k) = T_NC(throat);
v_throat_NC(k) = v_NC(throat);
Mass_flow_rate_throat_NC(k) = Mass_flow_rate_NC(throat);
Pressure_throat_NC(k) = Pressure_NC(throat);
Mach_number_throat_NC(k) = Mach_number_NC(throat);


%PLOTTING

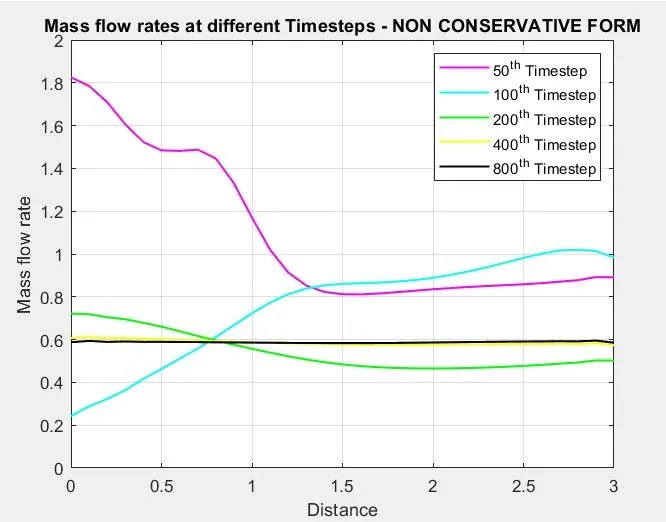

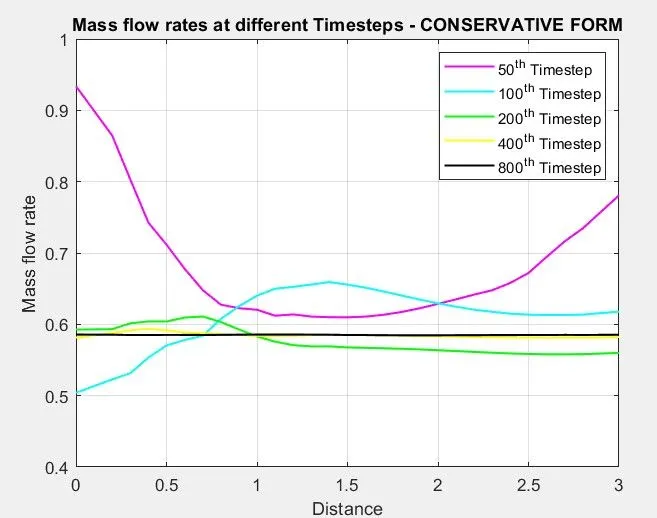

%Comparison of non-dimensional Mass flow rates at different time steps


figure(1);


if k == 50
plot(x, Mass_flow_rate_NC, 'm', 'linewidth', 1.25);
hold on
elseif k == 100
plot(x, Mass_flow_rate_NC, 'c', 'linewidth', 1.25);
hold on
elseif k == 200
plot(x, Mass_flow_rate_NC, 'g', 'linewidth', 1.25);
hold on
elseif k == 400
plot(x, Mass_flow_rate_NC, 'y', 'linewidth', 1.25);
hold on
elseif k == 800
plot(x, Mass_flow_rate_NC, 'k', 'linewidth', 1.25);
hold on
end

%Labelling

title('Mass flow rates at different Timesteps - NON CONSERVATIVE FORM')
xlabel('Distance')
ylabel('Mass flow rate')
legend({'50^t^h Timestep','100^t^h Timestep','200^t^h Timestep','400^t^h Timestep','800^t^h Timestep'})
axis([0 3 0 2])
grid on

end

end

CONSERVATIVE FORM:

close all
clear all
clc

%Input values


L=3; %length of nozzle
n=31; %number of grid points
x=linspace(0,L,n);
dx = x(2)-x(1);
CFL = 0.5; %number of time steps
nt = 1400; %number of time steps
gamma = 1.4;

%FUNCTION FOR CONSERVATIVE FORM


tic;
[Mass_flow_rate_C, Pressure_C, Mach_number_C, rho_C, v_C, T_C, rho_throat_C, v_throat_C, T_throat_C, Mass_flow_rate_throat_C, Pressure_throat_C, Mach_number_throat_C] = Conservative_form(x, dx, n, gamma, nt, CFL);
Time_Period_C = toc;
fprintf('Time Elasped for Conservative form: %0.4f', Time_Period_C);

%PLOTTING

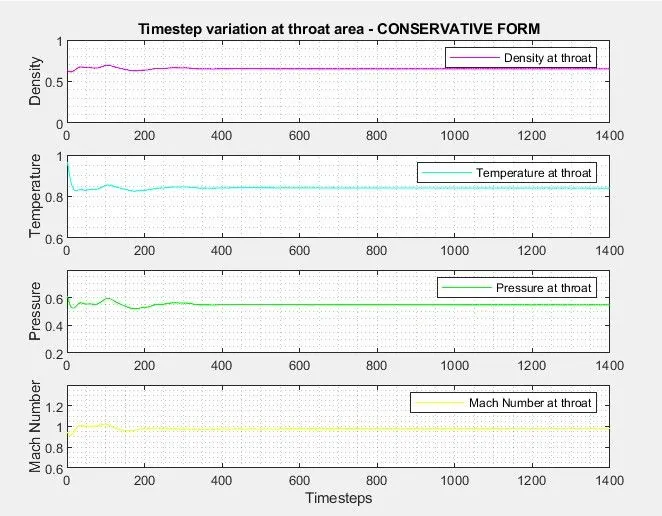

%Timestep variation of properties at throat area in Conservative form


figure(5)

%Density


subplot(4,1,1)
plot(rho_throat_C,'color','m')
ylabel('Density')
legend({'Density at throat'});
axis([0 1400 0 1]);
grid minor;
title('Timestep variation at throat area - CONSERVATIVE FORM')

%Temperature


subplot(4,1,2)
plot(T_throat_C,'color','c')
ylabel('Temperature')
legend({'Temperature at throat'});
axis([0 1400 0.6 1]);
grid minor;

%Pressure


subplot(4,1,3)
plot(Pressure_throat_C,'color','g')
ylabel('Pressure')
legend({'Pressure at throat'});
axis([0 1400 0.2 0.8]);
grid minor

%Mach Number


subplot(4,1,4)
plot(Mach_number_throat_C,'color','y')
xlabel('Timesteps')
ylabel('Mach Number')
legend({'Mach Number at throat'});
axis([0 1400 0.6 1.4]);
grid minor;


%Steady state simulation for primitve values for Non Conservative form

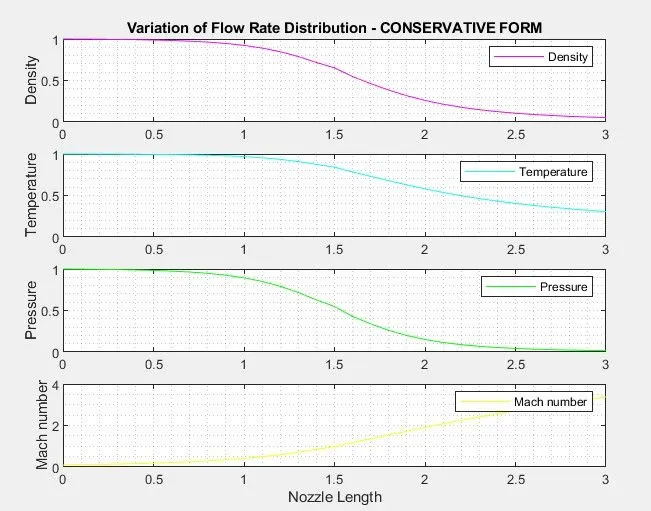

figure(6);

%Density
subplot(4,1,1);
plot(x,rho_C,'color','m')
ylabel('Density')
legend({'Density'});
axis([0 3 0 1])
grid minor;
title('Variation of Flow Rate Distribution - CONSERVATIVE FORM')

%Temperature


subplot(4,1,2);
plot(x,T_C,'color','c')
ylabel('Temperature')
legend({'Temperature'});
axis([0 3 0 1])
grid minor;

%Pressure


subplot(4,1,3);
plot(x,Pressure_C,'color','g')
ylabel('Pressure')
legend({'Pressure'});
axis([0 3 0 1])
grid minor;

%Mach number


subplot(4,1,4);
plot(x,Mach_number_C,'color','y')
xlabel('Nozzle Length')
ylabel('Mach number')
legend({'Mach number'});
axis([0 3 0 4])
grid minor;

%Function for Conservative form

function [Mass_flow_rate_C, Pressure_C, Mach_number_C, rho_C, v_C, T_C, rho_throat_C, v_throat_C, T_throat_C, Mass_flow_rate_throat_C, Pressure_throat_C, Mach_number_throat_C] = Conservative_form(x, dx, n, gamma, nt, C)

%Determining Initial profile of Density and Temperature


for i = 1:n

if (x(i) >= 0 && x(i) <= 0.5)
rho_C(i) = 1;
T_C(i) = 1;
elseif (x(i) >= 0.5 && x(i) <= 1.5)
rho_C(i) = 1 - 0.366*(x(i) - 0.5);
T_C(i) = 1 - 0.167*(x(i) - 0.5);
elseif (x(i) >= 1.5 && x(i) <= 3)
rho_C(i) = 0.634 - 0.3879*(x(i) - 1.5);
T_C(i) = 0.833 - 0.3507*(x(i) - 1.5);
end

end

%Area & Throat profiles


a = 1 + 2.2*(x - 1.5).^2;
throat = find(a==1);

%Initial profile fot Velocity and Pressure


v_C = 0.59./(rho_C.*a);
Pressure_C = rho_C.*T_C;

%Calculate the Initial Solution Vectors(U)


U1 = rho_C.*a;
U2 = rho_C.*a.*v_C;
U3 = rho_C.*a.*(T_C./(gamma - 1)) + ((gamma/2).*v_C.^2);


%Outer Time Loop


for k =1:nt

%Time-step control


dt = min(C.*dx./(sqrt(T_C) + v_C));

%Saving a copy of Old Values


U1_old = U1;
U2_old = U2;
U3_old = U3;

%Calculating the Flux vector(F)


F1 = U2;
F2 = ((U2.^2)./U1) + ((gamma - 1)/gamma)*(U3 - (gamma/2)*((U2.^2)./U1));
F3 = ((gamma*U2.*U3)./U1) - (gamma*(gamma - 1)*((U2.^3)./(2*U1.^2)));


%Predictor Method


for j = 2:n-1

%Calculating the Source term(J)


J2(j) = (1/gamma)*rho_C(j)*T_C(j)*((a(j + 1) - a(j))/dx);


%Continuity Equation


dU1_dt_P(j) = -((F1(j + 1) - F1(j))/dx);

%Momentum Equation


dU2_dt_P(j) = -((F2(j + 1) - F2(j))/dx) + J2(j);

%Energy Equation


dU3_dt_P(j) = -((F3(j + 1) - F3(j))/dx);


%Updating New values


U1(j) = U1(j) + dU1_dt_P(j)*dt;
U2(j) = U2(j) + dU2_dt_P(j)*dt;
U3(j) = U3(j) + dU3_dt_P(j)*dt;

end

%Updating Flux vectors


F1 = U2;
F2 = ((U2.^2)./U1) + ((gamma - 1)/gamma)*(U3 - ((gamma*0.5*(U2.^2))./(U1)));
F3 = ((gamma*U2.*U3)./U1) - ((gamma*0.5*(gamma - 1)*(U2.^3))./(U1.^2));


%Corrector Method


for j = 2:n-1

%Updating the Source term(J)


J2(j) = (1/gamma)*rho_C(j)*T_C(j)*((a(j) - a(j - 1))/dx);

%Simplifying the Equation's spatial terms


dU1_dt_C(j) = -((F1(j) - F1(j - 1))/dx);
dU2_dt_C(j) = -((F2(j) - F2(j - 1))/dx) + J2(j);
dU3_dt_C(j) = -((F3(j) - F3(j - 1))/dx);

end

%Compute Average Time derivative


dU1_dt = 0.5*(dU1_dt_P + dU1_dt_C);
dU2_dt = 0.5*(dU2_dt_P + dU2_dt_C);
dU3_dt = 0.5*(dU3_dt_P + dU3_dt_C);

%Final Solution Update


for i = 2:n-1
U1(i) = U1_old(i) + dU1_dt(i)*dt;
U2(i) = U2_old(i) + dU2_dt(i)*dt;
U3(i) = U3_old(i) + dU3_dt(i)*dt;

end


%Applying Boundary Conditions


% Inlet


U1(1) = rho_C(1)*a(1);
U2(1) = 2*U2(2) - U2(3);

v_C(1) = U2(1)./U1(1);
U3(1) = U1(1)*((T_C(1)/(gamma - 1)) + ((gamma/2)*(v_C(1)).^2));

% Outlet


U1(n) = 2*U1(n - 1) - U1(n - 2);
U2(n) = 2*U2(n - 1) - U2(n - 2);
U3(n) = 2*U3(n - 1) - U3(n - 2);

%Final Primitive value update


rho_C = U1./a;
v_C = U2./U1;
T_C = (gamma - 1)*((U3./U1 - (gamma/2)*(v_C).^2));

%Defining Mass flow rate, Pressure and Mach number


Mass_flow_rate_C = rho_C.*a.*v_C;
Pressure_C = rho_C.*T_C;
Mach_number_C = (v_C./sqrt(T_C));

%Calculating Variables at throat section


rho_throat_C(k) = rho_C(throat);
T_throat_C(k) = T_C(throat);
v_throat_C(k) = v_C(throat);
Mass_flow_rate_throat_C(k) = Mass_flow_rate_C(throat);
Pressure_throat_C(k) = Pressure_C(throat);
Mach_number_throat_C(k) = Mach_number_C(throat);

%PLOTTING


%Comparison of non-dimensional Mass flow rates at different time steps


figure(4)
if k == 50
plot(x, Mass_flow_rate_C, 'm', 'linewidth', 1.25);
hold on
elseif k == 100
plot(x, Mass_flow_rate_C, 'c', 'linewidth', 1.25);
hold on
elseif k == 200
plot(x, Mass_flow_rate_C, 'g', 'linewidth', 1.25);
hold on
elseif k == 400
plot(x, Mass_flow_rate_C, 'y', 'linewidth', 1.25);
hold on
elseif k == 800
plot(x, Mass_flow_rate_C, 'k', 'linewidth', 1.25);
hold on
end


%Labelling


title('Mass flow rates at different Timesteps - CONSERVATIVE FORM')
xlabel('Distance')
ylabel('Mass flow rate')
legend({'50^t^h Timestep','100^t^h Timestep','200^t^h Timestep','400^t^h Timestep','800^t^h Timestep'})
axis([0 3 0.4 1])
grid on

end

end

Outputs:

Time steps variation of primitive variable at Throat area Non-Conservative Form:

Time steps variation of primitive variable at Throat area Conservative Form:



Variation of Flow Rate Distribution Non-Conservative form:

Variation of Flow Rate Distribution Conservative form:



Mass flow rates at different Timesteps Non-Conservative form:

Mass flow rates at different Timesteps Conservative form:



CONCLUSION:

Cumulating all the above results we can evidently conclude that Conservative form converges slightly faster than Non Conservative form offering stable solution along the simulation. Yet both the forms are dependable in calculating the solutions which is almost precise.



  • For comparing the conservative and non-conservative form, the values of the flow variables at the throat of the nozzle are plotted at each time step. It can be observed that at smller time-steps, the behaviour of non-conservative form shows unstable results. (it shows oscillations) but with increase in time step, the difference in conservative and non-conservative approach diminshes.
  • If we notice the residuals (average time derivatives of variables) of both the approaches the conservative form converges to a steady state faster than non-conservative form.
  • There is an appreciable difference in how the mass flow rate varies with time step, but it can be observed that at the time step of 700Δt
  • , the mass flow becomes constant. Moreover, the conservative form produces an almost constant mass flow rate but the non-conservative approach gave a highly fluctuating mass flow rate.
  • On varying the grid size, it is noted that the conservative form almost maintains its consistency but the non conservative form tends to become stable (on increasing grid size).
  • Thus MaCormack method provides quite stable and close to exact solutions, hence, it is widely implemented to solve various flow problems.



Leave a comment

Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

Please  login to add a comment

Other comments...

No comments yet!
Be the first to add a comment

Read more Projects by JAYA PRAKASH (11)

Week 10 - Simulating Combustion of Natural Gas.

Objective:

                                                        Simulating Combustion of Natural Gas   Aim: To Perform a combustion simulation on the combustor model and plot the variation…

calendar

17 Jan 2023 06:37 PM IST

  • CFD
  • HTML
Read more

Week 9 - Parametric study on Gate valve.

Objective:

                     Gate Valve Parametric Study   Objectives To perform the parametric study on the gate valve by simulating the opening of gate valve ranging from 10mm to 80mm. To obtain the mass flow rate for each design point. Calculate the flow factor and…

calendar

16 Dec 2022 07:47 PM IST

  • HTML
Read more

Week 6 - CHT Analysis on a Graphics card

Objective:

AIM:  To perform steady-state conjugate heat transfer analysis on Graphics Card. To find the effect of different velocities on the temperature.   Objectives: Run the simulation by varying the velocity from 1m/sec to 5m/sec for at least 3 velocities and discuss the results. Find out the maximum temperature…

calendar

03 Nov 2022 09:12 AM IST

    Read more

    Week 5 - Rayleigh Taylor Instability

    Objective:

      Aim - To conduct the Rayleigh Taylor CFD simulation.   OBJECTIVE:  What are some practical CFD models that have been based on the mathematical analysis of Rayleigh Taylor waves? In your own words, explain how these mathematical models have been adapted for CFD calculations. Perform the Rayleigh Taylor…

    calendar

    26 Oct 2022 05:35 PM IST

    • CFD
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecardcoursetype

    Post Graduate Program in CFD Solver Development

    4.8

    119 Hours of Content

    coursecard

    Introduction to OpenFOAM Development

    4.9

    18 Hours of Content

    coursecardcoursetype

    Post Graduate Program in Battery Technology for Mechanical Engineers

    4.8

    81 Hours of Content

    coursecard

    Simulation and Design of Power Converters for EV using MATLAB and Simulink

    4.9

    22 Hours of Content

    coursecard

    Introduction to Hybrid Electric Vehicle using MATLAB and Simulink

    4.8

    23 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
