Week-4 Challenge WOT Condition Part-2

Understanding Different Battery Chemistry            A battery is made up of an anode, cathode, separator, electrolyte and two current collectors (Positive and negative). The anode and cathode store the lithium. The electrolyte carries positively charged lithium ions from the anode to the…

This project is focused towards electric vehicle application using an Induction Motor. Student will have to take following steps for a successful model:   AIM :           To designe the matlab simulink model of 3 Phase Inverter and 3 phase induction motor with a 3 phase inverter…

Extending the learned lessons in previous module, you will be diving into another power electronics concept on your own. Design of boost converter, and calculating the loss of different components including power switching device and deriving efficiency of boost converter. This is applicable in power supply industry, electric…

AIM :          To design and calculation of battery temprature using MATLAB/simulink and  the drive cycle from the attached excel sheet, and the max heat generation of the battery and SOC of the battery calculation.    Using MATLAB/simulink and  the drive cycle from the…

    1. Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell.        a. Design the battery pack configuration.         b. Draw the BMS topology for this battery pack.   2. Build a 3S2P battery pack configuration…

Obtain the transfer function of a mass spring damper system and use it in the model. Add a PID controller to adjust the force on mass so that its position follows a reference signal. Take m = 3.6; %kg k = 400; %N/m c = 100; %Ns/m The reference signal is shown in the following figure.        …

Create a MATLAB model of electric car which uses lithium ion battery and suitable motor. Choose suitable blocks from Simscape or Powertrain block set. Implement the vehicle speed control using PI controller and generate brake and accelerator commands. Avoid using readymade driver block for speed control. Prepare a report…

AIM  :              To design the matlab model of Electric Rickshaw (three wheel passenger vehicle) and controller of motor and speed and temperature rice to all calculations.           Create a detailed MATLAB model of an electric rickshaw (three wheel passenger…

AIM :             In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated…

                                                          Design of an Electric Vehicle        Create a MATLAB model of electric car which uses a battery…

Part A: 1. Search and list out the total weight of various types of aircrafts. 2. Is there any difference between ground speed and air speed? 3. Why is it not recommended to use aircraft engine power to move it on the ground at Airport?  4. How an aircraft is pushed to runway when its ready to take off? 5. Learn about…

For a defined driving cycle, calculate the energy required for braking. Why electric motor can’t develop braking torque at high speed similar to starting? How electric and mechanical brakes are coordinated?  Make a MATLAB program which plots contour of given motor speed, torque and efficiency values. Attach…

  1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’.     B. Comment on the armature current shoot-up from the scope results.     C. Refer to the help section of ‘The Four-Quadrant Chopper DC Drive (DC7) block’. Compare it with the H-bridge…

1.  Which types of power converter circuits are employed in electric and hybrid electric vehicle?    2.  An Electric Vehicle's powertrain with 72V battery pack in shown in the diagram below. The duty ratio for acceleration operation is 'd1' and for the braking operation the duty ratio is 'd2'.…

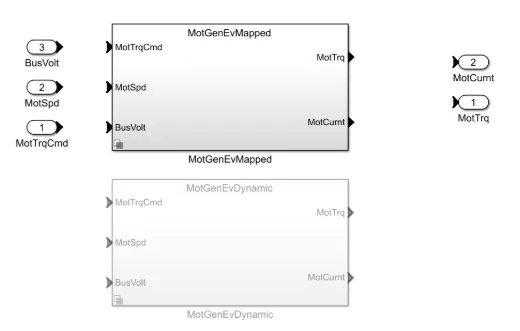

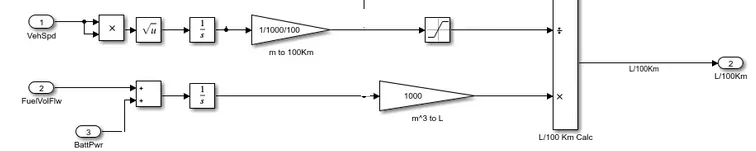

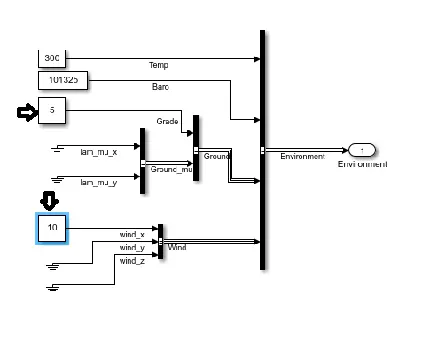

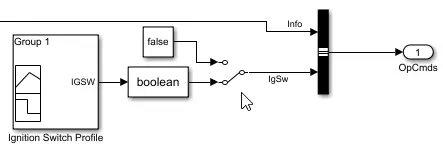

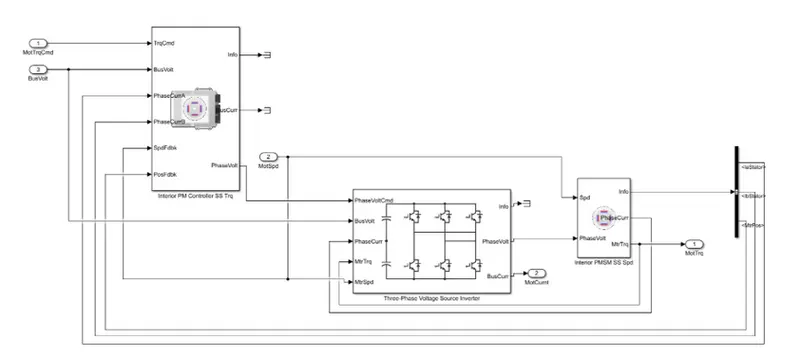

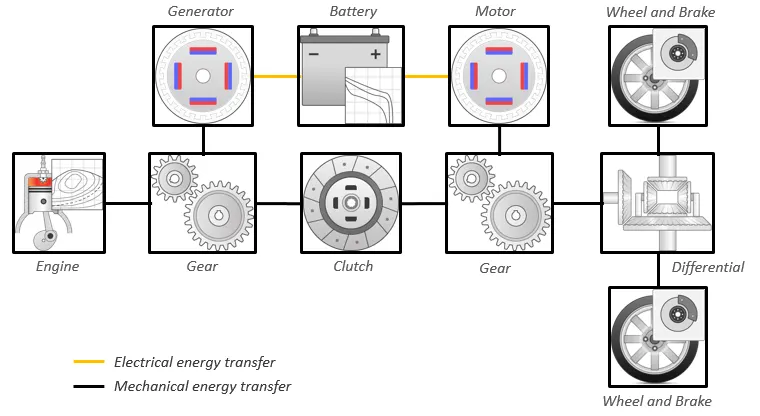

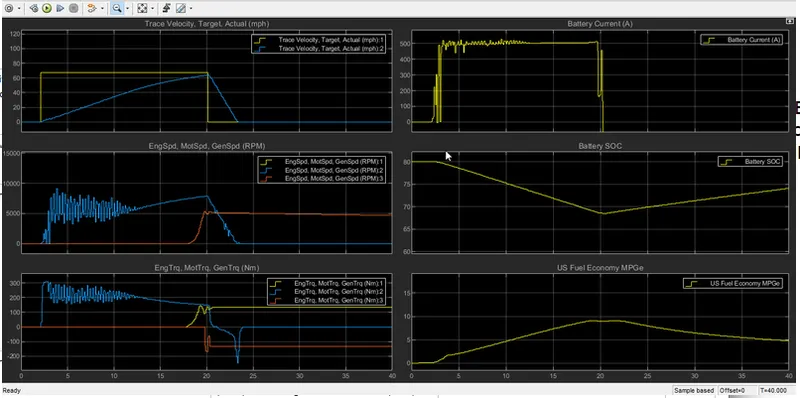

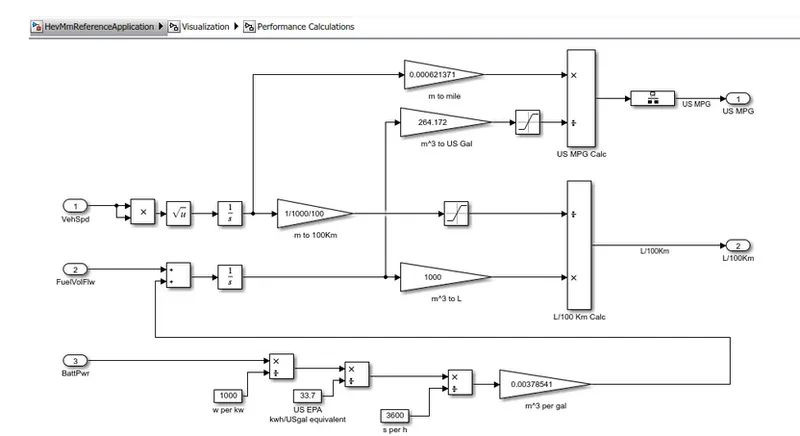

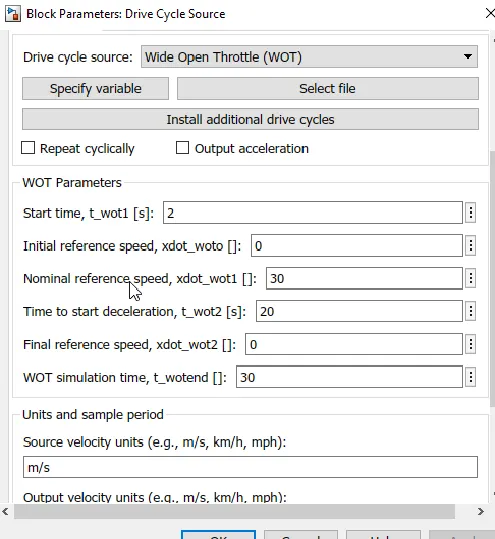

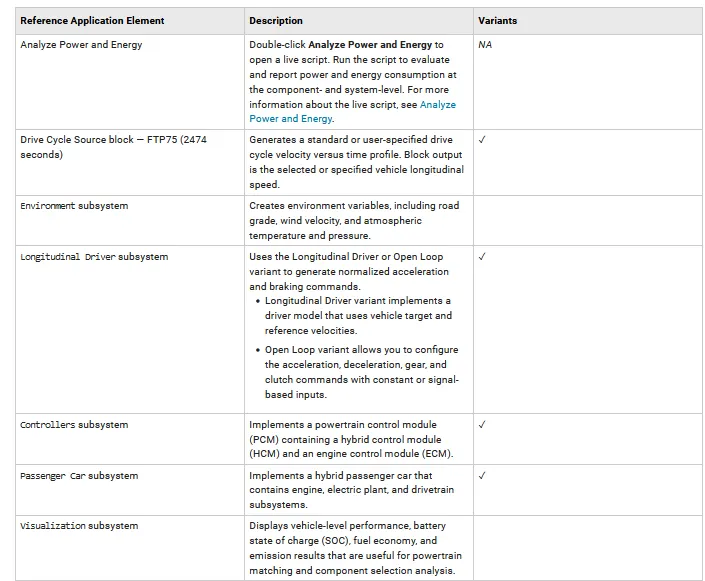

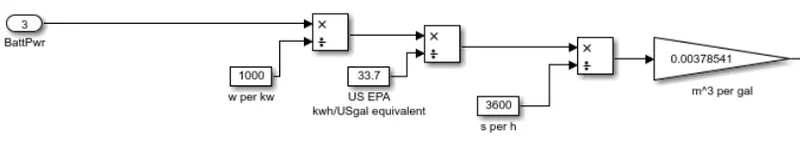

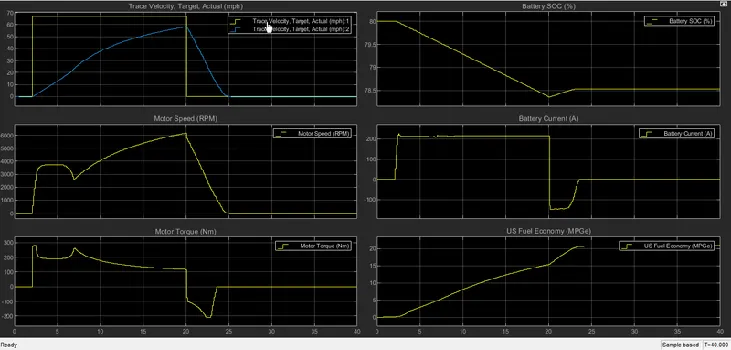

What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type?  How does the model calculate miles per gallon? Which factors are considered to model fuel flow?  Run the HEV ReferenceApplication with WOT drive cycle. Change the grade and wind velocity in…

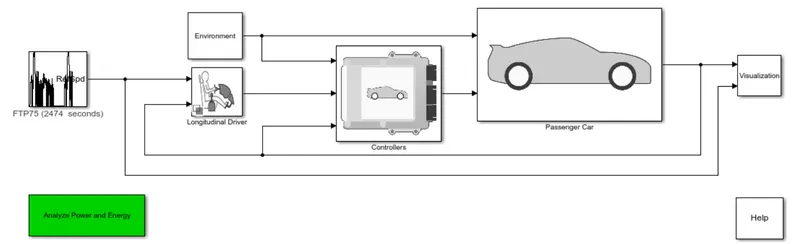

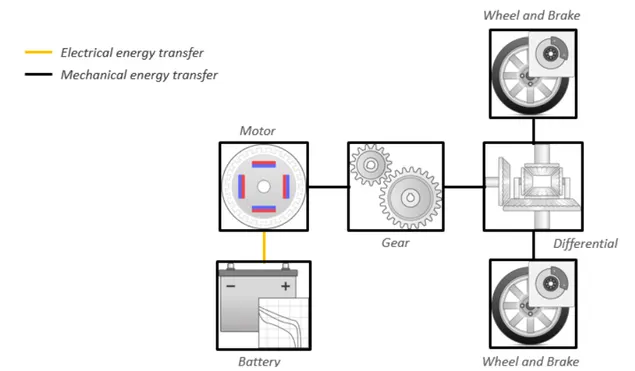

1.   For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.   2.   In the above case, try changing the battery capacity and repeat the simulation.   3.   Perform gradeability…

Carry out a system-level simulation of an all-terrain vehicle.  Download the model from the given link:  https://www.mathworks.com/matlabcentral/fileexchange/70576-baja-all-terrain-vehicle-atv-model Prepare a technical report explaining the model properties & comments on the results     …

  AIM :             To Implement control logic of a “washing machine” using Stateflow as per given sequence of simulink modukle and Gear shift” logic simulink display the output.      1) Implement control logic of a “washing…

                       Doorbell using solenoid block                                                  AIM…
