Week-3 Challenge: ADVISOR Tool

1.   For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

2.   In the above case, try changing the battery capacity and repeat the simulation.

3.   Perform gradeability test with PRIUS_Jpn_defaults_in file

      Compare your results in table and conclude.

   AIM :

        To work the this EV_defults in file if cargo mass vechile and cahnging the battery capacity of simulation  and gradeability test in the table of PRIUS_jpn file all the simulation of the matlab simuling.

 ADVISOR : (Advance vechile simulator)

    the advisor is advance vechile simulator this is the MATLAB scrpit text file of the using simulator of simuling module.

   THE MODEL OF ADVISOR :

     Whatever the level of complexity of your model, you can make systematic changes that improve simulation performance. Performance Advisor checks for configuration settings that slow down your model simulations. It produces a report that lists the suboptimal conditions or settings it finds and suggests better configuration settings where appropriate.

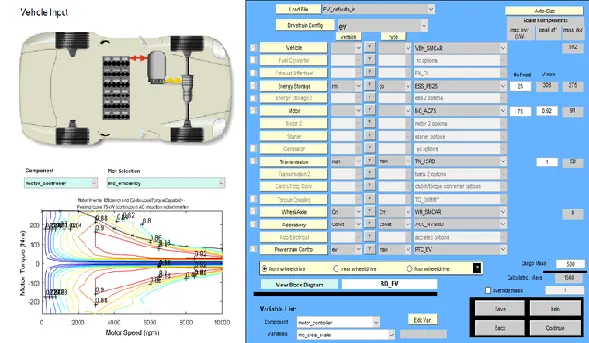

       1     For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

       the vechile module of advisor tool of the vechile simulator vechile travel for 45 km of the drive cycle is ftp

observations of the vechile.

    speed of the vechile is sum value of battery is reduse this is the speed of 17.8 km reaching state of change is battery is redusing.

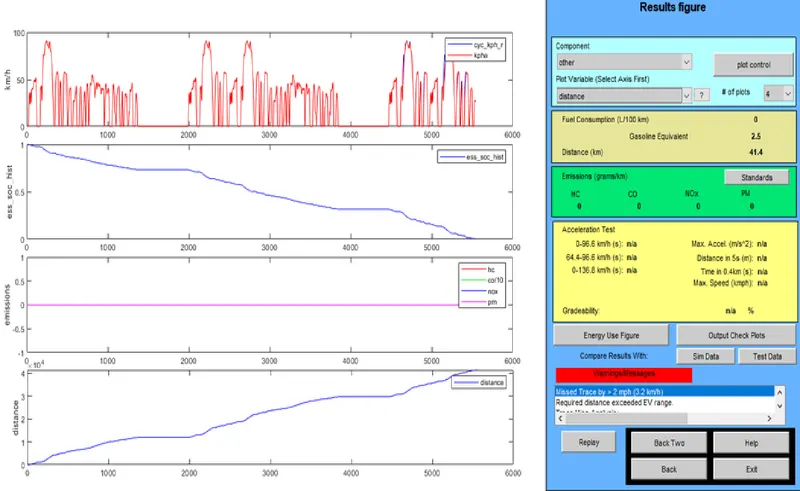

the result of the function is simulation of vechile sped of 41km per the whait is 500kg if vechile movement.

    2.   In the above case, try changing the battery capacity and repeat the simulation.

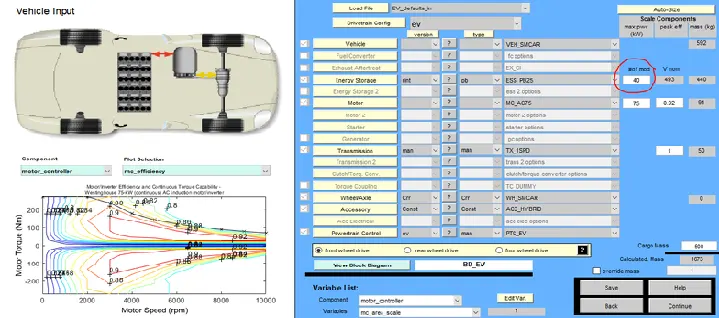

        The case of try to changing the battery capacity and repeat the simulation is value is battery voltage of 493 volt this case same speed of vechile is 40 and whait is change

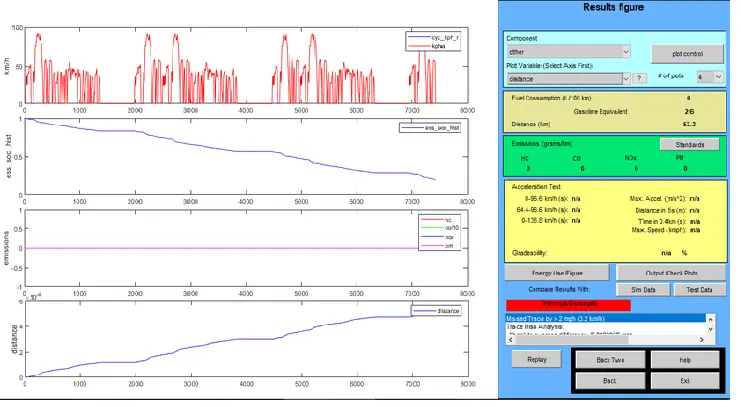

       this case is chane the vechile battery result of the incresing the speed and millege of 53 km of vechile.

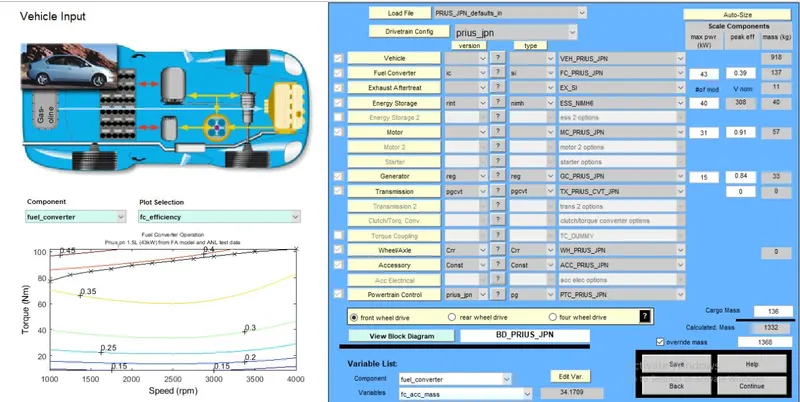

3.   Perform gradeability test with PRIUS_Jpn_defaults_in file Compare your results in table and conclude.

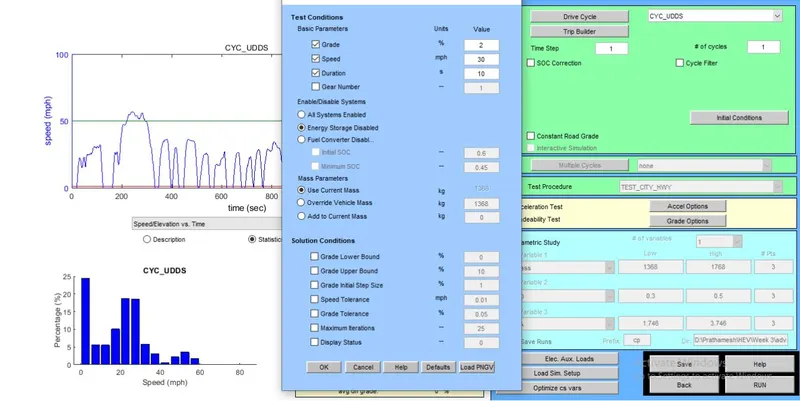

      the gradeablitity test is the HEV is hibred electrical vechile of the parallel hibraed electrical vechile and IC engine and power trainer all the use to the vechile simulator. vechile inpute of communication tool and battery and IC engine and electric parallel motor all the gradeablity test of PRIUS_Jpn_defaults_in file Compare your results in table and conclude.  the gradeablity compare and result.

   gradeability test cast 1 :

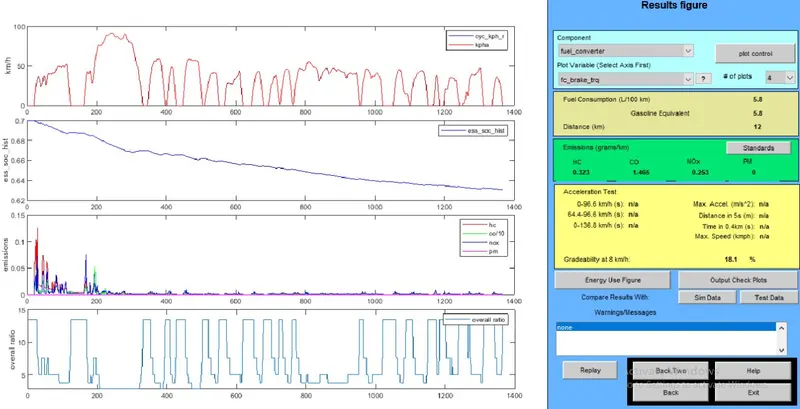

    this is the value of speed is 5 mph to 8.05 kmph. this gradeability test is 18.1%

gradeability test cast 2 :

    this is the value of speed is 10 mph to 16.1 kmph. this gradeability test is 23.7%

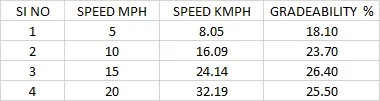

   RESULT OF EXCEL FILE :

CONCULATION :

           To all the advisor tool chalenge compledet of the compare the speed and battery power and calculate all the gradaebility test of compare the ruselts.
