Week 4.1 - Genetic Algorithm

Aim - To optimize the stalagmite function using genetic algorithm techniques using Matlab.

To understand the genetic algorithm first, we need to understand the following concepts to build a basic understanding of the genetic algorithm.

1)    what is optimization? and discussing various optimization techniques?

• what is a genetic algorithm?
• How genetic algorithms work? Where the genetic algorithm is used?

let us first understand that what optimization is, and various techniques in optimization.

optimization-Optimization is the process of making something better(such as a design, system, or decision) as fully perfect, functional, or effective as possible, this also helps us to find the best possible results under a set of constraints. This process is executed again and again till the final result or the output is satisfactory. This includes maximizing the product, strength, reliability, efficiency, and utilization.

Example- Taking the design of a wing of an aircraft, handling a load of 1tonne what considerations are to be chosen as parameters? Length, width,(aspect ratio) the factor of safety, weight, and stress-induced, etc. So choosing the optimization method helps to find the best parameters for the length, width, of the beam in such a manner that the factor of safety and stress-induced over the beam is within limits.

various optimization techniques that can be used to optimize the result.

Deterministic method: In this method, the output of the model is fully determined by the parameter of the initial conditions. This uses specific rules from moving from one solution to another. let us understand with the help of an example:

stress analysis of wing is determined as the output result(stress value) is totally dependent on the initial condition (loading condition) and the parameters like material and forces acting on the component.

Stochastic method: This method is used for minimizing and maximizing an objective function, this possesses some inherent randomness, it is a probabilistic approach. This method is gaining popularity due to some properties which deterministic method does not possess. Let us understand with an example imagine a company that provides energy to households. This company is responsible for delivering energy to households based on how much they demand. Typically, this problem could be solved as a simpler Linear Program (LP) with constraints based on demand from households. Though this is convenient, the future demand of households is not always known and is likely dependent on factors such as the weather and time of year. Therefore, there is uncertainty and our basic LP model will not suffice. Stochastic programming offers a solution to this issue by eliminating uncertainty and characterizing it using probability distributions.

the following is the procedure followed by an optimization process.



Variables - Variable is a process that may vary during optimization is my variables. an Example is the dimension of a design that can be scale-up or vary to get minimum stress.

Constraints - During the optimization your output must not go beyond certain limits are known as constraints. An example one can reduce the material in such a way that the stress must not exit the ultimate stress of the material.

Objective function- This can be predicted by the mathematical model that includes all the variables as input. for example z = (x,y) here the z output is totally dependent on the input variable (x,y).

variable bound- These are the range of the variable input, that will be varied at every iteration to provide an optimized result.                                                                                                  for example, the design variable can be varied in between the set of a range to get the minimum stress.

The concept of Genetic Algorithm

A genetic algorithm is a natural process that is used for the selection of the fittest individuals. The main use of the genetic algorithm is for reproduction to produce offspring of the next generation, this process of selecting and reproducing the fittest individual is inspired by Charles Darwin’s and named it the "Theory of evolution".

The process of natural selection starts with the selection of the fittest individuals from a population. They produce offspring which inherit the characteristics of the parents and will be added to the next generation. If parents have better fitness, their offspring will be better than parents and have a better chance at surviving. This process keeps on iterating and in the end, a generation with the fittest individuals will be found.

Five phases are considered in a genetic algorithm. They are Initial population

Fitness function Selection Crossover Mutation

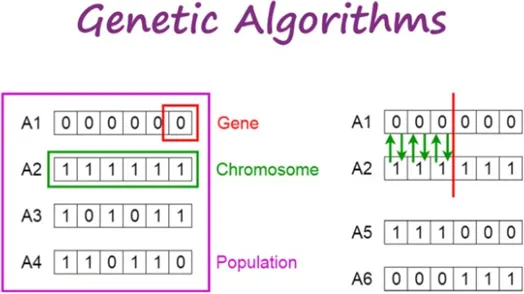

Initial Population- the process begins with a set of individuals which is called a Population. An individual is characterized by a set of parameters (variables) known as Genes. Genes are joined into a string to form a Chromosome (solution).

What is fitness function? to determine the fitness function we are comparing how fittest an individual is, basically we are comparing the individuals with one another. It gives a fitness score to each individual and based on the fitness score the individual will be selected for reproduction.



to perform the optimization in GAs we need to optimize the stalagmite function to find its minima. these have two inputs (x,y).

Selection -The idea of the selection phase is to select the fittest individuals and let them pass their genes to the next generation. Here, two pairs of individuals are selected according to their fitness score, higher will be the fitness the more chance is for the selection for reproduction.

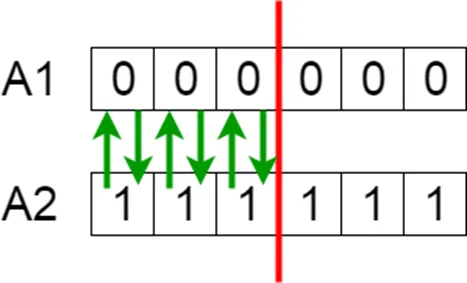

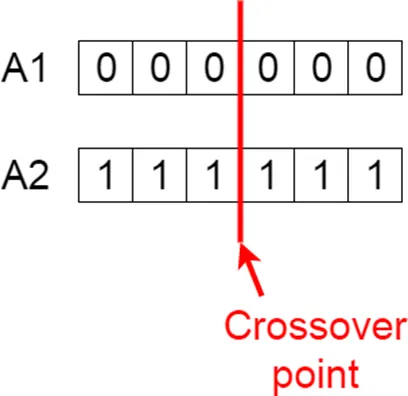

cross over - cross over is a process of taking two-parents' solutions and producing a child from them. For each pair of parents to be mated, a crossover point is chosen at random from within the genes



Offspring are created by exchanging the genes of parents among themselves until the crossover point is reached

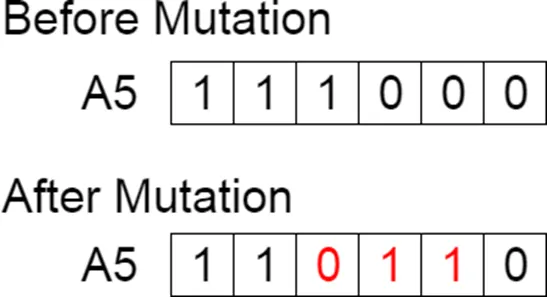

Mutation- Mutation is used to carry out the genetic diversity from one generation of the population of chromosomes to the next generation. This mutation process is too important to perform because if it is not performed then the chromosomes will be too similar to each other. The mutation occurs to maintain diversity within the population and prevent premature convergence and results in local minima.



now the new offsprings are added to the population

Advantages of GAs

GAs have various advantages that have made them immensely popular. These include −

Does not require any derivative information (which may not be available for many real-world problems). Has very good parallel capabilities.

Optimizes both continuous and discrete functions and also multi-objective problems. Provides a list of “good” solutions and not just a single solution.

Useful when the search space is very large and there are a large number of parameters involved.

Always provide good results over time.

Limitations of GAs

If not implemented properly, the GA may not converge to the optimal solution



Where there is simple problem and for that the derivative values is known then this is not suited i.e genetic algorithm

The syntax that used in creating the genetic algorithm in MATLAB is as follows the different syntax are used for different results and different case studies. Following is the syntax used in GA.

• x= ga(fun,nvars) finds a local unconstrained minimum, x, to the objective function, nvars is the dimension (number of design variables) of fun. where, fun- objective function and nvars-number of variables.
• x= ga(fun,nvars,A,b,Aeq,beq,lb,ub) defines a set of lower and upper bounds on the design variables, x, so that a solution is found in the range lb ≤ x ≤ (Set Aeq=[] and beq=[] if no linear equalities exist.)

3)x = ga(fun,nvars,A,b,[],[],lb,ub,nonlcon,IntCon) or x = ga(fun,nvars,A,b,[],[],lb,ub,nonlcon,IntCon,options) requires that the variables listed in IntCon take integer values.

Where, A and b are A=[] and b=[] if no linear inequalities.

lb and ub are lower bound and upper bound. Lower bounds, and upper bound specified as a real vector or array of doubles.

nonlcon is a function that accepts a vector or array.

Intcon- integer variable vectors of positive integers.

options- Optimization options, specified as the output of optimoptions or a structure it helps in constraint tolerance by increasing the population size.

MATLAB CODE

• STALAGMITE FUNCTION

Initially we will start our code with all the input parameters and defining a function into another script '.mscript'



clear all close all clc

%Defining our search space x =linspace(0,.6,150);

y =linspace(0,.6,150); num_case=60;

%creating a 2D mesh

[xx,yy]= meshgrid(x,y);



%evaluating the stalagmite function for i=1:length(xx);

for j =1:length(yy); input_vector(1)=xx(i,j); input_vector(2)=yy(i,j);

f(i,j)= stalagmite(input_vector); end

end



tic

for k = 1:num_case;

[inp,fval(k)] = ga(@stalagmite,2); x_1(k) = inp(1);

y_1(k)  =  inp(2);

end

study1_time=toc







figure (1) hold on

grid on

surfc(xx,yy,-f) shading interp

title('stalagmite plot') xlabel ('X')

ylabel('Y')



figure(2)

subplot(2,1,1) surfc(xx,yy,-f) shading interp hold on

plot3(x_1,y_1,-fval,'marker','o','markersize',5,'markerfacecolor','g') title('unbounded inputs')

subplot(2,1,2) plot(-fval)

xlabel('iterations')

ylabel('function minimum')







function file





function [f]  =  stalagmite(input) x = input(1);

y  =  input(2);

f1x = (sin(5.1*pi*x + 0.5))^6; f1y = (sin(5.1*pi*y + 0.5))^6;

f2x  = exp((-2.7726)*(x-(0.0667))^2/0.64);

f2y  = exp((-2.7726)*(y-(0.0667))^2/0.64);



f = -(f1x*f1y*f2x*f2y); end



RESULTS for basic stalagmite function and case study (I)

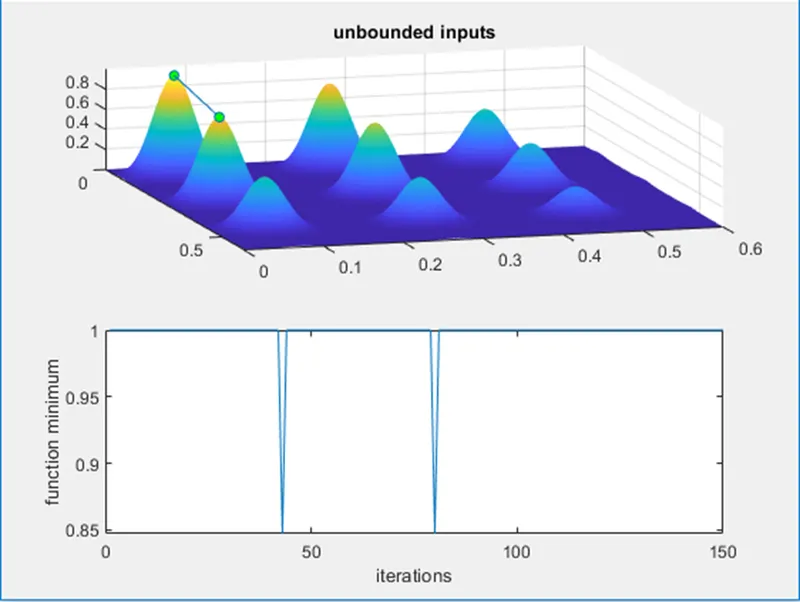

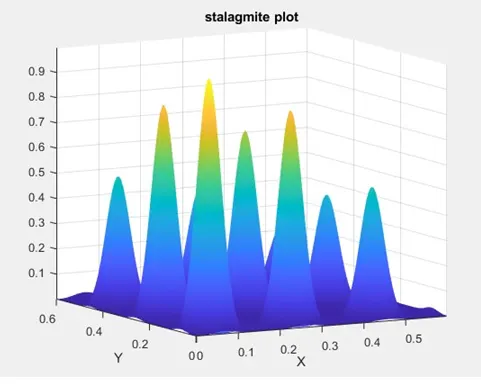

as we can see that there are more up-growing peaks, basically are my stalagmite structure. However, the function tends to give the negative value which gives the local minima's, so to make the function positive for getting the local and global maxima's. (upgrowing peaks). The highest peak is called global maxima and others are local maxima's.

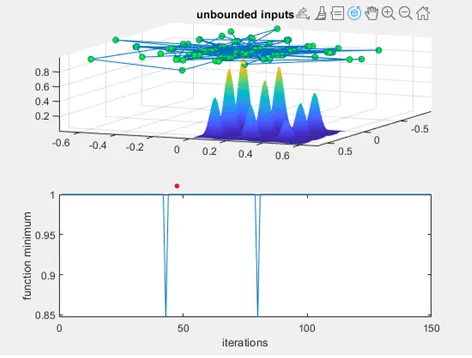

here, in the case study (I), the solutions are not bounded so the GA will calculate all the possible maxima in 'x' and 'y' coordinates. and the time taken to calculate the possible solution is 4.4339

study(II)

As the solution is dispersed in space we are limiting it to the global maxima simply we are converging the area for GA function for optimum values, on iterating the for loop for 50 times means we are evolving our solution to get better results for every generation to generation.

MATLAB CODE(II

% 2nd case study statistical behavior tic

for s = 1:num_case;

[input,fval(s)]= ga(@stalagmite,2,[],[],[],[],[0,0],[0.6,0.6]); x_2(s)= input(1);

y_2(s)= input(2);



end

study2_time = toc figure(3)

subplot(2,1,1) surfc(xx,yy,-f) shading interp hold on

plot3(x_2,y_2,-fval,'marker','o','markersize',5,'markerfacecolor','g') title('unbounded inputs')

subplot(2,1,2) plot(-fval)

xlabel('iterations')

ylabel('function minimum')

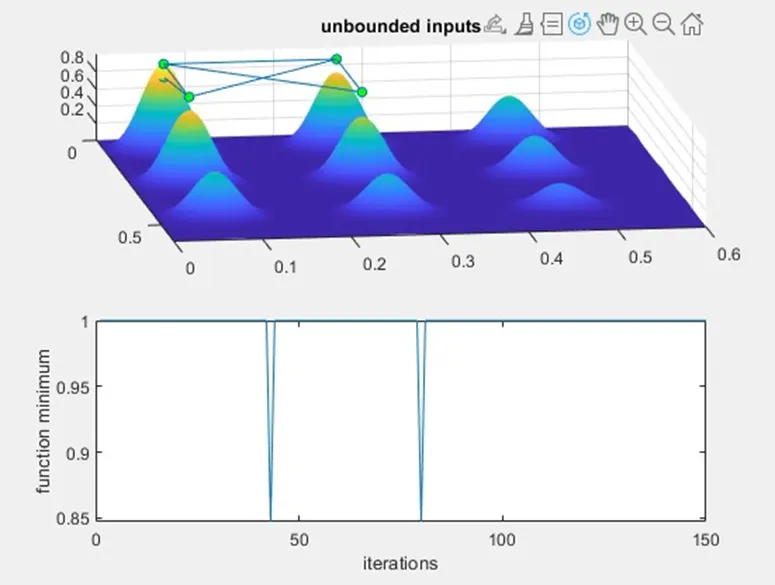

As we can see that the time taken in result two studies is 6.1952 for the reading of global maxima. H tool to bound the lower and upper value, because when we bound the upper and lower value then t range only. here, the lower and upper bound are taken as (0 and .6) for the x and y-direction.

case study (III)

MATLAB CODE

%  3rd case study                       increasing  ga  iterations options = optimoptions('ga');

options = optimoptions(options,'populationsize',150); tic

for m = 1:num_case;

[input,fval(m)]= ga(@stalagmite,2,[],[],[],[],[0,0],[.6,.6],[],[],options); x_3(m)= input(1);

y_3(m)= input(2);



end

study3_time = toc figure(4)

subplot(2,1,1) surfc(xx,yy,-f) shading interp hold on

plot3(x_3,y_3,-fval,'marker','o','markersize',5,'markerfacecolor','g') title('unbounded inputs')

subplot(2,1,2) plot(-fval)

xlabel('iterations')

ylabel('function minimum')

The resulted line from high peak to low peak is the critical point for my global maxima and the time taken by it is 36.4559 which is approx 3 times greater than the case study one. As the population size is large enough to carry out 50 iterations at the same time. however, we got our optimum maximized solution.

MATLAB FINAL CODE FOR ALL THREE STUDIES

clear all close all clc

%Defining our search space x =linspace(0,.6,150);

y =linspace(0,.6,150); num_case=150;

%creating a 2D mesh

[xx,yy]= meshgrid(x,y);



%evaluating the stalagmite function for i=1:length(xx);

for j =1:length(yy); input_vector(1)=xx(i,j); input_vector(2)=yy(i,j);

f(i,j)= stalagmite(input_vector); end

end



tic

for k = 1:num_case;

[inp,fval(k)] = ga(@stalagmite,2); x_1(k) = inp(1);

y_1(k)  =  inp(2);

end

study1_time=toc



tic

for s = 1:num_case;

[input,fval(s)]= ga(@stalagmite,2,[],[],[],[],[0,0],[.6,.6]); x_2(s)= input(1);

y_2(s)= input(2);



end

study2_time = toc







%  3rd case study increasing  ga  iterations options = optimoptions('ga');

options = optimoptions(options,'populationsize',150); tic

for m = 1:num_case;

[input,fval(m)]= ga(@stalagmite,2,[],[],[],[],[0,0],[.6,.6],[],[],options); x_3(m)= input(1);

y_3(m)= input(2);



end

study3_time = toc



figure (1) hold on

grid on

surfc(xx,yy,-f) shading interp

title('stalagmite plot') xlabel ('X')

ylabel('Y')



figure(2)

subplot(2,1,1) surfc(xx,yy,-f) shading interp hold on

plot3(x_1,y_1,-fval,'marker','o','markersize',5,'markerfacecolor','g') title('unbounded inputs')

subplot(2,1,2) plot(-fval)

xlabel('iterations')

ylabel('function minimum')



%  2nd case study    statistical behavior









figure(3)

subplot(2,1,1) surfc(xx,yy,-f) shading interp hold on

plot3(x_2,y_2,-fval,'marker','o','markersize',5,'markerfacecolor','g') title('unbounded inputs')

subplot(2,1,2) plot(-fval)

xlabel('iterations')

ylabel('function minimum')



% 3rd case study increasing ga iterations figure(4)

subplot(2,1,1) surfc(xx,yy,-f) shading interp hold on

plot3(x_3,y_3,-fval,'marker','o','markersize',5,'markerfacecolor','g') title('unbounded inputs')

subplot(2,1,2) plot(-fval)

xlabel('iterations')

ylabel('function minimum')





some questions to be clarified

can we trust genetic algorithms? if yes? why?

In many problems, GAs have a tendency to converge towards local optima or even arbitrary points rather than the global optimum of the problem. This means that it does not "know-how" to sacrifice short-term fitness to gain longer-term fitness. we may come out from this problem by using a different fitness function, increasing the rate of mutation, or by using selection techniques that maintain a diverse population of solutions.

we can not trust genetic algorithms because Diversity is important in genetic algorithms or genetic programming because crossing over a homogeneous population does not yield new solutions. In evolution strategies and evolutionary programming, diversity is not essential because of a greater reliance on mutation.

CONCLUSION: By using basic commands in MatLab we got the stalagmite plot. The statistical behavior of the stalagmite plot is generated. and finally, we optimized our plot and go to its critical point to reach the global maxima by using the GA tool. we also came to know that increasing the population size and iterating it resulted in optimization of the stalagmite function generated to GA.
