Week 3 Verification of Weld Joints

Objective:- To simulate three different types of welding using three different types of welding materials

Case 1:- stainless steel: the material of the plates must also be the same. Use stainless steel for both weldments and Plates.

Case 2:- Aluminum alloy:- The material chosen for this case is Aluminum alloy ( high strength, wrought ), [ Plate material to be used is stainless steel ]

Case 3:- Bronze:- In order to simulate brazing, you should be using the bronze as the weld material, Assign stainless steel to both the plates, and copper to the ribs.

Procedure:-

Open the static structural analysis system in the Project_Schematic, and rename it to Weld's joints. The material used for this analysis is stainless steel, aluminum alloy, Copper, and bronze. These materials are added to the library in the Engineering Data.

Now proceed to Import the geometry, and verify the geometry is proper, and Update and open the mechanical module.

                                                      Fig 1. Given geometry

Contacts:-

Frictional contacts are given to the Big plate, Small Plate, and ribs with a Friction coefficient of 0.2.

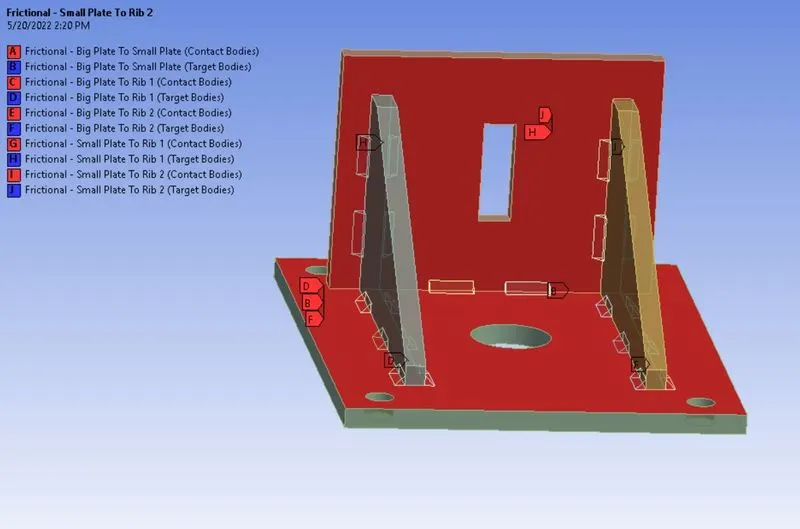

                                                               Fig 2. Contacts

Meshing:-

Body sizing meshing of 7mm is given to the Big plate and small plate

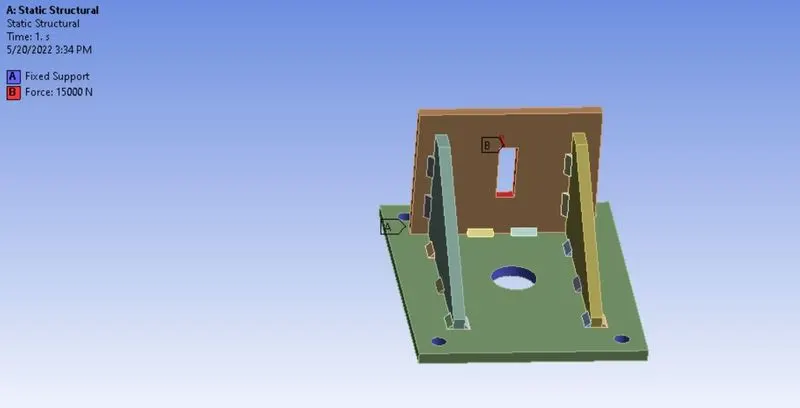

Fixed support and Load definition:-

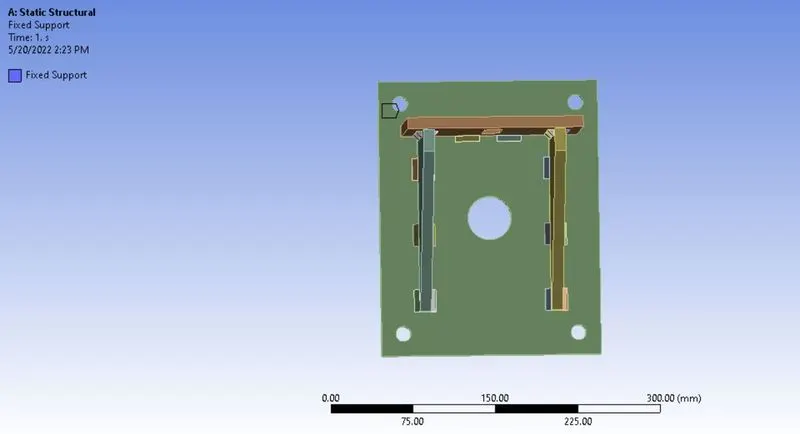

                                                    Fig3. Fixed support is given to the holes

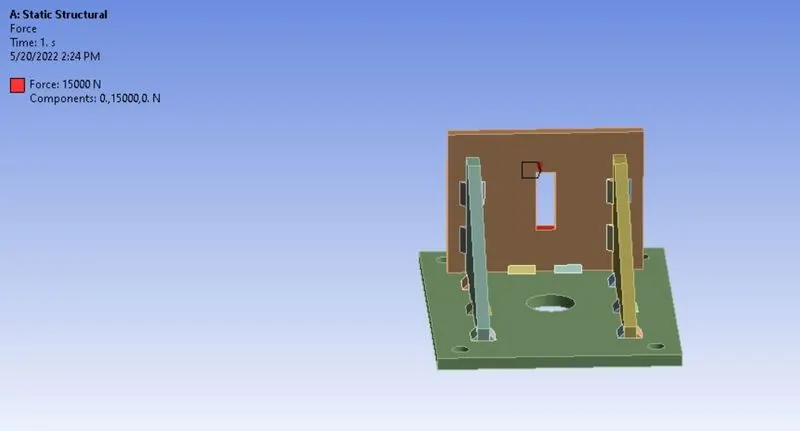

                                                        Fig4. The force of 15000 N is given

Case 1:-

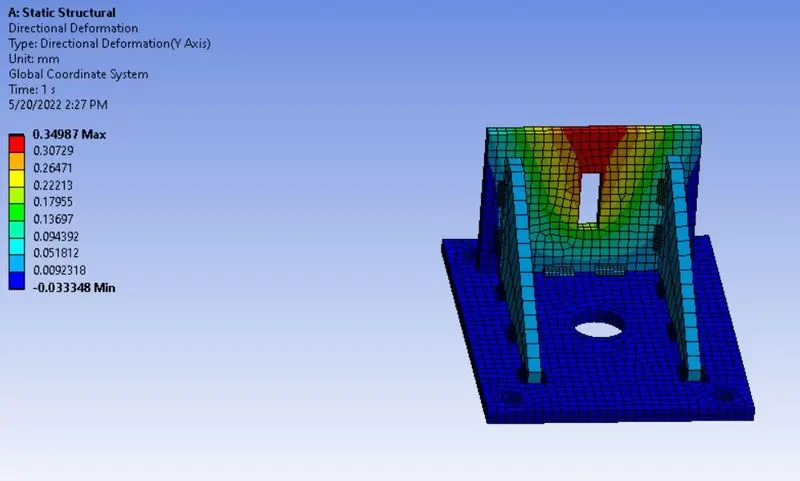

                                                                        Fig5.Directional Deformation ( Y-axis)

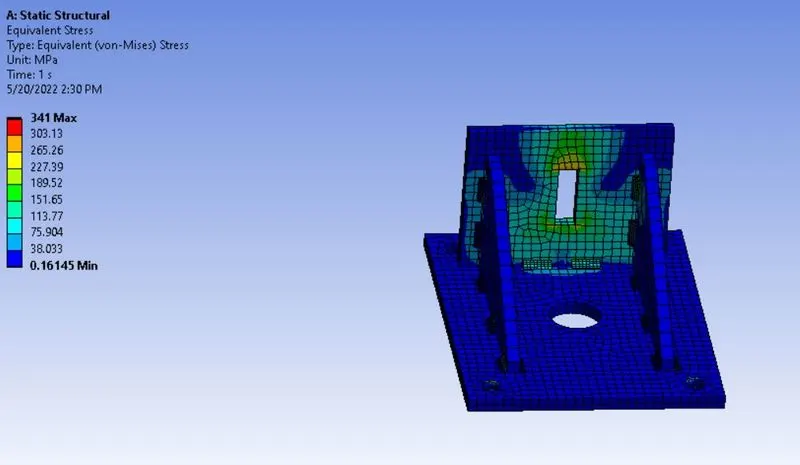

                                                                   Fig 6. Equivalent stress

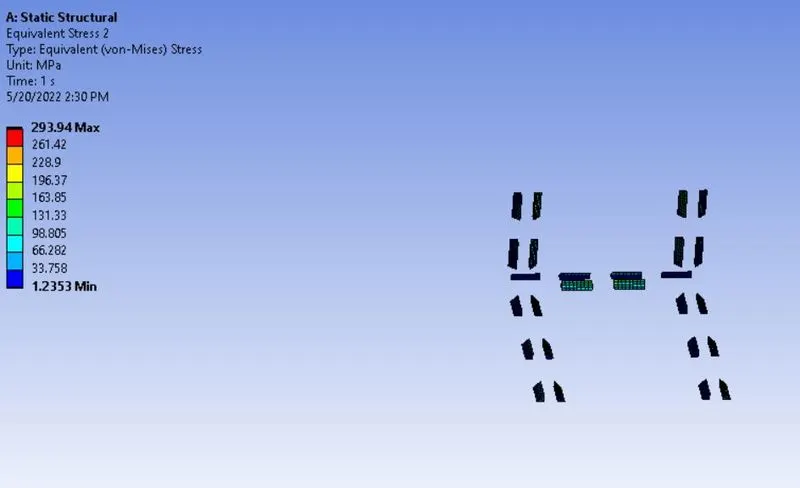

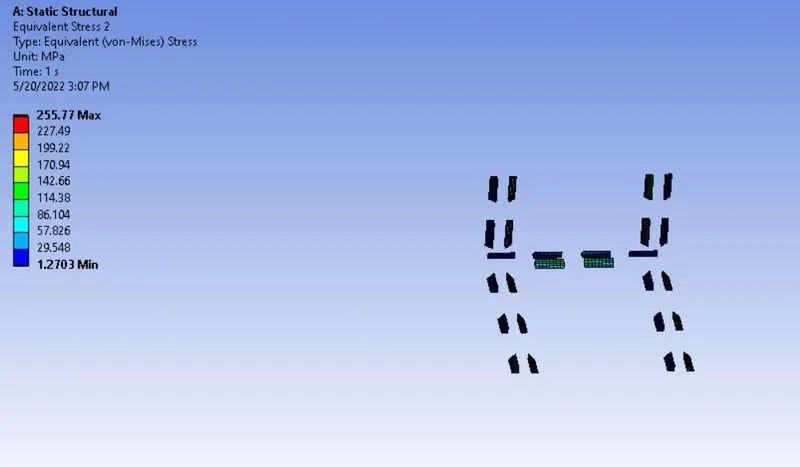

                                                                    Fig 7. Equivalent stress _Weld Joints

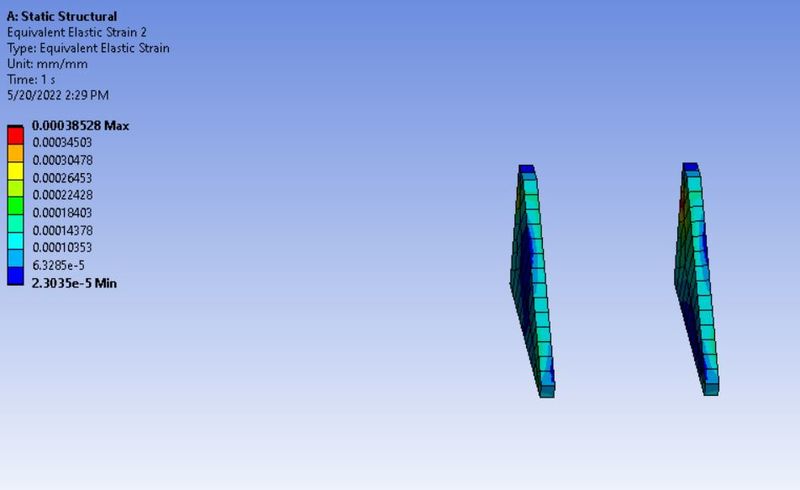

                                                                       Fig8. Equivalent elastic strain_Ribs

Case 2:-

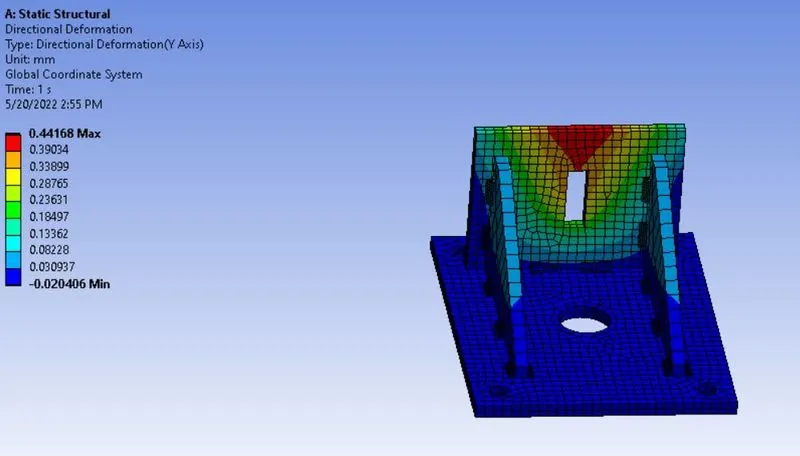

                                                                  Fig 9. Directional Deformation ( Y-axis )

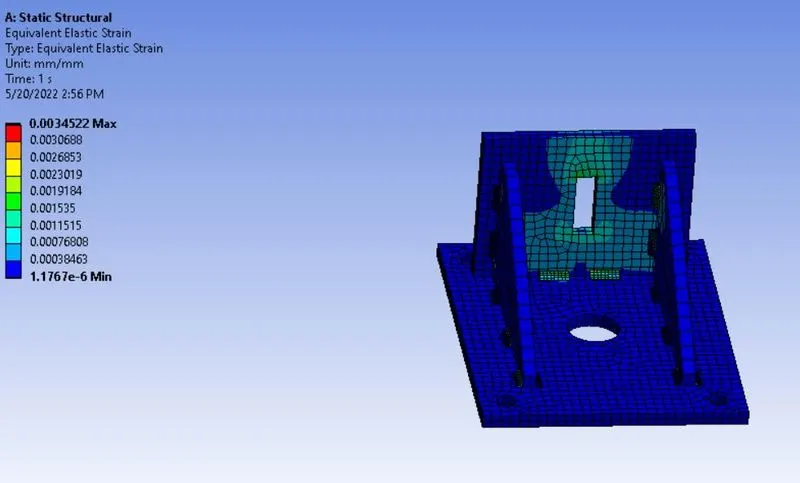

                                                                  Fig 10. Equivalent elastic strain

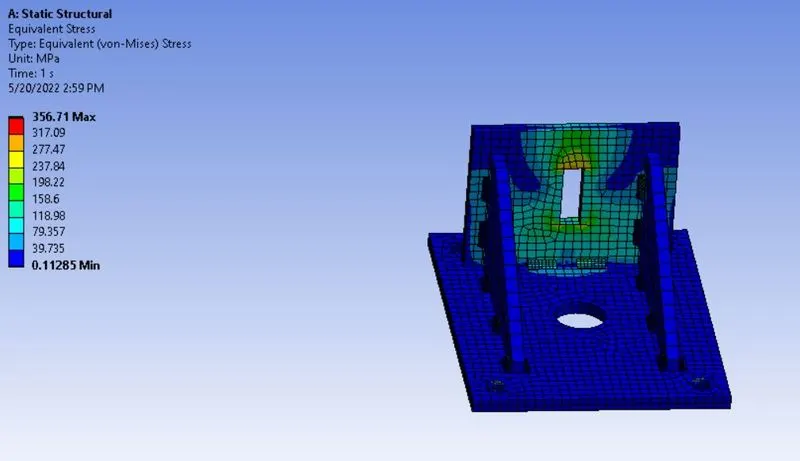

                                                                    Fig 11. Equivalent stress

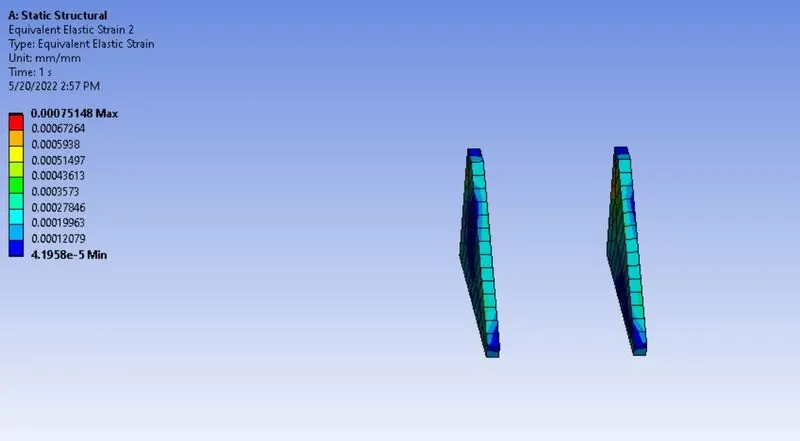

                                                               Fig 12. Equivalent elastic strain _Ribs

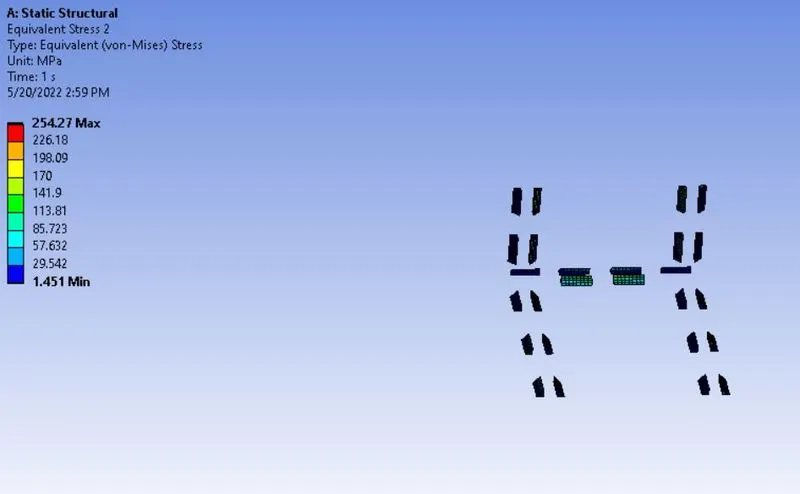

                                                                       Fig 13. Equivalent stress_ Weld joints

Case 3:-

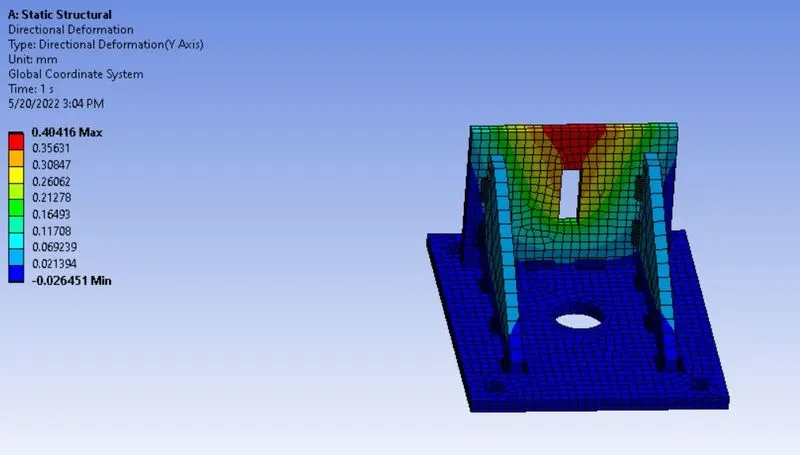

                                                                             Fig 14.Directional Deformation ( Y-axis)

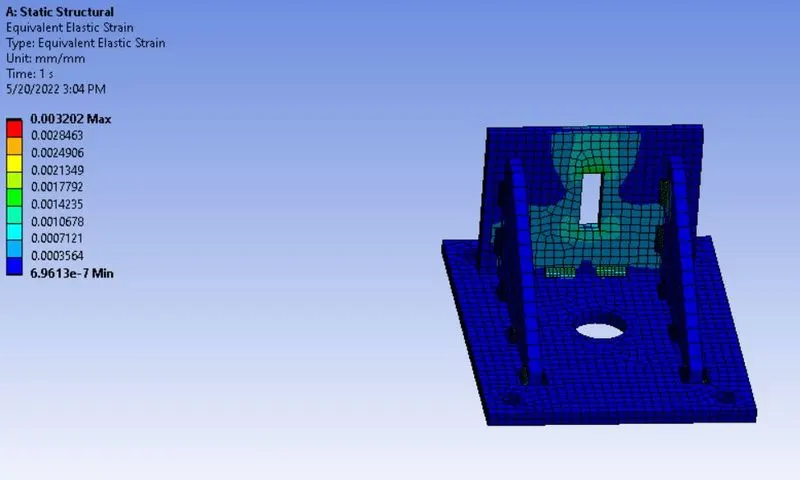

                                                                  Fig 15. Equivalent elastic strain

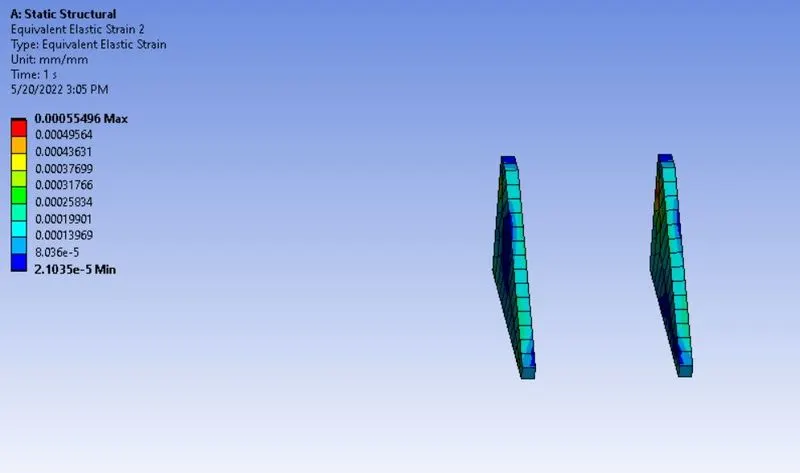

                                                               Fig 16. Equivalent elastic strain _ Ribs

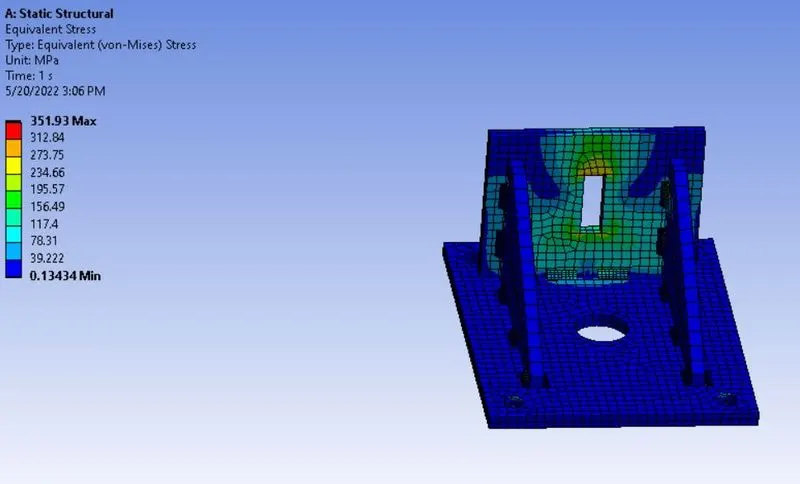

                                                                   Fig 17. Equivalent stress

                                                            Fig 18. Equivalent stress_ Weld Joints

Comparison:-                                           Stainless steel                                Aluminum alloy                  Brazing

Directional Deformation                                  0.34987                                   0.44168                            0.40416

Equivalent Stress                                              341                                      356.71                                 351.93

Equivalent Elastic strain                               0.0018731                                    0.0034522                             0.003202

Equivalent Elastic strain ( Ribs )                    0.00038528                         0.00075148                             0.00055496

Conclusion:-

Thus, given three types of weld joints are simulated using three different materials.
