  3. MATLAB - Deriving 4th order approximation of a 2nd order derivative using Taylor Table method

MATLAB - Deriving 4th order approximation of a 2nd order derivative using Taylor Table method

Problem Statement: - For the Function f(x)=ex⋅cos(x)f(x)=ex⋅cos(x) derive the 4th Order Accurate Approximation of 2nd Order Derivative for the given function using Taylor Table Method for the following difference Methods: - 1. Central Difference 2. Skewed right-sided difference 3. Skewed left-sided difference Write A MATLAB…

  • MATLAB

  • Aditya Aanand

    updated on 09 Sep 2022

Problem Statement: -

For the Function f(x)=ex⋅cos(x)f(x)=ex⋅cos(x) derive the 4th Order Accurate Approximation of 2nd Order Derivative for the given function using Taylor Table Method for the following difference Methods: -

1. Central Difference 2. Skewed right-sided difference 3. Skewed left-sided difference

Write A MATLAB Code to Solve the function using the derived 4th Order Approximate 2nd Order Derivative and compare it with the 2nd Order Derivative of Analytical Solution



Solution: -

1. AIM: -

A. To Derive 4th Order Approximation for 2nd Order Derivative using: -

   a. Central Difference Method

   b. Skewed Right-Side Difference Method

   c. Skewed Left-Side Difference Method

B. Prove each Method to Be 4th Order Accurate

C. Write a MATLAB Code to Solve a function using all 3 Methods

D. Comment on the usefulness of Skewed Methods



2. Given: -

A. P = N - Q + ({1 for CDM} or {0 for Skewed Method})

    Here,

           P - Order of Accuracy of Approximation

           N - Number of Nodes in Numerical Stensil

           Q - Order of Derivative

           CDM - Central Difference Method

B.  Function→f(x)=ex⋅cos(x) Function→f(x)=ex⋅cos(x)



3. Assumed: -

A. Differentiation Point(x)=π3Differentiation Point(x)=π3



4. Analytical Derivative Formula: -

 second Derivative→∂2f(x)∂x2=-2ex⋅sin(x)



5. Formulas & Derivation of The Approximation Methods: -

A. Central Difference Method: -

 For calculating the 4th Order Approximation and 2nd Order Derivative

  (P=4) = N - (Q=2) + 1

 => Number of Nodes in Numerical Stensil(N) = 5

So,

       Numerical Stensil for Central Difference Method

 Num Stensil CDM



Let, (dx)2∂2f(x)∂x2=af(i-2)+bf(i-1)+cf(i)+df(i+1)+ef(i+2)



Using Taylor Table Method For Central Difference Method

Numerical Stensil ↓ f(i) (dx)∂f(i)∂x (dx)2∂2f(i)∂x2 (dx)3∂3f(i)∂x3 (dx)4∂4f(i)∂x4
    af(i-2)   a  -2a  4a2  -8a6  16a24
    bf(i-1)   b  -b  b2  -b6  b24
    cf(i)   c    0  0      0    0
   df(i+1)   d    d  d2    d6  d24
   ef(i+2)   e    2e  4e2    8e6  16e24
Sum=(dx)2∂2f(x)∂x2   0   0   1   0   0



On Solving,

    a=e=-112

    b=d=43

    c=52

Hence,

(dx)2∂2f(x)∂x2=-112f(i-2)+43f(i-1)-52f(i)+43f(i+1)-112f(i+2)

4th Order Approximation for 2nd Order Derivative of Central Difference Method

      ∂2f(x)∂x2=-112f(i-2)+43f(i-1)-52f(i)+43f(i+1)-112f(i+2)(dx)2



 B. Skewed Right-Side Difference Method: -

For Calculating 4th Order Approximation and 2nd Order Derivative

(P=4) = N - (Q=2) + 0

=> Number of Nodes in Numerical Stensil(N) = 6

So,

       Numerical Stensil for Skewed Right-Side Difference Method

Num Stencil Right Side Method



Let, (dx)2∂2f(x)∂x2=af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+ff(i+5)



Numerical Stensil ↓ f(i) (dx)∂f(i)∂x (dx)2∂2f(i)∂x2 (dx)3∂3f(i)∂x3 (dx)4∂4f(i)∂x4 (dx)5∂5f(i)∂x5
    af(i)   a  0  0  0  0  0
    bf(i+1)   b  b  b2  b6  b24  b120
    cf(i+2)   c  2c  4c2  8c6  16c24  32c120
   df(i+3)   d  3d  9d2  27d6  81d24  729d120
   ef(i+4)   e  4e  16e2  64e6  256e24  1024e120
   ff(i+5)  f  5f  25f2  125f6  625f24  3125f120
Sum=(dx)2∂2f(x)∂x2   0   0   1   0   0   0



On Solving,

    a=154

    b=-776

    c=1076

    d=-13

    e=671132

    f=-56

Hence,

(dx)2∂2f(x)∂x2=154f(i)-776f(i+1)+1076f(i+2)-13f(i+3)+671132f(i+4)-56f(i+5)

4th Order Approximation for 2nd Order Derivative of Skewed Right-Side Difference Method

      ∂2f(x)∂x2=154f(i)-776f(i+1)+1076f(i+2)-13f(i+3)+671132f(i+4)-56f(i+5)(dx)2



C. Skewed Left-Side Difference Method: -

For Calculating 4th Order Approximation and 2nd Order Derivative

(P=4) = N - (Q=2) + 0

=> Number of Nodes in Numerical Stensil(N) = 6

So,

       Numerical Stensil for Skewed Right-Side Difference Method

Numerical Stencil Left Skewed



Let, (dx)2∂2f(x)∂x2=af(i-5)+bf(i-4)+cf(i-3)+df(i-2)+ef(i-1)+ff(i)



Numerical Stensil ↓ f(i) (dx)∂f(i)∂x (dx)2∂2f(i)∂x2 (dx)3∂3f(i)∂x3 (dx)4∂4f(i)∂x4 (dx)5∂5f(i)∂x5
    af(i-5)   a  -5a  25a2  -125a6  625a24  -3125a120
    bf(i-4)   b  -4b  16b2  -64b6  256b24  -1024b120
    cf(i-3)   c  -3c  9c2  -27c6  81c24  -729c120
   df(i-2)   d  -2d  4d2  -8d6  16d24  -32d120
   ef(i-1)   e  -e  e2  -e6  e24  -e120
   ff(i)  f  0  0  0  0  0
Sum=(dx)2∂2f(x)∂x2   0   0   1   0   0   0



On Solving,

    a=-56

    b=671132

    c=-13

    d=1076

    e=-776

    f=154

Hence,

(dx)2∂2f(x)∂x2=-56f(i-5)+671132f(i-4)-13f(i-3)+1076f(i-2)-776f(i-1)+154f(i)

4th Order Approximation for 2nd Order Derivative of Skewed Right-Side Difference Method

      ∂2f(x)∂x2=-56f(i-5)+671132f(i-4)-13f(i-3)+1076f(i-2)-776f(i-1)+154f(i)(dx)2



6. Proving That the Above Derived Formulas are 4th Order Accurate: -

A. Central Difference Method: -

As form proof the Coefficients of f(x),(dx)∂f(x)∂x,(dx)3∂3f(x)∂3xand(dx)4∂4f(x)∂x4 are equated to Zero(0) now for the Given Value of a, b, c, d, and e

Checking the Coefficient of(dx)5∂5f(x)∂x5

Coefficient of (dx)5∂5f(x)∂x5=-32a120-b120+0+d120+32e120

         For,a=e=-112andb=d=43

Coefficient of (dx)5∂5f(x)∂x5=0

Hence,

....+(coefficient of fIV(x))(dx)6∂6f(x)∂x6+(1)(dx)2∂2f(x)∂x2=-112f(i-2)+43f(i-1)-52f(i)+43f(i+1)-112f(i+2)



                                            Dividing Both-sides from(dx)2

⇒....+(coefficient of fIV(x))(dx)4∂6f(x)∂x6+∂2f(x)∂x2=-112f(i-2)+43f(i-1)-52f(i)+43f(i+1)-112f(i+2)(dx)2



Ignoring All multiples of dx4 (=> The Order of Accuracy is 4th Order)

∂2f(x)∂x2=-112f(i-2)+43f(i-1)-52f(i)+43f(i+1)-112f(i+2)(dx)2



B. Skewed Right-Side Difference Method: -

As form proof the Coefficients of f(x),(dx)∂f(x)∂x,(dx)3∂3f(x)∂3x,(dx)4∂4f(x)∂x4and(dx)5∂5f(x)∂x5 are equated to Zero(0)

Hence,

....+(coefficient of fIV(x))(dx)6∂6f(x)∂x6+(1)(dx)2∂2f(x)∂x2=154f(i)-776f(i+1)+1076f(i+2)-13f(i+3)+671132f(i+4)-56f(i+5)





                                            Dividing Both-sides from(dx)2

⇒....+(coefficient of fIV(x))(dx)4∂6f(x)∂x6+∂2f(x)∂x2=154f(i)-776f(i+1)+1076f(i+2)-13f(i+3)+671132f(i+4)-56f(i+5)(dx)2



Ignoring All multiples of dx4 (=> The Order of Accuracy is 4th Order)

∂2f(x)∂x2=154f(i)-776f(i+1)+1076f(i+2)-13f(i+3)+671132f(i+4)-56f(i+5)(dx)2



C. Skewed Left-Side Difference Method: -

As form proof the Coefficients of f(x),(dx)∂f(x)∂x,(dx)3∂3f(x)∂3x,(dx)4∂4f(x)∂x4and(dx)5∂5f(x)∂x5 are equated to Zero(0)

Hence,

....+(coefficient of fIV(x))(dx)6∂6f(x)∂x6+(1)(dx)2∂2f(x)∂x2=-56f(i-5)+671132f(i-4)-13f(i-3)+1076f(i-2)-776f(i-1)+154f(i)





                                            Dividing Both-sides from(dx)2

⇒....+(coefficient of fIV(x))(dx)4∂6f(x)∂x6+∂2f(x)∂x2=-56f(i-5)+671132f(i-4)-13f(i-3)+1076f(i-2)-776f(i-1)+154f(i)(dx)2



Ignoring All multiples of dx4 (=> The Order of Accuracy is 4th Order)

∂2f(x)∂x2=-56f(i-5)+671132f(i-4)-13f(i-3)+1076f(i-2)-776f(i-1)+154f(i)(dx)2



7. Explanation of Code: -

A. Section A(Defining Variables): -

    a. Defined x and a vector of different values of dx

    b. Calculated Analytical Value using Analytical Formula

    c. created "A" and "B" of Central and Skewed Forms ( "A" and "B" of AX = B)

    d. Calculated "X" of Central and Skewed Forms using X = AB

B. Section B(Differentiating): -

    a. Created A loop of Iteration of the length of dx vector

    b. Selected a dx at each iteration

    c. Created small functions for simplification of Calculations at each iteration

    d. Calculated Central Difference and Skewed Differences using the Function defined above and X calculated in Section A.

    e. Calculated Error generated per Iteration w.r.t Analytical Value Calculated in Section A and saved it in a Vector.

C. Section C(Plotting)

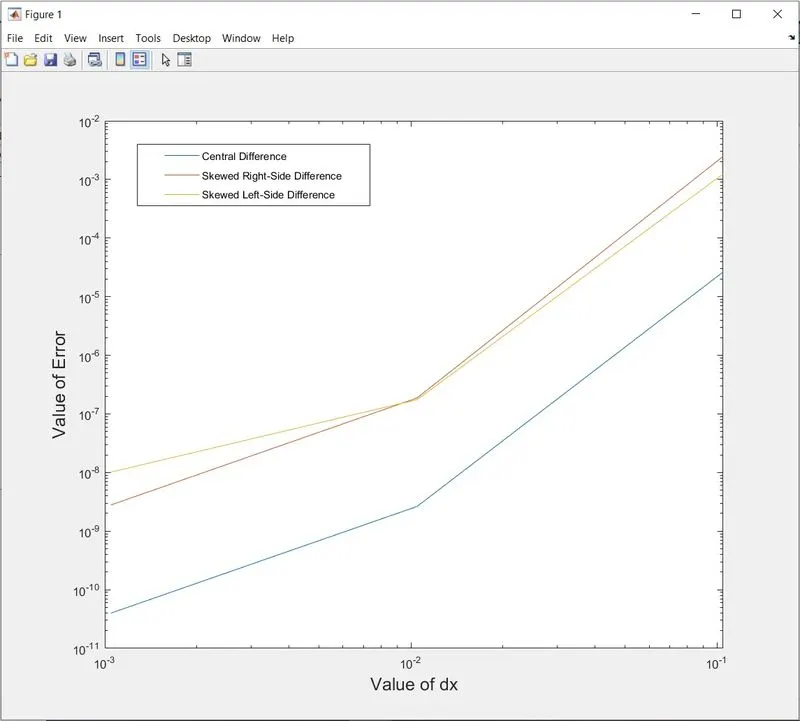

    a. Plotted a log Graph between The Value of Error vs The Value of dx for all 3 Methods

    b. Defined Proper Legends and Labels in the plot.



8. Code: -



% 4th Order 2nd Differentiation using Central and Both Skewed Schemes
clear all
close all
clc

%% Defining Variables
   x = pi/3;
   dx_all = x.*(10.^[-3:-1]);
   analytical_val = -(2*exp(x)*sin(x))
   A_crt_vec = [-2:1:2]';
   A_rgt_vec = [0:5]';
   A_lft_vec = [-5:0]';
   A_crt = [ones(5,1),(A_crt_vec.^[1:4]).*(1./cumprod([1:4]))]';
   A_rgt = [ones(6,1),(A_rgt_vec.^[1:5]).*(1./cumprod([1:5]))]';
   A_lft = [ones(6,1),(A_lft_vec.^[1:5]).*(1./cumprod([1:5]))]';
   B_crt = [0;0;1;0;0];
   B_skw = [0;0;1;0;0;0];
   X_crt = A_crtB_crt
   X_rgt = A_rgtB_skw
   X_lft = A_lftB_skw

%% Differentiating
   for i=1:length(dx_all)
       % Selecting h and Creating small Function for Ease
       dx = dx_all(i);
       f_mi_5 = exp(x-5*dx)*cos(x-5*dx);
       f_mi_4 = exp(x-4*dx)*cos(x-4*dx);
       f_mi_3 = exp(x-3*dx)*cos(x-3*dx);
       f_mi_2 = exp(x-2*dx)*cos(x-2*dx);
       f_mi_1 = exp(x-dx)*cos(x-dx);
       f_x = exp(x)*cos(x);
       f_pl_1 = exp(x+dx)*cos(x+dx);
       f_pl_2 = exp(x+2*dx)*cos(x+2*dx);
       f_pl_3 = exp(x+3*dx)*cos(x+3*dx);
       f_pl_4 = exp(x+4*dx)*cos(x+4*dx);
       f_pl_5 = exp(x+5*dx)*cos(x+5*dx);
       % Creating Formula and Executing it
       crt_fn_vec = [f_mi_2,f_mi_1,f_x,f_pl_1,f_pl_2];
       skw_rgt_fn_vec = [f_x,f_pl_1,f_pl_2,f_pl_3,f_pl_4,f_pl_5];
       skw_lft_fn_vec = [f_mi_5,f_mi_4,f_mi_3,f_mi_2,f_mi_1,f_x];
       dif_crt = (crt_fn_vec*X_crt)/(dx^2);
       dif_rgt = (skw_rgt_fn_vec*X_rgt)/(dx^2);
       dif_lft = (skw_lft_fn_vec*X_lft)/(dx^2);
       % Storing Errors
       err_crt(i) = abs(analytical_val - dif_crt);
       err_rgt(i) = abs(analytical_val - dif_rgt);
       err_lft(i) = abs(analytical_val - dif_lft);
   end

%% Plotting OUTPUT
loglog(dx_all,err_crt,dx_all,err_rgt,dx_all,err_lft)
xlabel('Value of dx','FontSize',15)
ylabel('Value of Error','FontSize',15)
legend('Central Difference','Skewed Right-Side Difference','Skewed Left-Side Difference')



9. OUTPUTS Generated on Running the Code: -

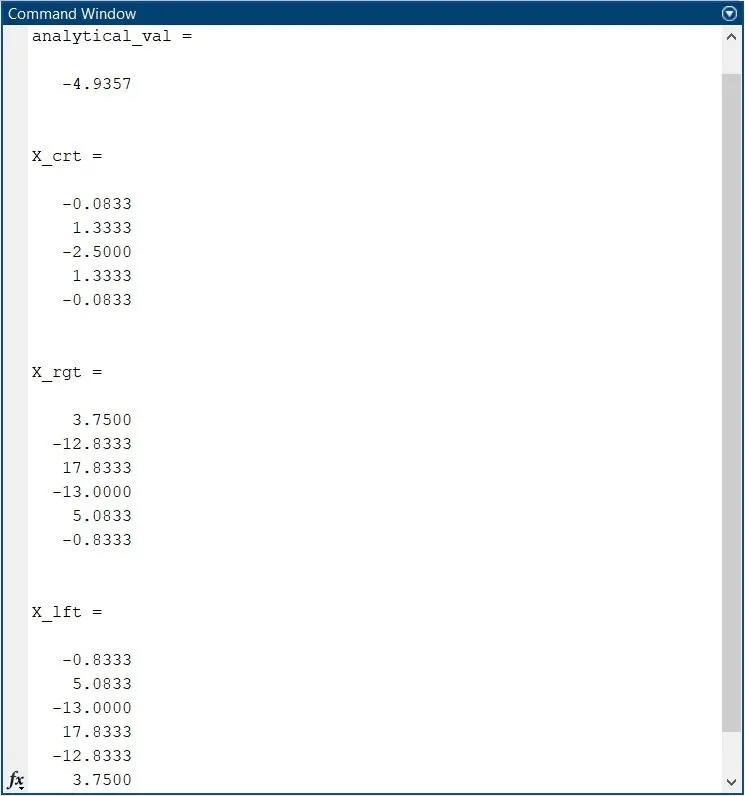

A. Command Window

Assign 3_5 Command Window Output



B. Plot OUTPUT

Assign 3_5 Graph



10. Usefulness of Skewed Difference Methods: -

Skewed Schemes are Generally useful where the Information is flowing from one direction then the Correct calculations can only be developed by points on one side, as the next value thus defined is required to be developed using the values just achieved. To explain this I'm using the example Below.

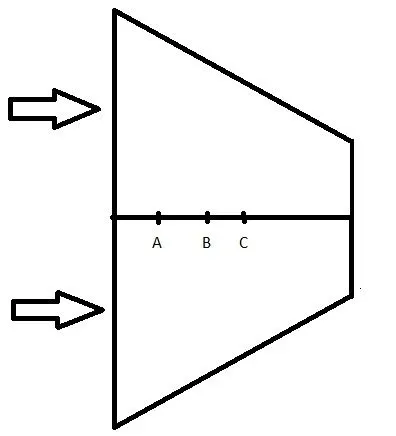

Example,

Example for Skewed Scheme

In this example, if properties at points A and B are available and the Value of C is to be determined such that difference between each point is dx then,

Using Taylor Series, ϕC=ϕB+(∂ϕ∂x)Bdx

Now, As properties at points A and B are only Known So to determine (∂ϕ∂x)B

Skewed Left-Side Difference Method is used, (∂ϕ∂x)B=ϕB-ϕAdx

Leave a comment

Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

Please  login to add a comment

Other comments...

No comments yet!
Be the first to add a comment

Read more Projects by Aditya Aanand (17)

Week 10 - Heat Transfer Analysis on BTMS for 4X2 Battery Set using Ansys

Objective:

AIM:- A. To Perform a Heat Transfer Analysis on A battery set by Inlet Velocities and Gap Between the Batteries. B. The Explain the Relevant  Results Generated by the Analysis.   Given:- A. The Battery Set Geometry: -   The Following are the Parameters for the Battery Set: -      i. The…

calendar

05 Nov 2022 03:19 PM IST

  • CFD
Read more

Week 9 - Parametric study on Gate valve.

Objective:

AIM: - A. To Perform Simulation on the Gate Valve by Setting the Opening from 10% to 80% B. To Calculate the Mass Flow rate and the Flow Factor for each Case   Given: - A. The Given CAD Models of Gate Valves: -                              …

calendar

31 Oct 2022 12:05 PM IST

  • CFD
Read more

Week 8 - Simulating Cyclone separator with Discrete Phase Modelling

Objective:

AIM: - A. To Perform the Analysis of the Given Cyclone separator for different particle sizes and different inlet speeds. B. To Explain the relevant theories and to explain the generated results   Given and Assumed: - A. The Geometry of the Given CAD Model: -   B. Material and their Properties:…

calendar

30 Oct 2022 07:43 AM IST

  • CFD
Read more

Week 6 - CHT Analysis on a Graphics card

Objective:

Problem Statement: - Perform a Steady State CHT analysis on the Given Graphic Card Model for 3 inlet Velocities 1 m/sec, 3 m/sec, and 5 m/sec for Course and Fine Mesh. Create an appropriate Mesh, define appropriate Materials for each Component and Perform a mesh-independent Study.   Expected Results: - 1. Explain…

calendar

23 Oct 2022 08:49 AM IST

    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecard

    Simulation and Design of Power Converters for EV using MATLAB and Simulink

    4.9

    22 Hours of Content

    coursecard

    Introduction to Hybrid Electric Vehicle using MATLAB and Simulink

    4.8

    23 Hours of Content

    coursecardcoursetype

    Mechanical Engineering Essentials Program

    4.7

    21 Hours of Content

    coursecard

    Vehicle Dynamics using MATLAB

    4.8

    37 Hours of Content

    coursecard

    Introduction to CFD using MATLAB and OpenFOAM

    4.8

    13 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
