Week 2 Challenge

1. Section classification problem for listed beam shapes Calculate section classification of following beam shapes ISMB 500 ISMC 200 PG 1300 x 450 x 20 x 12 Double angle (Back to back) – 2 x ISA 75x75x6 RHS - 150 x 100 x10 Builtup box – 1000 x 450 x 20 x 12   2. Effective length problems   Calculate…

1. Effective length factor determination problem Height of column is 10 m and it is effectively restrained in mid height in one direction (in Z direction) but free to move in other direction (Y direction). Bottom of column is Fixed and top of column is Free. Calculate effective length factor of columns in following cases…

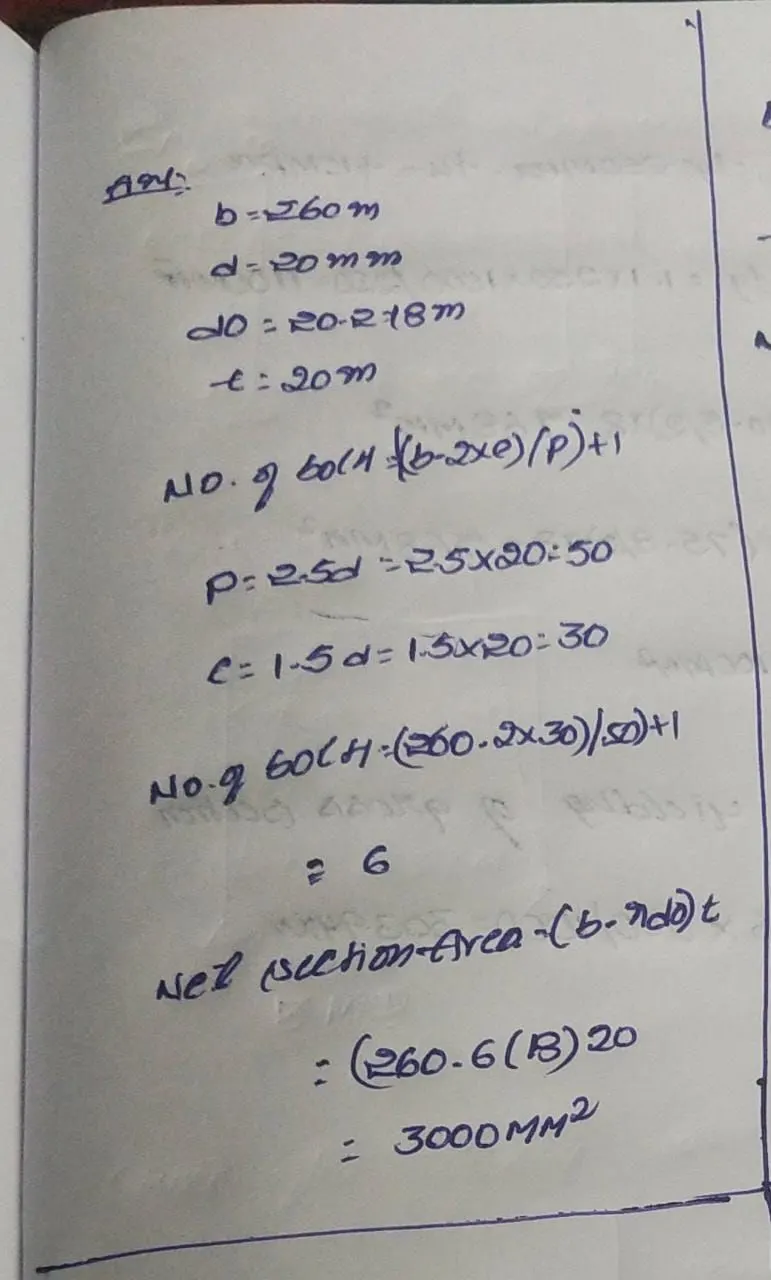

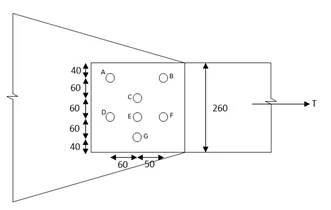

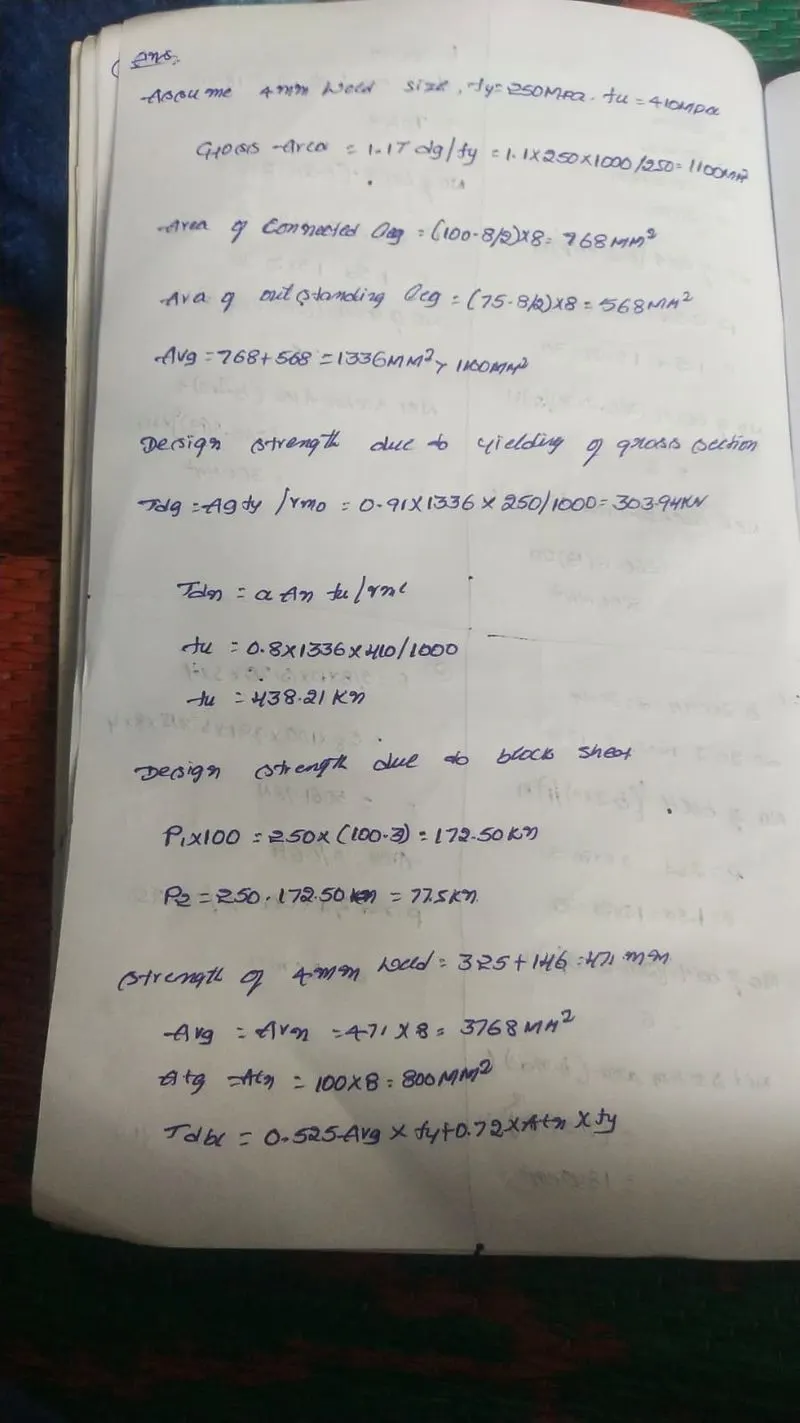

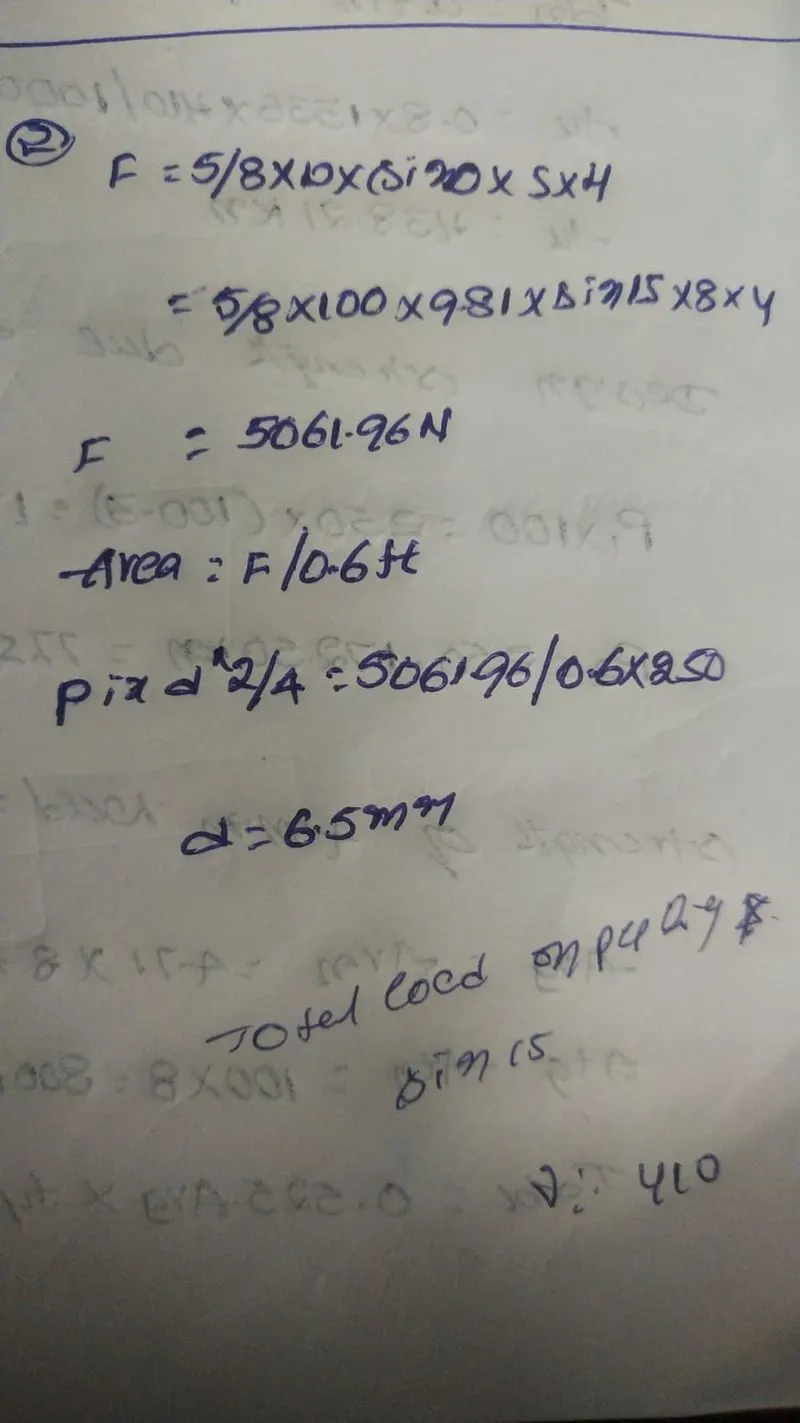

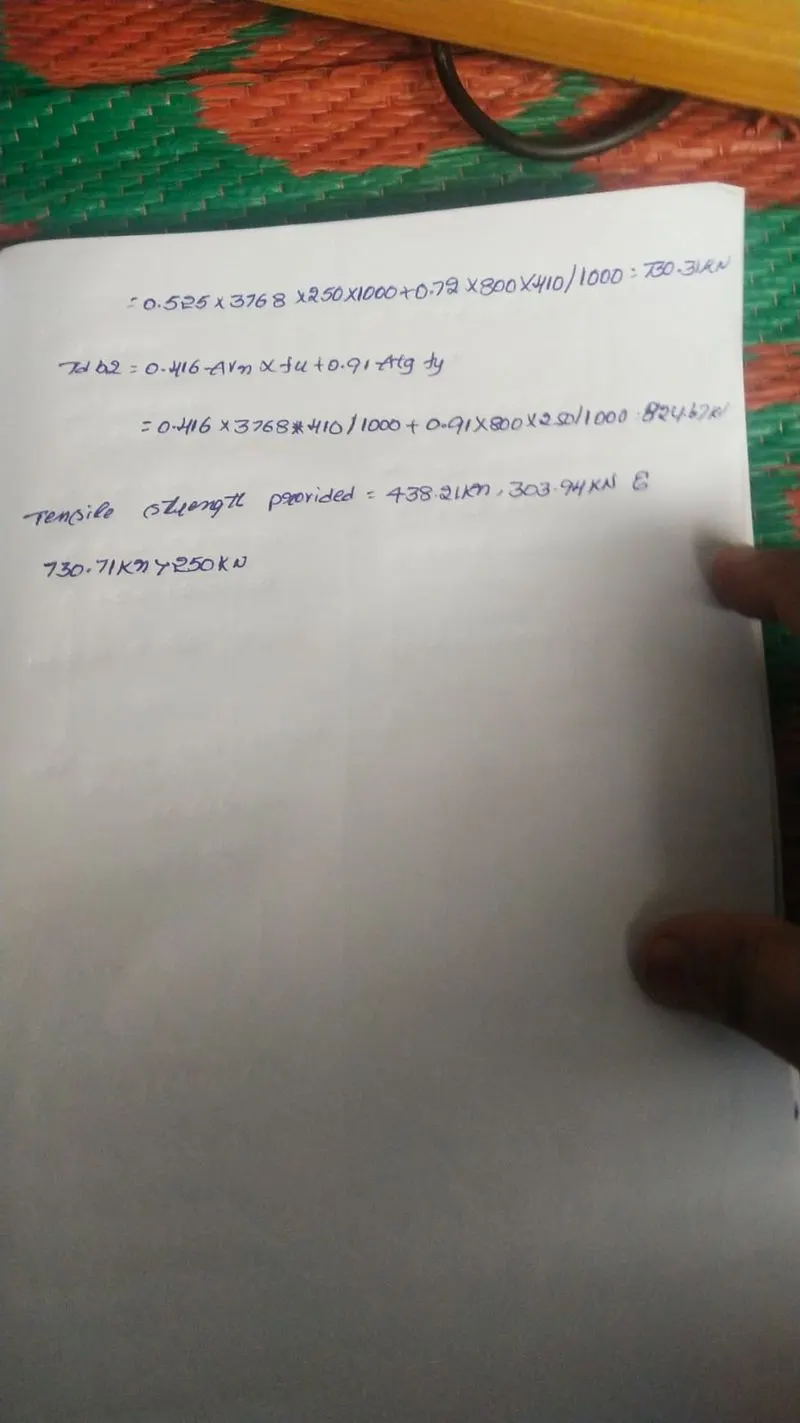

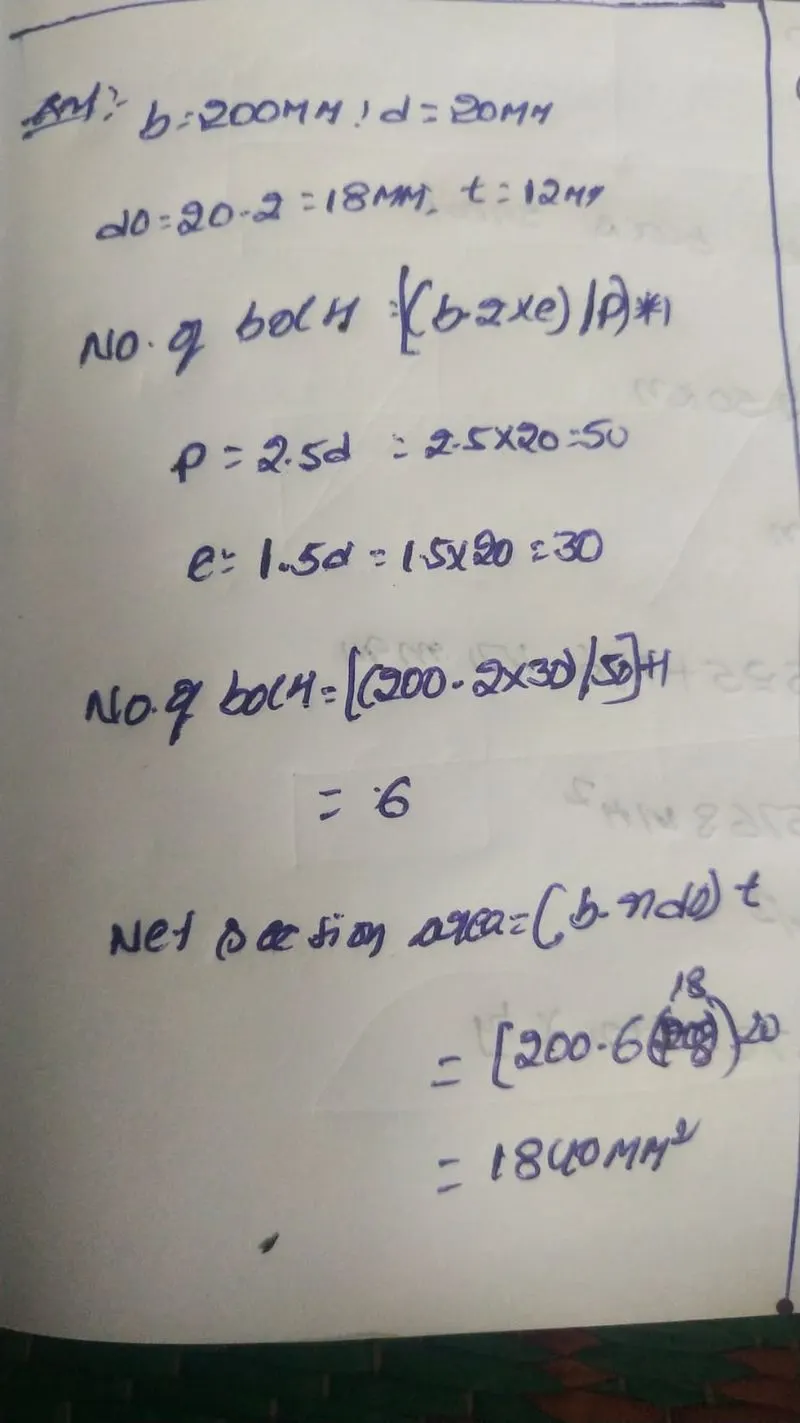

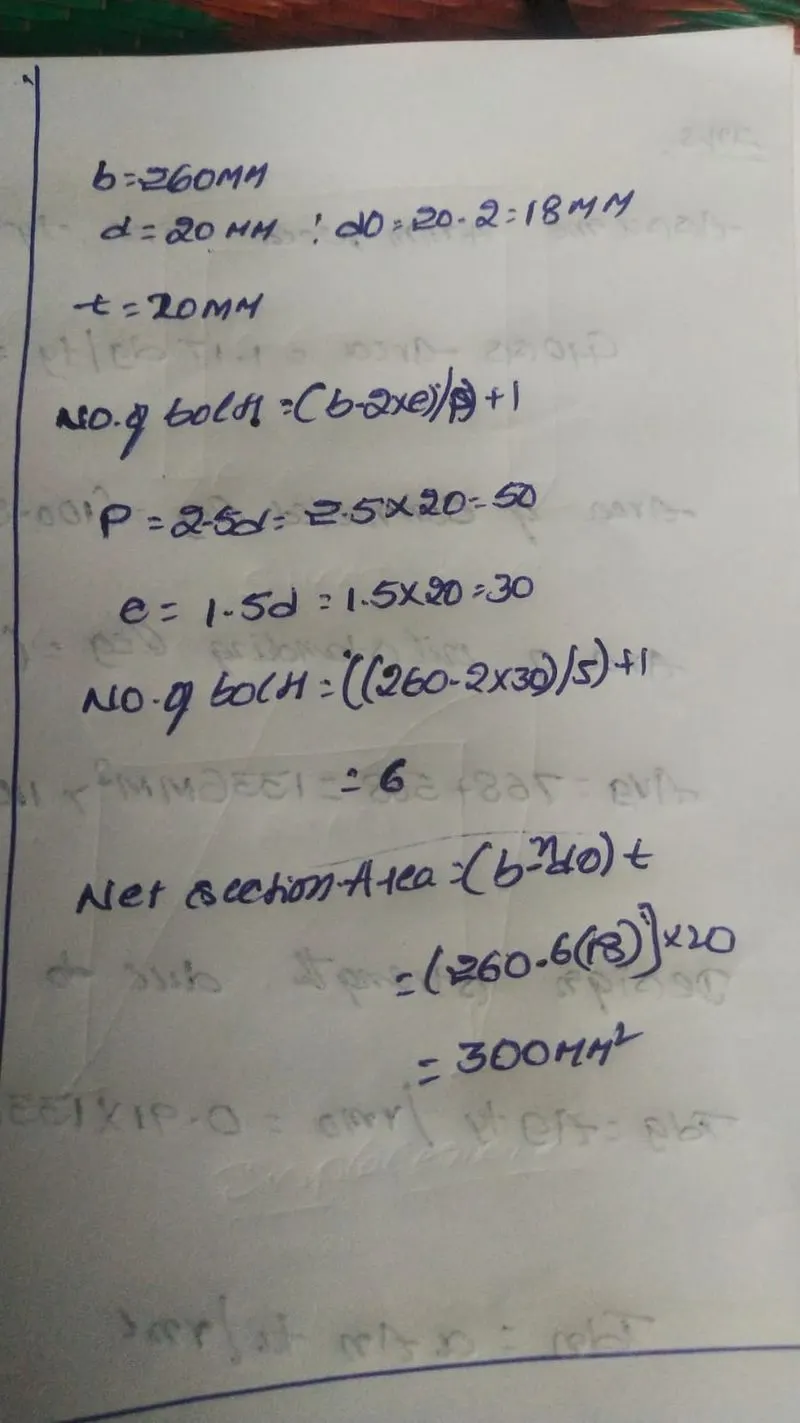

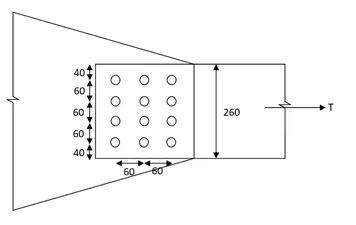

1. Net Area for tension member calculation problem Calculate the net section area for the tension member as shown in Figure below. The plate size is 260 x 20 thick and Bolt size is 20 mm. Plate – Drilled Hole Plate – Zigzag bolting Angle (200 x 100 x 12 with M20 bolt)   2. Sag rod design problem Design…

Out of the two through type truss systems shown below, which is the most efficient in carrying gravity load? Reason it out. Sol:  Truss (A)  is a "Pratt Truss And Truss (B) is a " Howe" Truss. The design of howe truss is opposite to that of pratt truss in wich diagonal memebers are slanted in the direction posite…

In this project, participants will get to experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information on the building is to be used: Location – Guwahati, Assam Function –…

1. Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations.   A column of size 600x600 carrying an unfactored gravity load (DL+LL) of 1175 KN is to be supported on pile cap, which ultimately transfers load to the piles…

Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load, also…

Typical floor plan – The location and thickness of the brick walls and the use of thespace (for estimating live load) can be obtained from this plan A building section through the staircase and lift core is provided Parking layout in the ground floor – the column/shear wall arrangement must notobstruct entry/exit…

Extract values of longitudinal steel ratio, boundary element length and shear reinforcing ratio from the design results. Provide cross sectional steel arrangement of the shear wall from its base up to terrace, in compliance with provisions of IS 13920 – 2016. AutoCAD application can be used for this exercise. Alternatively,…

Detailed design of concrete buildings -1 Analysis needs to be done Concrete design is done for this model

Aim: To provide details of longitudinal reinforcement for the two column from foundation to terrace level Procedure :Open Etabs file click on concrete frame design tool   Select the Display design info option .Choose design output as longitudinal reinforcement . After that click on elevatation view Grid A  1)…

      Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods?    The time period of E and F are 1.6891.622 . The time pperiod of both building arer same . The…

1Q)  As the structure is more restrained it will be more shrinkage , and cracking. There will be more shrinkage , the shear wall in the structure is also decide the vibration is more or not  The Torsion in structure C is more than compared to A,B. The redundancy in structure A,B is smore compared to Structure…

1) Symmertry : Symmertry section are the same which reflects same as the mirror image. it is obeserved that mass and stifeness are distributed symmetrically. Redundancy: The energy dissipation is low    Bi- Directional stifness The Horizontal building may not assit the Seismic action in the short direction. Ductility:…

1)    2a) 2b)   3) 4)

1A) This is flexural failure of a beam . When imposed load is exceed  Flexural capacity of a beam this types of failures happen. This type of failures are repaired we have to cut that part with the help of jacks we have to adject . 1B)   This is honey combing failure .This failure happens when concrete not vibrated…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class AIM; To Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. AIM: To sinusoidal points and create a curve and create a surface out of the curve. Procedure: Open archeitectural template  Go to manage option  You will find Dynamo click on dynamo open new one  …

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box           b. To create similar doors and windows in a floor plan layout         …

1) What are HVAC systems? Why are they essential in the modeling of buildings HAVC stands for heat ,Ventilation ,Air condition . HAvC is mainly is used in malls offices ,where we have more population.   2) From week 7 assignment, based on the building designed use the same Revit file to design a HVAC system for each…

1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School  I am intrested to draw Multi Unit Resident Apartment   2) Assume reasonable assumptions…

1. Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project AIM:To  Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project Procedure: open Architectural tab Select grid place the…

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit  Building codes  are important to  follow the drawings to fallow the standards of indian codes . In building code all the dimensions and heights safety everything mentioned .   2) From the National Building…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level AIM: Model a Ceiling from the architecture tab above the walls at the first-floor level Tools used : Architectural tab. Ceiling . Sketch celing. Pick lines.…

1) AIM:Using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2  Procedure 1)Click on Architectural tab select Floor tool. 2) Select the wall where to…

1.What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. BIM means Building information Modeling.It improves the desigining way . Benifits of BIM is we can use this in 3D, where as in 2D we can use only in 2D.   2.Understand the concept of Categories, Families, Elements, Instances…

1. AIM: To create a new file (Structural, Architectural template ) Procedure : 1. Open Revit Software  2. At left hand side you will find Models , Families . 3. Click on  New in models under that select Architectural template      2. AIM: To save New project File Procedure: 1.Open REvit. 2.Click…
