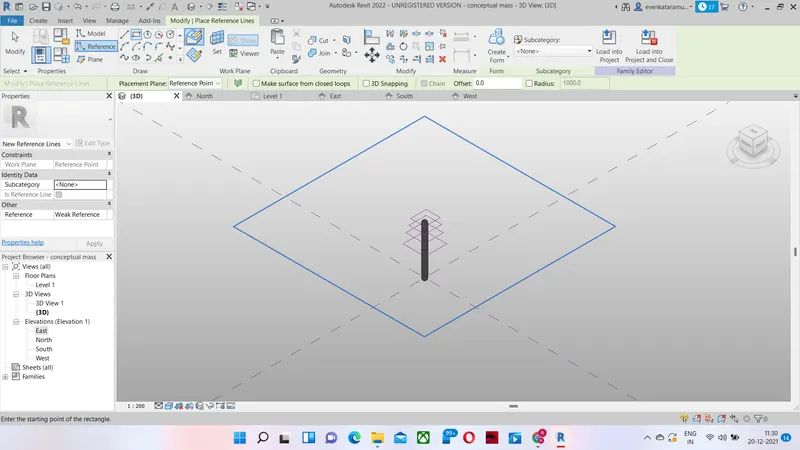

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

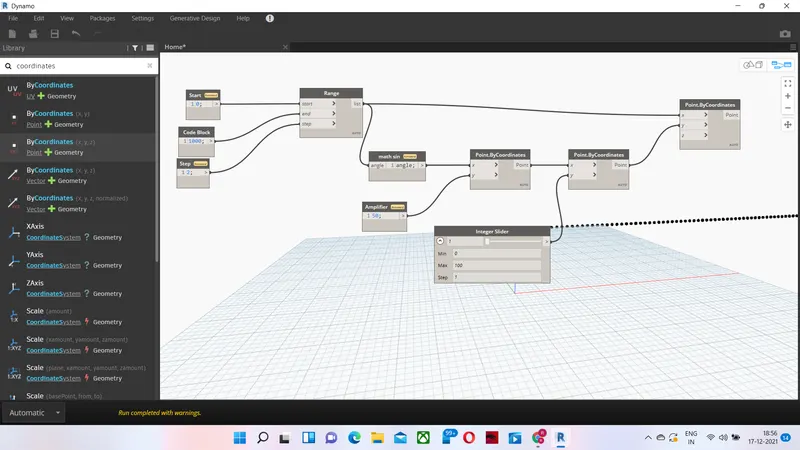

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.
AIM: To sinusoidal points and create a curve and create a surface out of the curve.
Procedure:
- Open archeitectural template
- Go to manage option

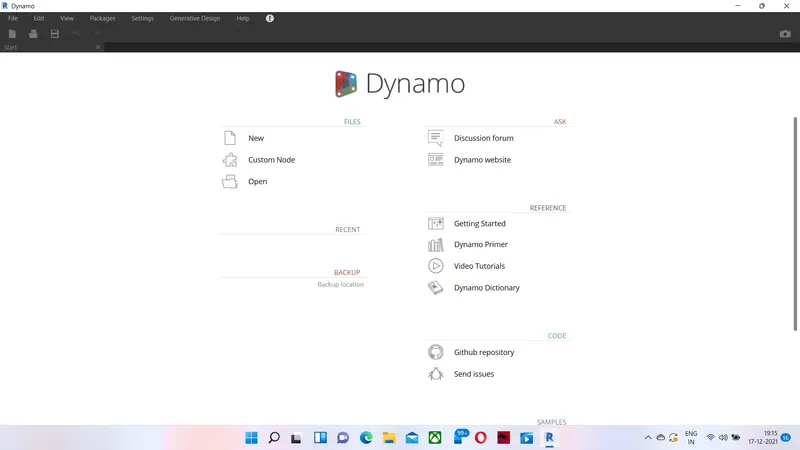

- You will find Dynamo

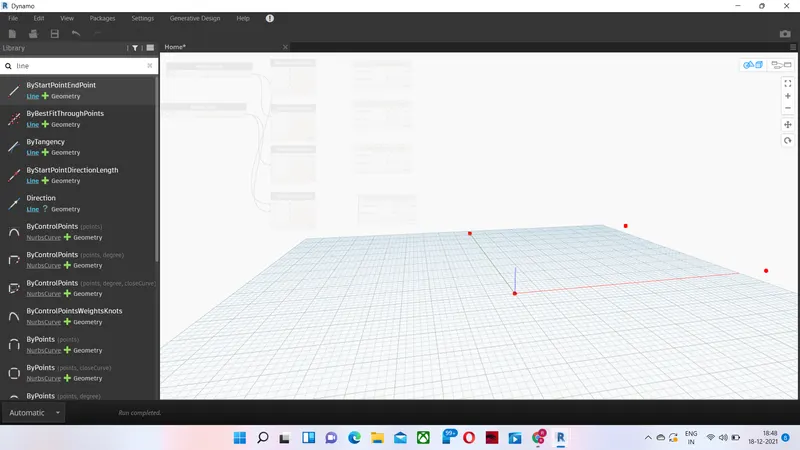

- click on dynamo open new one

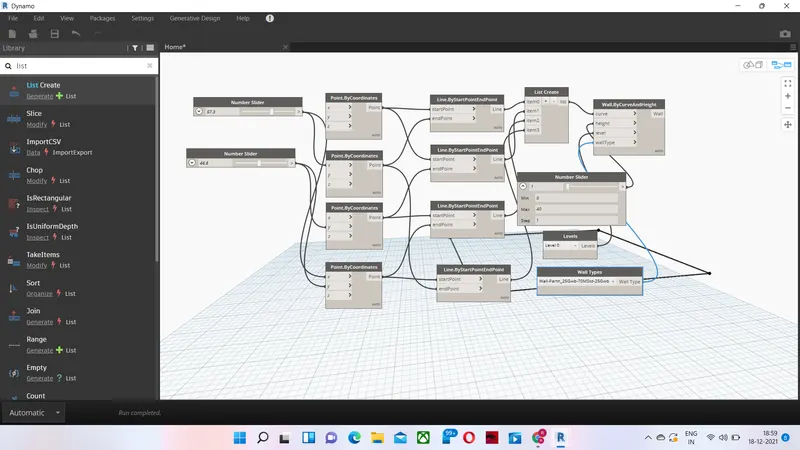

2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.
AIM: Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

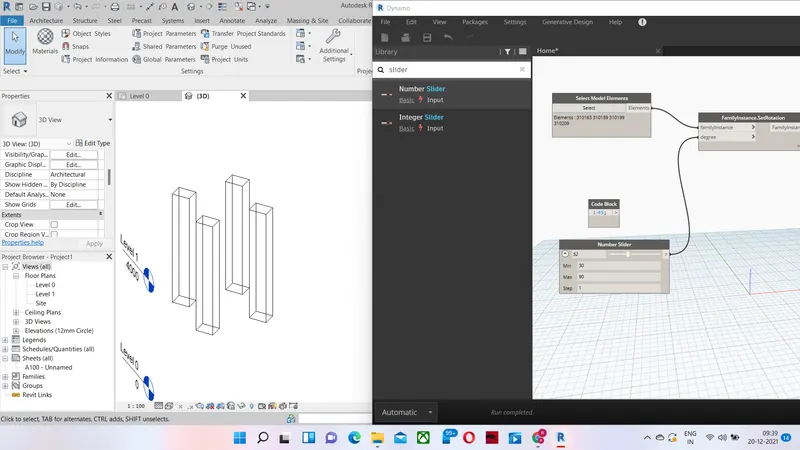

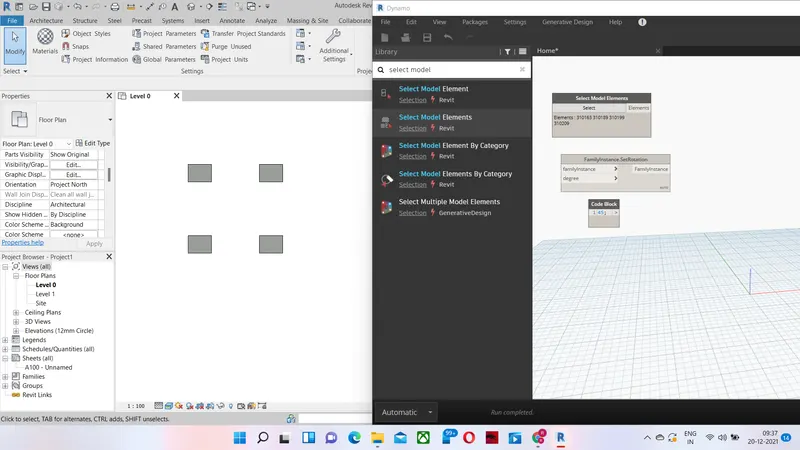

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block
Results: results are here.
4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column
