3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

AIM: Model a Ceiling from the architecture tab above the walls at the first-floor level

Tools used :

• Architectural tab.
• Ceiling .
• Sketch celing.
• Pick lines.

Procedure:

1) Open plan you already created

2) Go to celing plans in project browser.

3) again go to celing and select sketch ceiling select the pic up boundary and then give a tick mark.

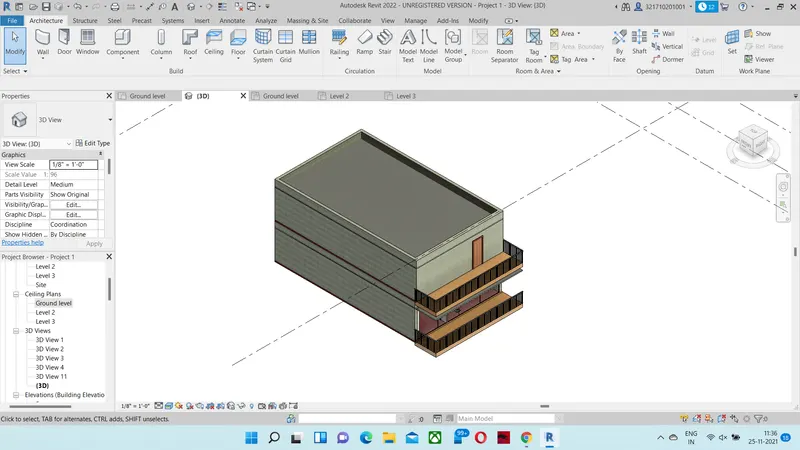

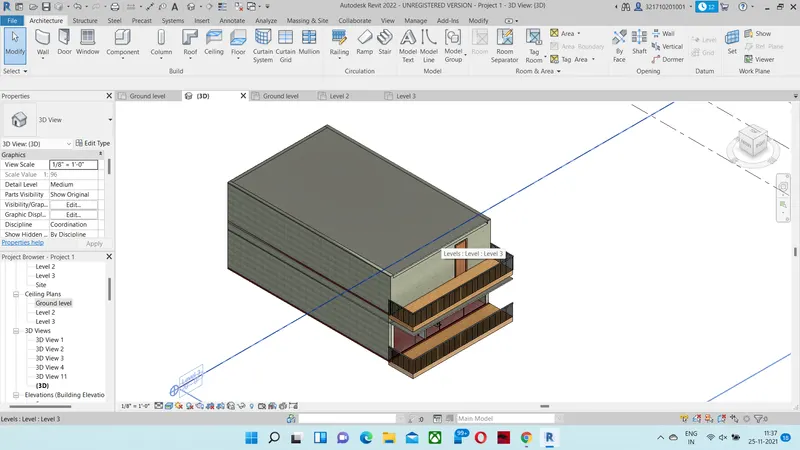

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

AIM:Model a roof above the ceiling by selecting the footprints of the ceiling.

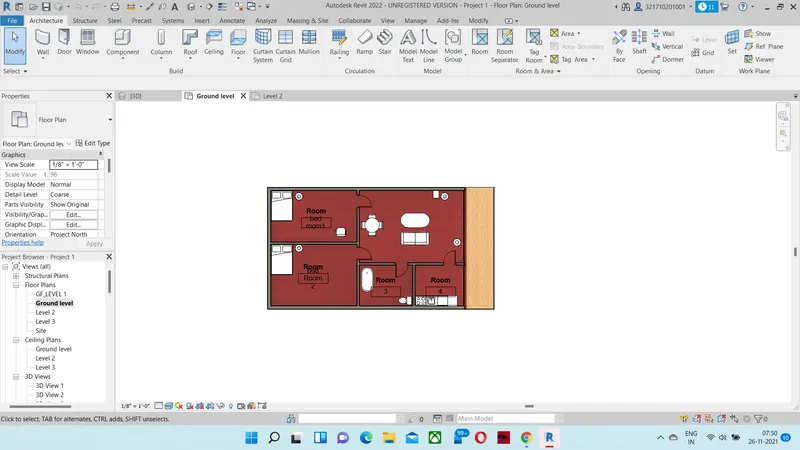

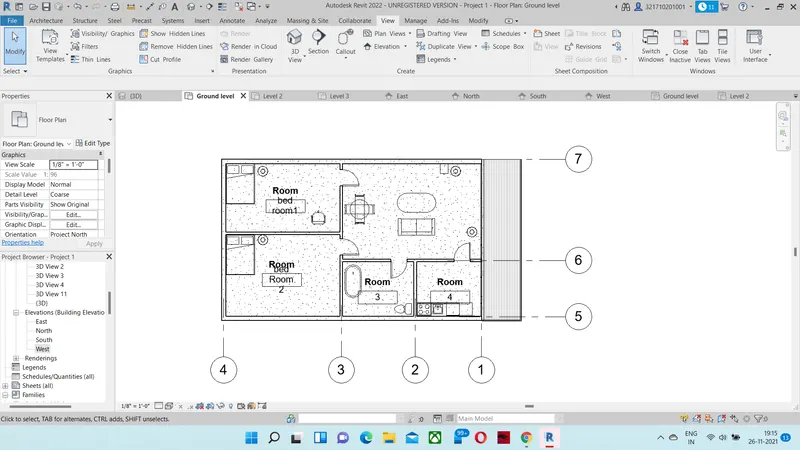

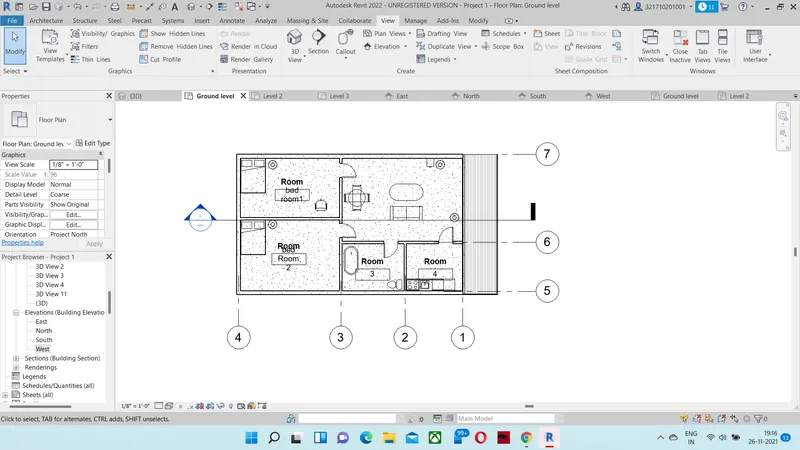

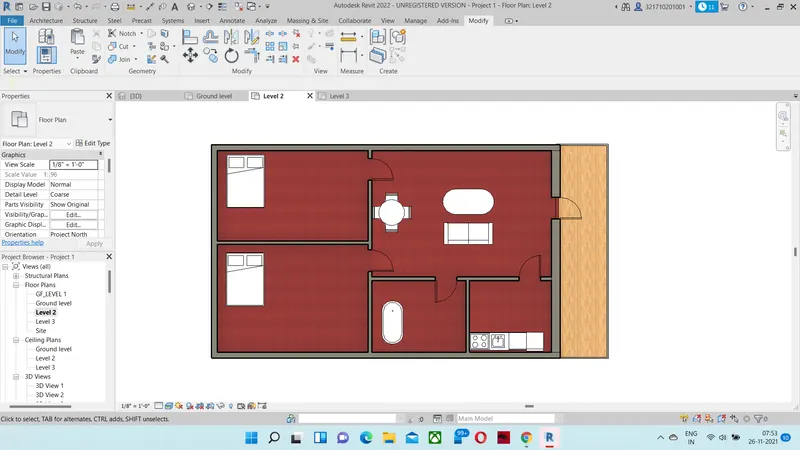

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

AIM: Create plan views for ground floor level and first-floor level including all the walls, floors, and components.

TOOLS USED:

1. PROPERTIES BROWSER

2. Floor plan

3. Ground

4. First Floor

Procedure:

1. Open the saved project where Groundand 1st Floor Plans are there

2.From properties browser select floor plan

3. Go to properties browser and select level 2

Results: With the help of Above steps we can complete the task.

4.

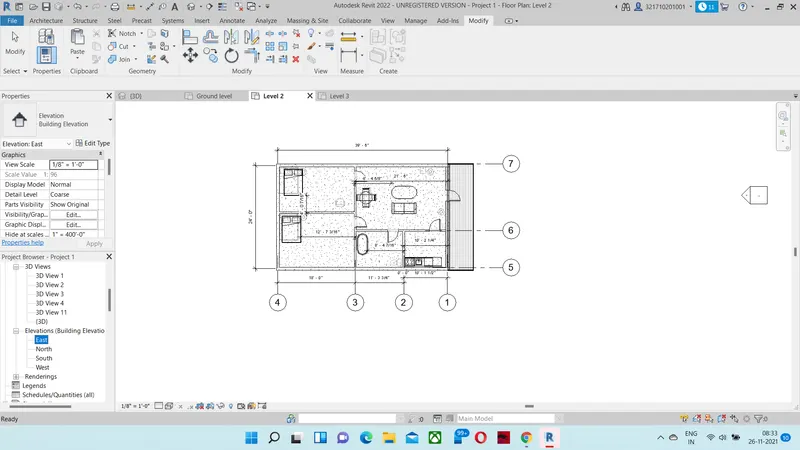

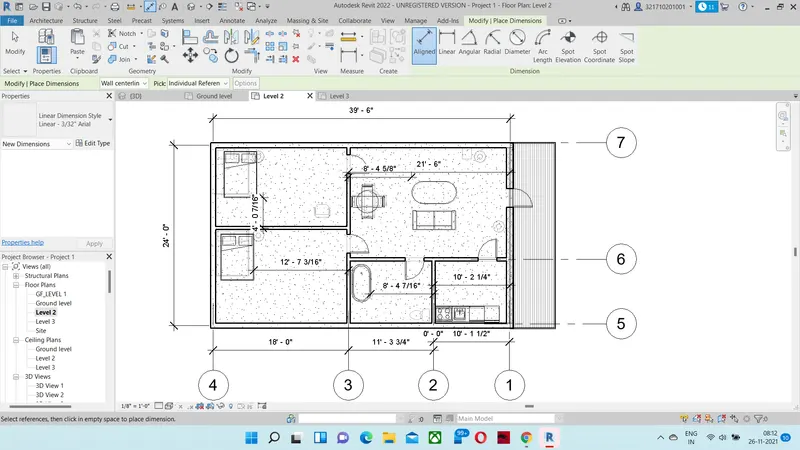

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM: Add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

Tools used:

1.Architectural tab

2.Grids

3.Annotate

4.Aligned

Procedure:

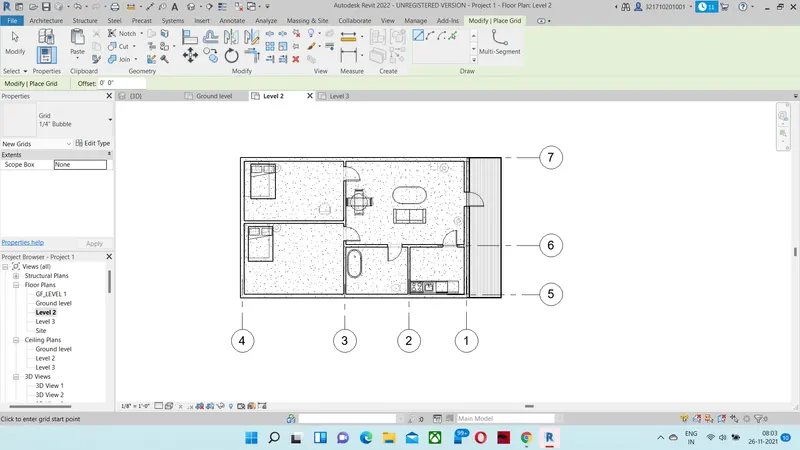

1. Go to Architectural tab and sekect Grids option

2. Name the grids from left to right With A,B,C ...

3. With the help of aligned tool mark the dimensions

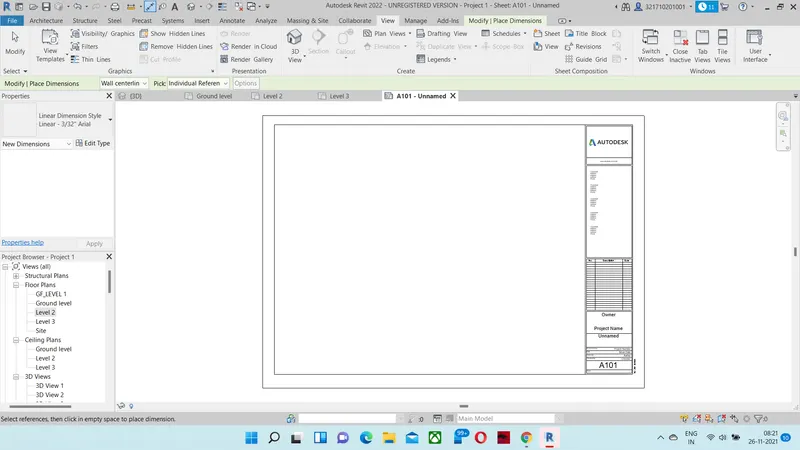

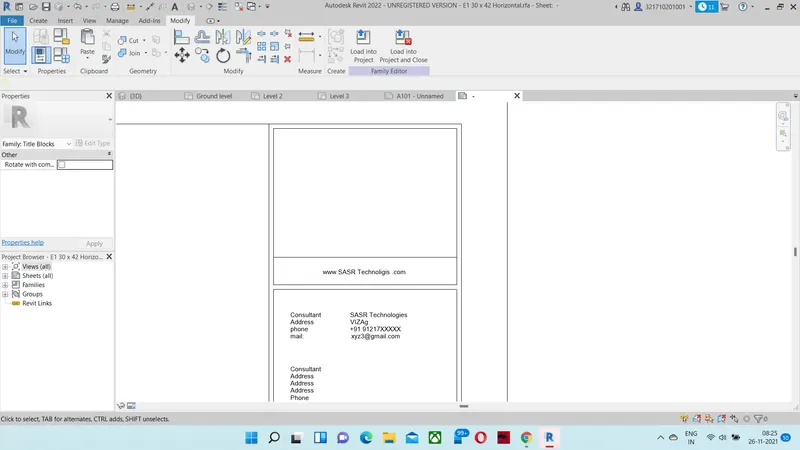

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM:Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

TOOLS USEED:

1. VIEW

2.SHEET

3. A1 METRIC

4.PROJECT BROWSER

Procedure:

1. Go to view tab select on sheets

2.Select A1 metric size

3. A default page setup will apper

4. If you want to change the text double click on text and modify the text

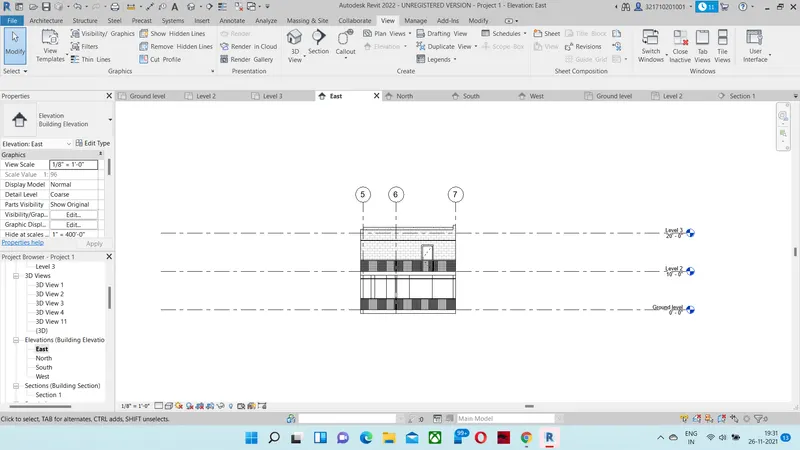

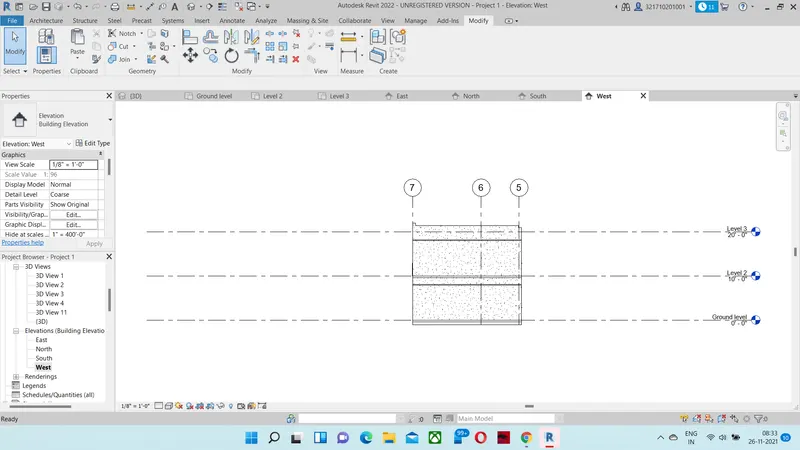

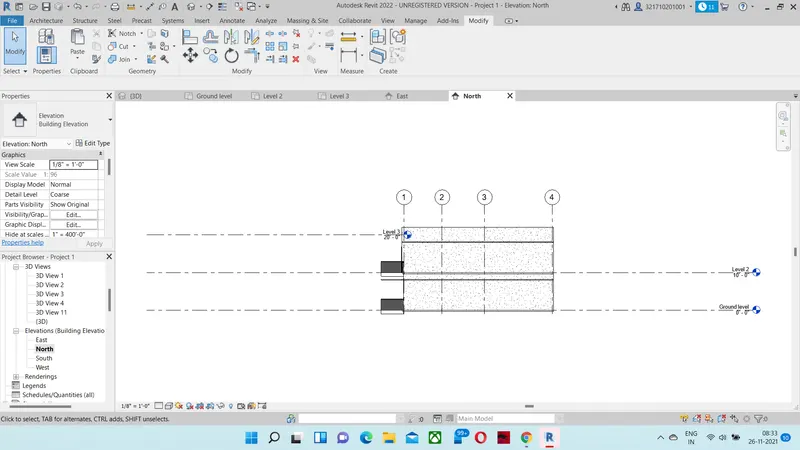

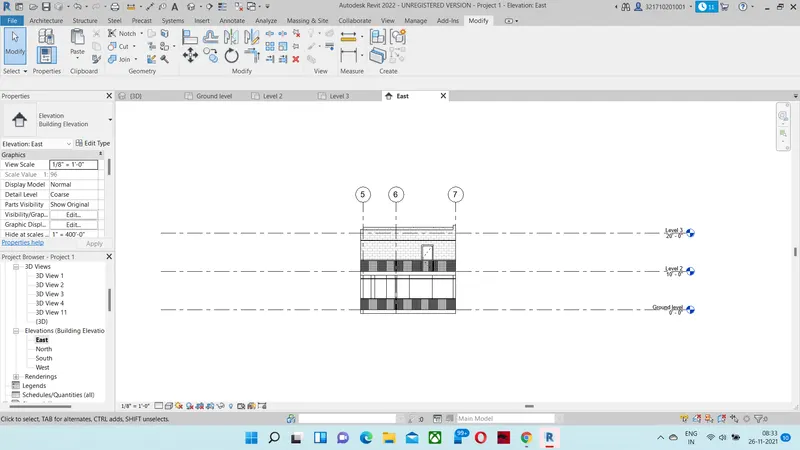

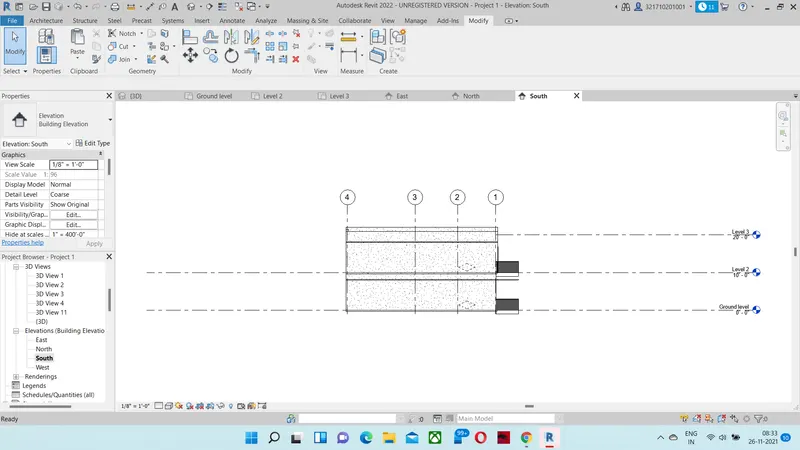

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

AIM:Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

TOOLS USED:

• View
• Elevation
• properties browser
• East
• West
• North
• South
• Elevation

Procedure:

1.Open the plan

2.Go to project browser and select Elevation like South,North,East ,West

Results : With the help of above steps we can complete the task.

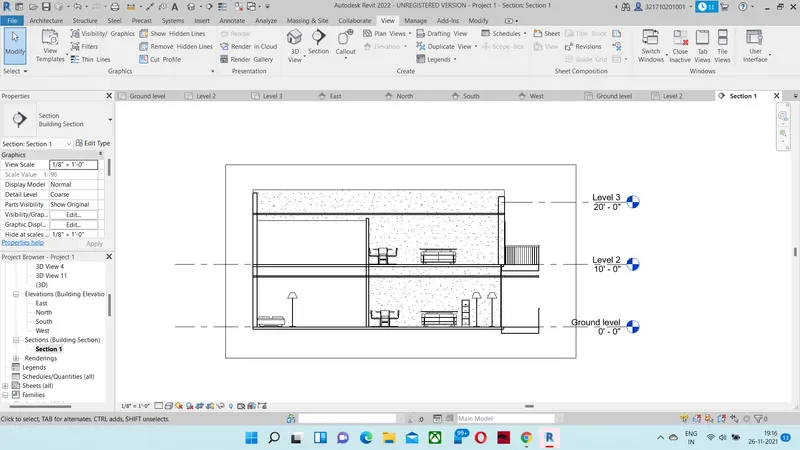

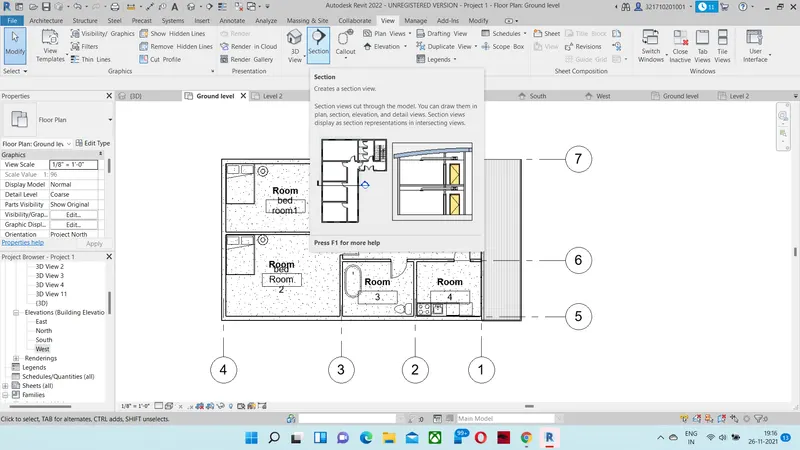

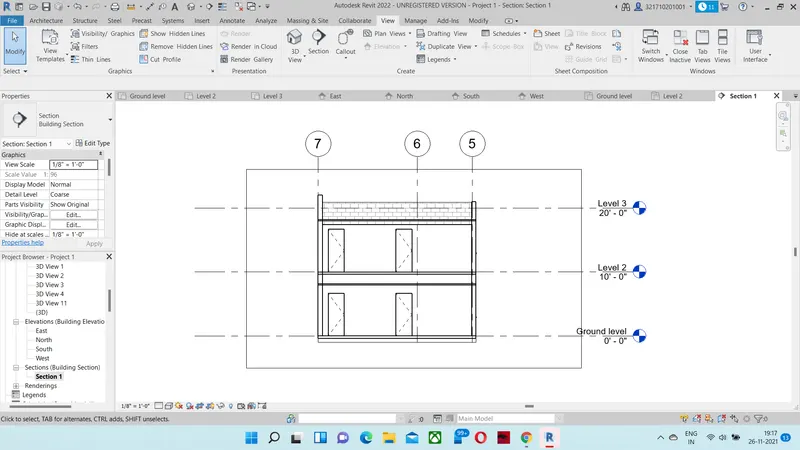

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM: To Produce section cut through each room either cutting across longitudinally or in a transverse direction.

TOOLS USED:

view

section

Property browser

Procedure:

1. open the plan to which you want to draw the section.

2. Go to view and select section option.

3. Place the section where yopu want to place

3. Go to section view in Properties browser.

Results:With the help of above steps we can finish the section plan

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

AIM:To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Plan view :Plan view can be seen ion horizontal way

Sevtion view: it can be seen in longitudinal and transervese way

Elevation view:

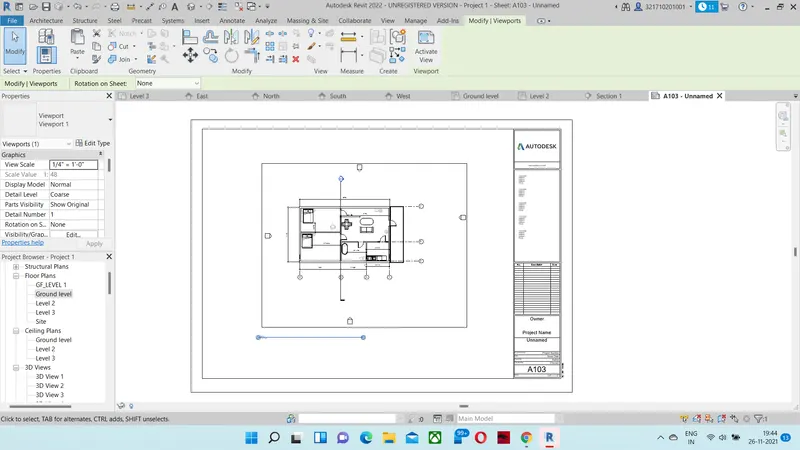

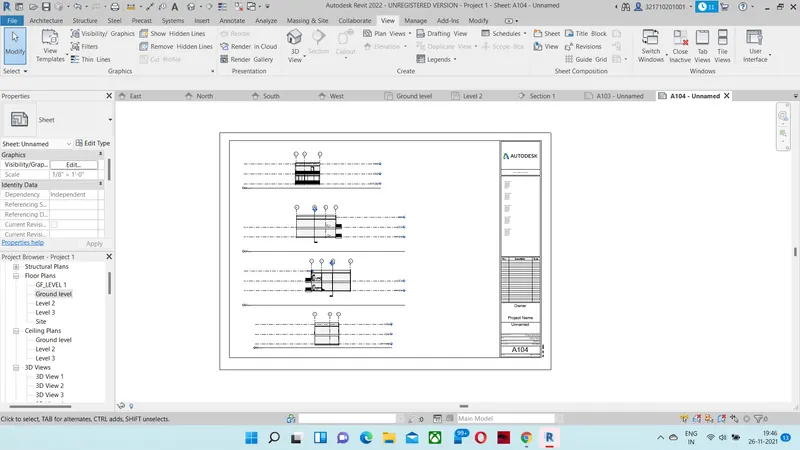

9) Using the sheet template produced create multiple sheets as follows

Aim: Using the sheet template produced create multiple sheets as follows

TOOLS USED:

1. Vew
2. Sheet
3. Properties
4. Insert
5. Image

PROCEDURE:

1. Go to viewe tab and select sheet

2. new sheet will appear press ok

3. A new Sheet will apper go to view and place the plan which you want to place

4. plan for elevation south, west,east,north

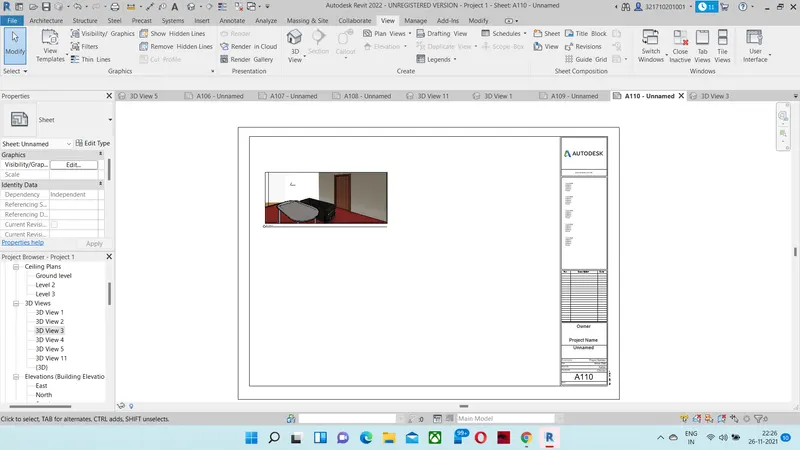

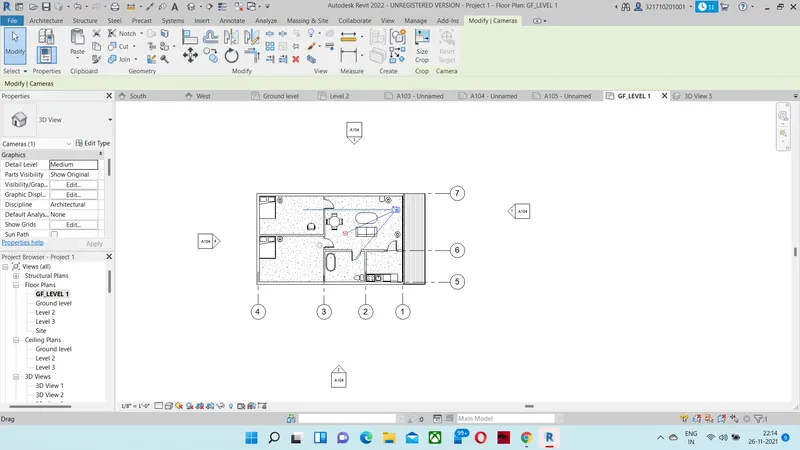

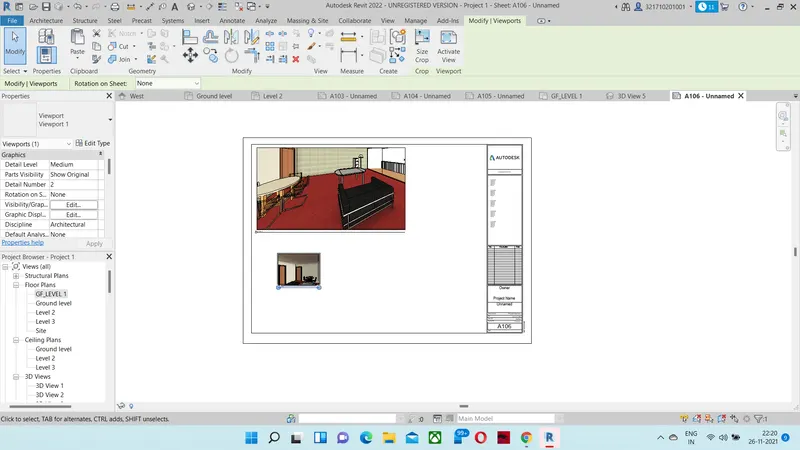

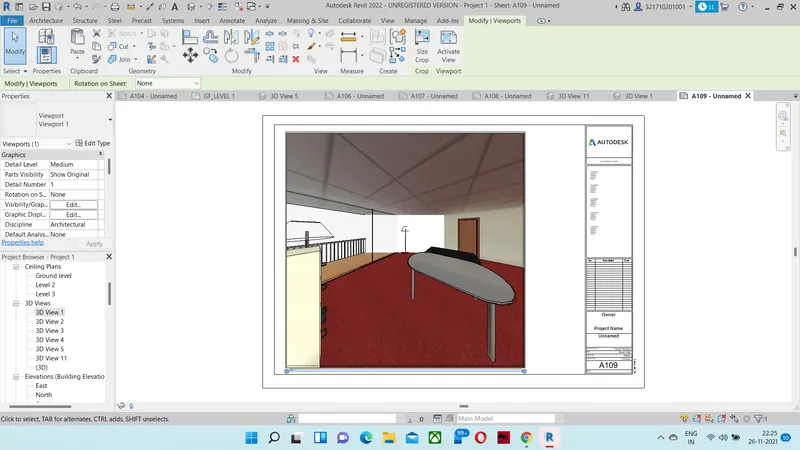

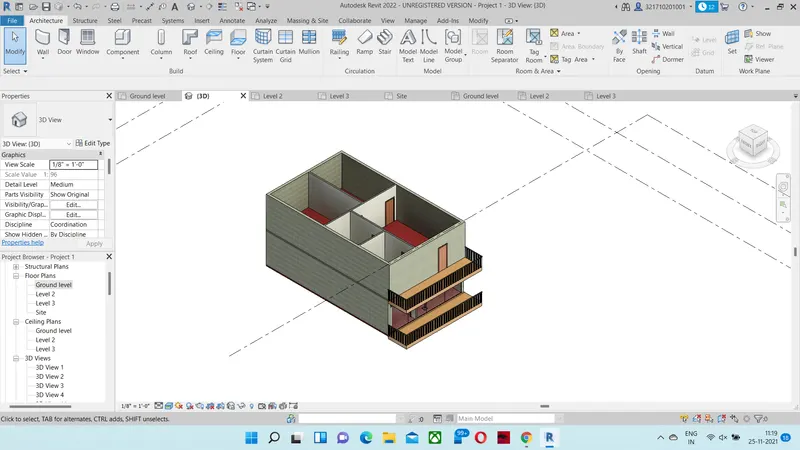

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

AIM: To Create a camera-specific view or a 3D view in each room.

TOOLS USED:

• View
• 3D View
• Camera
• Sheet
• Propertries

PROCEDURE:

1.Open project plan go to view select 3D view

2.Under that select camera option place the camera where you want to place go to realistic mode

3. Go to view select view
