Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

I am intrested to draw Multi Unit Resident Apartment

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

• My building is residential unit it is located at the city
• Height of building is 45'
• It is located near highway
• The road width in front of my building is 60'

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

AIM: Using the structural model, include the following components based on the type of structure selected

TOOLS USED:

• Archietectural template
• Grids
• Columns
• Foundation
• Beams
• Slab

Procedure:

1. open Archietectural tab

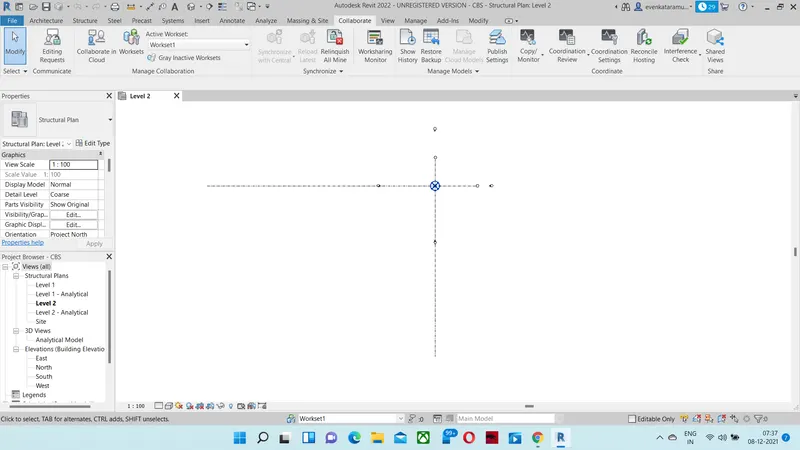

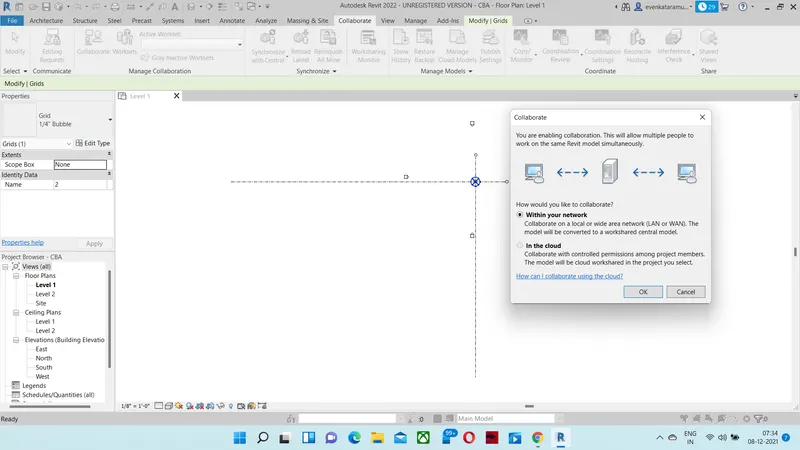

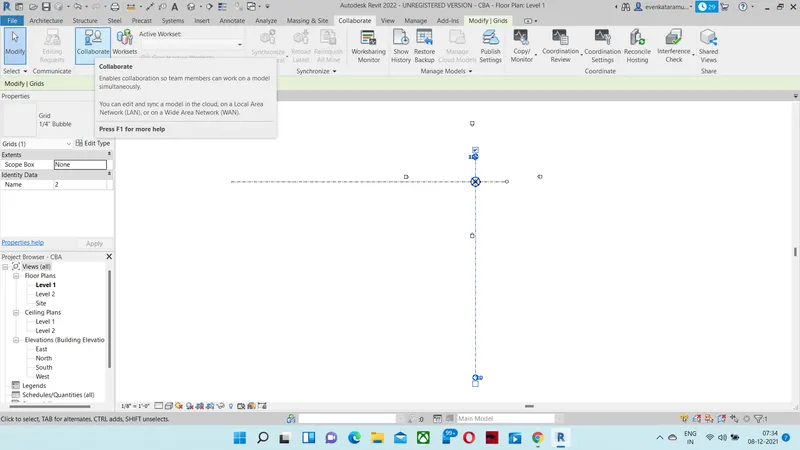

2. Go to collabrate click on it
3. save the file with name
4. open Structural tab follow the above 2,3 steps

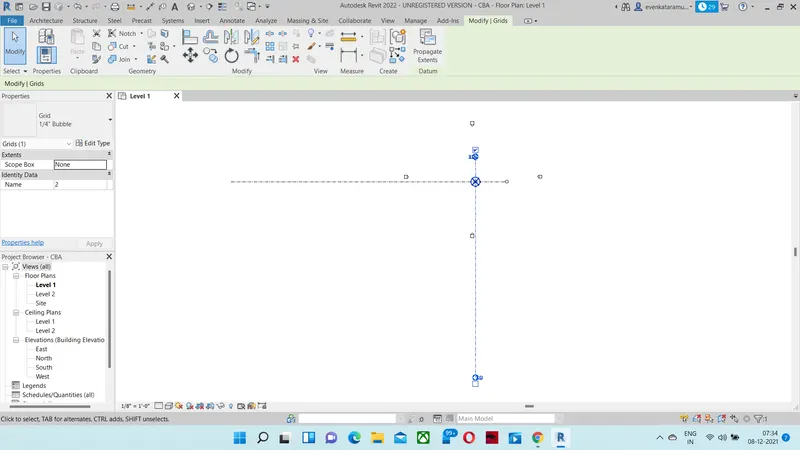

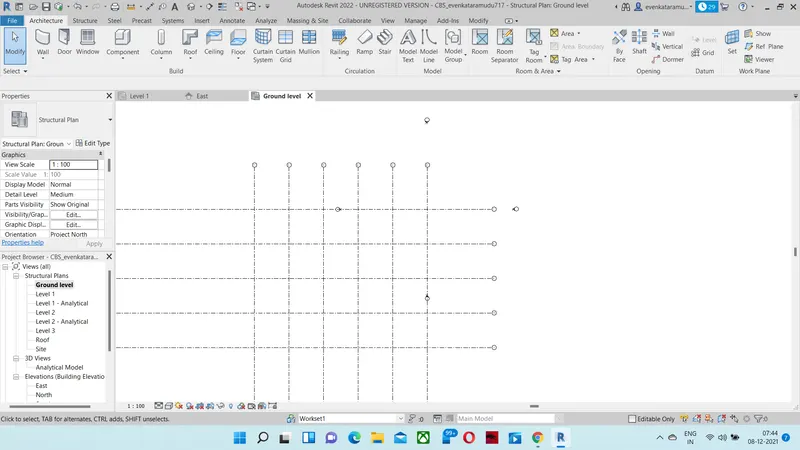

5. Place the Grids

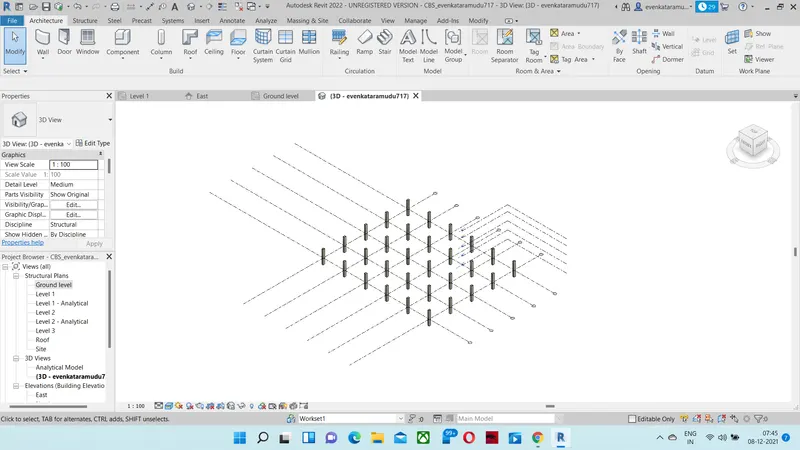

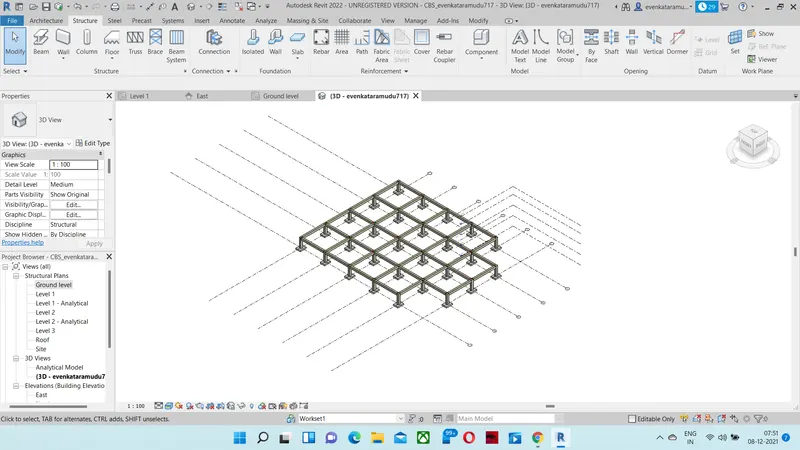

6. Place the columns on grids .
7. Place the foundation

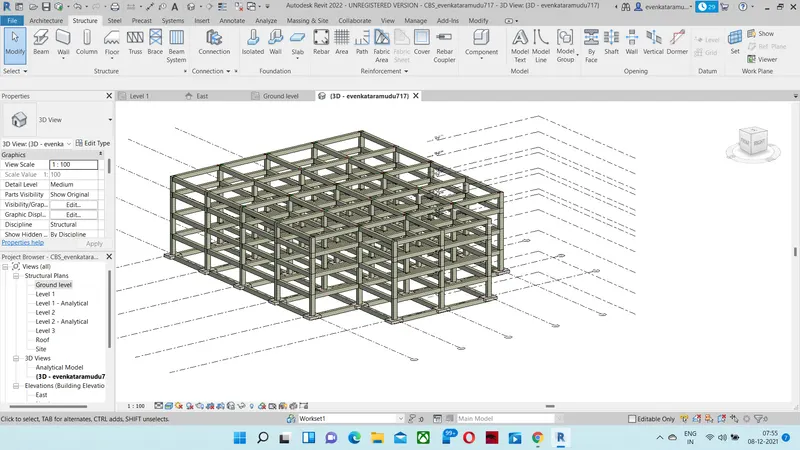

8. Place the beams

4) Using the architectural model, include the following components based on the type of structure selected

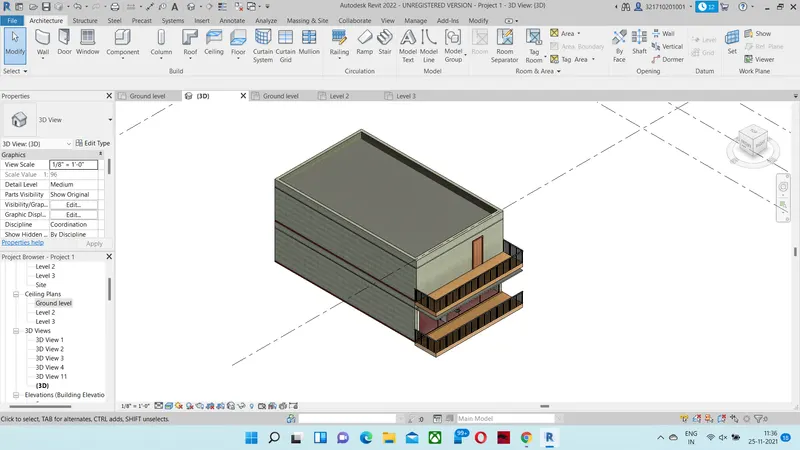

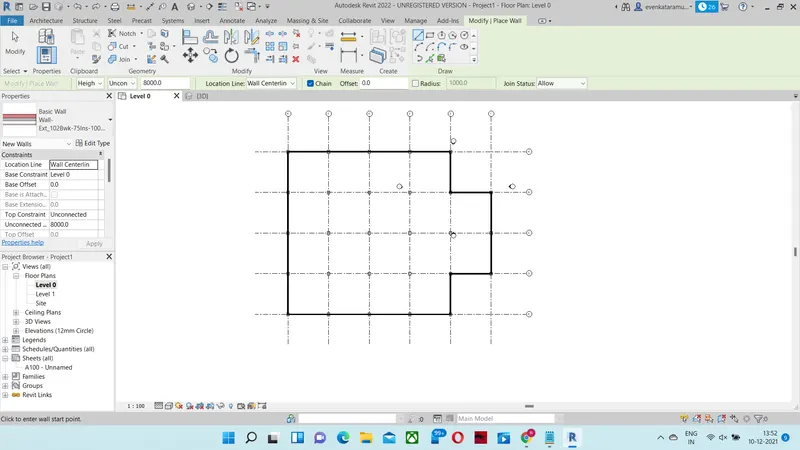

a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

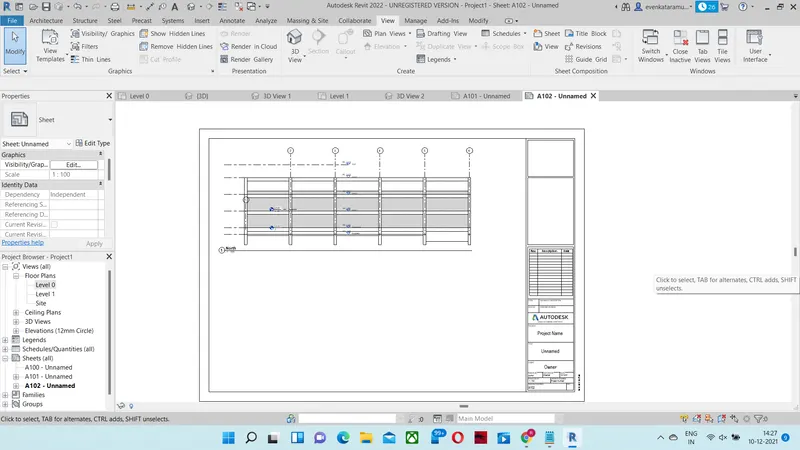

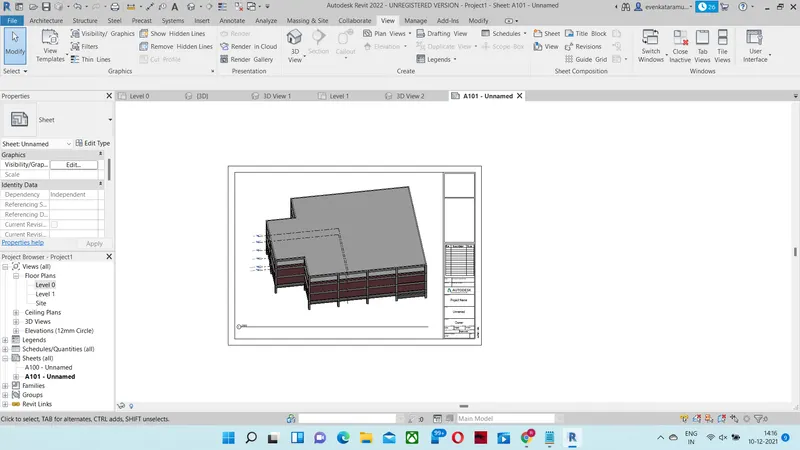

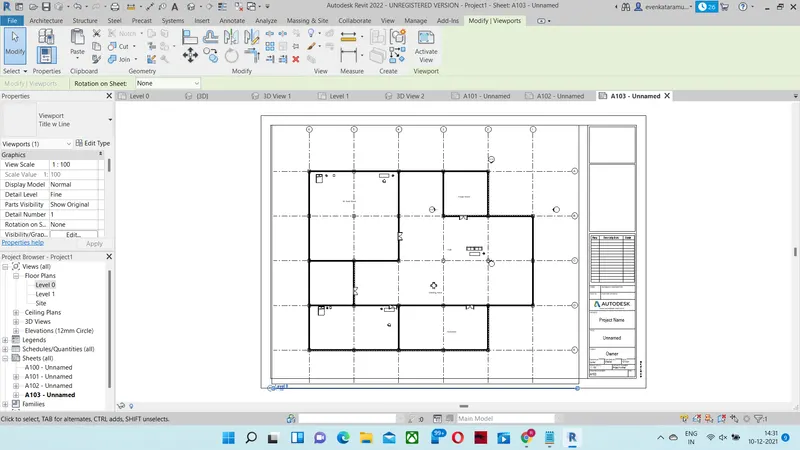

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

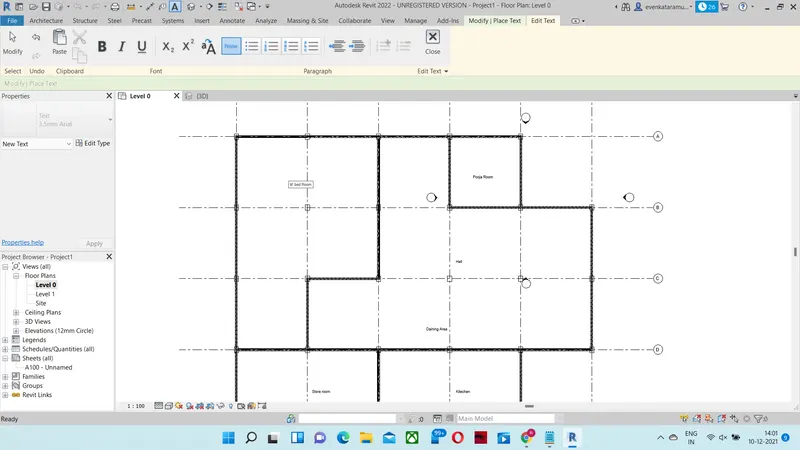

a. Floor Plans with Annotations

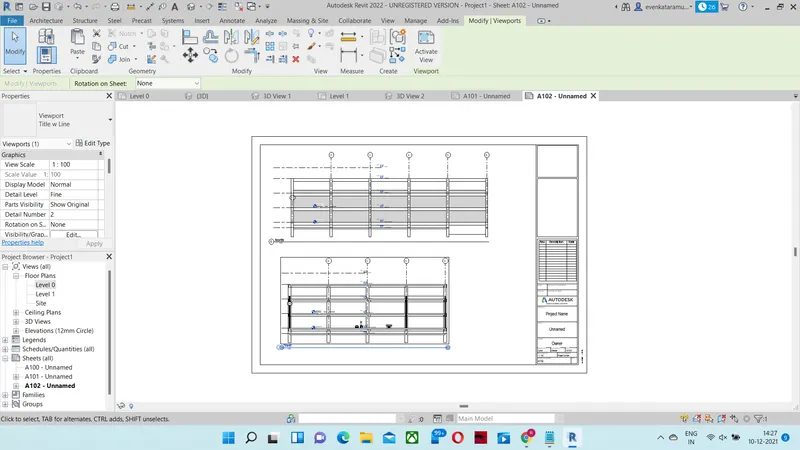

b. Elevations
c. Sections

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

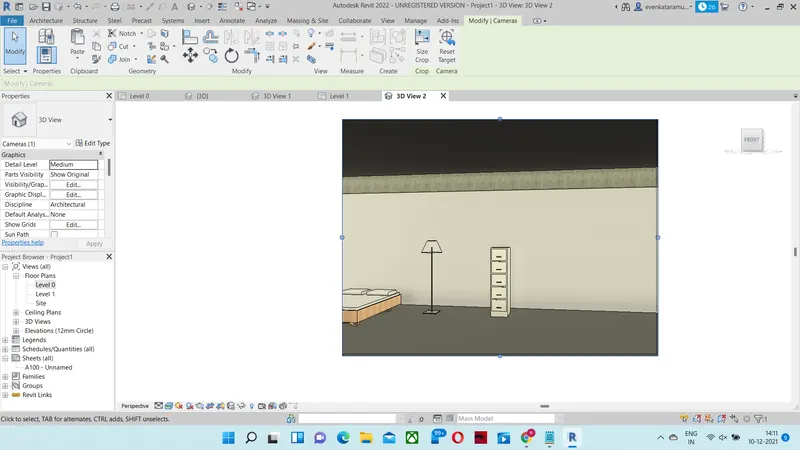

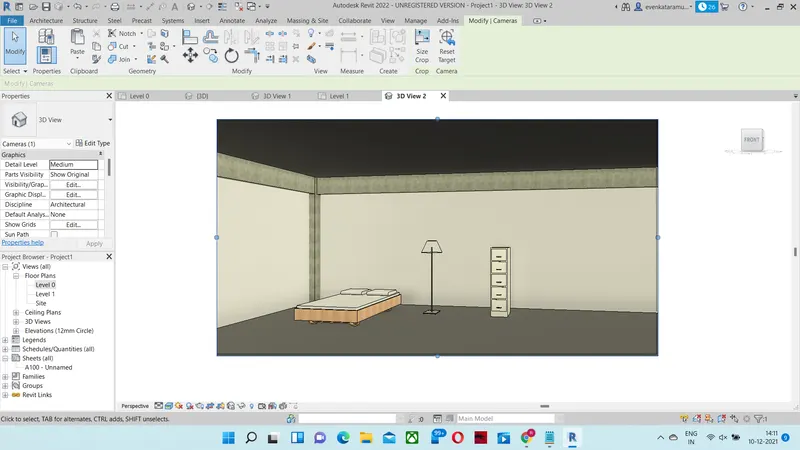

a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing\
