Week 11 Car Crash simulation

Objective of challenge: To perform a Explicit dynamic analysis of a Car Crash, a parametric study using 3 different values of thickness for the car body. Need to apply the same conditions as per the video. Find out total deformation and Equivalent stresses acting on the model. Simulation setup configuration as follows:…

    • Chiranjeevi ADDURI

      updated on 31 Mar 2021

    Objective of challenge: To perform a Explicit dynamic analysis of a Car Crash, a parametric study using 3 different values of thickness for the car body. Need to apply the same conditions as per the video. Find out total deformation and Equivalent stresses acting on the model.

    Simulation setup configuration as follows:

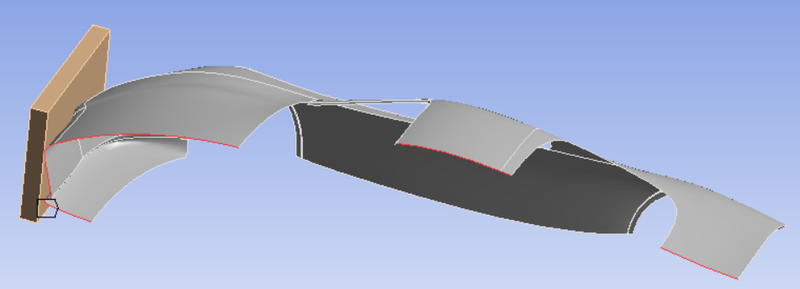

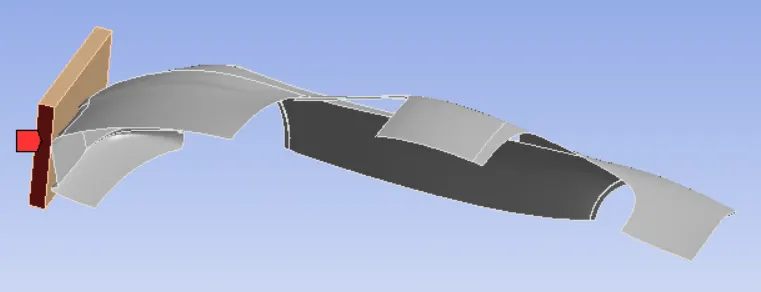

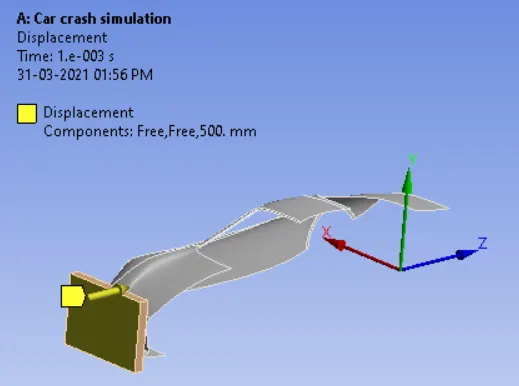

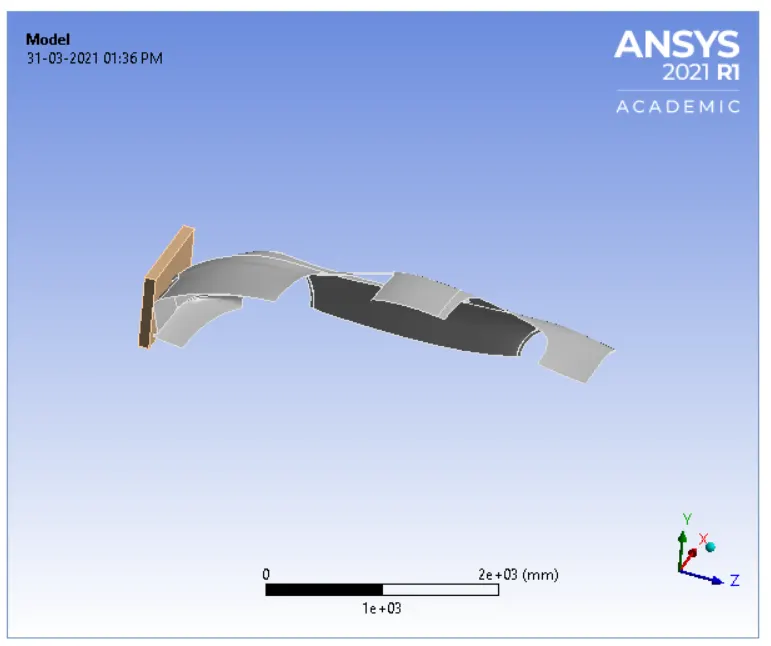

    1. Model as follows

    2. Part names are specified for 3 cases as

    3. Material applied for 3 cases as

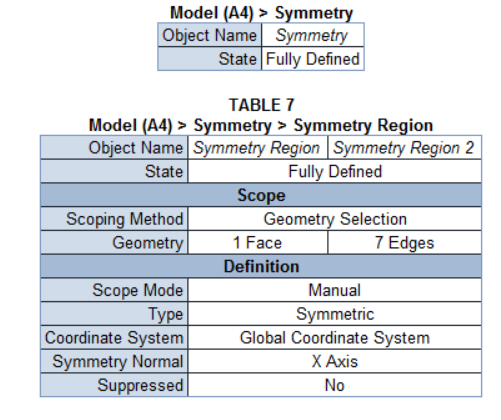

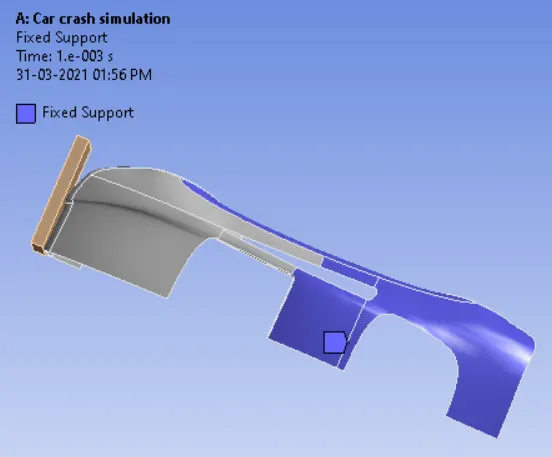

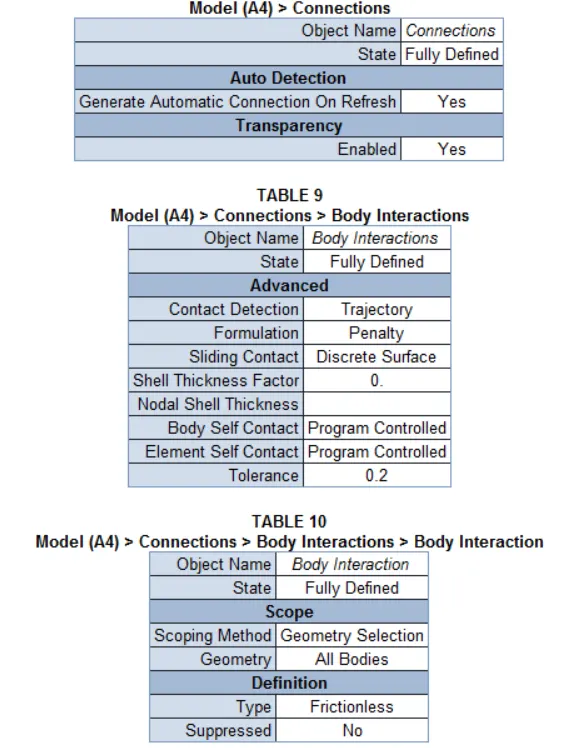

    4. Symmetry and Connections are configured for 3 cases as

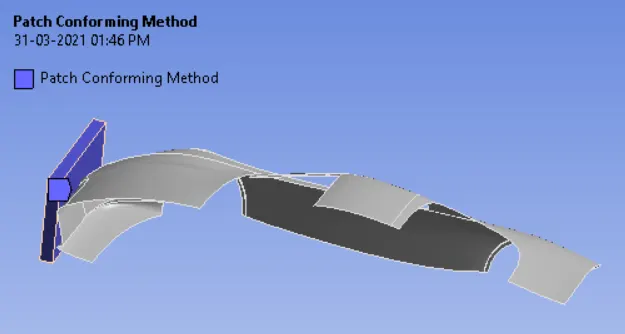

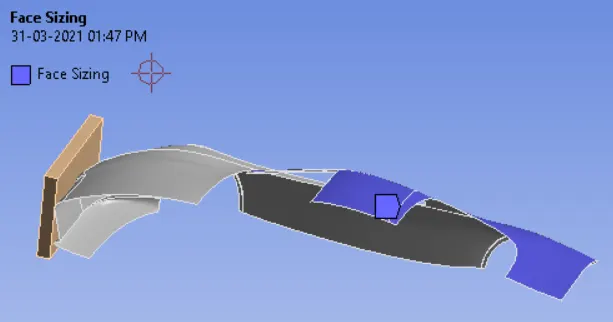

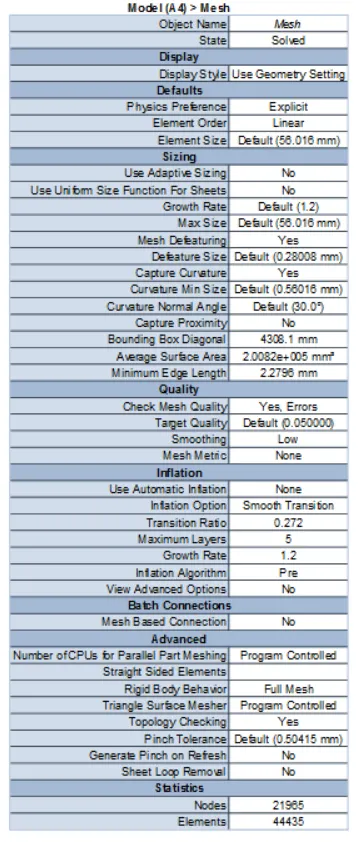

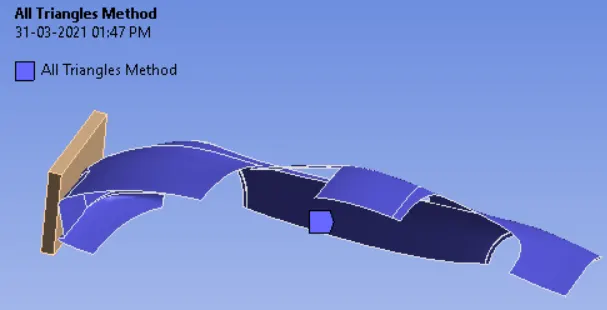

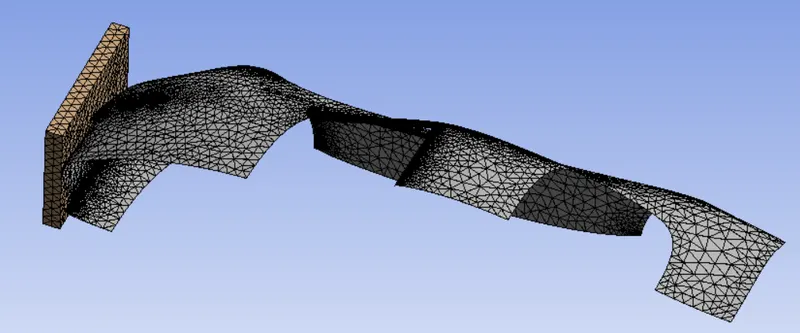

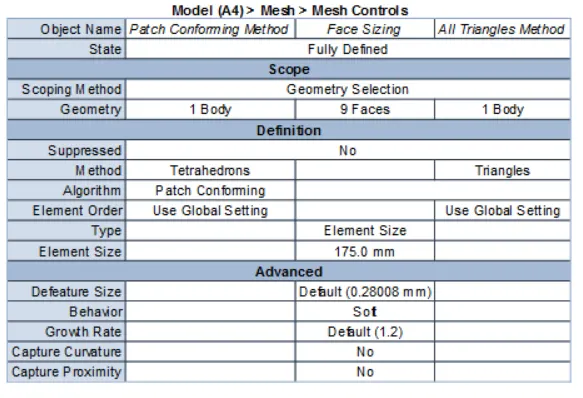

    5. Mesh size is configured for 3 cases as

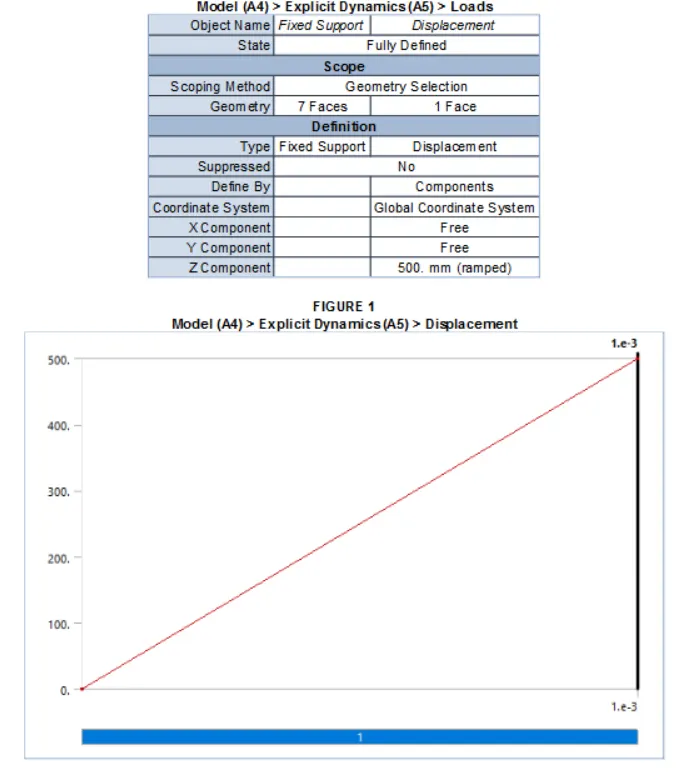

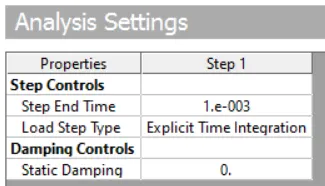

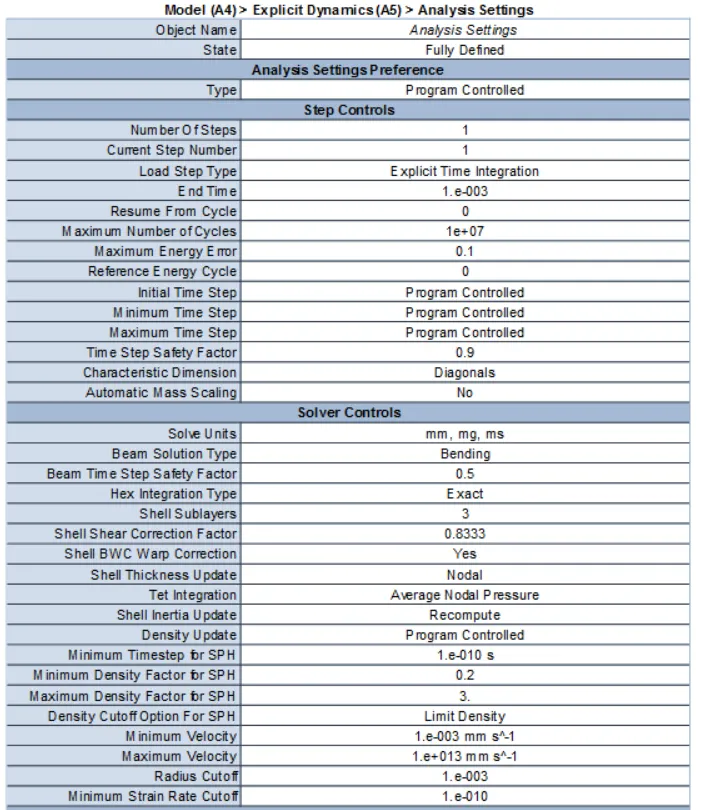

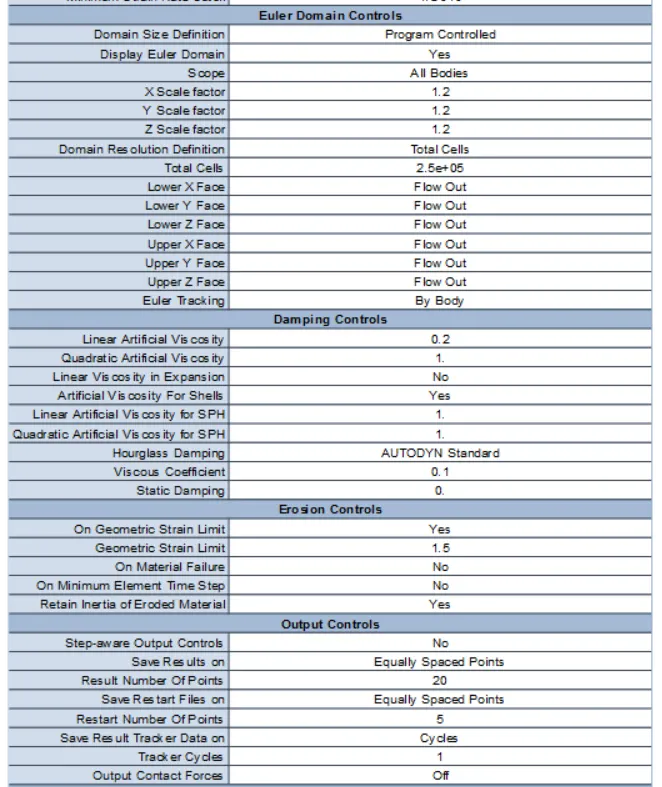

    6. Analysis settings are configured for 3 cases as

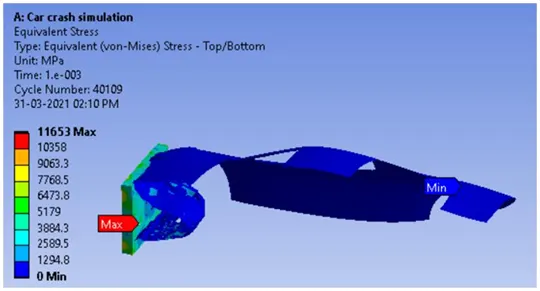

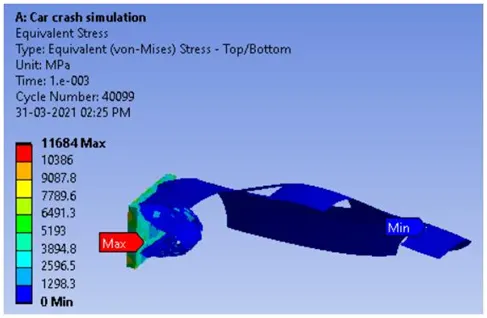

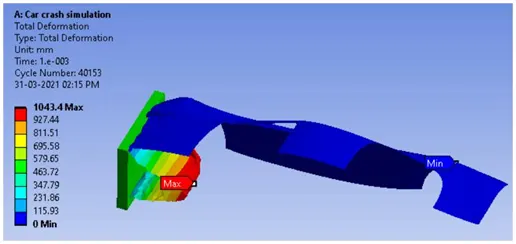

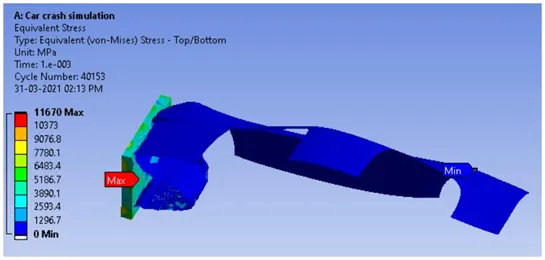

    Explicit dynamic simulation results are as follows:

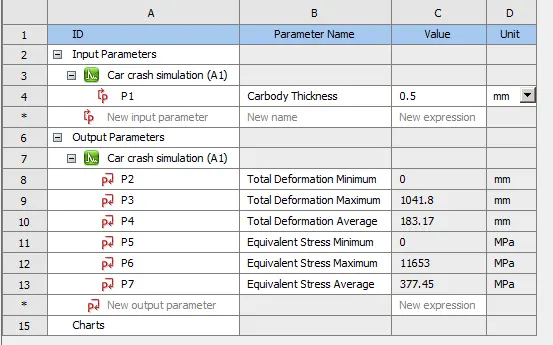

    Parametric Inputs and Outputs

    Description Equivalent stress Total deformation
    Carbody

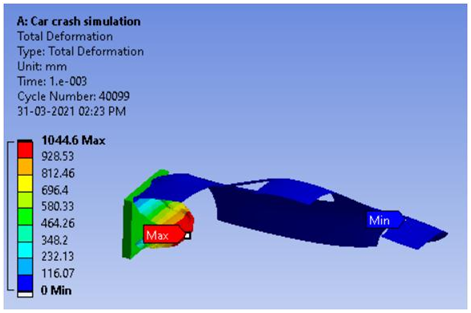

    Thickness 0.3mm    		 Max 11684 Mpa Max 1044.6 mm
    Carbody
    Thickness 0.4mm    		 Max 11670 Mpa Max 1043.4 mm
    Carbody

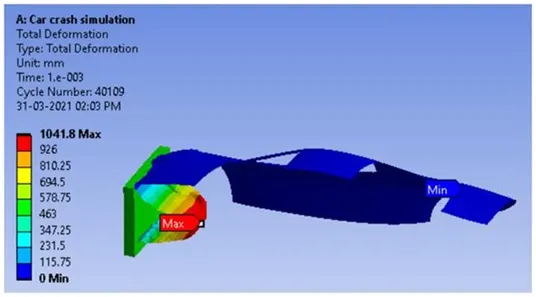

    Thickness 0.5mm    		 Max 11653 Mpa Max 1041.8 mm
