Week 9 Machining with Planer Challenge
Objective of challenge: To perform a Explicit dynamic analysis of Machining with Planer with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s. Find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. Simulation…
Chiranjeevi ADDURI
updated on 25 Mar 2021
Objective of challenge: To perform a Explicit dynamic analysis of Machining with Planer with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s. Find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body.
Simulation setup configuration as follows:

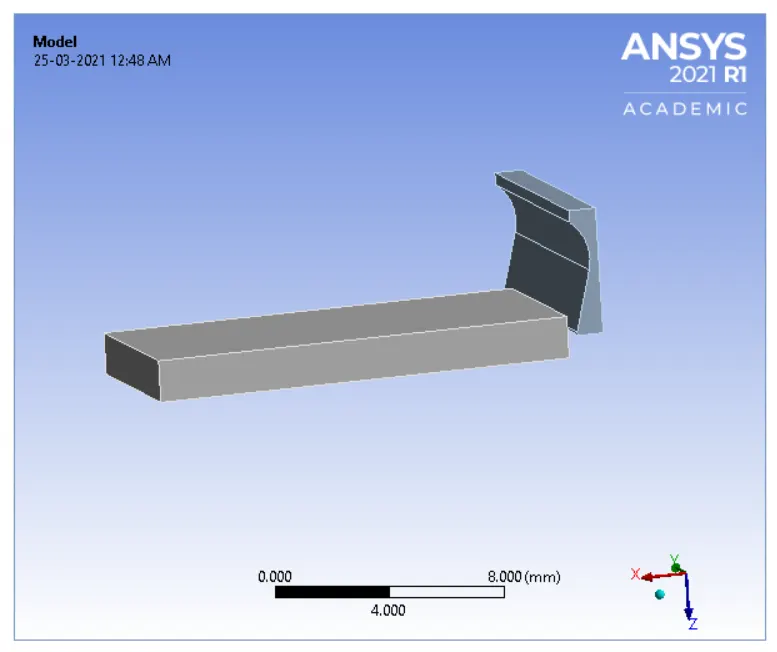

1. Model as follows
2. Part names are specified as
3. Material applied for 2 cases

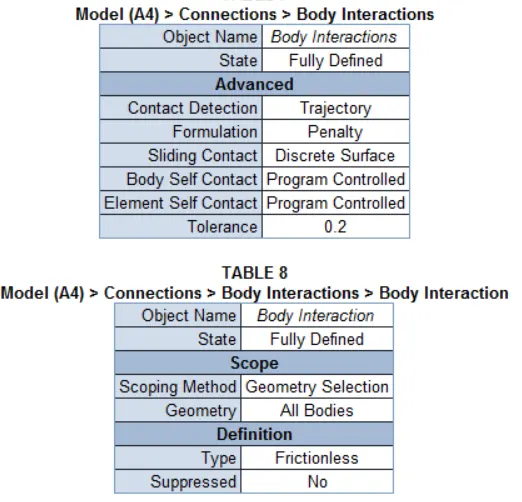

4. Connections are configured as

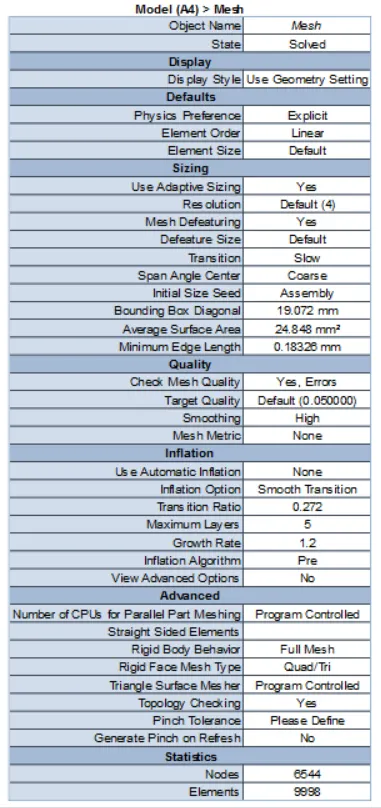

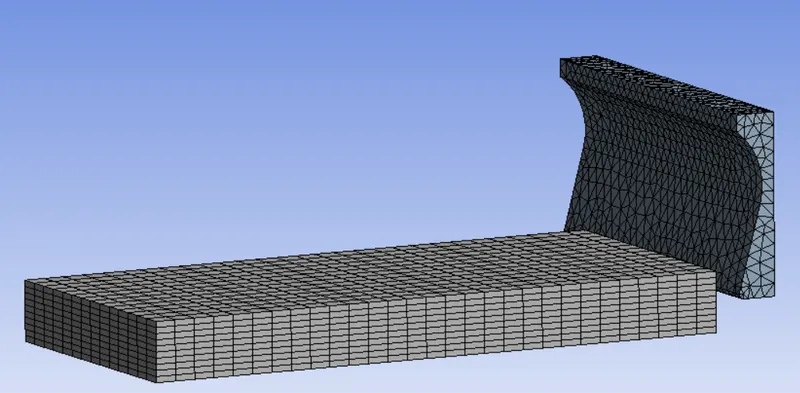

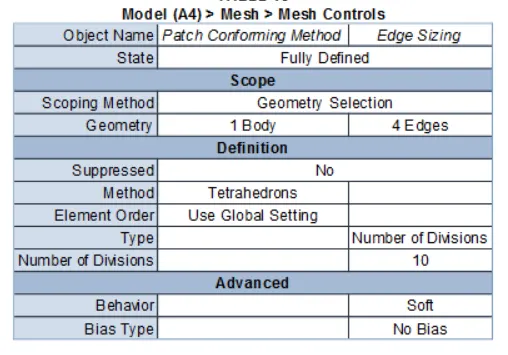

5. Mesh size is configured as

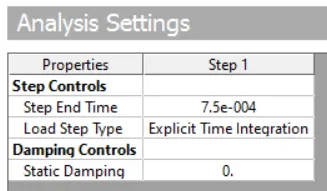

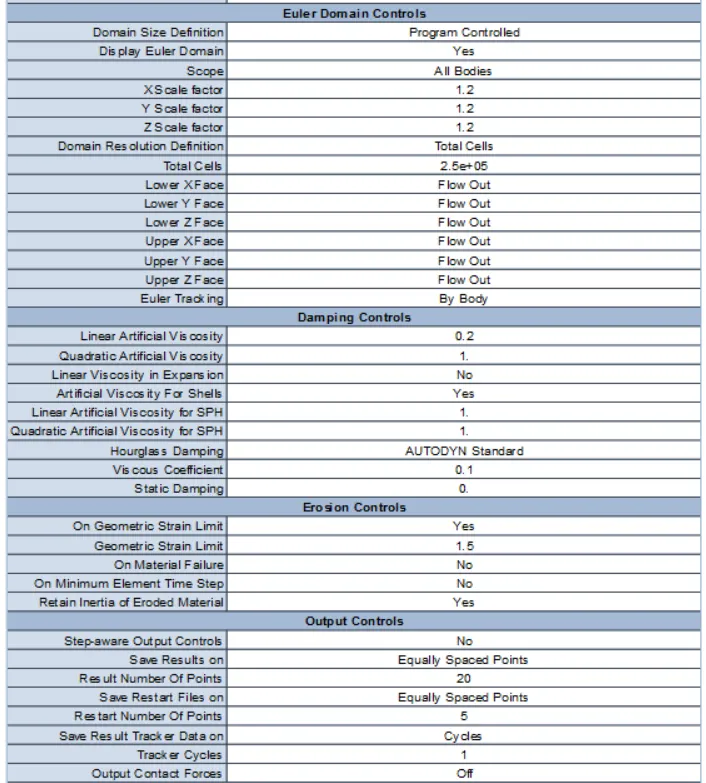

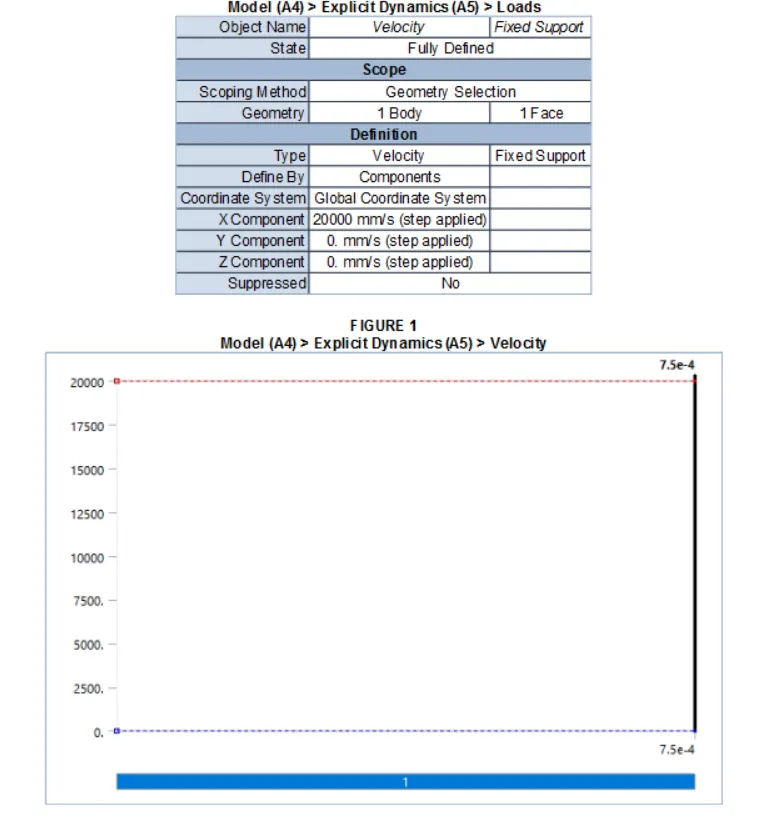

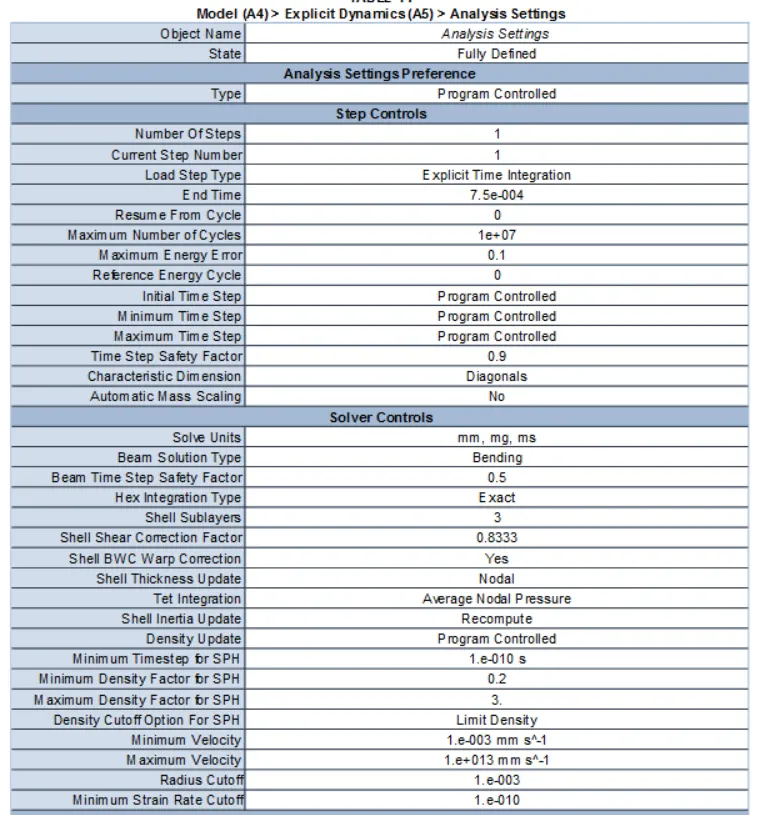

6. Analysis settings are configured as
For Case 1
For Case 2 all setings are same as case 1 except below changes
Explicit dynamic simulation results are as follows:
| Description | Case 1 | Case 2 |

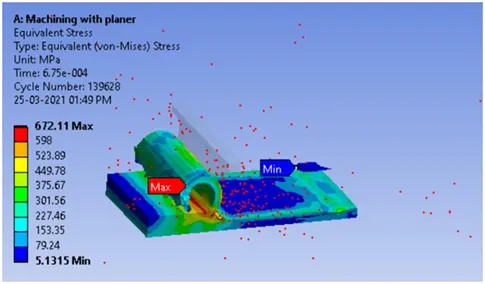

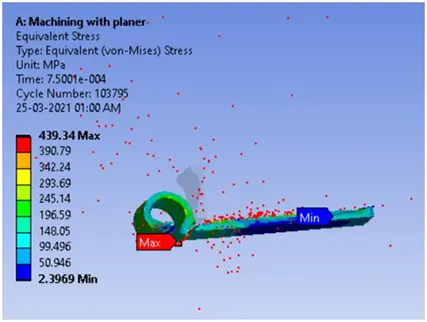

| Equivalent stress | Max 439.34 Mpa |
Max 672.11 Mpa |

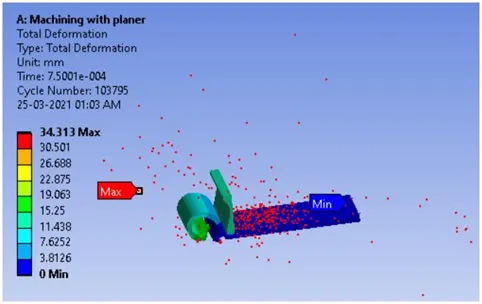

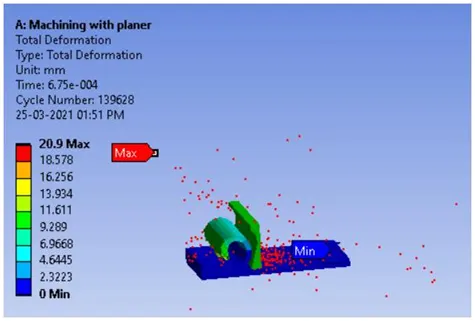

| Total deformation | Max 34.313 mm |
Max 20.9 mm |

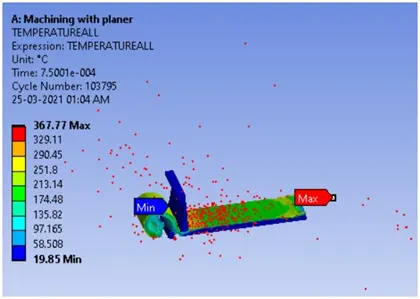

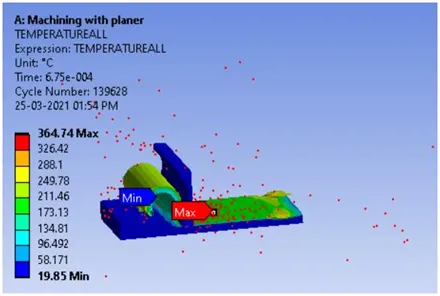

| Temperature | Max 367.77°C |
Max 364.74°C |
