Week 10 Bullet penetrating a Bucket Challenge
Objective of challenge: To perform a Explicit dynamic analysis of a bullet penetrating into a bucket by using 3 different non linear materials for the bucket. Analyse their behaviour with velocity and conditions for bullet as per training video. To attach an animation for the three cases. Simulation setup configuration…
Chiranjeevi ADDURI
updated on 26 Mar 2021
Objective of challenge: To perform a Explicit dynamic analysis of a bullet penetrating into a bucket by using 3 different non linear materials for the bucket. Analyse their behaviour with velocity and conditions for bullet as per training video. To attach an animation for the three cases.
Simulation setup configuration as follows:

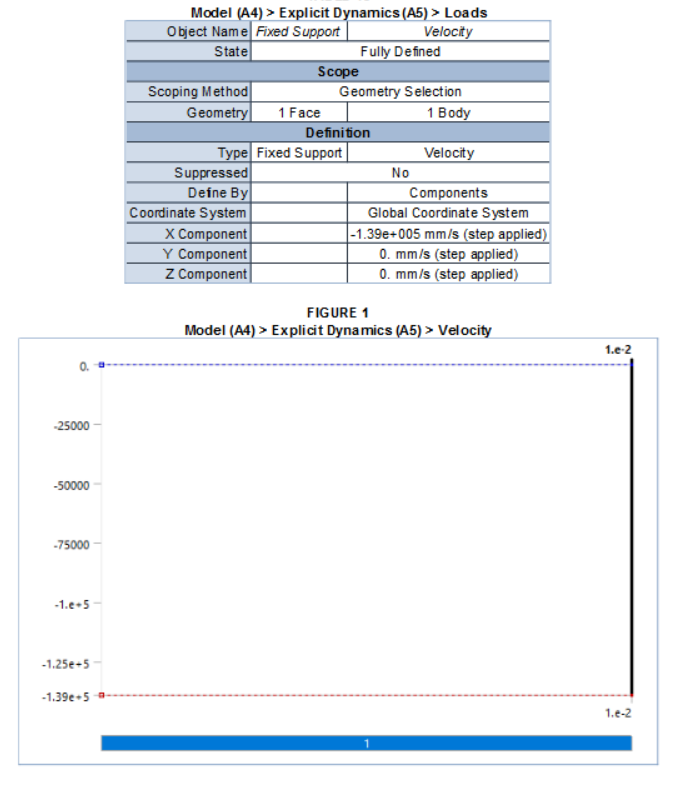

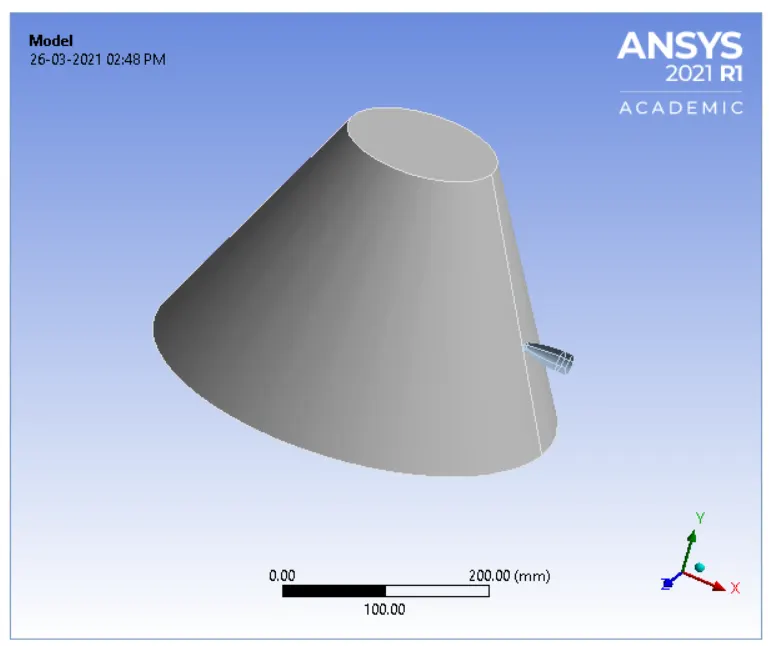

1. Model as follows
2. Part names are specified for 3 cases as
3. Material applied for 3 cases as

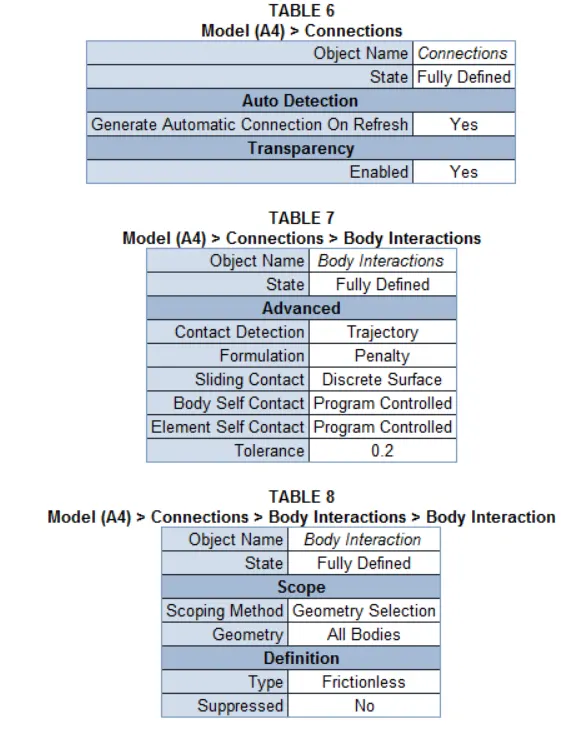

4. Connections are configured for 3 cases as

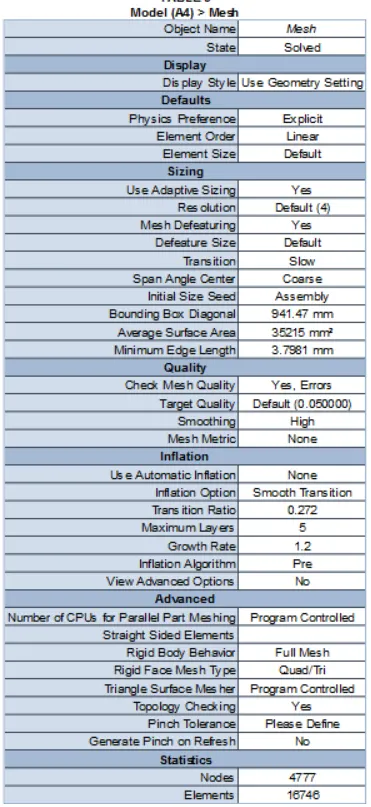

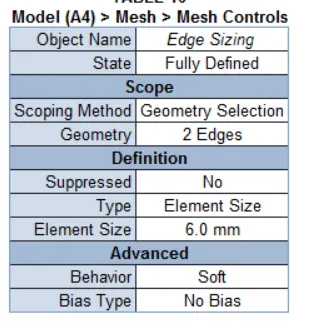

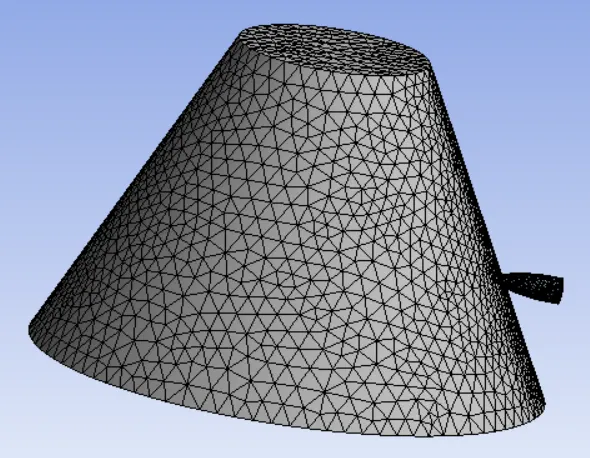

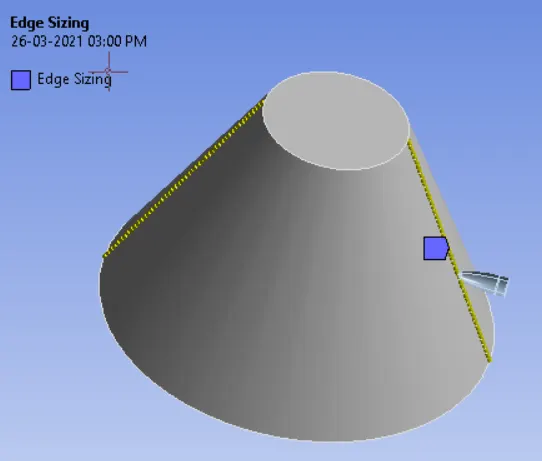

5. Mesh size is configured for 3 cases as

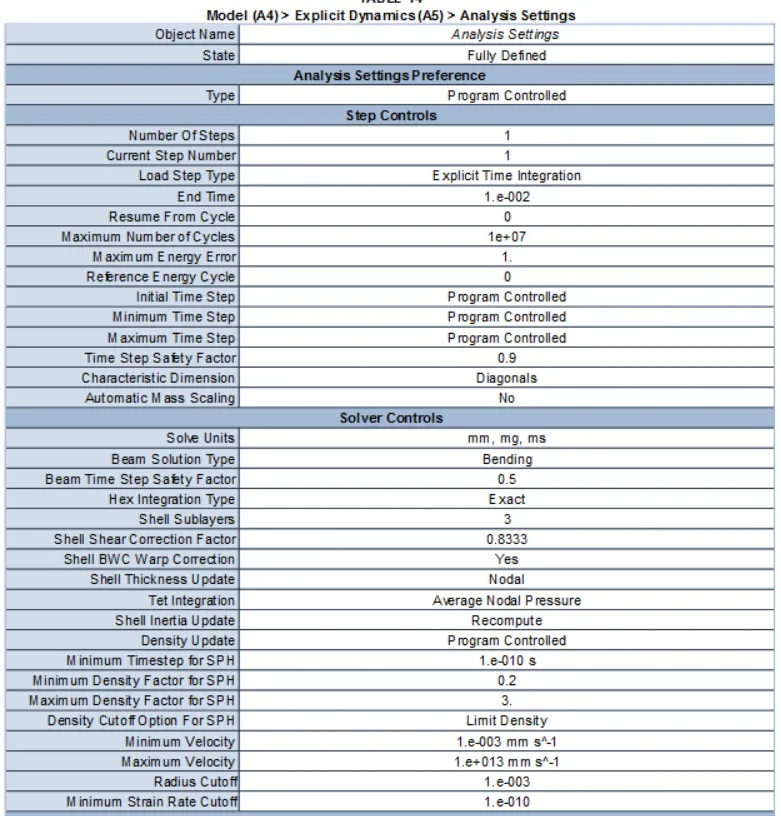

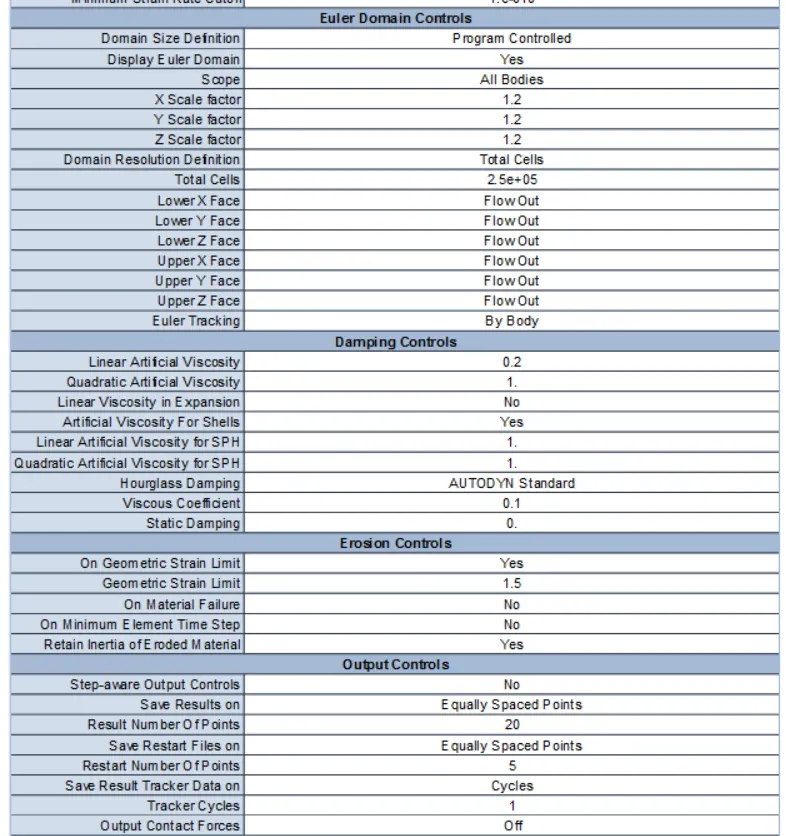

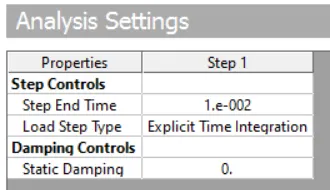

6. Analysis settings are configured for 3 cases as

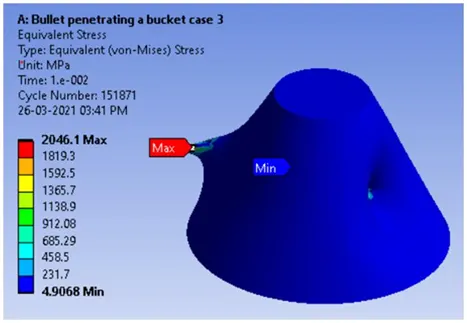

Explicit dynamic simulation results are as follows:
| Description | Case 1 Aluminum Alloy NL | Case 2 Stainless Steel NL | Case 2 Copper Alloy NL |

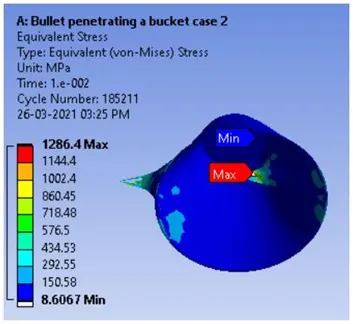

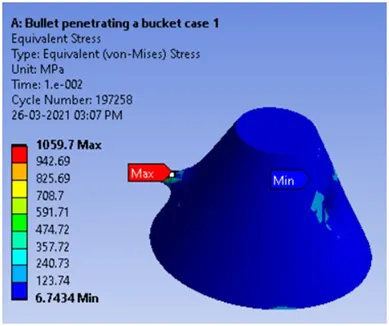

| Equivalent stress | Max 1059.7 Mpa |
Max 1286.4 Mpa
|
Max 2046. Mpa |

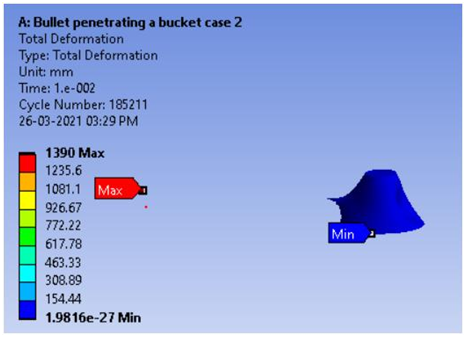

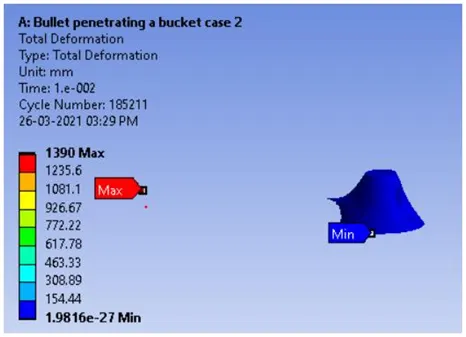

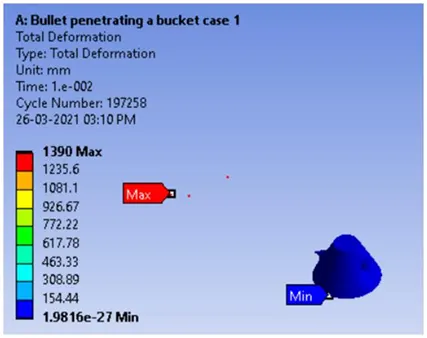

| Total deformation | Max 1390 mm |
Max 1390 mm |
Max 1390 mm |

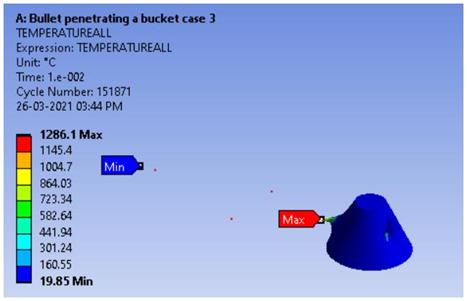

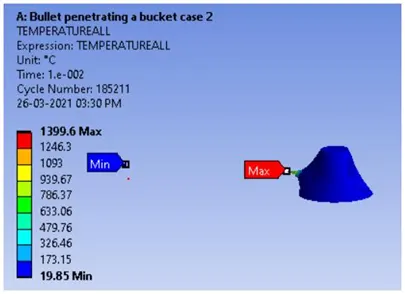

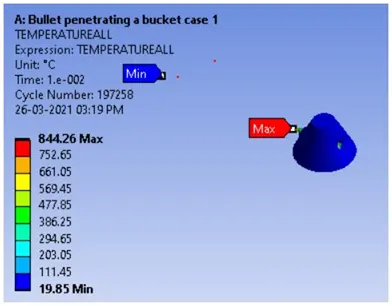

| Temperature | Max 844.26°C |
Max 1399.6°C |
Max 1286.1°C |
3 cases Animations are attached
