Understanding the concepts on Degrees of Freedom

Aim: Model a 10 storey building on ETABS 2019 with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 10 storeys has a storey height of 4 metres. Tools: Define toolbar, Analyze tool bar, Select toolbar and Assign tool…

  Ans:- open etabs and click on file, new model. in the pop-up set the display units and remaining parameters as shown in the figure. then click on ok. In the grid settings , select the required number of bays ,and other parameters. then click on the custom storey data , add the required number of storey in the pop…

1) Ans :-      Structure A is well designed of the torsional forces than compared to the structure B and structure C, here the l-shaped walls provide stiffness at The corners of the structure which prevents the twisting of the structure resisting the lateral forces in the both directions and in structure B and C there…

1) Ans:- Symmertry: It is observed that the given layout of the framing plan has good symmetrical aspects. In this plan all the columns and beams are evenly distributed the loads . Redundancy: As the structural design of beams and columns can evenly distribute the loads , this increases the redundancy of the structure,…

1) Ans:-

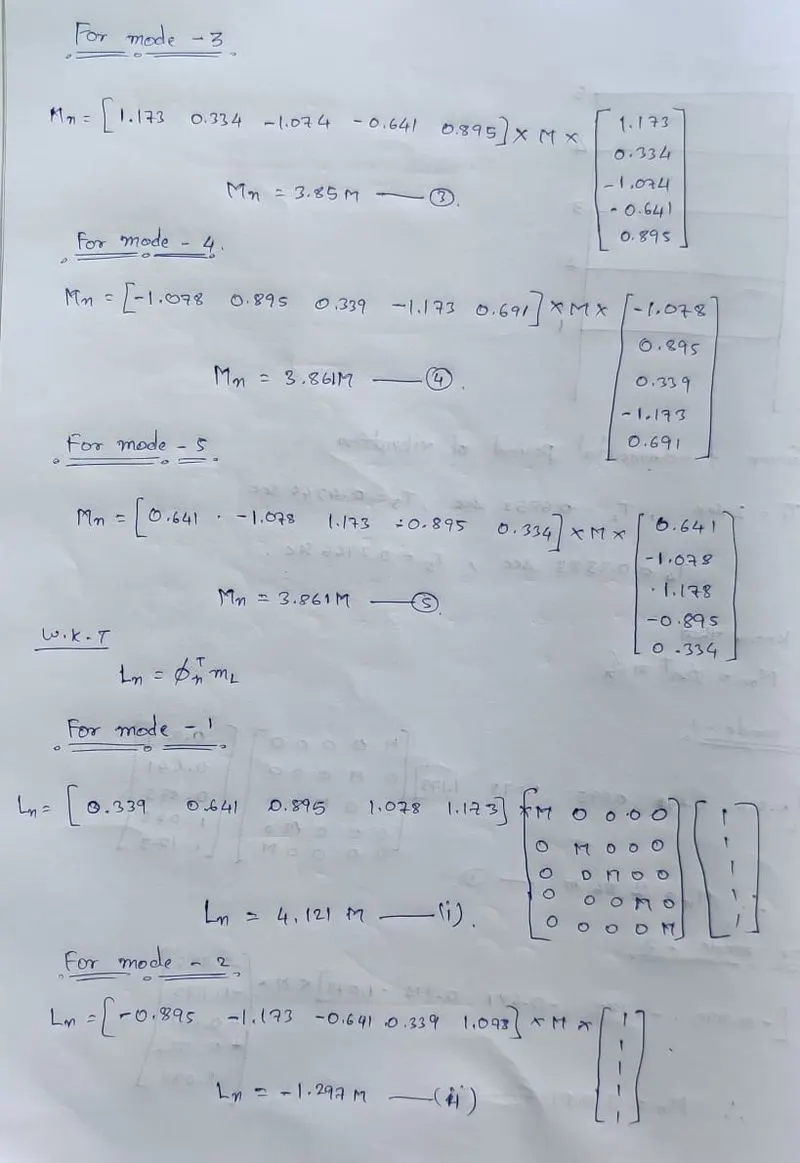

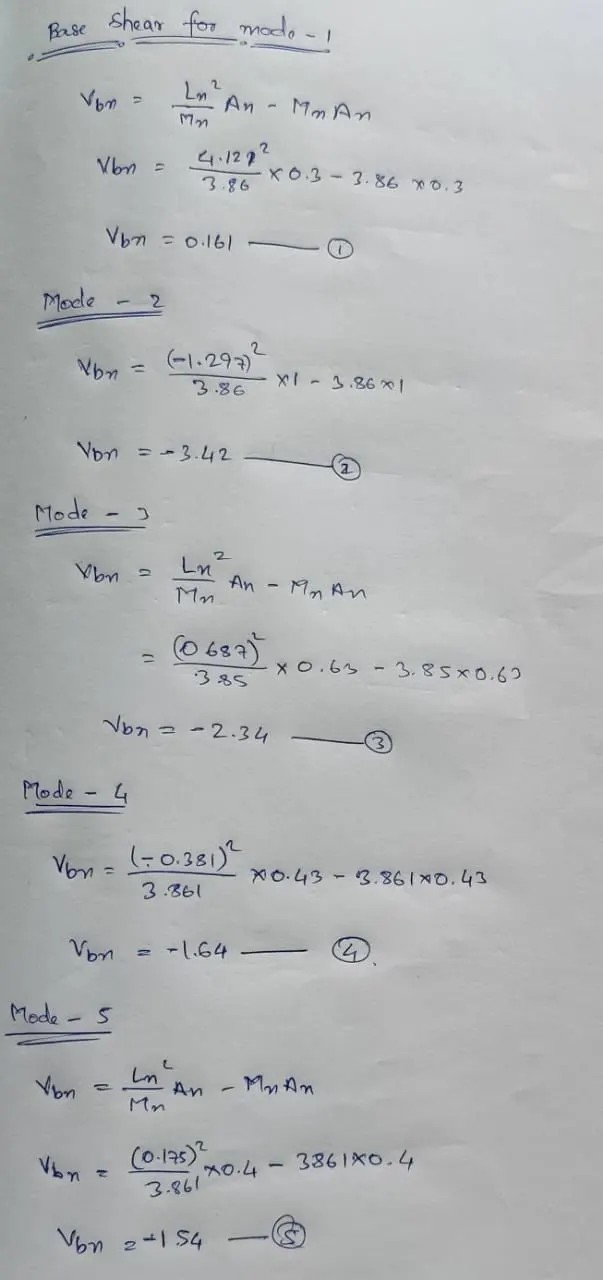

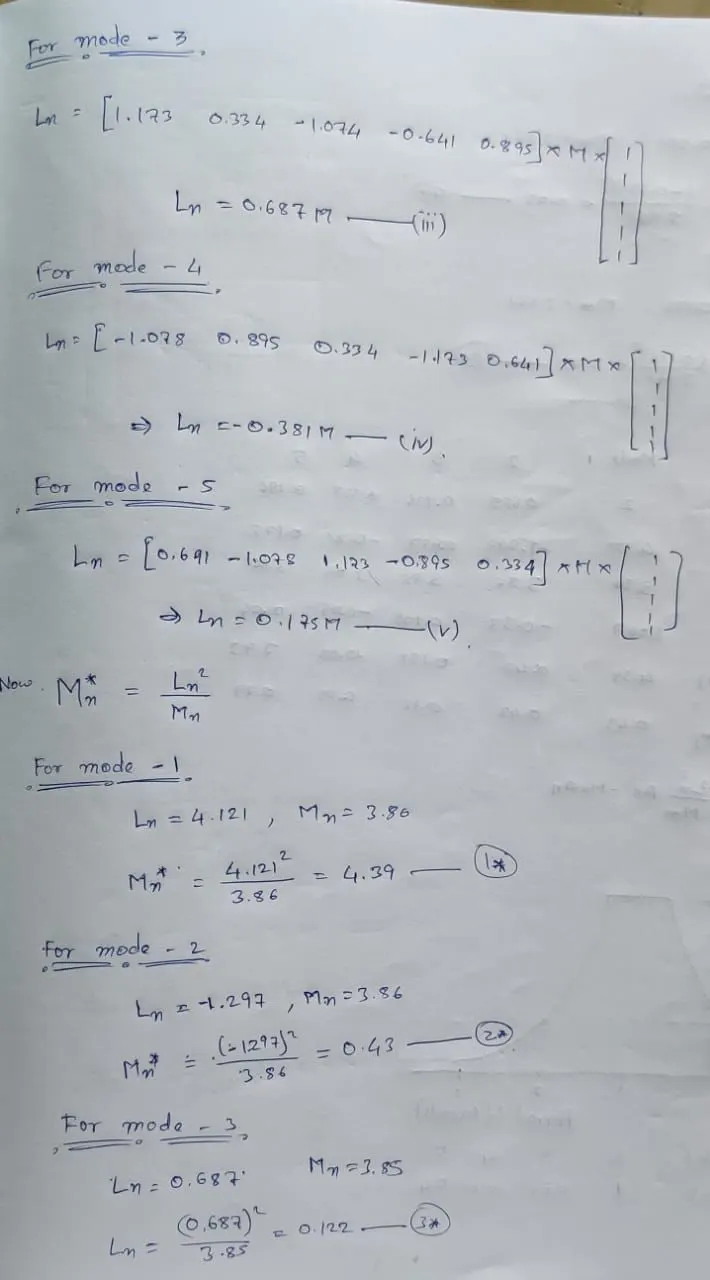

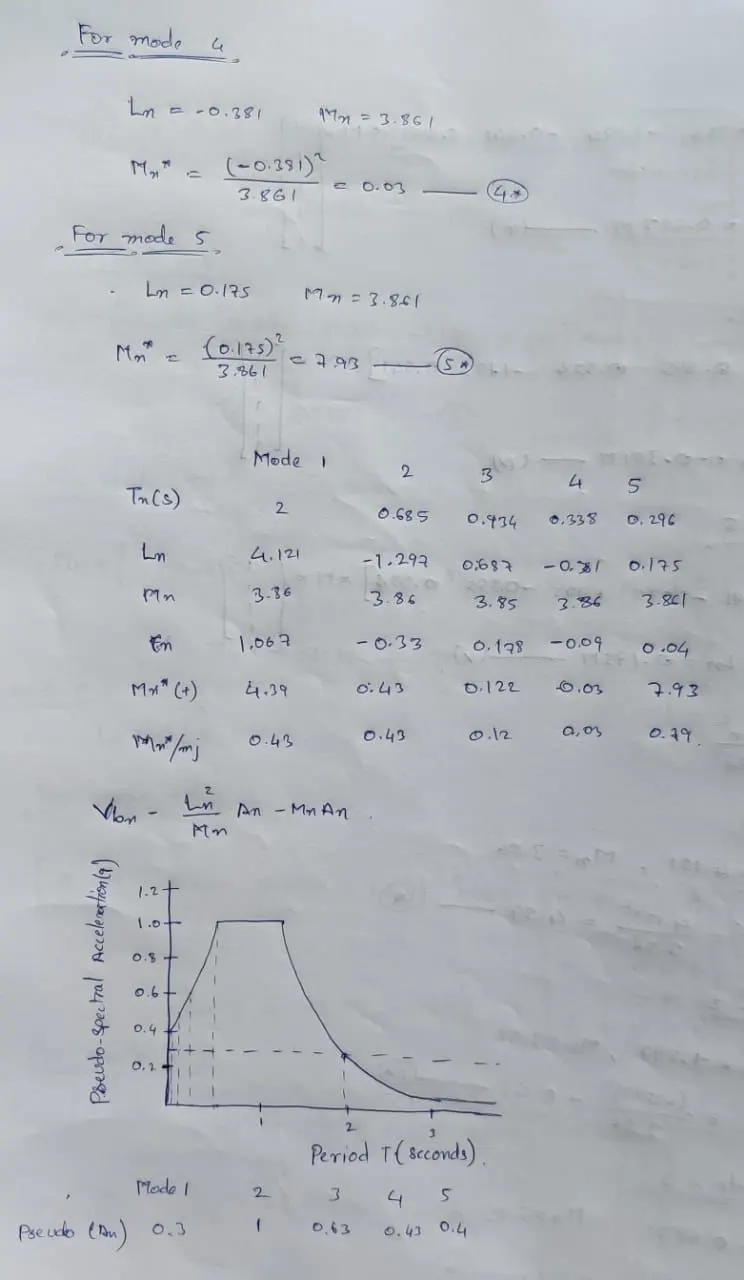

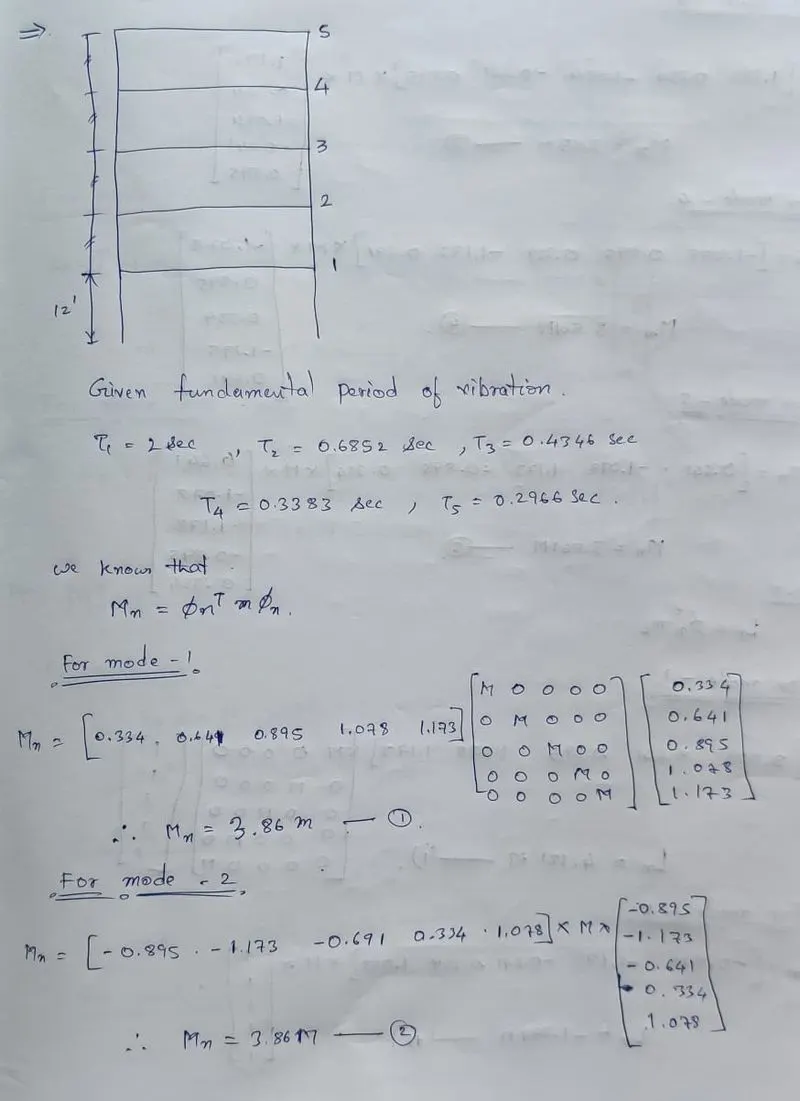

1) Ans:- Given DOF is 3    therfore, the laterial stiffness of the frame is given by K  k=96*EIc/(7h^3)   2) Ans:- a) DOF = 1 Equation of motion is  mü+ku=0  natural frequency fn = √3EI/(2π√mh^3)   b) DOF = 1 Equation of motion is mü +ku=0 Natural frequency…

1. AIM: To export the Revit architecture and structure model to Navis work cache file following the export settings. TOOLS/COMMANDS USED: File Export 3D view PROCEDURE:             1: Open the architectural model that you have created previously.            …

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. AIM: To create a set of sinusoidal points and to create a curve and surface using dynamo.TOOLS/COMMANDS USED: Architectural templateManageDynamo PROCEDURE: 1: Open a new file in Revit. 2: Open an architectural template.…

1)AIM: To use shortcut keys in Revit for the following tasks To create any array of model elements= AR To mirror an element about an axis= MM To copy a model element= CO/CC To move an object to another location= MV To rotate the mode elements= RO To bring the model elements in line= AL To add annotations to the model views=…

1)What are HVAC systems? Why are they essential in modeling of buildings? HVAC stands for heating, ventilation, and air conditioning.  You can find HVAC systems anywhere from single-family homes to submarines where they provide the means for environmental comfort. Becoming more and more popular in new construction,…

1) Select the type of structure you want to build from one of the three below a. Multi Unit Residential Apartment b. Office Buildings c. School Ans: My project is on Multi Unit Residential Apartment 2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. AIM: Set the base point of the project using manage tab and project shared coordinates fro the project. TOOLS/COMMANDS USED: Architectural tab Grids Manage tab Collaborate PROCEDURE: Step-1: Open…

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? As per definition, the building code is a set of local laws relating to how buildings should be designed or built, especially keeping in mind the safe and quality aspects of the final product. When we follow standard codes/standards…

Question-1 Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level Aim: Model a ceiling above the walls first floor. Tools: File menu, architecture tool bar , ceiling Procedure: 1)Open week-3 project from file menu2)Select the first…

 1) Aim: To arrange the floor for the layout and align grids to it. Tools used:  file  open architectural tab floor grids Procedure:  Firstly open the layout file And then from the architectural tab select floor icon . Using this floor property to all the boundary walls of the layout we can create…

AIM : TO Create a G+4 Residential building as per NBC standards and TO make it a central model file. The sloped roof at the top level of the building (10 degrees) Architectural components including furniture and home appliances Room tags and Annotations Section cut through each room either longitudinally or transversely…

  1).   Building Information Modelling (BIM) is the digital representation of physical & functional properties of a facility. Building Information Modelling helps design and construction teams to communicate about design and axis information across different levels that has been used before. This informationremains…

1st ANSWER    AIM :  To create a new project and name the project appropriately in revit.    PROCEDURE :    * create a new project:  Open "Autodesk Revit-2019". Now click on the "file" menu on the top left corner . Click on the "new" then select "project" . A new project…
