REVIT_ Scheduling & Estimation_Week 9

1)AIM: To use shortcut keys in Revit for the following tasks

1. To create any array of model elements= AR
2. To mirror an element about an axis= MM
3. To copy a model element= CO/CC
4. To move an object to another location= MV
5. To rotate the mode elements= RO
6. To bring the model elements in line= AL
7. To add annotations to the model views= DI
8. To select the previously selected items= CTRL+<
9. To increase the range of visibility in a plan view= VR
10. To apply override settings to a floor in the model sectional view= EOD
11. To reduce the thickness of lines visible in plan views= TL
12. To create similar doors and windows in a floor plan layout= CS
13. Using 3D model create a section box= BX

2)AIM: Create schedules of the following.

TOOLS/COMMANDS USED:

View

Schedule

Schedule properties

Schedule quantities

PROCEDURE:

1: Open the architectural template in Revit.

2: Click the view command and click on the drop down at schedules.

3: Select schedule quantities.

4: Select the required category in new schedule dialog box.

5: Now select the required properties of the category or component.

6: Now schedules appear.

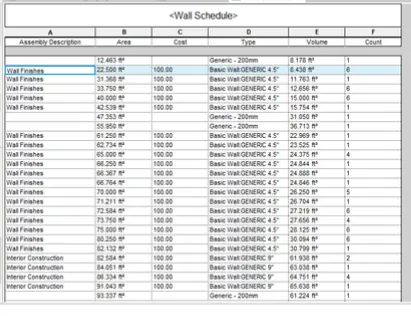

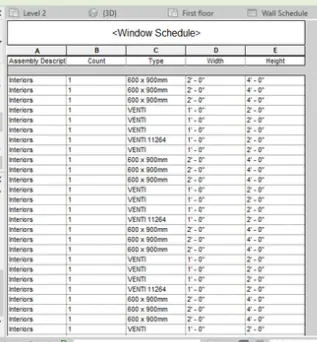

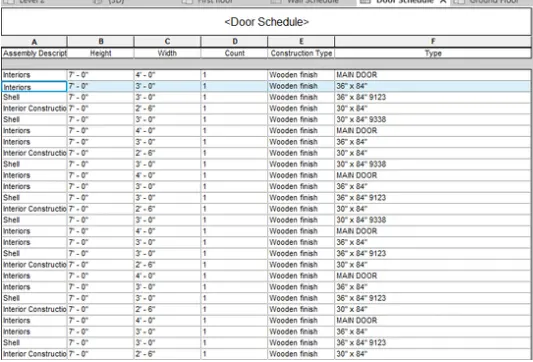

Result: Schedules are prepared for doors, windows and walls.

3)

AIM: Using Revit calculate the area and volume of each room.

TOOLS/COMMMANDS USED:

View

Schedules

PROCEDURE:

1: Open the architectural file in Revit.

2: Select the view option and select schedule.

3: Select rooms in the dialog box of new schedule.

4: Select the parameters like areas, volumes.

5: Click on OK.

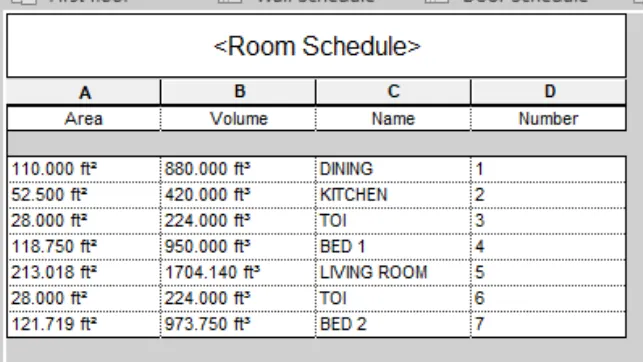

6: Rooms area, volume is scheduled.

Result: Area and volumes are calculated for each room.

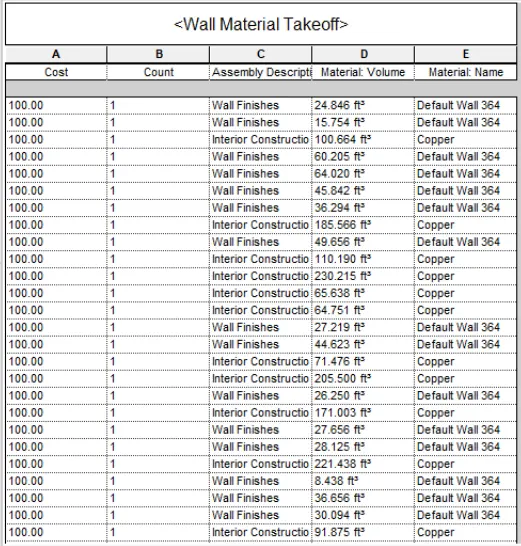

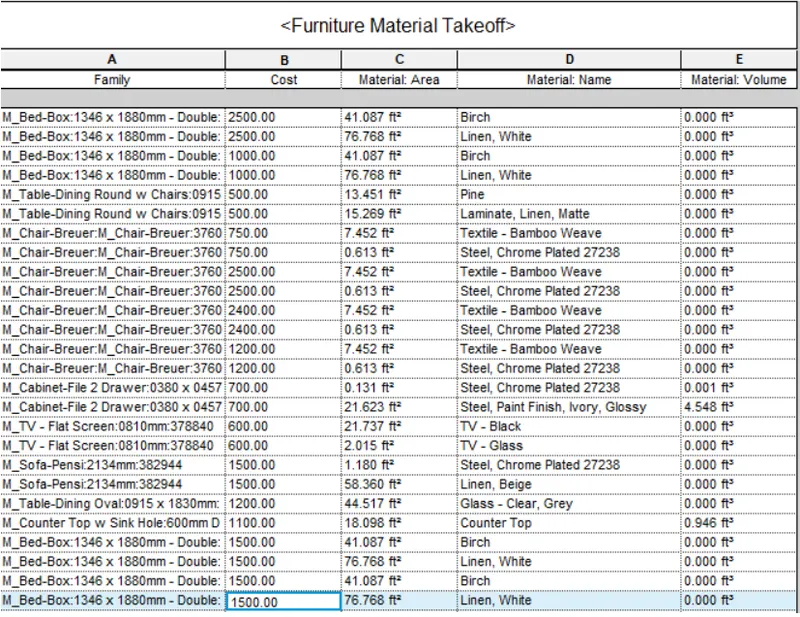

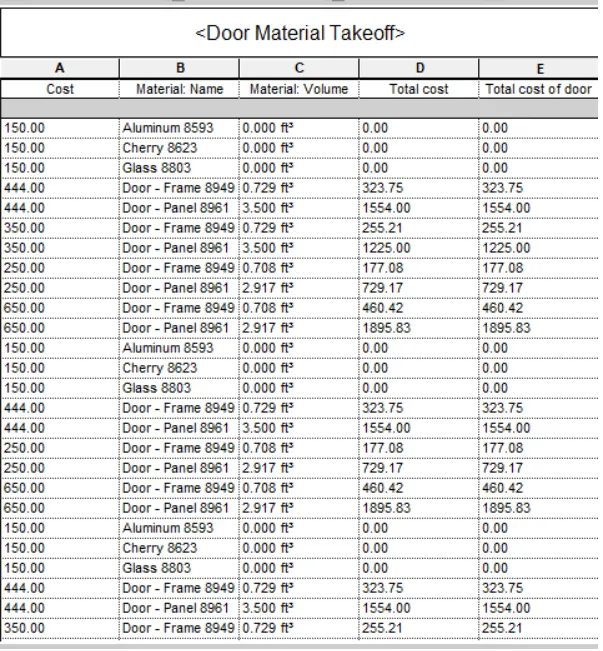

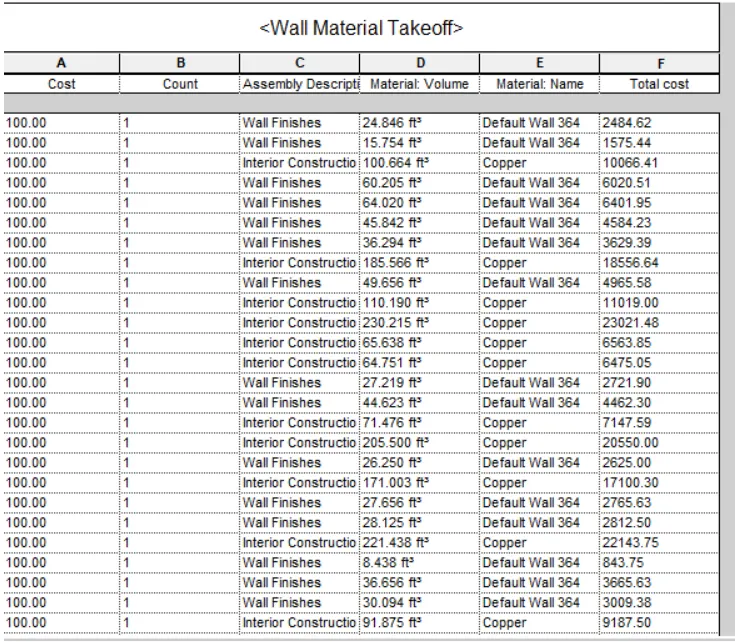

4)AIM: To create a schedule of total cost of material.

TOOLS/COMMANDS USED:

View

Schedule

Material take off

PROCEDURE:

1: Open the architectural template in Revit.

2: Select the view tab and select schedule and select material take off in the drop down.

3: Specify the name and click on OK.

4: Select the required parameters.

5: Select the total cost and select calculated and define the formula fro total cost.

Result: Total cost of material schedule is prepared.

4) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
How to decide framings for a structure using Dynamo?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project

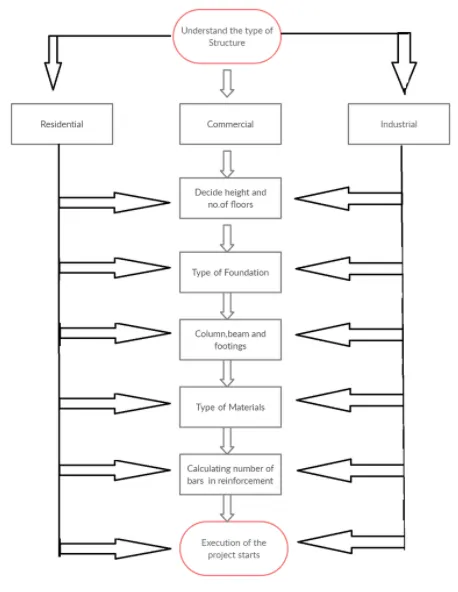

1. Framing structure of the building or project is as follows
2.

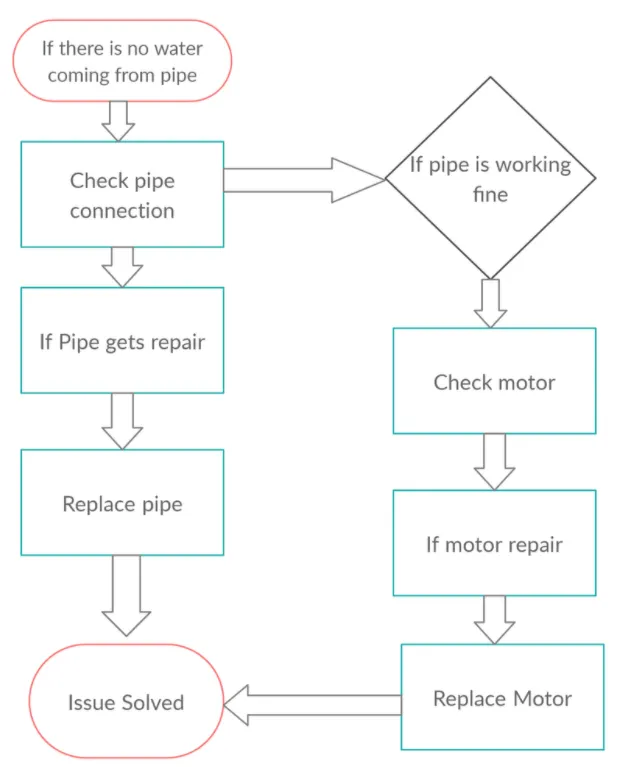

3. Flow chart for pipes are as follows,
4.

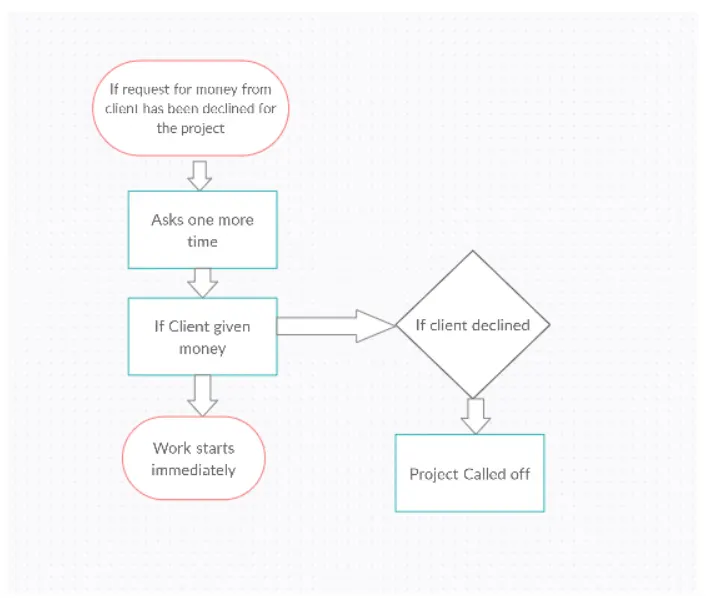

5. Flow chart for request of money from client for a project is as follows,
6.

5)List the parameters associated with each model element
Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Parameters associated with each model element are,

1. Walls

• Type of wall
• Length
• Width
• Height
• Material used
• Cost
• Thickness

1. Floor

• Type of floor
• Length
• Width
• Area
• Volume
• Cost
• Thickness

1. Doors

• Height of sill
• Length
• Width
• Materials
• Type of door
• Height of lintel
• Thickness

1. Windows

• Height of sill
• Length
• Width
• Materials
• Type of window
• Height of lintel
• Thickness

1. Table

• Material
• Purpose of table
• Length
• Width
• Material
• Height

1. Building

• Type of building
• of floors
• Height
• Width
• Area
• Material
• Loads on buildings
• location
