Reinforcement detailing of Columns from ETABS output
Aim: To Provide details of longitudinal reinforcement for the two columns, from foundation to terrace level. Procedure : Step 1 : Using the same etabs structure in the last challenge , open the structure in elevation mode. Step 2 : click on start design/check option in the( design drop down -> concrete frame…
Vejetha Sajeevan
updated on 29 Oct 2021
Aim: To Provide details of longitudinal reinforcement for the two columns, from foundation to terrace level.
Procedure :

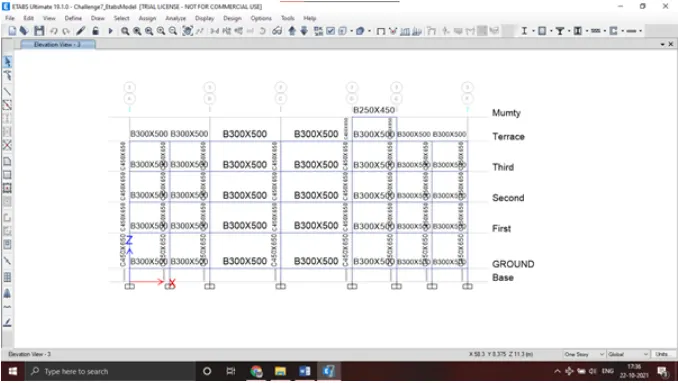

Step 1 : Using the same etabs structure in the last challenge , open the structure in elevation mode.
Step 2 : click on start design/check option in the( design drop down -> concrete frame design )

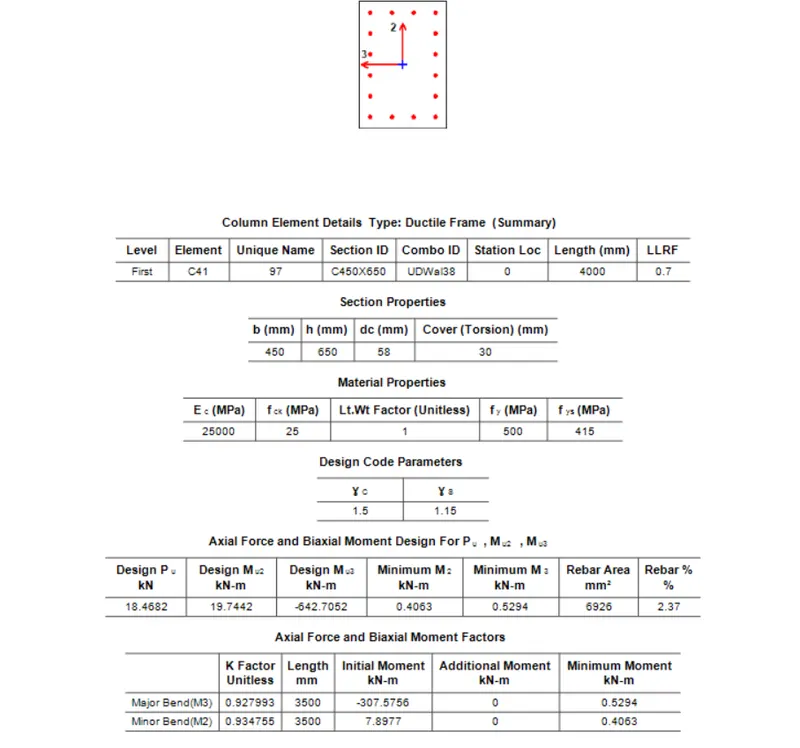

Step 3 : after the check is complete , go to design -> concrete frame design -> beam design info
and give in output longitudinal reinforcement and shear reinforcement

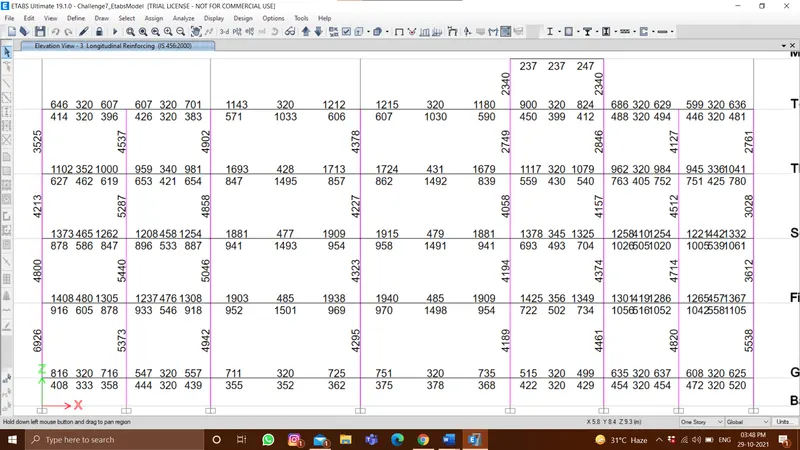

longitudinal reinforcement :

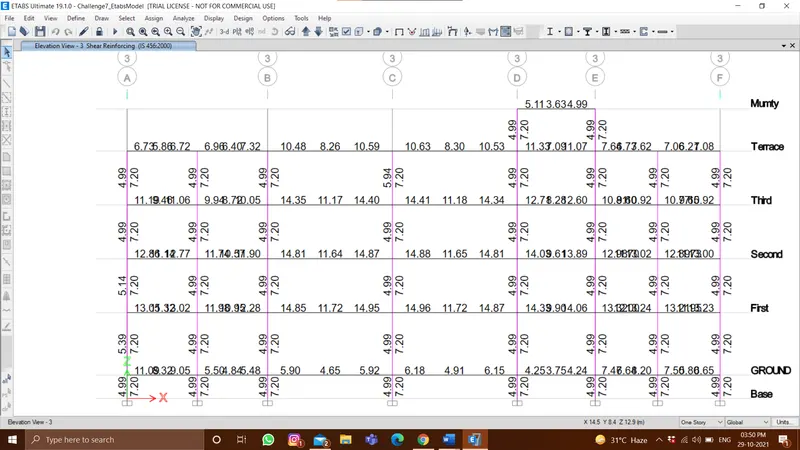

Shear Reinforcement :

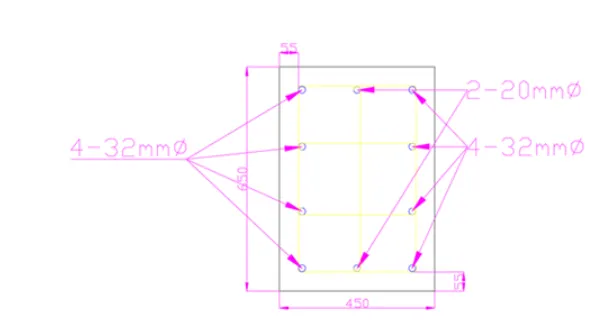

COLUMN 3A:
Max Ast = 7027 mm2
so provide 9 no of bars of dia 30mm. = 6358mm2
2 bars of 20 mm =628 mm2

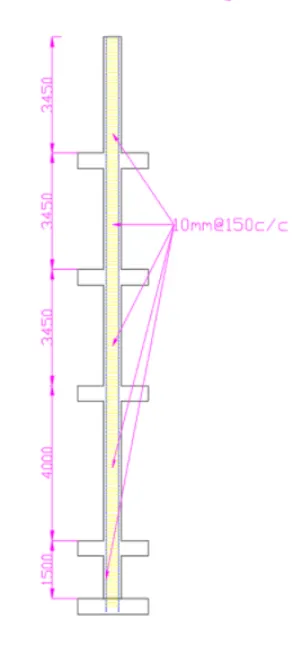

provide 10mm stirrups with 150 mm for zone c ;
since width is greater than 300mm provide confining reinforcement in both directions

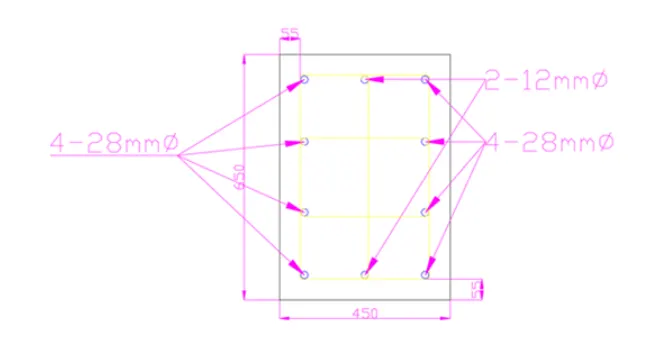

COLUMN 3B:
MAx Ast = 5046mm2
so provide 6 no of bars of dia 32 mm = 4823.04mm2
2 bars of 12 mm = 226.08mm2

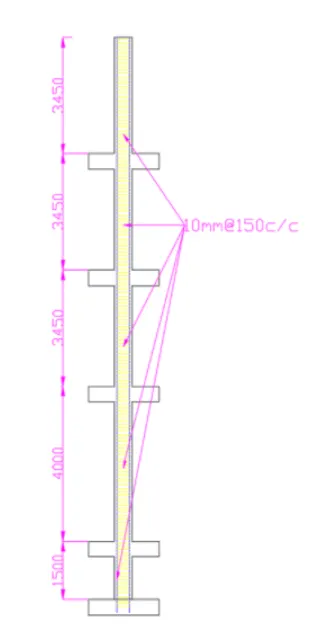

also provide 10mm stirrips at 150mm c/c at zone c.
summary:
RESULT :
The model was analysed and the detailing of rebar was done in autocad.
