Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

AIM: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text
wherever required. All dimensions are in mm.
Procedure:
step 1:
units are set to mm
limits and limax are also set
zoom comand is also used
Step 2:
In the command prompt type rec and the dimensions are 4734 x 3688 mm
In the command prompt type offset and offset it to the distance of 230mm
Using arc and lines the door is drawn
In the command prompt type hatch to hatch the model
In the command prompt type rec > dimensions , to do the fridge
In the command prompt type offset and offset it to the desired distace to get the Micro Oven
In the command prompt type trim to trim the extras
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
In the command prompt type offset and offset it to the vertical distance of 600
In the command prompt type trim to trim the extras
In the command prompt type line type and load the dotted lines
In the command prompt type text to text the given annotations
In the command prompt type dimensions to given the dimensions to your plan
In the command prompt even the leader command is used to name the dimensions

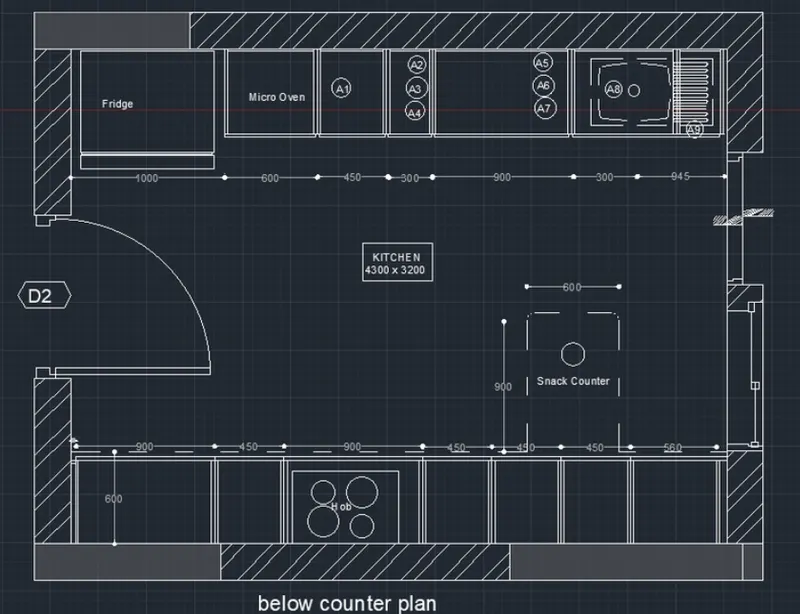

FINAL RESULT :

To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text
wherever required. All dimensions are in mm.
Procedure:
step 1:
units are set to mm
limits and limax are also set
zoom comand is also used
Step 2:
In the command prompt type rec and the dimensions are 4734 x 3688 mm
In the command prompt type offset and offset it to the distance of 230mm
Using arc and lines the door is drawn
In the command prompt type hatch to hatch the model
In the command prompt type rec > dimensions , to do the fridge
In the command prompt type offset and offset it to the desired distace to get the Micro Oven
In the command prompt type trim to trim the extras
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
In the command prompt type offset and offset it to the vertical distance of 600
In the command prompt type trim to trim the extras
In the command prompt type line type and load the dotted lines
In the command prompt type text to text the given annotations
In the command prompt type dimensions to given the dimensions to your plan
In the command prompt even the leader command is used to name the dimensions

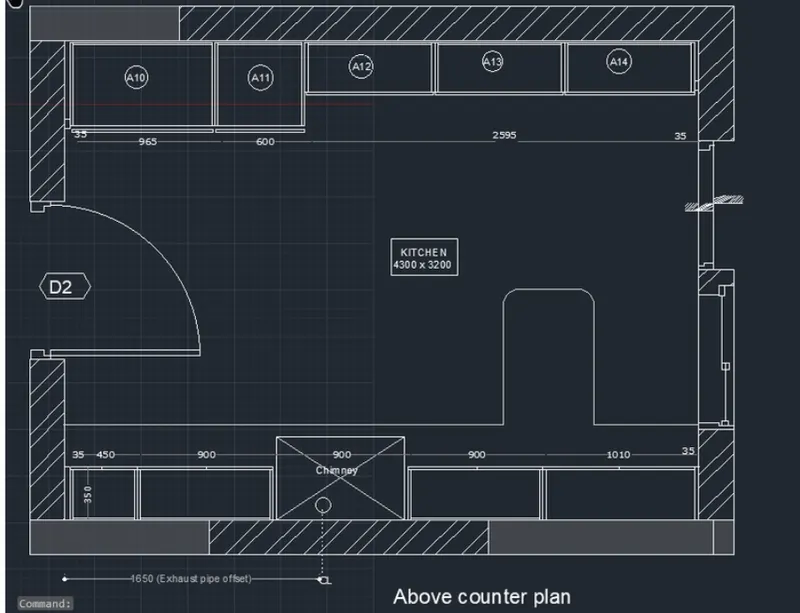

FINAL RESULT :

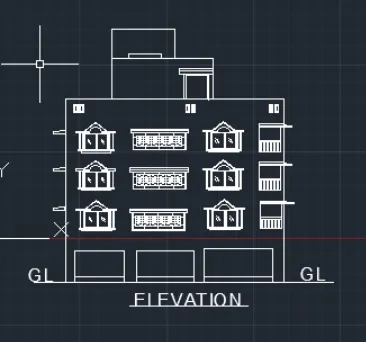

 2. To create the elevation of the plan with hatch
PROCEDURE:
In the command prompt type l to draw the lines
In the command prompt type rec to draw the rectangle
In the command prompt type arc to draw the arc
Therefore, the window is created
In the command prompt type l to draw the lines
In the command prompt type rec to draw the rectangle
In the command prompt type l to draw the lines
In the command prompt type rec to draw the rectangle
In the command prompt type rec to draw the rectangles

FINAL RESULT:

AIM:

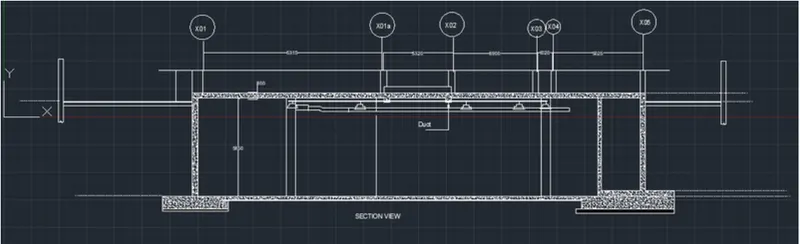

To create the section view of an industrial building .
PROCEDURE:
In the command prompt type l to draw the lines .
In the Ribbon bar > Hatch > AR.CONC.
In the command prompt type rec to draw the rectangle.
In the Ribbon bar > hatch > AR-Conc
In the command prompt type LT to get the dotted lines
In the command prompt type c to draw the circle
In the command prompt type Mt to draft the text
In the command prompt type dim to draft the dimensions

RESULT:
