Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

1.  AIM : TO CREATE THE RESIDENCE PLAN GIVEN

 PROCEDURE: 1. DRAW THE OUTLINE OF THE PLAN INNER WALL GIVEN . USING LAYER PROPERTIES GIVE DIFFERENT COLOURS FOR DIFFERENT ELEMENTS

2. THEN USING OFFSET DRAW 9.0' DISTANCE ANOTHER OUTLINE. SHOWING THE WALL THICKNESS

3. GIVE WALL THICKNESS 4.5' WHEREVER NECESSARY

4. USING ARC AND POLYLINE MAKE DOORS D1 , D2, D3, AFTER MIRRORING ALLIGN IT TO THE CORRECT POSTION AS IN THE PLAN.

5. USING THE ANNOTATION GIVE THE NAMES AND DIMENSION OF THE ROOMS

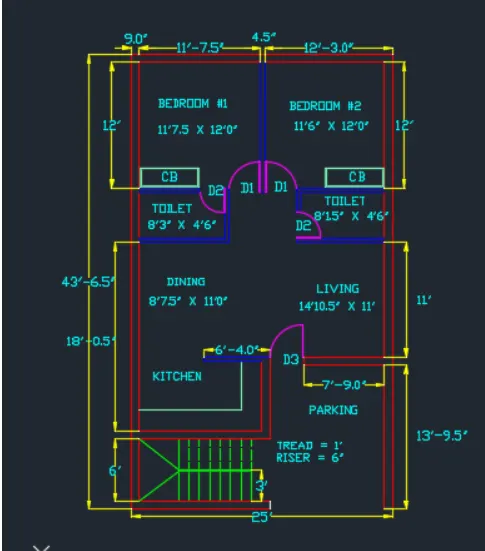

 RESULT: THE RESIDENCE PLAN IS SHOWN BELOW

AIM : TO CREATE A SEATING PLAN FOR OUTDOOR CANOPY

PROCEDURE: 1. DRAW TWO CIRCLES WITH RADIUS 452 AND 1398

2. DRAW A RECATNGLE 600X200 , THEN DRAW A CIRCLE OF RADIUS 300.

3. TRIM OFF UNWANTED LINES. DRAW OFFSET OF 0.5, 30 MM DISTANCES.

4. USING POLYLINE ATTACH THE SEMICIRCULAR CIRCLES

5 . DRAW SMALL RECTANGULAR BOXES AT BOTH END OF THE SEMICIRCLE.

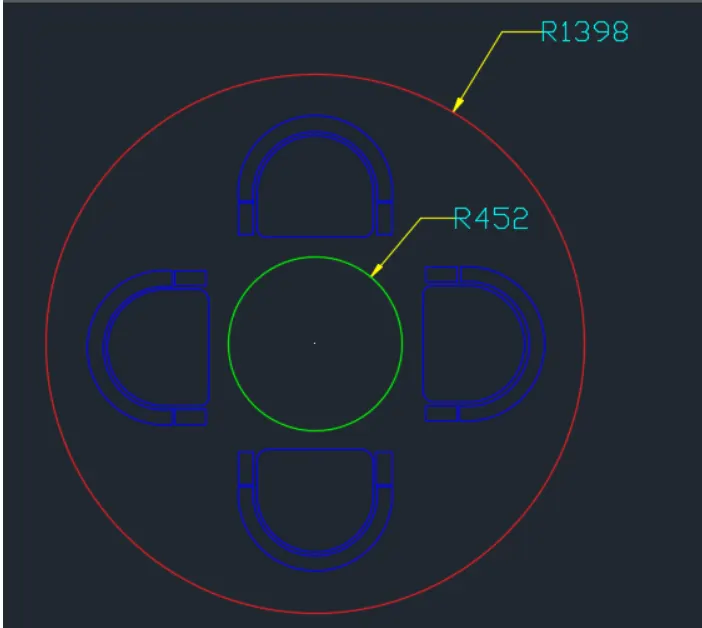

RESULT : THE SEATING PLAN IS SHOWN BELOW

AIM : TO SKETCH THE PLAN FOR TOILETS AND UTILITIES ROOM

PROCEDURE: 1. DRAW THE INNER WALL END OUTLINE OF THE SKETCH

2. GIVE OFFSET DISTANCE 300 MM AND GIVE WALL THICKNESS

3. USING POLYLINE MAKE VENTILATERS OF LENGTH 631MM AND ALLIGN IT ON THE CORRECT WALL POSTION

4. GIVE SEPERATING WALL INSIDE  WITH OFFSET DISTANCE 150MM

5. DRAW A DUCT OF 402MM AT THE CORNER USING POLYLINE AS GIVEN

6. USING ARC AND POLYLINE, MAKE DOORS OF LENGTH 832, 828MM AND PLACE IT CORRECTLY USING MOVE OPTION

7. USING ANNOTATIONS GIVE NAMES AND DIMENSIONS OF ROOM AS SHOWN.

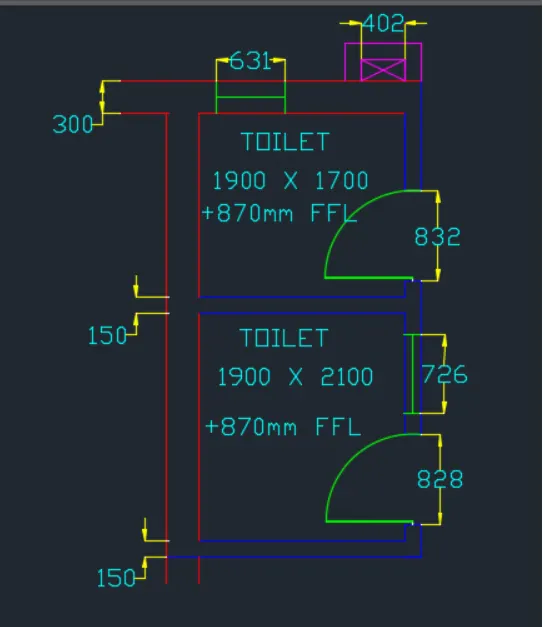

RESULT : THE PLAN FOR TOILETS AND UTILITIES IS DRAWN
