	SKILL-LYNC         MODELING OF YACHT IN SOLIDWOEKS











By

ABHIJNA K







                                                                                                CHAPTER 1

INTRODUCTION



         SOLIDWORKS have different software that are used by mechanical, electrical, civil etc engineering branches. Here we use SOLIDWORKS CAD modeling software which use for 3D and surface designing, plastic and mold designing, photo realistic rendering, FEA analysis etc.

          In this project we do solid and surface modeling for designing of parts and then these parts where assemble together in solid work software



• OBJECTIVES

• Learn the basic features and tools of the SOLIDWORKS Model the different parts of Yacht
• Assemble the part models of Yacht
• Using PHOTOVIEW 360 perform a photo realistic rendering of an Yacht









CHAPTER 2

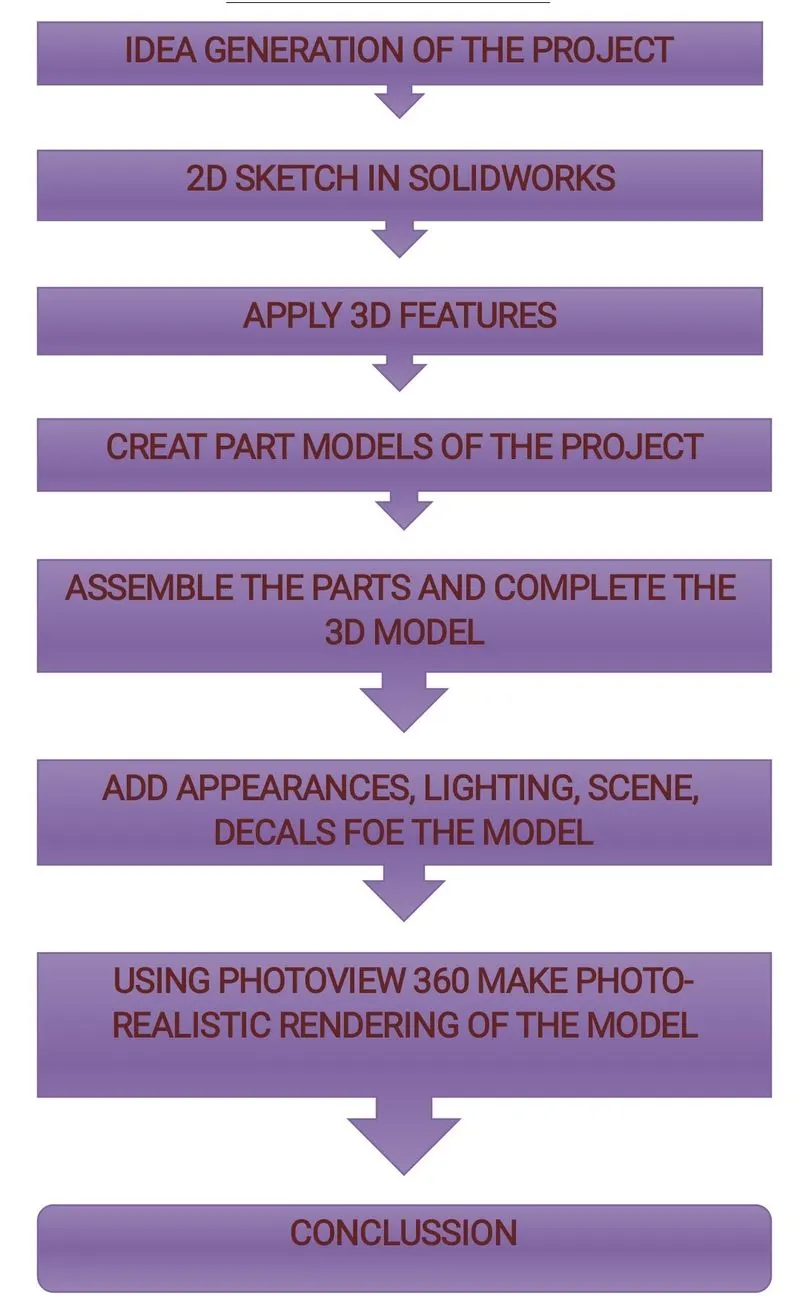

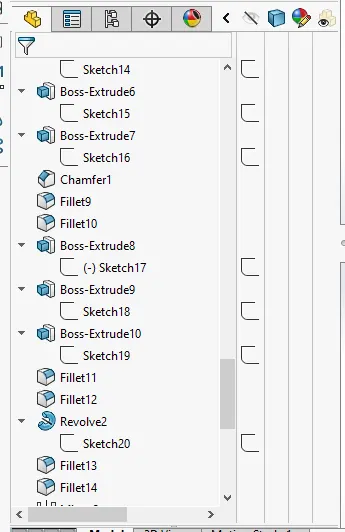

METHODOLOGY

CHAPTER 3

FEATURES AND PROPERTIES



• Extrude boss:

            In this blog we will be covering the Extruded Boss/Base feature, this is one of the most common and universal features used within the 3D modeling world. This is a handy feature for creating 3D solid models within SOLIDWORKS.

              Using the modeled 2D sketch created, you are ready to turn the 2D sketch element into a 3D solid feature.

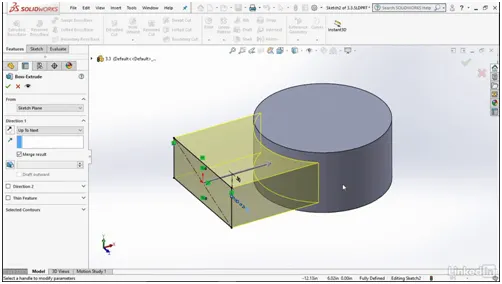

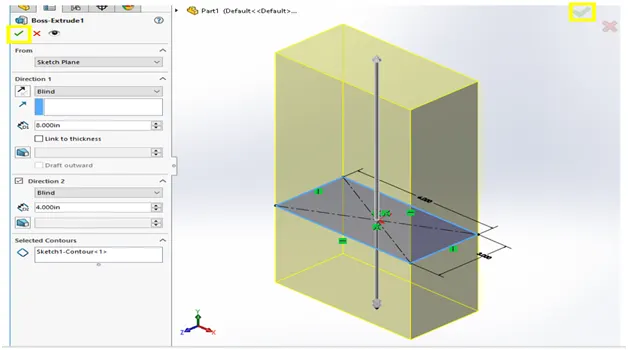

Figure 3.1: extrude boss







• Fillet:

              Fillet creates a rounded internal or external face on the part. You can fillet all edges of a face, selected sets of faces, selected edges, or edge loops.

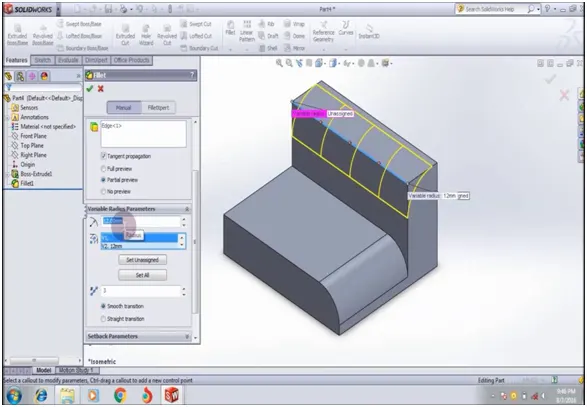

Figure 3.2: fillet





• Revolved boss feature

              Revolved boss feature add or remove material by revolving one or more profiles around a centerline. You can create revolved boss/bases, revolved cuts, or revolved surfaces. The revolve feature can be a solid, a thin feature, or a surface.



Figure 3.3: revolved boss feature





• Extrude cut:

             Using the Extruded Boss/Base model created in the Extrude boss base blog, we will modify the 3D block to include a circle feature by removing material. The Extruded Cut feature can be found on the features tab in the Command Manager interface

             The Cut-Extrude feature is a very useful tool. In the manufacturing world, it can be a common practice to start with stock material and proceed to use the Cut-Extrude tool to remove material as you would during the machining phase.

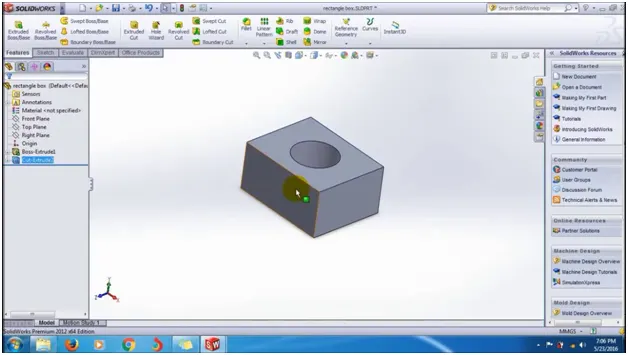

Figure 3.4: extrude cut





• Shell:

             The shell tool hollows out a part, leaves open the faces you select, and creates thin-walled features on the remaining faces.

             If you do not select any face on the model, you can shell a solid part, creating a closed, hollow model. You can also shell a model using multiple thicknesses. If the Shell tool has problems shelling a model, the Error Diagnostics section appears in the Property Manager to help you diagnose the problem.

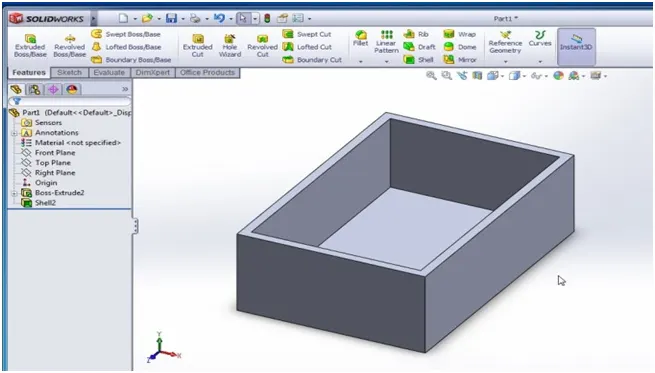

Figure 3.5: shell

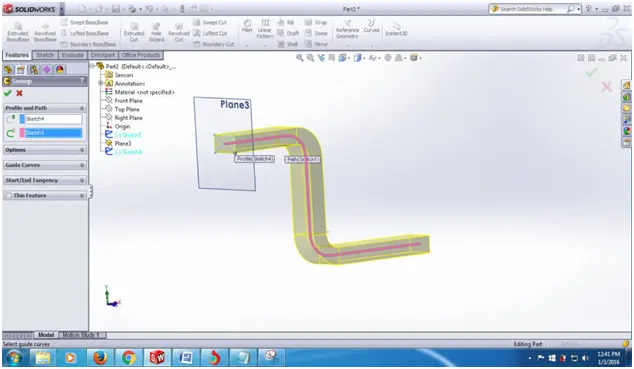

• Sweep boss/ sweep cut

              Sweep is the one feature in SOLIDWORKS that helps sweep a closed profile along a closed or open path. In this session, we are going to use a simple 3d object as an exercise to demonstrate the use of the SWEEP command in SOLIDWORKS.

             The most common usage is in creating cuts around cylindrical bodies. This option would also be useful for end mill simulation. When you select Solid Sweep, the path must be tangent within itself  and begin at a point on or within the tool body profile.

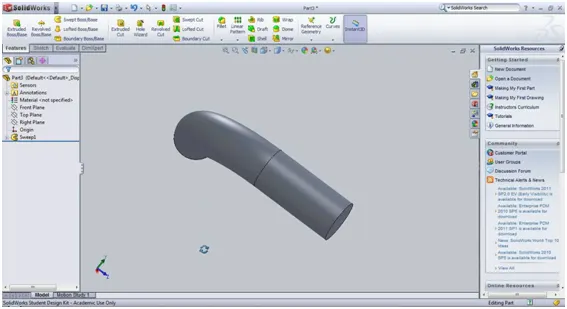

Figure 3.6.1: sweep boss

Figure 3.6.2: sweep cut

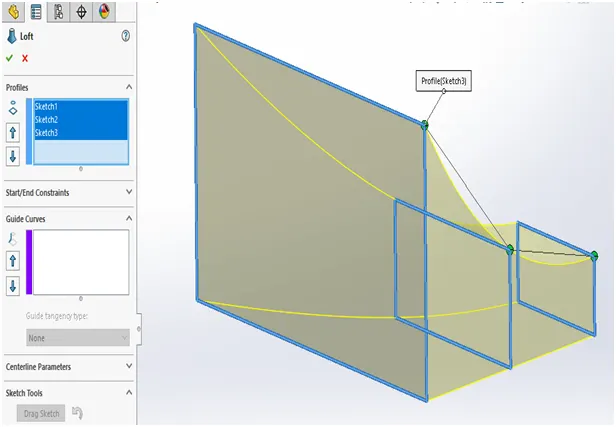

• Loft boss/ loft cut

              The loft feature is an important tool for modeling in SOLIDWORKS. The loft feature creates a shape by making transitions between multiple profiles and guide curves. This tool is very valuable for modeling complex surfaces. You can do some really cool stuff when you use this feature properly.

                Loft creates a feature by making transitions between profiles. A loft can be a base, boss, cut, or surface. You create a loft using two or more profiles. Only the first, last, or first and last profiles can be points. All sketch entities, including guide curves and profiles, can be contained in a single 3D sketch.





3.7.1: Loft boss

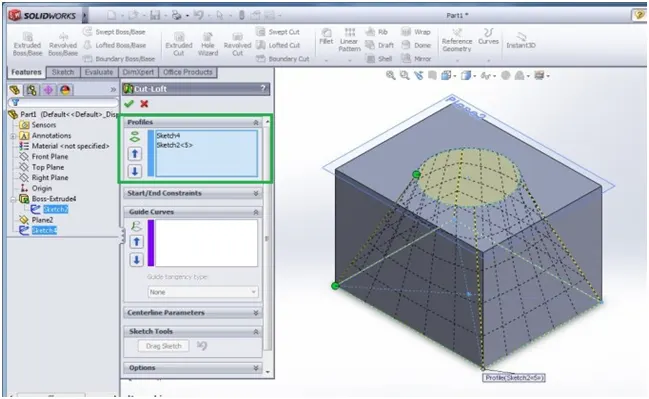

3.7.2: loft cut





• Linear pattern:

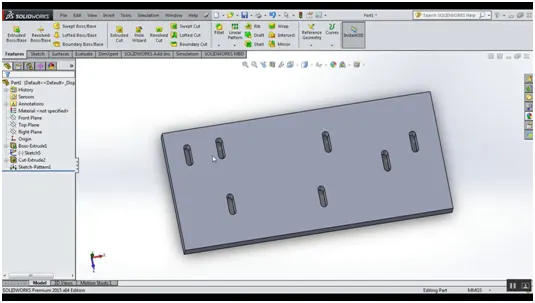

             The SOLIDWORKS Linear Pattern tool is a great way to make a grid of holes or multiple bodies very quickly. This tool is very easy to use and saves you a lot of time. Use linear patterns to create multiple instances of one or more features that you can space uniformly along one or two linear paths.

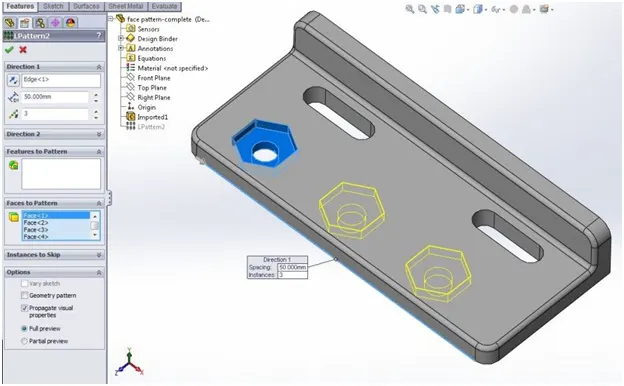

Figure 3.8: linear pattern





• Mirror:

              Mirroring is another way that SOLIDWORKS can create a copy of an existing object. In most cases, you will have to create your own plane to have the mirror done the way you need.

               Various commands are available for mirroring and creating opposite-hand versions of items such as sketch entities, features, parts, and assembly components. The command you need depends on the type of item for which you want to create a mirror or an opposite-hand version.

Figure 3.9: mirror





• Projected curve:

              SOLIDWORKS has a tool called Projected Curve that can take any sketch and transfer it over to another sketch or face. You can then use that sketch for creating features to even to split a body.

              The Project Curve feature is more like the Split Line than the Wrap feature. It can do everything the Split Line feature with one exception, it gives up the ability to split faces in favor of being able to use open contour sketches that are within the boundary of a face.

Figure 3.10: projected curve





• Reference geometry:

              Reference geometry defines the shape or form of a surface or a solid. Reference geometry includes items such as planes, axes, coordinate systems, and points.

              You can use reference geometry in the creation of several kinds of features. For example:

• Planes are used in lofts and sweeps.
• An axis is used in a circular pattern.

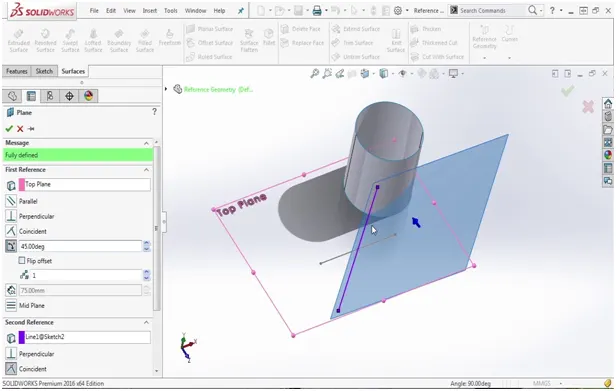

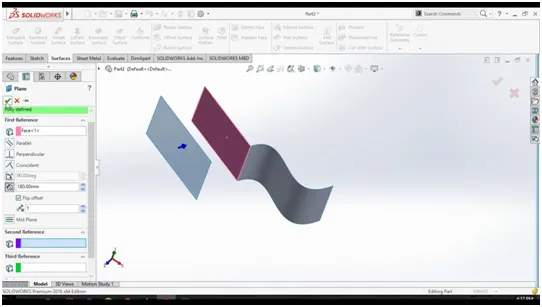

Figure 3.11: reference geometry





• Combine:

               In a multi body part, you can combine multiple solid bodies to create a single-bodied part or another multi body part. You can add or subtract bodies, or keep material that is common to the selected bodies.

• Combining Bodies - Add:
  In a multi body part, you can combine multiple bodies to create a single body.
• Combining Bodies - Subtract:
  In a multi body part, you can subtract one or more bodies from another body.



• Combining Bodies - Common:
  In a multi body part, you can create a body defined by the intersection of multiple bodies.
• Combine Property Manager:
  In the Combine Property Manager, you specify which bodies in a multi body part to add, subtract, or overlap.

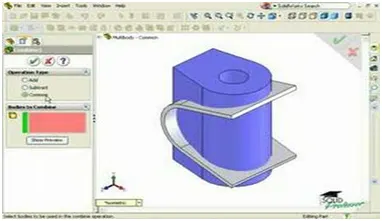

Figure 3.12: combine

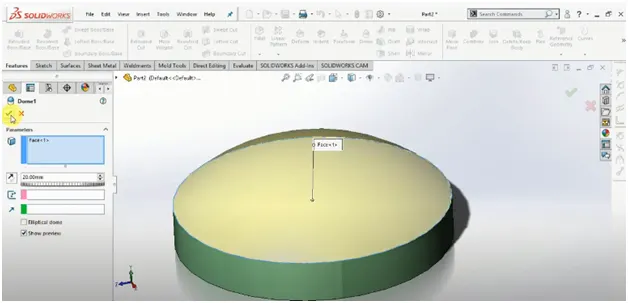

• Dome:

              SOLIDWORKS provides a tool called ad ‘Dome’ that you can create domes on 3D parts and shapes. The use of dome command is very easy.

             The Parameters in the dome Property Manager includes Faces to dome. Select one or more planar or non-planar faces. You can apply domes to faces in which centroid lies outside the face. This allows you to apply domes to irregularly shaped contours



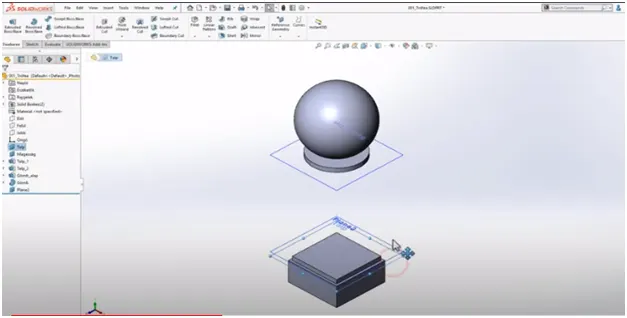

Figure 3.13: dome





• Split:

             Use the Split feature to create multiple parts from an existing part. You can create separate part files, and form an assembly from the new parts.

             You can split one or more solid or surface bodies. To split a surface, the Trimming Surface must extend past the boundaries of the surface to split.

Figure 3.14: split





• Mate:

               Mates create geometric relationships between assembly components. As you add mates, you define the allowable directions of linear or rotational motion of the components. You can move a component within its degrees of freedom, visualizing the assembly's behavior.

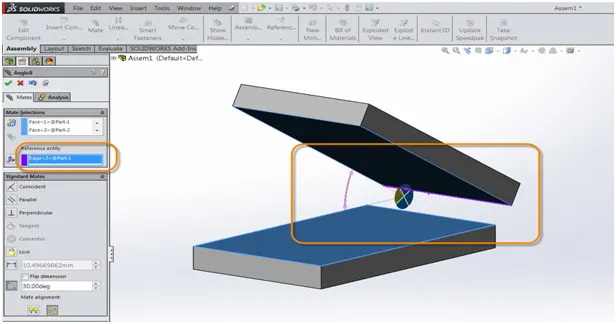

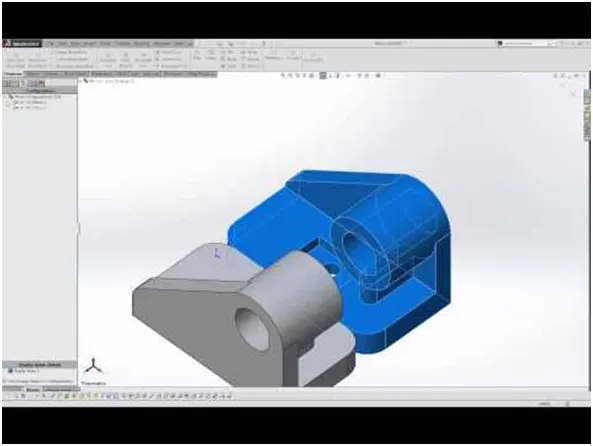

Figure 3.15: mate





• Circular pattern:

             Circular pattern is to create multiple instances of one or more features that you can space uniformly around an axis. You can create circular patterns symmetrically or asymmetrically in both directions from the seed geometry. This is useful when the seed is not located at the end of the pattern arc. The Circular Pattern Property Manager appears when you pattern one or more features around an axis.

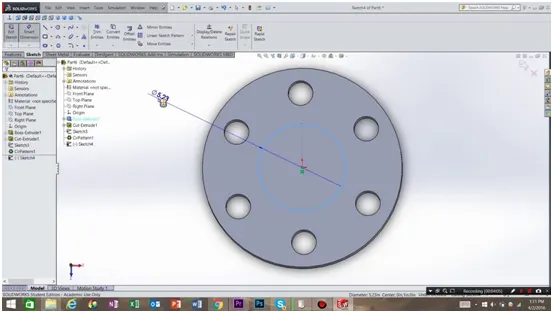

Figure 3.16: Circular pattern





• Sketch driven pattern:

             Using sketch points within a sketch, you can specify a feature pattern. The seed feature propagates throughout the pattern to each point in the sketch. You can use sketch driven patterns for holes or other feature instances.

              Sketch driven pattern creates the pattern using only the geometry of the features, rather than patterning and solving each instance of the features. The Geometry Pattern option speeds up the creation and rebuilding of the pattern. You cannot create geometry patterns of features that have faces merged with the rest of the part.

Figure 3.17: Sketch driven pattern





• Chamfer:

               The chamfer tool creates a beveled feature on selected edges, faces, or a vertex. You can create partial chamfers for offset face chamfers by specifying lengths along model edges

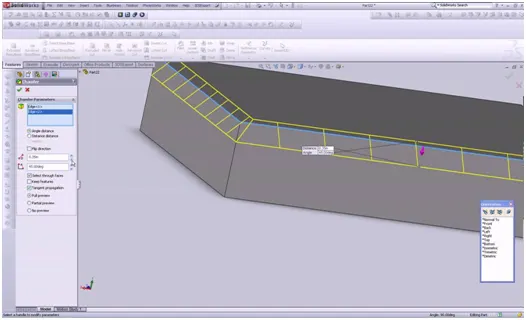

Figure 3.18: Chamfer





• Helix/Spiral:

              You can create a helix or spiral curve in a part. The curve can be used as a path or guide curve for a swept feature, or a guide curve for a lofted feature. The diameter of the circle controls the starting diameter of the helix or spiral.

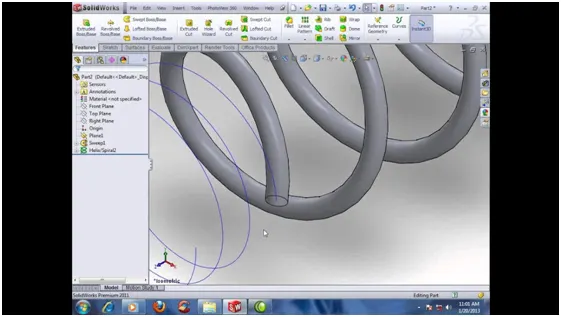

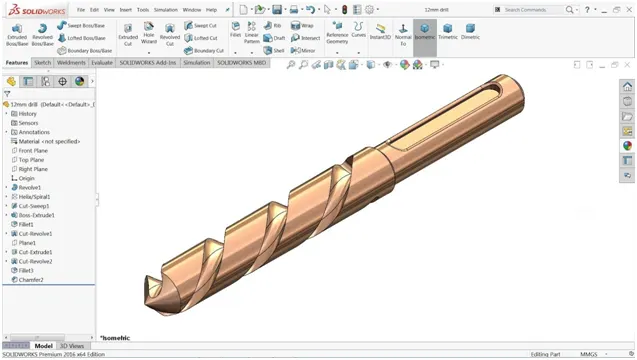

Figure 3.18: Helix/Spiral





• Delete face:

             You can delete faces from surface and solid bodies.

With Delete Face tool, you can do the following:

Show selection toolbar:

             Shows/hides selection accelerator toolbars

Delete:

             Deletes a face from a surface body, or deletes one or more faces from a solid body to create surfaces.

Delete and Patch:

              Deletes a face from a surface body or solid body and automatically patches and trims the body.

Delete and Fill:

            Deletes faces and generates a single face to close any gap.

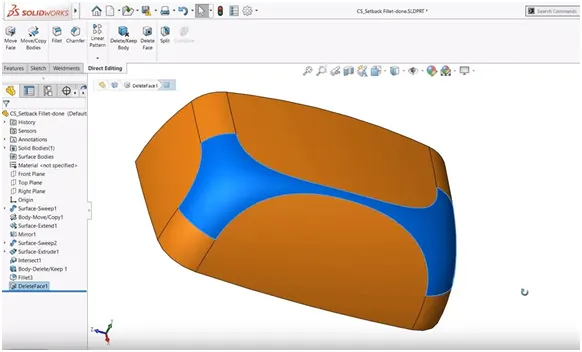

Figure 3.19: Delete face





• Surface extrude:

              We can create extruded surfaces from models that include 2D or 3D faces and knit the extruded surfaces to surrounding features. And can extruded surface at one end or at both ends.

Figure 3.20: Surface extrude

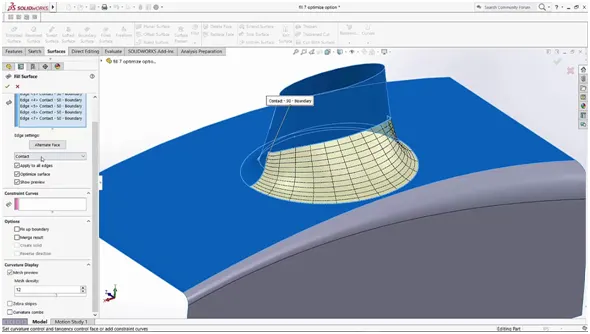

• Filled surface:

             The Filled Surface feature constructs a surface patch with any number of sides, within a boundary defined by existing model edges, sketches, or curves, including composite curves.



Figure 3.21: Filled surface





• Surface trim:

              We can use a surface, plane, or sketch as a trim tool to trim intersecting surfaces. We can also use a surface in conjunction with additional surfaces, as mutual trim tools. Trim surface includes the following options

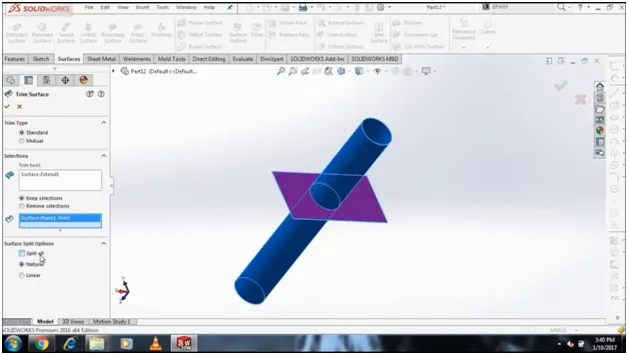

Figure 3.22: Surface trim





• Surface extend:

              You can extend a surface by selecting an edge, multiple edges, or a face. For edges, the surface extends along the plane of the edge. For faces, the surface extends along all edges of the face except those connected to another face.

Figure 3.23: Surface extend





• Surface sweep:

              You can select faces, edges, and curves directly from models as sweep profiles. The profile may be open or closed for a surface sweep feature.  The path can be open or closed, and can be a set of sketched curves contained in one sketch, a curve, or a set of model edges. The start point of the path must lie on the plane of the profile.

Figure 3.24: surface sweep





• Surface offset:

              A common technique for advanced surfacing modeling is using the surface offset command. The command gives users the option to see and remove any surfaces that cannot be offset, building the remaining geometry.

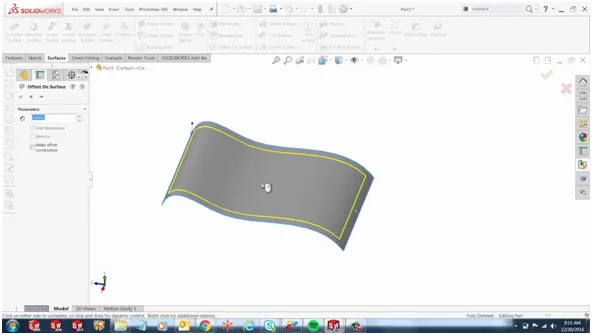

Figure 3.25: Surface offset





• Ruled surface:

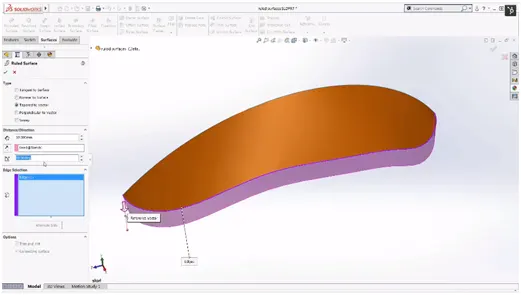

              The Ruled Surface command creates surfaces that extend out in a specified direction from selected edges.

Examples of how you can use ruled surfaces:

• Add tangent extensions to complex surfaces
• Create drafted sidewalls
• Replace non-drafted surfaces on imported models with drafted surfaces
• Create parting and interlock surfaces

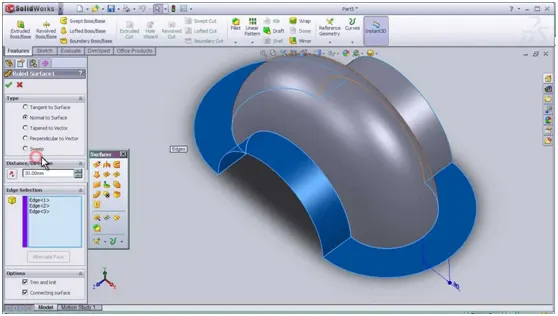

Figure 3.26: Ruled surface





• Surface knit:

              The Knit Surface tool is to combine two or more faces and surfaces into one. When you knit surfaces to within a tolerance and the distance between two surface edges exceeds the tolerance, the resulting knitting gaps are considered open. In the Knit Surface Property Manager, under Gap Control, you can modify the knitting tolerance to improve the surface knit, based on resulting gaps.

Figure 3.27: Surface knit





• Surface loft:

The loft feature in solid works allows you generate complex geometry in a single feature. It does this by interpolating surfaces between various cross-sections of a model. These cross-sections can be sketches, faces, or edges. In the loft interface, these cross-sections are considered “Loft Profiles”. Because this solid works tool is interpolating surfaces to create geometry, it can be difficult to control the loft enough to produce the desired geometry. Here are some tips and tricks for using the Loft feature.

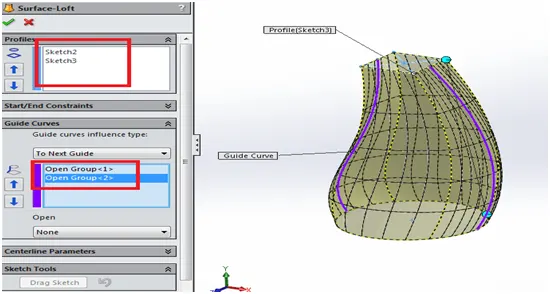

Figure 3.28: surface loft





• Thicken surface:

Thicken takes a surface body and makes it a solid by specifying a thickness value and side to thicken. Until now, the calculation was based on surface normal, which is often what you want. Now, though, we can specify a direction for the offset created by the thicken command.

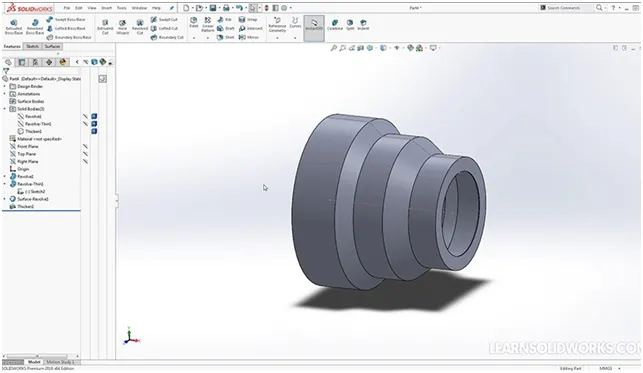

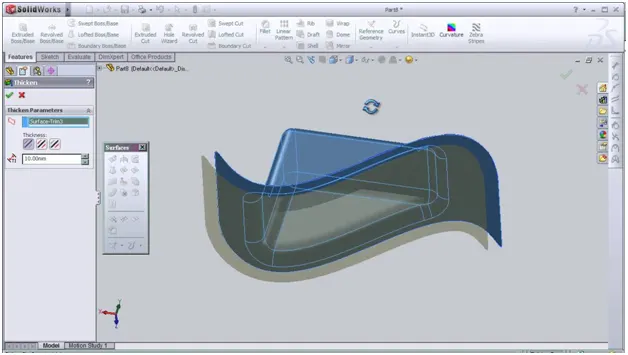

Figure 3.29:  Thicken surface







CHAPTER 4

MODELLING



THE YACHT CONSISTS OF FOLLOWING PARTS:

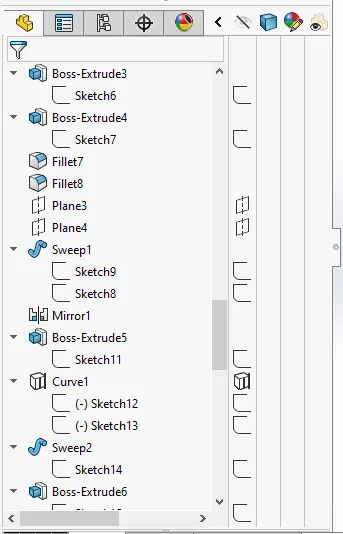

4.1. Blueprint setup

           Following steps need to get the setup:

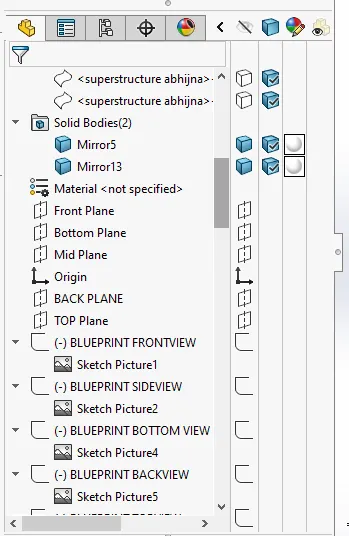

            Go to tools then sketch tools then sketch picture and browse the picture location file and then click OK. Then give properties data to get the exact setup.

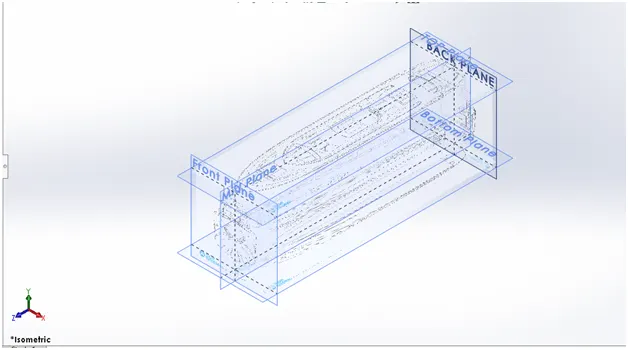

Figure 4.1: Blueprint setup





4.2. Propeller:

          Propeller is the main part of the yacht which is used to move the yacht forward. It is a fan like structure which produce trust force from the engine to move the yacht.

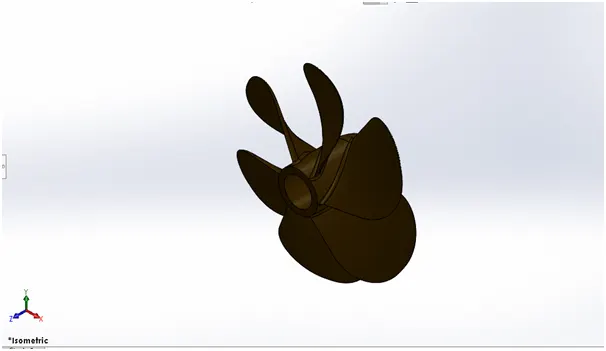

Figure 4.2: Propeller





4.3. Radar:

              Radar is a device which is used to detect the obstacles and transmit signals. Radar use sound wave to detect the obstacles.

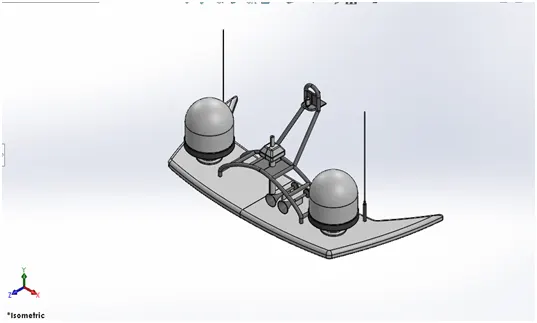

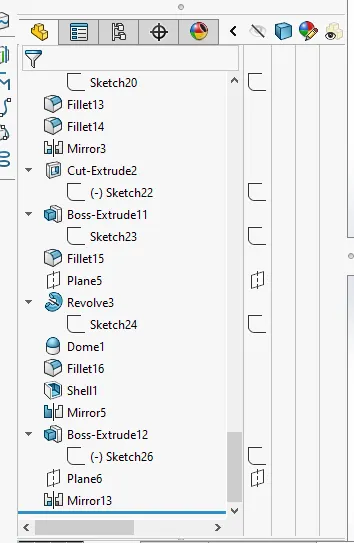

Figure 4.3: Radar





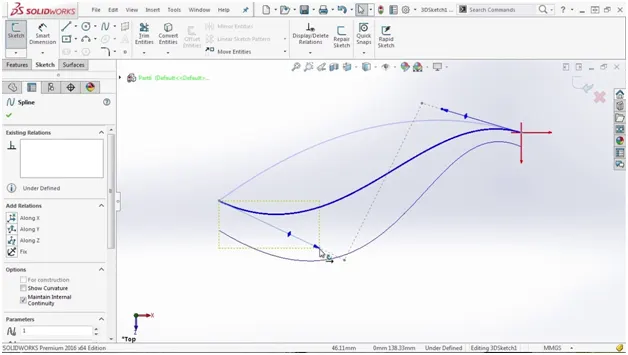

4.4. Hull:

              Hull is the watertight enclosure of the ship, which protects the goods carrying area, machinery and accommodation space of the ship from the weather, flooding and structural damage.

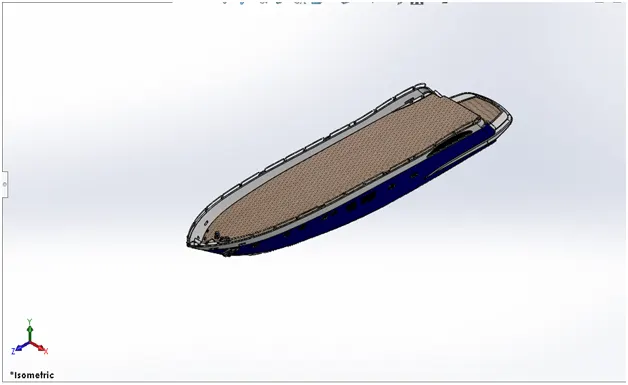

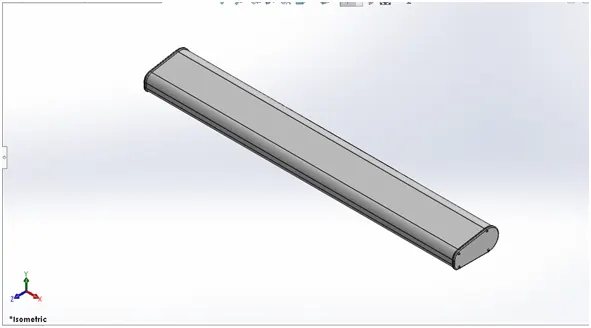

Figure 4.4: Hull





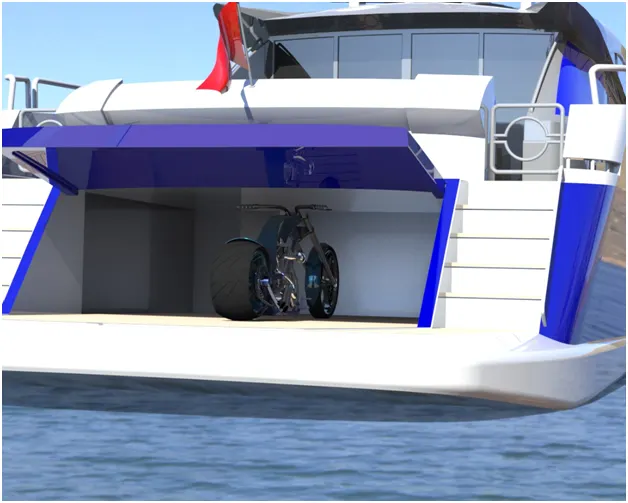

4.5. Garage door:

              Garage door is located at the back side of the yacht where you can park the vehicle.

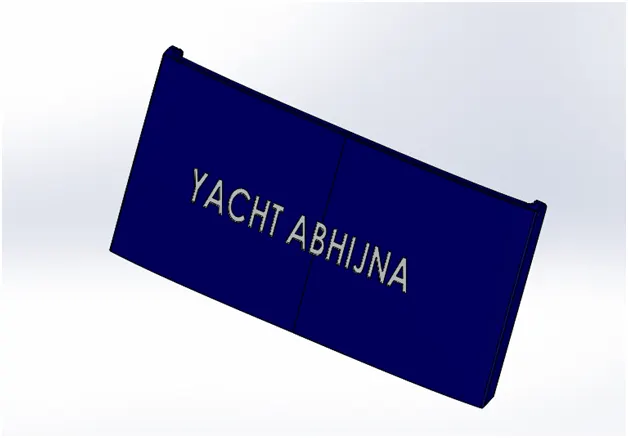

Figure 4.5: Garage door





4.6. Rear seat:

              The rear seat is mounted at the rear side of the yacht, above the garage for the purpose of rest.

Figure 4.6: Rear seat





4.7. Front seat:

            Front seat is mounted at the front side of the superstructure.

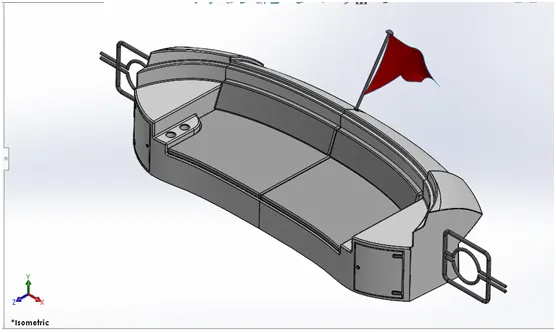

Figure 4.7: Front seat





4.8. Middle seat:

            The seat is a thing which is used for the sitting purpose. Middle seat is mounted on the center of yacht.

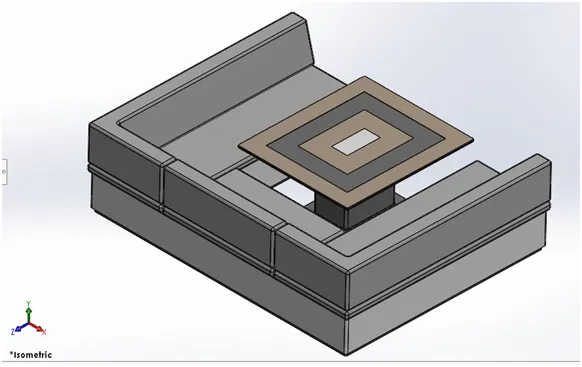

Figure 4.8: Middle seat





4.9. Super structure:

            Super structure is nothing but a deck which is constructed on the hull surface, where the pilot cabin and other amenities are built.

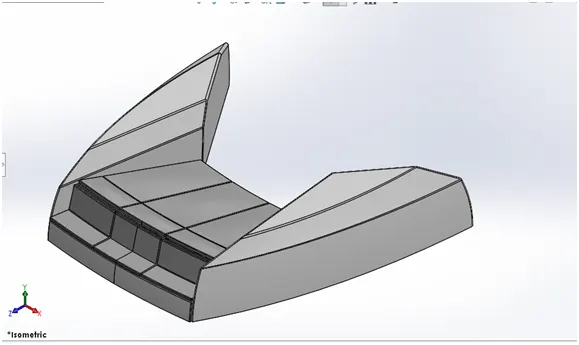

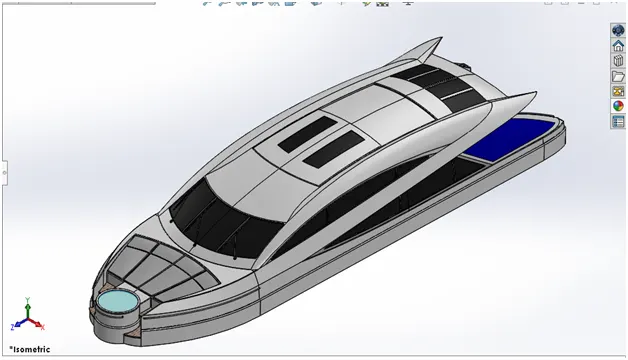

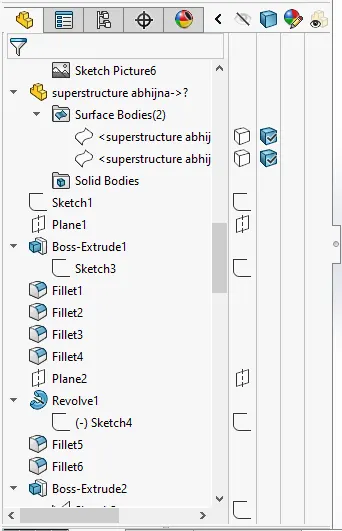

Figure 4.9: Super structure

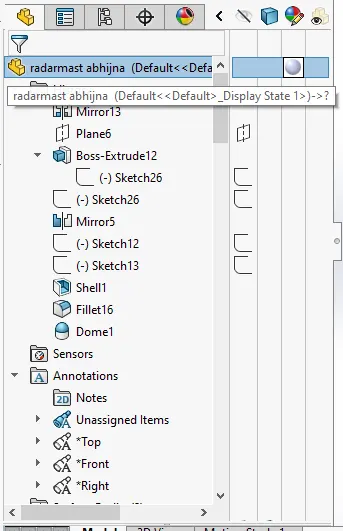

4.10. Radar mast:

             Radar mast is used for the navigation purpose which is mounted at the top of the yacht.

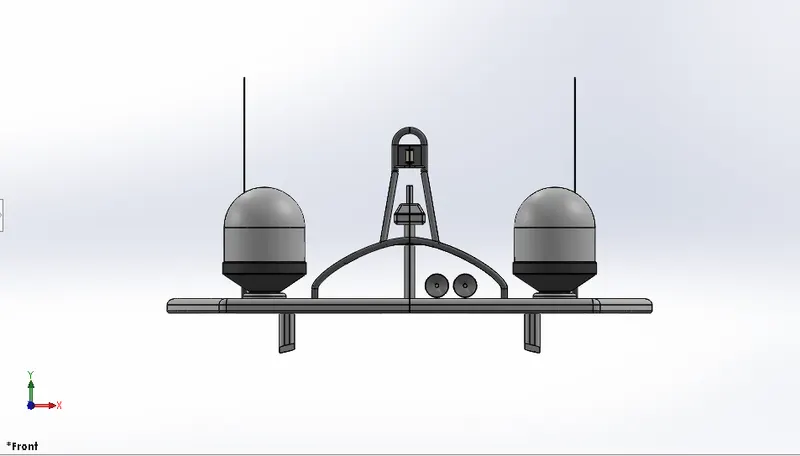

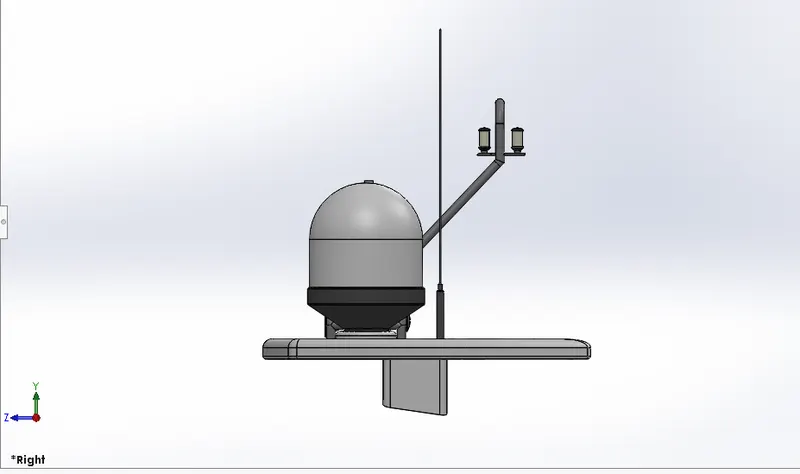

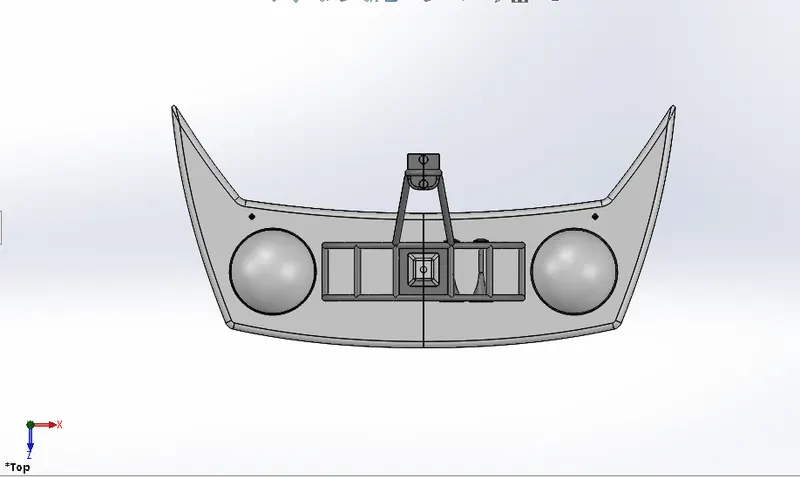

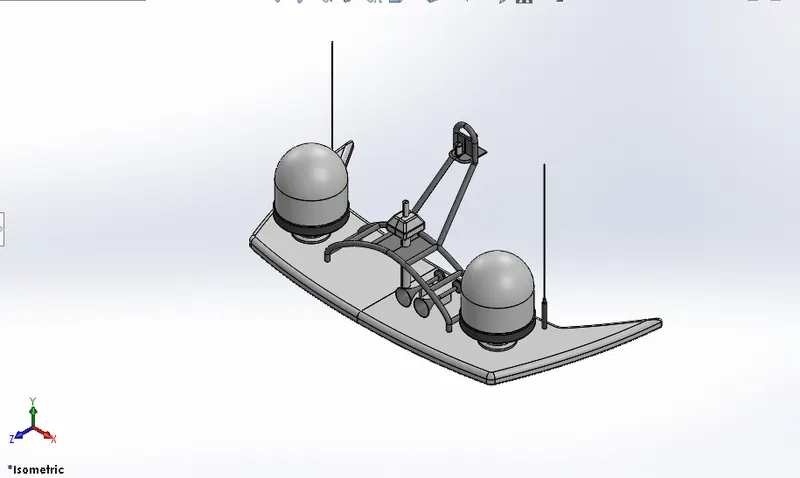

Figure 4.10: Radar mast





CHAPTER 5

YACHT ASSEMBLY

             You can build complex assemblies consisting of many components, which can be parts or subassemblies. Adding components to an assembly creates a link between the assembly and the component. When SOLIDWORKS opens the assembly, it shows the component file to show it in the assembly. And mate creates geometric relationship between assembly components. As you add mates, you define the allowable directions of linear or rotational motion of the component. You can move a component within its degree of freedom, visualizing the assembly’s behavior.

             The Different Assembly Parts are opened and then assembled in the assembly window by using different mate options like as coincident, concentric, angled, parallel, limit angel, tangent, width mate etc.

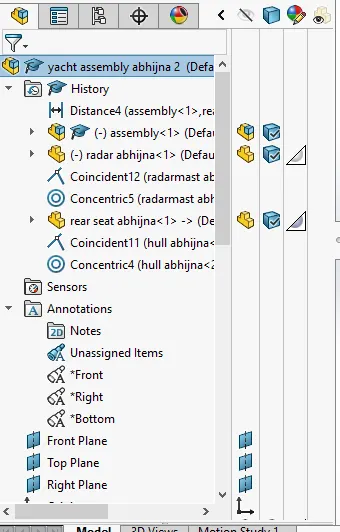

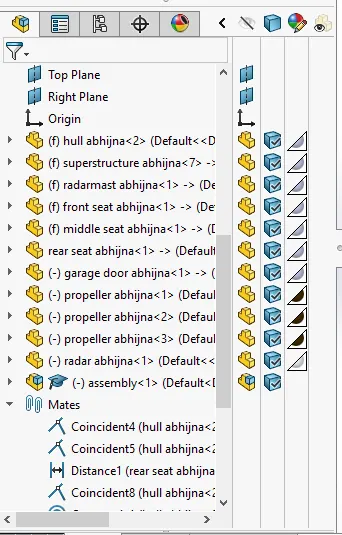

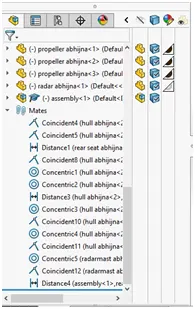

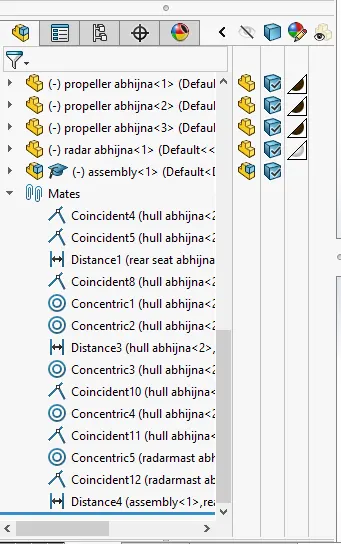

Figure 5.1: Assembly mate features

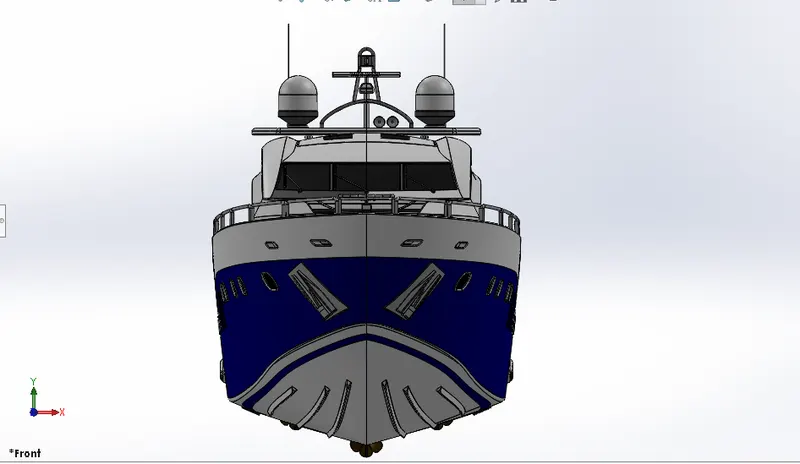

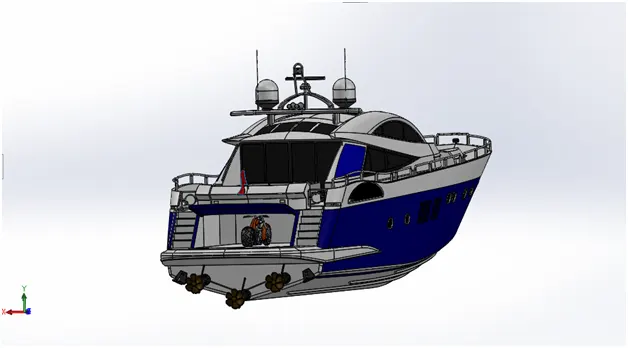

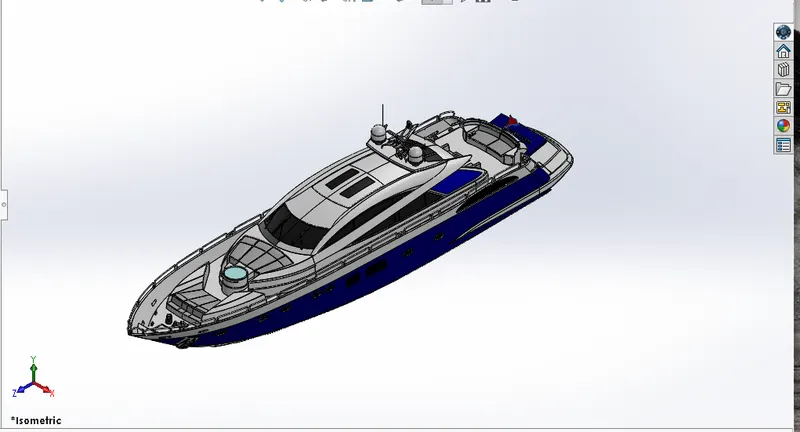

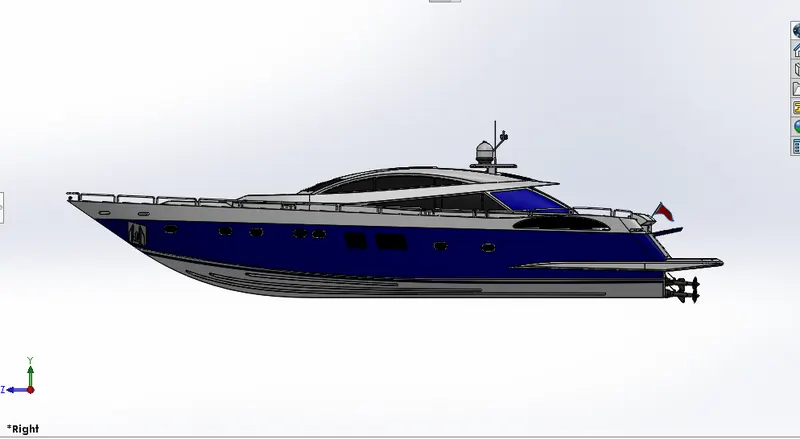

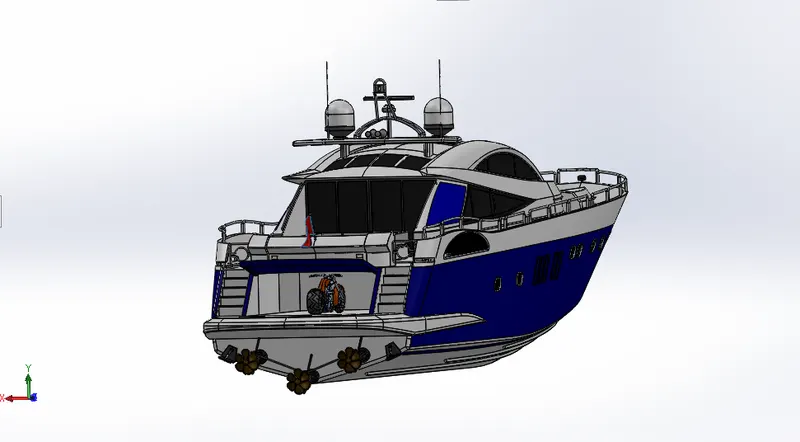

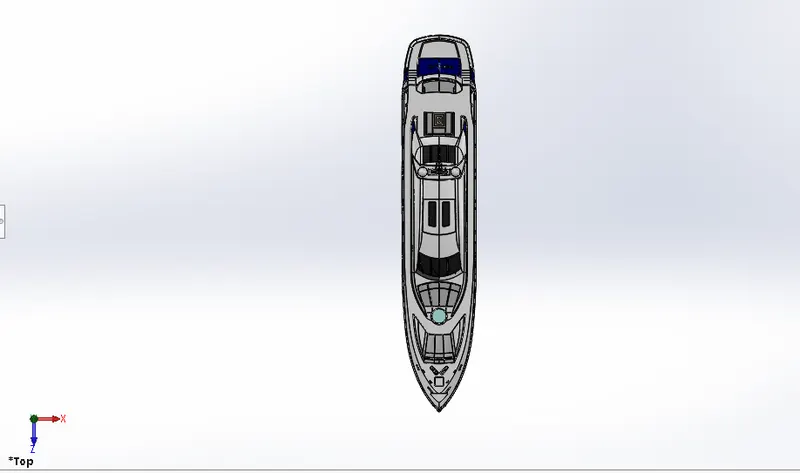

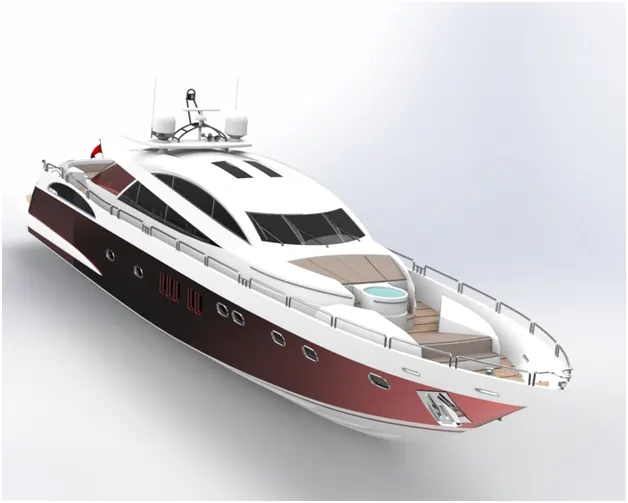

Figure 5.2: Yacht assembly





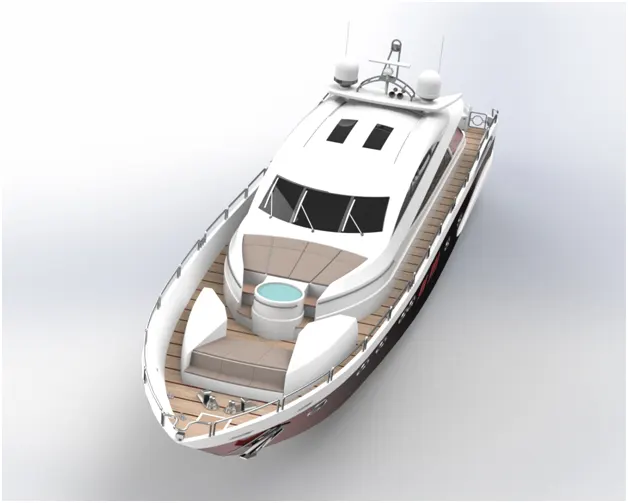

Figure 5.3: yacht assembly part1





CHAPTER 6

RENDERING

SOLIDWORK S VISUALISE

              SOLIWORKS Visualize has now made easier to create real view renderings since we can now import all custom saved cameras, views, and even the physical lighting straight into visualize from SOLIDWORKS 2020.

              At the end of Assembly we reach the final step of the yacht to make sure to look the yacht as realistic view. Initially make sure your assembled part in the correct position in which you want to be. Using PHOTOVIEW 360 try different environments based on the project you are looking on. After selection of the environment make sure all the shadows light camera settings are set perfectly. Finally select the resolutions of your render, pixel and perform the final render. We can also use solid works visualize for more realistic renders. The parameters are same but the Solid works gives more options for rendering like HDR background selections, camera settings, and more options in the material selections. Finally save your Rendering.

Figure 6.1: SOLIDWORK Visualize

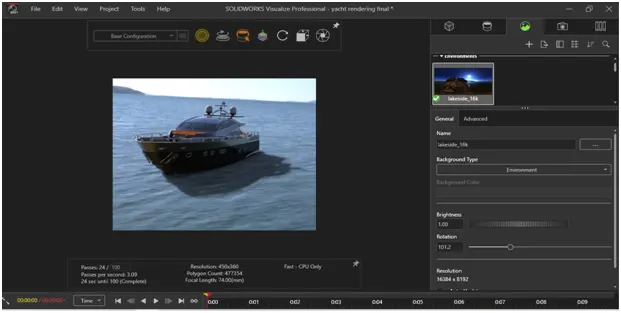

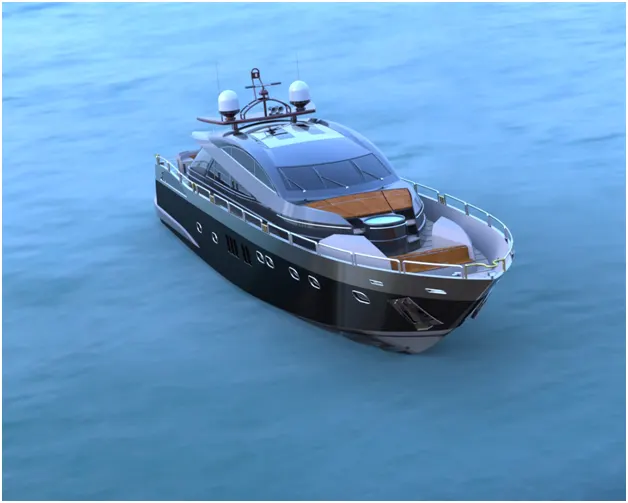

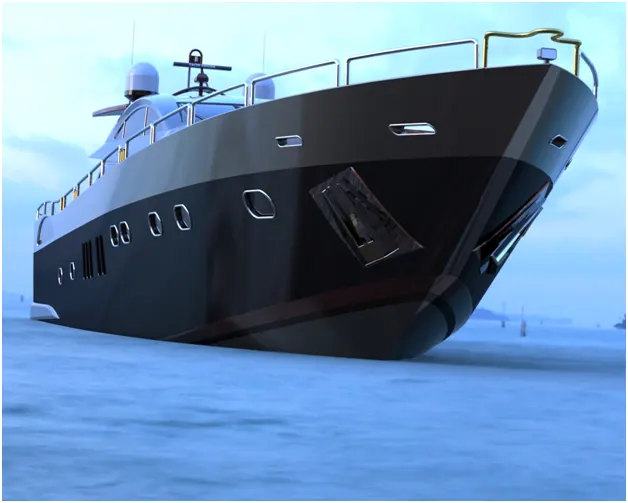

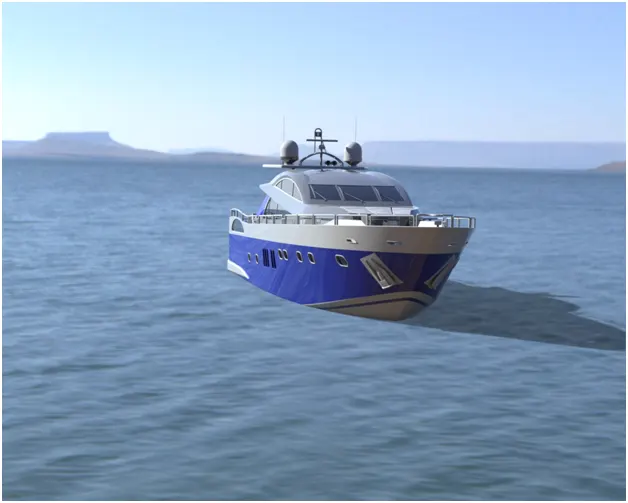

Figure 6.2: Rendering image 1





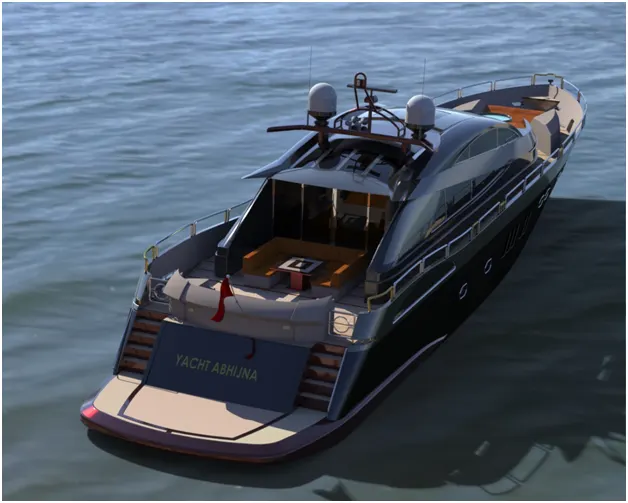

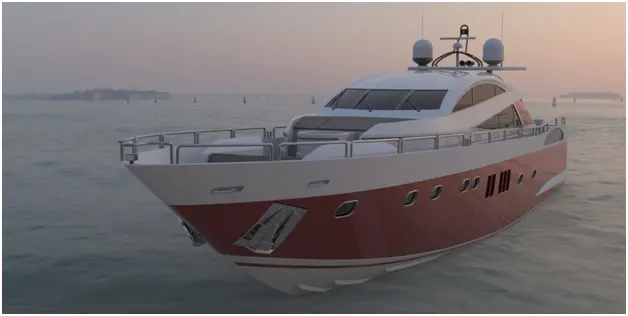

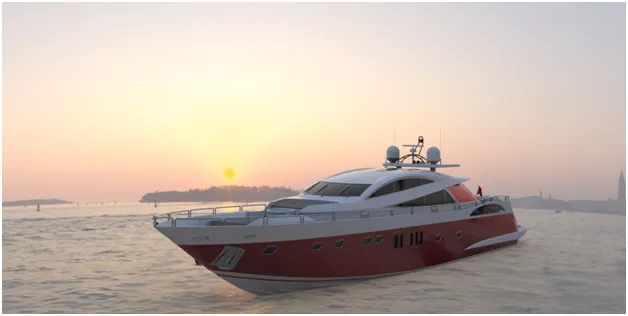

Figure 6.3: Rendering image 2



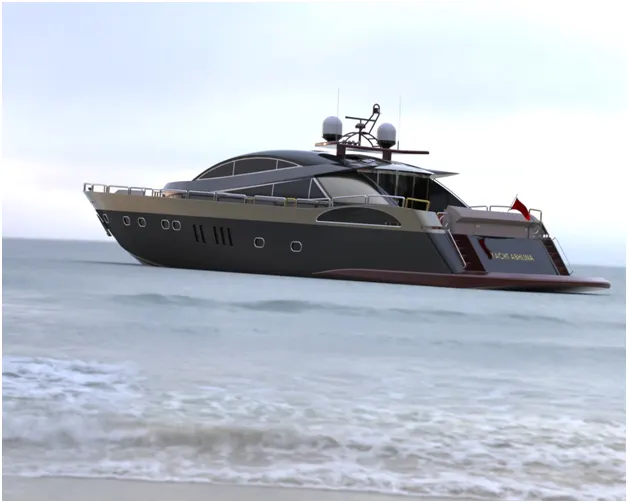

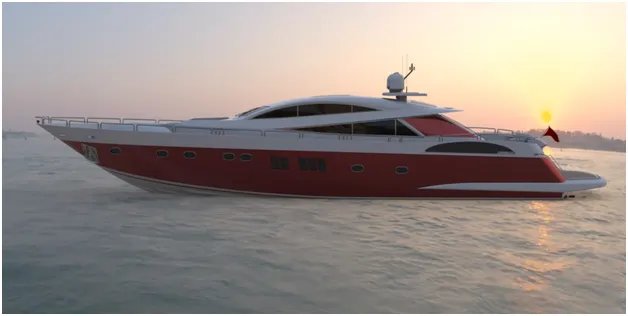

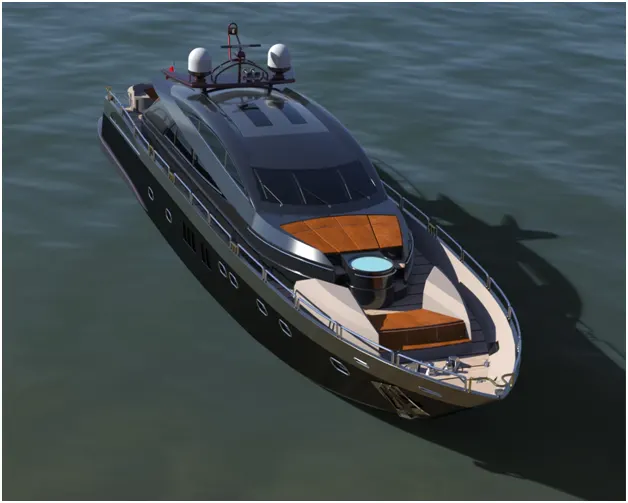

Figure 6.4: Rendering image 3





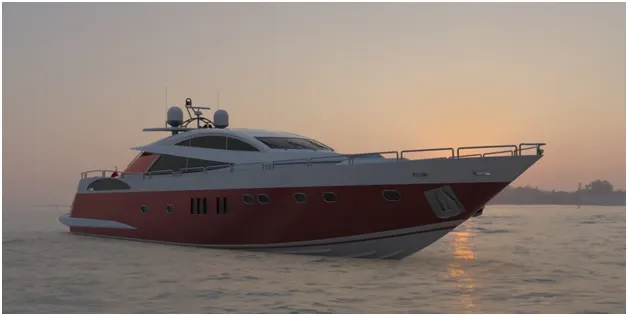

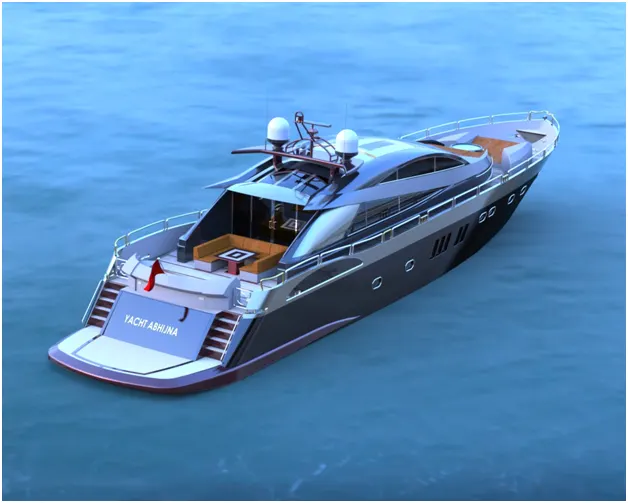

Figure 6.5: Rendering image 4



Figure 6.6: Rendering image 5





                             Figure 6.7: Rendering image 6



Figure 6.8: Rendering image 7



Figure 6.9: Rendering image 8





Figure 6.10: Rendering image 9





Figure 6.11: Rendering image 10



Figure 6.12: Rendering image 11



Figure 6.13: Rendering image 12



Figure 6.14: Rendering image 13





Figure 6.15: Rendering image 14





CHAPTER 7

CONCLUSSION

• All the parts of Yacht are modeled and assembled together successfully using SOLIDWORKS 2020
• The assembled Yacht is rendered using PHOTOVIEW 360.
