Project - Data Handling and Interpolation

Q1.

Aim:

Project :

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and store them in a text file.

Key Highlights:

• Graphical solutions are more visual and appealing
• Interpolation of data
• Read excel file
• Write to text file

Deliverables:

• Find missing data and save it in text
• Interpolate the data set
• Save your program and attach the same.
• Save txt file and upload in attachment

Ans:

Here we have used the command 'interp1' for interpolation. The output xq1 is put to the text file called 'interpolation'.

Code for interpolation:

fileID = fopen('interpolation.txt','w');        % Open the text file to write the output

x = ImAmp;                                      % defining a variable x from excel file
y = VVolt;                                      % defining a variable y from excel file
xq = [-17.3:0.1:0.9];                           % defining the range for interpolation
xq1 = interp1(y,x,xq);                          % interpolation
figure(1);
plot(x,y,'o',xq,xq1,':');                       % plotting the interpolation
grid;

fprintf(fileID,'%f','xq1');                     % print the output xq1 to the text file

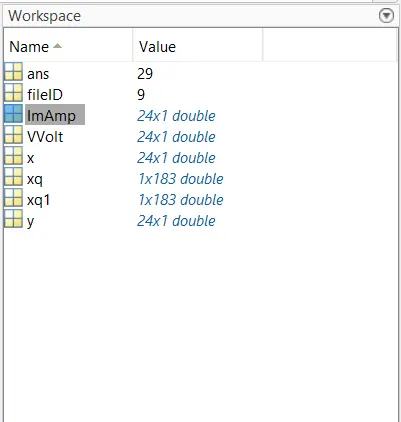

Workspace:

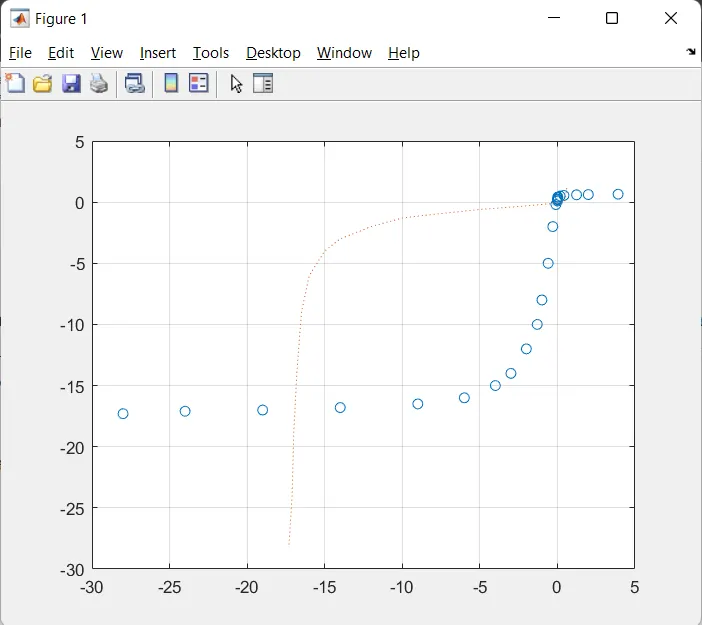

Output:

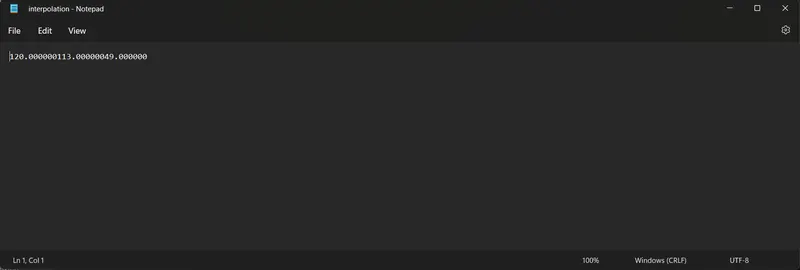

Output in text file:
