Project 2_Design & Analysis of a Hostel building at Guwahati, Assam





Aim: To experience the entire design process from modelling, analysis, design, and preparation of construction drawings.

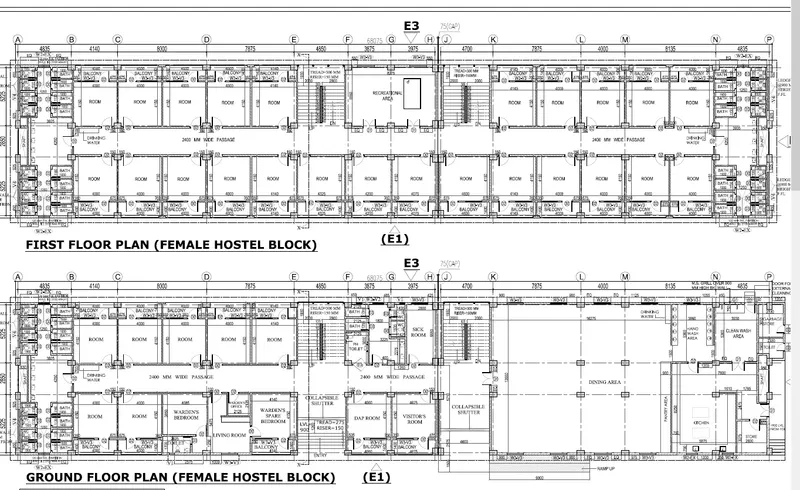

The architectural drawings of a G+3 RCC building are provided.

Location – Guwahati, Assam

Function – Hostel block in an academic institute



Codes used :

• IS 875 part 1
• IS 875 part 2
• IS 13920
• IS 1893
• IS 2911 part 2
• IS 456
• SP 34



Procedure:

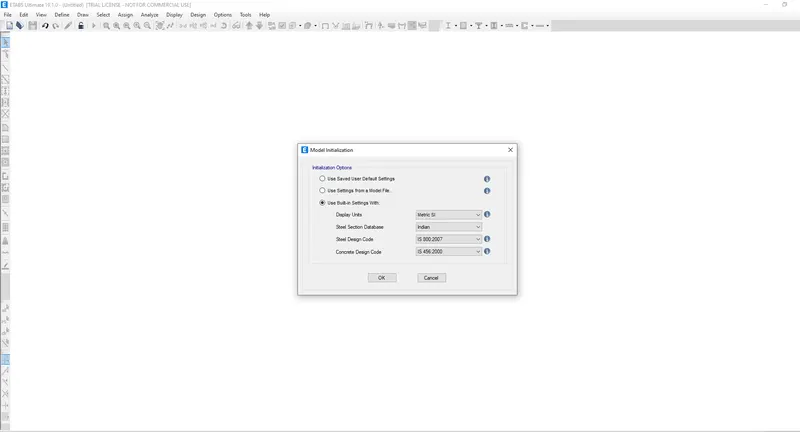

Select the Indian Design parameters







Define the Material Properties

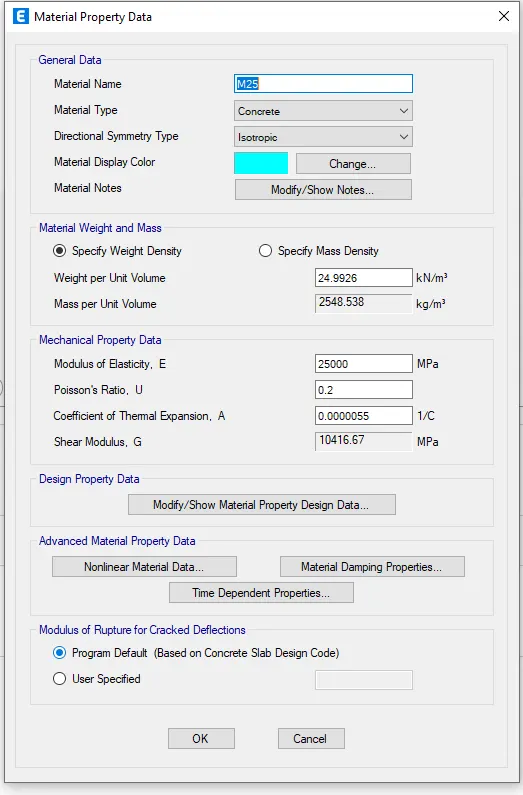

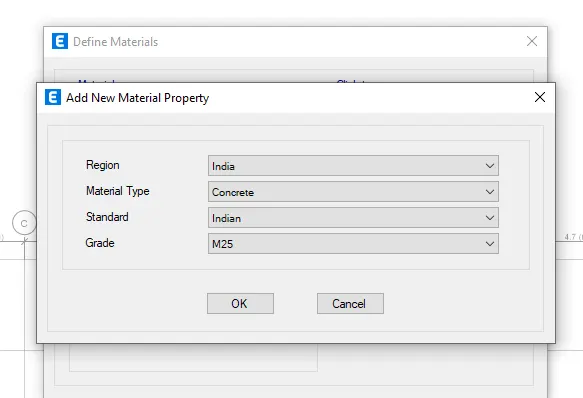

Material M25 Concrete is created

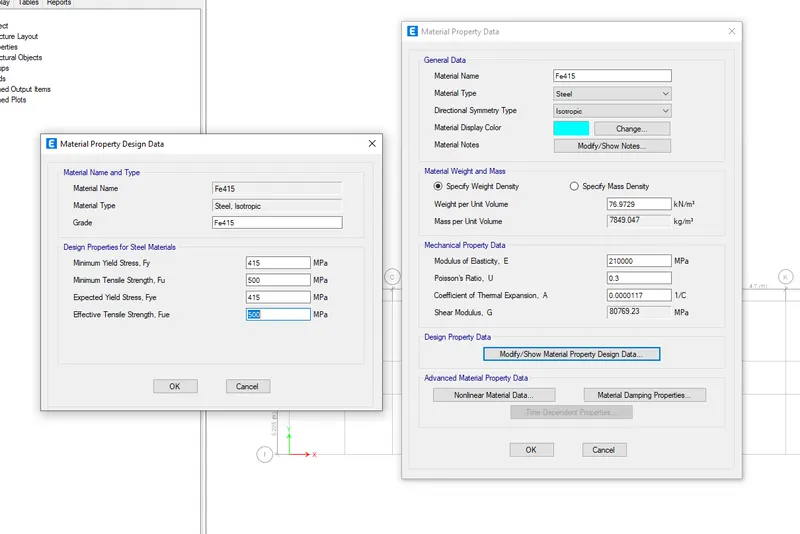

Material Fe 415 is created

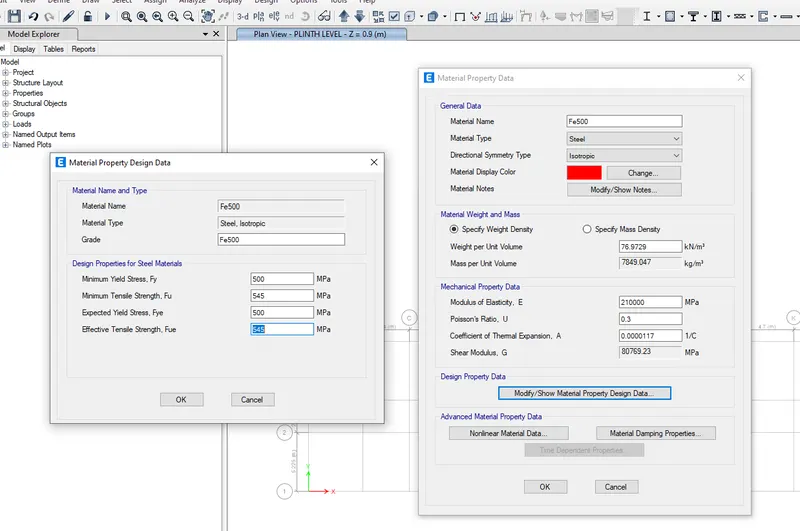

Material FE 500 is created

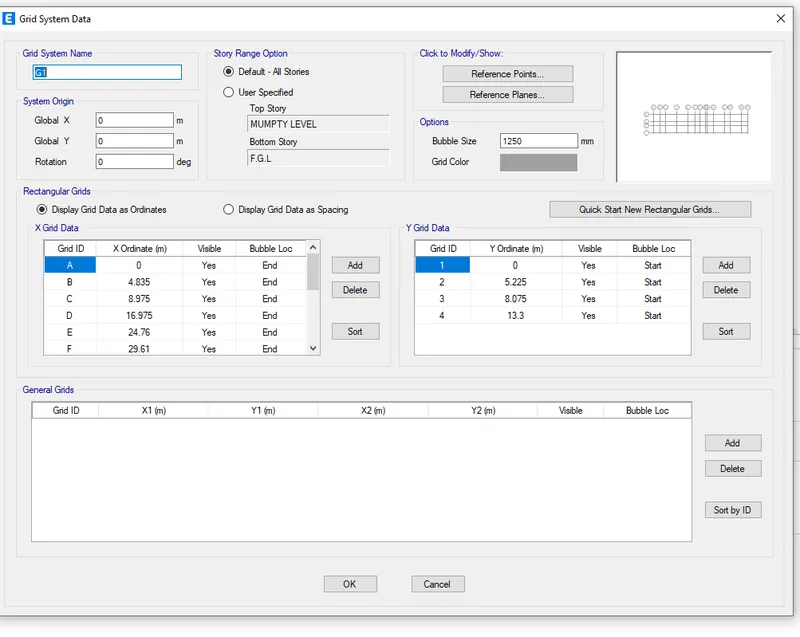

Grid system is created as per the Given plan in the Auto CAD drawing

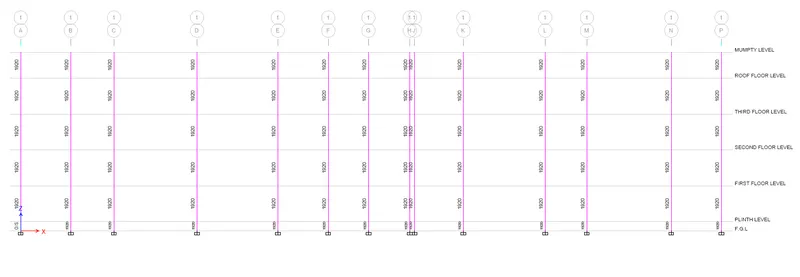

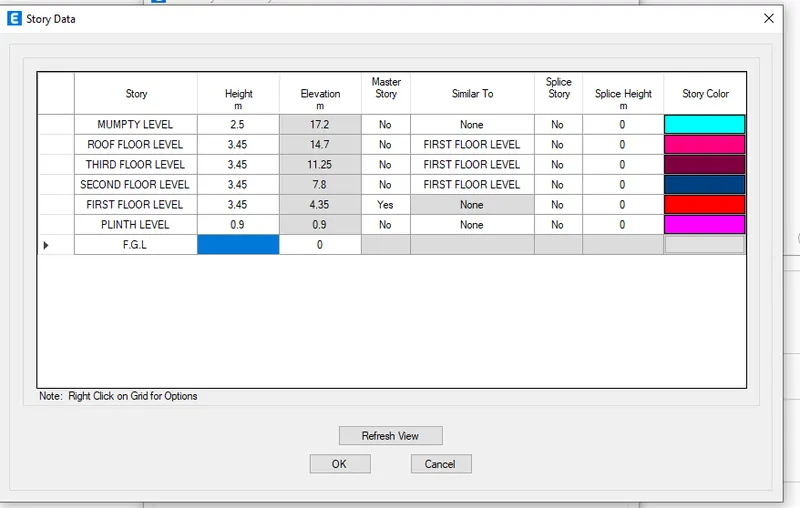

StoryData is created as per the AutoCAD Drawing

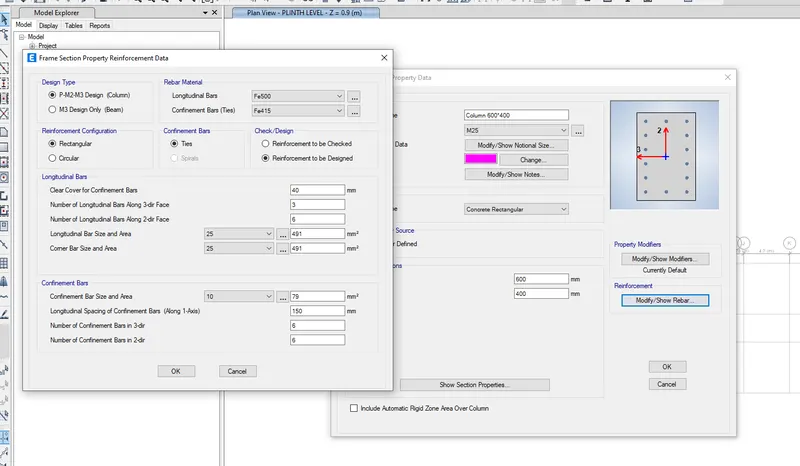

Frame Data Column 600*400 mm is assumed with M 25 Concrete Material







Properties of Column

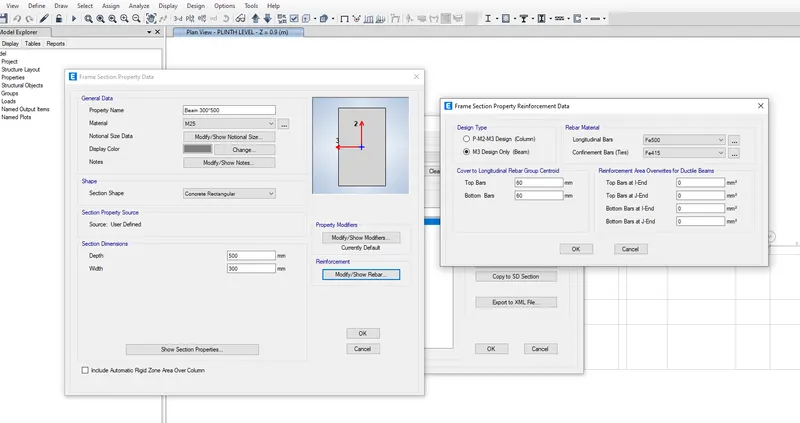

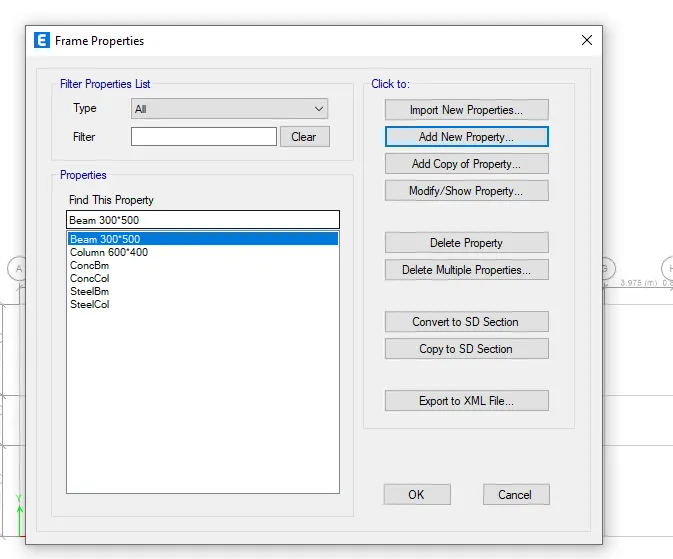

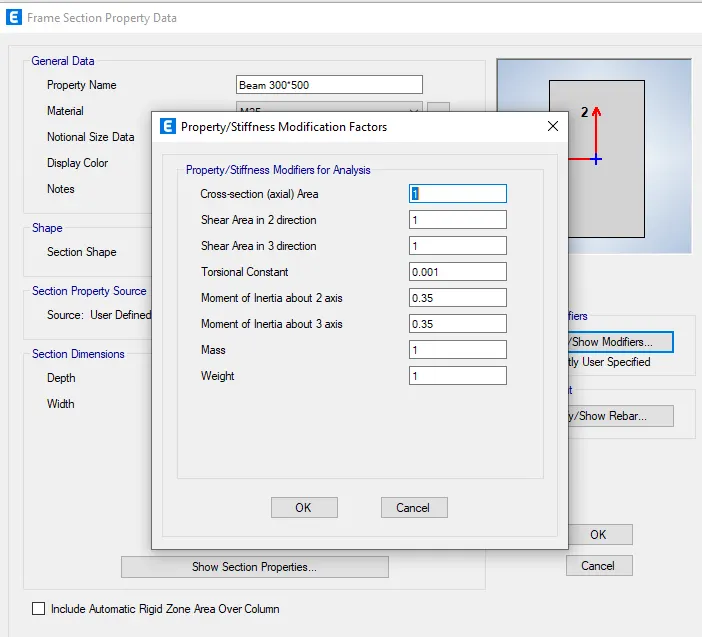

Frame Data Beam 500*300mm is assumed with M 25 Concrete Material





































Fe 500 steel is selected as Longitudinal Bars

Fe 415 steel is selected as Confinement Bars

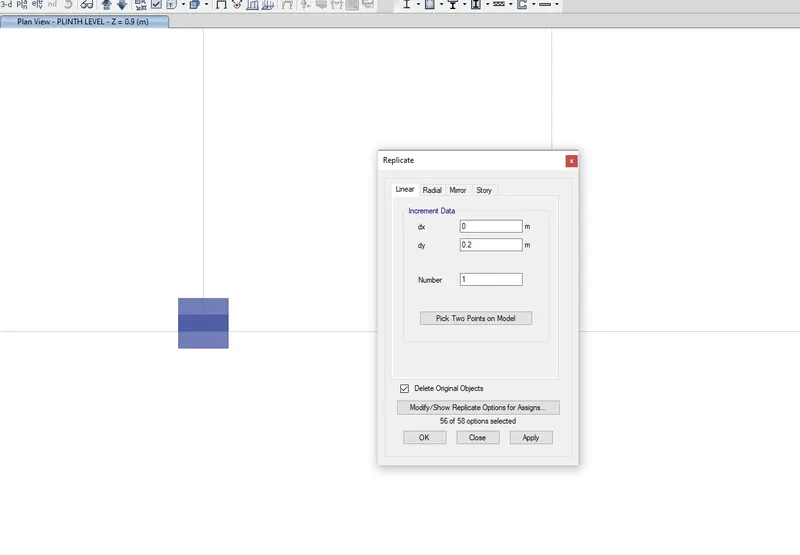

Arrange the Column by Relipicate Option for Rotating 90 deg

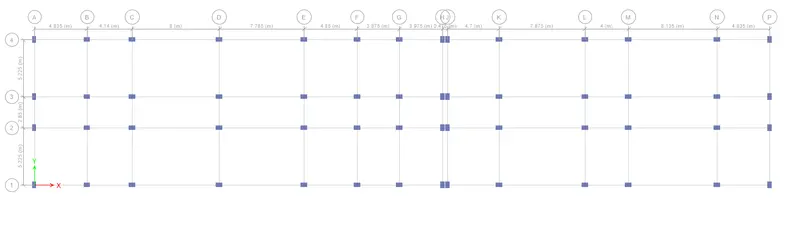

Arrangement of columns in plinth Level

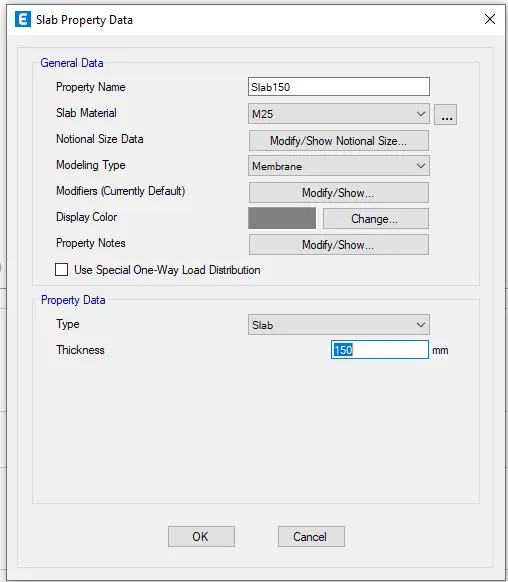

Slabs are Created with 150 mm Thickness and Membrane type Modelling

























Similarly, Beams and slabs are Drawn

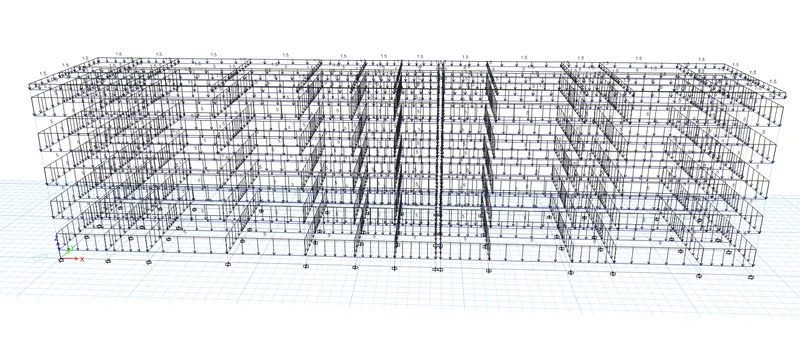

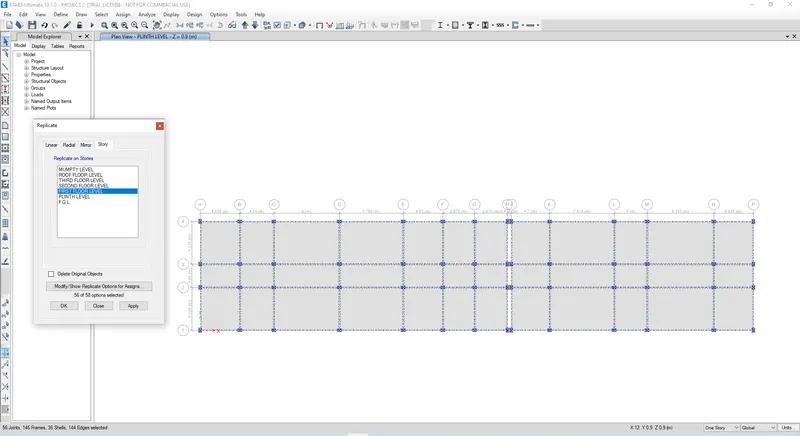

Frame members are Replicated in the Higher Floors

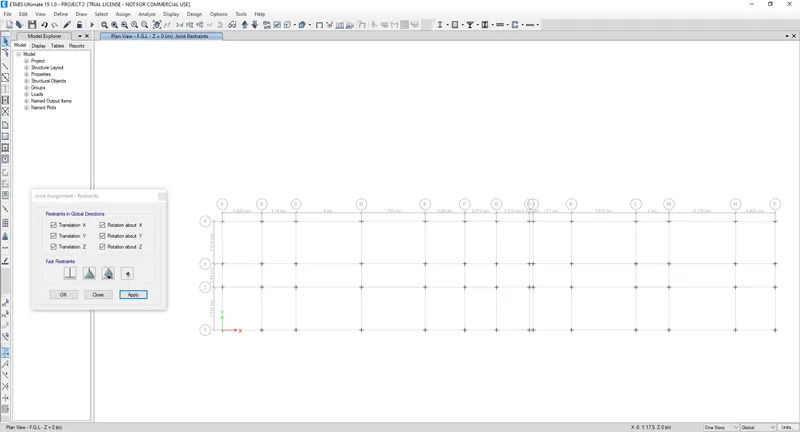

Fixed Support is provided at the Base of the Columns for all the Joints

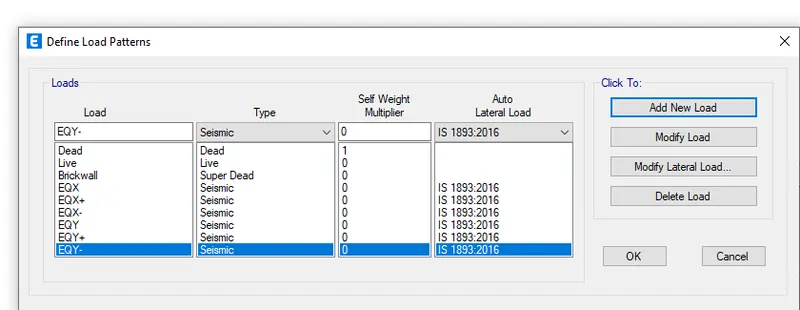

Now Add load Patterns:

IS 875 Part 1

Dead Load = Self-weight of the Members

Brickwall load

Given AAC blocks are to be used density = 6 KN/m3 as per IS 875 Part 1

Height of the Brick wall = Floor Height - Beam depth

                                  = 3.45 - 0.5

                                  =2.95 m

Given thickness of Brickwall = 0.2 m

Brick wall load = 6*2.95*0.2 = 3.54 KN/m

Assume plaster thickness = 0.024 m

density of plaster = 20KN/m3

Plaster load = 0.024*20*2.95 = 1.416 KN/m

Total Brickwall Thickness = 4.956 = approx 5 KN/m for all story

For Parappet wall Total Brickwall Load = (0.9*0.2*6)+(0.9*0.024*20) = 1.5 KN/m

Given Floor finishes as Vitrified Tile

Floor finish load= 1.25 KN/m2

Floor finish + Water Proof in Toilets = 1.5 KN/m2

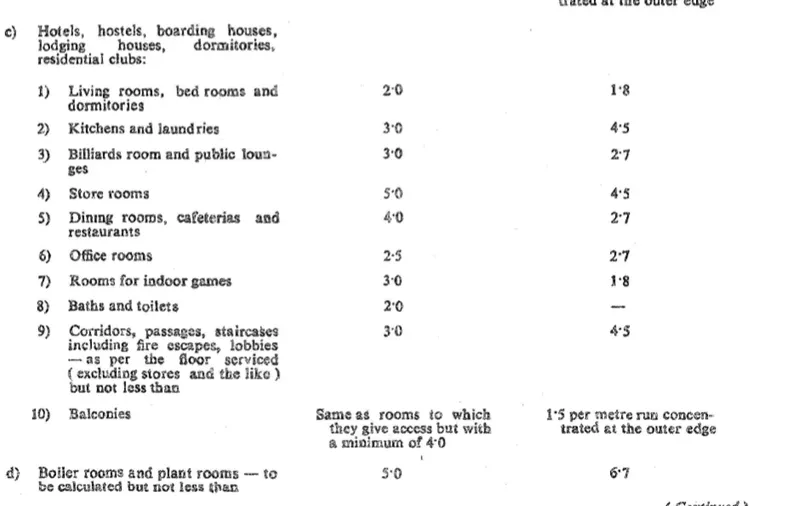

IS 875 Part 2

Live Loads

Room and Wardener's Room = 2 KN/m2

Recreational Room = 3 KN/m2

Kitchen Room = 3 KN/m2

Dining Room = 4 KN/m2

Toilet and Bath rooms = 2 KN/m2

Corridors and Passage  = 3 KN/m2

Store Room = 5 KN/m2

Balconies = 4 KN/m2

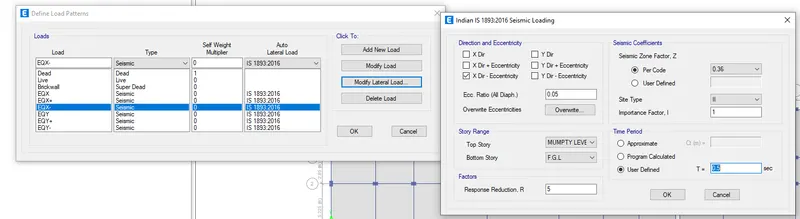

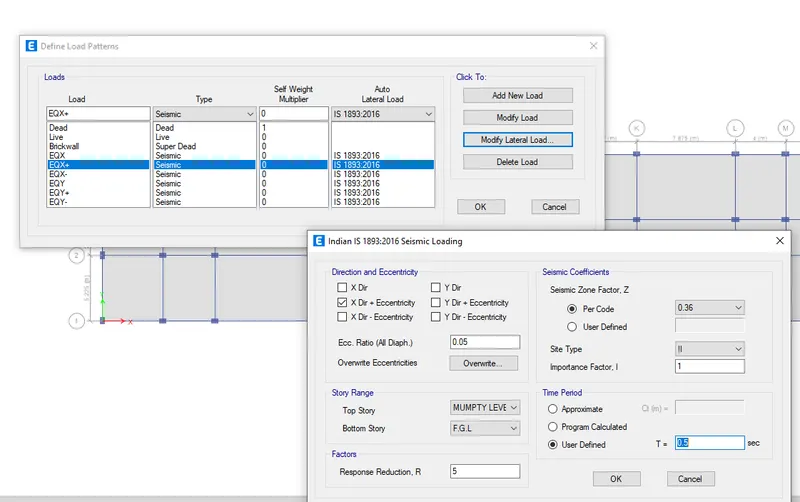

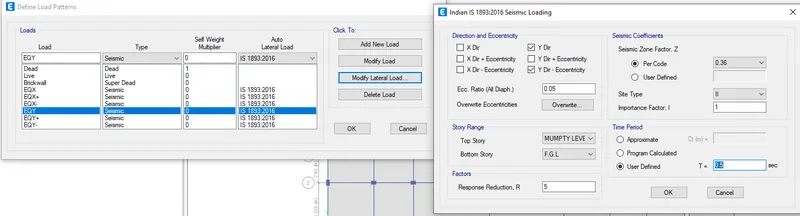

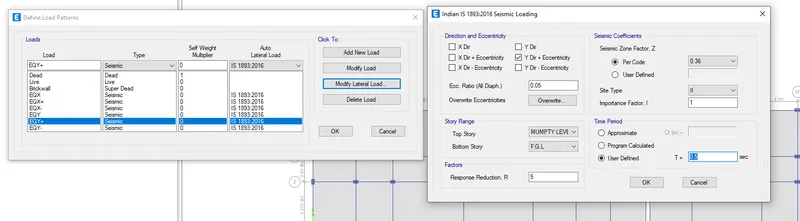

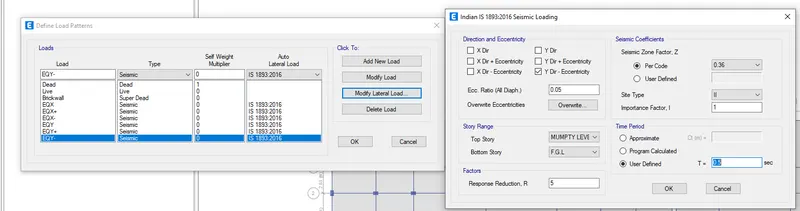

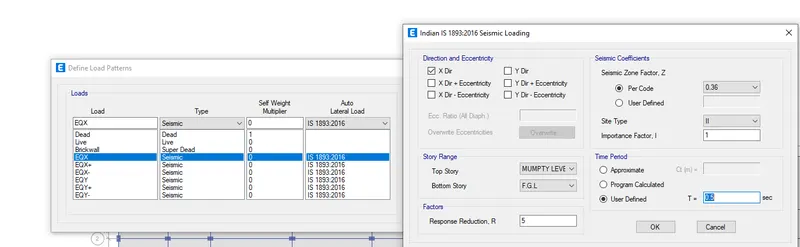

Earthquake Load IS 1893:2016

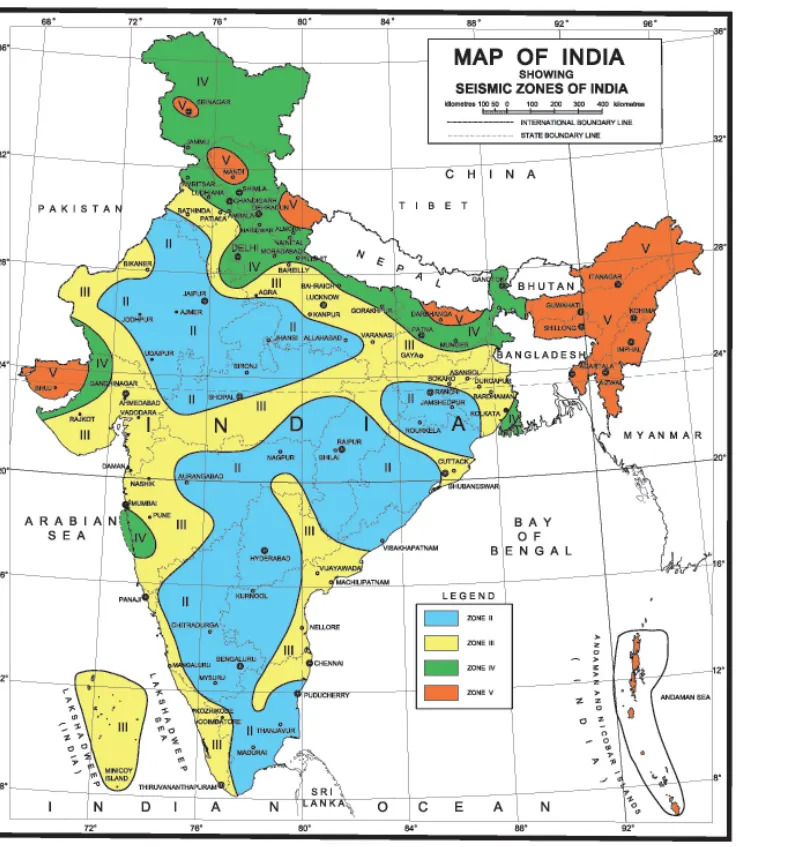

Guwahati, Assam comes under Zone 5 as per IS 1893 2016

Based on IS 1893 for Special Moment Resisting Frames we have

Response Reduction Factor R = 5 From Table 9 for SMRF = 5

Seismic Zone Factor for Zone 5 is Z= 0.36

Assume site Type = Type 2

Importance Factor of the Building = 1

Moment Resisting Frames with Masonry Infills clause 7.6.2 c

Time period = 0.5 second







































































































































































































































 Load assignments:

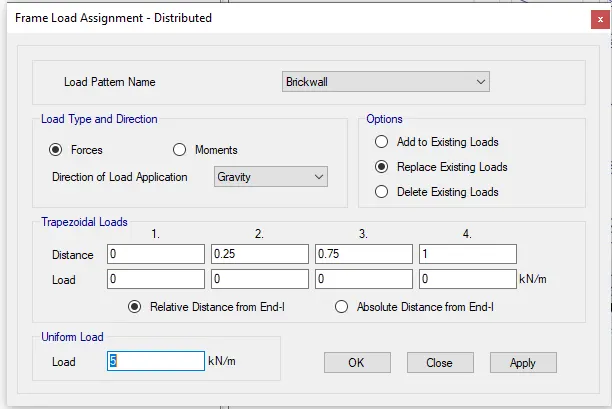

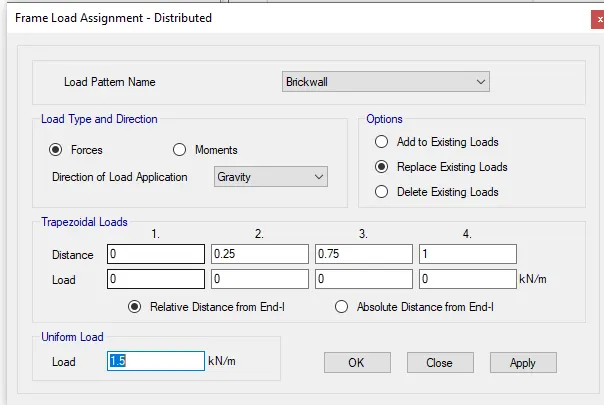

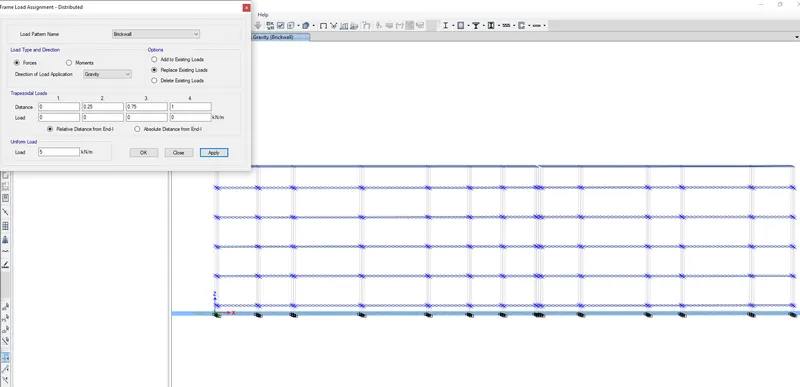

Assign > Frame loads > Distributed

 5KN/m for all storys















 1.5 KN/m for Roof Parapet wall





















Load applied on Beams























Load on slabs

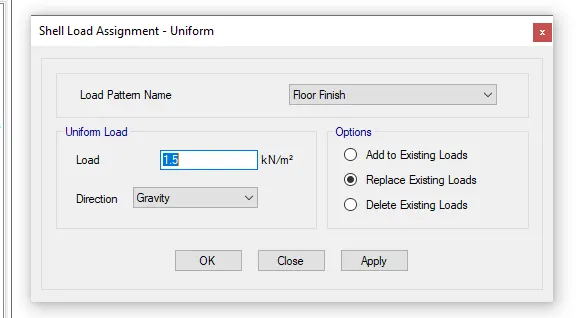

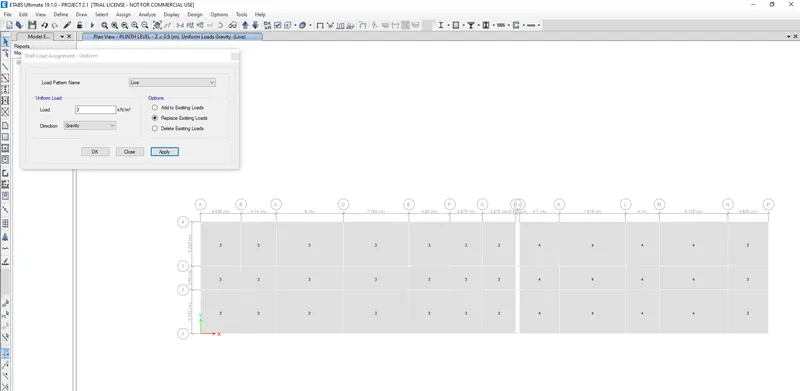

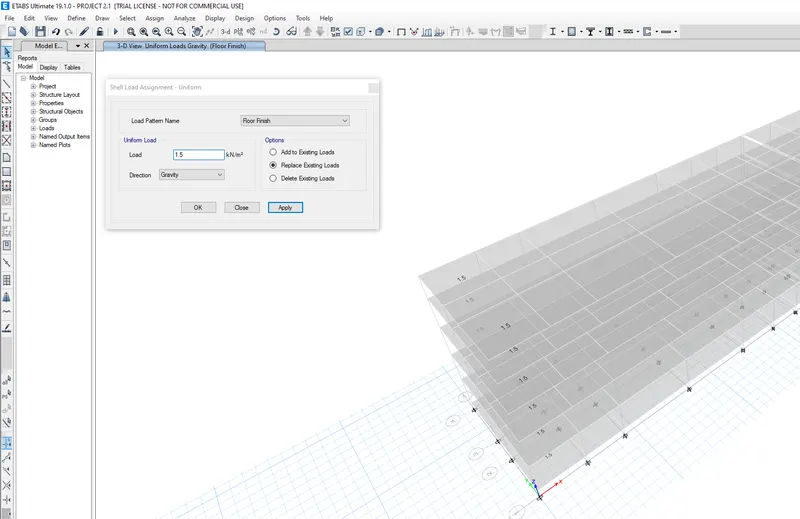

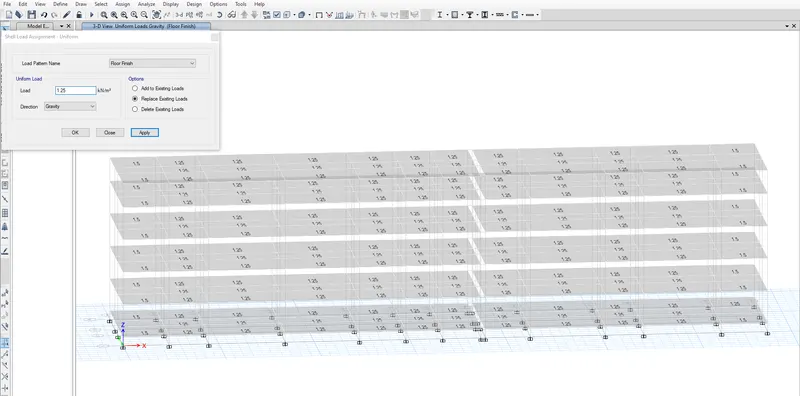

Go to Assign > Shell loads > Distributed

1.5 KN/m2 for Tiles including waterproof







































Go to Assign > Shell loads > Distributed

1.25 KN/m2 for Tiles

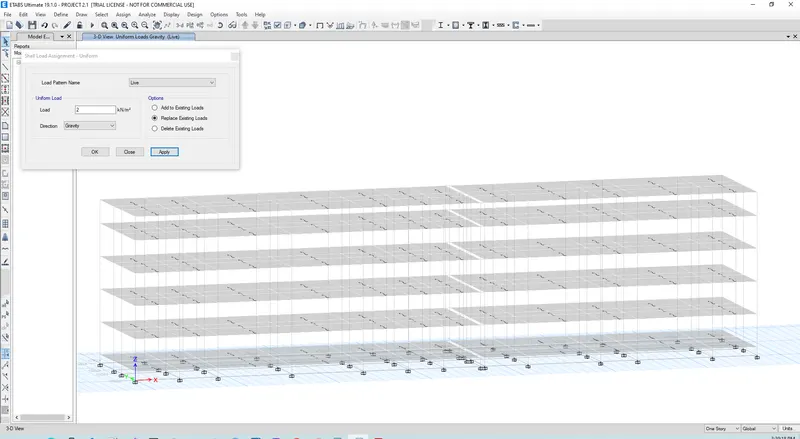

Live loads applied on Slabs



3 KN/m on Kitchen and Dining Rooms, Meeting Room etc

























2 KN/m2 for all other Rooms

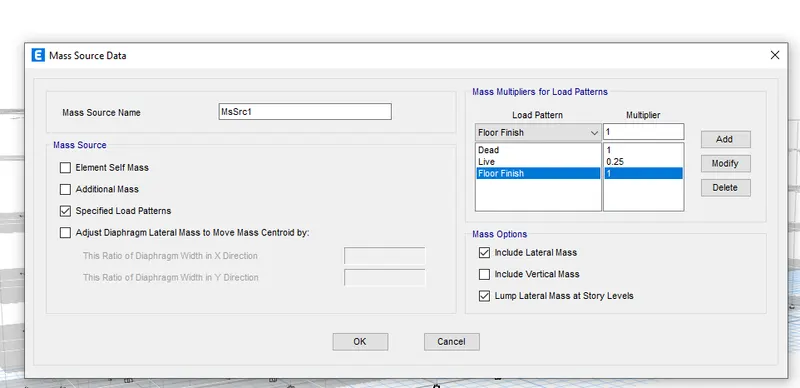

Apply seismic load using Mass Source Data

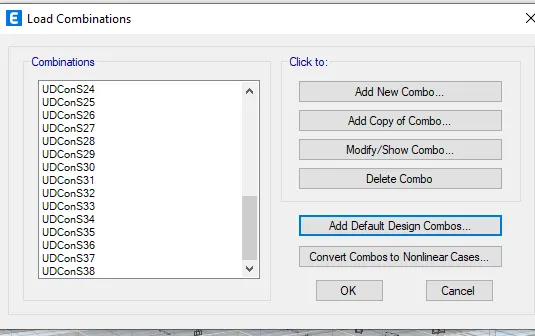

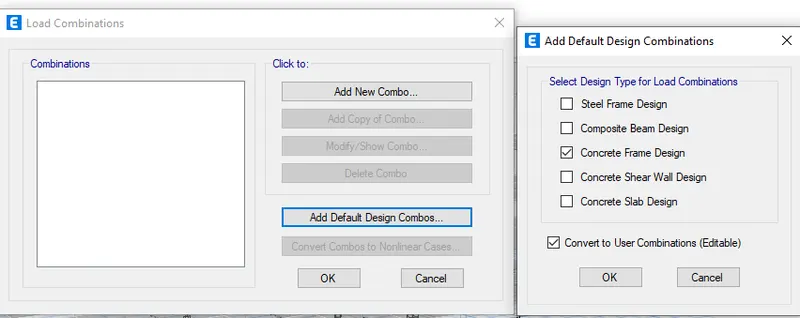

Define > Load Combinations

Generate the Load Combinations for all the given loads













Obtained 38 load Combinations

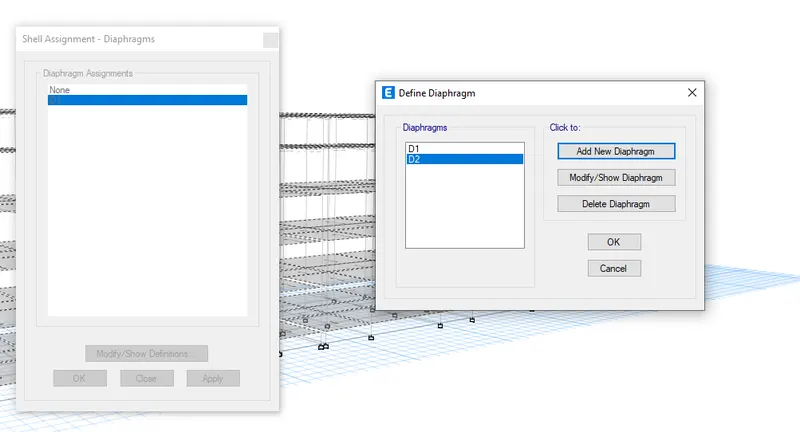

Assign the Diaphragm

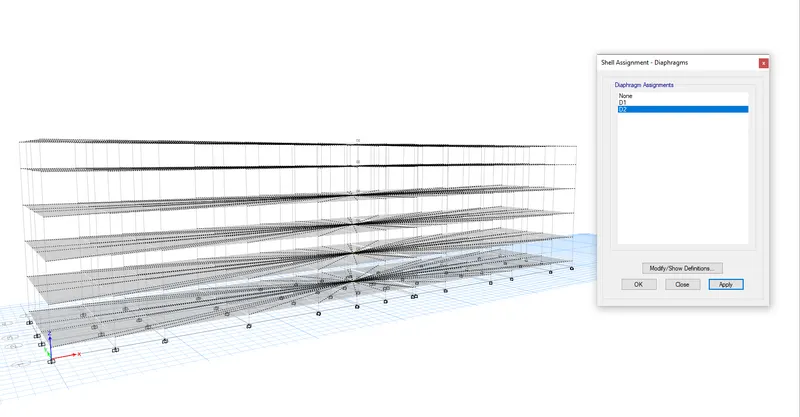

Assign > Shell > Diaphragms

















 ANALYSIS:

  Now ANALYSE the Structure we get the following Values:

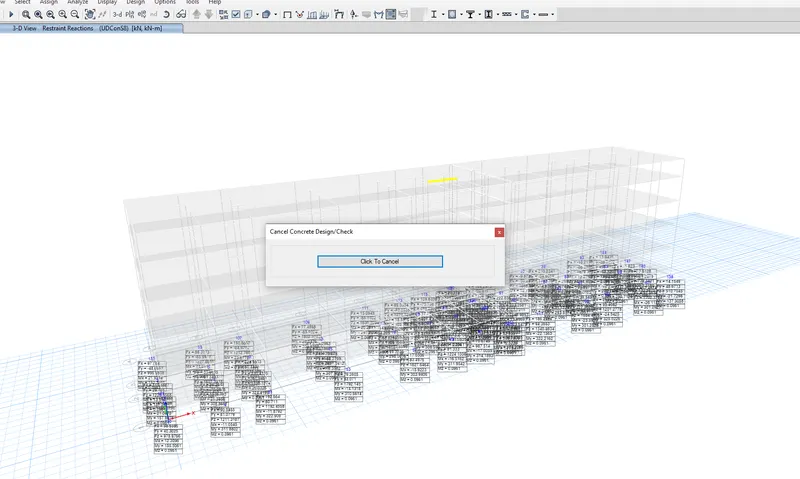

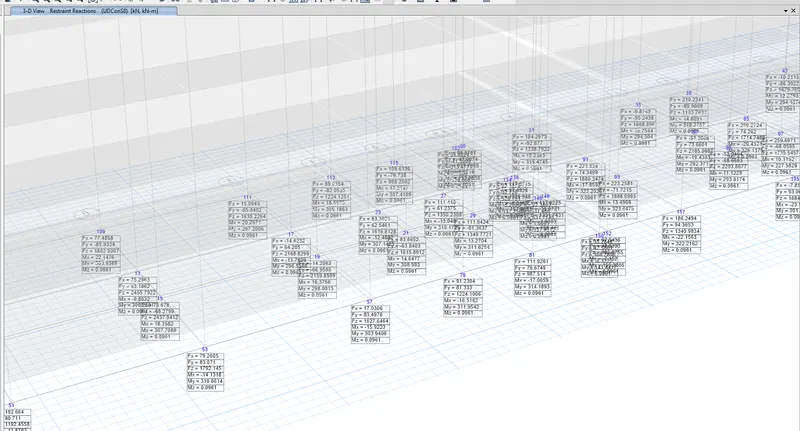

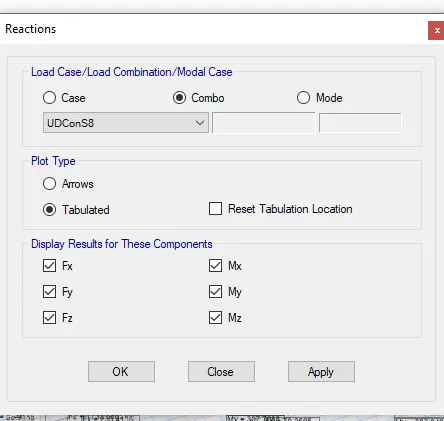

Values of all the Reactions

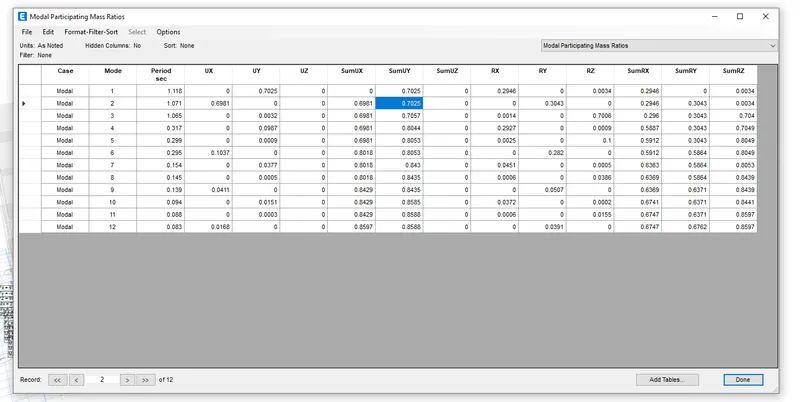

Display > Show tables > Analysis Results > Structure Output > Modal Information > Table : Modal Participation Mass Ratio









 In this Analysis

It is found that

UY = 70 %

UX = 69%

RZ = 70%

Hence UX should be made stiffer.

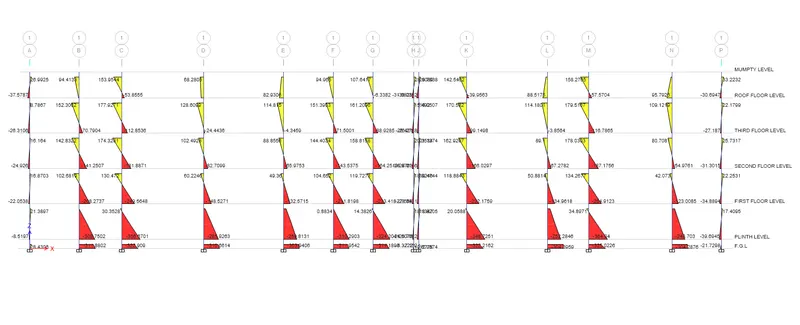

Bending Moment and Shear Force Diagrams in the Frame:

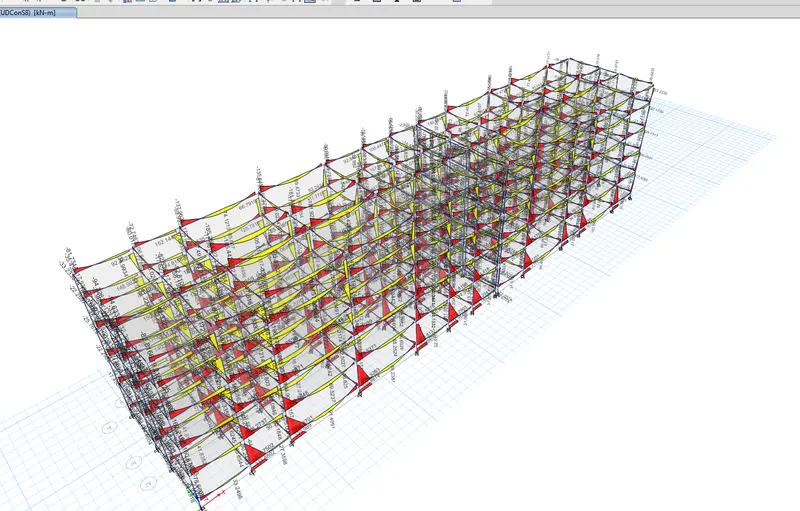

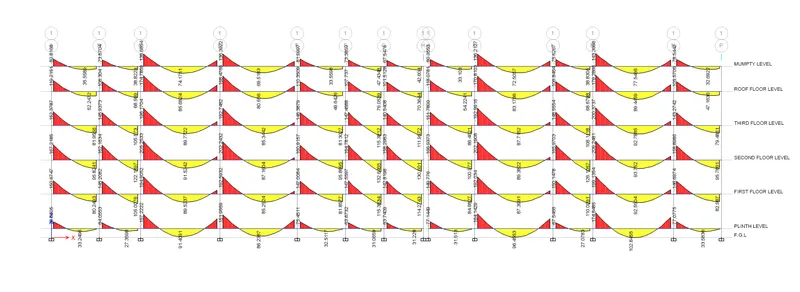

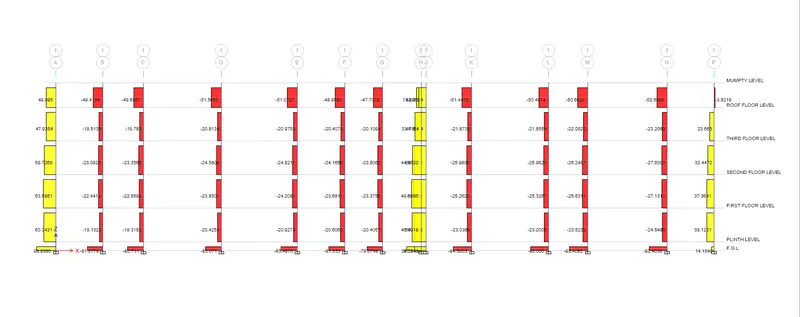

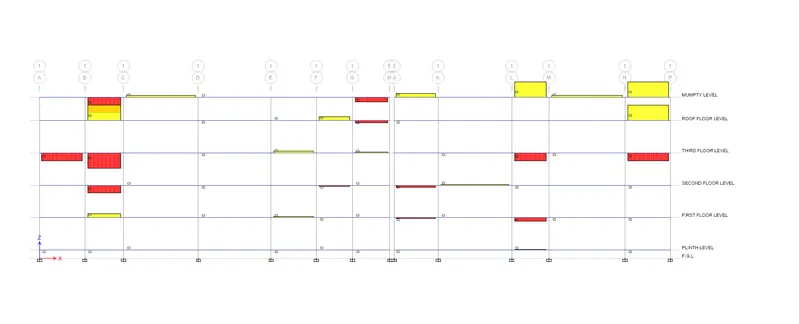

Bending Moment Diagram for Beams















Bending Moment Moment Diagrams for the Columns







Shear Force Diagram for the Columns

Shear Force Diagram for the Beams









DESIGN

The design of the Members is checked.

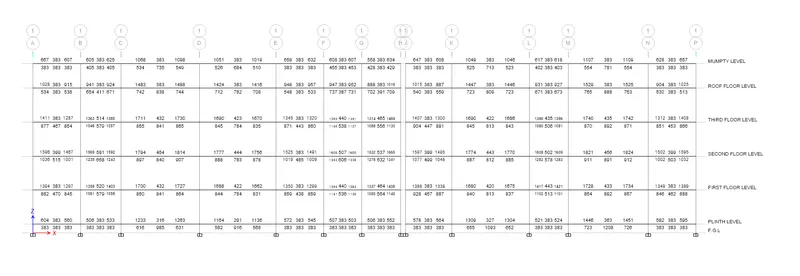

 View of Beam Design reinforcement in Elevation View

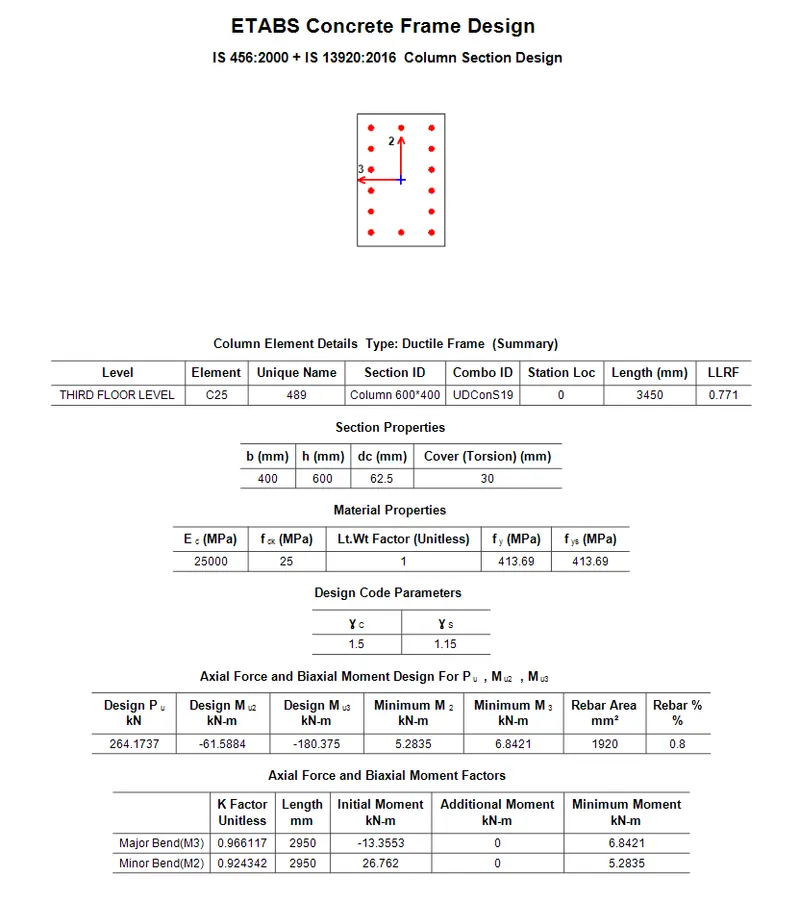

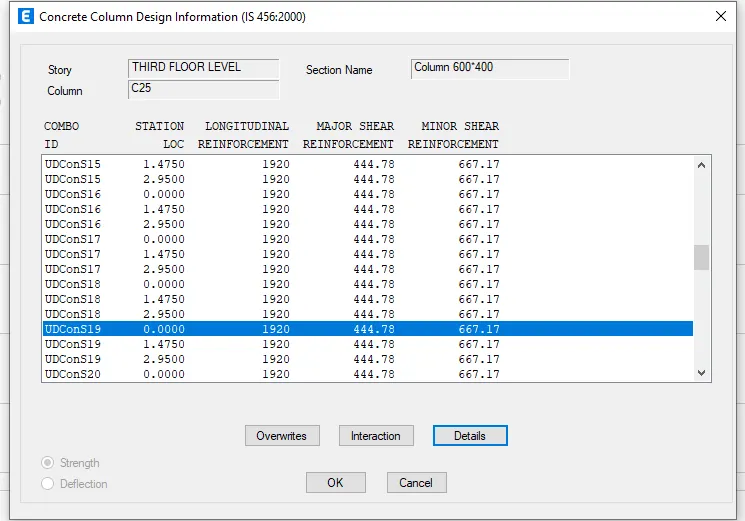

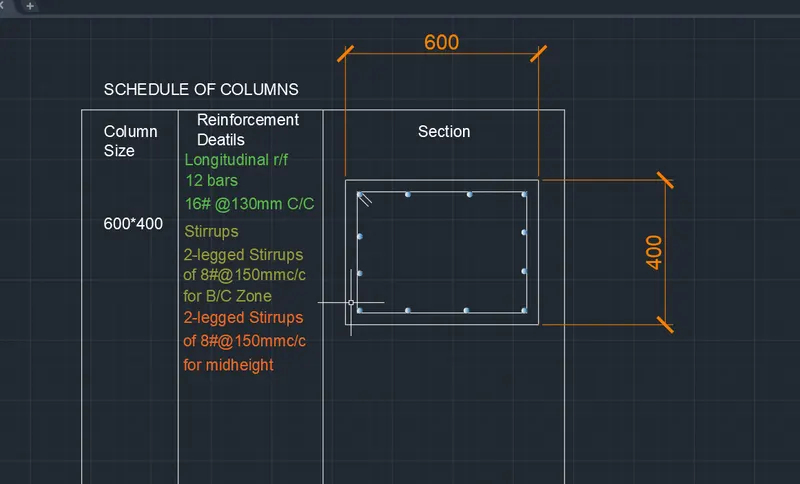

 Column Reinforcement Design

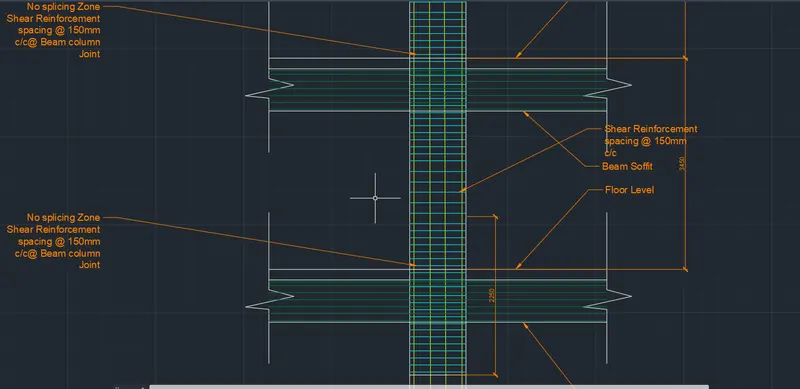

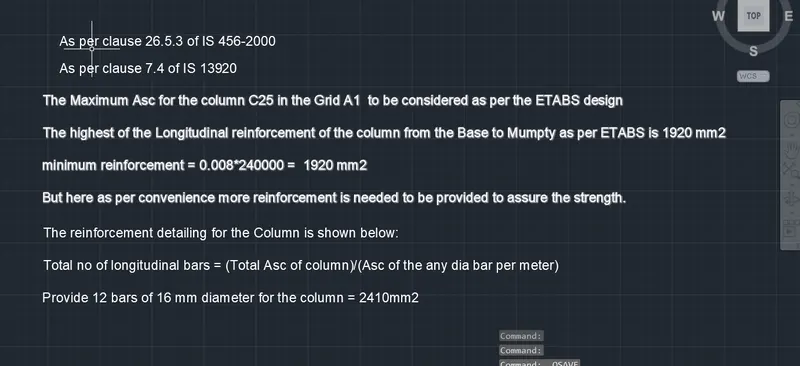

 Reinforcement Details for the Column 1-A









 Reinforcement Details for the Column 1-A

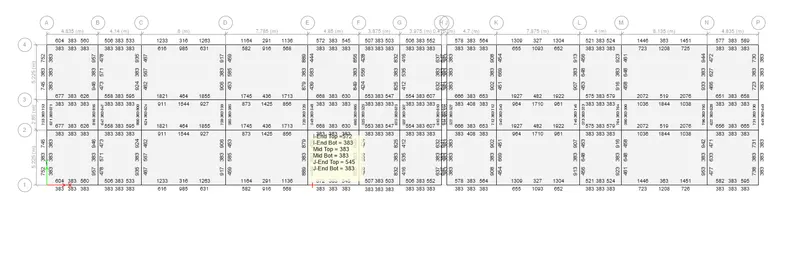

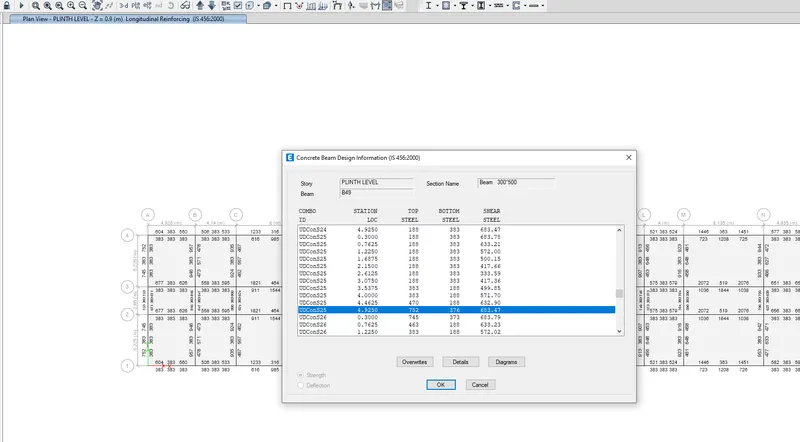

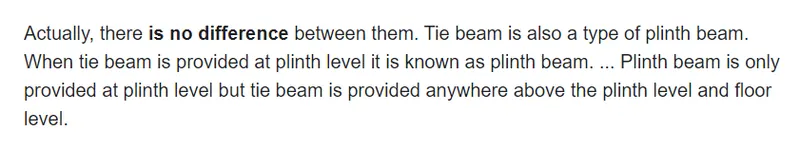

Beam Reinforcement Design at Plinth Level

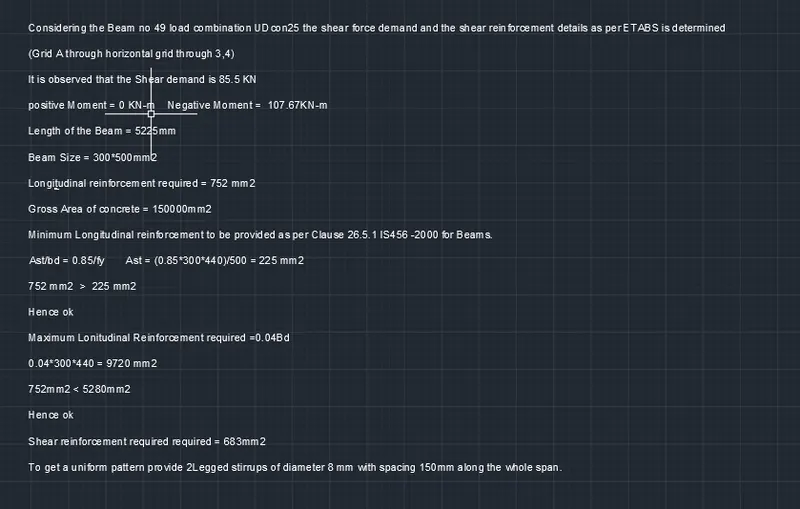

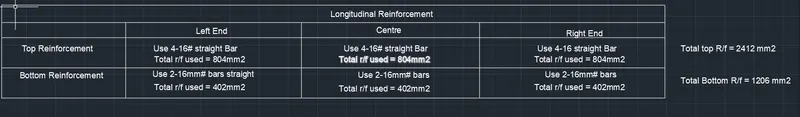

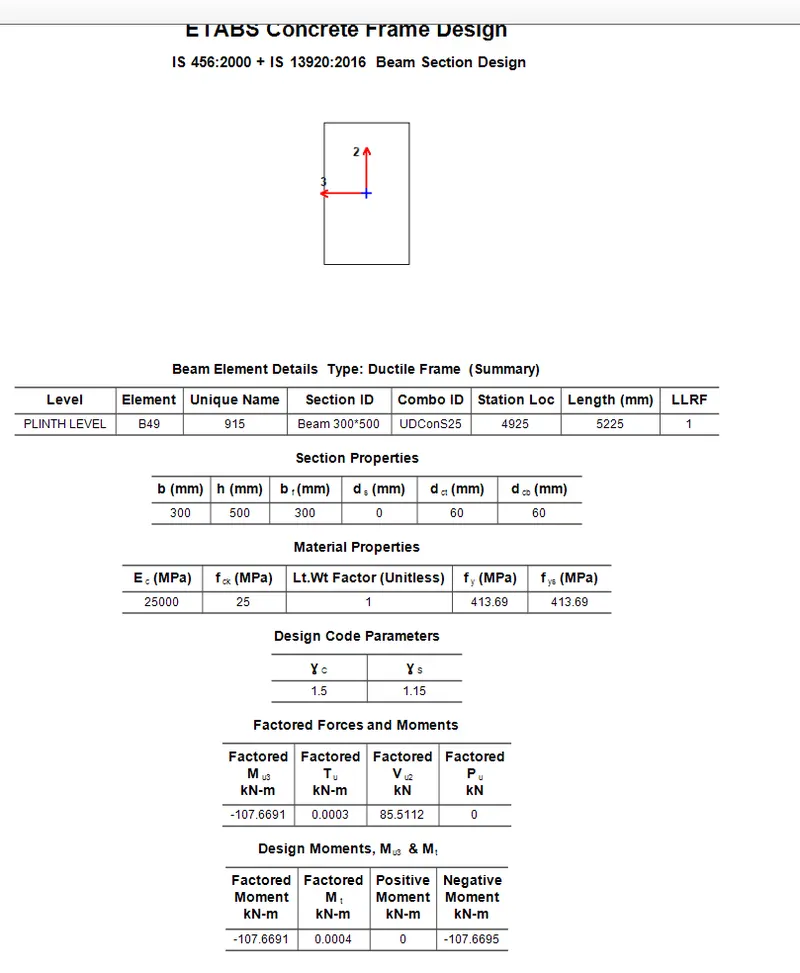

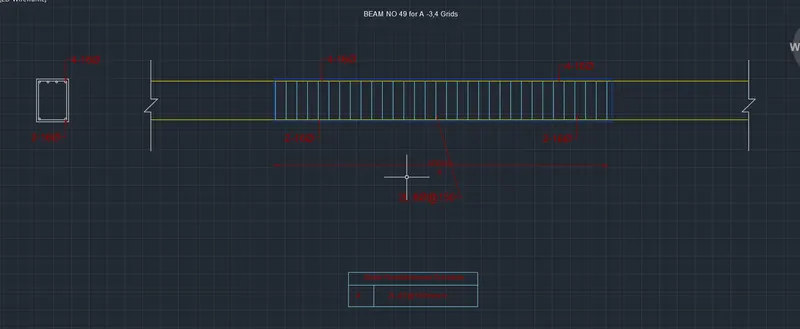

  Reinforcement Details for the Beam B 49 @ 1-A Grid line at Ground floor Level



















  Reinforcement Details for the Beam B 49 @ 1-A Grid line at Ground floor Level



























 Reinforcement Details for the Beam B 49 @ 1-A Grid line at Ground floor Level











 Reinforcement Details for the Beam B 49 @ 1-A Grid line at Ground floor Level

















 Reinforcement Details for the Beam B 49 @ 1-A Grid line at Ground floor Level













Reinforcement Details for the Column 1-A











Reinforcement Details for the Column 1-A









Reinforcement Details for the Column 1-A











 Now SAFE software is used for Foundation Design





 Import the Model to Safe as F2K file

By taking all the Loads from thr upper stories

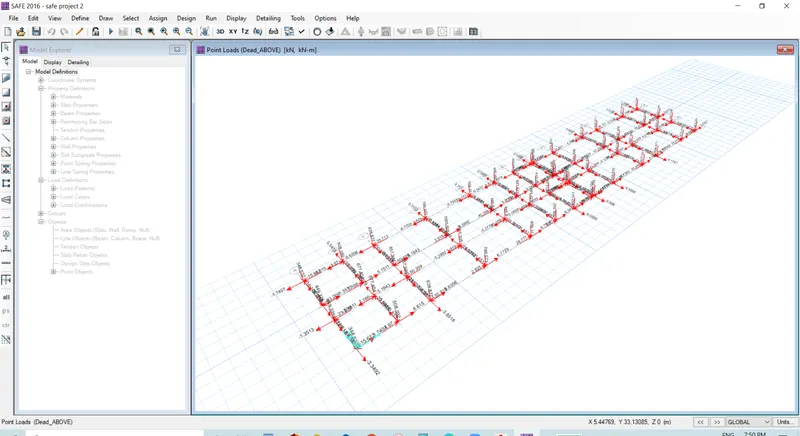

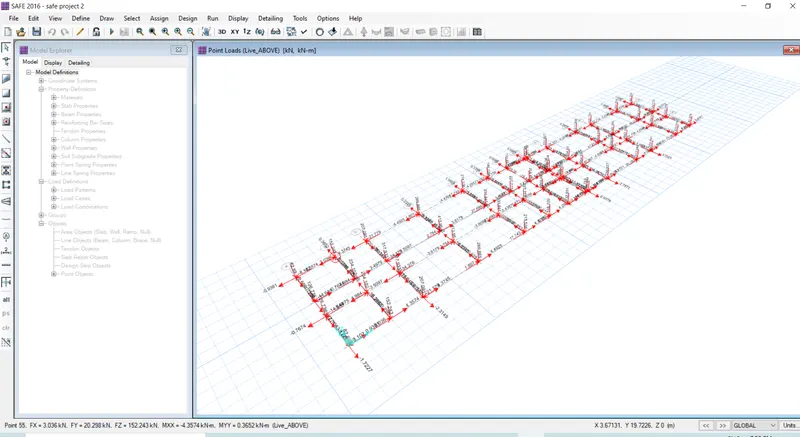

 View of Loads taken from ETABS

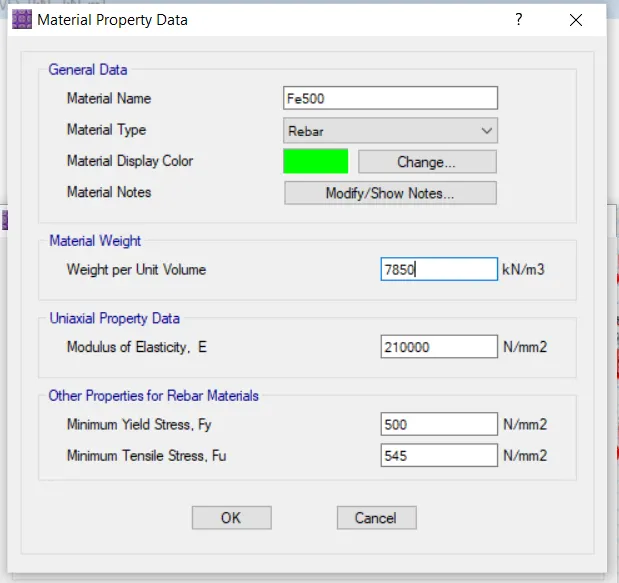

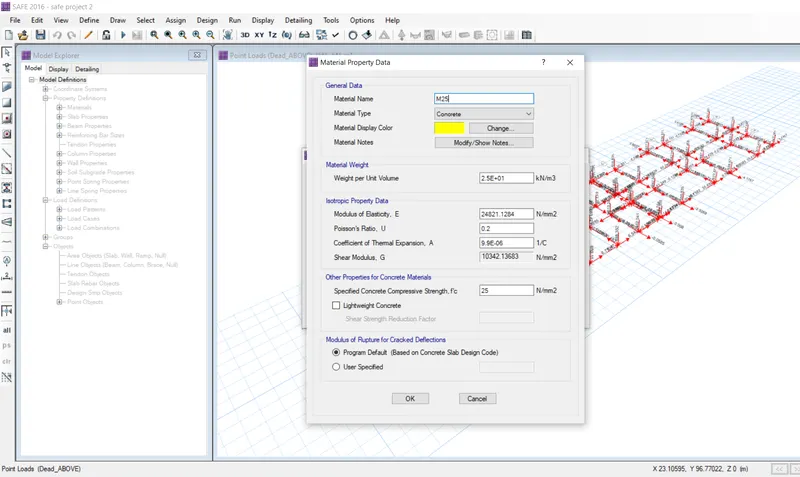

Now Material Properties are taken M25, Fe500









 Fe 500

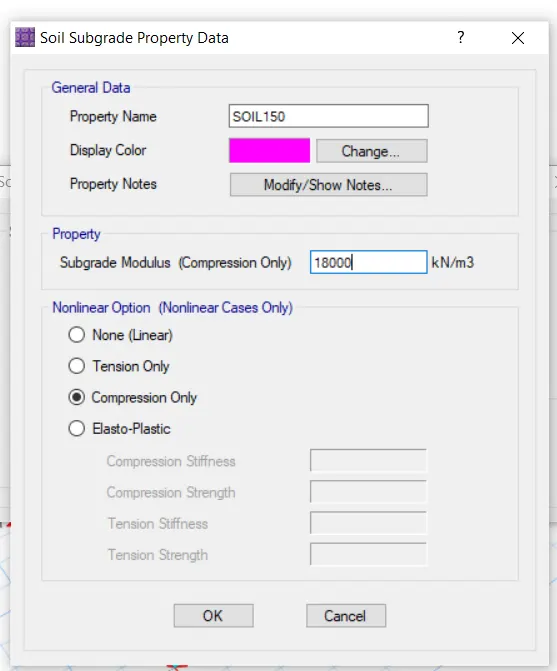

 Soil subgrade Property is considered

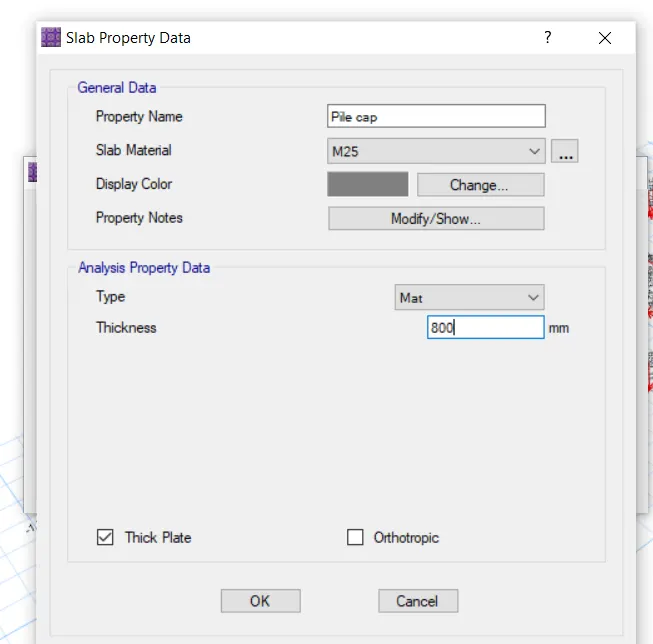

 Slab Property is defined for Pilecap, Pile

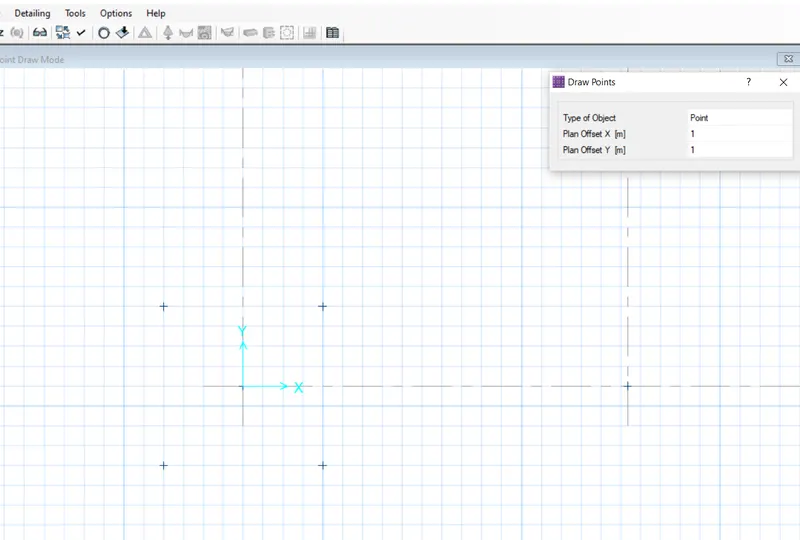

 points are drawn for creating pile caps

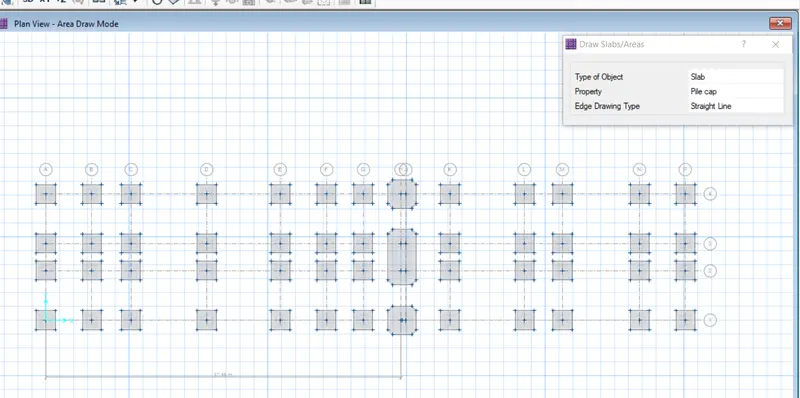

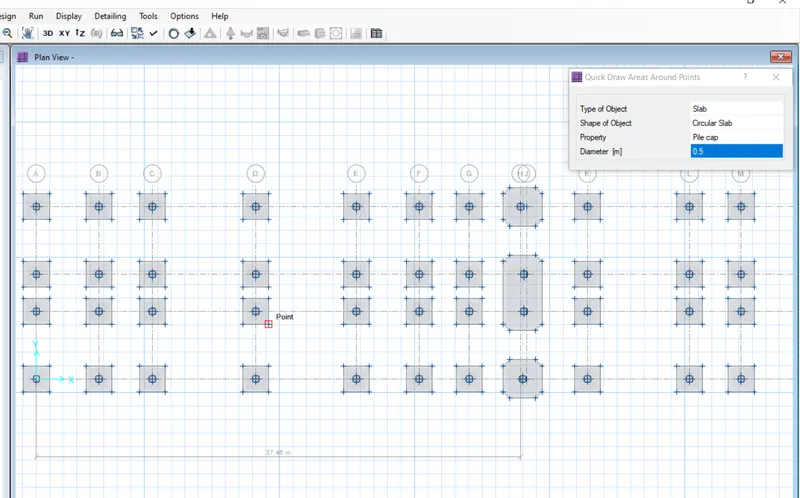

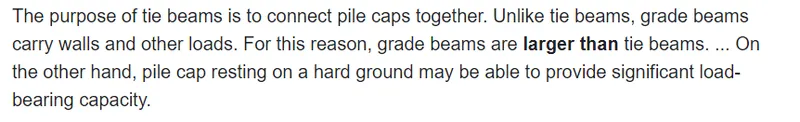

Pile caps are drawn as shown below using Points











 Circular Piles of 500 mm dia are drawn below the PileCaps

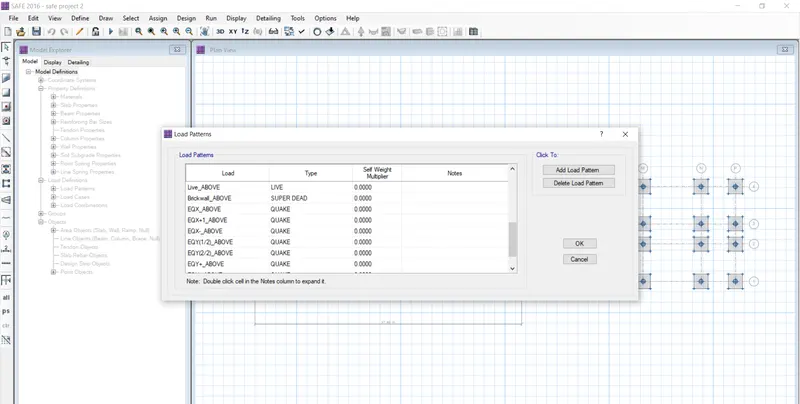

 View of Load Patterns

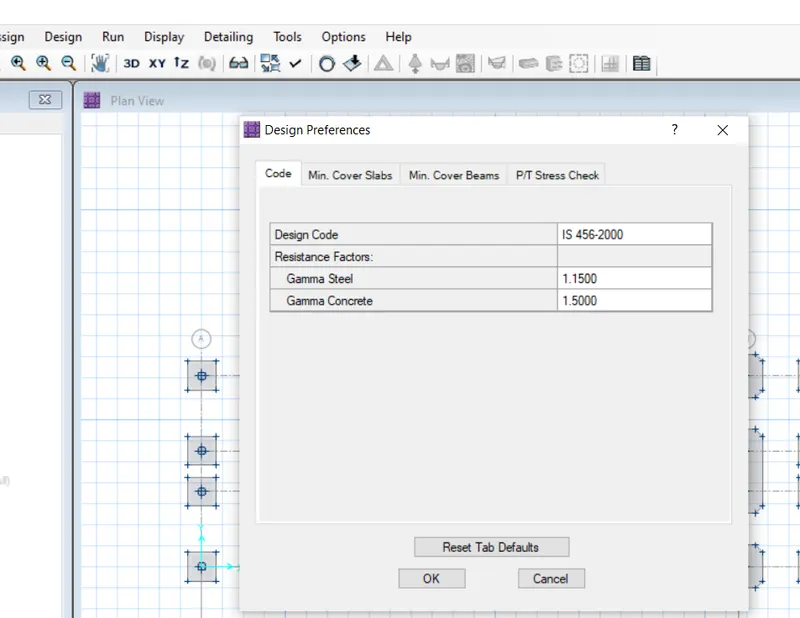

design Preferences selected for IS 456-2000





 Now ANALYSIS is Run to get the Reinforcement Details of the Pilecaps and Pile



 IS 2911 Part 1 is Considered for the Design and Construction of the Pile Foundations

Part 1 Concrete piles

Section 2 Bored cast In situ Concrete Piles



Clause 6 = Design considerations for Piles

clause 6.3 Pile Capacity

Clause 6.5.2 Lateral load Capacity

Clause 6.6 Spacing of Piles

Clause 6.11 Reinforcement Deatiling of Piles











SP34 is Hand Book on Concrete Reinforcement and Detailing

This doesn't consider the Ductile Detailing

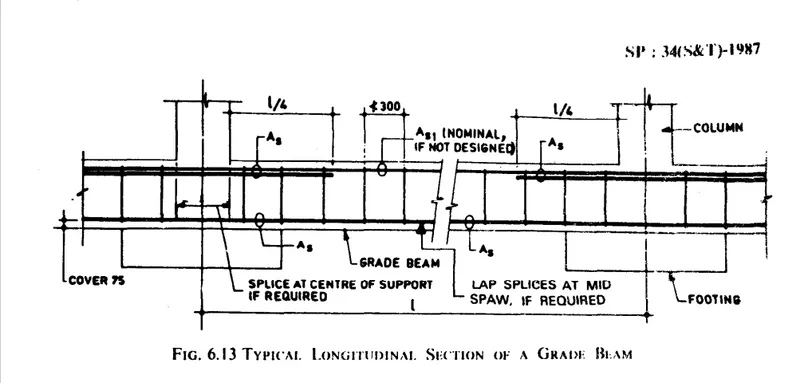

SP 34 =Section 6 = Foundations

SP 34 =Section 7 = Columns

SP 34 =Section 8 = Beams

SP 34 =Section 9 = Floor slabs

SP 34 =Section 12 = ductility Requirements of EQ Resistant Buildings

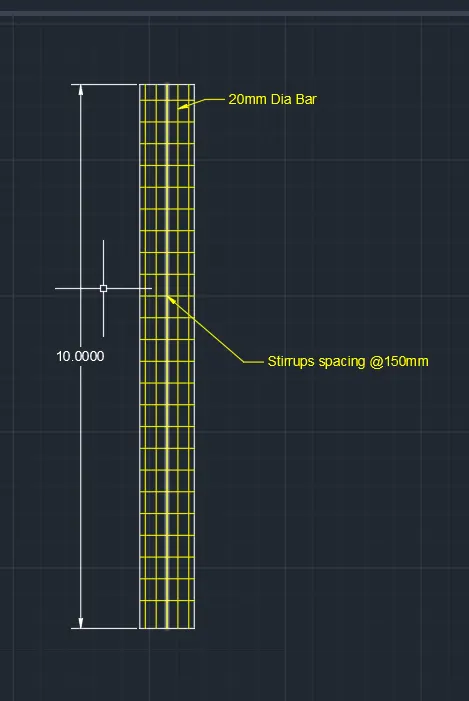

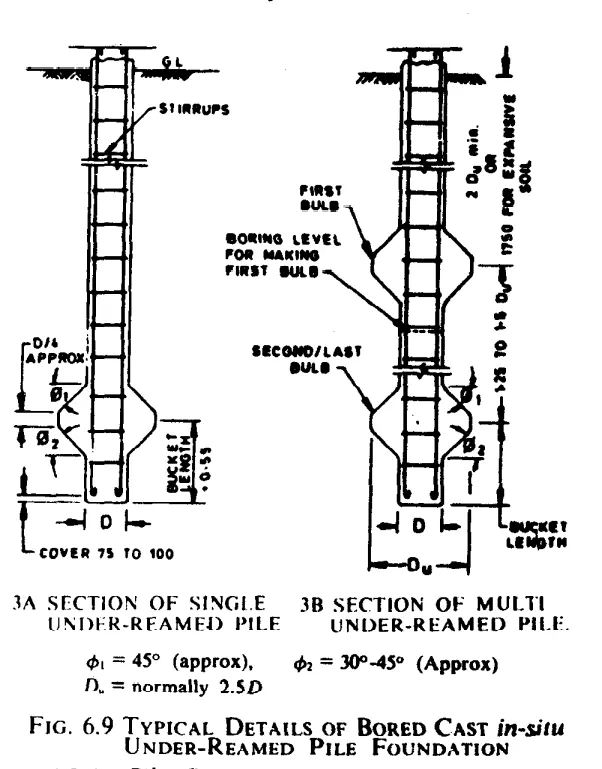

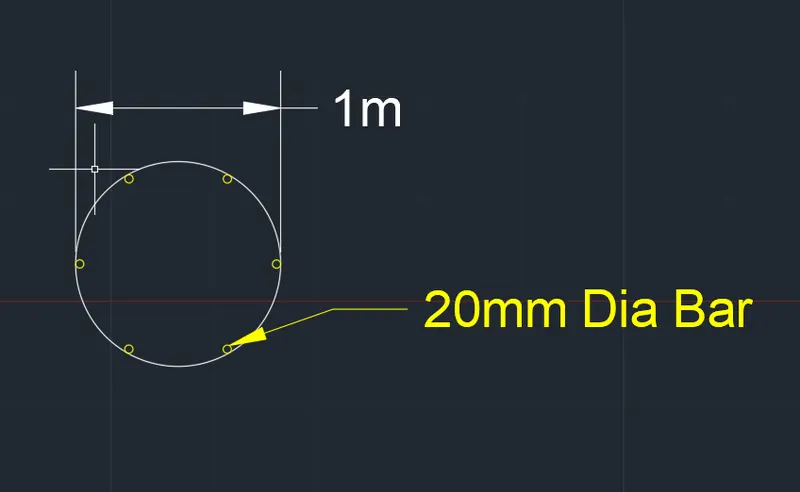

Detailing of Pile:

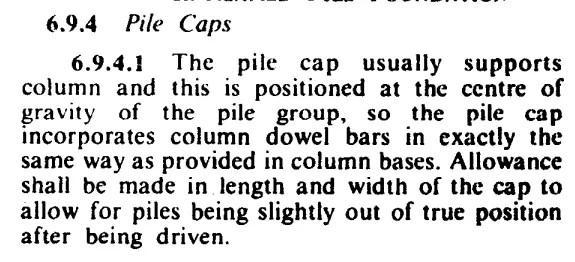

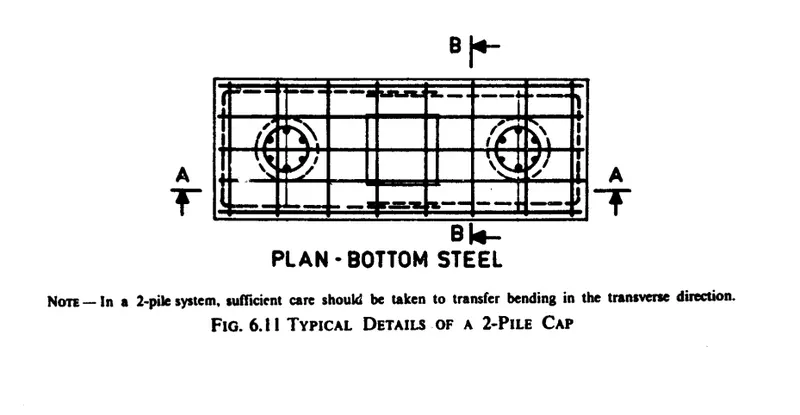

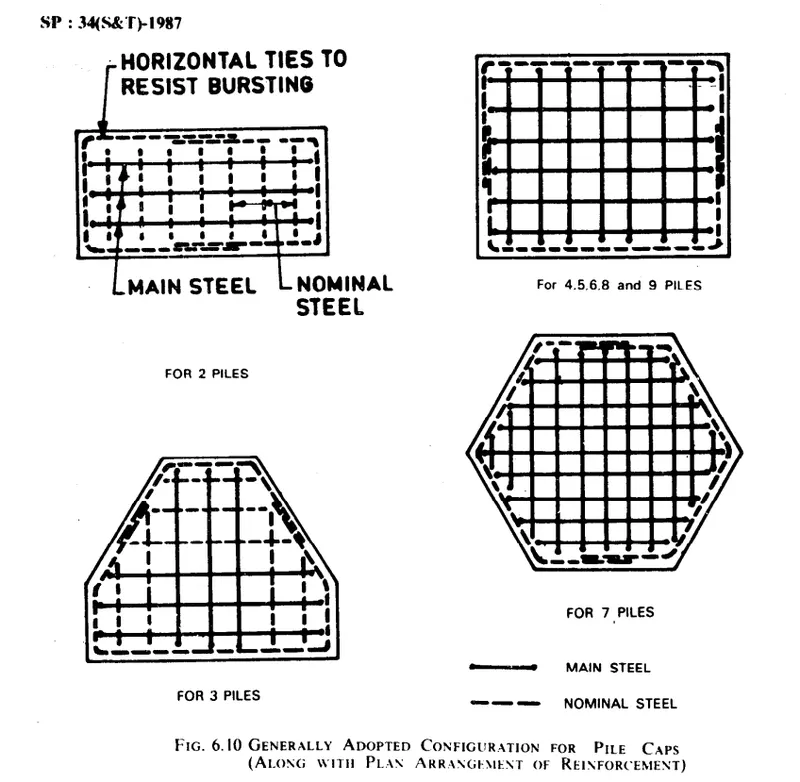

Pile Cap reinforcement for different no of piles

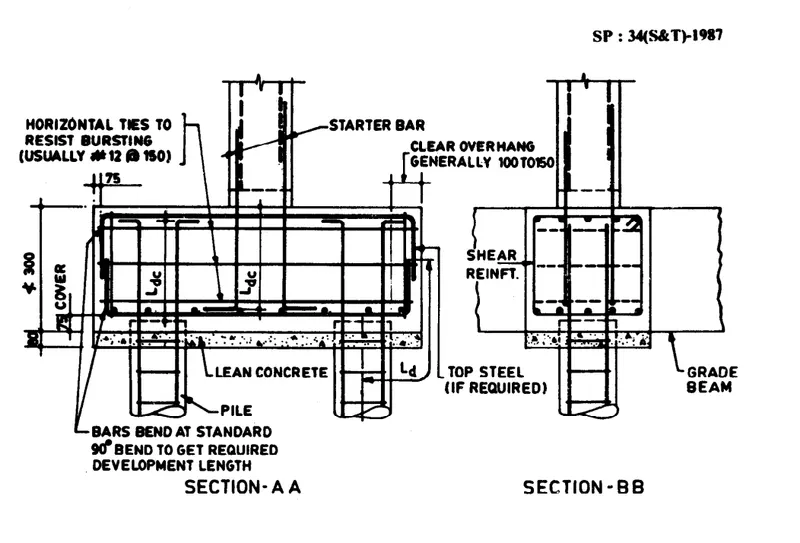

 Detailing of Pile Cap
