Sketch a G+1 floor residential plan, according to Vastu shastra, and list down the names of the structural drawings required to be provided to the site for construction. Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members…
RAHUL REDDY KANALA
updated on 01 Dec 2020
Sketch a G+1 floor residential plan, according to Vastu shastra, and list down the names of the structural drawings required to be provided to the site for construction.
Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members as per IS code.
AIM: To prepare a residential plan for G+1 floor according to Vastu Shastra and to caluclate corresponding loads for the components of the house.
Procedure:
Introduction
The total land area considered for the residential plan is 11m X 18m or 198 sq.mts or 4.89 Cents.
The plinth area of the structure is 143 sq.mts or 3.53 Cents.
Plan for ground floor and first floor are shown below

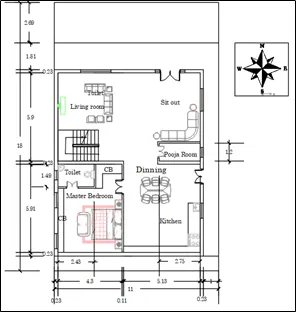

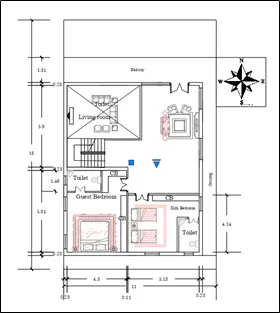

1.Ground Floor Plan 2.First Floor Plan
Dimensions of G+1 Floor in this residential plan are
Assumed dimensions of other utilities in house
The general structural drawings that are prepared are as follows.
Vastu Shastra Followed
Load Calculations for the residential plan components:
1. Dead Load
Columns:
Total number of columns in the design are “9”
The total load of each column is calculated from the total volume of column and unit weight of concrete
The height of column from ground = Slab thickness X 2 + height of each floor X 2
= 0.250 *2 + 3*2
= 6.5m
Size of the column is 0.3mX0.3m
The volume of each column is 0.3*0.3*6.5 = 0.585 m3
Unit weight of reinforced concrete = 25KN/m3
Dead load due to each column = 25 * 0.585 =14.625KN
Beams:
The dead load of the beam is calculated from the cross-sectional area and unit weight of concrete and the load is calculated in KN/m
The dimensions of beam are 0.3mX0.45m
Unit weight of reinforced concrete = 25KN/m3
Dead load due to beam = 25*0.3*0.45 = 3.375KN/m
Walls:
The dead load of the wall is calculated from the cross-sectional area of brick wall and unit weight of brick wall and the load is calculated in KN/m
Thickness of external wall considered here is 230mm i.e. 0.23m
Thickness of internal wall considered here is 115mm i.e. 0.115m
Height of each wall is 3m i.e. floor height difference
Unit weight of brick wall is 20KN/m3
Dead due to external wall = 20*0.23*3 = 13.8KN/m
Dead load due to internal wall = 20*0.115*3 = 6.9KN/m
Wall openings should be removed when total load is being calculated
Wall openings such as doors, windows, ventilators etc.
Brick:
The standard dimension of brick is given as 190 mm x 90 mm x 90 mm
The weight of standard brick is 1.9Kg or 18.632N
Dead load of brick = 18.632N or 0.0186KN
Slab:
The dead load of the slab is calculated from the thickness of slab and unit weight of reinforced concrete and the load is calculated in KN/m2.
Thickness of slab considered is 250mm or 0.25m.
Unit weight of reinforced concrete = 25KN/m3
Dead load of slab per m2 = 25 * 0.25 *1*1 = 6.25KN/m2
While calculating slab dead load over bathrooms as the slab provided is a sucken slab the thickness of slab is changed to sunken slab thickness. Generally sunken by 200 to 300mm depth.
2. Live Load Calculation
As per Table 1 of IS -875 Part-2, for residential building:
3. Wind Load
The height of the house is 6.5 m.
The wind load acting on the structure is not significant for structures whose height is less than 10 m
Therefore, 6.5m < 10m, Hence Ok no need to design for Wind Load
Result
Notes for Plan

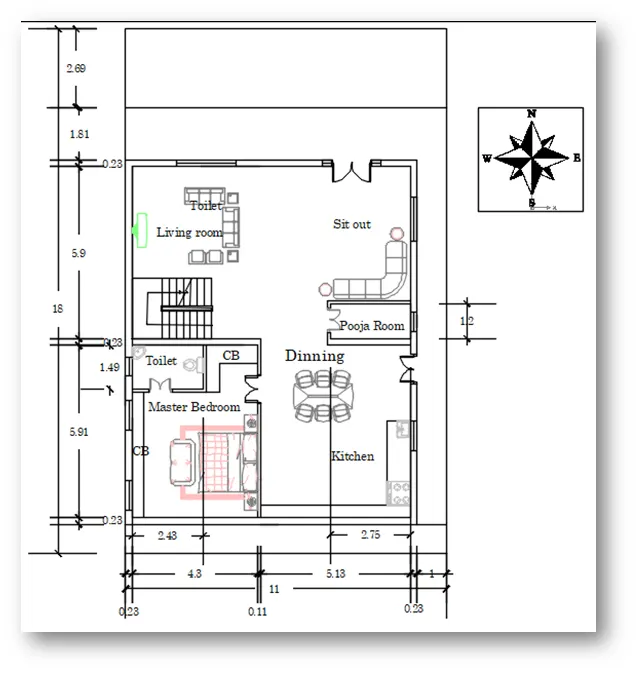

Ground Floor Plan

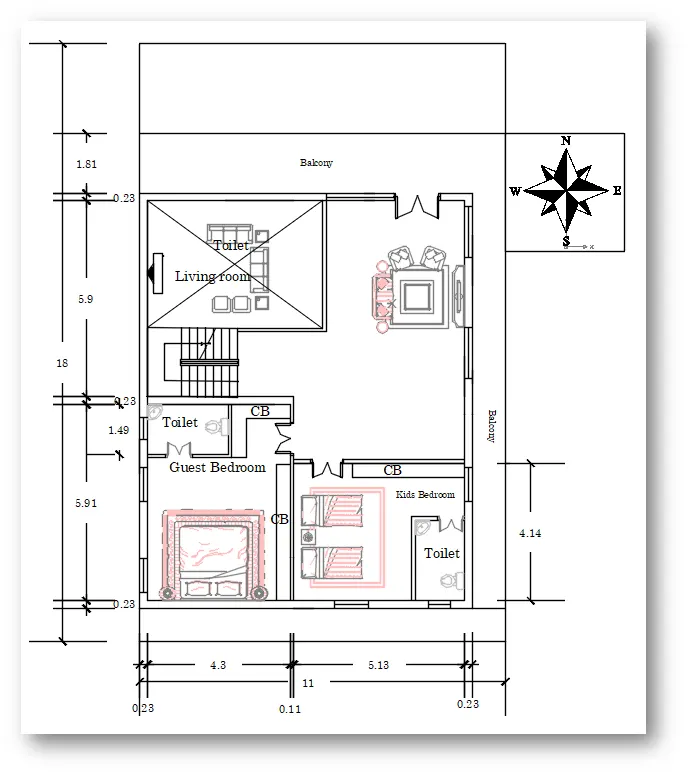

First Floor Plan
