Project 2

Question 1:Prepare a table that includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO of lithium-ion cells. Give your detailed explanation of each type.Solution:Fig: Li-ion batteries Charge and discharge cycleLithium-ion batteries are made of cells that store…

Q1) To route the given harness layout in the Electrical workbench. By making an assumption for harness bundle diameters. Use the following connectors as shown below in the layout diagram. Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)…

Q1) To define electrical support using an Electrical Part Design Workbench. And also to define all the necessary properties. Solution: The P-clamp model has been imported to the Catia V5 interface. The geometric and electrical properties have been defined. Following are the screenshot captured while configuring the properties…

Q1) To define connectors and connector clips using the Electrical part design workbench in the CATIA V5 tool   Solution: Electrical Definition and Catalogue Creation using the Electrical part design workbench in the CATIA V5 tool  The 3d geometry models used to define are as follows : Connector Image No…

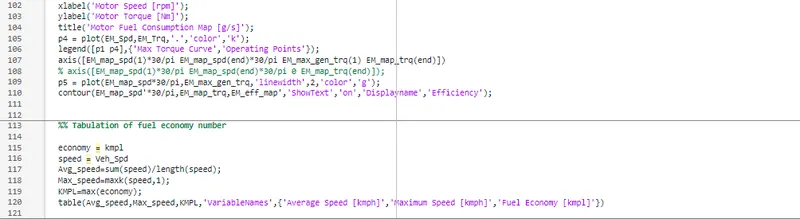

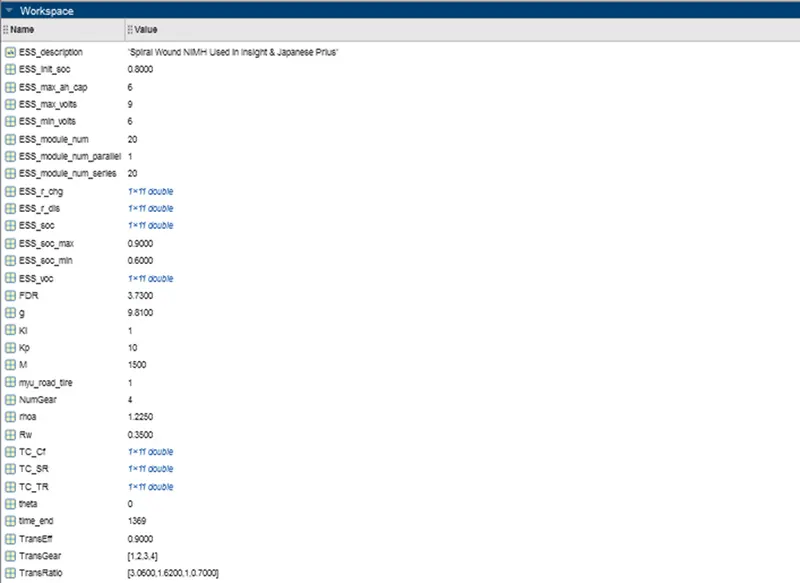

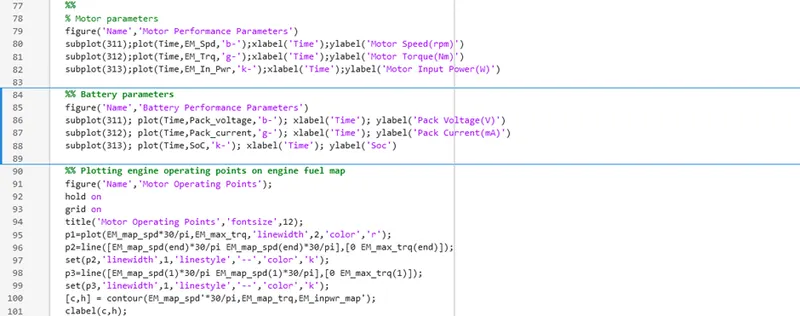

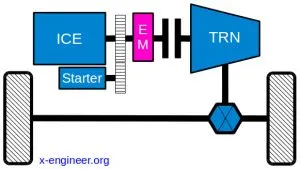

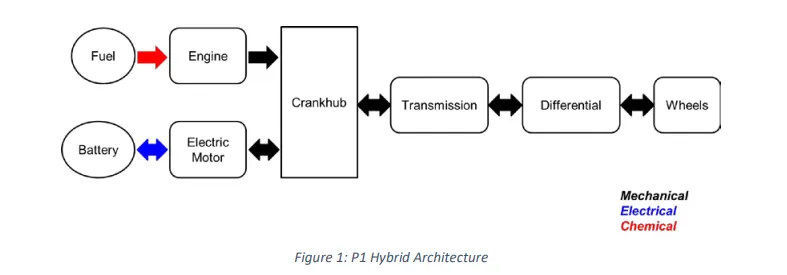

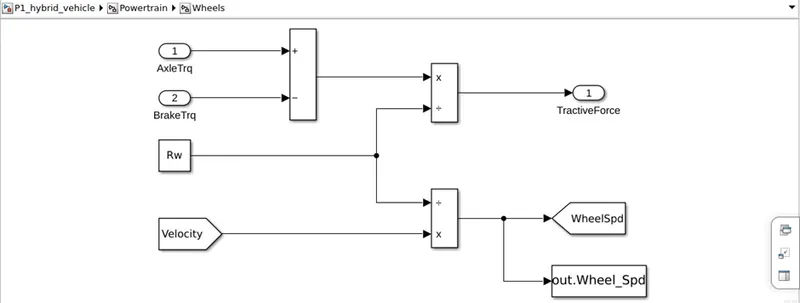

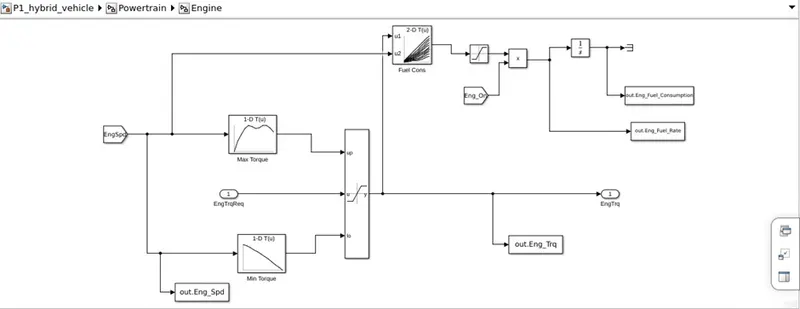

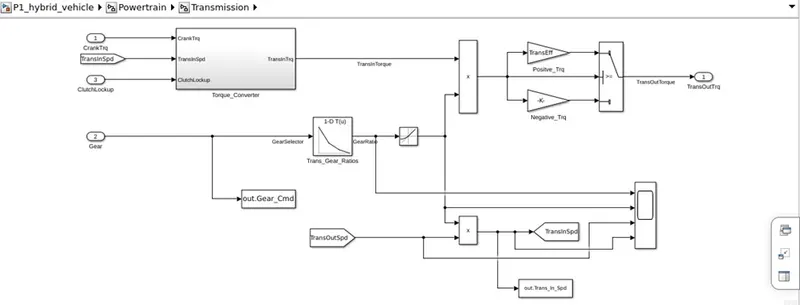

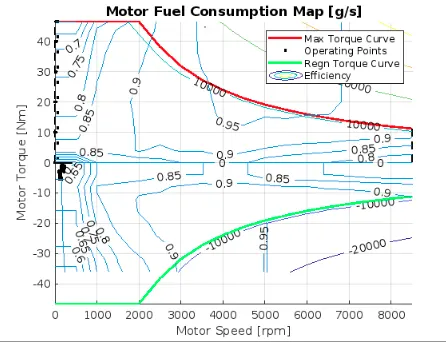

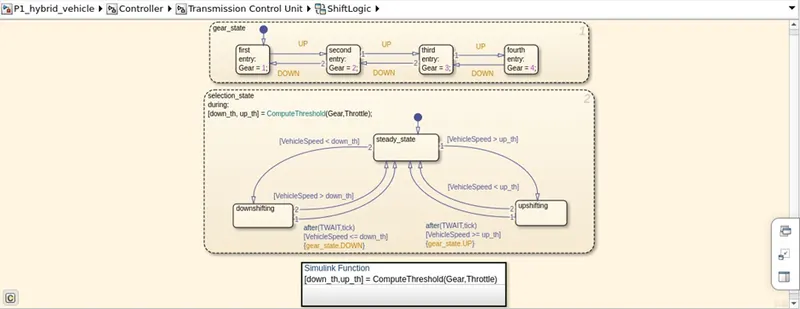

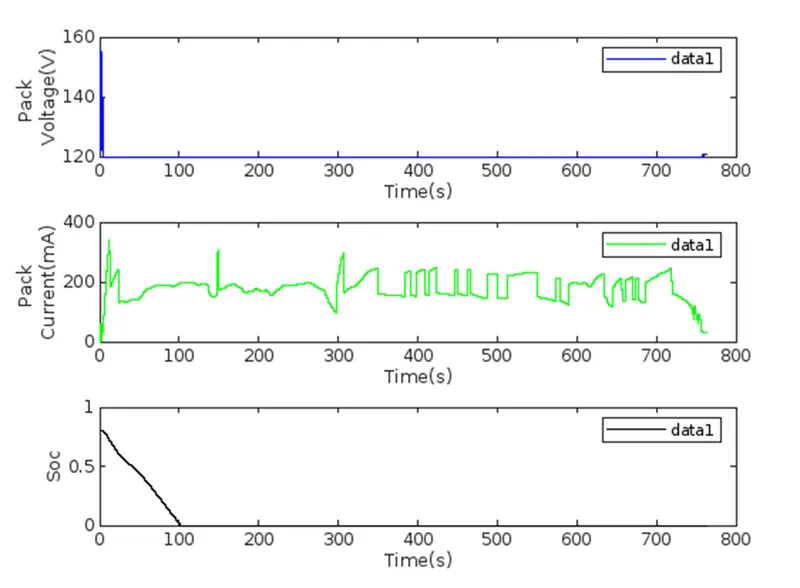

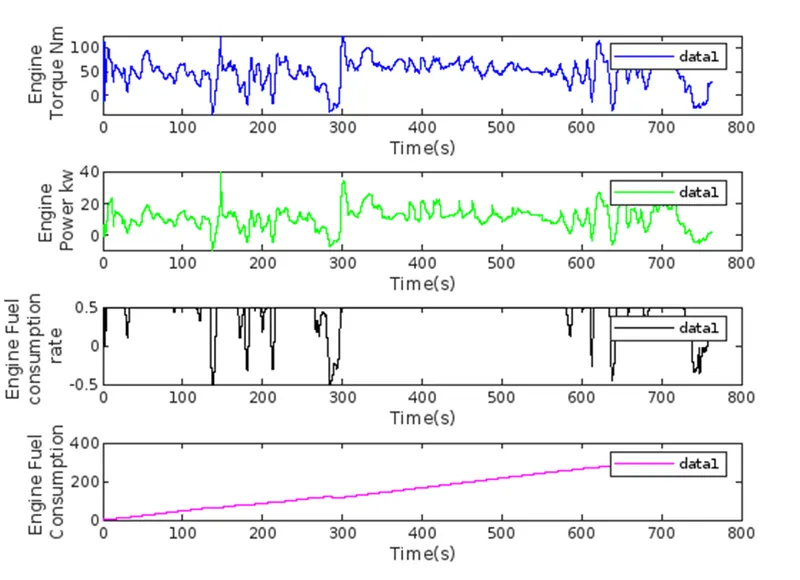

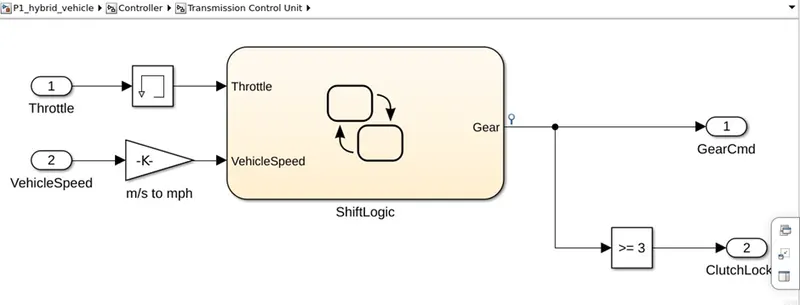

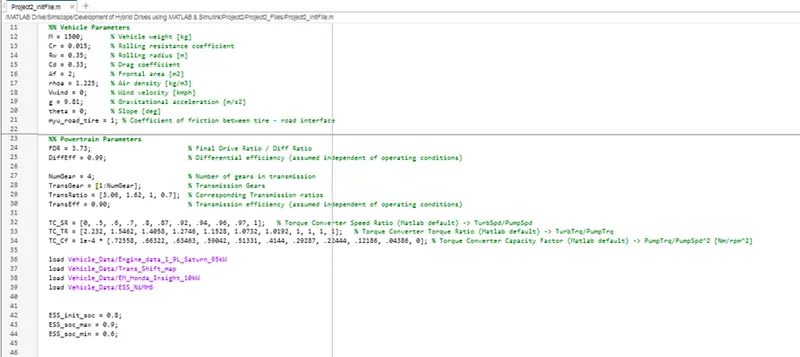

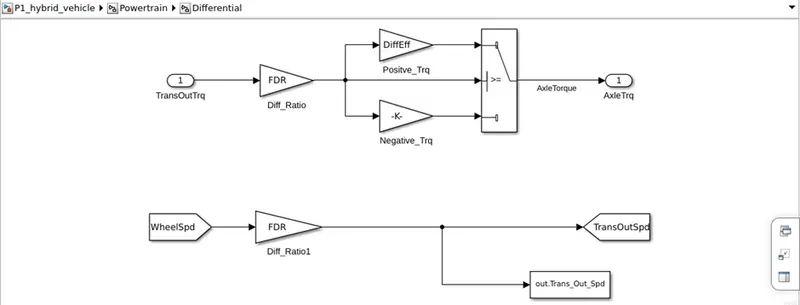

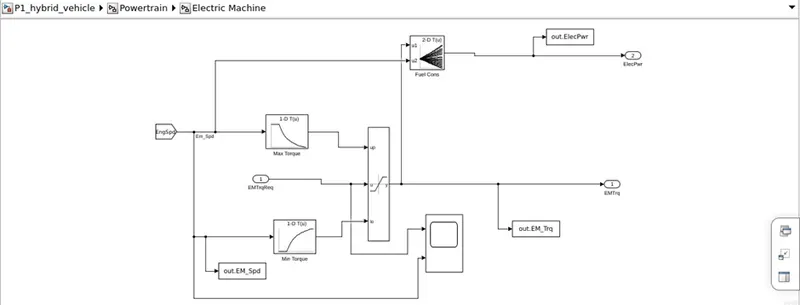

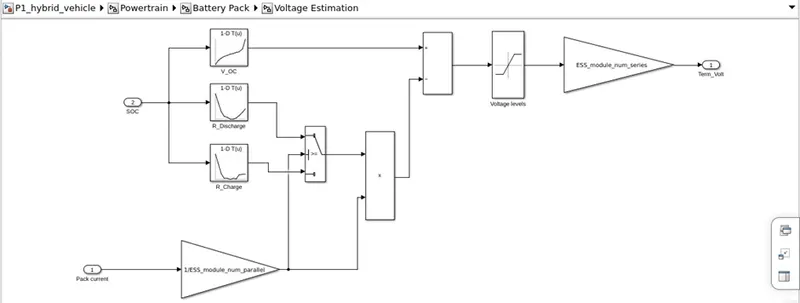

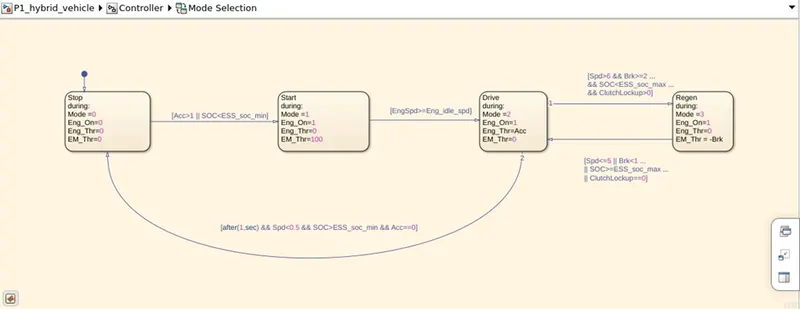

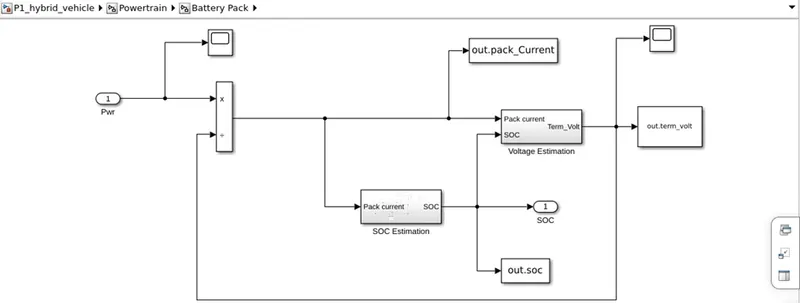

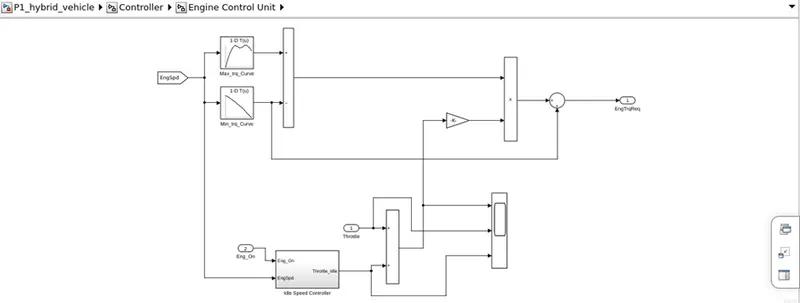

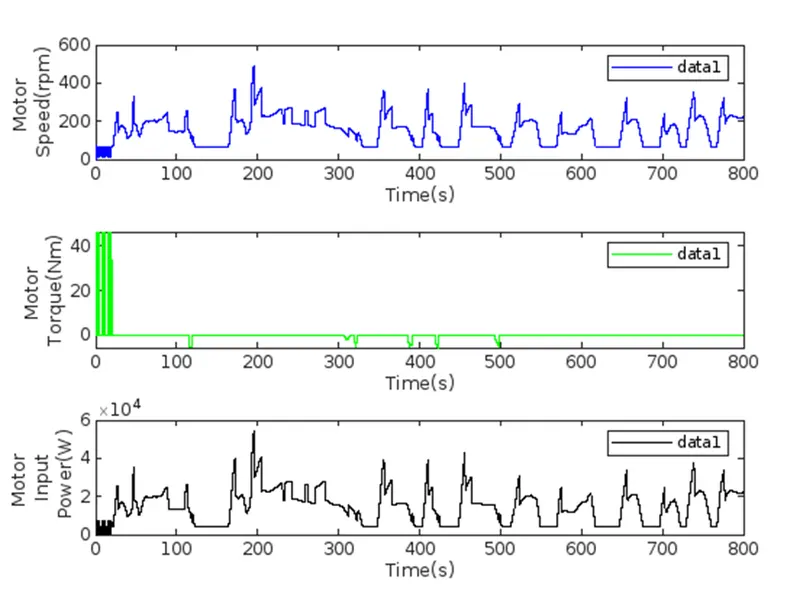

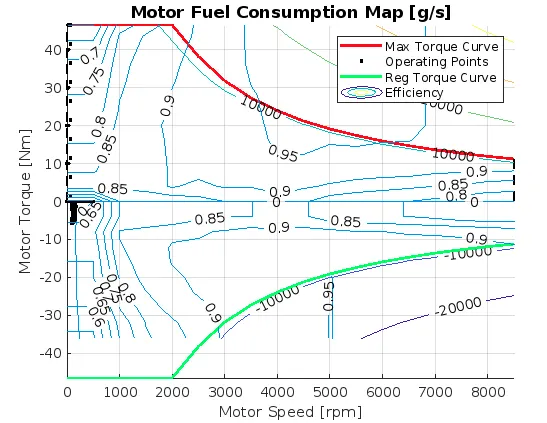

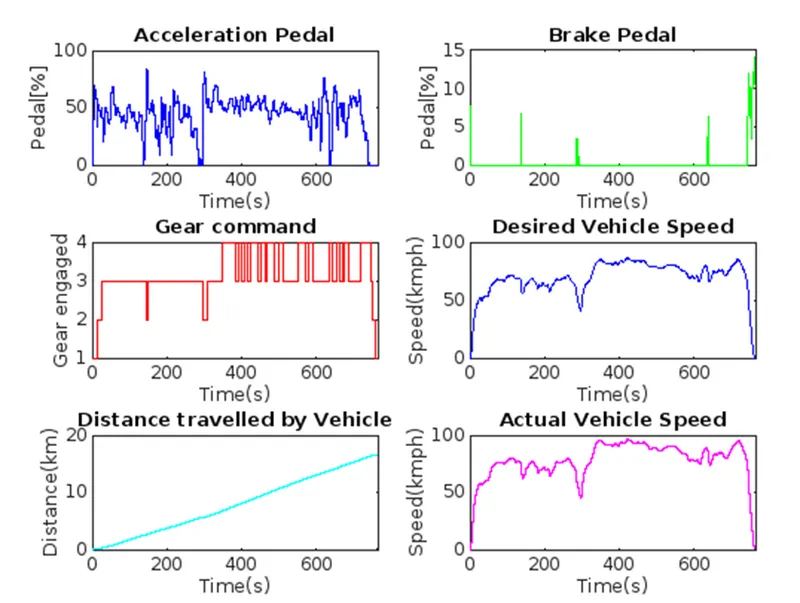

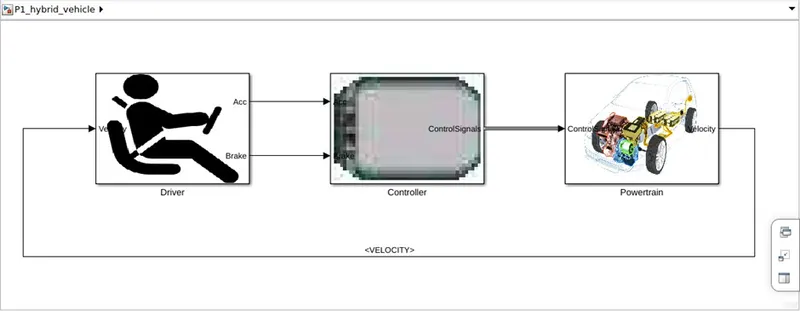

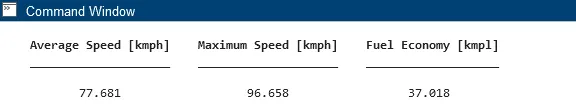

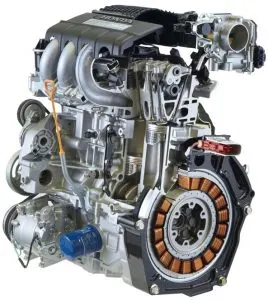

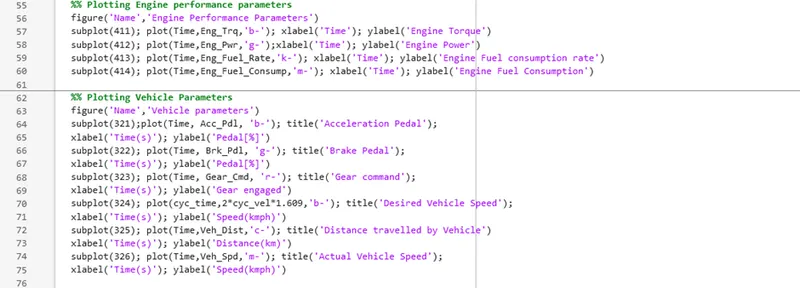

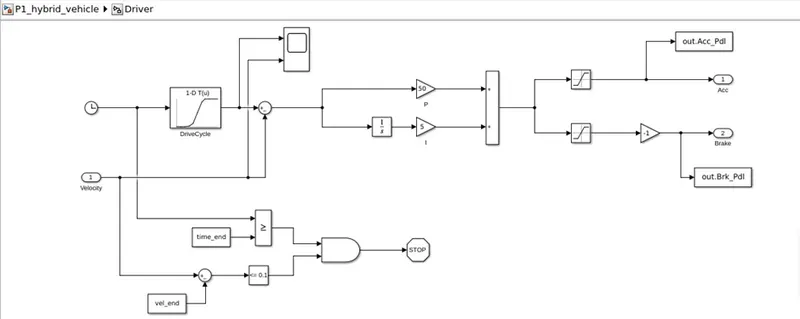

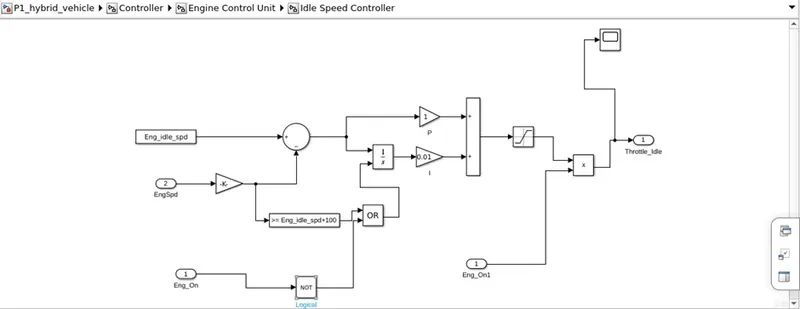

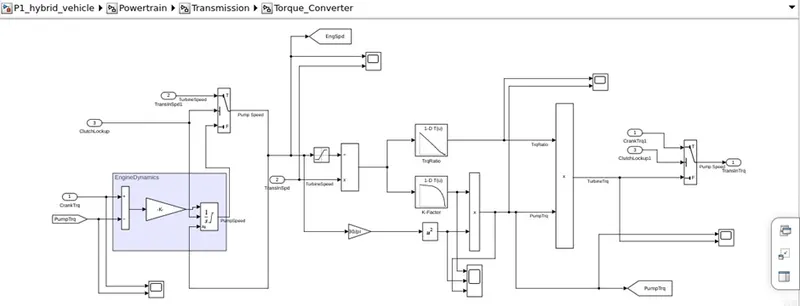

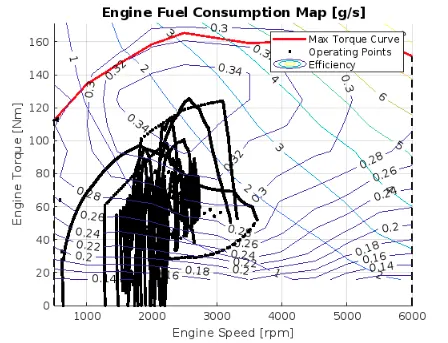

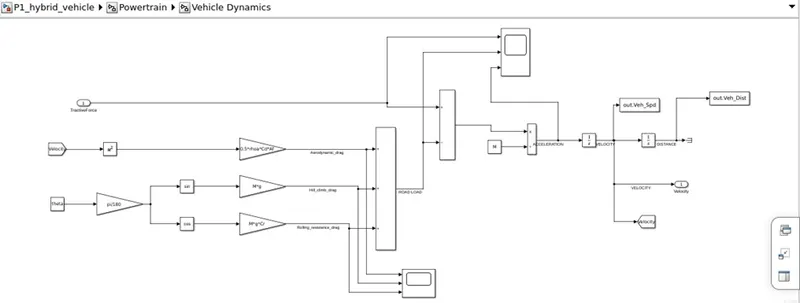

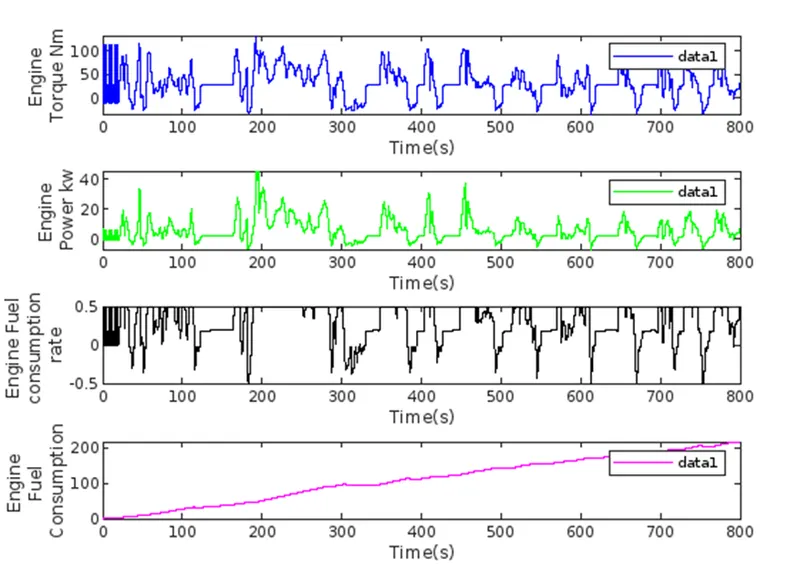

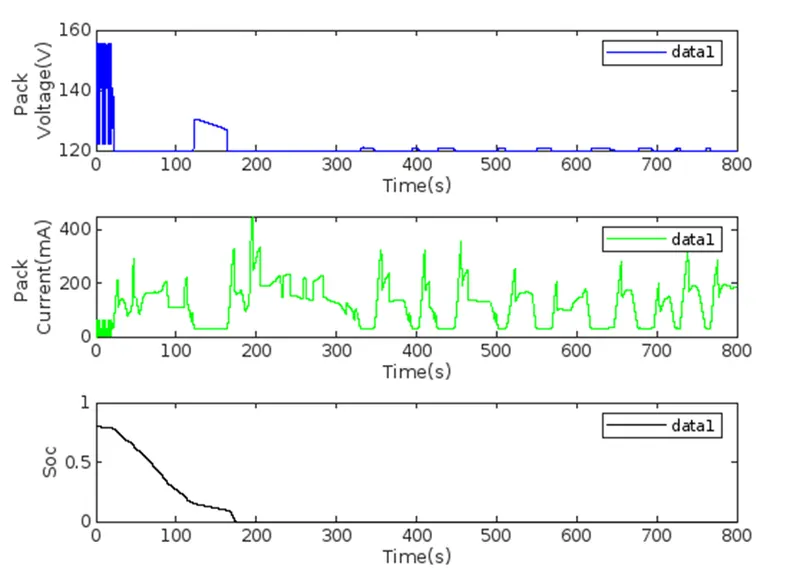

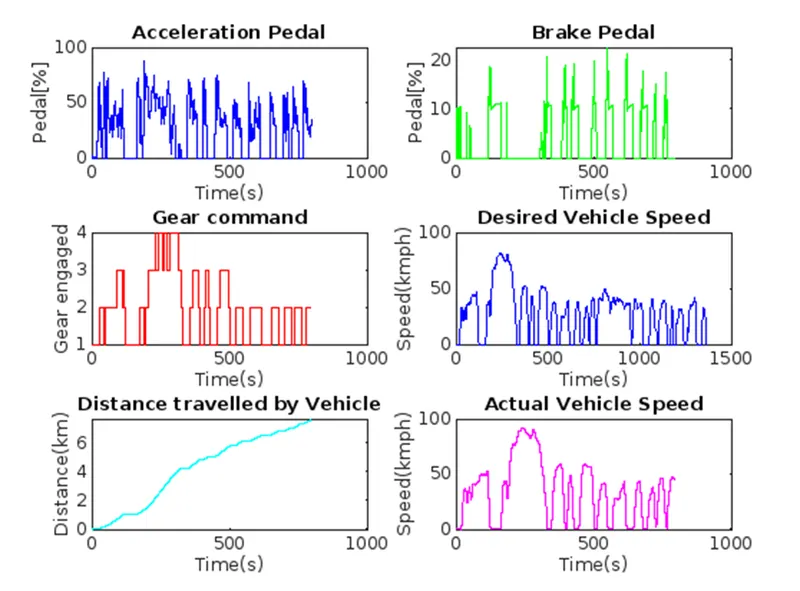

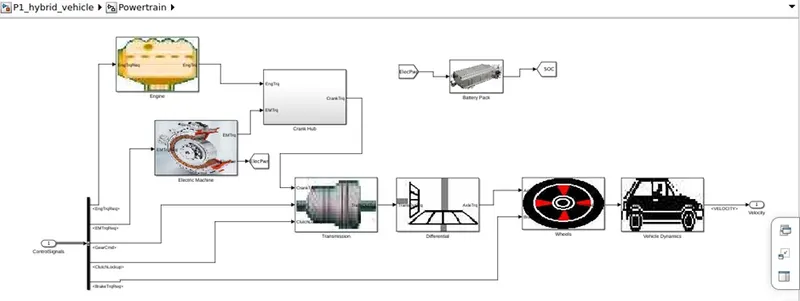

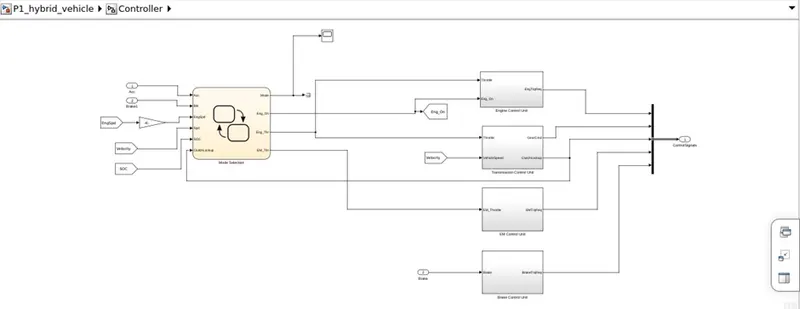

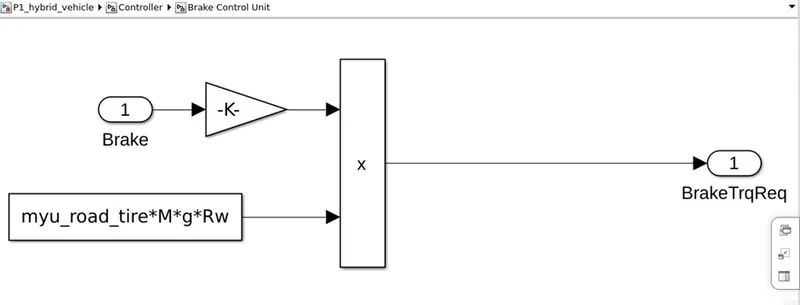

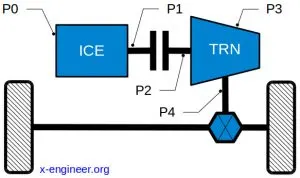

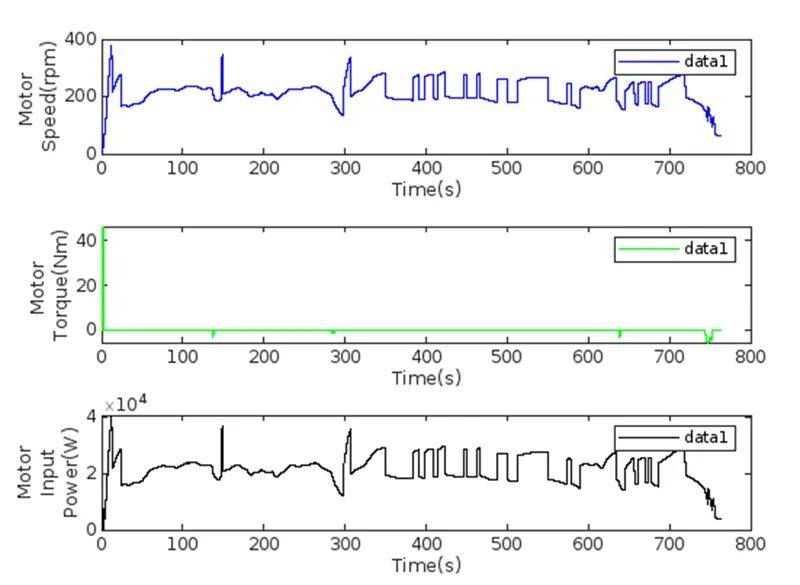

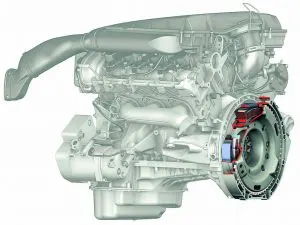

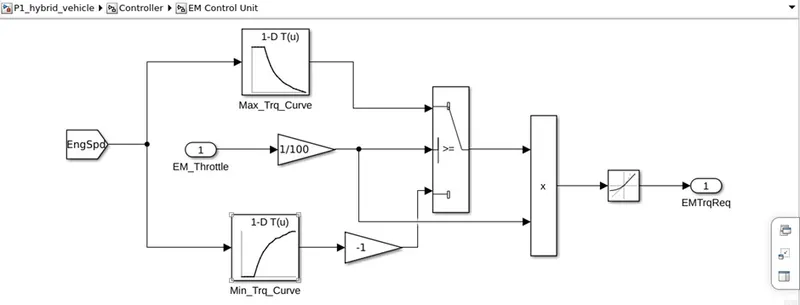

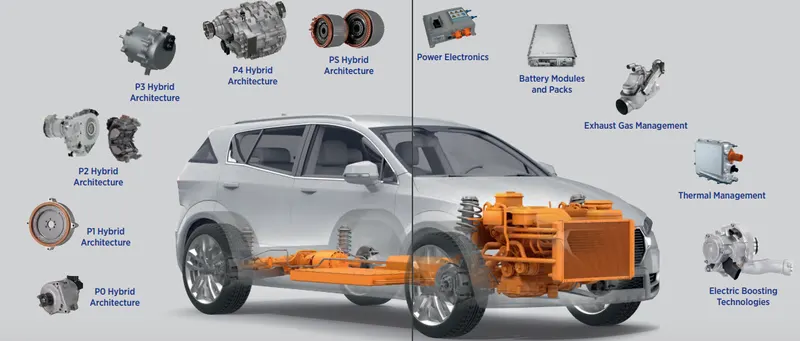

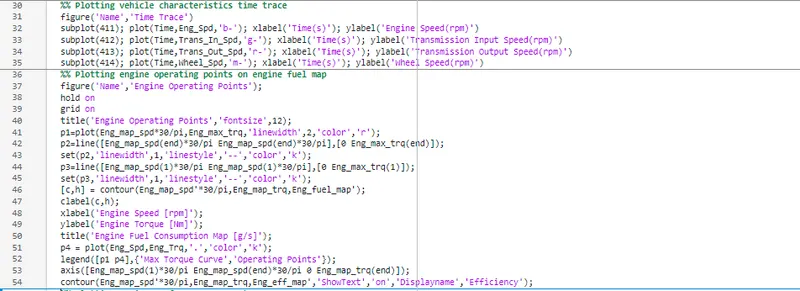

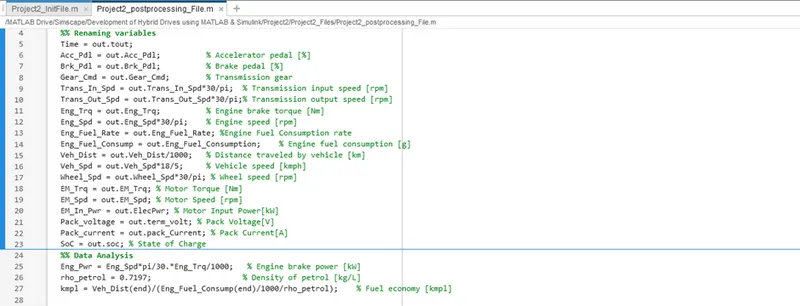

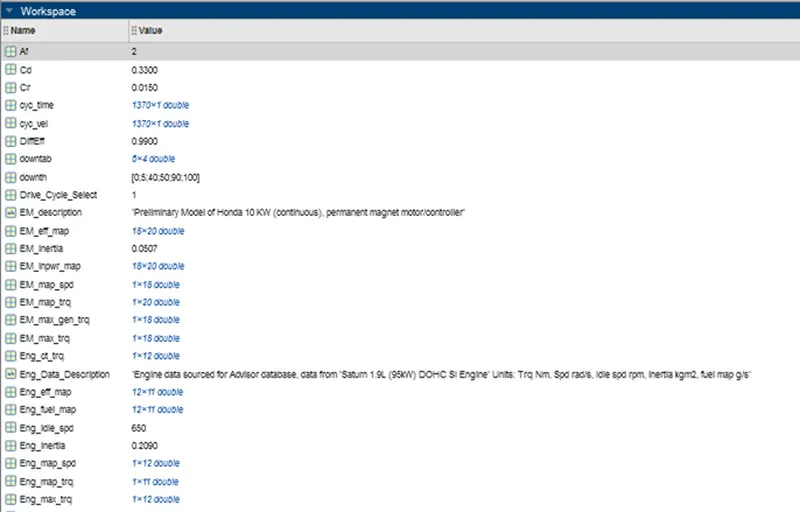

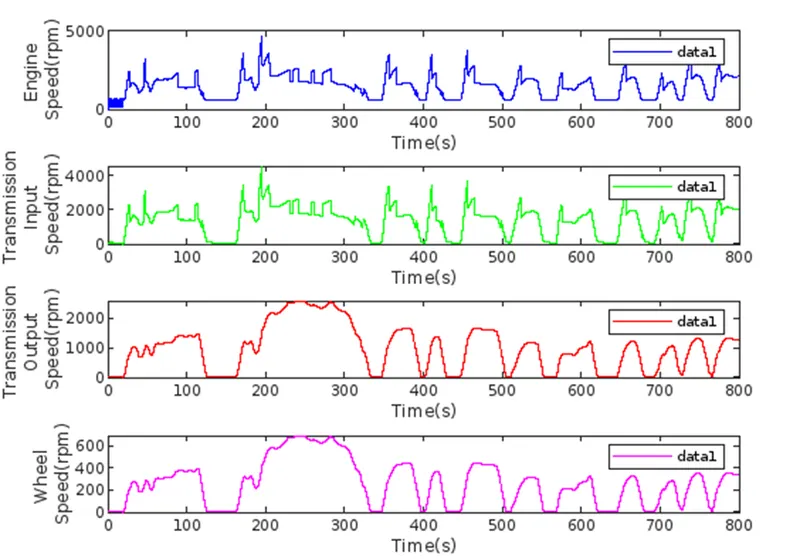

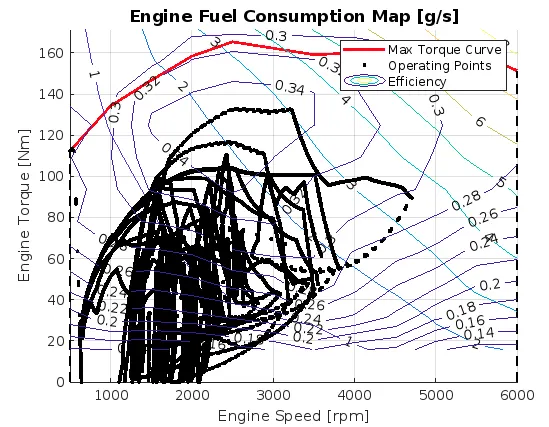

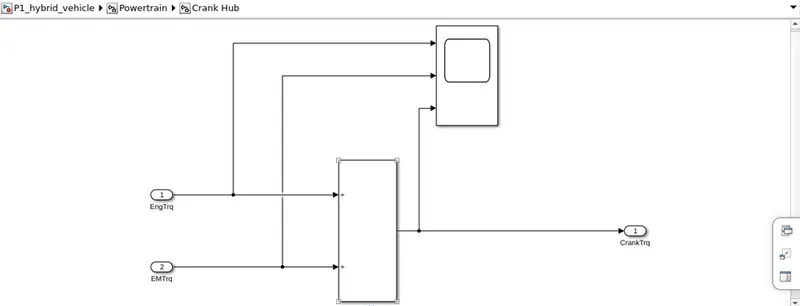

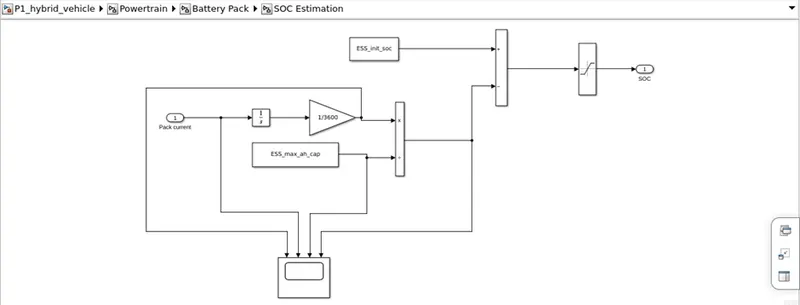

Q) Aim: To develop a forward energy-based fuel consumption model of a P1 hybrid vehicle. By understanding the functionality of a P1 hybrid and being able to model it. A typical midsize P1 hybrid car with a 1.9L engine and 10KW PMSM motor driven by a 6Ah 154V NiMH battery pack along with a 4-speed automatic transmission…

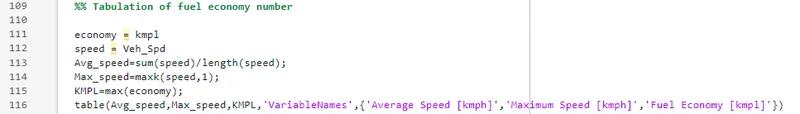

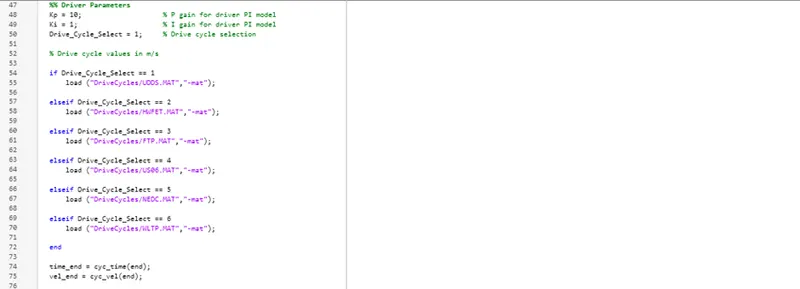

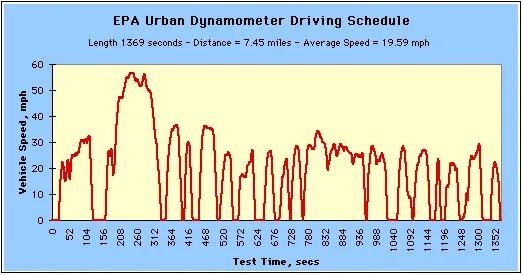

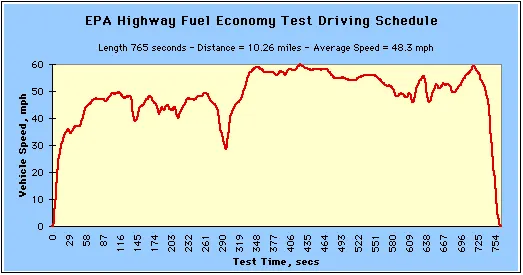

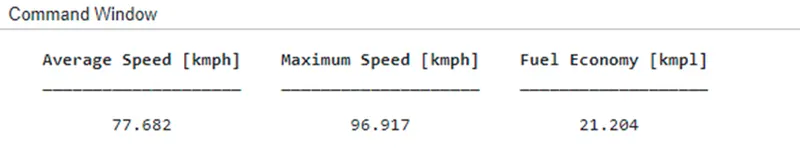

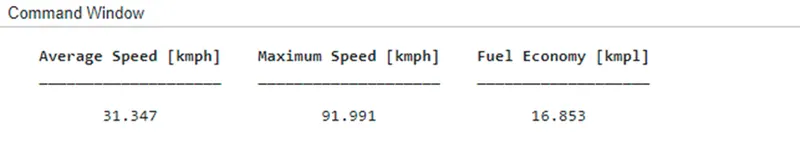

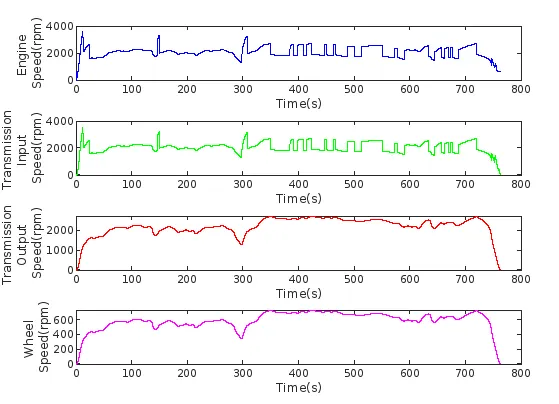

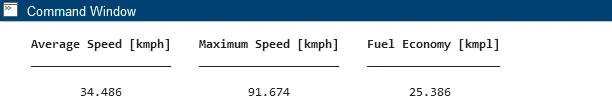

  Solution: Aim: To develop a forward energy-based fuel consumption model of a conventional vehicle. For a typical midsize car with a 1.9L engine and a 4-speed automatic transmission is considered for analysis. And to compute the fuel economy numbers for the given vehicle (kmpl) on the urban cycle (UDDS) and highway…

1) To develop a double-acting actuator model using Simscape Multibody and Simscape components. The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components. Solution: The below image…

1) To obtain the transfer function of a mass spring damper system and use it in the model. And to add a PID controller (to adjust the force on mass) so that its position follows a reference signal. Given: m = 3.6 kg; k = 400 N/m; c = 100 Ns/m; The reference signal is shown in the following figure. Solution: The differential…

Project: From the laboratory experiment, data on voltage and current has been recorded. The same data is accessed in an excel file.   Read the excel file Laboratory experimental data for voltage vs current values available in an excel file has been accessed by using the Matlab command ‘xlsread’. Matlab…

1) Major elements identified from the above given automotive wiring diagram are listed below: Battery, starter motor, ignition coil, distributor,  Current and voltage regulator, generator, foot selector switch, ignition switch, instrument panel, fuse, ammeter, horn, breaker, Indicator light, beam light, gas tank unit…
