Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Q1) To route the given harness layout in the Electrical workbench. By making an assumption for harness bundle diameters.

Use the following connectors as shown below in the layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

Solution:

Based on the layout diagram shown above the following connectors have been used for the routing.

Connector part code/no.	Image	Type
DT06-4S		Connector & Housing
DT06-6S		Connector & Housing
DT06-2S		Connector & Housing
DT06-08SA		Connector & Housing

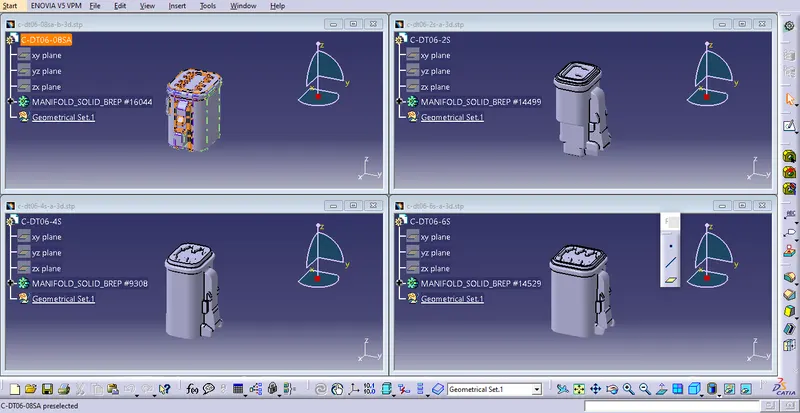

The image below shows the connectors 3d model has been imported to the CATIA V5 interface.

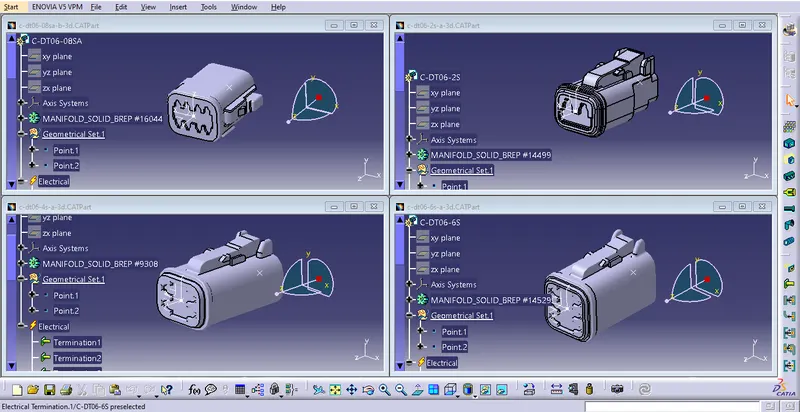

The following Geometric properties have been defined for all the connectors as shown in the image below:

Connector point (point and axis system)

Bundle connector point

Connector connection point

The following Electrical properties have been defined for all the connectors as shown in the image below:

Harness component

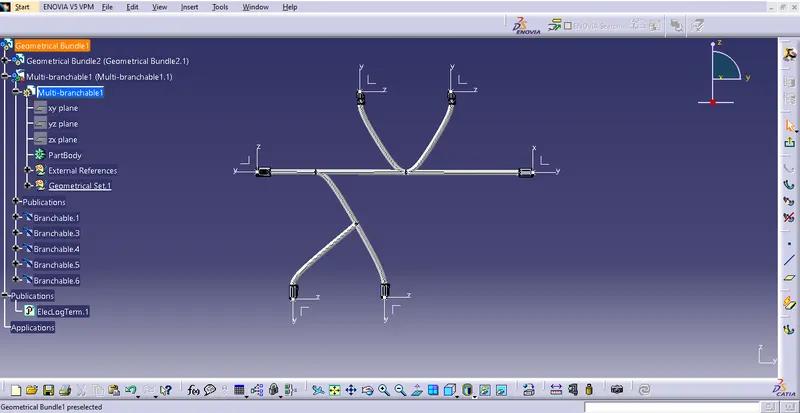

Based on the layout diagram connectors have been configured with reference to the base plate/environment to connect the bundles between connectors. The image below shows the multibranched bundle connection using an electrical harness assembly workbench in Catia V5. The image below shows the multi-branchable connection between the connectors as per the given harness diagram layout.

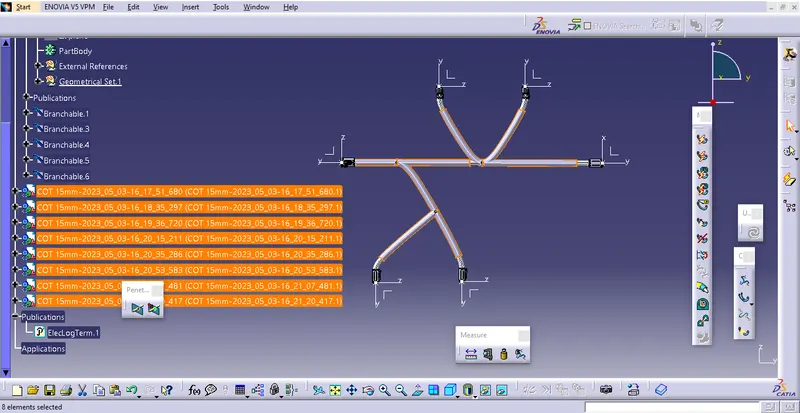

The multi-branched connected harness assembly has also been covered by protecting corrugated covers or tubes. The tubes have been imported from the existing catalog file. The image below shows the harness assembly with a protective cover as per the given extremity conditions.

Conclusion:

The above wiring harness assembly has been built as per the given layout and working conditions using Catia V5 and a wiring harness assembly workbench.
