Project 1

PROJECT 1 Given, Concrete floor thickness = 120 mm = 0.12 m S.W of floor = 0.12*25 = 3 kPa Floor finish and mech loads = 3 kPa Live load = 5 kPa Total load = 11 kPa S.W of beam = 0.5*0.75*25 = 9.375 kN/m Load on the indicated beam  = (11*1.5)*2 =33 kN/m Adding S.w of beam  = 33 + 9.375 = 42.375 kN/m Analyzing…

    • SAI HARSHITA M M

      updated on 10 Feb 2022

    PROJECT 1

    Given,

    Concrete floor thickness = 120 mm = 0.12 m

    S.W of floor = 0.12*25 = 3 kPa

    Floor finish and mech loads = 3 kPa

    Live load = 5 kPa

    Total load = 11 kPa

    S.W of beam = 0.5*0.75*25 = 9.375 kN/m

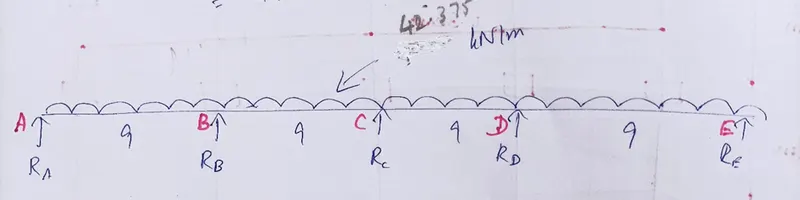

    Load on the indicated beam  = (11*1.5)*2

    =33 kN/m

    Adding S.w of beam  = 33 + 9.375 = 42.375 kN/m

    • Analyzing without considering load patterning

    • Solving by slope deflection method

      Fixed End Moments:

      MFAB = -(42.375*81)/12 = -286.03 kNm

      MFBA = 286.03 kNm

      MFBC=  -286.03 kNm

      MFCB = 286.03 kNm

      MFCD = -286.03 kNm

      MFDC = 286.03 kNm

      MFDE = -286.03 kNm

      MFED = 286.03 kNm

      Unknowns : θa, θb, θc, θd, θe

      E = 10 GPa = 10 * 10^6 kPa

      = 1 *10^7 kPa

      I = (0.5*0.75^3)/12 = 0.0176 m4

      EI = 1.76*10^5 kNm2



      End Moments:

      Span AB :

      M ab = MFAB + (2EI/L)(2θa + θb)

      =  -286.03 + (2*1.76*10^5/9)( 2θa  + θb )

      = -286.03 + 78222.2 θa + 39111.1 θb

      M ba = MFBA + (2EI/L)(2θb + θa )

      =  286.03 + (2*1.76*10^5/9)( 2θb  + θa )

      = 286.03 + 78222.2 θb + 39111.1 θa

      M bc = MFBC + (2EI/L)(2θb + θc)

      =  -286.03 + (2*1.76*10^5/9)( 2θb  + θc )

      = -286.03 + 78222.2 θb + 39111.1 θc

      M cb = MFCB + (2EI/L)(2θc + θb)

      =  286.03 + (2*1.76*10^5/9)( 2θc  + θb )

      = 286.03 + 78222.2 θc + 39111.1 θb

      M cd = MFCD + (2EI/L)(2θc + θd)

      =  -286.03 + (2*1.76*10^5/9)( 2θc  + θd )

      = -286.03 + 78222.2 θc + 39111.1 θd

      M dc = MFDC + (2EI/L)(2θd + θc )

      =  286.03 + (2*1.76*10^5/9)( 2θd  + θc )

      = 286.03 + 78222.2 θd + 39111.1 θc

      M de = MFDE + (2EI/L)(2θd + θe)

      =  -286.03 + (2*1.76*10^5/9)( 2θd  + θe )

      = -286.03 + 78222.2 θd + 39111.1 θe

      M ed = MFED + (2EI/L)(2θe + θd )

      =  286.03 + (2*1.76*10^5/9)( 2θe  + θd )

      = 286.03 + 78222.2 θe + 39111.1 θd



      Equilibrium equations:

      Mab = 0

       78222.2 θa + 39111.1 θb= 286.03

      Mba + Mbc = 0

      (286.03 + 78222.2 θb + 39111.1 θa) + (-286.03 + 78222.2 θb + 39111.1 θc) = 0

      39111.1 θa + 1.56 * 10^5 θb +39111.1 θc = 0

      Mcb + Mcd = 0

      39111.1 θb + 1.56 * 10^5 θc +39111.1 θd = 0

      Mdc + Mde = 0

      39111.1 θc + 1.56 * 10^5 θd +39111.1 θe = 0

      Med = 0

      39111.1 θd + 78222.2 θe = -286.03

      Solving the unknowns,

      θa = 0.00418

      θb = -0.00105

      θc = 0

      θd = 0.00105

      θe = -0.00418

      On Substituting,

      Mab = 0

      Mba = 367.38 kNm

      Mbc = -367.38 kNm

      Mcb = 244.96  kNm

      Mcd = -244.96 kNm

      Mdc = 367.38  kNm

      Mde = -367.38  kNm

      Med = 0

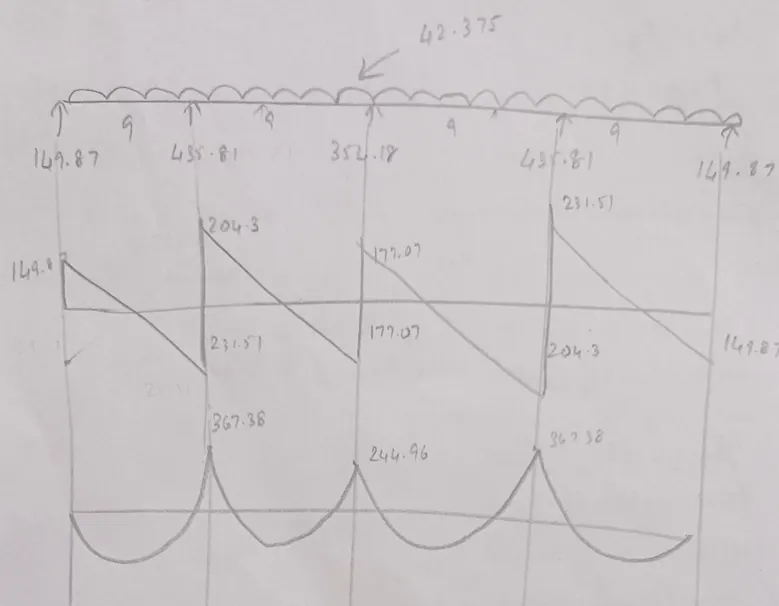

      Analyzing individual members,

      AB:

      ∑Ma = 0

      (42.375*9*4.5)-9Rb + 367.38 = 0

      Rb1 = 231.51 kN

      Ra = 149.87 kN

      BC:

      ∑Mc = 0

      -367.38 + 244.96 – (42.375*9*4.5) + 9 Rb2 = 0

      Rb2 = 204.3 kN

      Rc1 = 177.09 kN

      CD:

      ∑Md = 0

      -244.96+367.38-(42.375*9*4.5)+9Rc2 = 0

      Rc2 = 177.09 kN

      Rd1 = 204.3 kN

      DE:

      ∑Me = 0

      -367.38+9Rd2-(42.375*9*4.5)=0

      Rd2=231.51kN

      Re=149.87kN

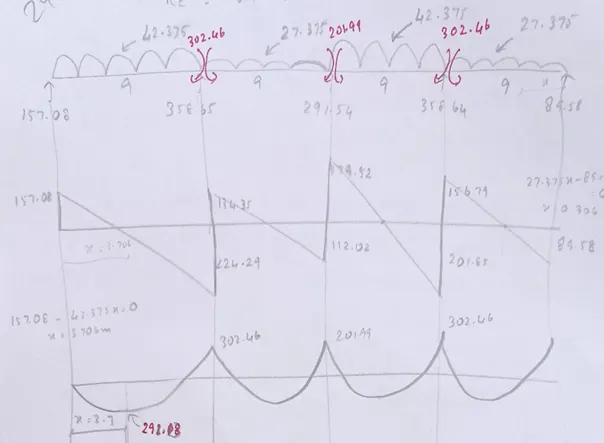

      • Max positive and max negative moment in each span (considering load patterning)

    •

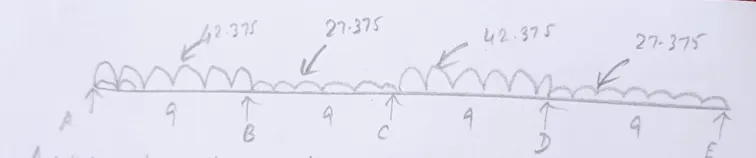

      To get maximum positive moment in AB, AB and CD has to be loaded. Similarly to get maximum positive moment in CD, AB and CD has to be loaded with Live load including SW and DL. The remaining spans has to be loaded with self weight and DL alone





      S.W of floor =  3 kPa

      Mech services and Floor finishes = 3 kPa

      Total load = 6 kPa

      S.W of beam = 9.375 kN/m

      Load on the beam  = (6*1.5*2) = 18 kN/m

      Adding S.W = 18 + 9.375 = 27.375 kN/m

      Live Load on spans AB and CD = ( 5*1.5*2) = 15 kN/m

      Total load on AB and CD = 15 + 27.375 = 42.375 kN/m

      Solving by slope deflection method,

      Fixed End Moments:

      MFAB = -(42.375*81)/12 = -286.03 kNm

      MFBA = 286.03 kNm

      MFBC=  -(27.375*81)/12= -184.78 kNm

      MFCB = 184.78 kNm

      MFCD = -286.03 kNm

      MFDC = 286.03 kNm

      MFDE = -184.78 kNm

      MFED = 184.78 kNm

      Unknowns : θa, θb, θc, θd, θe

      E = 10 GPa = 10 * 10^6 kPa

      = 1 *10^7 kPa

      I = (0.5*0.75^3)/12 = 0.0176 m4

      EI = 1.76*10^5 kNm2



      End Moments:

      Span AB :

      M ab = MFAB + (2EI/L)(2θa + θb)

      =  -286.03 + (2*1.76*10^5/9)( 2θa  + θb )

      = -286.03 + 78222.2 θa + 39111.1 θb

      M ba = MFBA + (2EI/L)(2θb + θa )

      =  286.03 + (2*1.76*10^5/9)( 2θb  + θa )

      = 286.03 + 78222.2 θb + 39111.1 θa

      M bc = MFBC + (2EI/L)(2θb + θc)

      =  -184.78 + (2*1.76*10^5/9)( 2θb  + θc )

      = -184.78 + 78222.2 θb + 39111.1 θc

      M cb = MFCB + (2EI/L)(2θc + θb)

      =  184.78 + (2*1.76*10^5/9)( 2θc  + θb )

      = 184.78 + 78222.2 θc + 39111.1 θb

      M cd = MFCD + (2EI/L)(2θc + θd)

      =  -286.03 + (2*1.76*10^5/9)( 2θc  + θd )

      = -286.03 + 78222.2 θc + 39111.1 θd

      M dc = MFDC + (2EI/L)(2θd + θc )

      =  286.03 + (2*1.76*10^5/9)( 2θd  + θc )

      = 286.03 + 78222.2 θd + 39111.1 θc

      M de = MFDE + (2EI/L)(2θd + θe)

      =  -184.78 + (2*1.76*10^5/9)( 2θd  + θe )

      = -184.78 + 78222.2 θd + 39111.1 θe

      M ed = MFED + (2EI/L)(2θe + θd )

      =  184.78 + (2*1.76*10^5/9)( 2θe  + θd )

      = 184.78 + 78222.2 θe + 39111.1 θd



      Equilibrium equations:

      Mab = 0

       78222.2 θa + 39111.1 θb= 286.03

      Mba + Mbc = 0

      39111.1 θa + 1.56 * 10^5 θb +39111.1 θc = -101.25

      Mcb + Mcd = 0

      39111.1 θb + 1.56 * 10^5 θc +39111.1 θd = 101.25

      Mdc + Mde = 0

      39111.1 θc + 1.56 * 10^5 θd +39111.1 θe = -101.25

      Med = 0

      39111.1 θd + 78222.2 θe = -184.78

      Solving the unknowns,

      θa = 0.00474

      θb = -0.00216

      θc = 0.00130

      θd = -0.00044

      θe = -0.00214

      On Substituting,

      Mab = 0

      Mba = 302.46 kNm

      Mbc = -302.46 kNm

      Mcb = 201.99 kNm

      Mcd = -201.99 kNm

      Mdc = 302.46 kNm

      Mde = -302.46  kNm

      Med = 0

      Analyzing individual members,

      AB:

      ∑Ma = 0

      -9Rb1 + 302.46+(42.375*9*4.5)=0

      Rb1 = 224.3 kN

      Ra = 157.08 kN

      BC:

      ∑Mc = 0

      9Rb2 + 201.99-302.46-(27.375*9*4.5)=0

      Rb2 = 134.35 kN

      Rc1 = 112.02 kN

      CD:

      ∑Md = 0

      9Rc2 –(42.375*9*4.5)-201.99-302.46=0

      Rc2=179.52 kN

      Rd1 = 201.85 kN

      DE:

      ∑Me = 0

      9Rd2 –(27.375*9*4.5)-302.46=0

      Rd2 = 156.79 kN

      Re = 89.58 kN

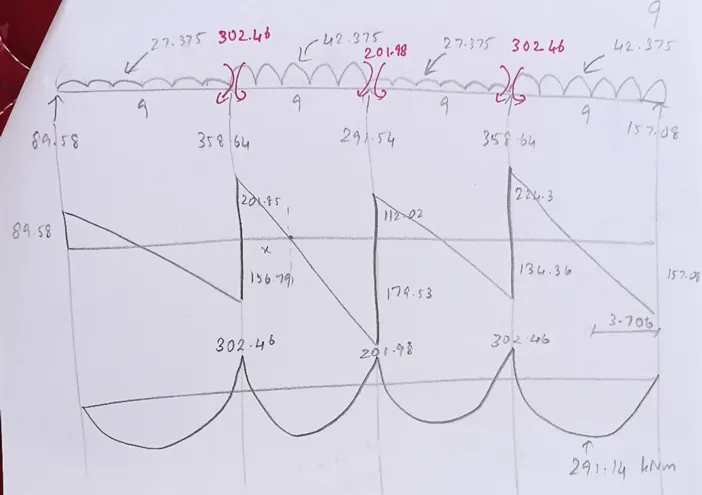

      To get max positive and negative moment in span BC (as well as DE), BC and DE have to be loaded with LL

      Solving by slope deflection method,

      Fixed End Moments:

      MFAB = -(42.375*81)/12 = -184.78 kNm

      MFBA = 184.78 kNm

      MFBC=  -(27.375*81)/12= -286.03 kNm

      MFCB = 286.03 kNm

      MFCD = -184.78 kNm

      MFDC = 184.78 kNm

      MFDE = -286.03 kNm

      MFED = 286.03 kNm

      Unknowns : θa, θb, θc, θd, θe

      E = 10 GPa = 10 * 10^6 kPa

      = 1 *10^7 kPa

      I = (0.5*0.75^3)/12 = 0.0176 m4

      EI = 1.76*10^5 kNm2



      End Moments:

      Span AB :

      M ab = MFAB + (2EI/L)(2θa + θb)

      =  -184.78 + (2*1.76*10^5/9)( 2θa  + θb )

      = -184.78 + 78222.2 θa + 39111.1 θb

      M ba = MFBA + (2EI/L)(2θb + θa )

      =  184.78 + (2*1.76*10^5/9)( 2θb  + θa )

      = 184.78 + 78222.2 θb + 39111.1 θa

      M bc = MFBC + (2EI/L)(2θb + θc)

      =  -286.03 + (2*1.76*10^5/9)( 2θb  + θc )

      = -286.03+ 78222.2 θb + 39111.1 θc

      M cb = MFCB + (2EI/L)(2θc + θb)

      =  286.03 + (2*1.76*10^5/9)( 2θc  + θb )

      = 286.03+ 78222.2 θc + 39111.1 θb

      M cd = MFCD + (2EI/L)(2θc + θd)

      =  -184.78 + (2*1.76*10^5/9)( 2θc  + θd )

      = -184.78+ 78222.2 θc + 39111.1 θd

      M dc = MFDC + (2EI/L)(2θd + θc )

      =  184.78 + (2*1.76*10^5/9)( 2θd  + θc )

      = 184.78+ 78222.2 θd + 39111.1 θc

      M de = MFDE + (2EI/L)(2θd + θe)

      =  -286.03 + (2*1.76*10^5/9)( 2θd  + θe )

      = -286.03+ 78222.2 θd + 39111.1 θe

      M ed = MFED + (2EI/L)(2θe + θd )

      =  286.03 + (2*1.76*10^5/9)( 2θe  + θd )

      = 286.03+ 78222.2 θe + 39111.1 θd



      Equilibrium equations:

      Mab = 0

       78222.2 θa + 39111.1 θb= 184.78

      Mba + Mbc = 0

      39111.1 θa + 1.56 * 10^5 θb +39111.1 θc = 101.25

      Mcb + Mcd = 0

      39111.1 θb + 1.56 * 10^5 θc +39111.1 θd = -101.25

      Mdc + Mde = 0

      39111.1 θc + 1.56 * 10^5 θd +39111.1 θe = 101.25

      Med = 0

      39111.1 θd + 78222.2 θe = -286.03

      Solving the unknowns,

      θa = 0.00214

      θb = 0.00044

      θc = -0.00130

      θd = 0.00216

      θe = -0.00474

      On Substituting,

      Mab = 0

      Mba = 302.46 kNm

      Mbc = -302.46 kNm

      Mcb = 201.99 kNm

      Mcd = -201.99 kNm

      Mdc = 302.46 kNm

      Mde = -302.46  kNm

      Med = 0

      Analyzing individual members,

      AB:

      ∑Mb = 0

      9Ra + 302.46-(27.375*9*4.5)=0

      Rb1 = 156.79 kN

      Ra = 89.58 kN

      BC:

      ∑Mc = 0

      9Rb2 + 201.99-302.46-(42.375*9*4.5)=0

      Rb2 = 201.85 kN

      Rc1 = 179.52 kN

      CD:

      ∑Md = 0

      9Rc2 –(27.375*9*4.5)-201.99-302.46=0

      Rc2=112.02 kN

      Rd1 = 134.35 kN

      DE:

      ∑Me = 0

      9Rd2 –(42.375*9*4.5)-302.46=0

      Rd2 = 224.3 kN

      Re = 157.08 kN

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by SAI HARSHITA M M (39)

    Project 2

    Objective:

    PROJECT 2  AIM: To model and design a PEB Warehouse using Staadpro Procedure: Create nodes and add beams  Create other roof frames by checking the floor plan given in the attachment. Use translational repeat to complete the structure Now start modelling the mezzanine floors Also add nodes to form canopy Load…

    calendar

    09 Jun 2023 02:33 PM IST

      Read more

      Project 1

      Objective:

      Question:- AIM: To Model & Design a Proposed Coil Centre, Chennai using STAAD. Pro for following input from Client  Design only a Main Frame with Lean (Grid 2) & Gable Frame without Lean (Grid 15) Assume purlin load as 8.77 kg/m Assume Gantry girder wt. = 158.24 kg/m Assume Rail weight = 53 kg/m Procedure: Open a new project…

      calendar

      29 May 2023 09:20 AM IST

        Read more

        Week 12 Challenge

        Objective:

        Design of Foundation in STAAD Foundation 1. Isolated Footing Design isolated footing for a column 300 mm x 450 mm, carrying axial load of 1500 kN and Mu = 150 kNm using STAAD. Foundation. Assume that the moment is reversible. The safe bearing capacity of the soil is 200 kN/m2 at a depth of 1 metre from ground level.…

        calendar

        27 May 2023 07:29 AM IST

          Read more

          Week 11 Challenge

          Objective:

          Week 11 Challenge Solutions 1. Friction load determination A pipe carrying LNG rests on the shoe having vertical force of 125 kN. Calculate the Friction load on the axis. Also find the friction force, if TEFLON pad is used between shoe and pipe support. Procedure: Friction factor on Piping: Materials Friction factor Steel…

          calendar

          22 May 2023 01:54 PM IST

            Read more

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            Related Courses

            coursecard

            Design loads considered on bridges

            Recently launched

            10 Hours of Content

            coursecard

            Design of Steel Superstructure in Bridges

            Recently launched

            16 Hours of Content

            coursecard

            Design for Manufacturability (DFM)

            Recently launched

            11 Hours of Content

            coursecard

            CATIA for Medical Product Design

            Recently launched

            5 Hours of Content

            coursecardcoursetype

            Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

            Recently launched

            0 Hours of Content

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            logo

            Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

            https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

            Our Company

            News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
            map
            EpowerX Learning Technologies Pvt Ltd.
            4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
            mail
            info@skill-lync.com
            mail
            ITgrievance@skill-lync.com

            Top Individual Courses

            Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

            Top PG Programs

            Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

            Skill-Lync Plus

            Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

            Trending Blogs

            Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

            © 2025 Skill-Lync Inc. All Rights Reserved.

                        Do You Want To Showcase Your Technical Skills?
                        Sign-Up for our projects.
