Fender Design Challenge

Fender Design in NX-CAD:

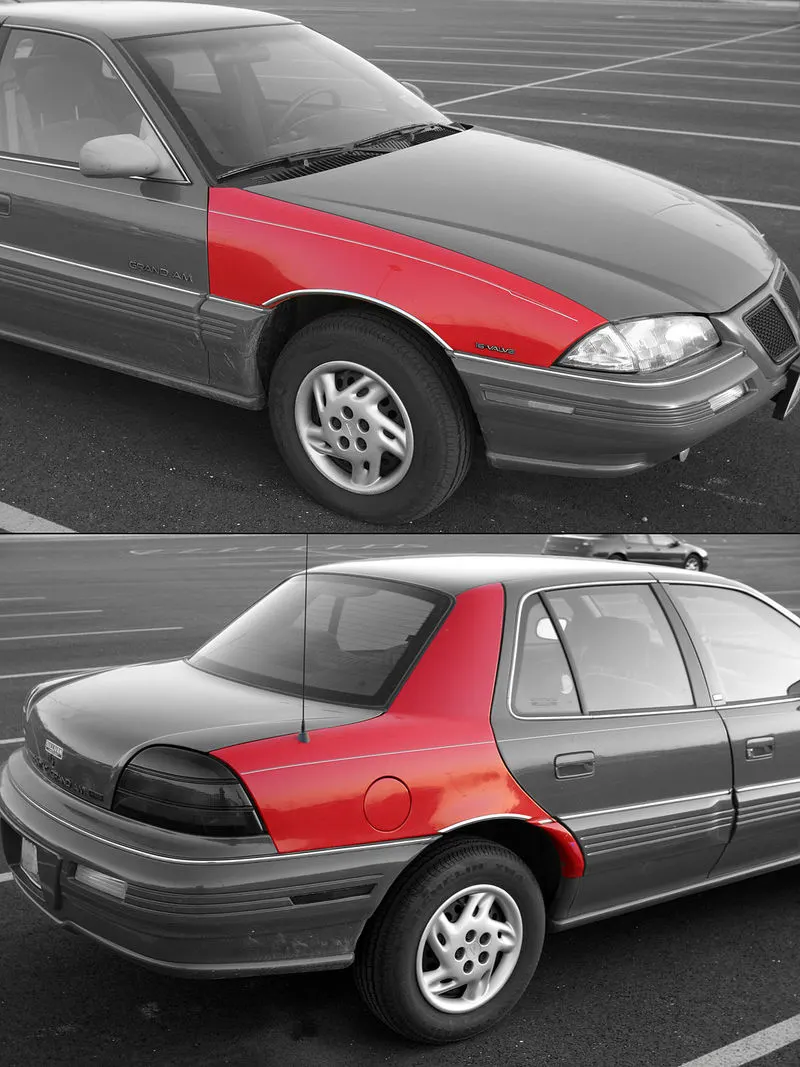

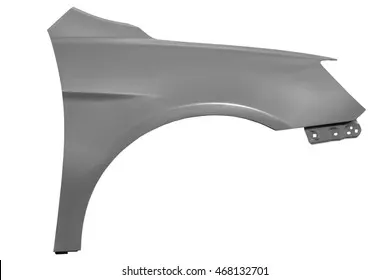

A fender is a piece of vehicle, situated over wheel. Its main objective is to protect pedestrian from sand, rocks and many more foreign particles that gets thrown when the wheel starts turning. It also protects internal components of vehicles from being getting damaged due to foreign objects. Various fender’s parts like internal mount, side and cowl mount that are joined with nuts to the fender prevents engine room compartment and suspension of the vehicle, etc. Fender is located in both front and backend of the vehicle.

Types of Fenders:

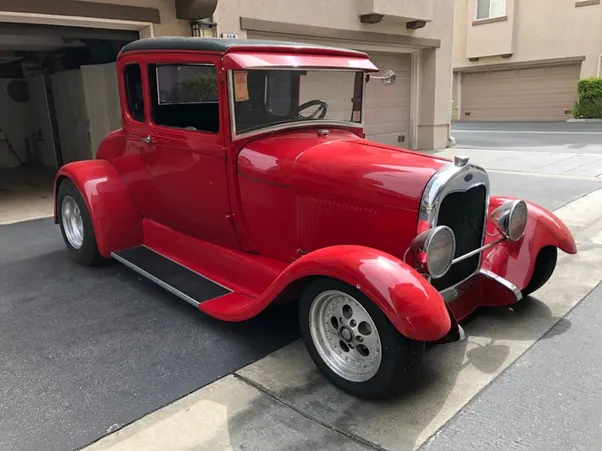

• Full Fender:

The full fender type is a standard sort of fender in which more material is used. This type of fender was used in the old types of the vehicles. Due to more usage of material, there was more wastage of material and gradual increase in the weight of the material.

• Half type Fender:

Half fender is a forefront design where less material is used, so capability increments by decreasing the indisputable size and giving more presentation. The assistance in like way unassumingly low stood apart from the full guard type.

Manufacturing Process:

A vehicle fender monitor is made by an interaction called reaction injection molding (RIM), which basically includes making a one-of-a-kind polyurethane compound and bringing it into an immense fender. RIM is the methodology that screens unrefined materials and lessens costs. It resembles injection molding beside thermosetting polymers are used, which requires a reestablishing reaction to occur inside the shape. Normal things made from RIM join vehicle monitors, air spoilers and fenders.

Reaction Injection Molding:

RIM is a low squeezing factor, the low temperature measure used to frame various sort of plastic parts. This process is conventionally used for clinical, mechanical and auto ventures. RIM is habitually utilized for the molding of strong, light weight parts and that are easily painted. The unbendable material used by Design Octaves go with a UL94V-O rating for instability.

The RIM molding material utilized by the Design Octaves is a two-section structure that includes polyol and isocyanate liquids that are mixed at a high squeezing factor and a while later metered into a shut gadget at a low squeezing factor. The material by then develops to fill the mechanical assembly and is shot out in around 5 minutes.

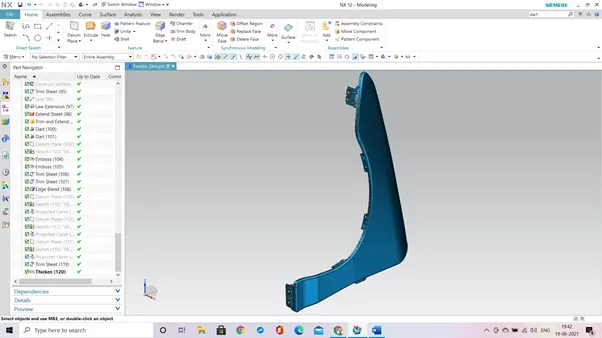

Master Sketch:

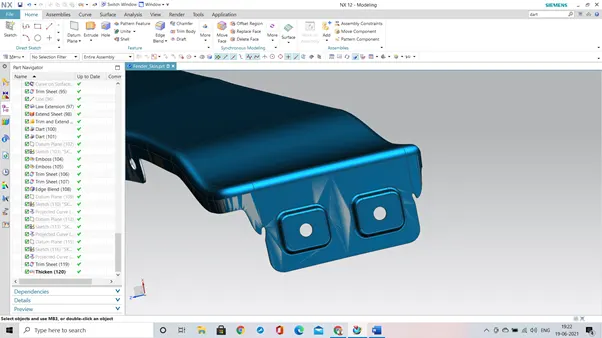

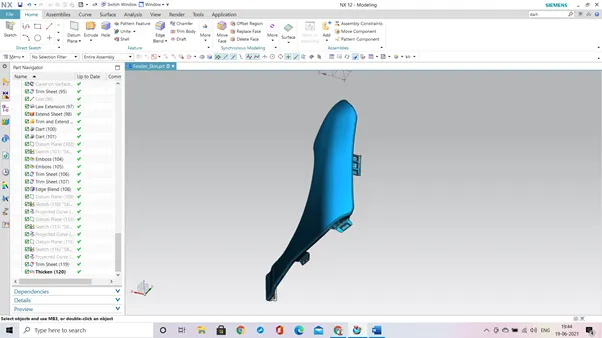

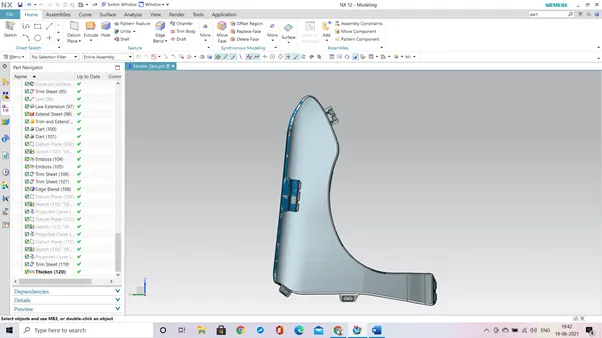

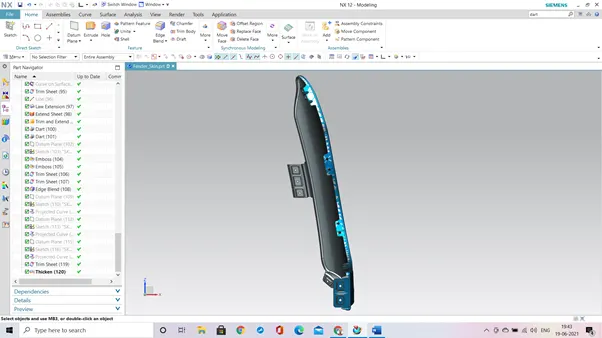

Various Parts Designed in the Fender Design are as follows:

• Drip Area

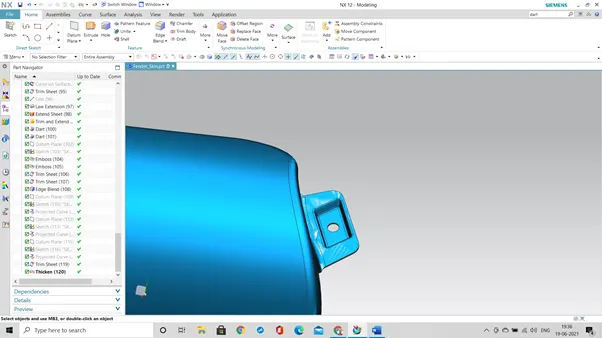

• Sill Mount Area

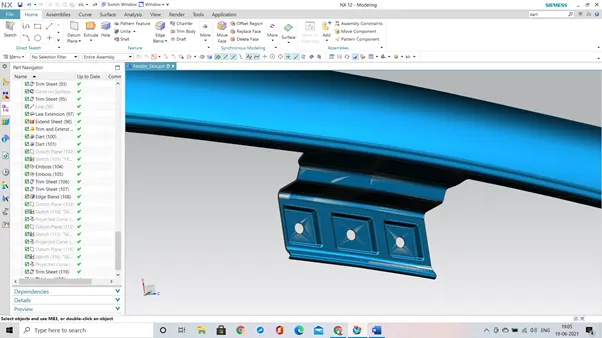

• Bumper Mount Area
• A-Pillar Mount Region
• Baffle Mount

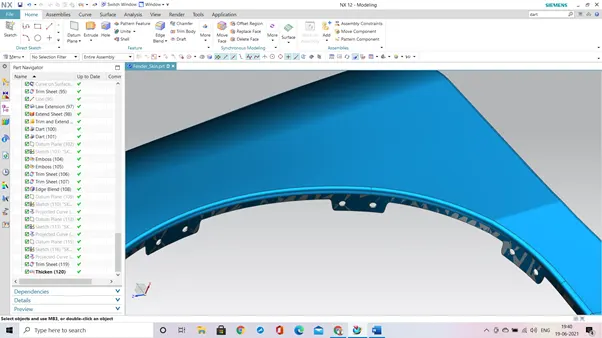

• Drip Area:

Primarily, the fundamental design of a fender incorporates developing the spilling area as it is huge mounting region and require certain characteristics that should qualify a fender design. Accepting it isn’t true to form design, the spilling area would be recognizable from the opening between the hood and fender. The overabundance mountings are covered by various parts.

• Sill Mount Area:

Sill Mounting is designed at the bottom of the fender. Relief cuts are given for easy stress distribution.

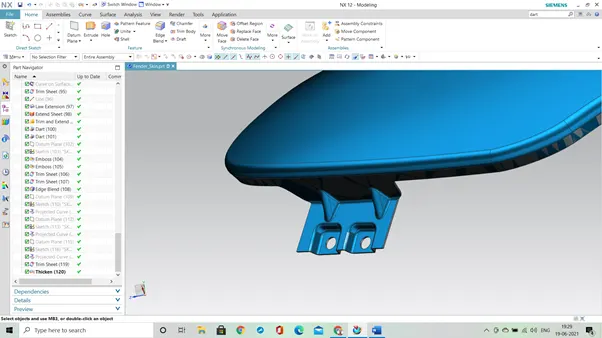

• Bumper Mounting:

Bumper is present at the front portion of the vehicle. The purpose of bumper is to reduce or prevent physical damage to the front and rear of vehicles in low-speed crashes. The bumper is designed to protect the hood, turnk, grill, fuel, exhaust and cooling system. A bumper is a shield that is usually made of steel, aluminum, rubber or plastic.

• A-Pillar Mount region:

Manufacturers provide the A-pillar on the both side of the A-pillar. The A-pillar is made of strong steel alloys. This is to make it withstand a crash and meet safety standards. However, vehicle’s roof and the doors are the most expensive part to carry out repairs. The blind spot occurs due to the blocking of the driver’s vision by the A-pillar. So, some car makers made the A-pillar slimmer and chamfered to decrease the blind spots. And thus, it improves the driver’s vision.

• Baffle Mount:

Baffle is mounted on the above portion of the wheel so that the mud and stones are prevented from hitting the vehicle.

Thickness provided to the fender design is 0.75 mm.
