Experimental Study of Fluid Flow Over A NACA 0012 Aerofoil Subjected To Varying Angle of Attacks By Creating A Virtual Wind Tunnel Using STAR CCM+ Software

Abstract:- The experiment is focused on studying the flow characteristics over a symmetric NACA 0012 aerofoil inside a virtually designed low subsonic wind tunnel created using the geometry editing tools available in STAR CCM+ software & the results obtained will be post-processed using Plots & reports. The aerofoil designed will have a span of 1m or 100cm or 1000mm and a chord length of 0.2m or 20cm or 200mm. The virtual wind tunnel will have a length of 50 times the chord length & breadth of 30 times the chord length of the aerofoil. We will be using a transient solver to analyze the fluid flow over the symmetric aerofoil. The pressure distribution on the airfoil surface was obtained, lift and drag forces were measured, and the mean velocity profiles were obtained over the surface of the aerofoil. Experiments were carried out by varying the angle of attack (AOA) at 0°, 3°, 6°, 9°, 12° & 15°, stalling of the aerofoil was observed. The experimentation allowed a comparison of flight characteristics between the different AoA of the airfoil. Through this experimental study, we will also be also calculating the drag coefficient `C_D`& lift coefficient `C_L` from the results obtained.

                                                                                                                          Fig 1.1:- Test model & Experimental Setup

Introduction To Aerofoils

In the early 1800s, Sir George Cayley discovered that a curved surface produced more lift than a similar-sized flat plate. What aviation pioneers discovered, which still holds
true today is that the most efficient way to do this is to use a curved, streamlined shape — the aerofoil. Aerofoils are defined as the cross-sectional shape that is designed with a curved surface giving it the most favorable ratio between lift and drag in flight.  Lift is the component such that the force is perpendicular to the direction of motion and drag is the component parallel to the direction of motion. Airfoils are highly-efficient lifting shapes, able to generate more lift than similarly sized flat plates of the same area, and able to generate lift with significantly less drag. Airfoils have the potential for use in the design of aircraft, propellers, rotor blades, wind turbines, and other applications of aeronautical engineering.

A similar idea is used in the designing of hydrofoils which is used when water is used as the working fluid. The designing of the aerofoil depends on the aerodynamic characteristics which further depends on the weight, speed, and purpose of the aircraft.

The Wright brothers & many of the early designers used “eyeball engineering” in developing or copying the airfoil shape used on their airplanes. From about 1912, airfoil
development and research moved to the wind tunnel laboratories found at the University of Göttingen in Germany, the Royal Aircraft Factory in the United Kingdom, and the National Advisory Committee for Aeronautics (NACA) in the United States. Among other advancements, NACA research & development produced the NACA duct, a type of air intake used in modern automotive applications, the NACA cowling, and several series of NACA aerofoils which are still used in aircraft manufacturing as shown in Fig 1.2.  Since then, the wind tunnel, complex mathematics, and the computer have all played important roles in airfoil development.

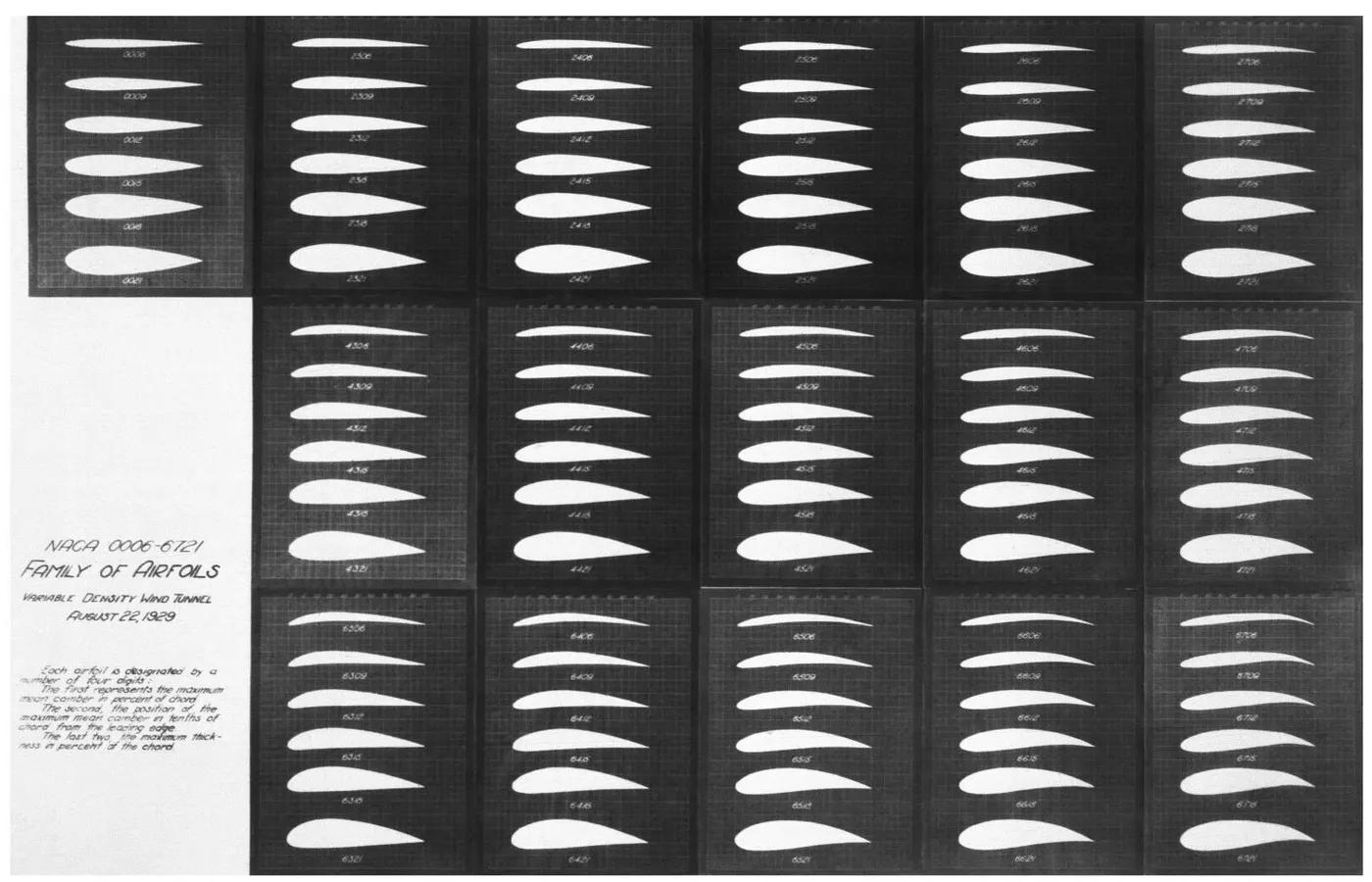

                                                                                        Fig 1.2:- National Advisory Committee for Aeronautics (NACA) airfoil series.

Airfoil Nomenclature

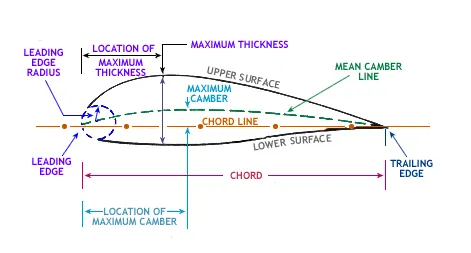

The following are the terms that are related to aerofoils. A chord is defined as the distance between the leading edge which is the point at the front of the aerofoil and has maximum curvature and the trailing edge which is the point at the rear of the aerofoil with maximum curvature along the chord line. Leading Edge is the point at the front of the airfoil that has minimum curvature (maximum radius). Trailing-Edge is defined similarly as the point of maximum curvature at the rear of the airfoil. The chord line is defined as the straight line connecting the leading and trailing edges. The upper surface is also known as the suction surface which is associated with high velocity and low static pressure. The Lower surface is also known as pressure surface with higher static pressure. The angle of attack (AOA) is the angle formed between a reference line on a body and the oncoming flow.

                                                                                            Fig 1.2:- NACA aerofoil at a 0-degree AOA & `alpha`- degree AOA.

Based on the shape of the aerofoil, they are classified into cambered aerofoil & symmetric aerofoil. Symmetrical aerofoil has identical upper and lower surfaces such that the chord line and mean camber line are the same producing no life at zero AOA as shown in Fig 1.3. These find applications in most of the light helicopters in their main rotor blades. Cambered aerofoil has different upper and lower surfaces such that the chord line is placed above with large curvature. It is usually designed into an airfoil to maximize its lift coefficient. This minimizes the stalling speed of aircraft using the airfoil. An aircraft with cambered wings will have a lower stalling speed than an aircraft with a similar wing loading and symmetric airfoil wings. It can also generate useful lift at zero AOA.

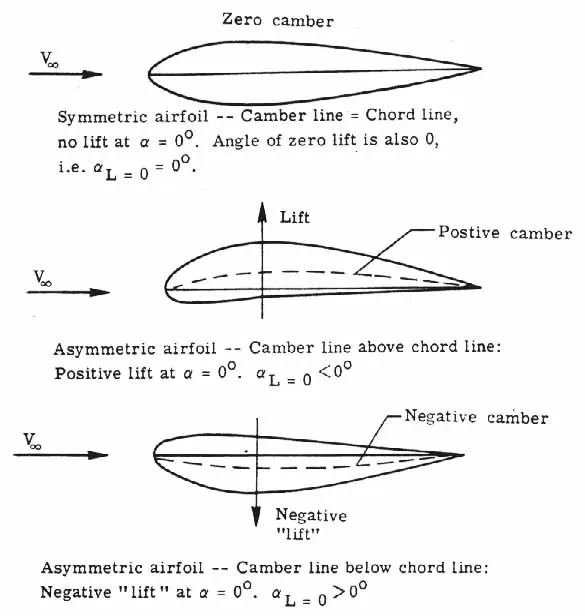

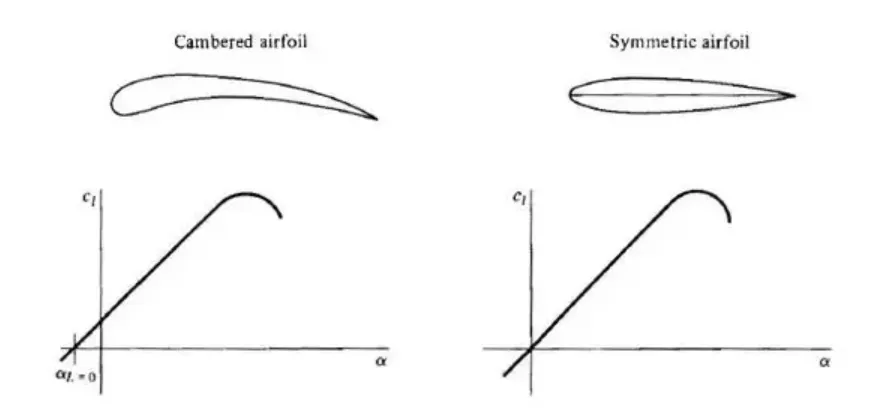

                                                                                     Fig 1.3:- Pictorial Representation of a Cambered aerofoil & a Symmetric aerofoil.

NACA Airfoil Series

The early NACA airfoil series, the 4-digit, 5-digit, and modified 4-/5-digit were generated using analytical equations that describe the camber (curvature) of the mean-line (geometric centerline) of the airfoil section as well as the section's thickness distribution along the length of the airfoil. Later families, including the 6-Series, are more complicated shapes derived using theoretical rather than geometrical methods. Before the National Advisory Committee for Aeronautics (NACA) developed
these series, airfoil design was rather arbitrary with nothing to guide the designer except past experience with known shapes and experimentation with modifications to those shapes.

 This methodology began to change in the early 1930s with the publishing of a NACA report entitled The Characteristics of 78 Related Airfoil Sections from Tests in the Variable Density Wind Tunnel. In this landmark report, the authors noted that there were many similarities between the airfoils that were most successful, and the two primary variables that affect those shapes are the slope of the airfoil mean camber line and the thickness distribution above and below this line. They then presented a series of equations incorporating these two variables that could be used to generate an entire family of related airfoil shapes. As airfoil design became more sophisticated, this basic approach was modified to include additional variables, but these two basic geometrical values remained at the heart of all NACA airfoil series.

          A. NACA Four-Digit Series: The first family of airfoils designed using this approach became known as the NACA Four-Digit Series. The first digit specifies the maximum camber (m) in the percentage of the chord (airfoil length), the second indicates the position of the maximum camber (p) in tenths of the chord, and the last two numbers provide the maximum thickness (t) of the airfoil in the percentage of the chord. For example, as in our case for NACA 2412 airfoil has a maximum thickness of 12% with a camber of 2% located 40% back from the airfoil leading-edge (or 0.4c).

         B. NACA Five-Digit Series: The NACA Five-Digit Series uses the same thickness forms as the Four-Digit Series but the mean camber line is defined differently and the naming convention is a bit more complex. The first digit, when multiplied by 3/2, yields the design lift coefficient (cl) in tenths. The next two digits, when divided by 2, give the position of the maximum camber (p) in tenths of the chord. The final two digits again indicate the maximum thickness (t) in the percentage of the chord. For example, the NACA 23012 has a maximum thickness of 12%, a design lift coefficient of 0.3, and a maximum camber located 15% back from the leading edge.

         C. Modified NACA Four- and Five-Digit Series: The airfoil sections you mention for the B-58 bomber are members of the Four-Digit Series, but the names are slightly different as these shapes have been modified. Let us consider the root section, the NACA 0003.46-64.069, as an example. The basic shape is 0003, a 3% thick airfoil with 0% camber. This shape is a symmetrical airfoil that is identified above and below the mean camber line. The first modification we will consider is 0003-64. The first digit following the dash refers to the roundedness of the nose. A value of 6 indicates that the nose radius is the same as the original airfoil while a value of 0 indicates a sharp leading edge. Increasing this value specifies an increasingly more rounded nose. The second digit determines the location of maximum thickness in tenths of the chord. The default location for all four- and five-digit airfoils is 30% back from the leading edge. In this example, the location of maximum thickness has been moved back to a 40% chord. Finally, notice that the 0003.46-64.069 features two sets of digits preceded by decimals. These merely indicate slight adjustments to the maximum thickness and location thereof. Instead of being 3% thick, this airfoil is 3.46% thick. Instead of the maximum thickness being located at 40% chord, the position on this airfoil is at 40.69% chord.

          D. NACA 6-Series: The naming convention of the 6-Series is by far the most confusing of any of the families discussed thus far, especially since many different
variations exist. One of the more common examples is the NACA 641-212, a=0.6. In this example, 6 denotes the series and indicates that this family is designed for greater laminar flow than the Four- or Five-Digit Series. The second digit, 4, is the location of the minimum pressure in tenths of the chord (0.4c). The subscript 1 indicates that low drag is maintained at lift coefficients 0.1 above and below the design lift coefficient (0.2) specified by the first digit after the dash in tenths. The final two digits specify the thickness in the percentage of the chord, 12%. The fraction specified by a=___ indicates the percentage of the airfoil chord over which the pressure distribution on the airfoil is uniform, 60% chord in this case. If not specified, the quantity is assumed to be 1, or the distribution is constant over the entire airfoil.

           E. NACA 7-Series: The 7-Series was a further attempt to maximize the regions of laminar flow over an airfoil differentiating the locations of the minimum pressure on the upper and lower surfaces. An example is the NACA 747A315. The 7 denotes the series, the 4 provides the location of the minimum pressure on the upper surface in tenths of the chord (40%), and the 7 provides the location of the minimum pressure on the lower surface in tenths of the chord (70%). The fourth character, a letter, indicates the thickness distribution and mean line forms used. A series of standardized forms derived from earlier families are designated by different letters. Again, the fifth digit indicates the design lift coefficient in tenths (0.3), and the final two integers are the airfoil thickness in the percentage of the chord (15%).

Lift & Drag Force Acting On An Aerofoil

Lift is defined as the component of the aerodynamic force perpendicular to the relative airflow. There are multiple incorrect theories concerning the generation lift. The theory most commonly found in textbooks and pilot training manuals utilizes Bernoulli’s principle which states that for a liquid or gas, areas with high relative velocity create lower pressure systems, and areas with low relative velocity create high-pressure systems. The theory states that airfoils are shaped so that the upper surface is longer than the lower surface; therefore when air molecules are separated by the leading edge of the airfoil, they have a greater distance to travel as they cross the upper surface than along the lower surface. Thus, in order for the air molecules to meet at the trailing edge at the same time, the molecules traveling along the upper surface must be traveling faster than the air molecules along the bottom surface. Since the airflow on the upper surface is faster, Bernoulli’s principle states that a lower pressure system is created. The difference between the low pressure above the airfoil and the higher pressure below causes the lift to occur.

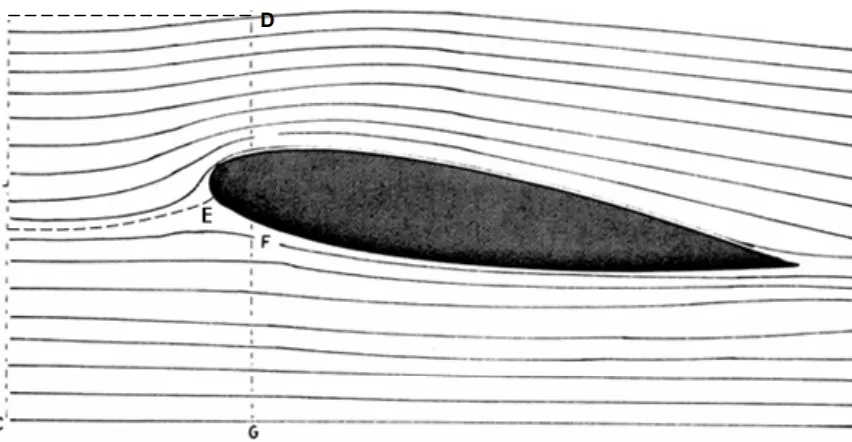

                                                                                 Fig 1.4:-: Airflow about an airfoil according to the flow turning theory.

However, there are no principles of fluid dynamics stating that two free moving air particles must meet at a single point beyond an obstacle once separated by the obstacle.
The correct theory of lift generation is known as the flow turning theory. It states that the airfoil bends the direction of the airflow around it as the airflow passes over the
the upper surface, and creates a vertical velocity of airflow past the trailing edge. The effect of the airflow bending is due to the viscosity of a fluid and the Coanda effect. As the airfoil bends the airflow near the upper surface, it pulls on the air above it and causes an acceleration of that air down to the airfoil. The pulling of the air causes a low-pressure system to form over the airfoil creating a net force that is lift. Figure 1.5 demonstrates airflow about an airfoil generating lift by the flow turning theory. The other aerodynamic force that affects an airfoil in a wind tunnel is perpendicular to the lifting force, called drag. The airfoil experiences a drag force that opposes the relative motion of the airfoil and has direction parallel to the airflow. Skin friction drag is the friction that occurs between the air molecules and the surface of the airfoil. Form drag is dependent on the overall shape of the airfoil and pertains to the pressure distribution about the airfoil’s surface. As with the lifting force, the airfoil changes the local momentum of the air around it, affecting the velocity and pressure. The resulting pressure distribution produces a force that acts on the airfoil.

Lift & Drag Co-efficient

The equations for calculating lift and drag are very similar. The lift that an airfoil generates depends on the density of the air, the velocity of the airflow, the viscosity and compressibility of the air, the surface area of the airfoil, the shape of the airfoil, and the angle of the airfoil’s angle of attack. However, dependence on the airfoil’s shape, the angle of attack, air viscosity, and compressibility are very complex. Thus, they are characterized by a single variable in the lift equation, called the lift coefficient. Due to the complexities of the lift coefficient, it is generally found via experimentation in a wind tunnel where the remaining variables can be controlled. Therefore, the lift equation is given by                                                                                                                                                               `L = 1/ 2 ρV ^2SC_L`

                                       Where,  C_L: lift coefficient, L: lift force, S: relevant surface, q: fluid dynamic pressure, ⍴: fluid density, u: flow speed.

As with lift, the drag of an airfoil depends on the density of the air, the velocity of the airflow, the viscosity and compressibility of the air, the surface area of the airfoil, the shape of the airfoil, and the angle of attack. The complexities associated with drag and the airfoil’s shape, angle of attack, the air’s viscosity, and air’s compressibility are simplified in the drag equation by use of the drag coefficient. The drag coefficient is generally found through testing in a wind tunnel, where the drag can be measured, and the drag coefficient is calculated by rearranging the drag equation

                                                                                                                                    `D = 1/2 ρV^2AC_D`

                                       Where,  D: drag force, ρ: density of the air, V: velocity of the air, A: body area, and `C_D`is the drag coefficient.

Experimental Setup

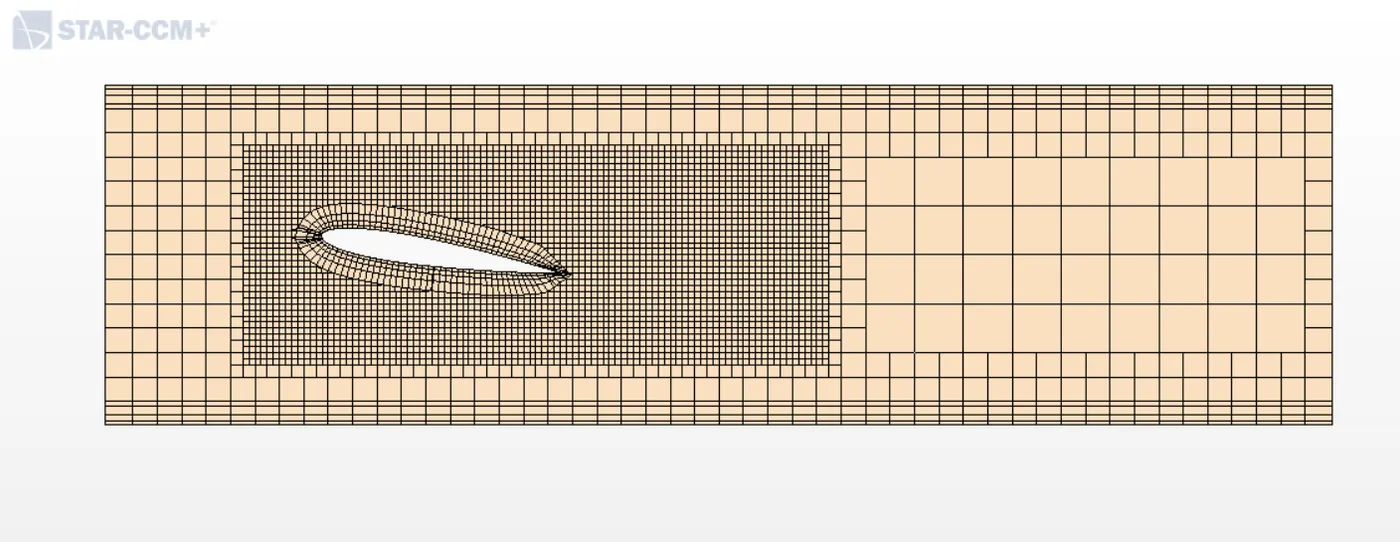

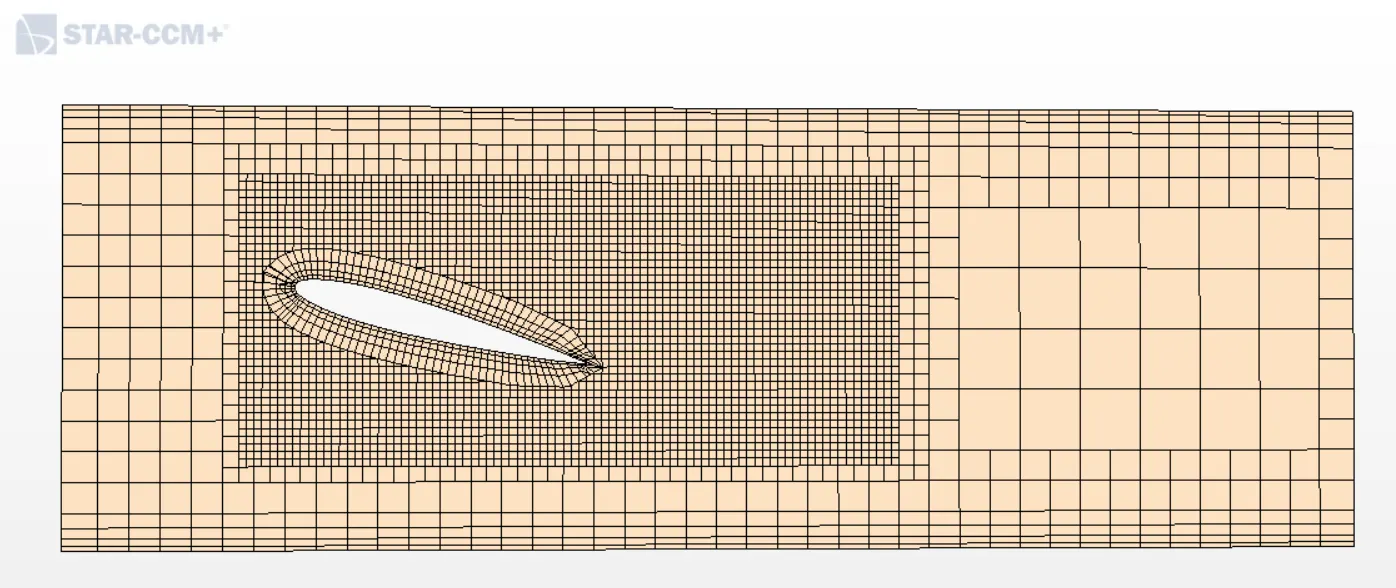

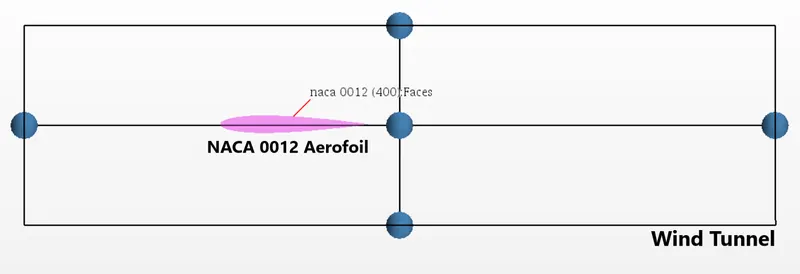

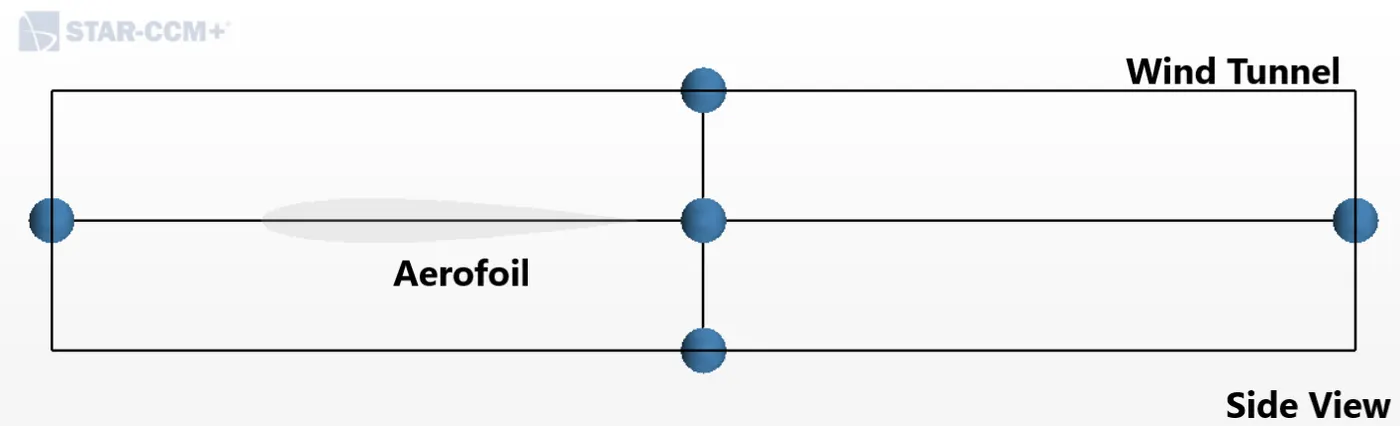

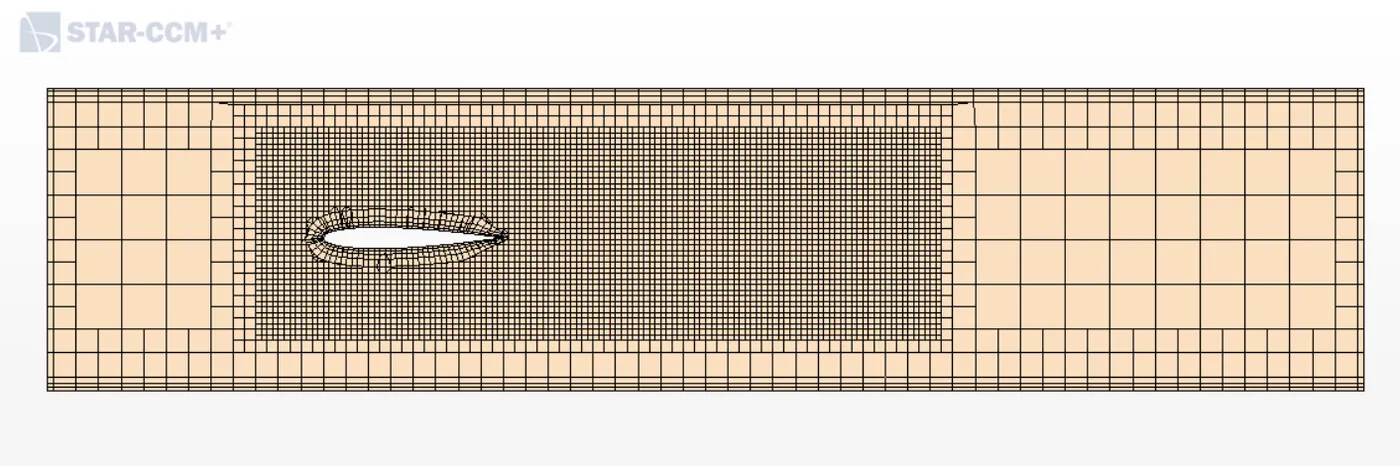

                                                                      A. Importing The 3D Aerofoil geometry, Designing The Virtual Wind Tunnel & Performing Surface Manipulation

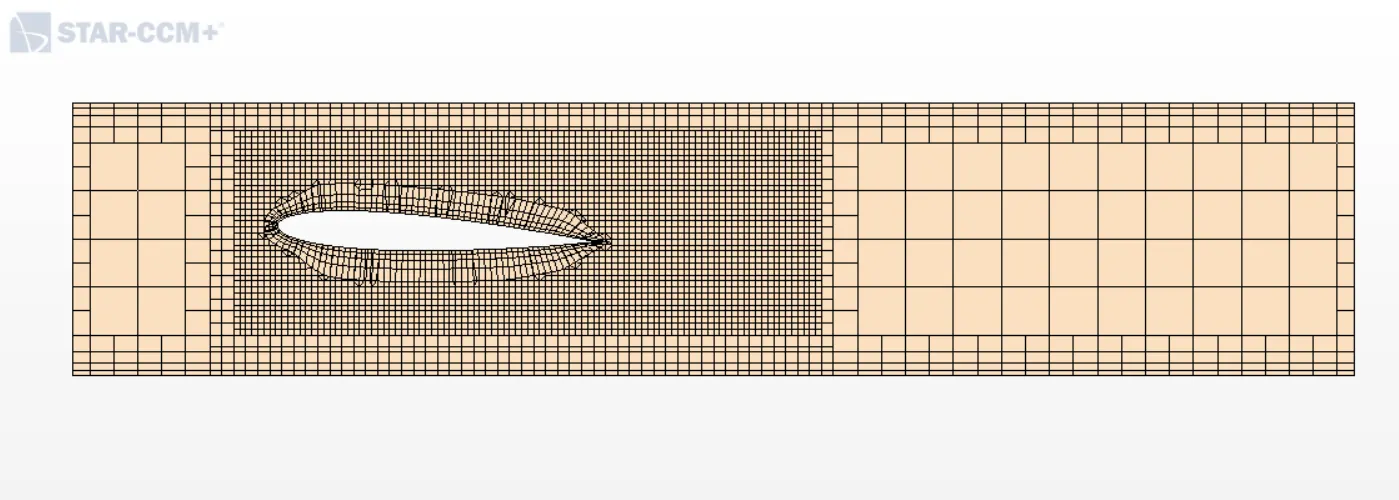

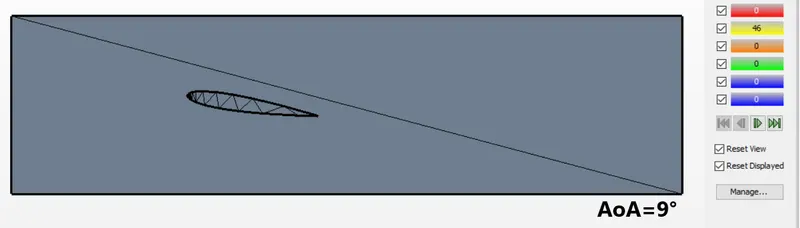

                                                                        B. Surface Repair or Checking For Errors In the Domain of Interest

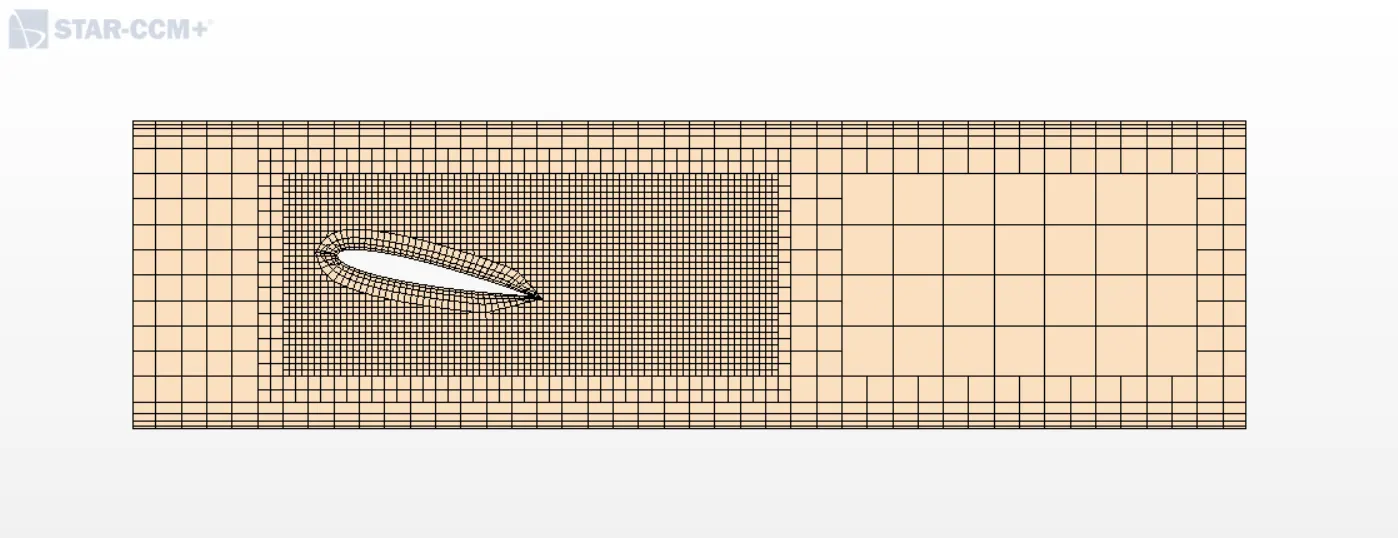

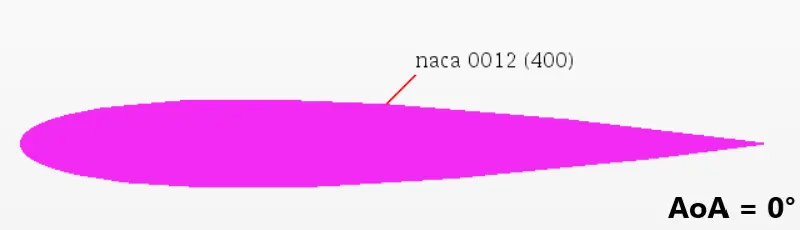

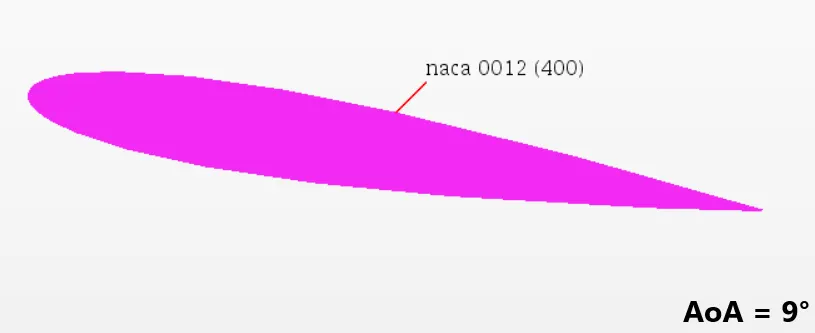

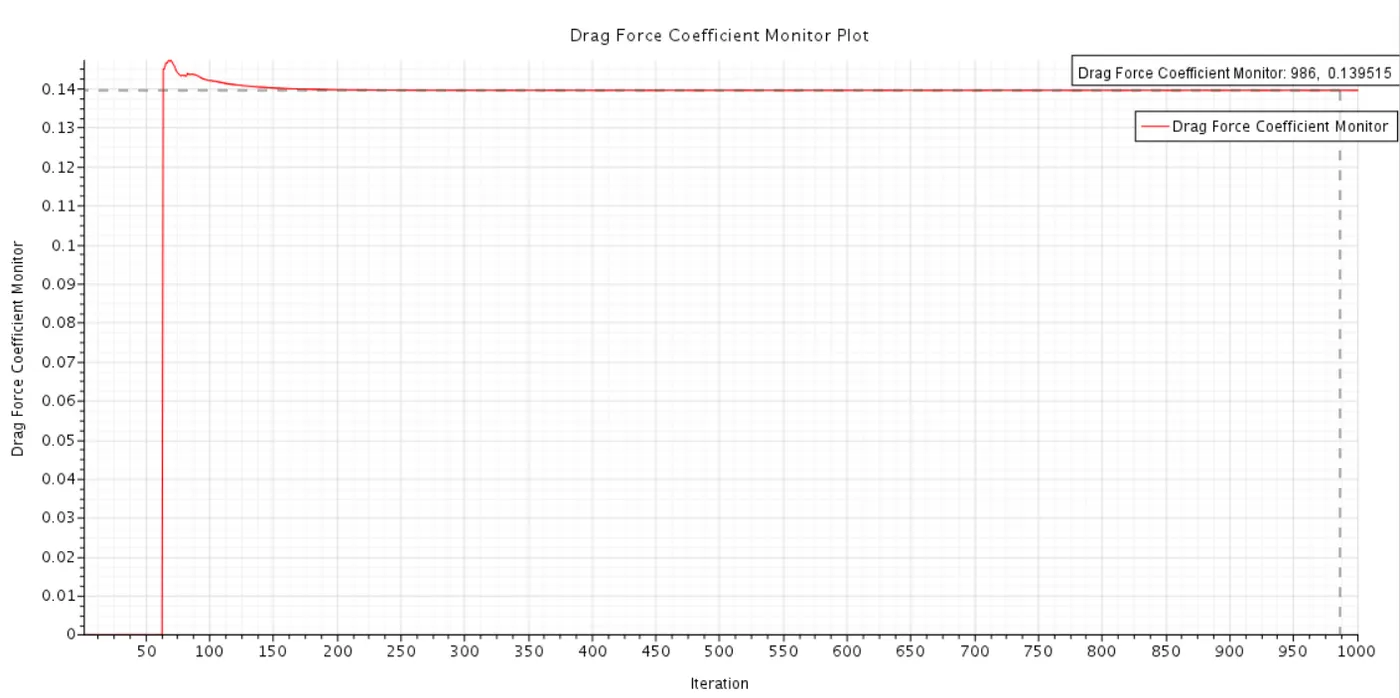

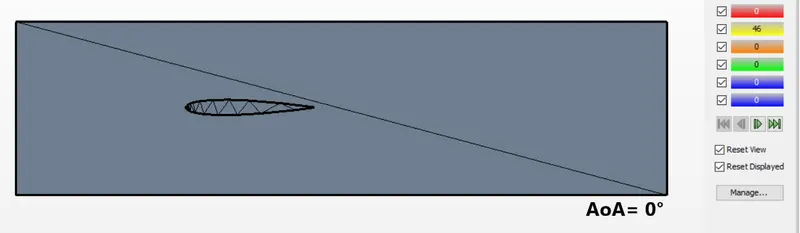

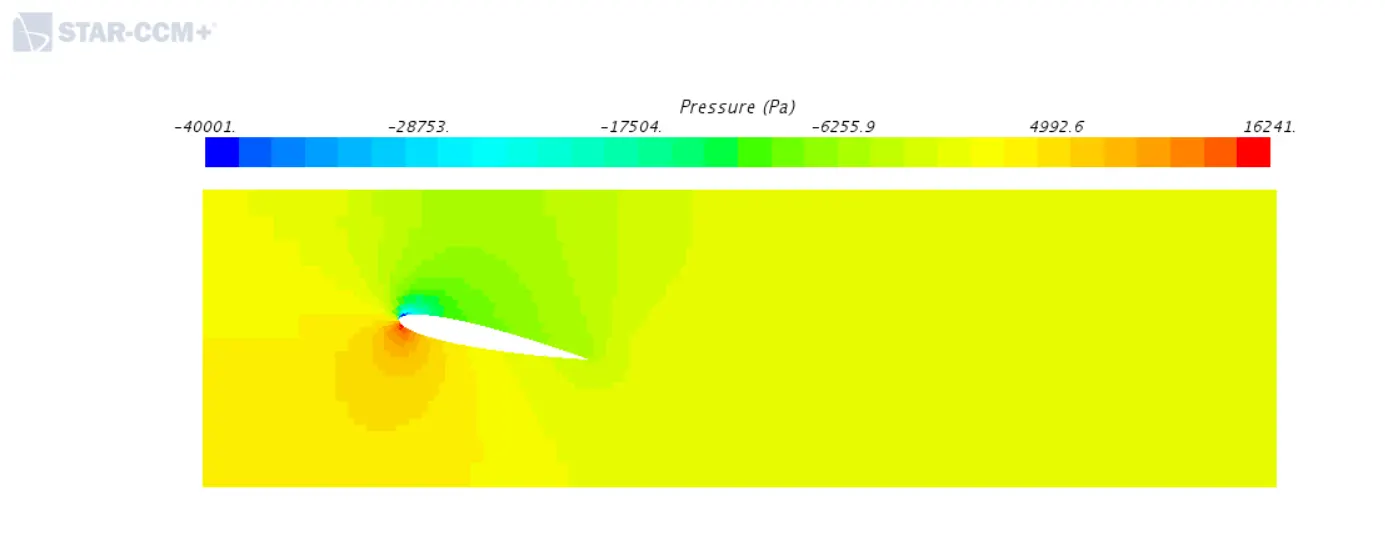

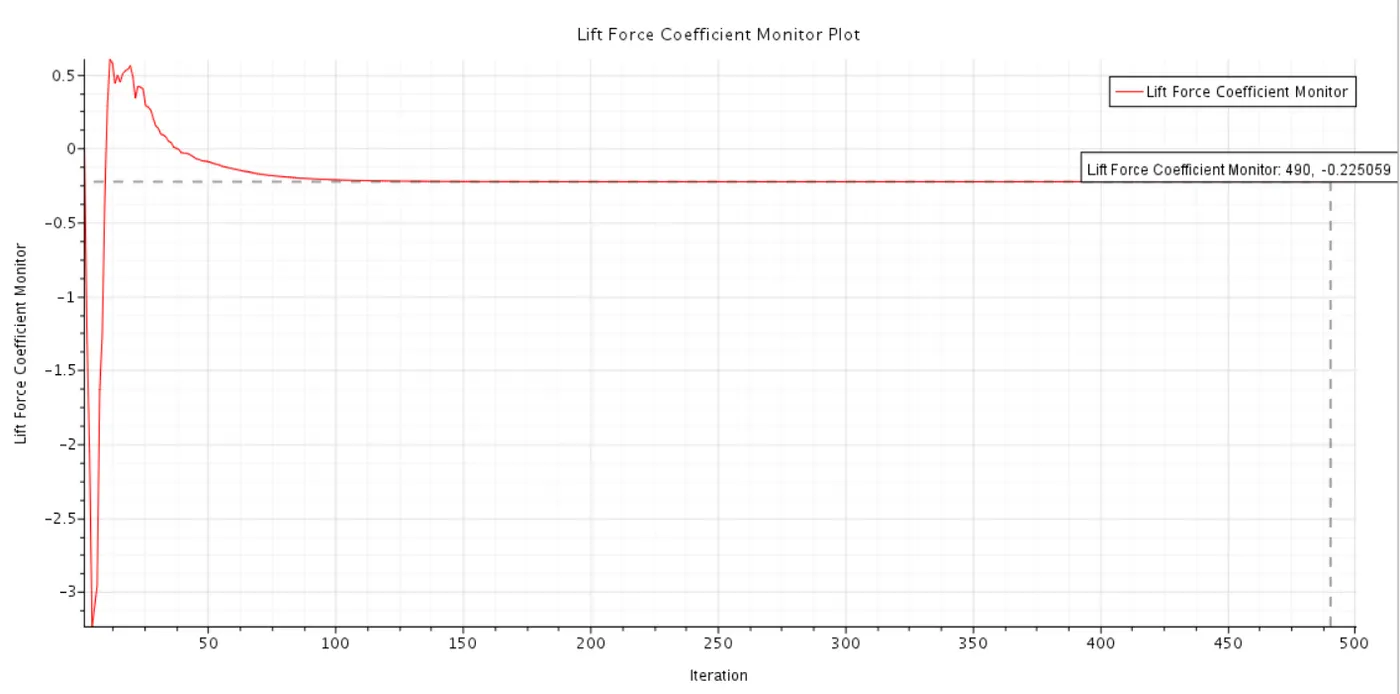

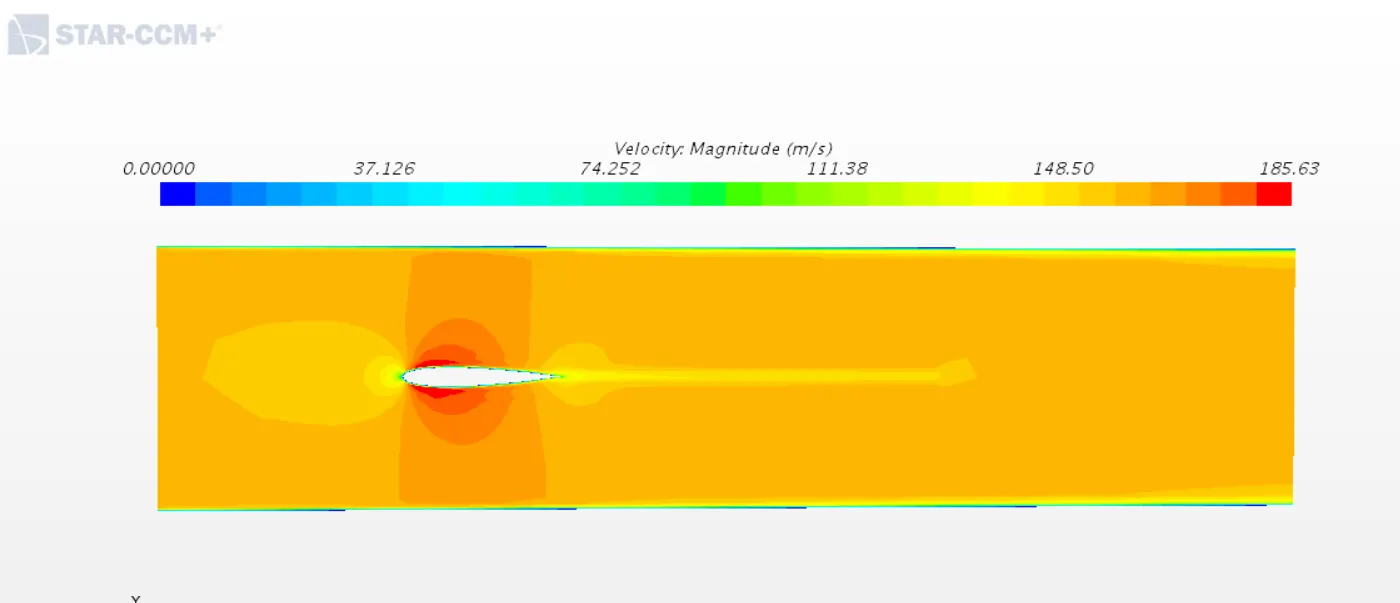

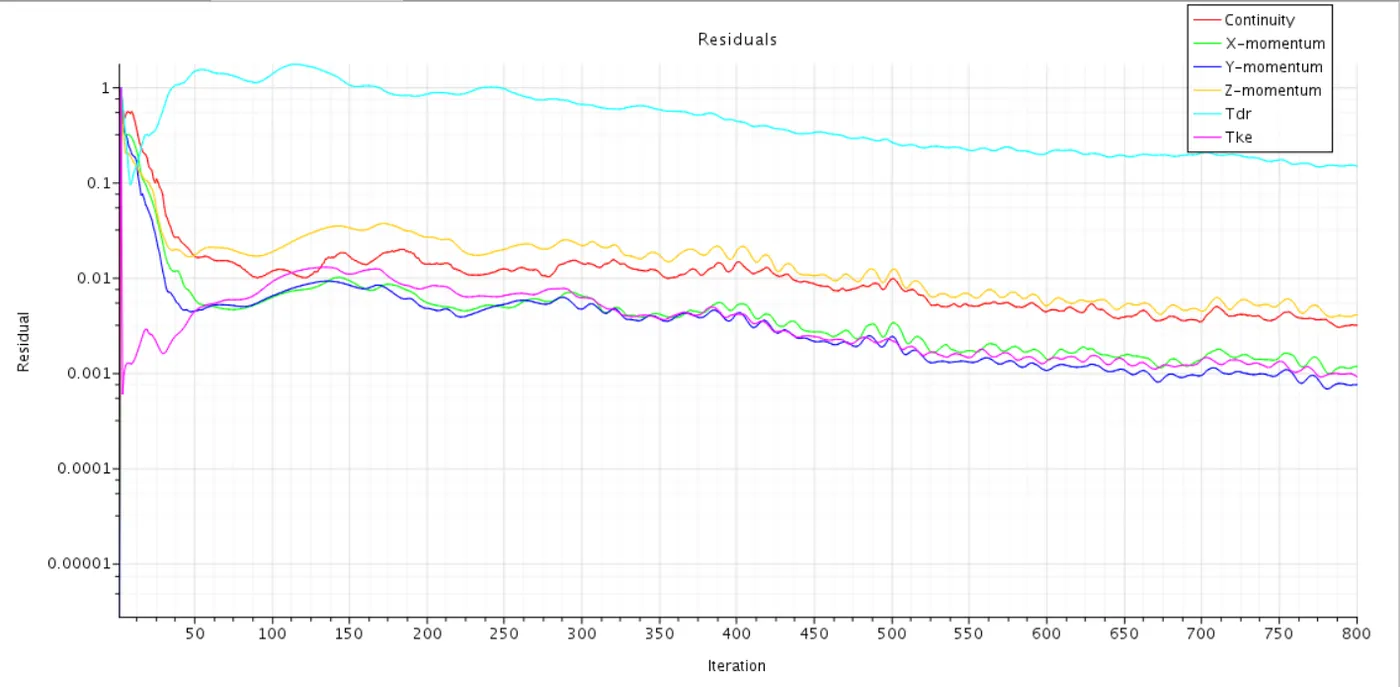

Case 1: Aerofoil With an Angle of Attack (AoA) of 0°

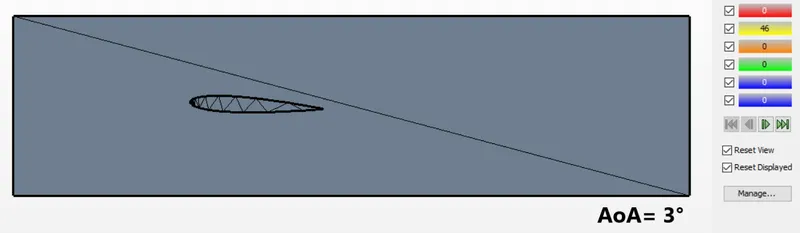

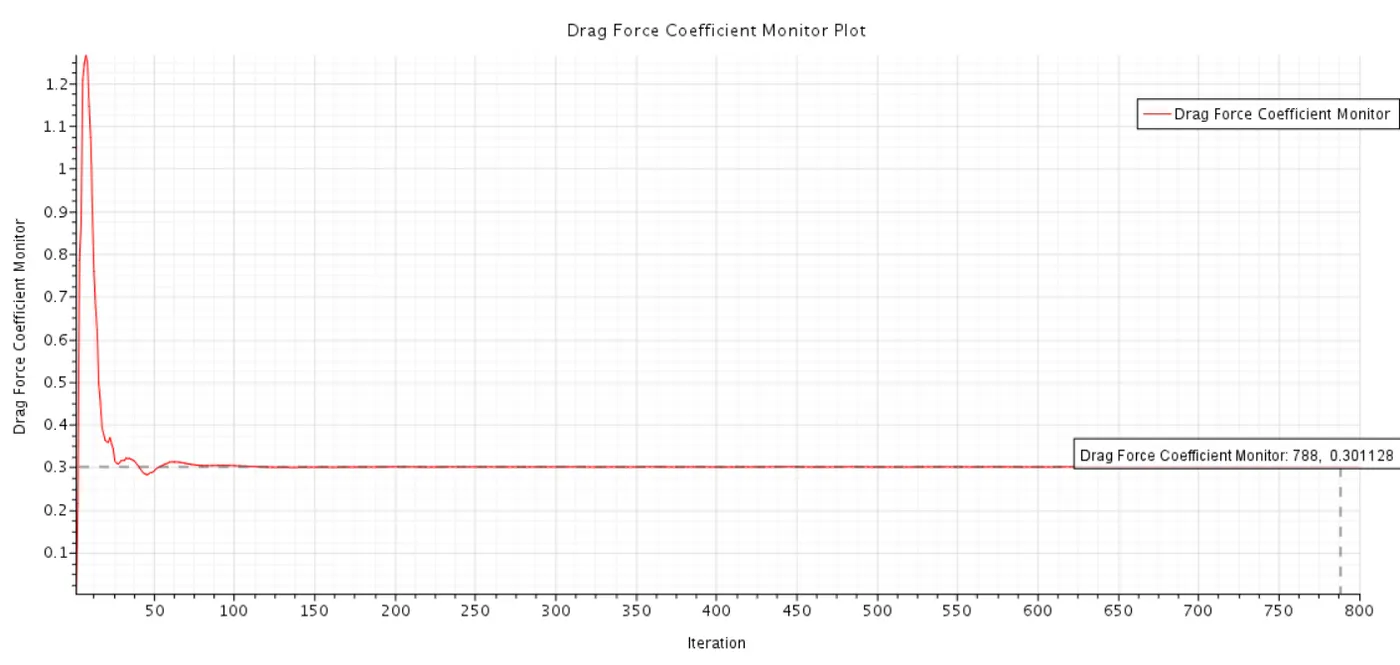

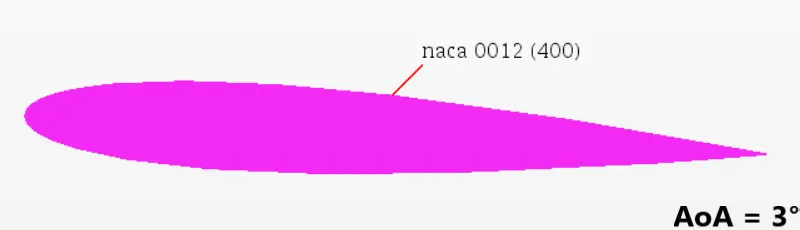

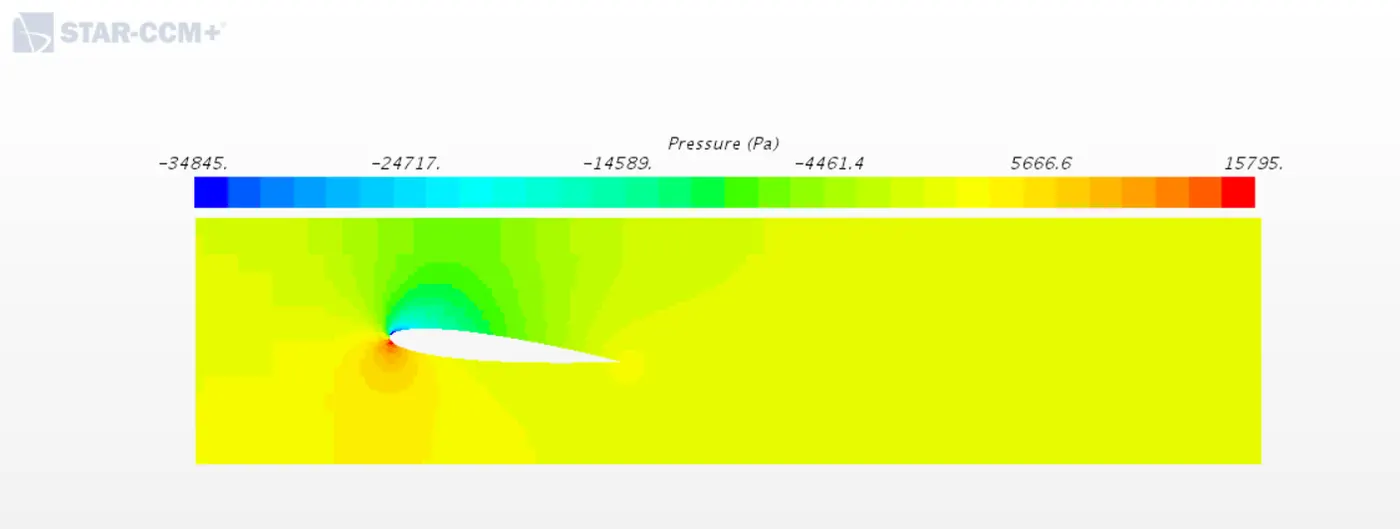

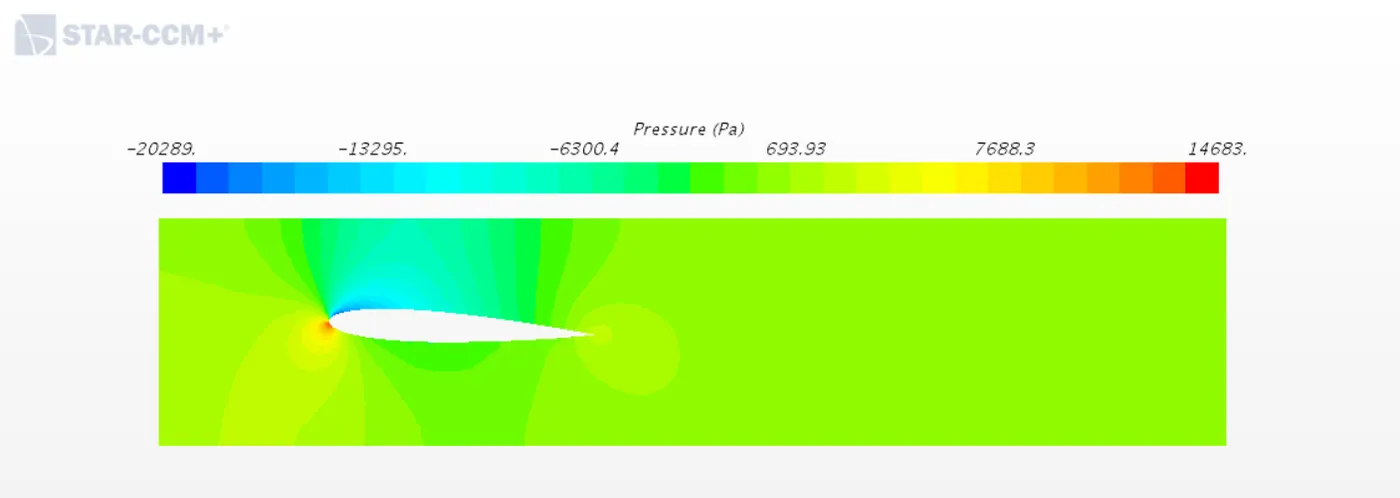

Case 2: Aerofoil With an Angle of Attack (AoA) of 3°

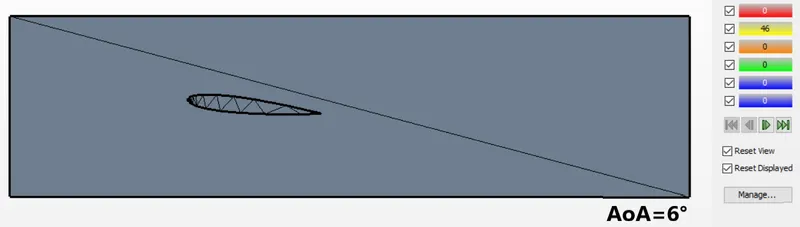

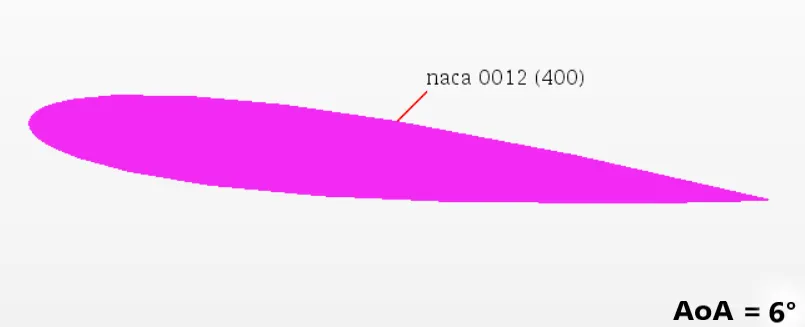

Case 3: Aerofoil With an Angle of Attack (AoA) of 6°

Case 4: Aerofoil With an Angle of Attack (AoA) of 9°

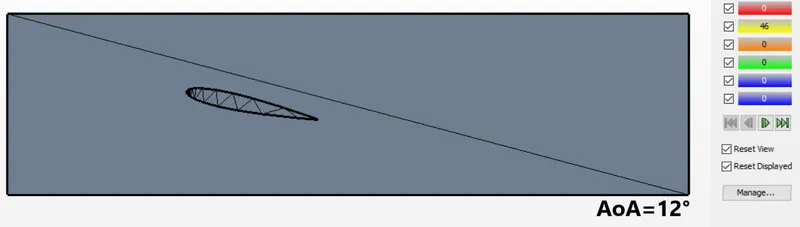

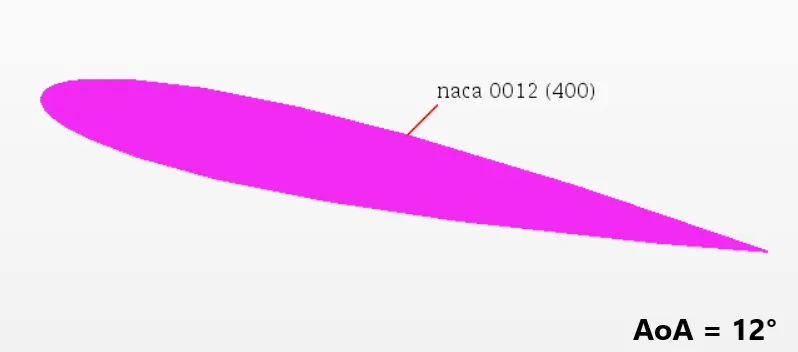

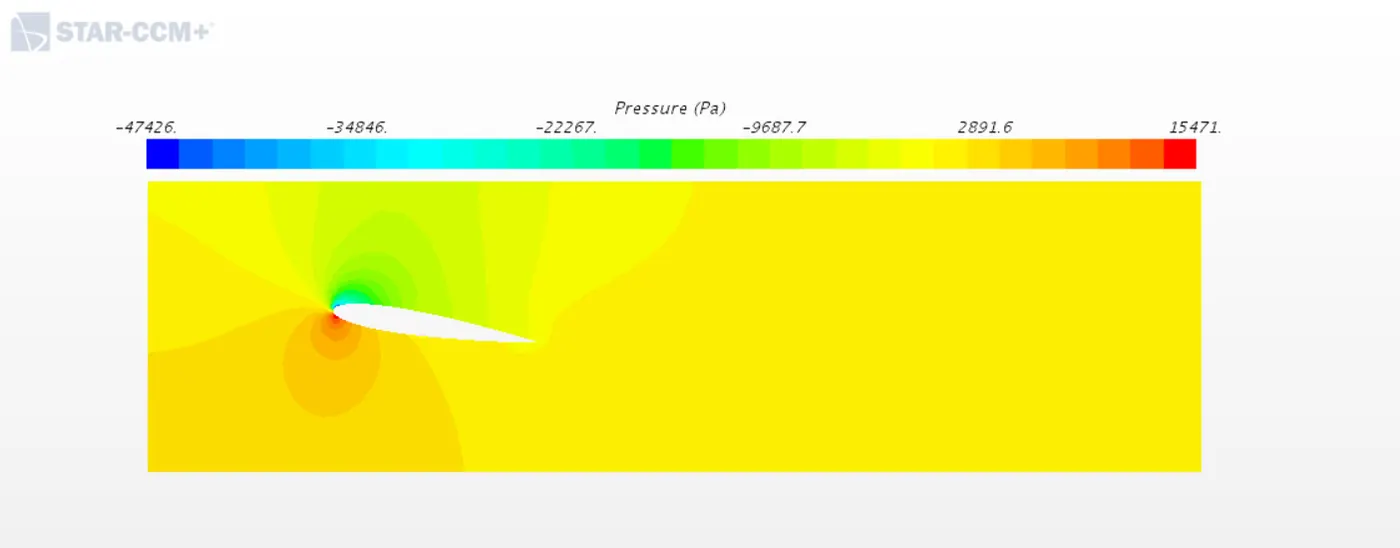

Case 5: Aerofoil With an Angle of Attack (AoA) of 12°

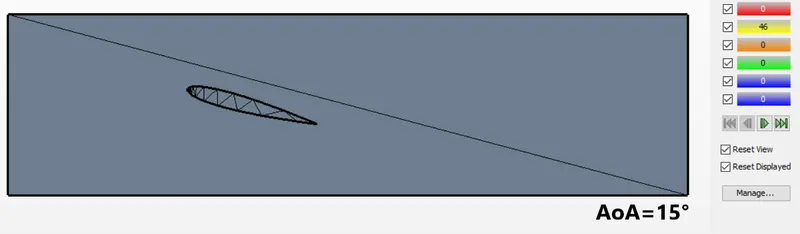

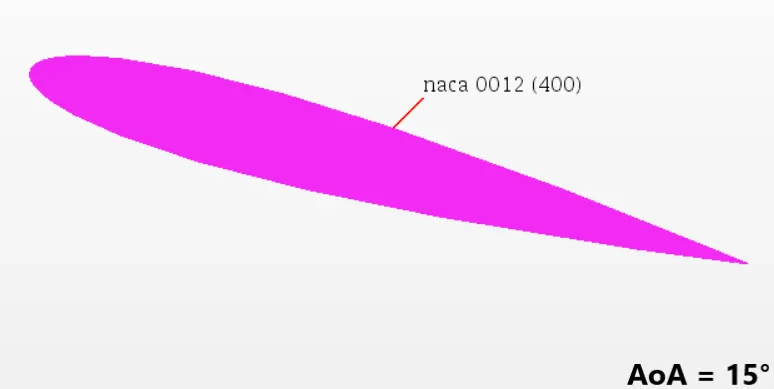

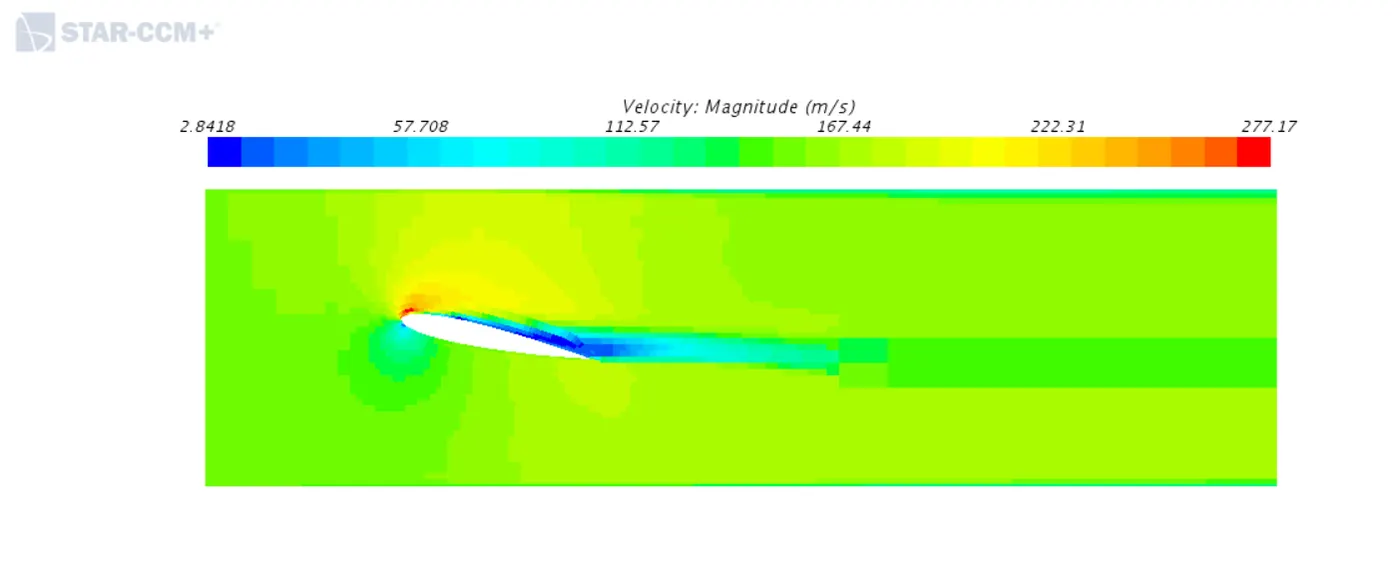

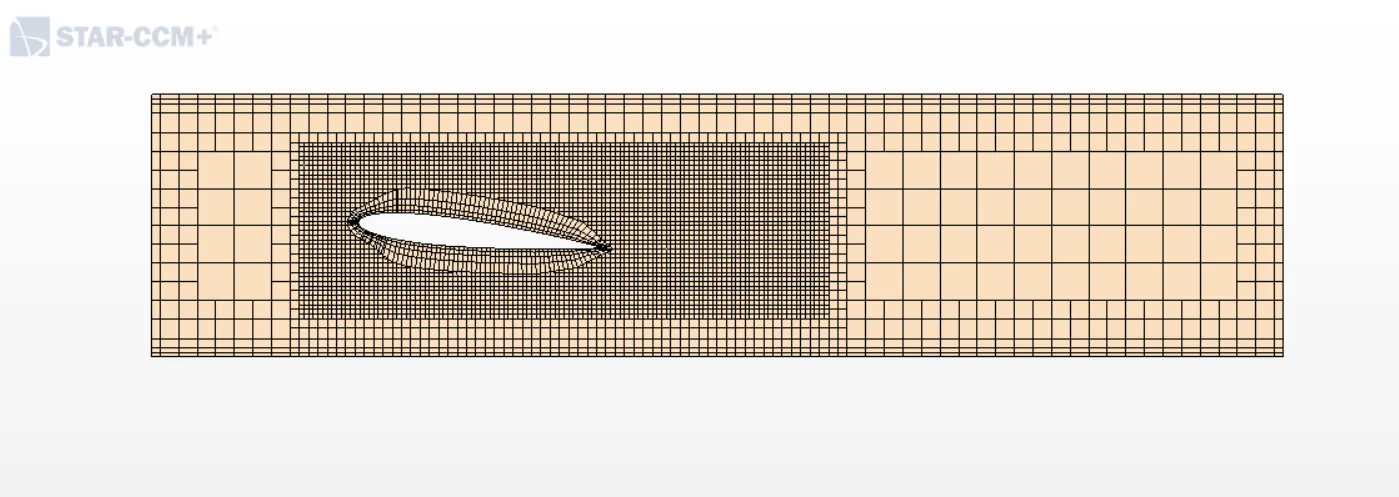

Case 6: Aerofoil With an Angle of Attack (AoA) of 15°

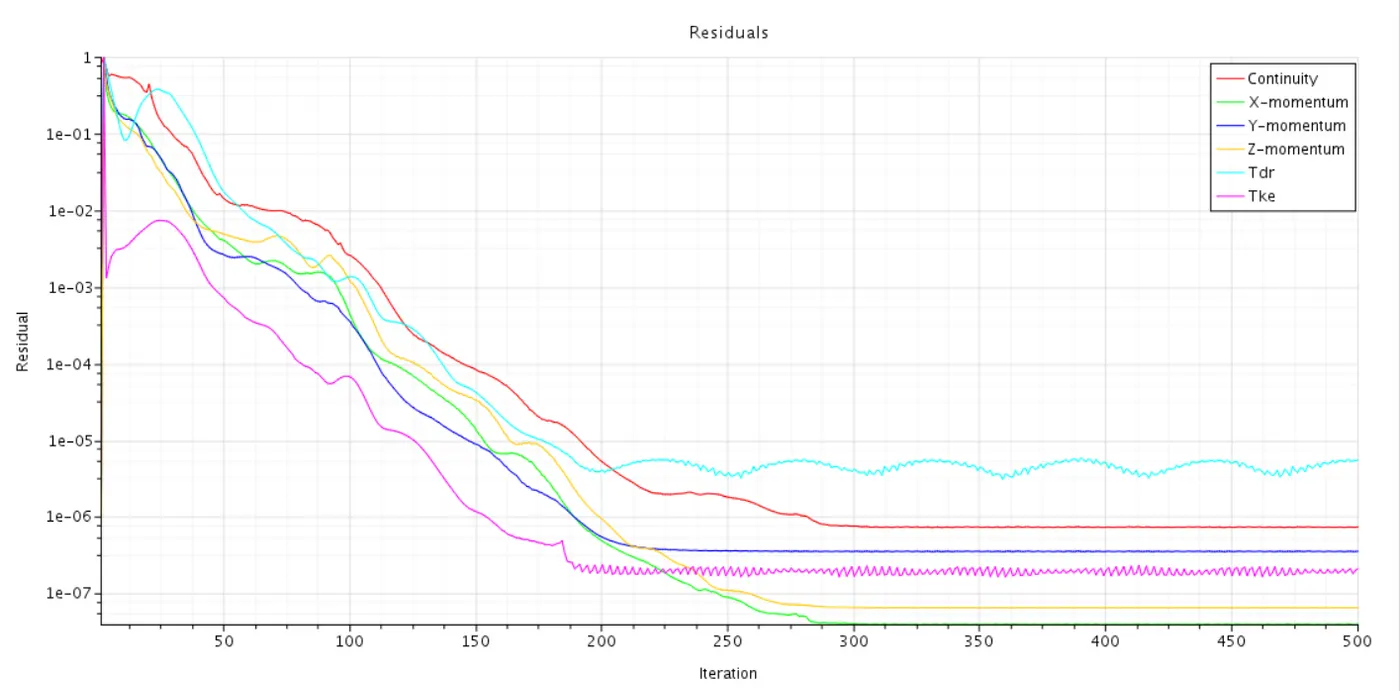

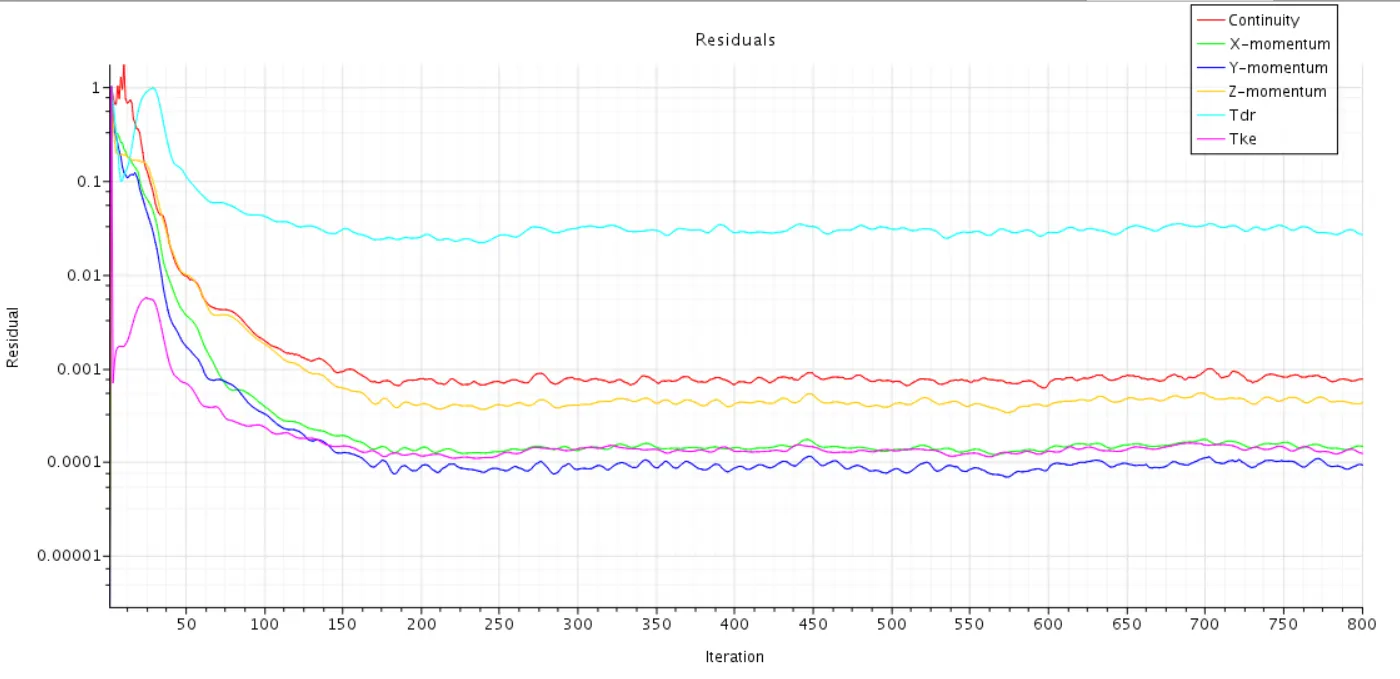

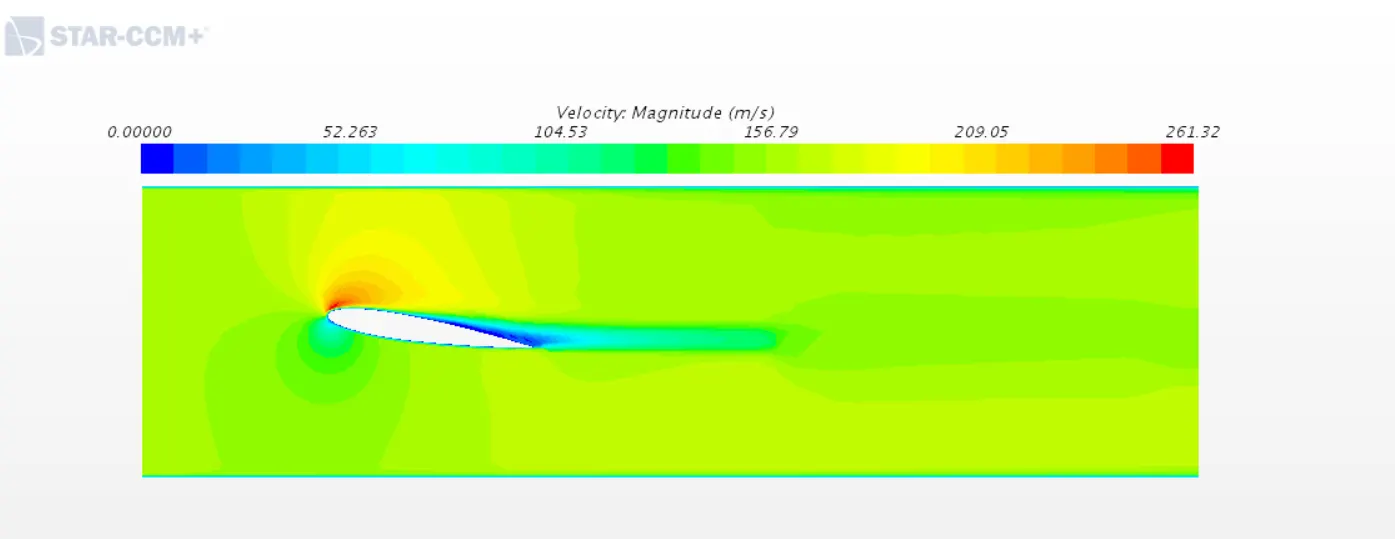

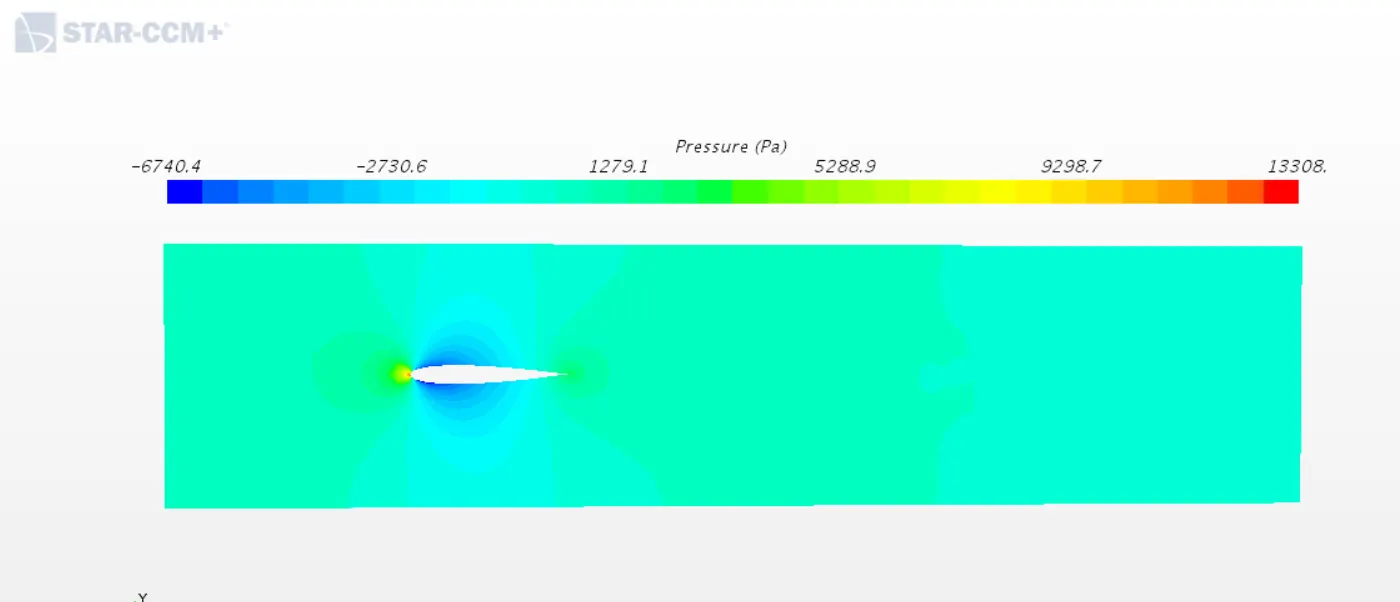

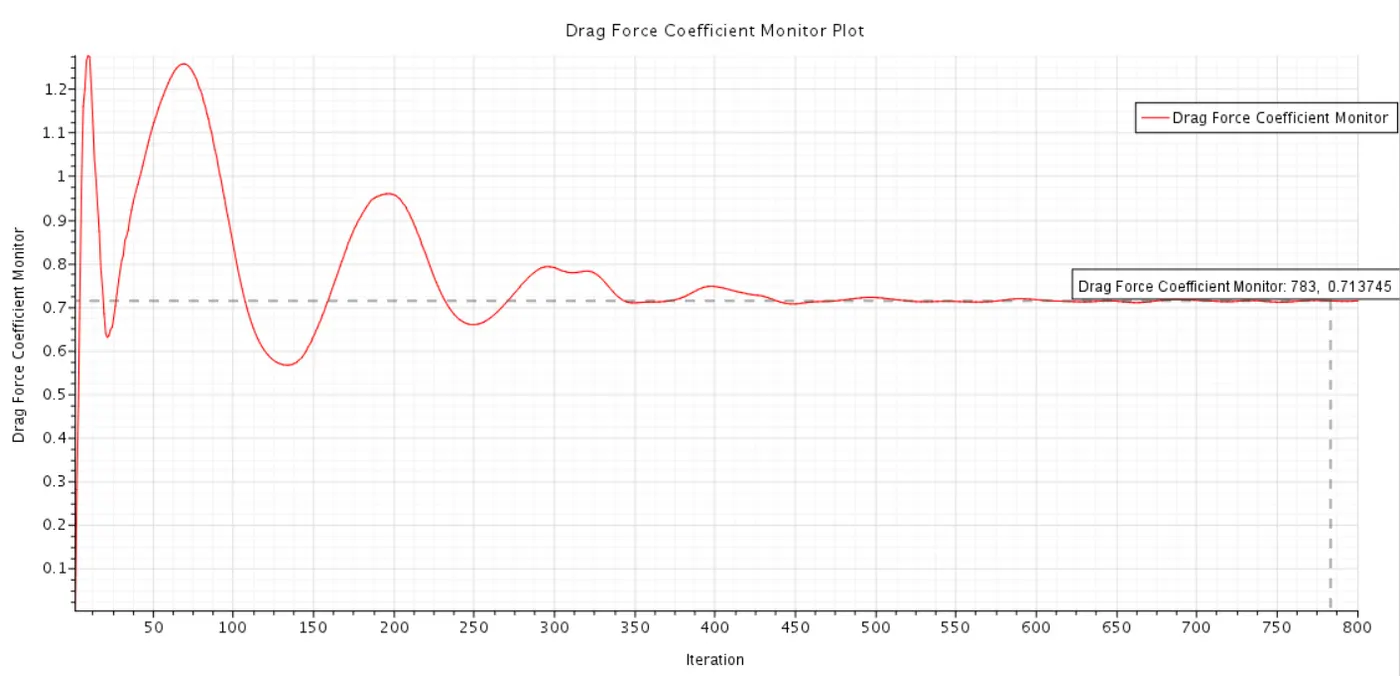

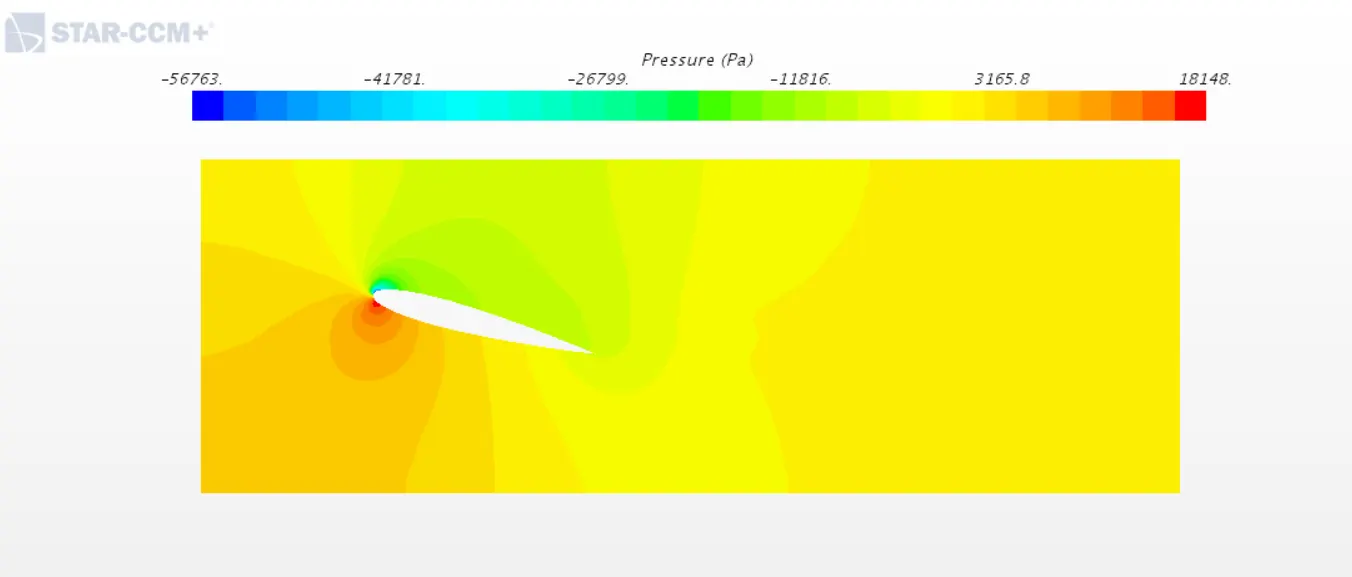

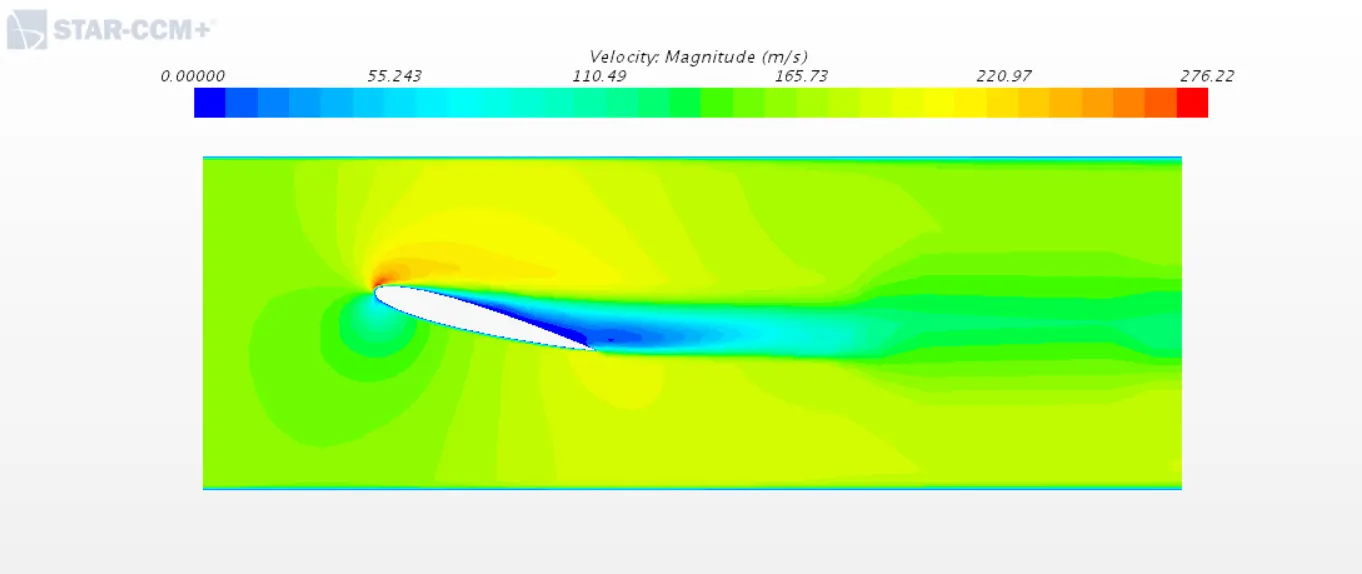

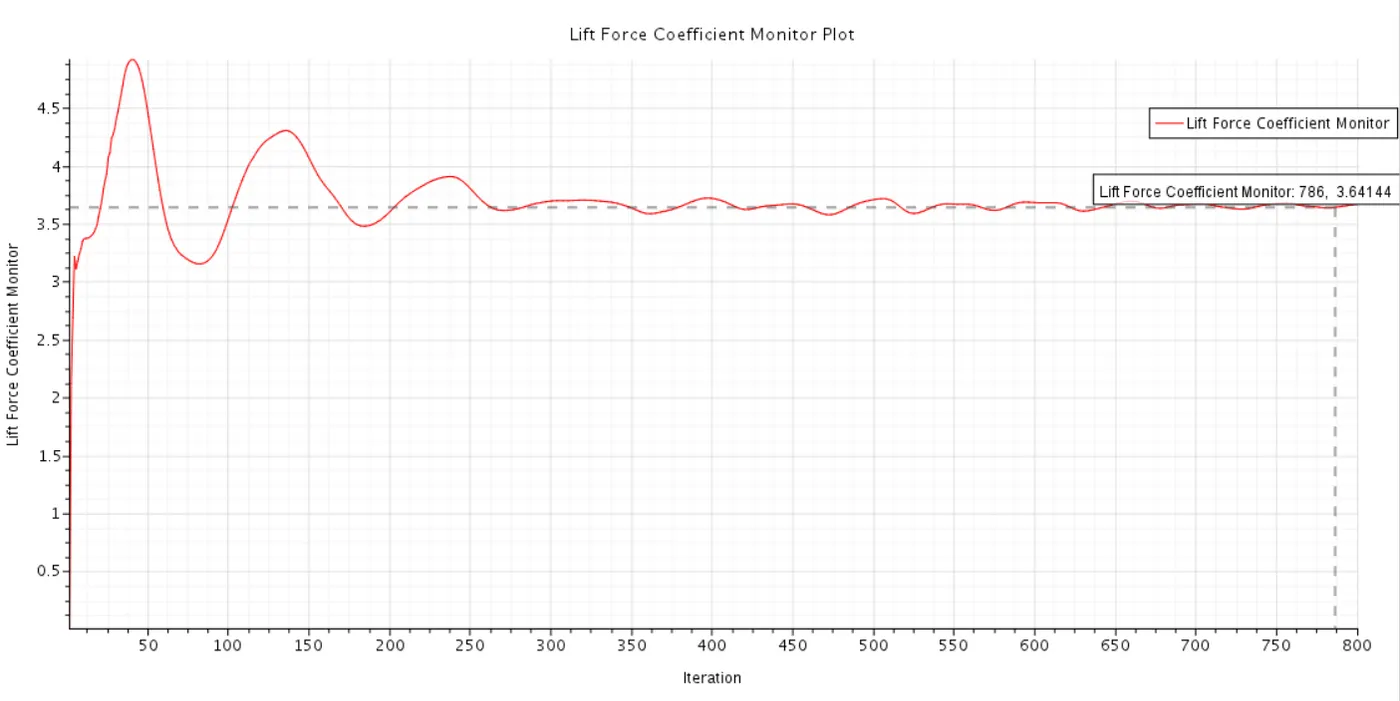

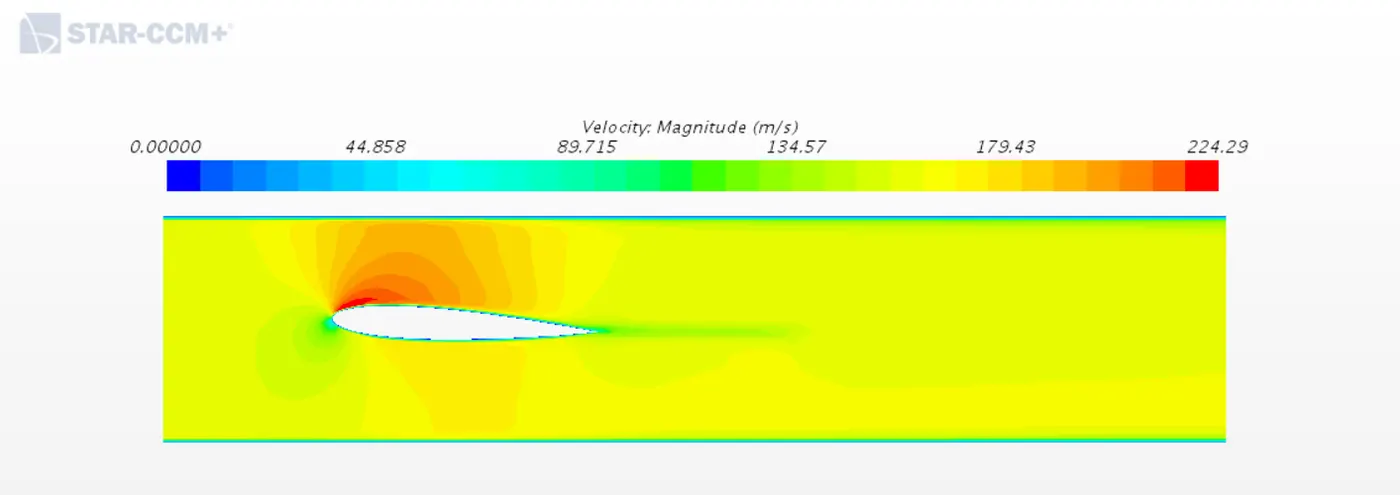

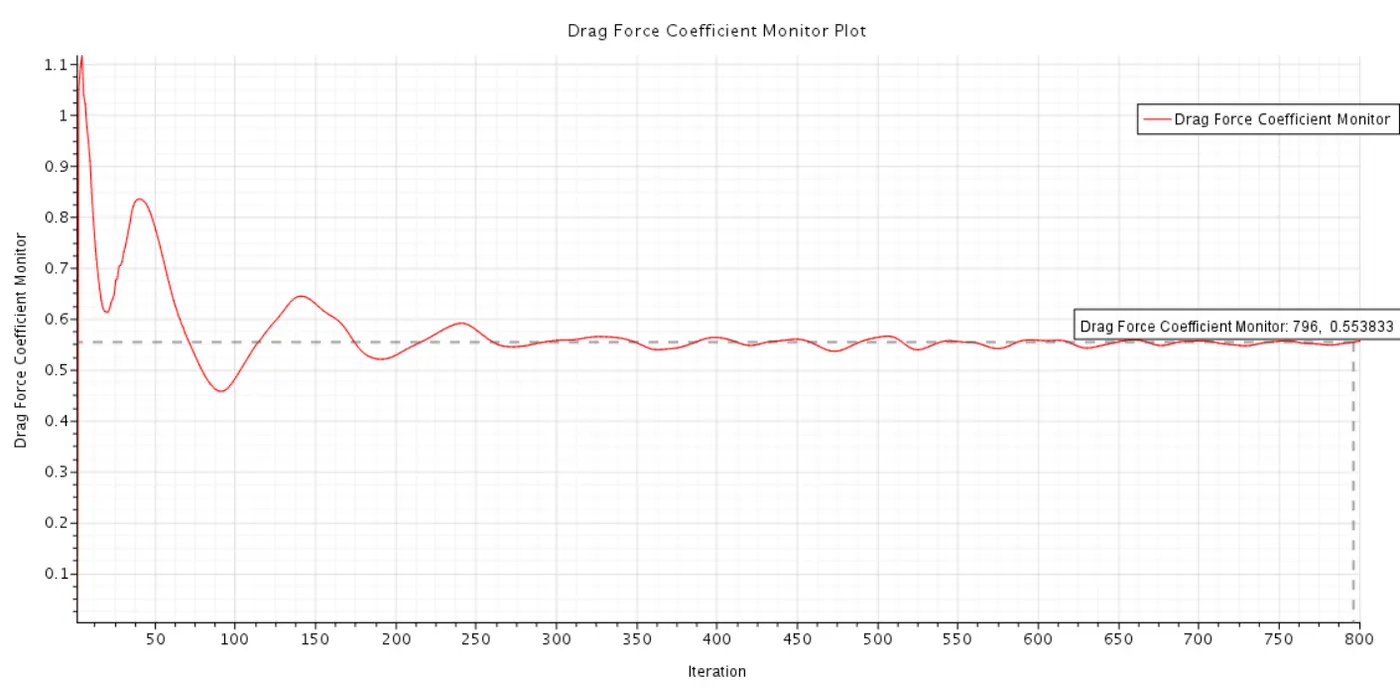

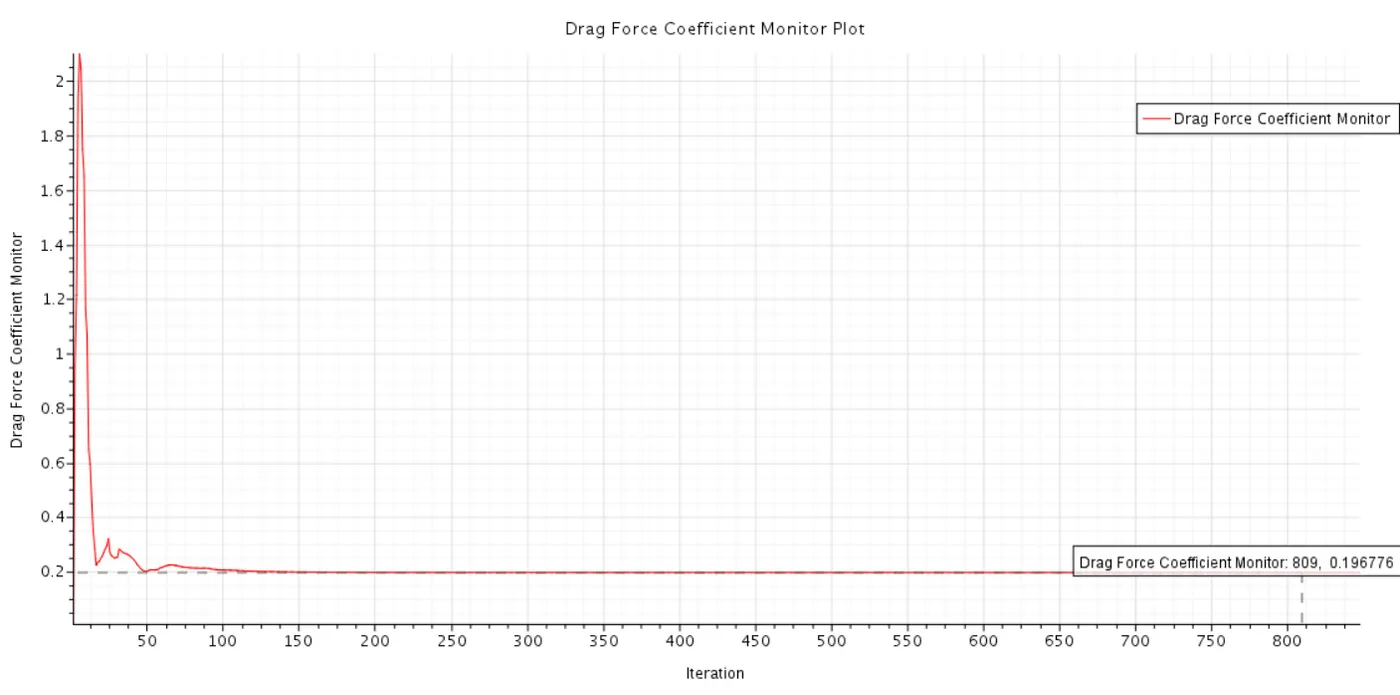

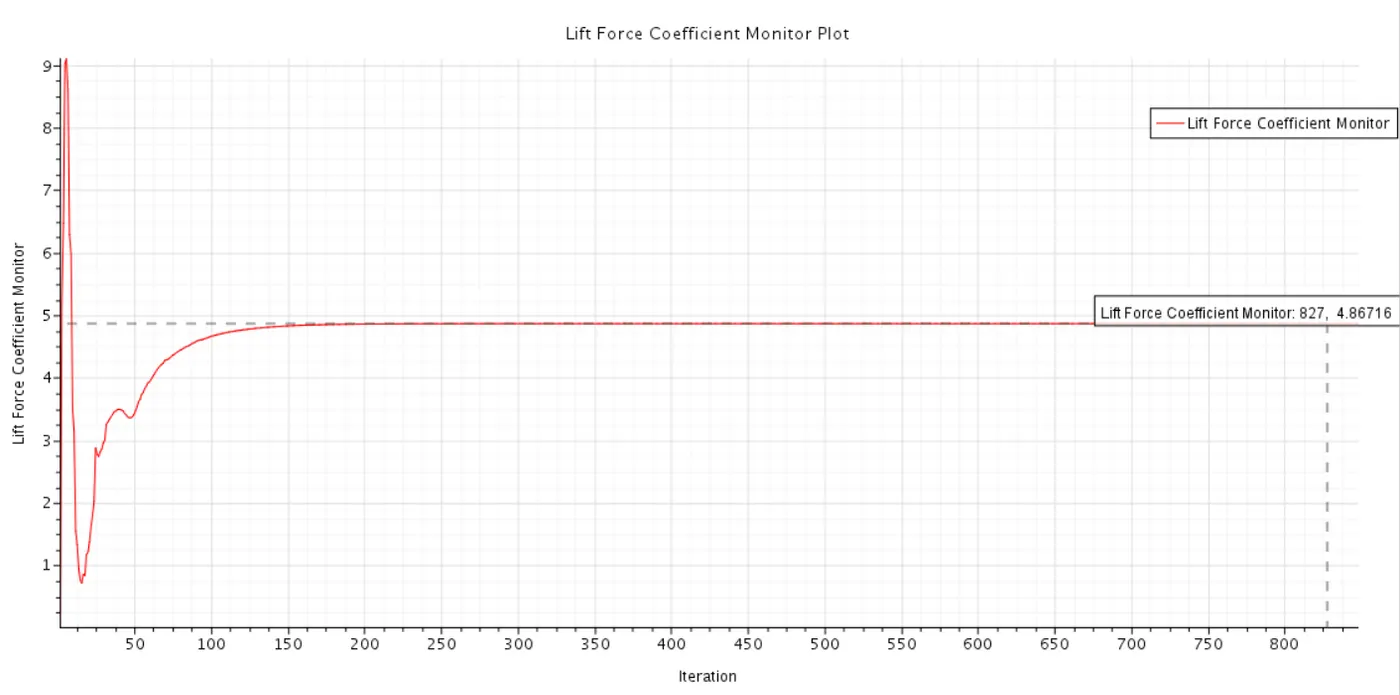

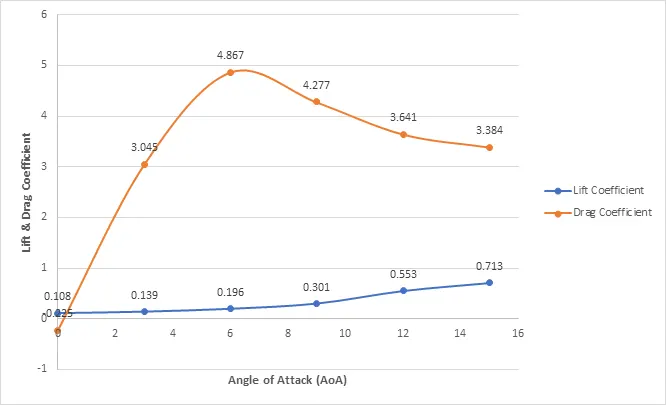

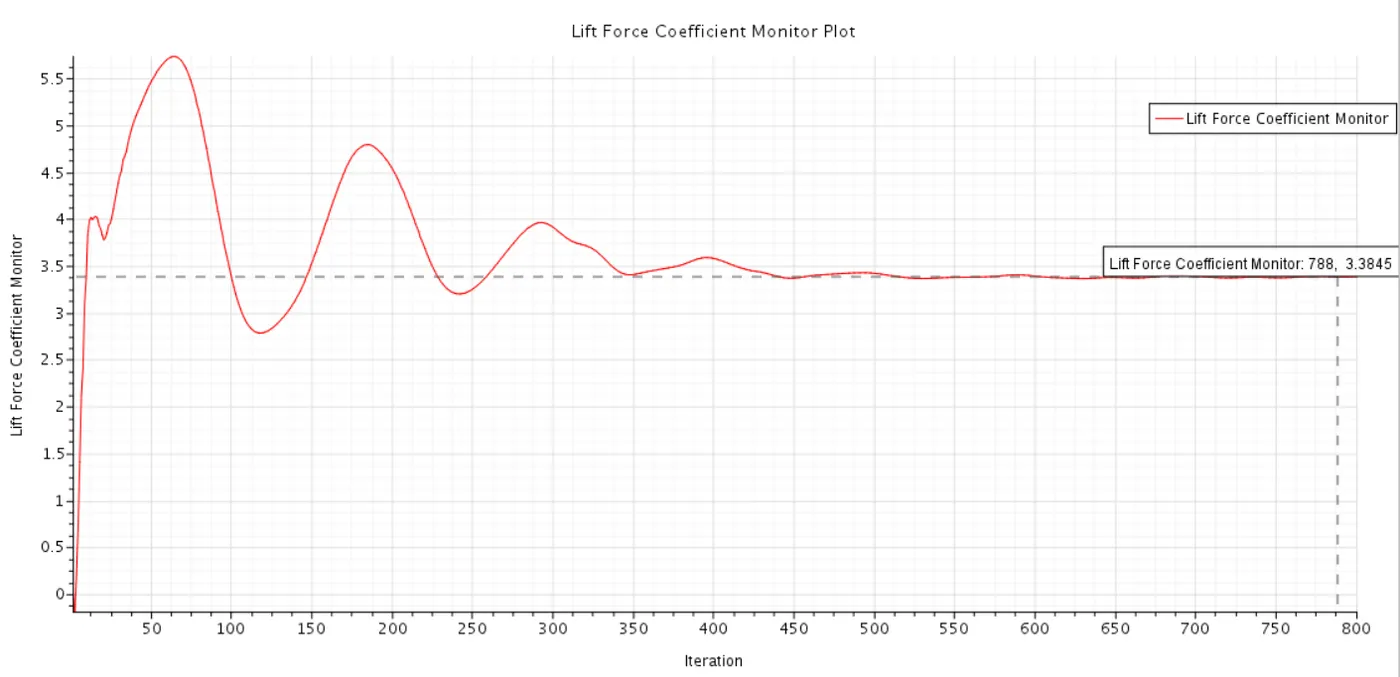

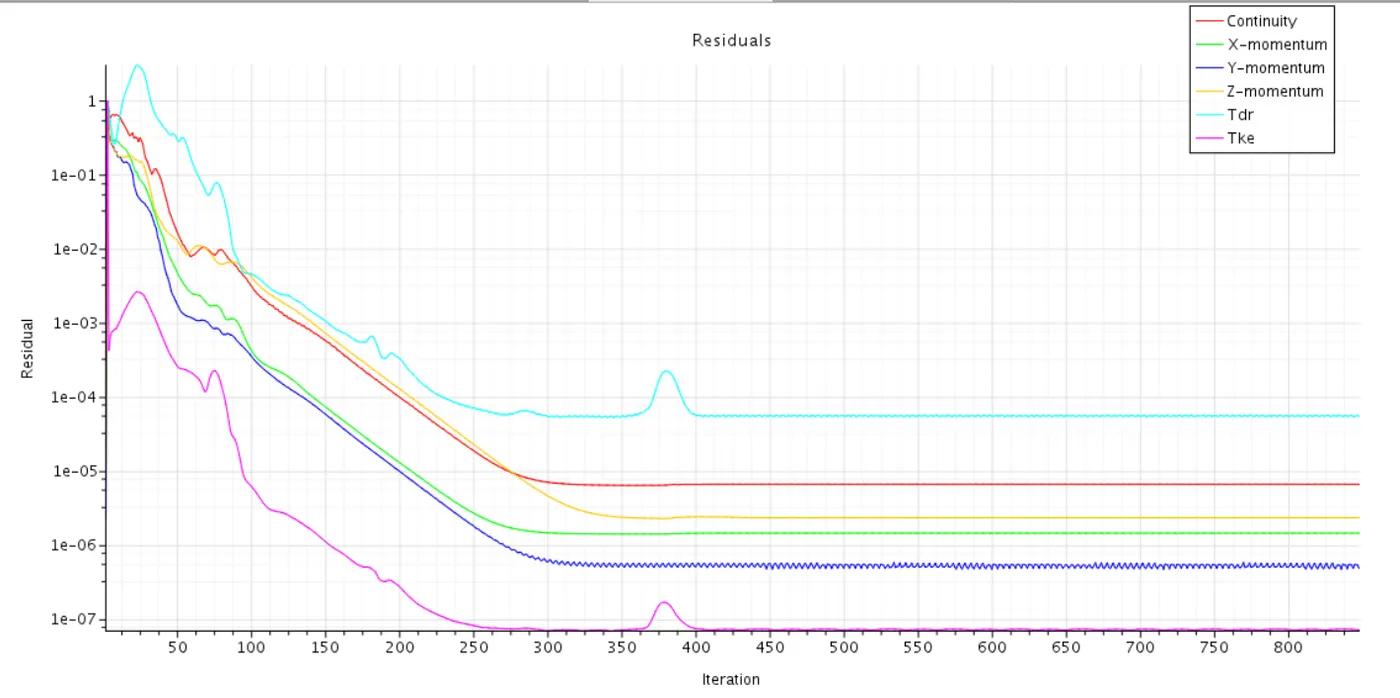

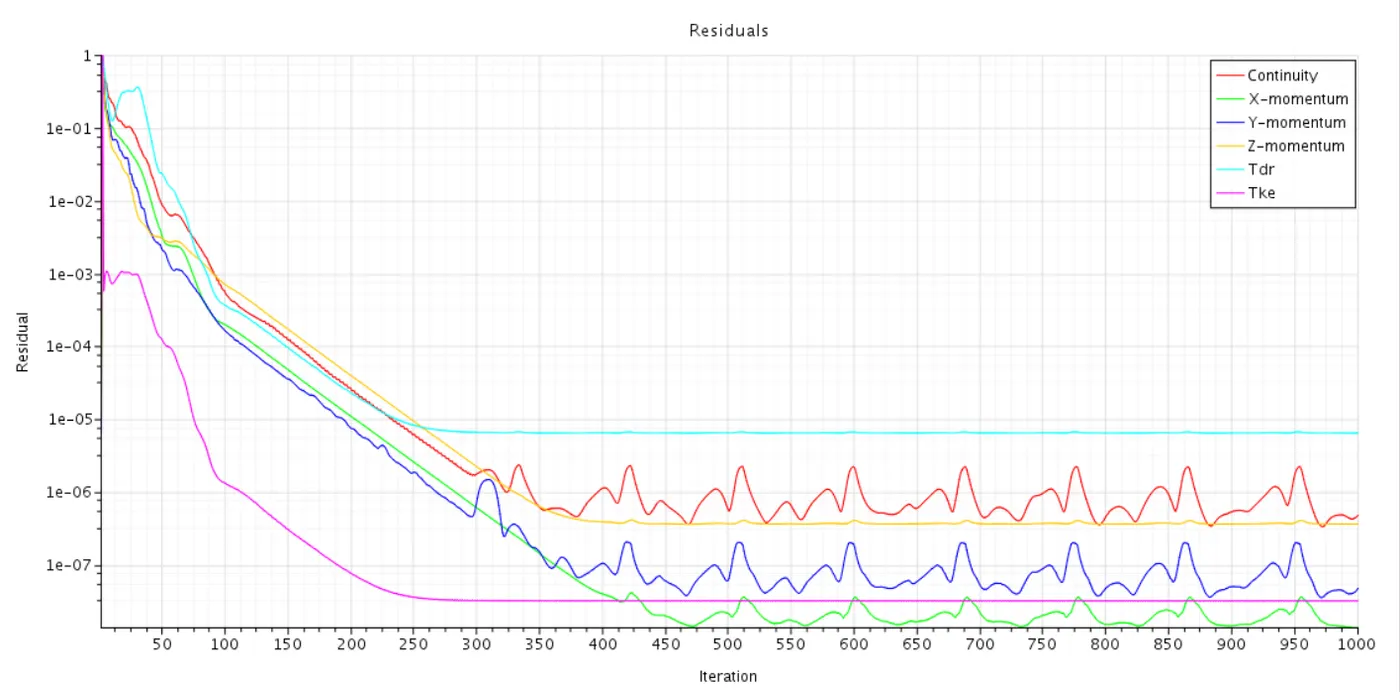

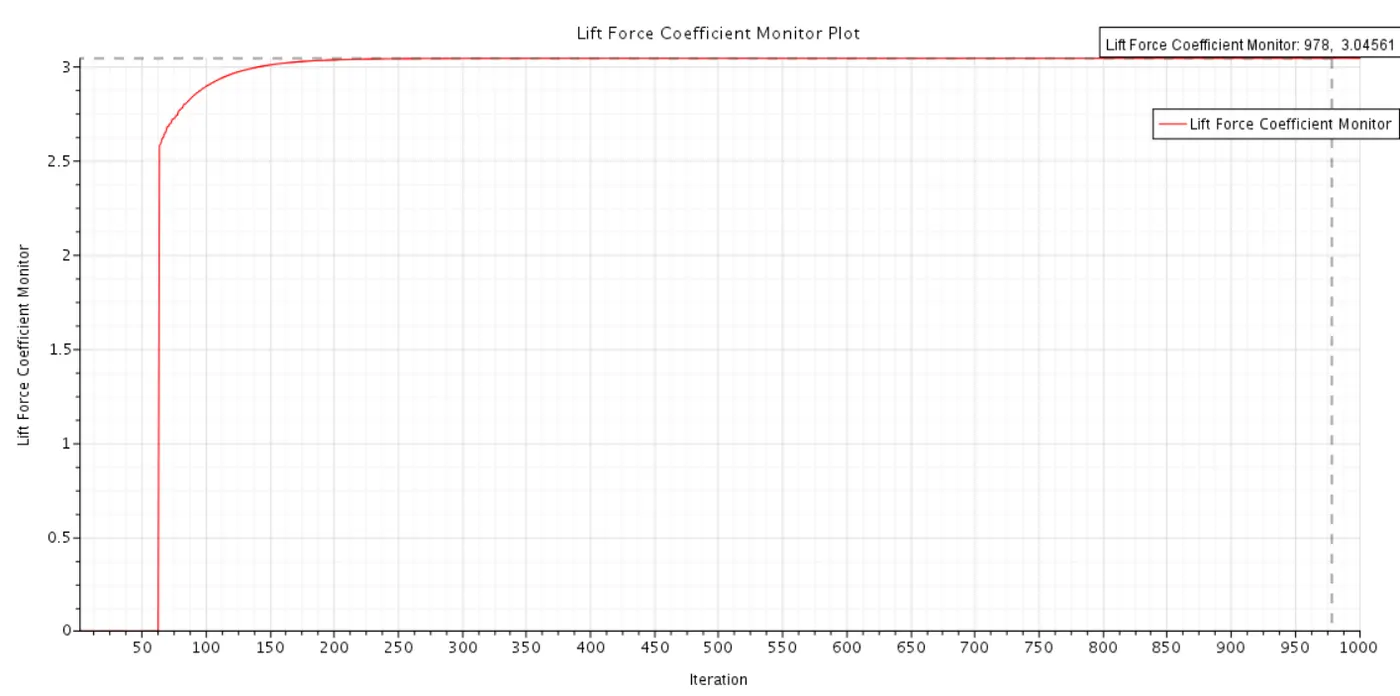

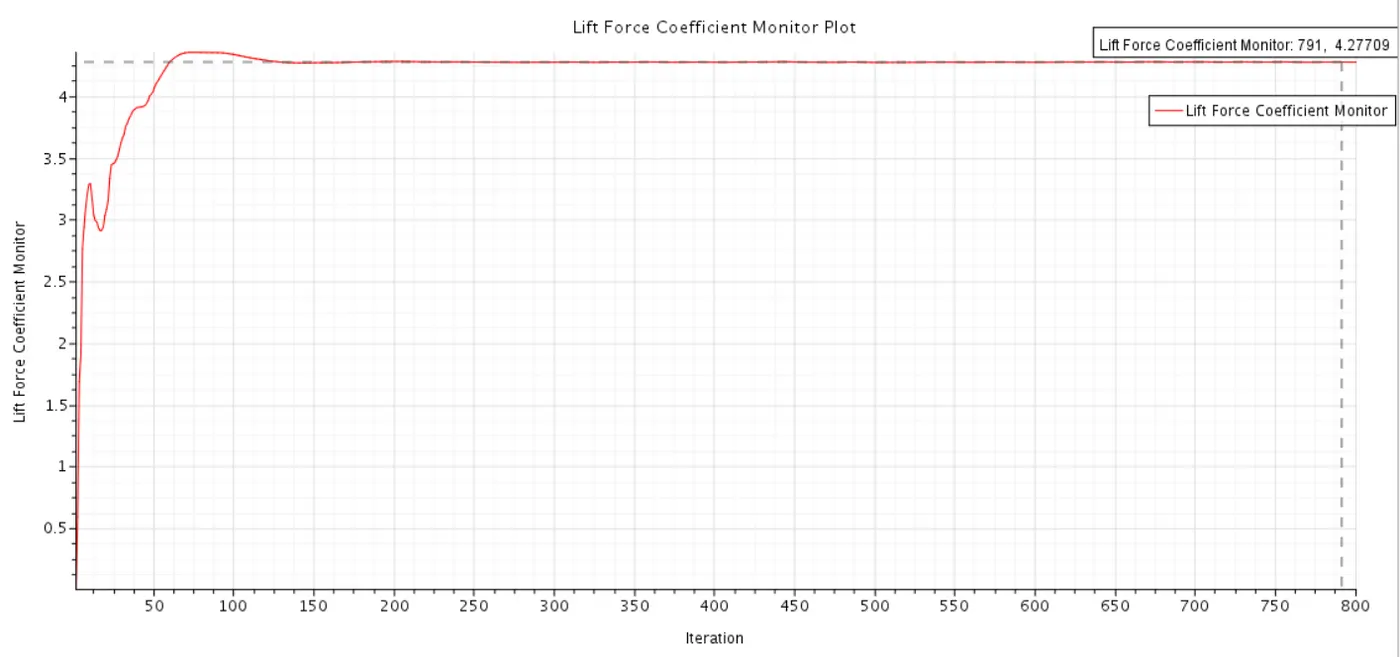

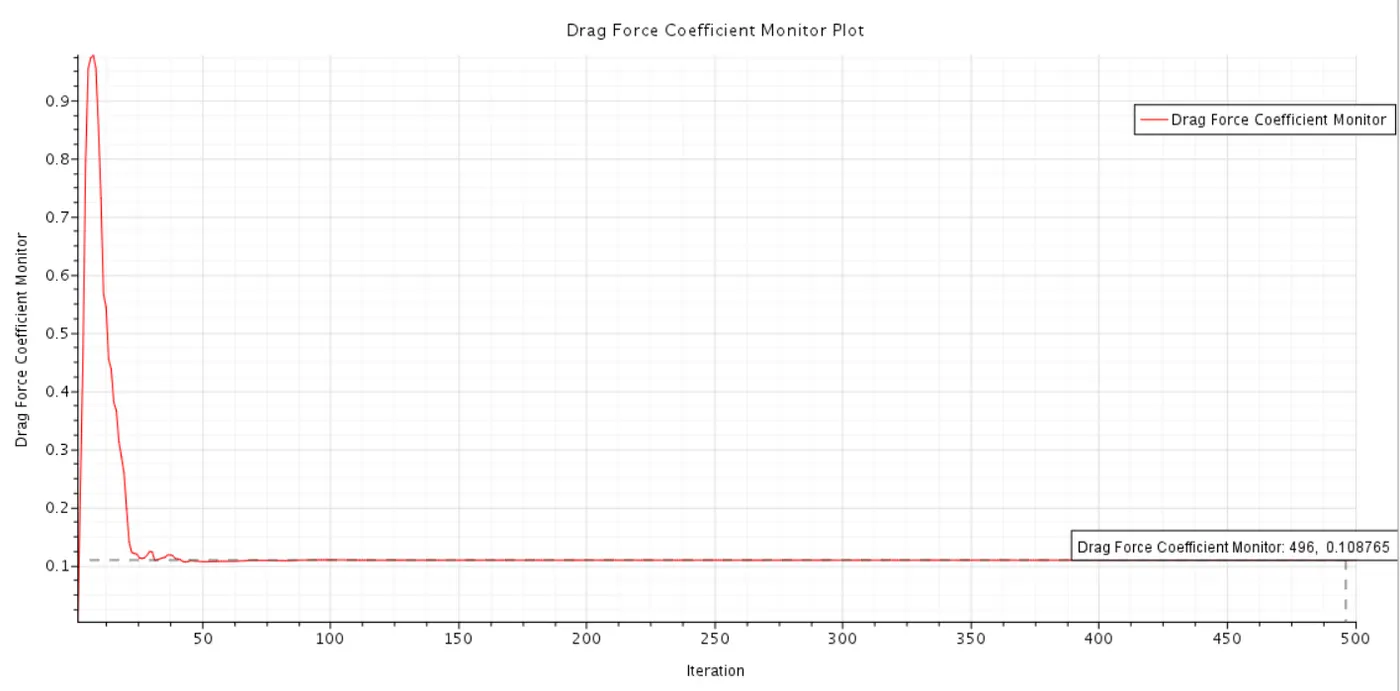

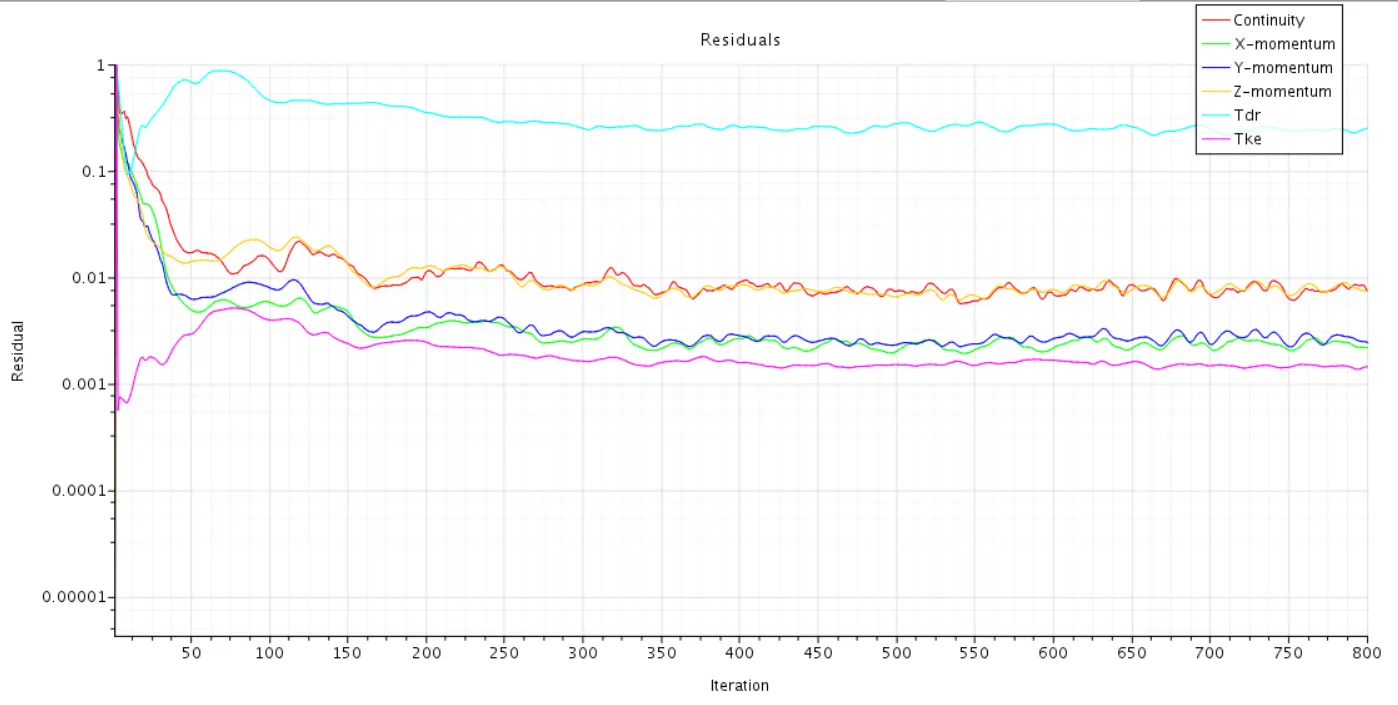

                                                                                                                                            C. Final Observations

                                                                                                                                             D. Conclusion

 We successfully ran six steady-state simulation cases for an aerofoil located inside a wind tunnel at 0°, 3°, 6°, 9°, 12° & 15°AoA using turbulent model k-ω SST, the values obtained for Drag force and Lift force are getting converged well before the assigned end time. Hence, we can decrease the value for the end time for the transient based simulation. Upon further analogy, we can also observe that the flow around the aerofoil has is been disturbed by the low height of the Wind tunnel, hence an improvement in the height of the wind tunnel for better flow around the aerofoil can be designed. From the experiment, we were able to confirm Bernoulli's principle & it was observed that as the AoA increases the Lift force & Drag force acting on the aerofoil also increases simultaneously but after a certain AoA we observe the drag forces start to increase & the lift forces start decreasing, this phenomenon is known as stall.  The drag & lift Coefficients obtained from the pressure force along X-axis (drag) & pressure force along Y-axis (lift) are identical for both the turbulence models.
