Attachment Feature Creation (Dog House)

MMithin Santhakumar6 Dec 2023

WEEK 10 CHALLENGE 2 ATTACHMENT FEATURE CREATION (DOG HOUSE)

DOG HOUSE :

Dog house is an engineering feature used in plastic component designing. these are support features of a plastic component. dog houses are subjected to drafting and will be placed on the b surface .

UTILITIES:

helps to eliminate sink marks
solves length issue by placing the screw boss on top of a dog house
when have to have a perpendicular screw bosses to tooling axis

DESIGN RULES OF DOG HOUSE:

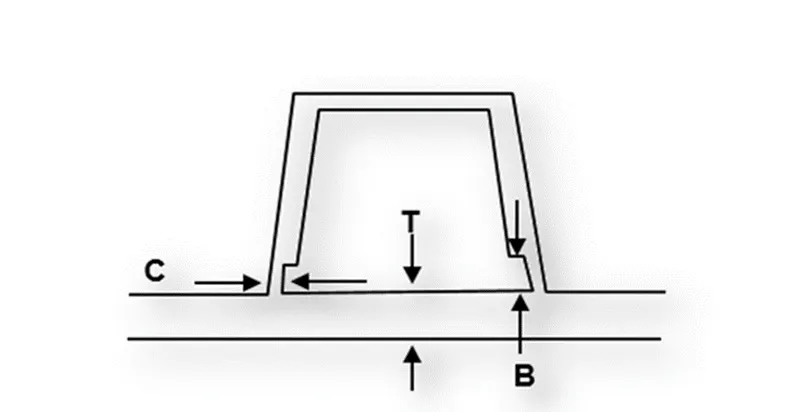

dog house wall thickness at intersection of part wall (C) shoould be 40% or less than main wall T
height of B should be between 3 to 6 mm
main dog house width is 12 mm
2:1 ratio of width to height
draft 1.5 degree

TOOLING AXIS CREATION :

Tooling axis is the direction in which mould travels. basically there are two pieces for mould,one cavity side and one possess projections of the component. the draft angle given for the component for ease of ejection, is drafted with reference to this tooling axis.

conducted visual inspection initially, then checked for,if there is any gaps or corrections by taking boundary of the component.placing tooling axis perpendicular to the largest flat area of the component is more convenient for manufacturing. so, extracted largest face of the given class A and placed a point on middle of the surface.created axis through this point perpendicular in direction.

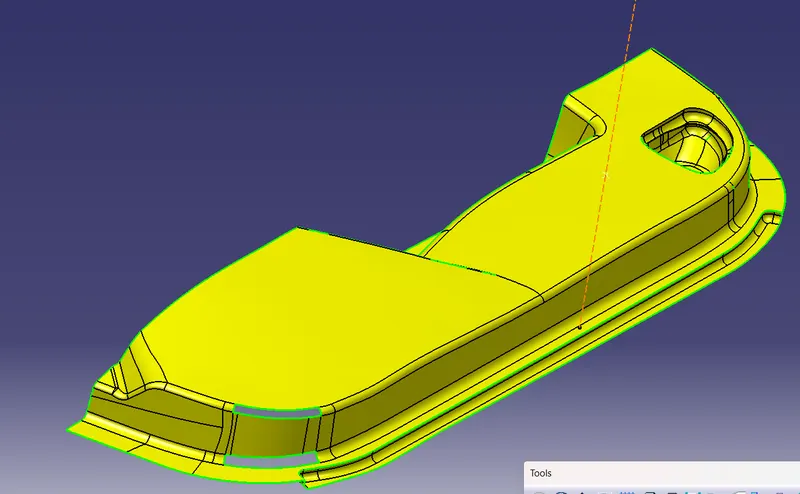

DRAFT ANALYSIS ON CLASS A

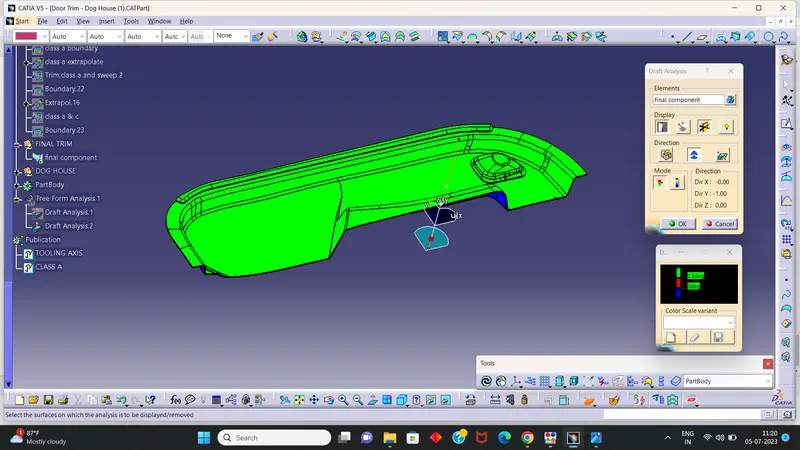

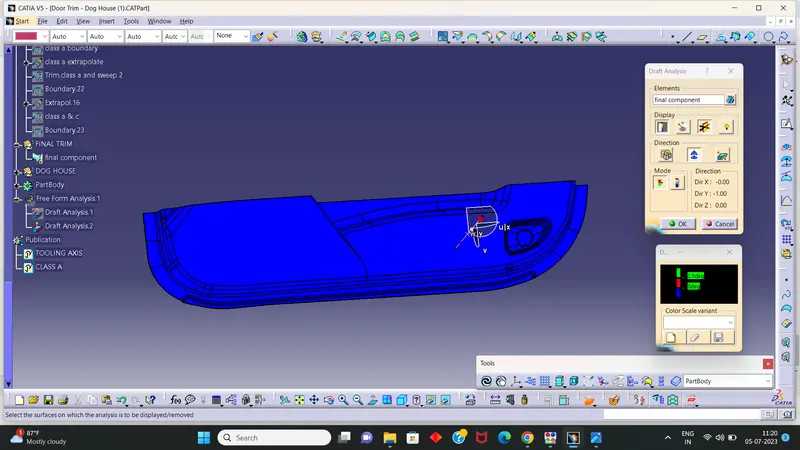

By performing draft analysis on the given class A surface enables to know wheather the component is easily removable or not. this analysis is based on colour ranges which indicates different colours for different angles.

go to customize view parameter and select material mode in mesh
select feature draft analysis from analysis option by going in insert option from tool bar

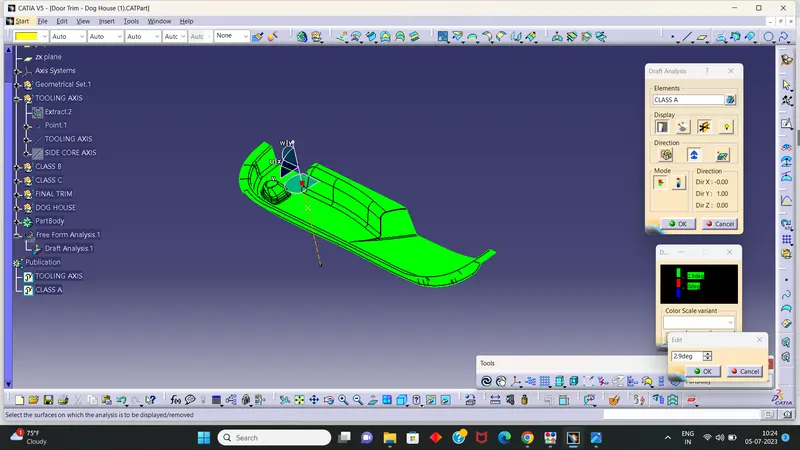

place the compass align to tooling axis with the help of compass tool
select the surface
click display button on the window

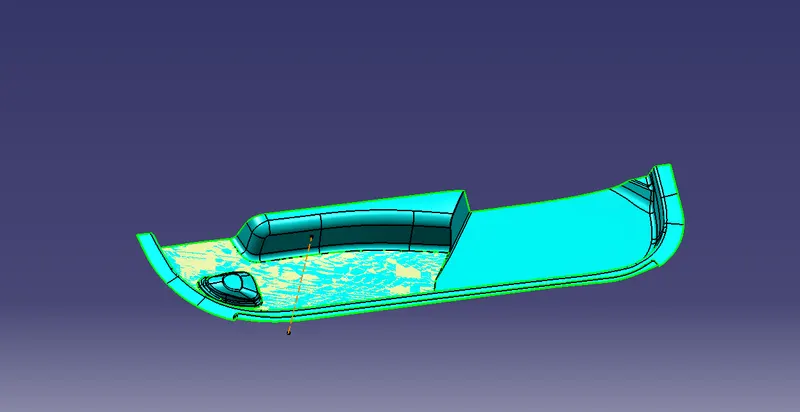

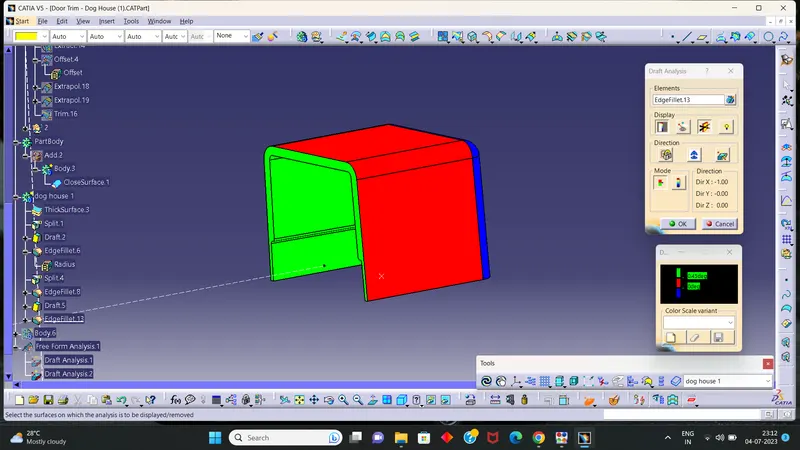

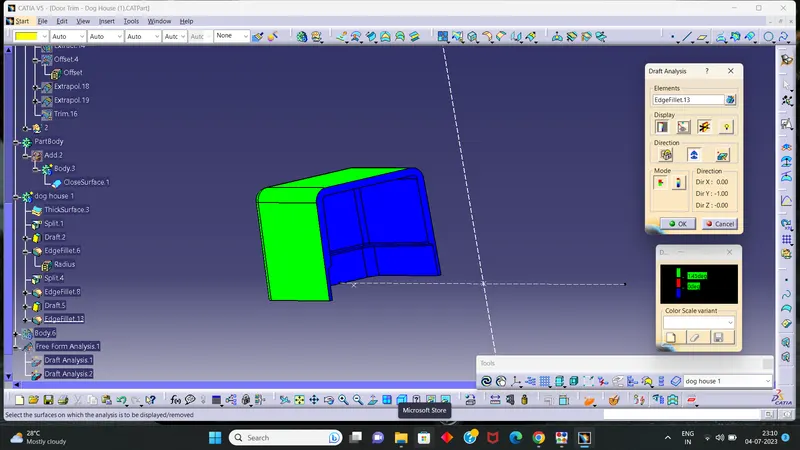

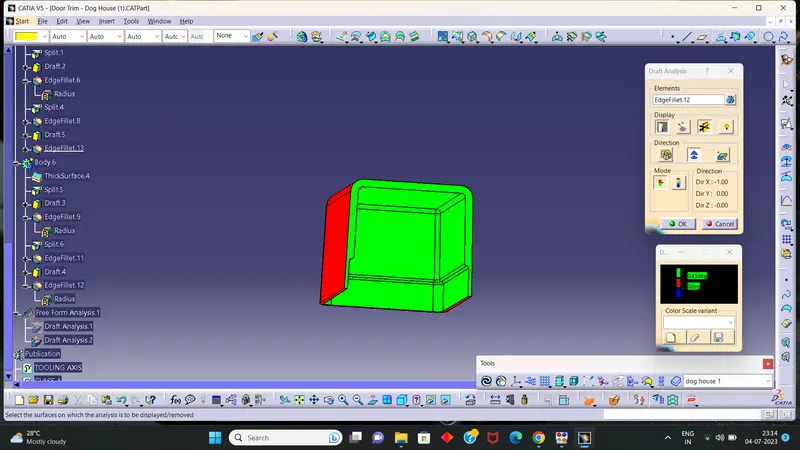

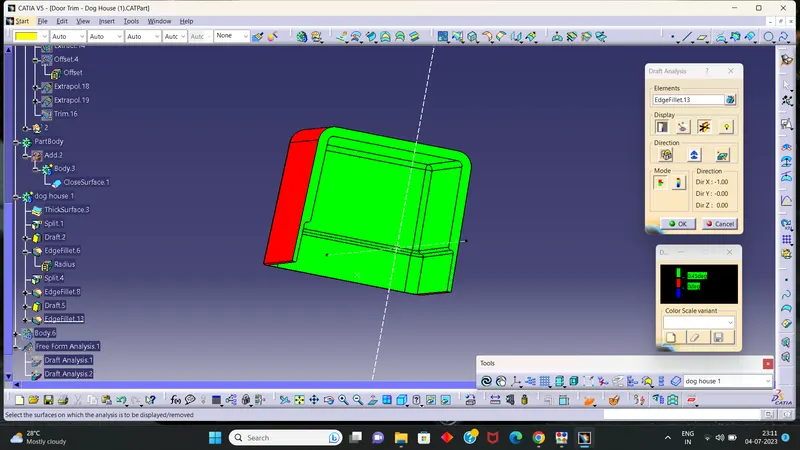

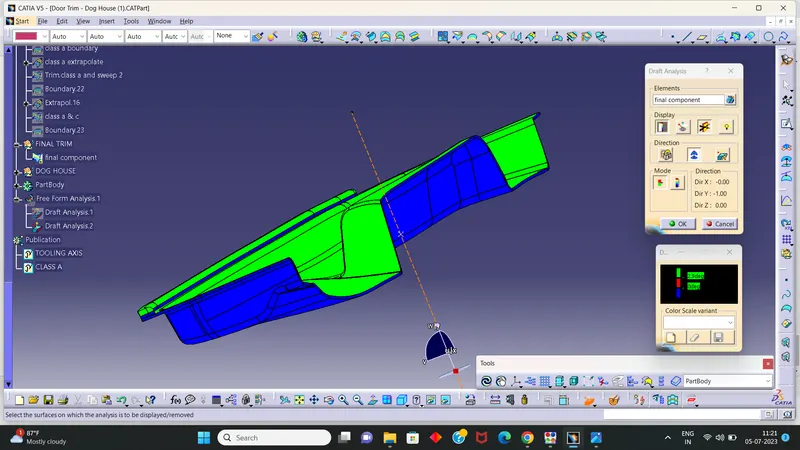

each colour zones indicates each drafting angles,green indicates within given draft angle , red indicates zero and blue indicates negative angle

CREATION OF CLASS B SURFACE

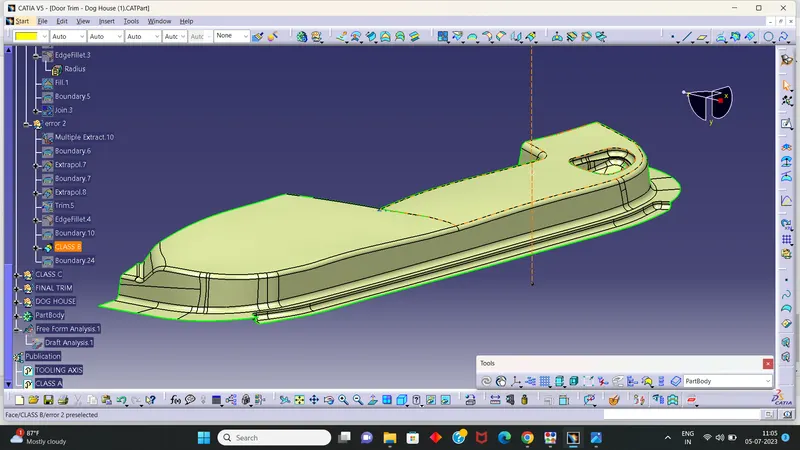

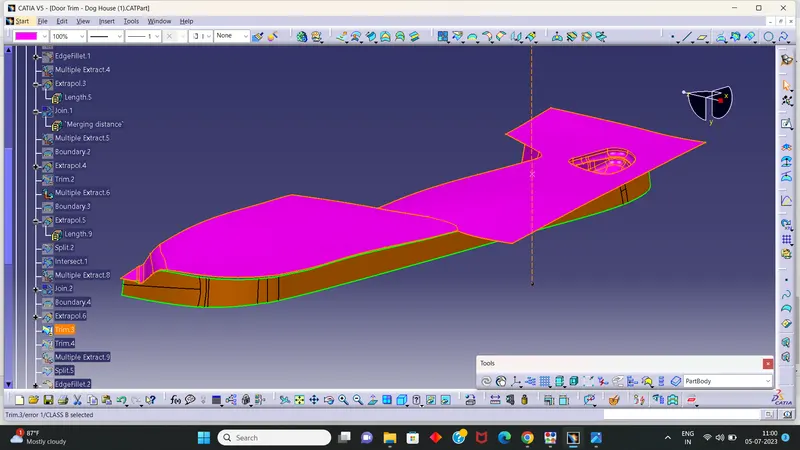

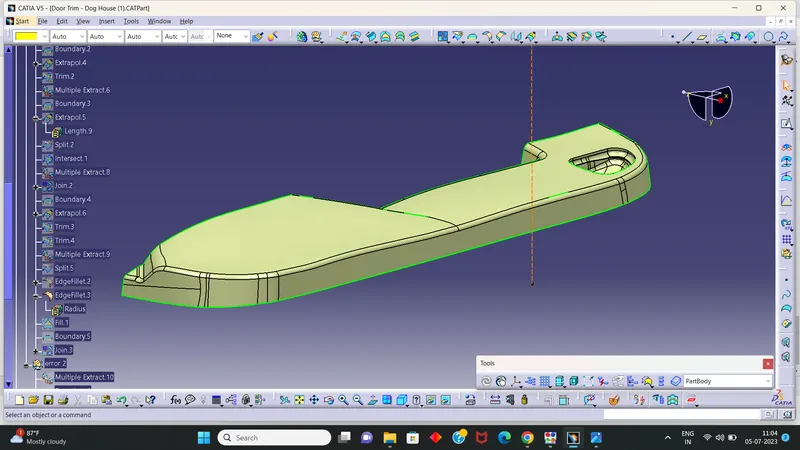

start with creating seperate geometrical set for class b, take an offset of the given class surface to a value of 2.5mm in inside direction. some patches would be there in the offsetted plane,most of the times,fillets are the cause of pathes.

extract the surfaces on both sides of the patch and extrapolate them

then trim them together and give fillet.

do the same for the each pathes and obtain desired surface b

CLASS C CREATION:

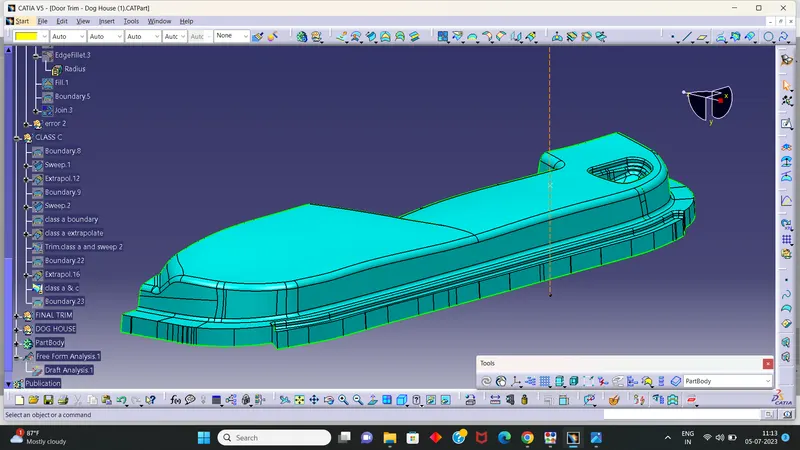

create boundaries at edges of class a

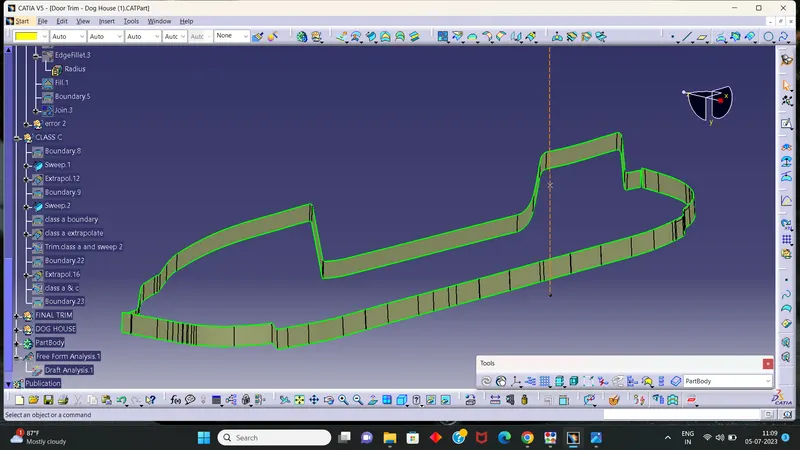

select sweep with draft direction from sweep option.
select the created boundary as guide curve and tooling axis as draft direction,with 3 degree angle projecting out from class a
follow above sweep procedure for planes which are perpendicular to tooling axis
for planes parallel to axis,sweep in 90 degree refence to the class a surface

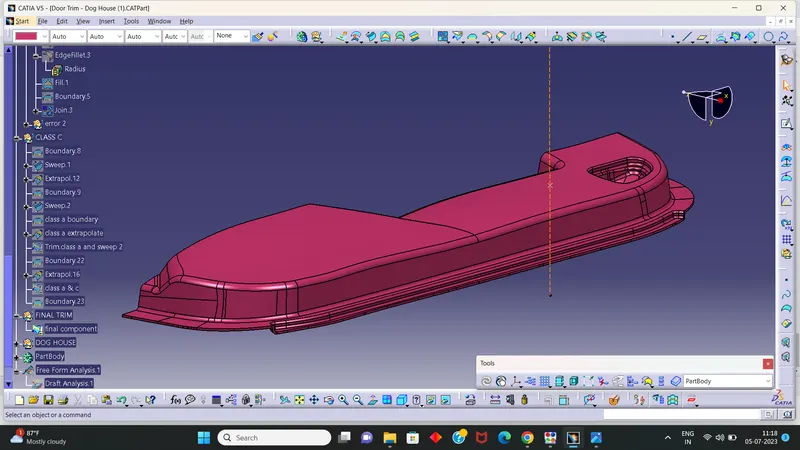

extrapolate the ends of swept planes and trim altogether to get the c surface

always try to give second limit in sweep to 2 mm, it helps to provide a proper join of the class a and c while trimming

trimmed class a and c

trimming A,B and C gives final component

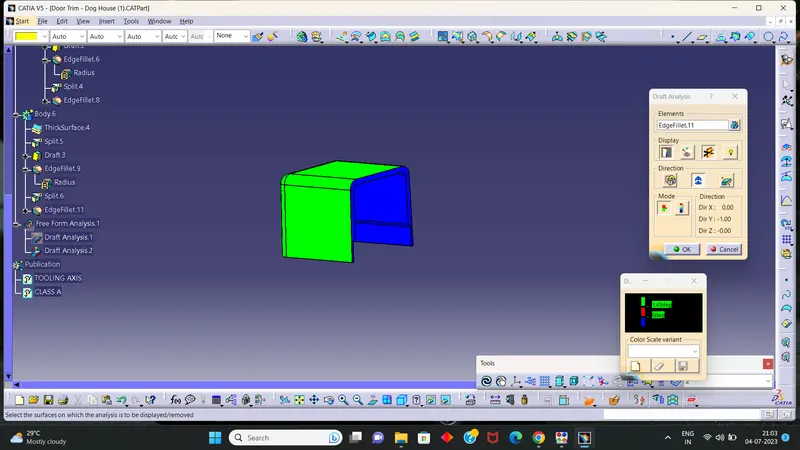

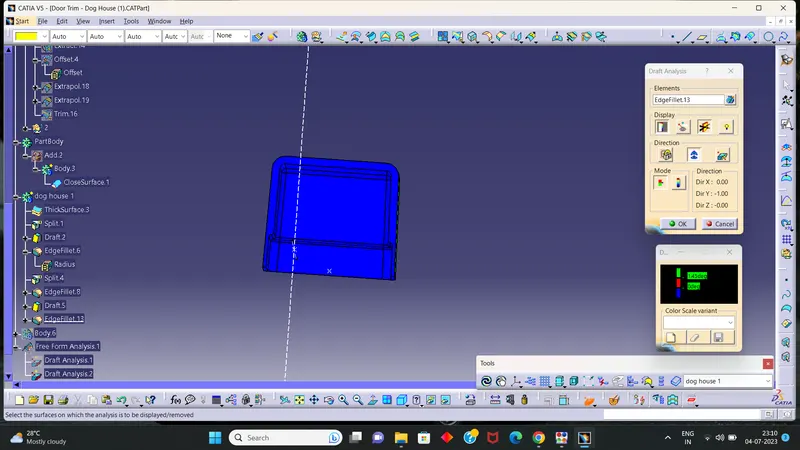

DRAFT ANALYSIS ON CLOSED BODY:

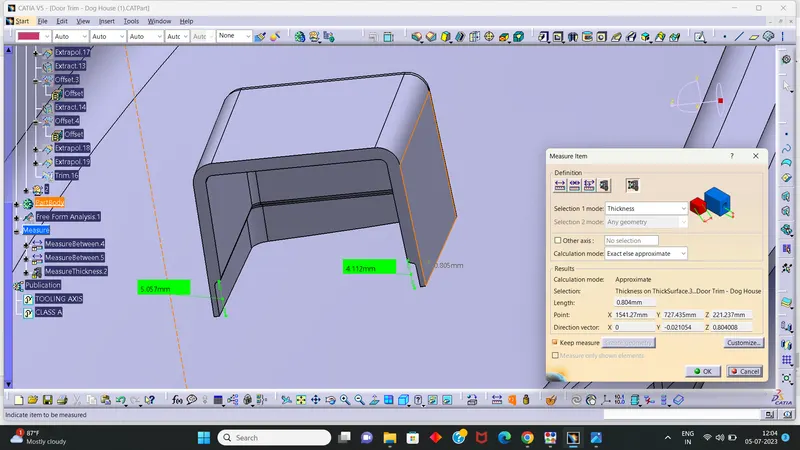

CONSTRUCTION OF DOG HOUSE

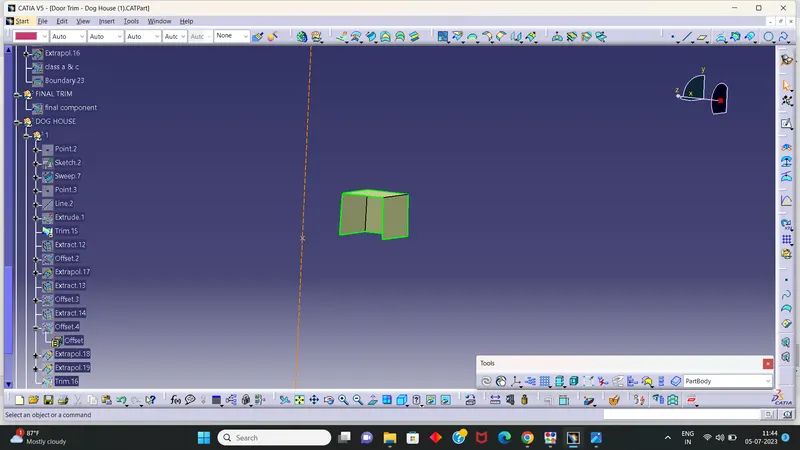

created a point on the surface where dog house is desired to place

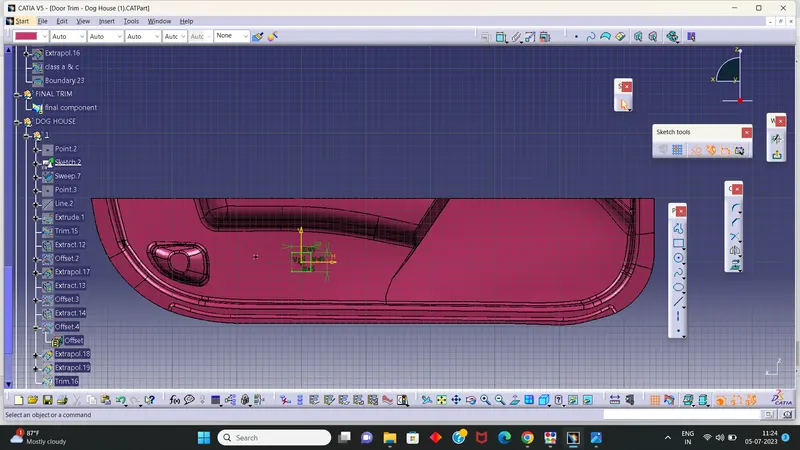

as the surface is not flat it cannot be taken as reference for the positioned sketch.so created a axis system on the point and took zx plane as reference for the sketch.
created a 30*30 box in sketcher workbench and selected one side of the box as construction element.
swept the box in 1.5 degree drafting to tooling axis.
close the top of the extruded box creating a line on the edge and extruding it
trim them together

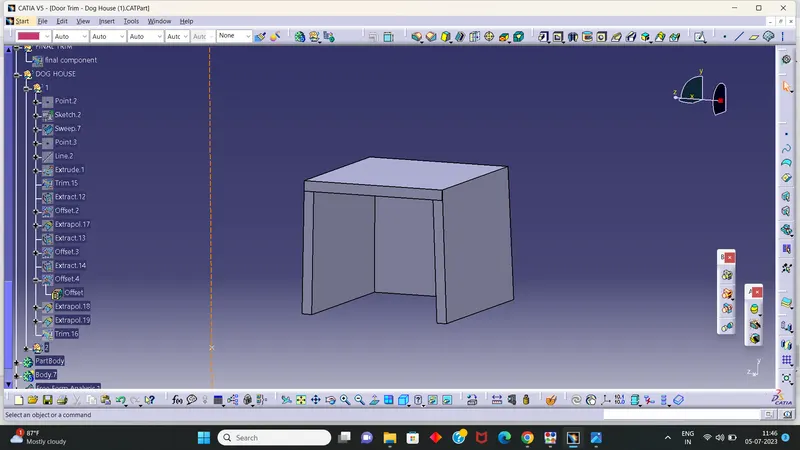

go to part workbench,select thickening tool and thicken it inside.
create a side core axis in perpendicular direction to tooling axis
give drafting of 1.5 degree for inner faces of the dog house with respect to side core axis

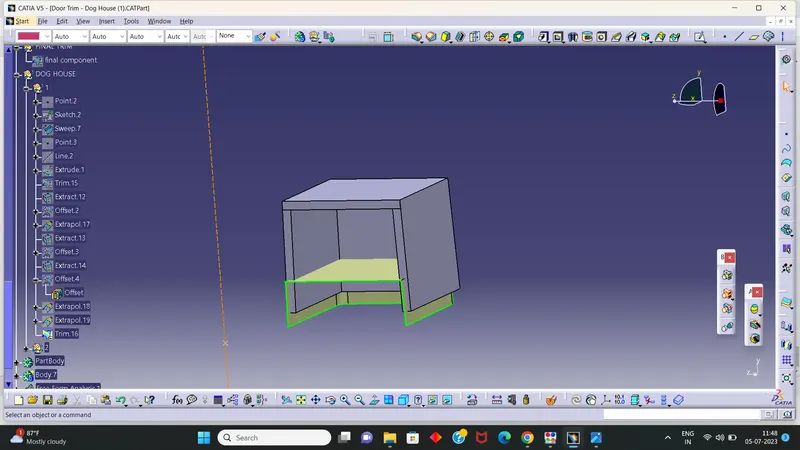

offset the inner faces of dog house to outer and top of the house to inner to appropriate value
trim them together
split the solid doghouse with split tool in part workbench
give drafting to the splitted horizontal faces

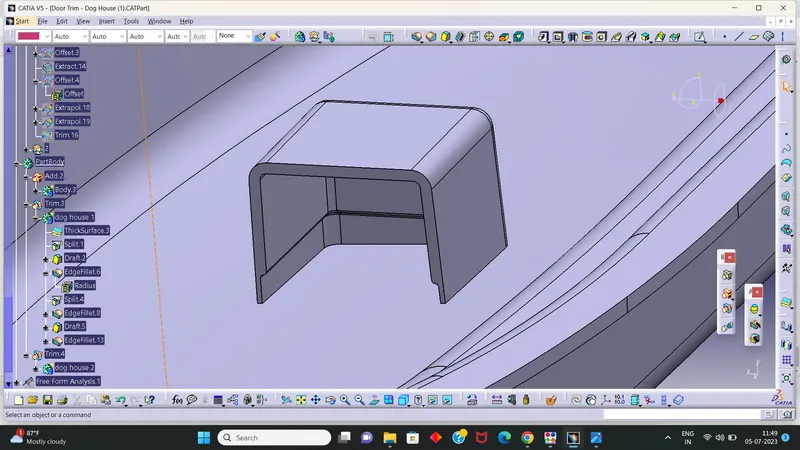

fillet the edges
add to part body
