Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

METAL BRACKET USING NX SHEET METAL APPLICATION:

OBJECTIVE:

This is a project to learn the step-by-step procedure to create a Bracket with a gusset from the given 2D drawing.

DESIGN METHODOLOGY:

SHEET METAL MODELING:

Features and Tools:

• Contour Flange: Creates a base feature by extruding the sketch along a vector or adding material by sweeping the sketch along an edge.
• Break Corners: This feature makes sharp edges smooth round shapes or chamfer shapes.
• Normal Cut-Out: It helps to cut material by projecting a sketch onto the model, cutting perpendicular to the face.
• Unbend: This feature helps to unbend the bent shapes to a flat pattern. In sheet metal other features like cut-outs and holes needed to be created over the flat configuration. So that feature applied will be normal to a flat surface.
• Hole: Cut or remove the material with a thread pattern on it. For applying the hole feature there should be a specific point, which will be the center of the hole.
• Rebend: This command helps to rebend the previously unbent sheet and have a component in its original form.
• Advanced Flange: Add a flange along an edge using a bend angle or a reference face. The edge and reference face can be curved.
• Gusset: Creates a stiffening gusset on the part.
• Flat Pattern: It is used to represent the whole component in 2D form. This flat pattern also shows entire features with dimensions.
• Drafting: Drafting is creating a technical drawing into a sheet, communicating about the dimensions and view of components. The draft helps the manufacturing and production department to know about the product design in a 2D format.

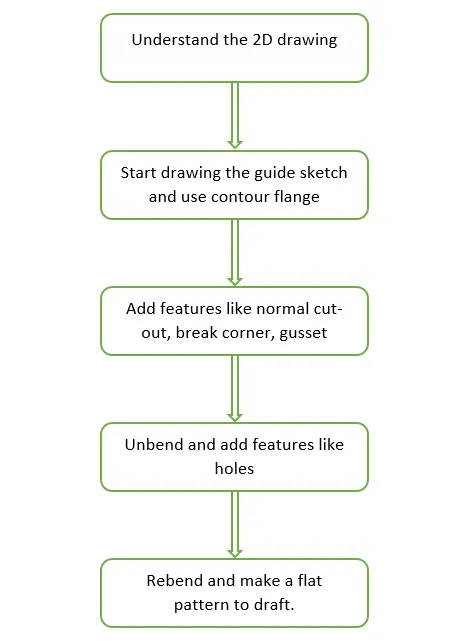

Procedure:

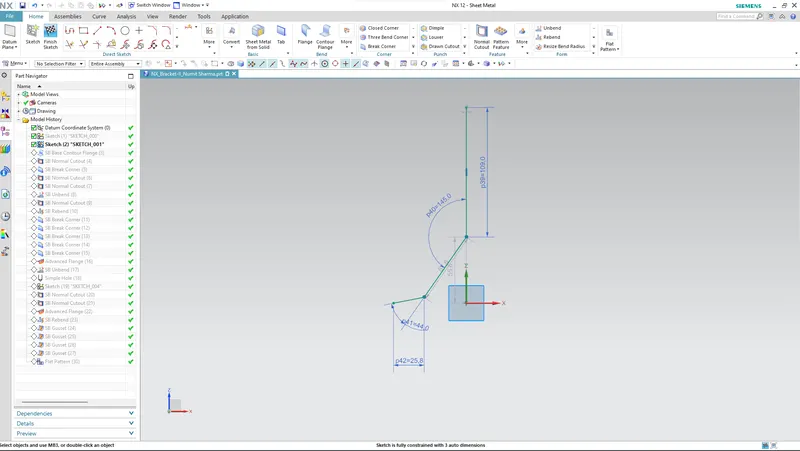

• Sketch the drawing for making the Bracket on the YZ plane

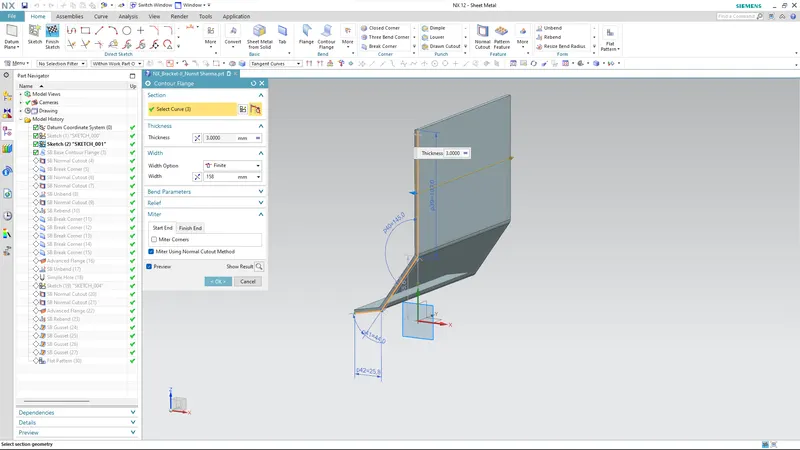

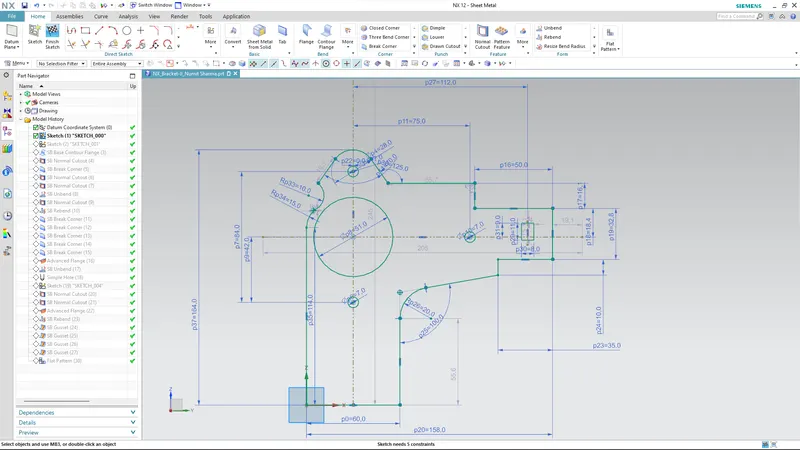

• Sketch the drawing for the contour flange on the XZ plane with a width of 158mm.

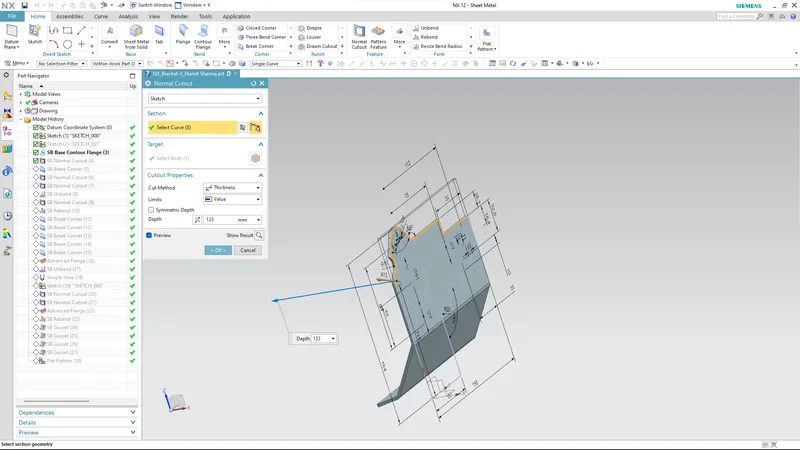

• Using normal cut-outs remove unwanted material by checking the 2D drawing.

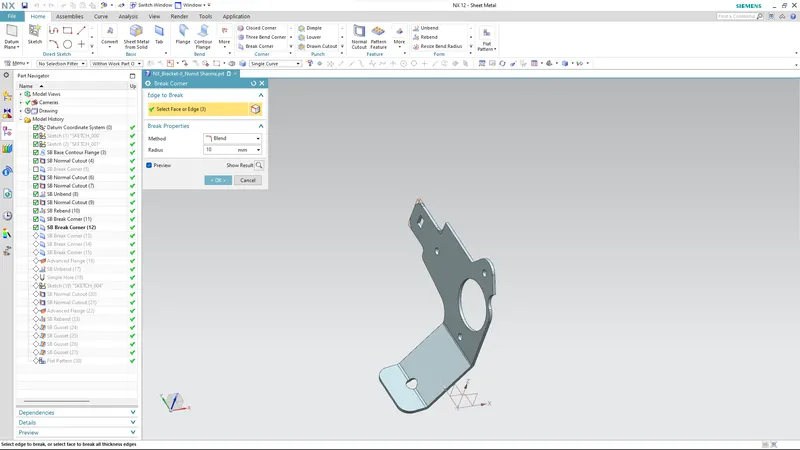

• Use break corners to give a smooth curve to the corners according to the 2D drawing available.

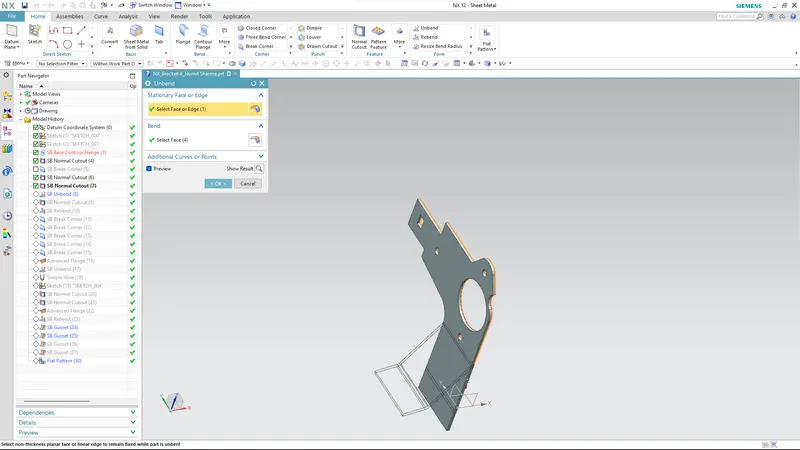

• Unbend the model and cut out the shapes needed in the model.

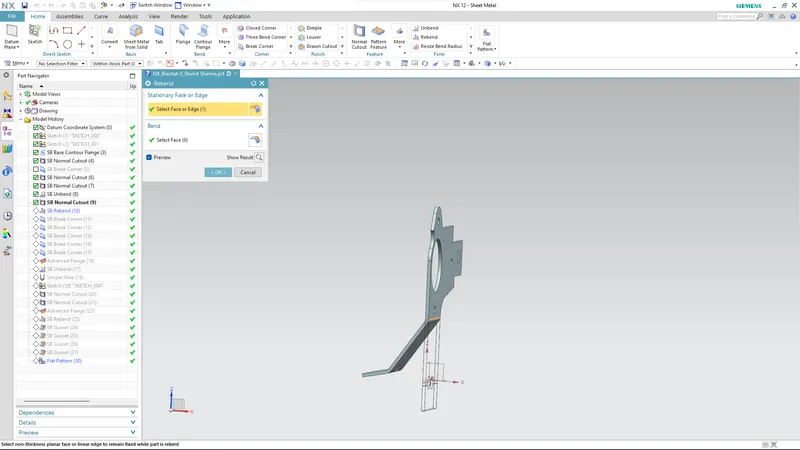

• Rebend the model.

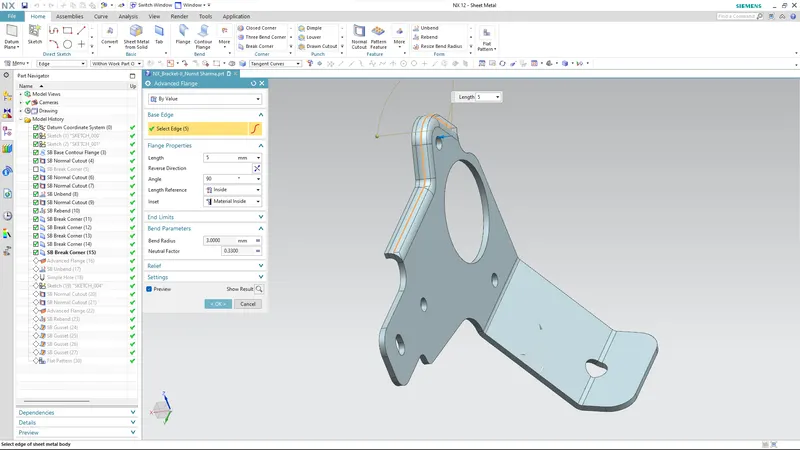

• Use an advanced flange and select the upper edge with a flange length of 5mm.

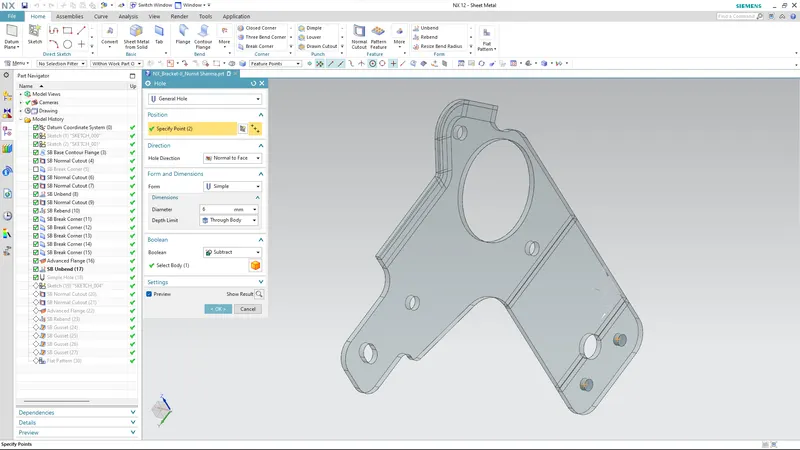

• Unbend the model again and give holes at the bottom of the part according to the drawing.
• Use a normal cut-out by sketching the shape between two bends. Then use advanced flange on the same sketch.

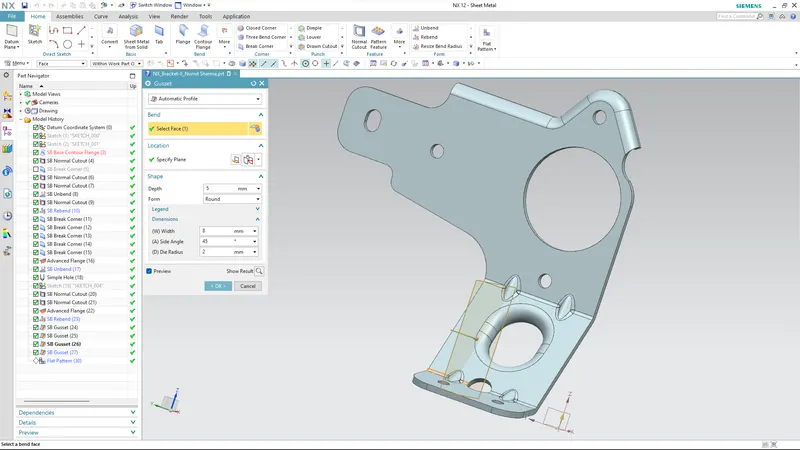

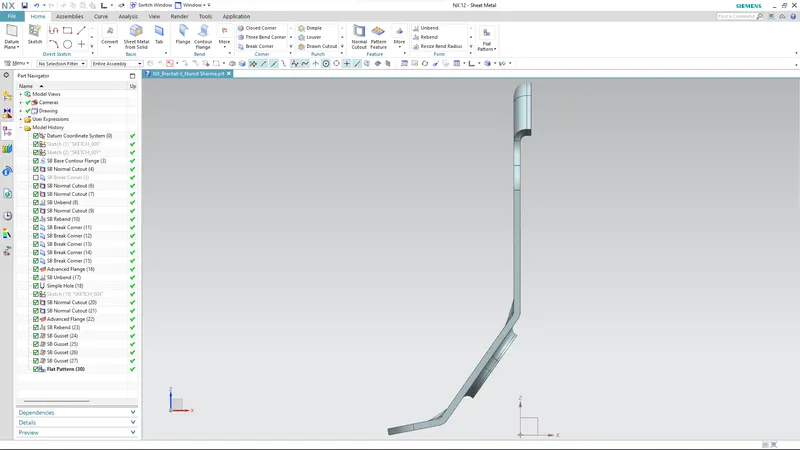

• Rebend the model and apply the gusset feature at the bend as shown in the drawing.

RESULT:

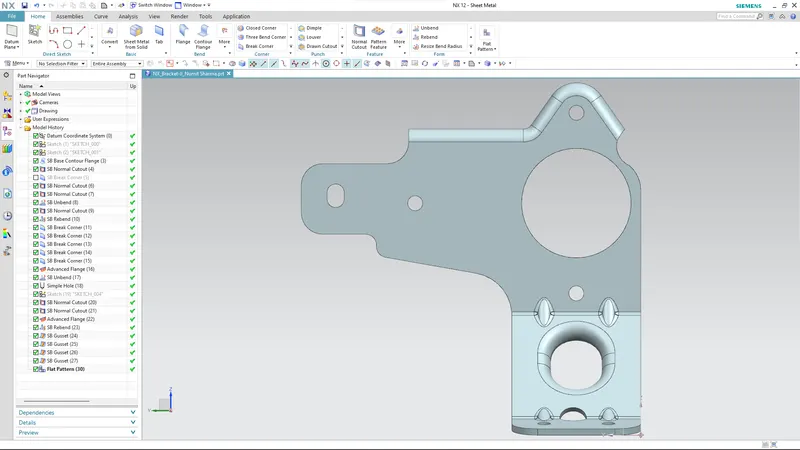

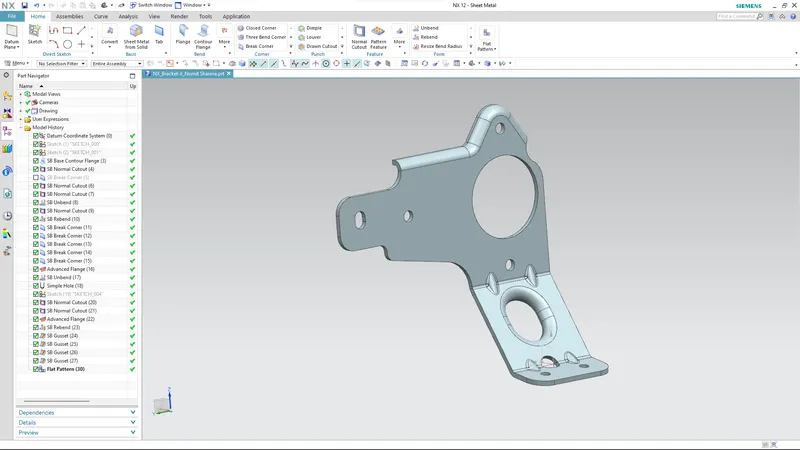

FIG: Isometric View

FIG: Front View

FIG: Side View

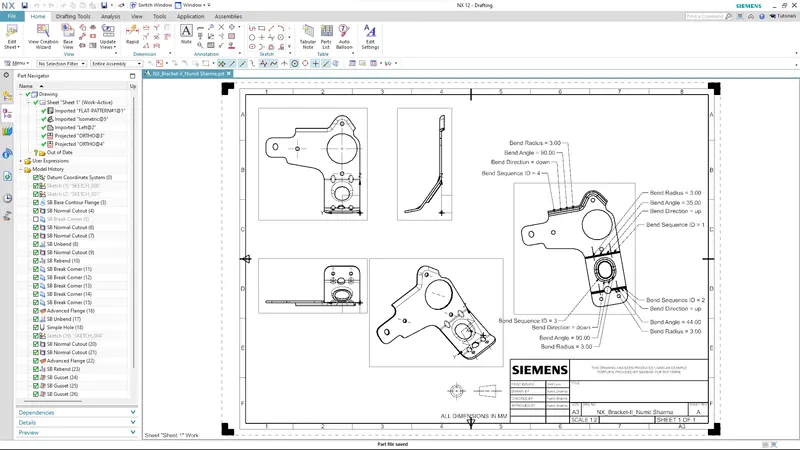

FIG: Detailed Drawing

CONCLUSION:

The sheet metal bracket is designed successfully using the NX Cad application. From this project, we get to understand advanced flange and gusset features.
