Week 9 - Attachment Feature Creation - Challenge 2

SCREW BOSS AND DOG HOUSE DESIGN ON DOOR TRIM

AIM- Create the s dog house for the DOOR TRIM

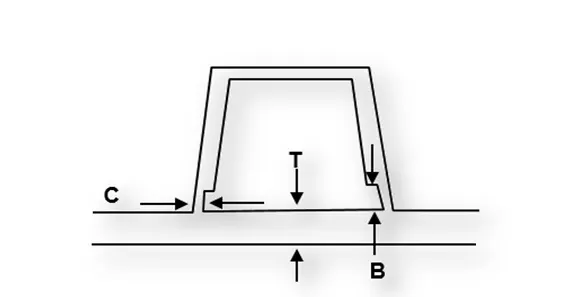

Doghouse wall thickness at the intersection of the part wall (C ) should be 40% or less than the main wall stock (T).

The height of (B) should be between 3-6 mm

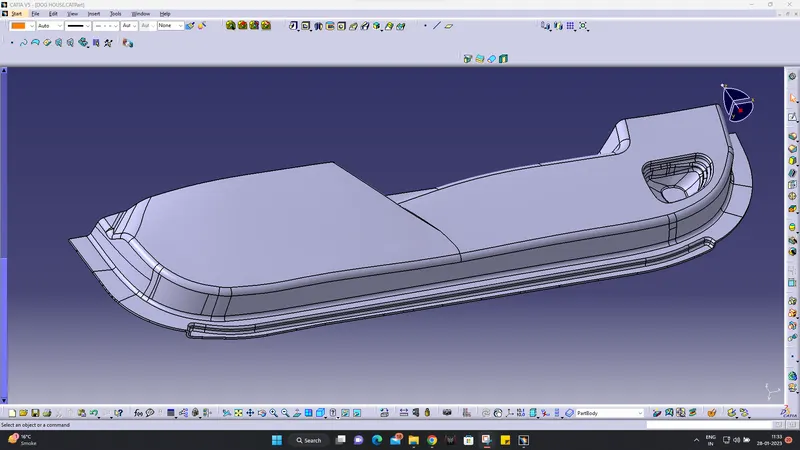

Given Door trim surface

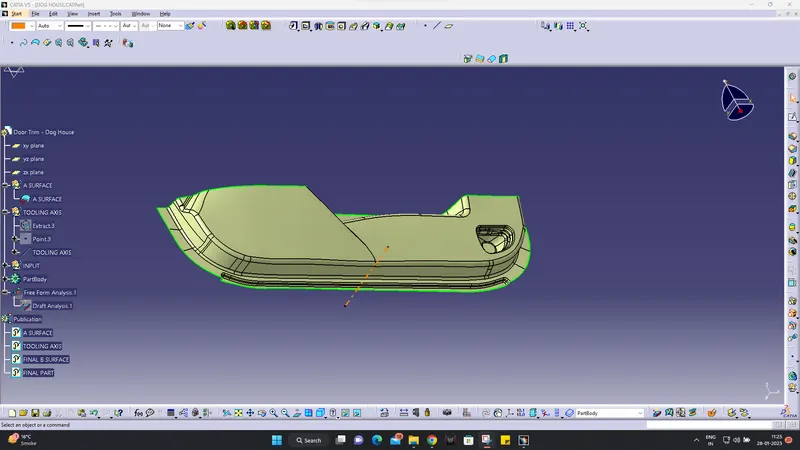

Making tooling Axis

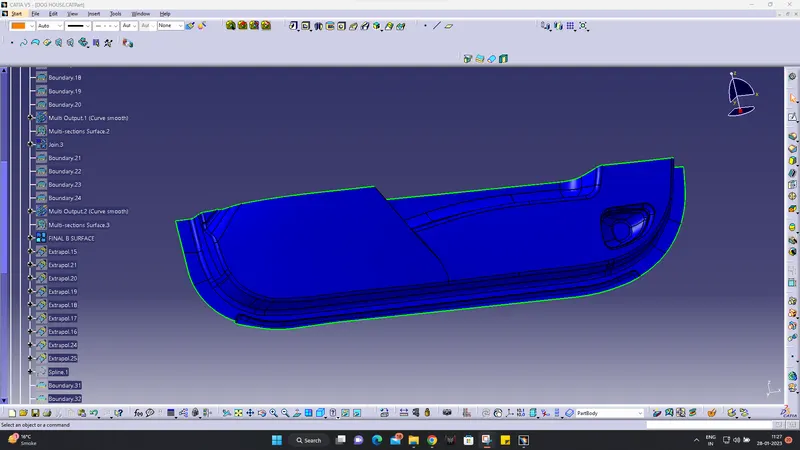

Making B surface

For B surface creation we offset the surface 2.5mm

Making C surface

for the C surface, we use the sweep command in an A surface for joining the A surface or B surface

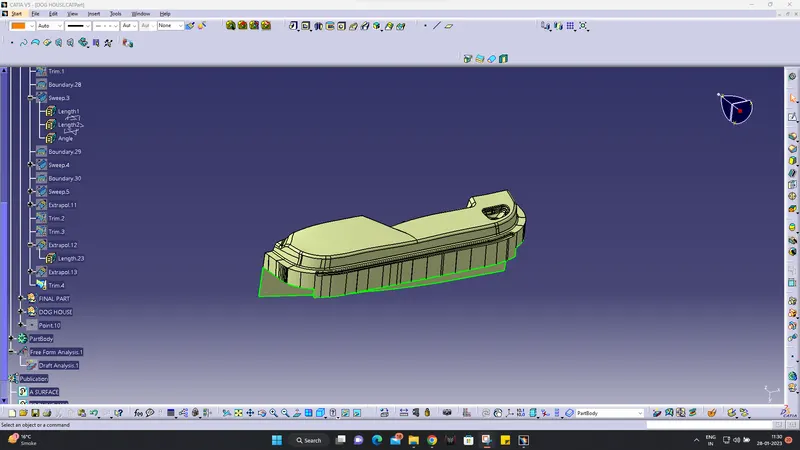

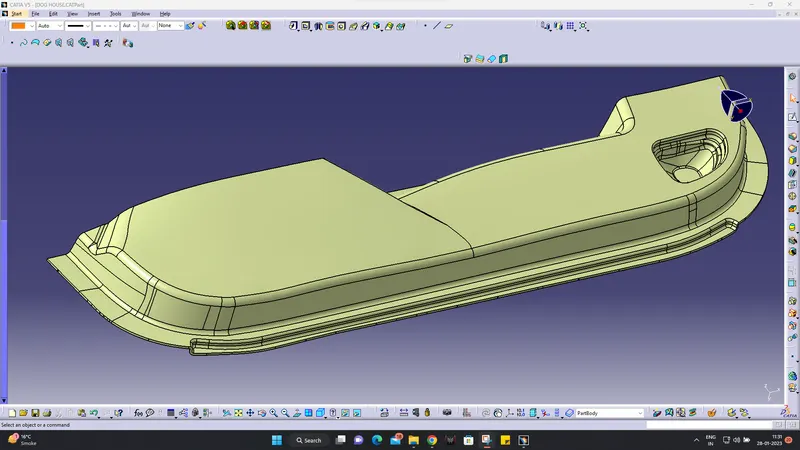

final part

After making the final part we used the CLOSE Surface command to make the object into solid body

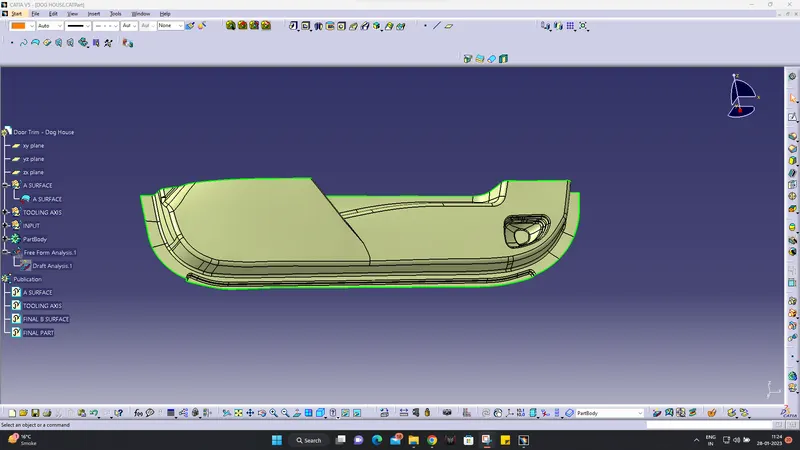

Dog house design-

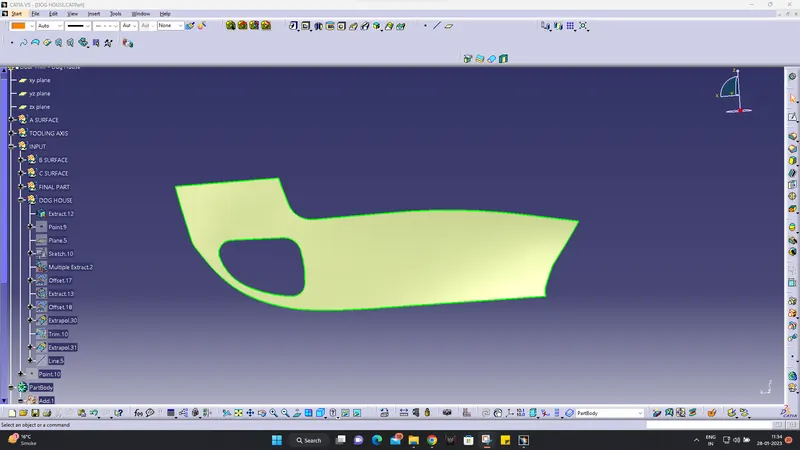

Extract the base of Class A Surface

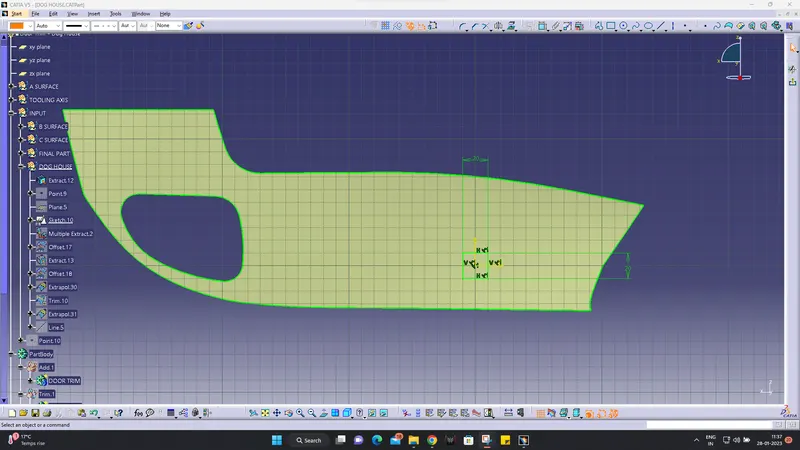

Draw a sketch of a rectangle for a dog house.

Use a pad with tooling direction and draft it at an angle of 1.5 degrees for the outer surface.

Close the upper surface face by offsetting the below-extracted surface and then after trimmed it.

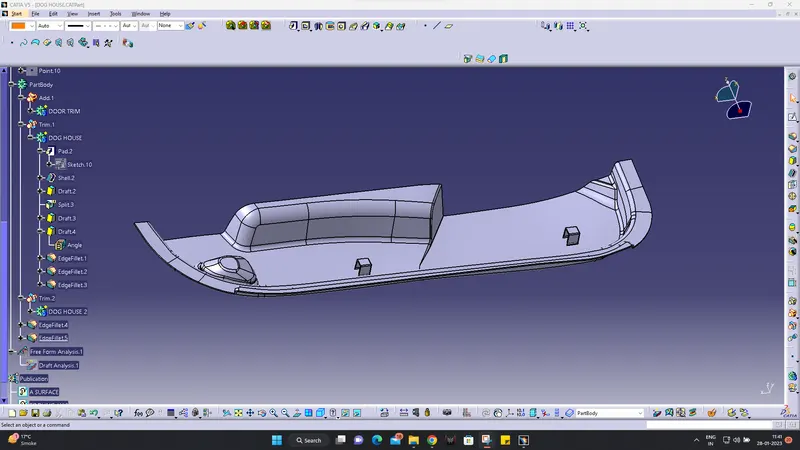

after completing the dog house design using a boolean operation to join the dod house main part

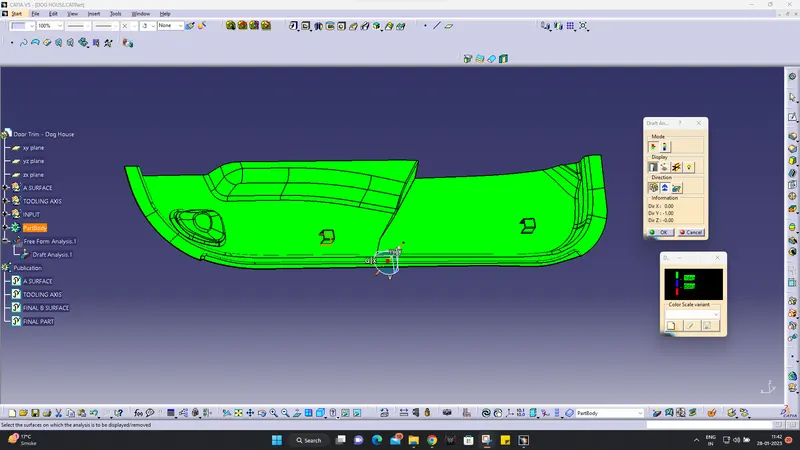

Draft analysis of Dog House and final part
