Section Modulus calculation and optimization

REPORT ON SECTION MODUL CALCULATION OF HOOD

OBJECT

To calculate the section modulus of the previously designed hood for analyzing its strength and also optimizing the design to see the difference in the bending strength of the hood. The higher the section modulus of a structure, the more resistive it becomes to bending.

Section modulus

Section modulus is a geometric property for a given cross-section used in the design of beams or flexural members, it is also referred to as the Polar Modulus or the Torsional Sectional Modulus. Other geometric properties used in the design include an area for tension and shear, the radius of gyration for compression, and the moment of inertia and polar moment of inertia for stiffness. Any relationship between these properties is highly dependent on the shape in question. Equations for the section moduli of common shapes are given below. There are two types of section moduli, the elastic section modulus, and the plastic section modulus.

S=I/Y

Here,

• S = Section modulus
• I= Moment of Inertia (Unit mm 4)
• Y= Distance from the Neutral axis to the extreme end (unit mm) The Unit of a “section modulus” is (mm3)

First Design Study

The Intersection of the design was taken and then section Inertia Analysis was done-

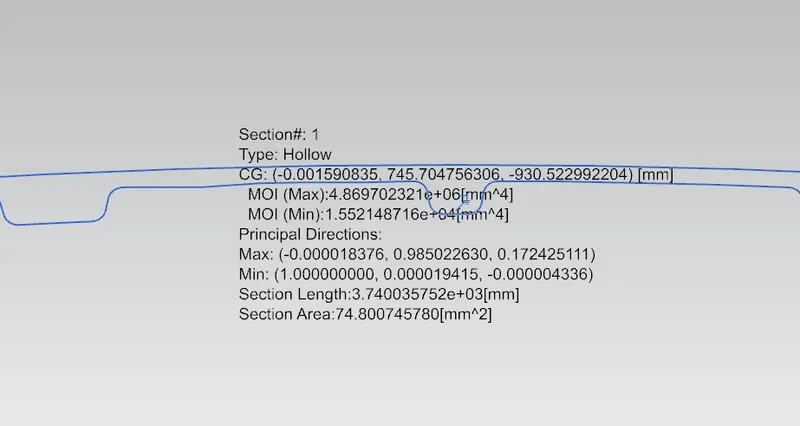

• Moment of inertia(max) = 4.869702321e+06[mm^4]
• Moment of inertia(min) = 1.552148716e+04[mm^4]
• Y=865.3734/2=432.6867mm

S=l/Y

S=1.55214X10^4/432.68=35.87mm^4

Hood Design Optimization

By increasing the depth of the inner panel by 0.5 mm

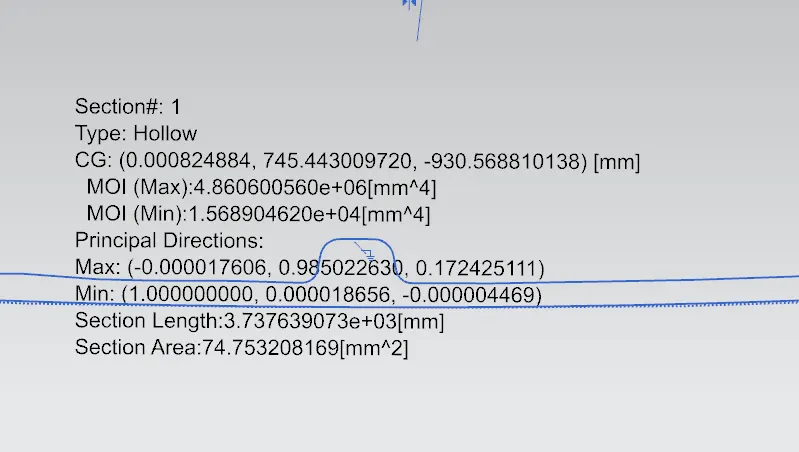

• Moment of inertia(max) = 4.860600560e+06[mm^4]
• Moment of inertia(min) = 1.568904620e+04[mm^4]
• Y=865.3734/2=432.6867mm

S=l/Y

S=1.5689X10^4/432.68=36.26mm^3

Conclusion

So, here the difference can be seen in the moment of inertia and the change in the section modulus can be seen by the change in the design(depth).
