The responsibility of conserving our environment has driven us to seek alternative sustainable solutions, such as electric vehicles, which operate without emitting harmful gases. The development of electric cars can be traced back to 1832 when Robert Anderson created the initial prototype. However, it was in the 1870s that electric vehicles became practical for everyday use.

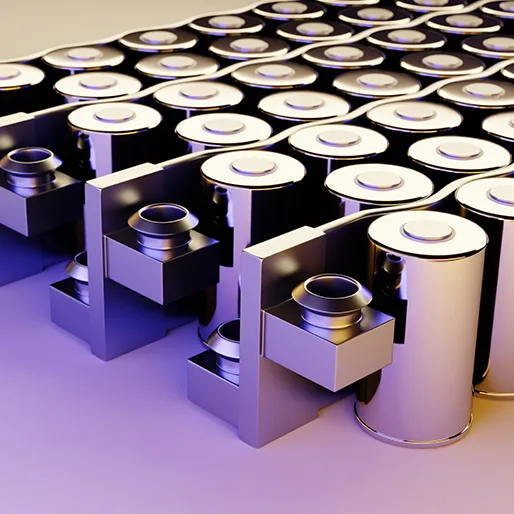

Electric vehicles are powered by rechargeable battery packs comprising multiple cell modules connected in series and parallel configurations. These battery packs generate several hundred volts of electricity, making them a vital vehicle component. As a result, constant monitoring and control of the battery pack are essential.
To ensure the efficient operation of the battery pack and prevent voltage fluctuations or imbalances, a Battery Management System (BMS) is employed. The BMS is an embedded system that monitors the components near the battery cells. It oversees each cell, ensuring it operates within optimal voltage conditions and preventing potential failures.
This blog will explore the significance of battery management systems for electric vehicles. By delving into the various aspects and functionalities of BMS, we can better understand why it is a critical component for the efficient and reliable operation of electric vehicles. Continue reading to learn more.
A Battery Management System (BMS) is a crucial system designed to optimize the lifespan and efficiency of batteries. Its primary function is monitoring and maintaining the battery cells within their ideal voltage and temperature range, ensuring optimal performance.
The BMS continuously monitors the battery cells, closely monitoring their voltage levels and temperature. Doing so ensures that all the cells operate harmoniously, preventing any imbalances or deviations that could negatively impact battery performance. This proactive monitoring helps maximize the battery pack's efficiency, allowing it to deliver consistent power output over its entire lifespan.
The EV Battery Management System (BMS) assumes a crucial role in monitoring various parameters of the battery, ultimately enhancing the performance of electric vehicles. One of the critical components within the BMS is the analog front end, which gathers data to assess the battery's health and overall condition. This comprehensive monitoring allows for a more accurate evaluation of the battery's state, leading to improved performance and efficiency.
Another critical aspect of the BMS is the cell balancing circuit. This circuit ensures that each cell within the battery pack experiences an equal level of discharge and charge. Balancing the charging and discharging processes across all cells, the BMS prevents any single cell from being overwhelmed or deteriorating faster than others. This balancing mechanism significantly enhances the electric vehicle's overall performance, operation, and safety.
Furthermore, the BMS facilitates the communication of data to the driver. It serves as an interface between the battery and the driver, providing real-time information about the state of charge, battery health, and other vital parameters. This data lets drivers make informed decisions regarding their charging requirements, driving range, and overall electric vehicle usage. The BMS enables seamless communication and interaction between the driver and the battery system.
In addition to monitoring and communication functions, the EV Battery Management System plays a crucial role in monitoring diagnostics and performance of the electric vehicle as a whole. The BMS can continuously collect and analyze data to detect faults, abnormalities, or potential issues within the vehicle's electrical system. This proactive approach allows for early detection and diagnosis, ensuring timely maintenance or intervention for optimal performance and safety.
Moreover, the BMS enables the setting of system parameters to customize and optimize the performance of the electric vehicle. This flexibility allows for tailored configurations based on specific driving conditions, preferences, or efficiency goals. By adjusting system parameters through the BMS, electric vehicle owners can fine-tune their driving experience and further enhance the overall performance of their vehicles.
The Battery Management System (BMS) in electric vehicles is a critical component that operates in dynamic and demanding conditions. It performs several crucial functions while effectively communicating with various onboard systems. These essential functions include:
The BMS safety system monitors essential parameters such as input/output current, temperature, and voltage to ensure safe operation. It prevents overcharging by monitoring the current flow into the battery. The BMS also maintains isolation between the high-voltage battery and the vehicle frame to prevent electric shocks.
The BMS facilitates the recharging of the battery through regenerative braking. It captures surplus kinetic energy during braking and converts it back into chemical energy or another usable form, which is then used to recharge the battery. The BMS manages the transfer of this energy to the battery pack.
The BMS measures the SoC (State of Charge) to indicate the battery's charge level and optimize its performance. It communicates with the motor controller to prevent cell voltages from dropping too low during discharging, ensuring balanced operation across the battery cells.
The BMS continuously monitors the battery pack's temperature and implements thermal management strategies. It measures parameters like average temperature, coolant consumption temperature, coolant output temperature, and individual cell temperatures. By doing so, the BMS prevents battery overheating and activates cooling mechanisms when necessary.
The BMS enables communication between various onboard systems. It interacts with the vehicle's ECUs (Electronic Control Units), exchanging information about battery specifications and ensuring smooth vehicle operation. The BMS also communicates with the onboard charger, overseeing and regulating the battery charging.
The BMS enhances electric vehicles' overall performance, efficiency, safety, and reliability by performing these critical functions.
Developing new and improved EV battery management systems is gaining momentum in response to evolving consumer and societal demands for enhanced performance and sustainability. Among the notable advancements, the emergence of wireless BMS technology stands out as a promising domain that offers high cost and performance improvements for EVs.
Revolutionizing wireless BMS technology represents a significant leap forward in the evolution of battery management systems. By eliminating the need for complex wiring harnesses and physical connections, wireless BMS solutions simplify installation and reduce system weight. It not only streamlines manufacturing processes but also enhances overall vehicle efficiency.
The demand for fast-charging solutions is rapidly increasing, especially in applications such as electric buses and vehicles that require continuous operation. To cater to this need, advanced battery management systems are being developed to address the challenges of fast charging.
As the market for EVs continues to expand, the future of battery management systems holds great promise. Advancements in wireless BMS technology and the development of sophisticated solutions for fast charging will play pivotal roles in driving electric vehicles' efficiency, performance, and sustainability.
By embracing these innovations, EV manufacturers can meet the increasing demands of consumers while addressing societal concerns about environmental impact and energy efficiency. The advancements in battery management systems will contribute to the ongoing electrification of transportation and shape a greener and more sustainable future for the automotive industry.
In light of these advancements, acquiring skills and knowledge in battery management systems can be invaluable for professionals in the EV industry. Skill-Lync's course on battery management systems provides an excellent opportunity to gain expertise in this field. By enrolling in a battery management system course, professionals can enhance their understanding of the intricacies of managing and optimizing EV batteries. This knowledge equips individuals to contribute effectively to developing and implementing advanced BMS solutions, thus supporting ongoing transportation electrification.
