Week 9 - Attachment Feature Creation - Challenge 1

DESIGN RULES FOR RIBS CREATION

AIM: to design ribs on the coin holder considering every design rules considered in the industry.

THEORY:

Class-B surface contains all the engineer data required for the model to be completed. This data involves designing of various features. Some of the major features of the B-side are:

1. Ribs
2. Screw boss design
3. Dog house design

RIBS:

They increase the stiffness and strength without increasing the overall wall thickness of the model which is not desired. They also facilitate:

1. Locating and arresting components of an assembly
2. Providing alignment in mating parts
3. Acting as stopper or guides for mechanisms.

DESIGN RULES FOR RIBS:

1. Draft: 0.5 deg per side (minimum), but this value should not be high enough that it will cause failure for other consideration. For example, more draft will result in less thickness at the top surface.
2. The thickness of ribs: 40% of wall thickness or 0.4*t where t is the wall thickness.
3. Height: ≤ 5 times the wall thickness i.e. 5*t
4. Spacing (for more than 1 rib): 3:1- steel height/width ratio (maximum). h/w =3or2(preferred) where h is the height of the rib and w is the space between two ribs.
5. Minimum thickness at the tip: 0.75
6. Radius: 0.25mm max
7. Ribs on the opposite side of the wall should be offset
8. Ribs should be connected to other structural features where possible.
9. Rib root thickness should not be more than 30% of the wall thickness.

APPROACH:

1. Extract the base of the holder from the outside that is from the B side.
2. Sketch on the x-z axis so that it seems like we are sketching on the extracted surface. We can use the positioned sketch on the axis system we have created earlier.
3. Extrude the sketch created. For the extrude distance we have to take design rules into consideration. That is 5*t where t is the wall thickness, 2.5mm.
4. Go to part model and thicken the extruded surface. Here also take design rules into considerations. That is 0.4*t where t is the thickness of the wall.

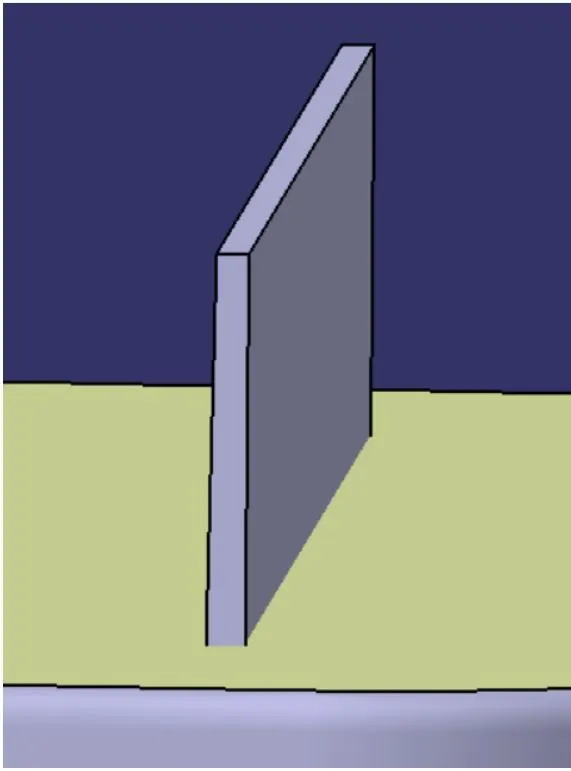

5. We get a rib. Now we have to work on other features to make it fit for production. Give a draft of 0.5 deg on all the vertical faces in the direction of the tooling axis.
6. Measure the tip thickness. It should be more than or equal to 0.75mm.
7. For two ribs make the exact same rib following the exact same procedure some distance away from the first rib. The spacing between them should be according to the rules. Height/spacing=3 (in this case). So we can do the calculation and find spacing. One thing to note here is that, the outer face of the first rib should be that distance away from the inner face of the second rib, so while giving the distance in the sketch if we are considering first sketch as reference then we have to add thickness in that calculation.
8. Rib root thickness should be within the limits. Let us see it in detail.
9. First, intersect the model with the plane of the axis system.
10. Then draw a circle choosing type as tri-tangent.
11. Even though it is a circle, we can see it as few sided polygon so we can correct it from the tools<options

BISECTING METHOD

For Creating the tooling axis of the component the surface lines are intersect with the dummy tooling axis. The process of the bisection is explained below:

• The surface lines of the surface which called boundary is extracted from the surface.
• The lines from the draft area is created which is parallel to the tooling axis by point to point method
• Those two draft surface lines are bisected with the dummy tooling axis.
• Then the final output of the bisecting lines is tooling axis of the component.

DRAFT ANALYSIS

The purpose to perform the draft analysis on the component is to check the elgibility of the component in the maufacturing process of the plastic moulding. By performing draft analysis on the component we can check the draft angle of the component which generally is 3 degrees, the draft angle helps to easily remove the component from the mould in the core and cavity in the manufacturing process.

The process to perform the draft analysis on the component is:

• First, Go to Insert>Feature>Insert feature draft analysis
• Then position the compass on the axis line we created.
• Then select the surface.
• Then use the Analyse under running point to check the draft angle of the surface.

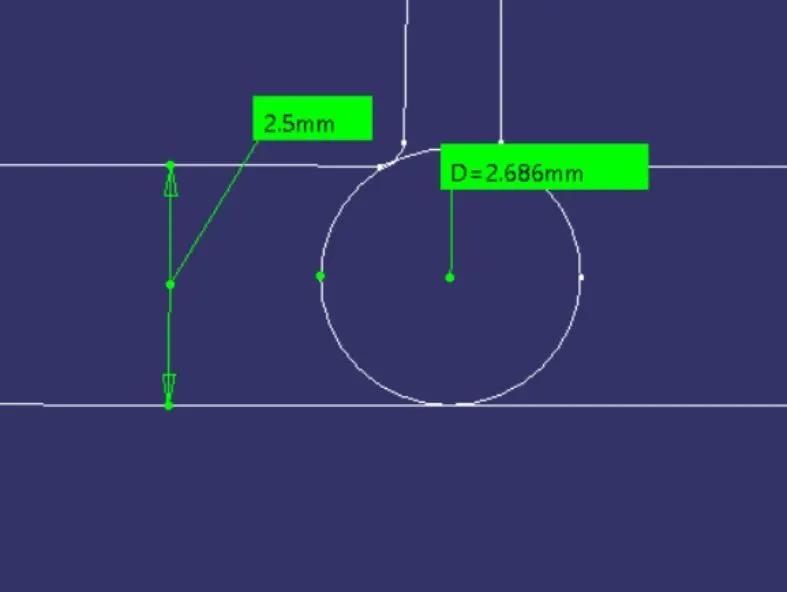

Now we can measure the diameter of the circle and the wall thickness which we know is 2.5mm. The diameter should not be more or less than 30% of the wall thickness.

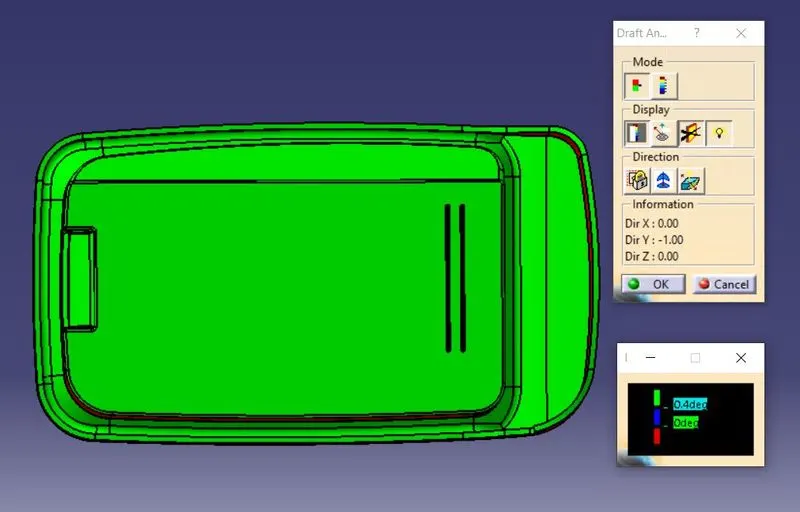

DRAFT ANALYSIS ON THE RIBS

1. Align the compass on the tooling axis and click on the surface.

2. Change the value of the green zone to 0.4 deg.

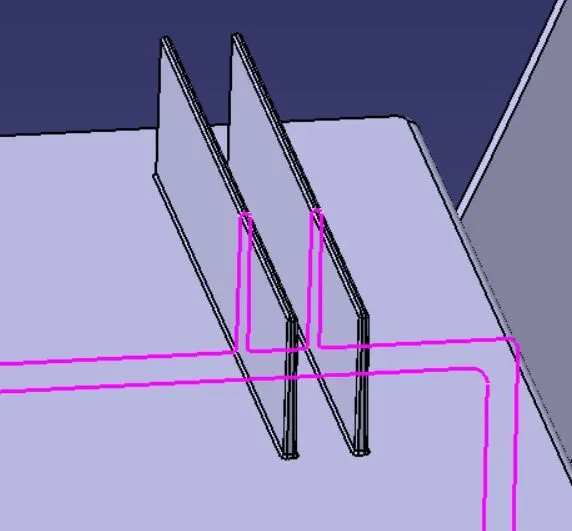

RIB VIEW

DIFFERENT ORIENTATIONS

FRONT VIEW

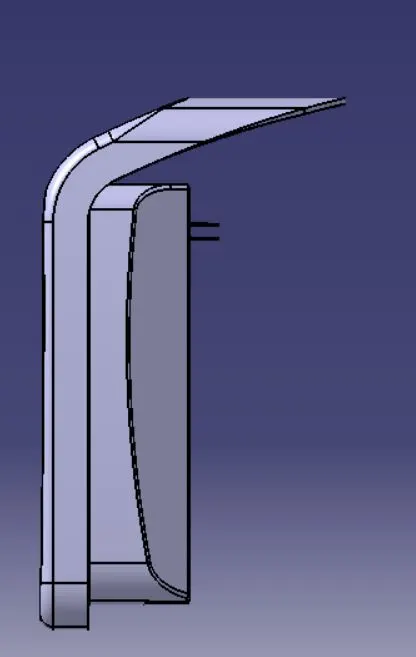

SIDE VIEW

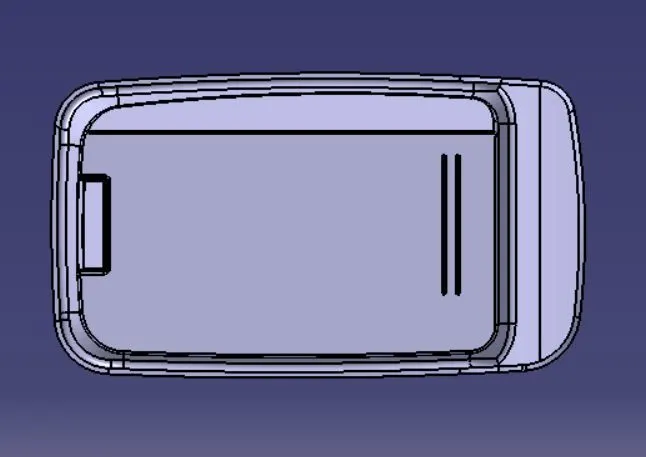

TOP VIEW

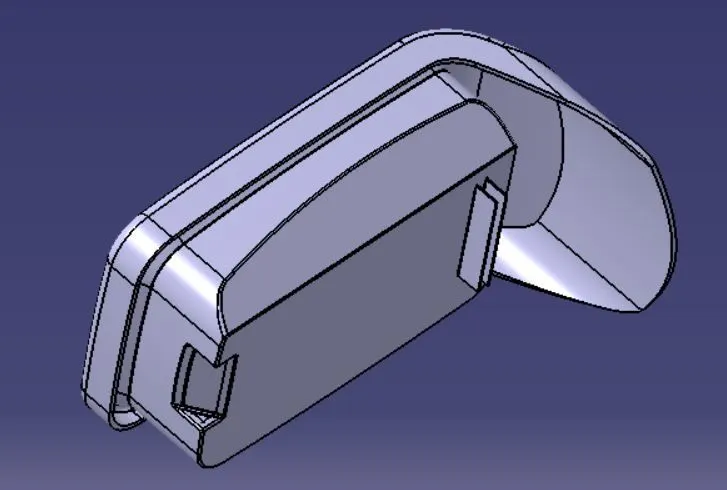

ISOMETRIC VIEW

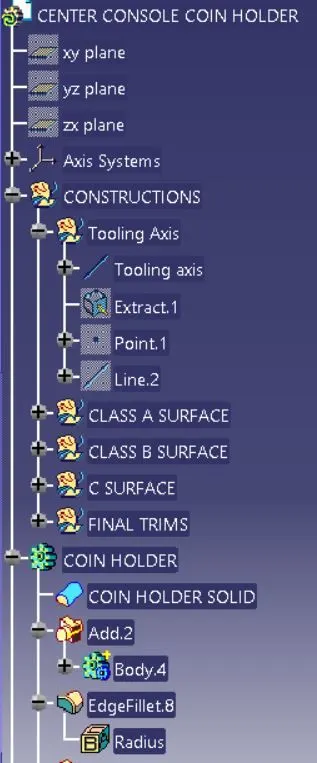

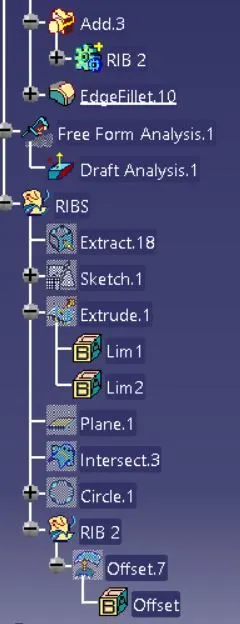

DESIGN TREE
