I this challenge we have created a Coin Holder with the help of Class A Surface by using Closed body method. For this challenge we have the class A surface, & we did Feature draf analysis and found that all the Faces of Class A surface are clearing 3 degree draft angle but there is an error in the surface where it…

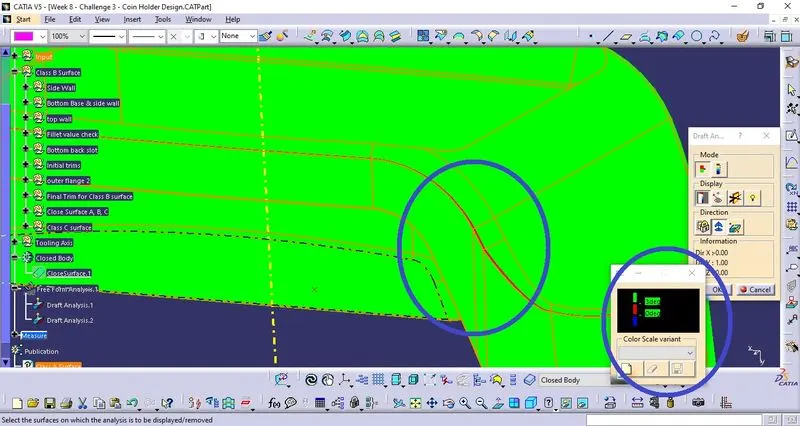

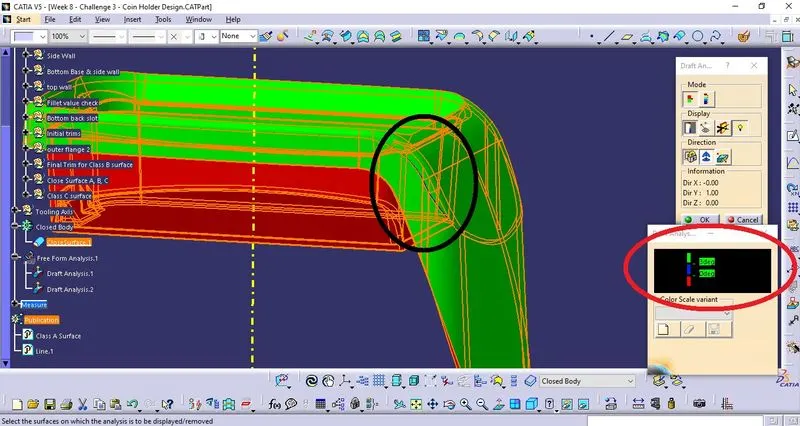

As per the draft analysis the plastic part have minimum draft angle is 2.1 degree, but class A surface has the 3 degree draft angle & but i also gave the 3 degree value in my sweep command so i don't get it why this is happing, all though i am attaching the screen shots below, and please given the proper reason weather…

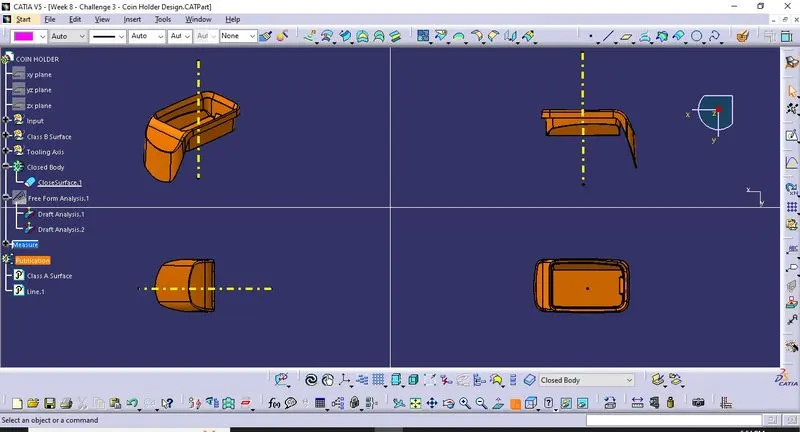

As Per the Draft Analysis of faces of the component are clearing the 3 degree value.
