  3. Week- 5 - Solid meshing

Week- 5 - Solid meshing

AIM:- To the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.  S.No  Quality Criteria  Value  1 Target/Average length   1 2 Minimum Length  0.5 3 Maximum Length  2 and  Use…

    • Ankit Panchal

      updated on 24 Aug 2022

    AIM:- To the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

    S.No

    Quality Criteria

    Value

    1

    Target/Average length

    1

    2

    Minimum Length

    0.5

    3

    Maximum Length

    2

    and

    Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

    S.No

    Quality Criteria

    Value

    1

    Tet collapse

    0.2

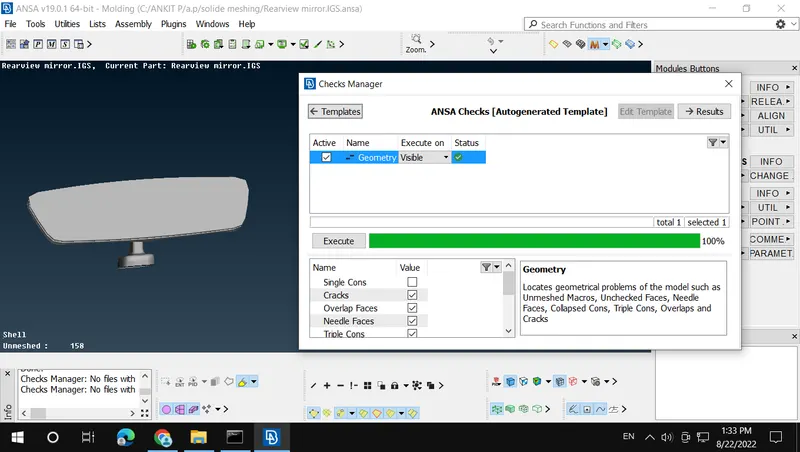

    step :-1  I check for the geometrical error. and clean the geometry 100%.

    For Rearview Mirror .

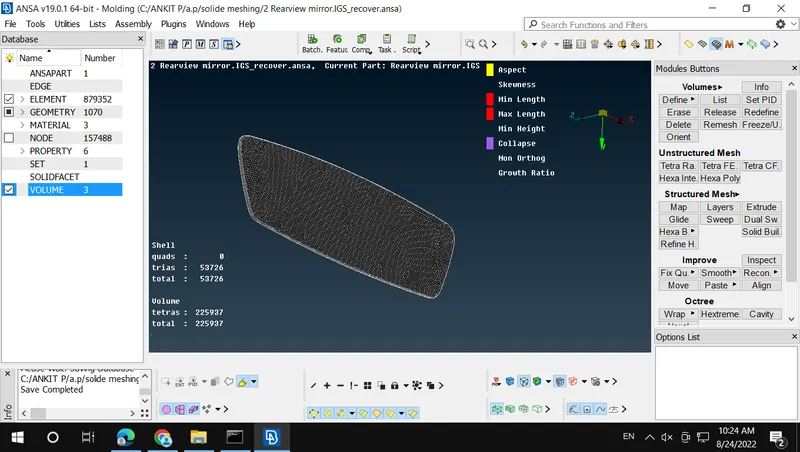

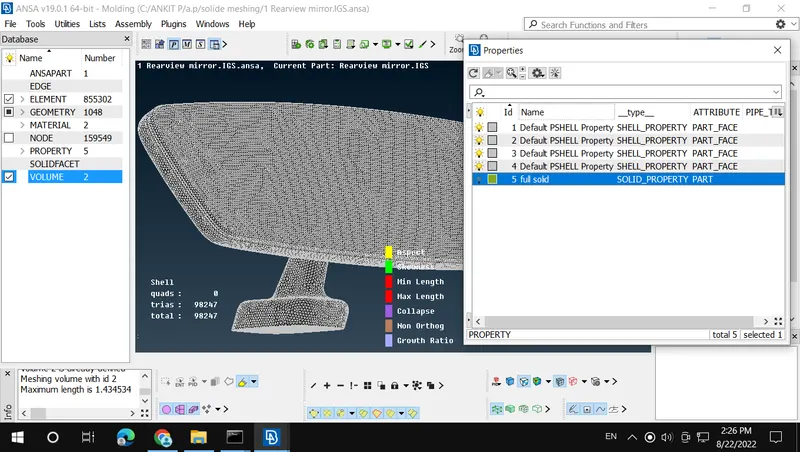

    step 2 :- Make 2D Mesh / Surface Mesh .

    For Rearview Mirror With Given Quality Criteria .

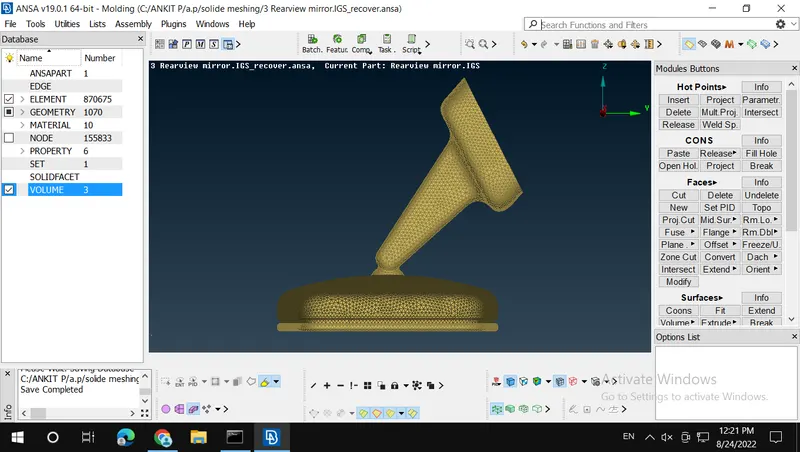

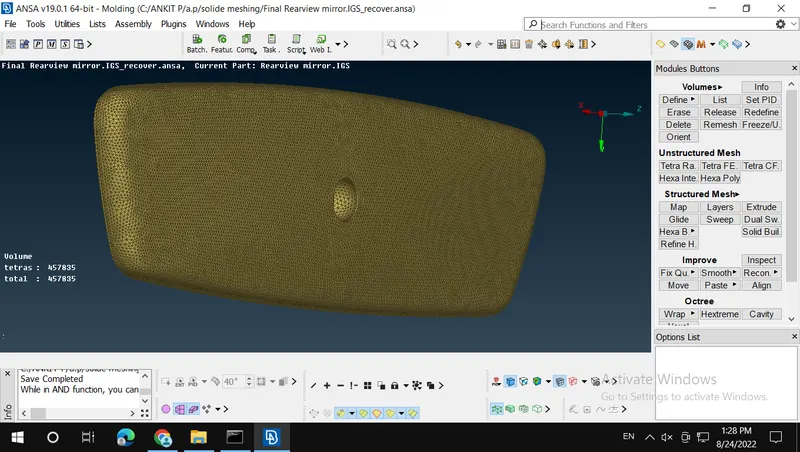

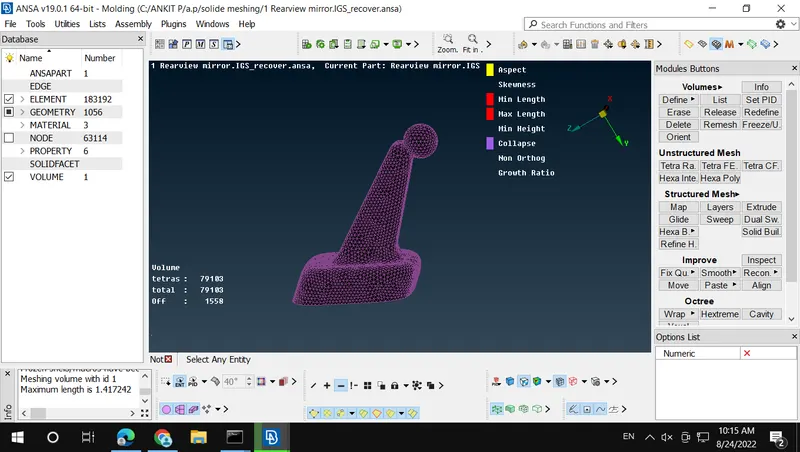

    step 3 :- Make 3D Mesh / Solid Mesh.

    For Rearview Mirror .
