AIM:- What is the difference between the mapped and dynamic models of engine, motor and generator? How can you change the model type? How does the model calculate miles per gallon? Which factors are considered to model fuel flow? Run the HEV ReferenceApplication with WOT drive cycle. Change the grade and wind…
Shubham Solanke
updated on 14 Jul 2021
AIM:-
Question 1:-
What is the difference between the mapped and dynamic models of engine, motor and generator? How can you change the model type?
a)What is the difference between the mapped and dynamic models of engine, motor and generator?
Answer:-
Mapped Model:-
Dynamic Model:-
b)How can you change the model type?
Answer:-
following steps:-

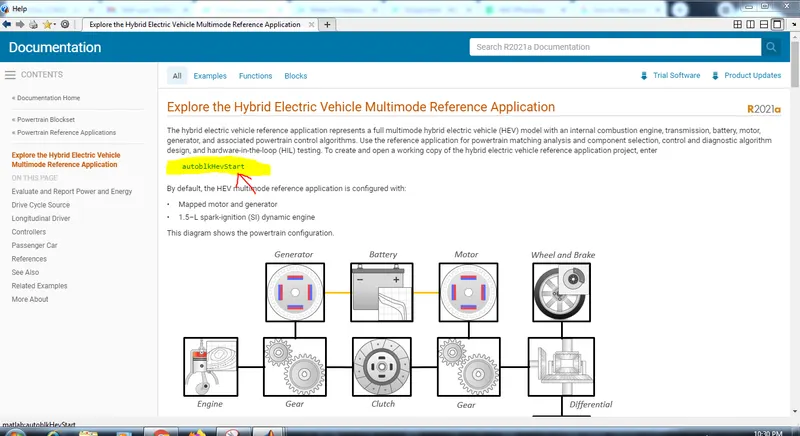

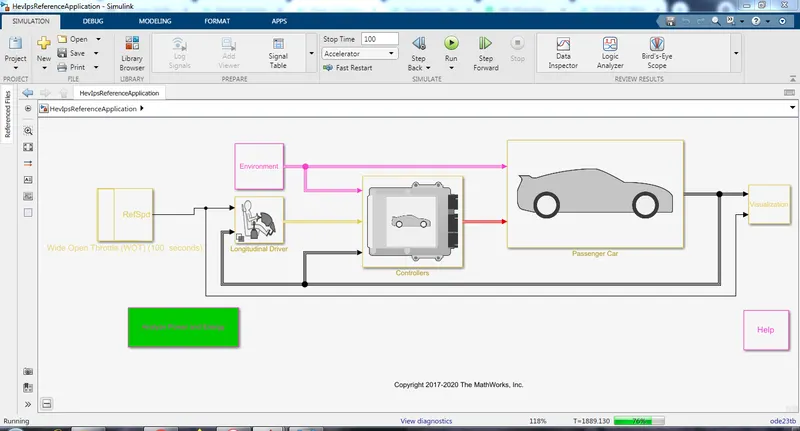

step 1:- open the Explore the Hybrid Electric Vehicle Multimode Reference Application in that click the Simulink model name as autoblkHevStart of the as shown in given below figure

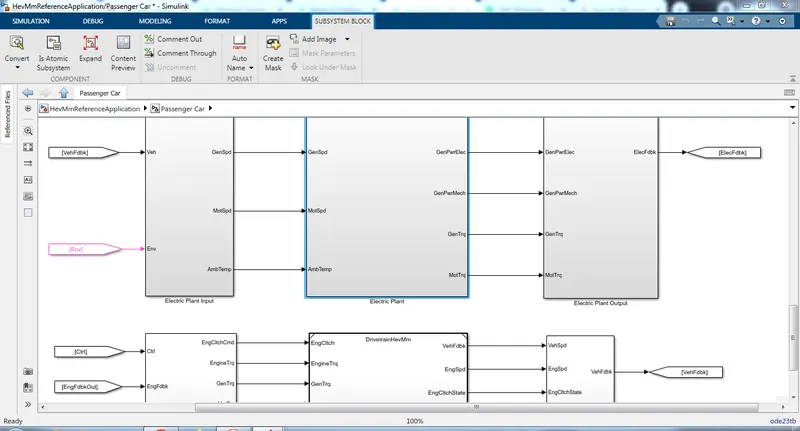

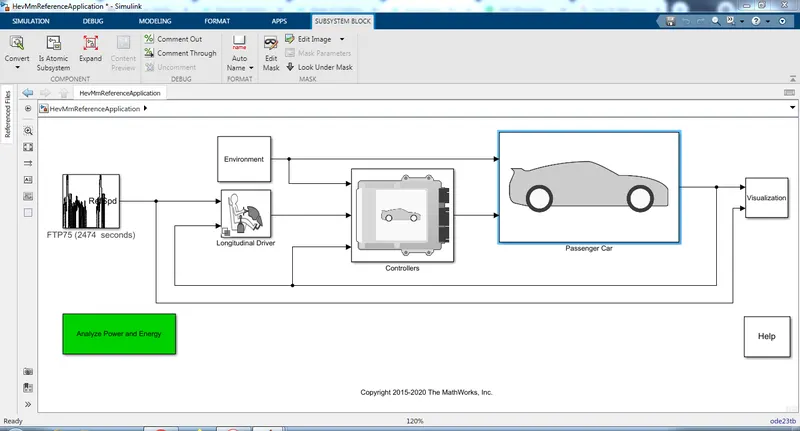

Step 2:- Then after opening above step 1 we have to HEV_Mm_Reference_Application Simulink block set now we have to select the Passenger Car block is given below figure.
Step 3:- Then after opening the Passenger Car we have seen so many block sets but we have selected the electric plant block.

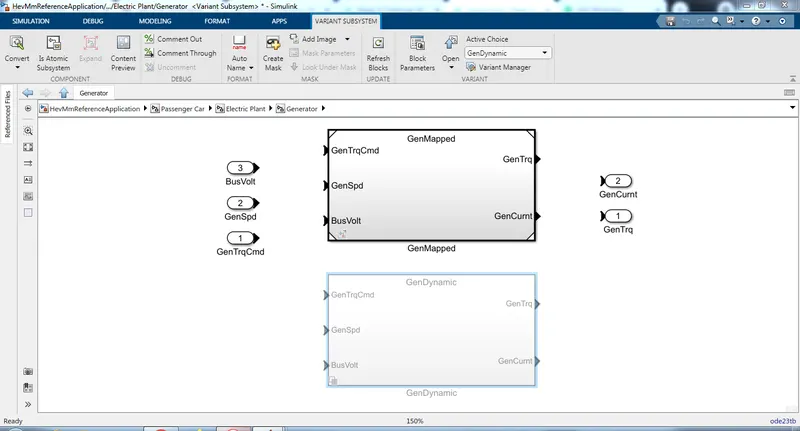

step 4 then after opening the electric plant block we have seen two blocks set
1.GenMapped
2.GenDynamic
now Right-click on the block of 2.GenDynamic

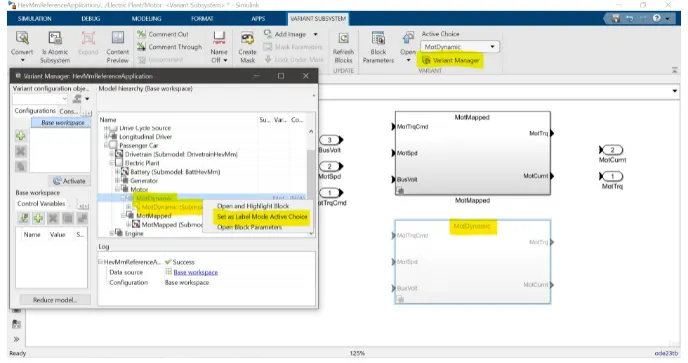

Step 5:- Then after we have to select the Variant Manager after choosing one tab new windows open then we selected want we want to choose so we have to right-click on that then Set as Lable Mode Active Choice
Question 2:-
2. How does the model calculate miles per gallon? Which factors are considered to model fuel flow?
a)How does the model calculate miles per gallon?
Answer:-
Miles per gallon:-

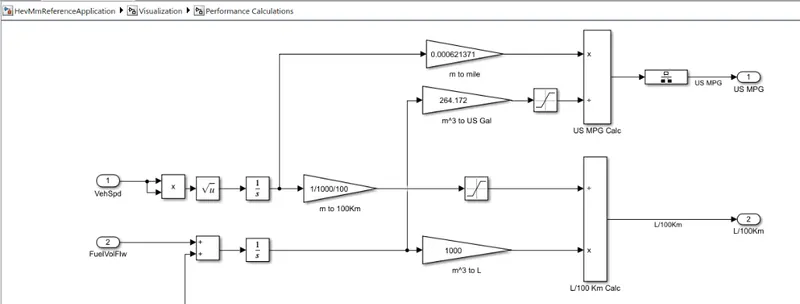

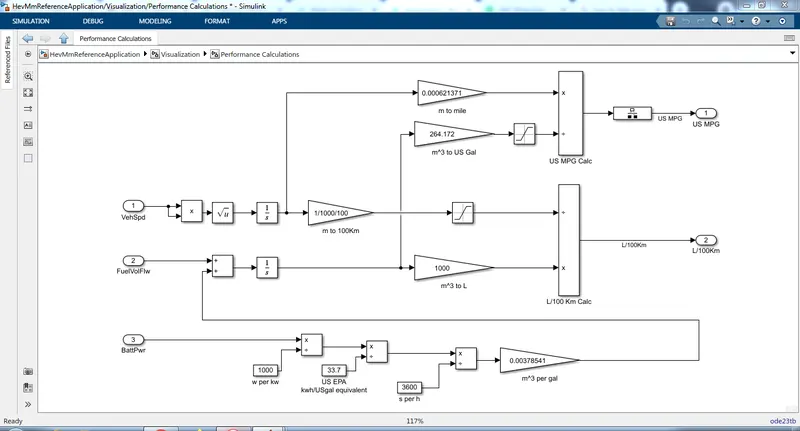

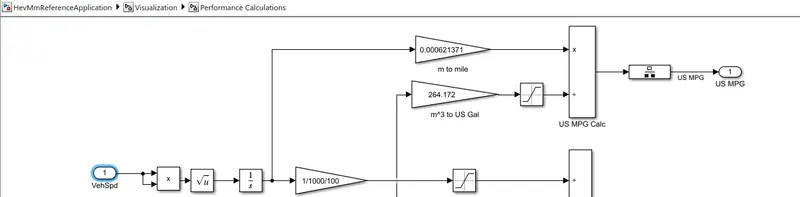

The transformation from a Mile per Gallon to Fuel Flow is mentioned below step
Conversion from Cubic Meter to Gallon (m^3 to a gallon),
As we know 264.172 US Gallons is 1000L
The reference model taken here for consideration is HEV and as it operates on both the Battery and the Fuel Injection Engine.
The final output/Fuel Efficiency is calculated by keeping into consideration of the Battery Output. Fuel Output and the Vehicle Speed/Kilometres are Driven. Therefore the fuel efficiency is calculated and it is converted after the saturation thus the FE is calculated
b)Which factors are considered to model fuel flow?
Answer:-

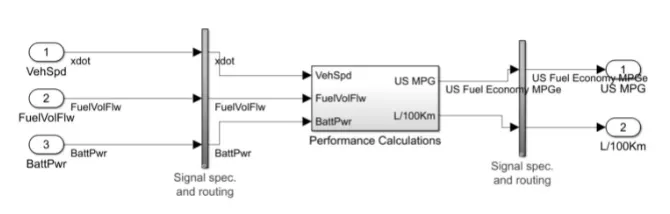

Mainly three-factor is considered to model fule flow as shown in below figure
1 Vehicle Speed
2 Fule Flow
3 Battery Power
1.Vehicle Speed And 2.Fuel Flow:
3.Battery Power:
• The amount of Energy from battery power required to propel the vehicle Equivalent to that of the Engine is calculated here.
• The battery power is given in watts and it is converted to Kw by dividing by 1000.
• Then we convert the power into energy by multiplying with the time into KWh.
• Then we convert the Energy from kWh to equivalent energy in US gallons of automotive gasoline by dividing by 33.7. since we get the energy in US Gallons equal in KWh we are trying to get the energy of equivalent LIS Gallons per second and we do this by dividing with 3600 and we convert the hour to seconds.
• Then multiplying with 0.00378541 we convert the US Gallons per sec to the volume of the fuel flow in (mA3/s) and then we multiply with 739 (California Phase Il Gasoline density) (l.e) mA3/s. kg/mA3 which gives the result as mass flow rate kg's.
• Then finally the Battery energy equivalent in kg/s is given as an input for the fuel flow parameter to find the equivalent US Gallons of energy and estimate the Miles per Gallon.
Question 3:-

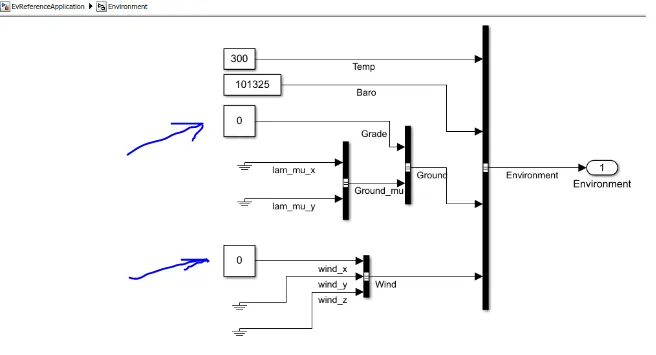

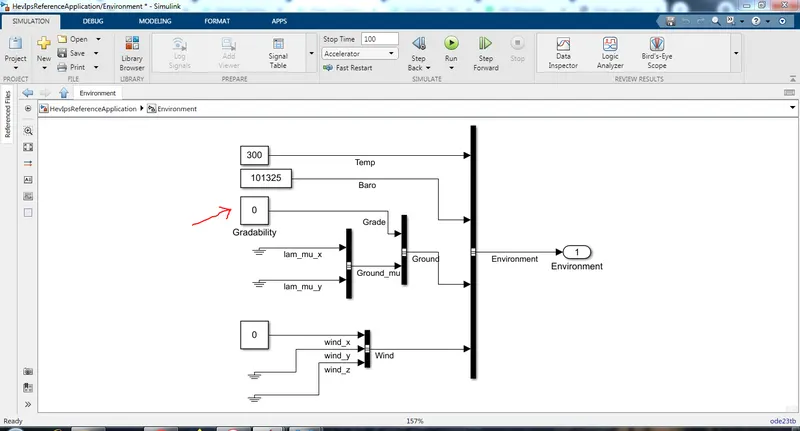

Run the HEV ReferenceApplication with WOT drive cycle. Change the grade and wind velocity in the environment block. Comment on the results.

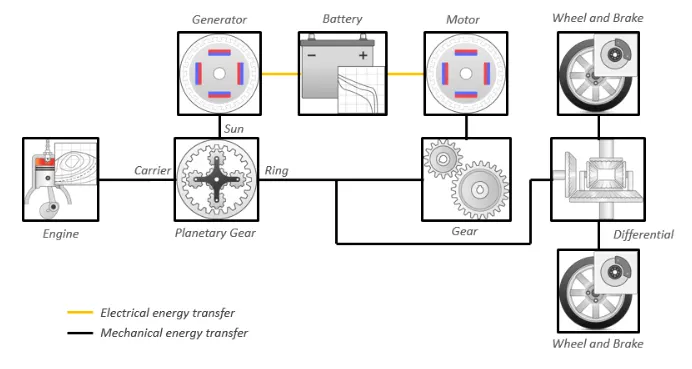

Hybrid Electric Vehicle:
Part=1
SIMULATION SITUATION:-

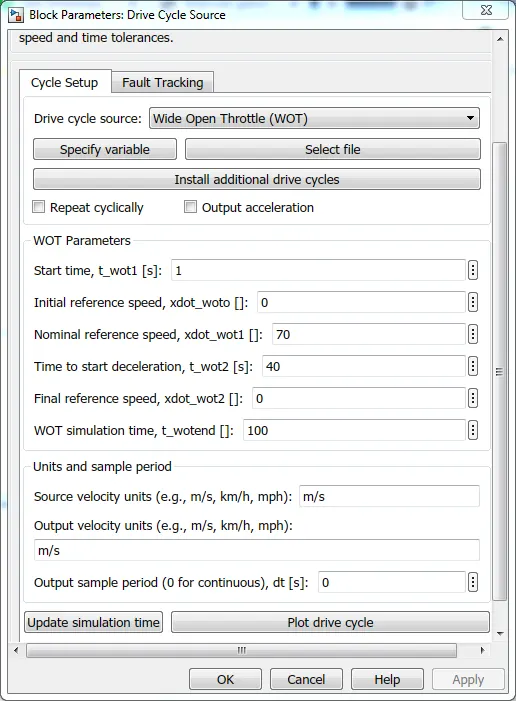

The simulation is done for a Hybrid electric vehicle with a Wide Open Throttle Drive cycle.
The Total cycle time=100 seconds
The Top speed of this cycle = 70 mph
Time to start deceleration =40seconds
The Grade angle =0 degrees
The wind velocity=0 m/s

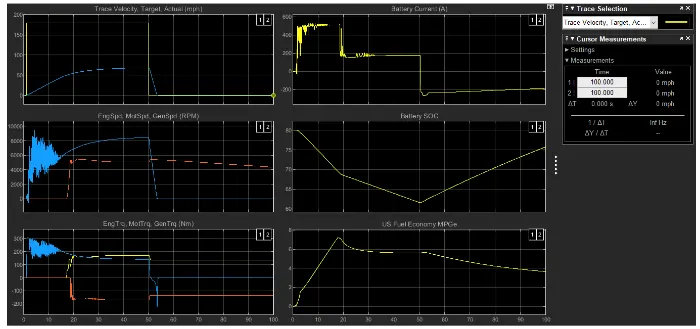

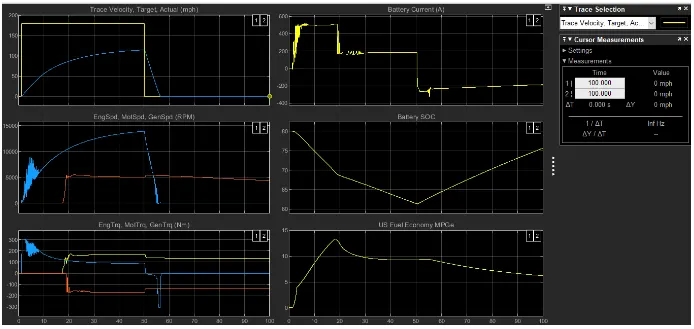

Plot 1:
Shows the velocity of the vehicle concerning the Drive cycle data with the Time scale on the axis
The acceleration time to reach 70 mph =16.7 seconds
The deceleration time from 70 to a minimum of 6.2 seconds
Plot 2:
Shows the changes in the speed of the engine, motor and Generator in Rpm throughout the drive cycle.
Peak Engine speed=4780 Rpm
Peak Motor speed =5497 Rpm
Peak Generator speed =13690 Rpm
Plot 3:
Shows the Torque characteristics and its changes of engine motor and generator (Nm) throughout the drive cycle.
Peak Engine torque = 138.7 Nm
Peak Motor torque = 206.7 Nm
Peak Generator torque-42.2 Nm
Plot 4:
Shows the Battery Current values (A) and their changes per the Drive cycle.
The peak current discharge from the battery =163.5A
The peak current charging to the battery=-150.86 A
Plot 5:
Shows the battery state of charge SOC (%) and its changes corresponding to inputs
the driving The state of charge decreased from 60% to 39.6% of charge in a time period of 49.1 seconds, for the specified driving conditions.
Plot 6:
Shows the Fuel Economy as Mile per Gallons for the corresponding conditions The maximum miles that the car can run per gallon of fuel equivalent 46 Miechothe given vehicle at the specified diving conditions.
Part=2
SIMULATION SITUATION:-
The simulation is done for a Hybrid electric vehicle with a Wide Open Throttle Drive cycle.
The Total cycle time=100 seconds
The Top speed of this cycle = 70 mph
Time to start deceleration =40seconds

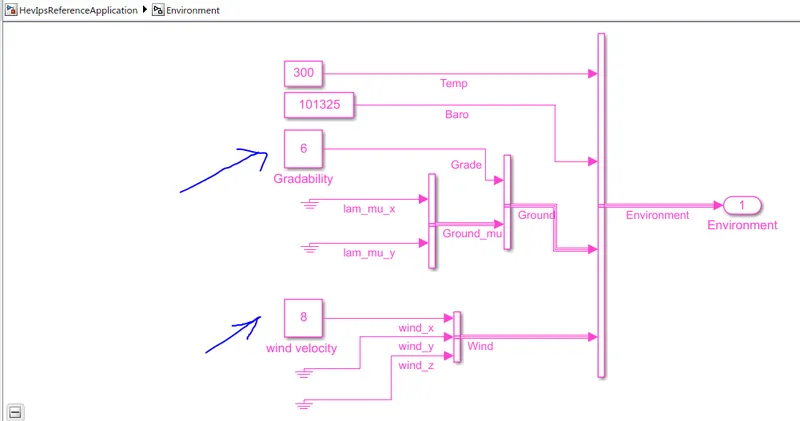

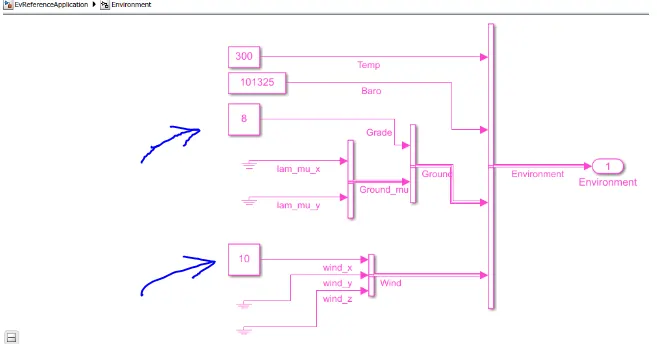

The Grade Angle =6 degrees
The Wind Velocity=8 m/s
Plot 1:
Shows the velocity of the vehicle concerning the Drive cycle data with the Time scale on the axis
The top speed of 70 mph cannot be achieved as we have some additional forces acting and so the car can only run up to 57.2 mph
The acceleration time s reach a top speed of 47.2 mph=405 seconds
The deceleration the from 70 to a minimum of 4.06 seconds
Plot 2:
Shows the changes in the speed of the engine, motor and Generator in aim throughout the drive cycle
Peak Motor speed=81005 Rpm
Peak Generator speed 12758.5 Rpm
Peak Engine speed= 4555 Rpm
Plot 3:
Shows the Torque characteristics and its changes of engine motor and generator in (Nm) throughout the drive cycle
Peak Engine Torque=129.6 Nm
Peak Motor torque=202.4 Nm
Peak Generator torque-482 N
Plot 4:
Shows the Battery Current values (A) and its changes for various per the Drive cycle.
The peak current discharge from the battery-165.6A
The peak current charging to the battery=-150.46 A
Plot 5:
Shows the battery state of charge SOC (%) and its changes corresponding to the driving inputs
The state of charge decreased from 40% to 20.98 % of charge in a time period of 40.3 seconds, for the specified driving conditions
Plot 6:
Shaws the Fuel Economy as Mile per Gallons for the corresponding input driving conditions.
The maximum miles that the car can run per gallon of fuel equivalent to 15.33 Miles. the given vehicle at the specified driving conditions.
Observation:
Question 3:-
Keeping all other parameters the same, compare the simulated results of hybrid and pure electric powertrains.
Answer:-

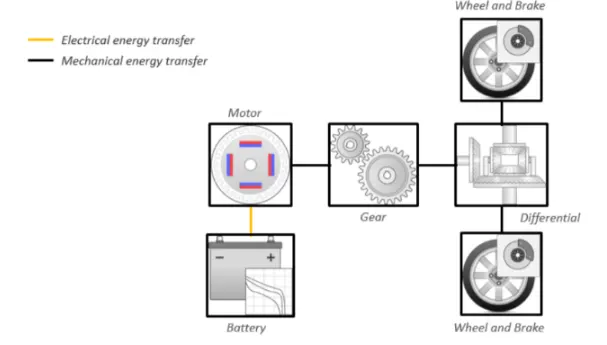

Pure Electric Vehicle:
• A battery electric vehicle or pure Electric vehicle is an EV that exclusively uses chemical energy stored in rechargeable battery packs with no secondary source of propulsion (eg. hydrogen fuel cell, internal combustion engine, etc.) of energy
• BEVS use electric motors and motor controllers instead of a conventional Internal combustion engine for propulsion. They derive all power from battery packs.
• So they don't produce any emission of waste gas and they are eco friendly
• They also have their own limitations such as range etc.
• Example of a Pure EV is Nissan Leaf.

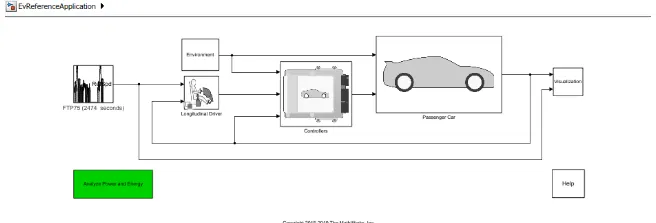

Now comparing both the Pure electric and hybrid electric vehicle with the gives conditions in a simulation to observe the behaviour of both the type
Part=1
SIMULATION SITUATION:-
The simulation is done for a pure electric vehicle with a Wide Open Throttle Drive cycle.
The Total cycle time=200 seconds
The Top speed of this cycle = 70 mph
Time to start deceleration =40seconds
The Grade angle =0 degrees
The wind velocity=0 m/s

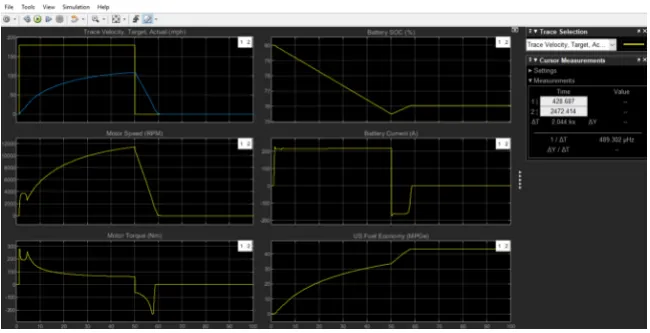

Plot 1:
Shows the velocity of the vehicle with respect to the Drive cycle data with the Time scale on the x-axis
The top speed of 70 mph cannot be achieved as we have some additional forces acting and in the car can only cun up to 108.9mph
The acceleration time to reach a top speed of 1089 mph-50.2 seconds
The deceleration time from 80 to a minimum of 9.8 seconds
Plot 2:
Shows the changes in the speed of the Motor in Rpm throughout the drive cycle.
Peak Motor speed=1123 pm
Plot 3:
Shows the Torque characteristics cycle,
Peak Motor turque=260 Nm
Plot 4:
Shows the Battery Current values (A) and its changes for various acceleration per the Drive cycle.
The peak current discharge from the battery=216.8A
The peak current charging to the battery=173.7 A
Plot 5:
Shows the Battery state of SOC (%) and its changes corresponding to the driving charge inputs
The state of charge decreased from 70% to 65.5% of charge in a time period of 40.3 seconds, for the specified driving conditions.
Plot 6
Shows the Equivalent Fuel Economy and Mile per Gallons for the corresponding input driving conditions. Here there is no fuel in the pure electric vehicle however this gues equivalent battery energy required that of the fuel energy and calculates the fuel efficiency The maximum miles that the car can run per gallon of fuel equvalent20.45 Miles for the given vehicle at the specified driving conditions
Part=2
SIMULATION SITUATION:-
The simulation is done for a Pure Electric Vehicle with a Wide Open Throttle Drive cycle.
The Total cycle time=100 seconds
The Top speed of this cycle = 70 mph
Time to start deceleration =40seconds
The Grade Angle =6 degrees
The Wind Velocity=8 m/s
Plot 1:
Shows the velocity of the vehicle with respect to the Drive cycle data with the Time The top speed of 70 mph cannot be achieved as we have some additional forces acting and so the car
scale on the x-axis can only run up to 48.9 mph
The acceleration time to reach a top speed of 48.9 mph to 38.8 seconds
The deceleration time from 70 to minimum = 3.63 seconds
Plot 2:
Shows the changes in the speed of the engine, motor and Generator in aim throughout the drive cycle
Peak Motor speed=6254 Rpm
Plot 3:
Shows the Torque characteristics and its changes of engine motor and generator in (Nm) throughout the drive cycle
Peak Motor torque=280.4 Nm
Plot 4:
Shows the Battery Current values (A) and its changes for various per the Drive cycle.
The peak current discharge from the battery=225.8A
The peak current charging to the battery=-163.7A
Plot 5:
Shows the battery state of charge SOC (%) and its changes corresponding to the driving inputs.
The state of charge decreased from 70% to 65.5% of charge in a time period of 35 seconds, for the specified driving conditions
Plot 6:
Shows the Equivalent Fuel Economy as Mile per Gallons for the corresponding input driving conditions.
Here there is no fuel in the pure electric vehicles however this gives equivalent battery energy required that of the fuel energy and calculates the Fuel efficiency.
The maximum miles that the car can run per gallon of fuel equivalent = 21.45 Miles, for the given vehicle at the specified driving conditions
Observation(Pure Electric VS Hybrid Vehicle With Same Load Conditions)
