Week 2 Challenge

Question1

Aim:- To provide the assigning the circular section, assign unit system, list of parammeters, list of code books, specifying the design compressive strength

1. How will you assign Circular section to column?

Step1:-

• First open the STAAd.Pro software by double clicking on it
• Then click on New then the model information tab opens
• Add the details into it and click on create





Step2:-

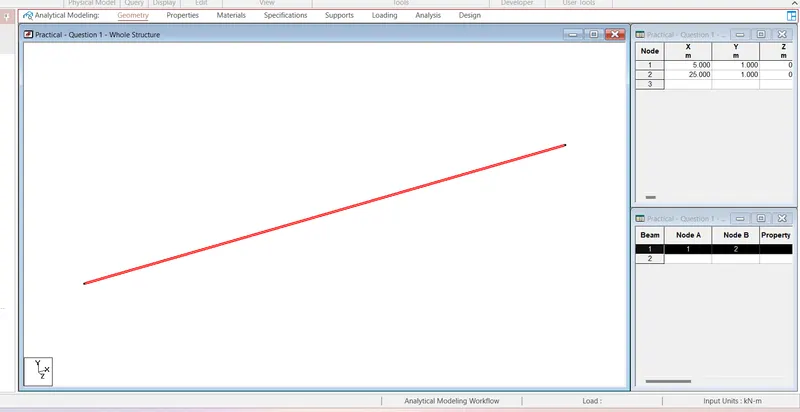

• After creating a model then create a node in the geometry tab
• Give the 1st node co-ordinates as (0,0,0) and 2nd co-ordinates as (0,3,0)

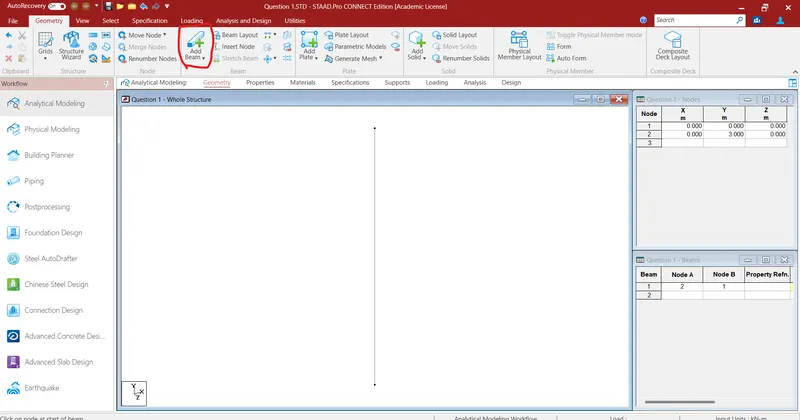

• Then click on the add beam and draw the beam from one node to another



Step3:-

• After creating the beam then go to properties tab
• Then the properties -whole structures tab opens

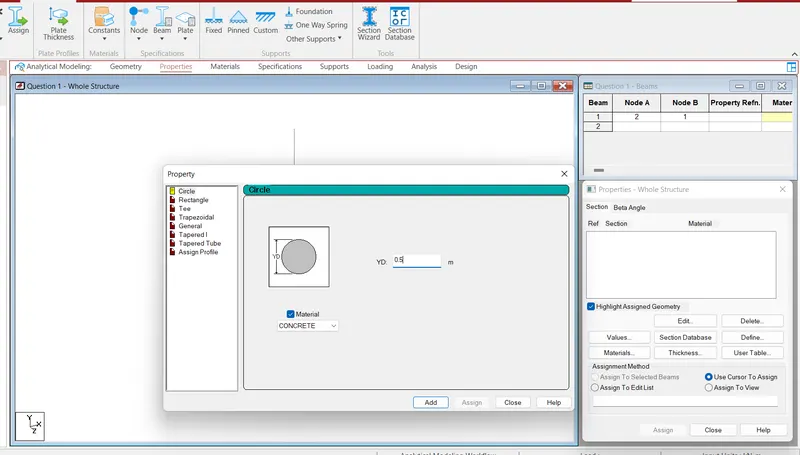

• Then click on define select the circular and give the diameter as 0.5m
• Then click on add



Step4:-

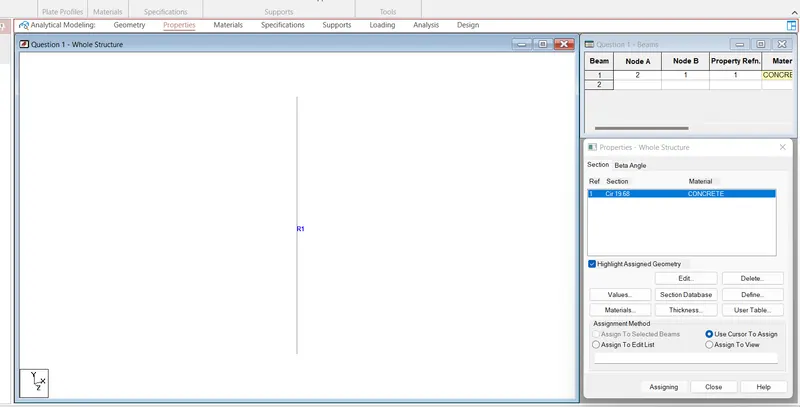

• After adding the circular column then select teh assignment method as use cursor to assign
• Then click on assign button after that move your cursor and click on the beam
• After assign click on close





 2. How will you assign Unit system to a .std model file?

We have a 2 option to assign the unit

• We can assign the unit at the begining stage itself while creating the model we have a option to choose the englsih or metric units. This is the first option to assign the units
• We can assign the unit while we creating the model, In the middle of the creating model we have a option to cahnge the units, Here go to the view tab then go to the dispaly option then the option dialouge box opens

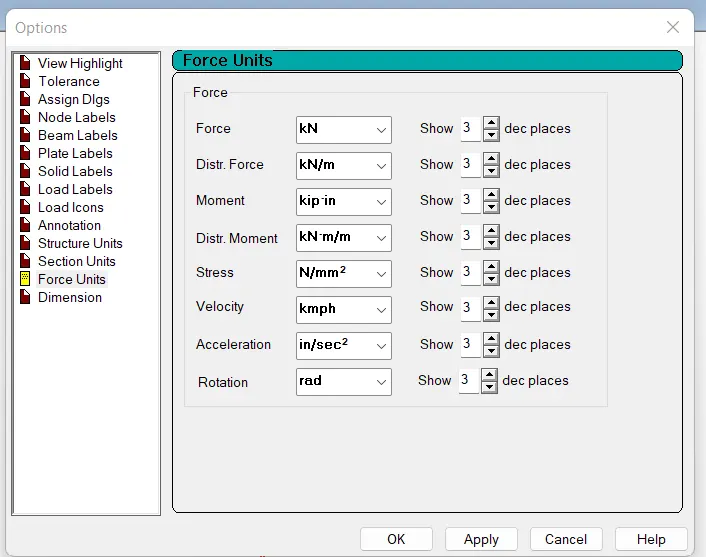

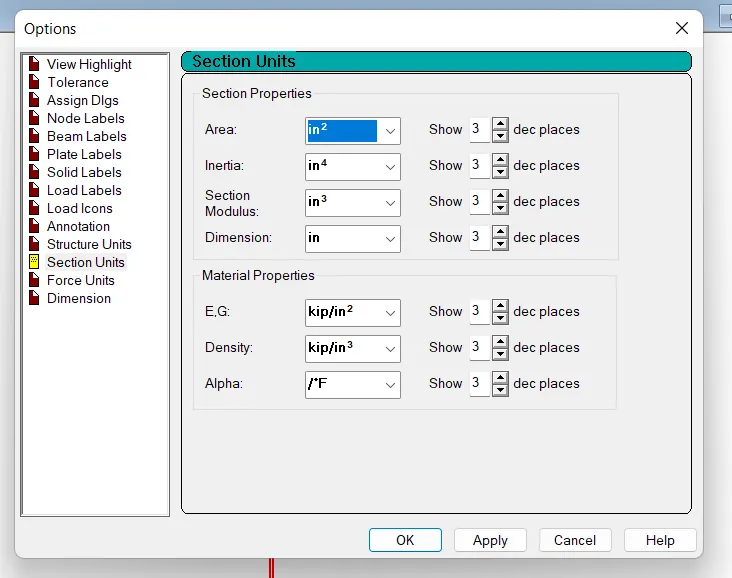

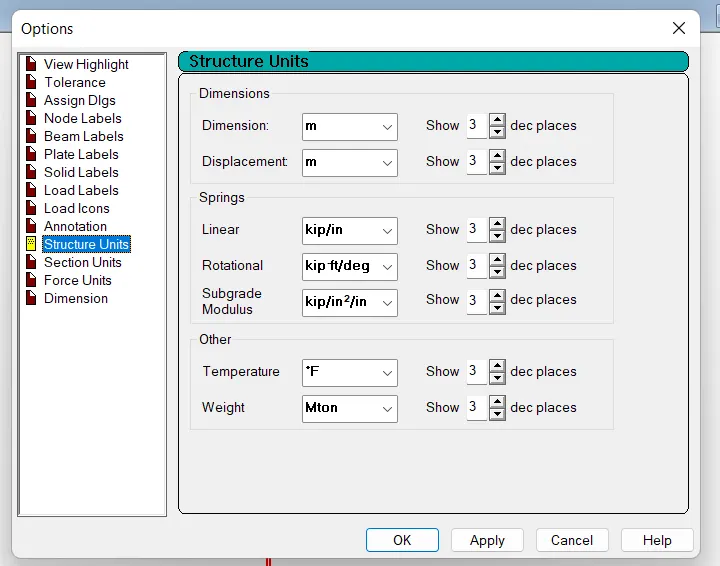

• Here we can change the units in the structural units, section units, force units







 3. What are the parameters to be specified while using “Bay Frame” option?

The different parameters are specified while using bay frame options are

• Length of the frame
• Width of the frame
• Height of the frame
• Number of bay along the length
• Number of bay along the width
• Number of bay along the height



4. Name few codal standards incorporated in STAAD Pro software.

• Euro codes
• IS codes
• BS codes
• American codes
• ACI codes
• ASCE codes
• CAN/CSA codes

 5. How will you specify the design compressive strength for a RCC section?

The steps for specify the design compressive strength for RCC section is as follows

• First click on the analysis and design panel there select the design option
• When the design option is selected then steel design whole structure dialouge box open
• Then change the deign from steel to concrete in the ribbon tab
• Then select the IS 456 code from the current code tab

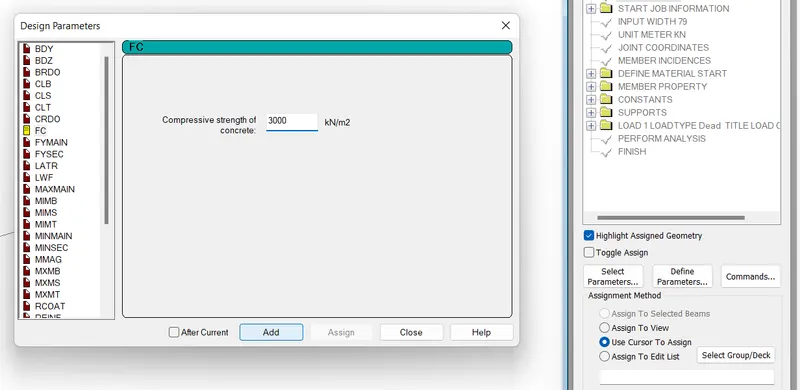

• Then click on the design parameters
• Then select the compressive strength of the concrete, The compressive strength of concrete notation is Fc
• Enter the value into the tab
• For Ex:- If we want to assign the compressive strength as M-30 then give the 3000KN/m^2 value
• After assigning the value click on add then click on close







Result:-

For the listed questions the answers are written above in detail

• Assigning the circular section
• assign unit system
• list of parammeters
• list of code books
• specifying the design compressive strength





Qusetion 2



Aim:- To provide the input steps involoved in RCC design, deifference between fixed and enforced support conditions

1. State the “Input” steps involved in RCC design.

The input steps are as follows

• Geometry:- It is used to mention the node points location and it's spacing to create a beam or column
• Properties :- Here we assign the various properties to the model and also we input the dimension of the section
• Materials :- we assign the material as concrete to the beam or column

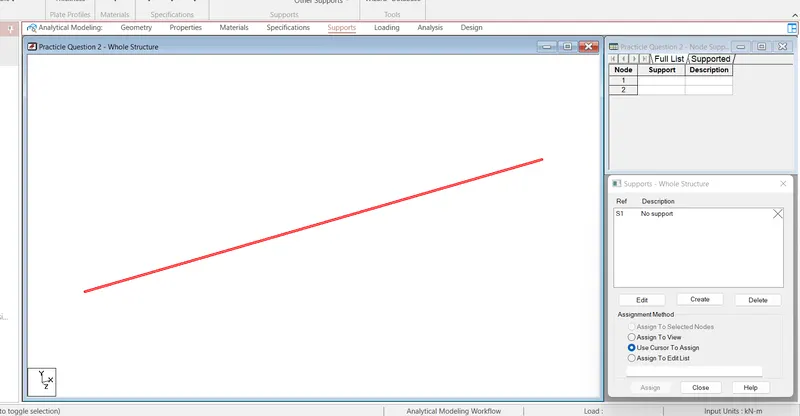

• Supports :- Here the end supports are provided to the beam or column
• Specification:- In the specification panel we assign the designations that has to be followed while analysing
• Loadings:- The loading patterns and loading combinations are necessary to provide to the beams or columns
• Analysis:- After completion of the above steps we need to analyse the model because here we are checking the safety of the builidng. And  this analysis is done by using the analysis tab
• Design :- The final step of the STAAD.Pro software is design. The design option helps to show the design of the building sectiona and it also show the required reinforcement for this design



  2. Explain the difference between Fixed and Enforced support condition in STAADPro.

Fixed support condition:- When fixed type of support is speccified , for those degree of freedom which are to be treated as fully restrained, STAAD assumes displacement to be known quantitie whose value is zero, Hence those degree of freedom arenot considered for the stiffness matrix, and their value is not calculated.



Enforced support condition :- When enforced type of support is specified for those degree of freedom which are to be treated as restrained, STAAD assigns aspring stiffness - translational stiff springs for translational restraints and rotational stiff springs  restraints. Those degree of freedom which are dispalced are assigned springs of zero stiffness. Hence for all the six degrees of freedom at such support, the displacements are calculated. The once which have a stiff spring will end up having negligible diaplacement, and those with zero stiffness-springs will have a displacement based on the structures geometry, properties and loading.



 Result:-

For the listed questions the answers are written above in detail

• The input steps involoved in RCC design
• Difference between fixed and enforced support conditions





Question3

Aim:- To provide steps involved in anlysis of model, two ways for the structural frame work model, Ellaborate the different support conditions, extract the stress distribution for the stair slab, different ways to view SFD and BMD



1. Explain the steps involved in analysis of a model using STAAD Pro sequentially.

The steps involved in analysis of model are

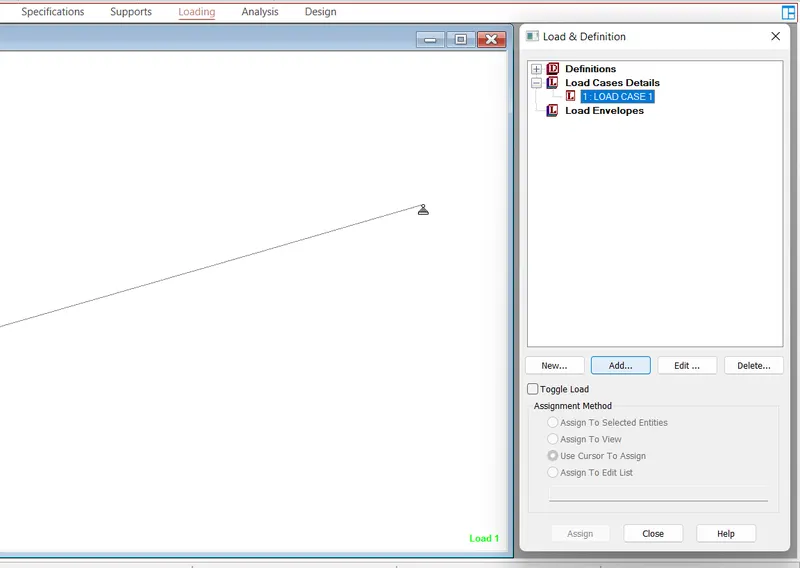

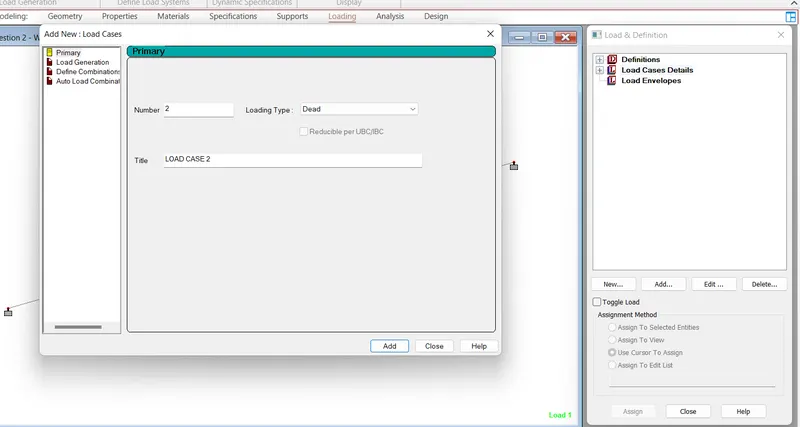

• Before the analysis load patterns and load combinations should be provide to the model

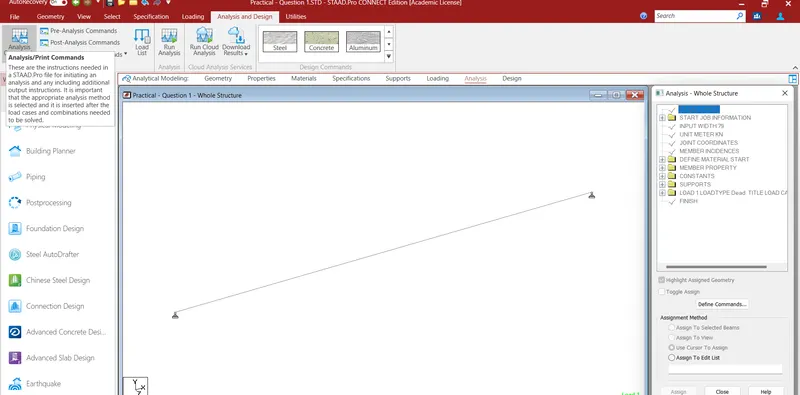

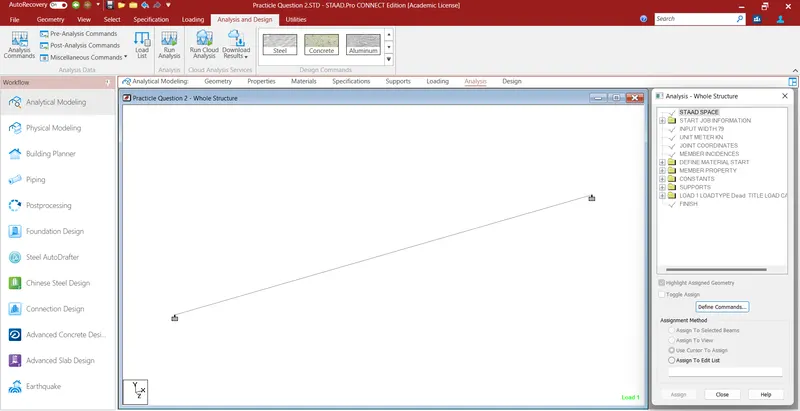

• To perform the analysis go to the analysis tab then you will get the define commands option
• Click on the define command option

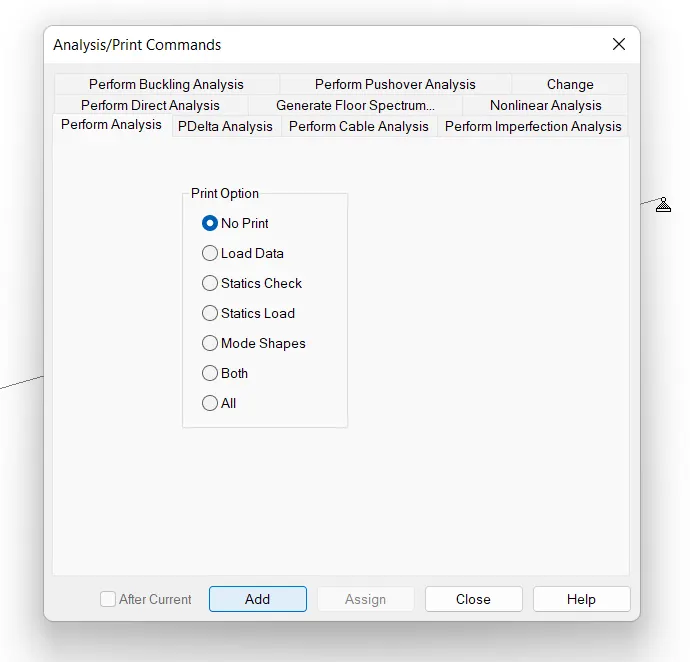

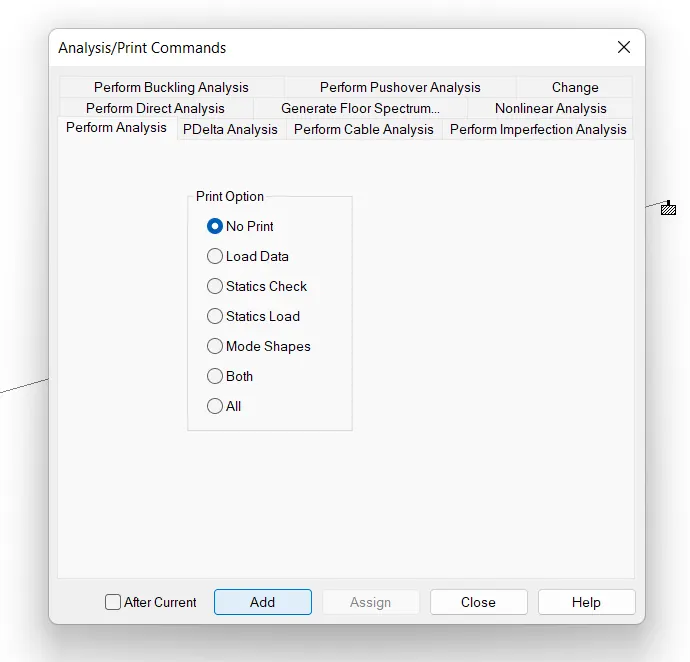

• After clicking on the define command then analysis/print command dialouge box opens
• In default the performance analysis is selected, Select the which type of analysis is necessary for your model
• Then click on the add button and close the dialouge box

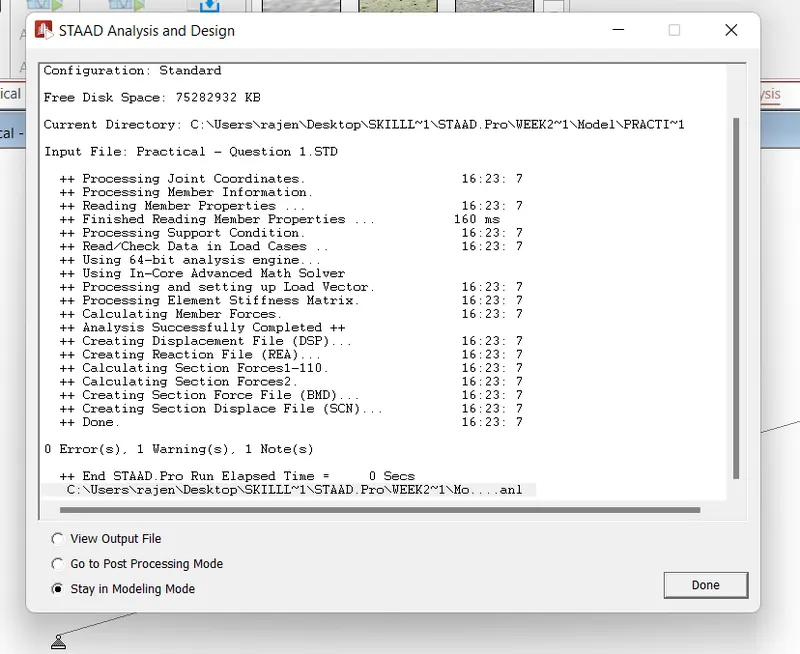

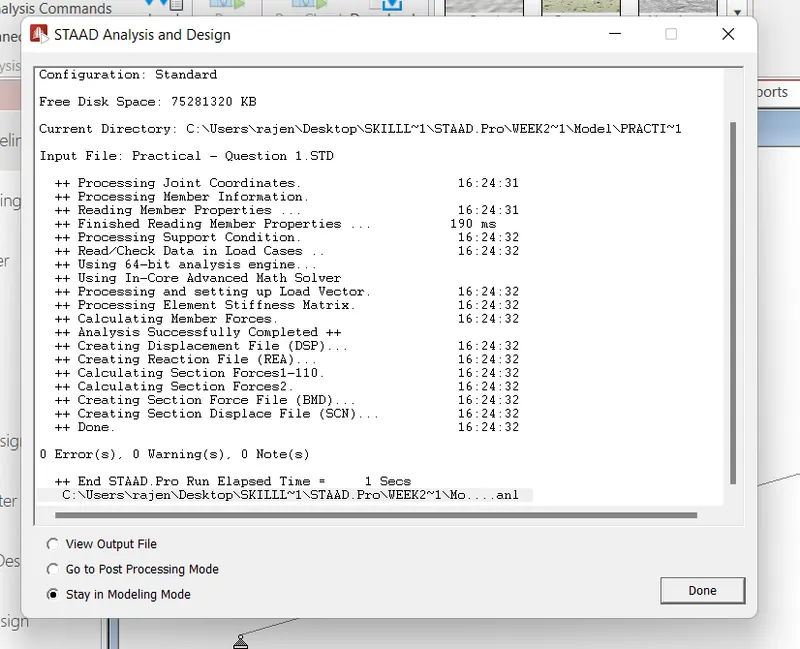

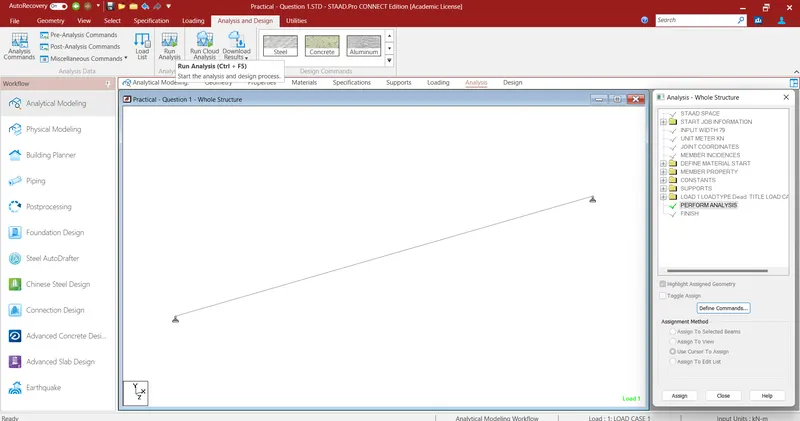

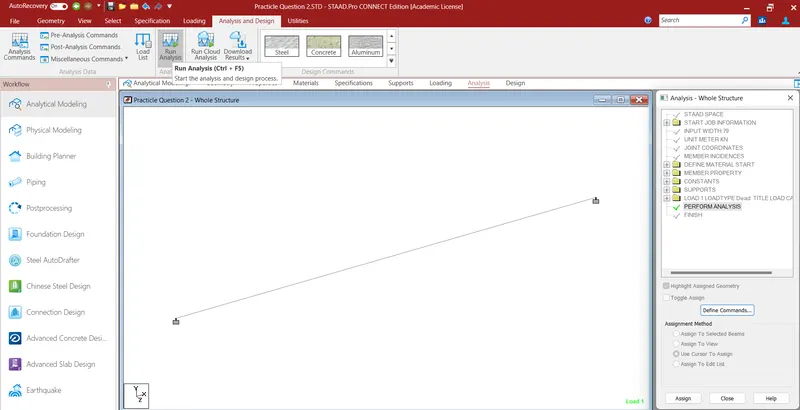

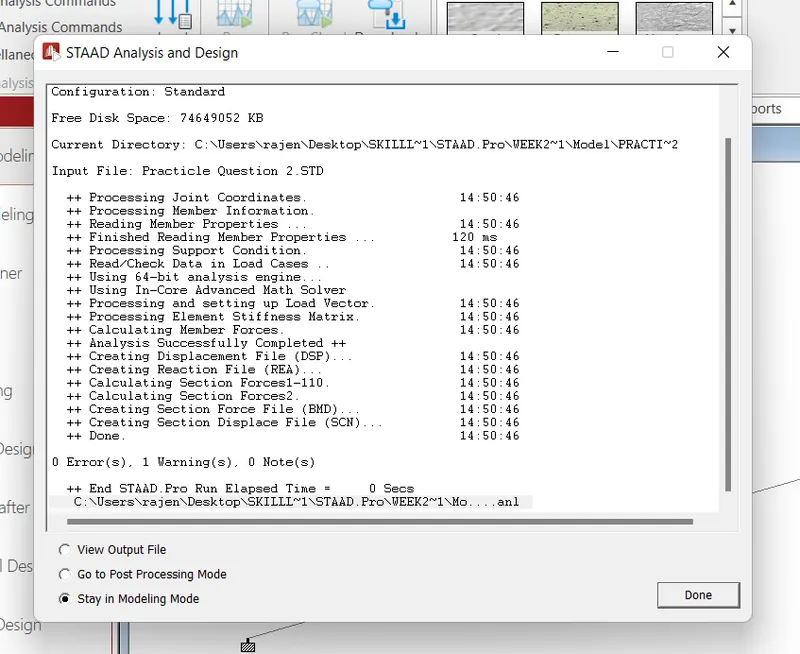

• After that run the analysis by clicking Run analysis button or F5 key



 2. Explain the two ways in which a structural framework/model can be created in STAAD Pro software.

The two ways in which a structural framework/model can be created in STAAD.Pro software are

1. Node by Node method

2. Structural wizard method



Node by Node method

• This is the 1st way of modelling the building created in STAAD.Pro software
• In this we can assign the node as per the architectural drawing
• These nodes are placed by using a co-ordinates
• We create a nodes in the geometry panel

Structural wizard

• Structural wizard is the 2nd way of modelling the builidng created in teh STAAD.Pro software
• This method is easier than node by node method because it is a automatic method, It automatically create the model when we input the respective length, width and height of teh building
• We have a option to create a truss, frames and other structures



3. Elaborate the different support conditions in STAAD Pro.

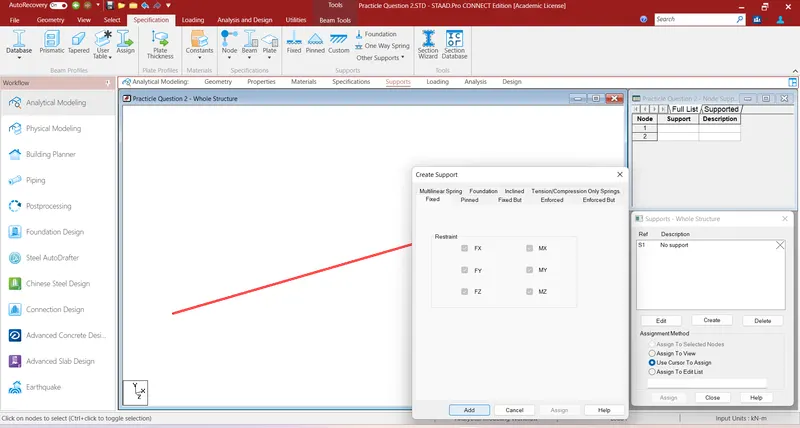

• Fixed support condition
• Pinned support condition
• Enforced support condition
• Fixed but support condition
• Enforced but support condition
• Multilinear support condition
• Tension/Compression spring
• Foundation support condition
• Inclined

Fixed support condition

• All the translational and rotational displacement restrained
• Fx, Fy, Fz are the translational diaplacements
• Mx, My, Mz are the rotational displacements

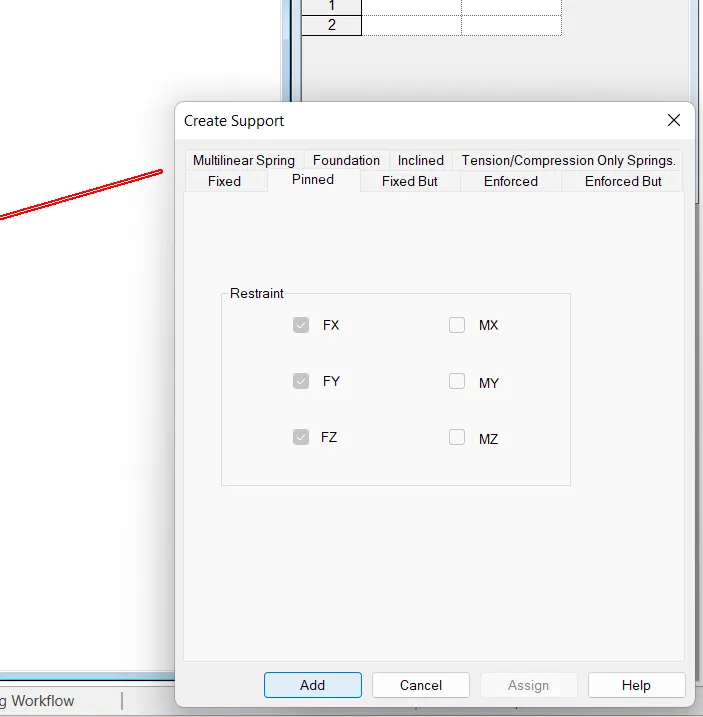

Pinned support

• In pinned support the translational displacements are restrained
• The rotational displacements are not restrained (free)
• Fx, Fy, Fz are the translational diaplacements
• Mx, My, Mz are the rotational displacements

Enforced support condition

• In Enforced support condition all the translational and rotational displacement restrained but it conatins spring constant
• In default the software takes the spring constant in this support, We can't give the spring constant and also we won't see any spring tab here
• Fx, Fy, Fz are the translational diaplacements
• Mx, My, Mz are the rotational displacements

Fixed but support condition

• In this support we have a option to release the translational and rotational dispalcement
• If we select the released for either translational and rotational dispalcement that values is zero

Enforced but support condition

• In this support we have a option to release the translational and rotational dispalcement
• In default the software takes the spring constant in this support, We can't give the spring constant and also we won't see any spring tab here
• Fx, Fy, Fz are the translational diaplacements
• Mx, My, Mz are the rotational displacements
• The released displacement value shown in STAAD.Pro software is zero



 4. How will you extract the stress distribution for a staircase slab?

The steps used to extract the stress distribution for staircase slab is as shown below

• Firstly create the nodes for the staircase with proper dimension
• Assign the plate element as a slab property
• After that define the load cases and calculate the area load acting on the stair slab
• Apply load cases and load combinations to the plate element as a area load
• After applying the load cases and load combinations mesh the plate element
• Then Go to the analysis and go to the post processing mode
• Select the plate result as a plate stress contour
• Under the stress type choose the appropriate stress type

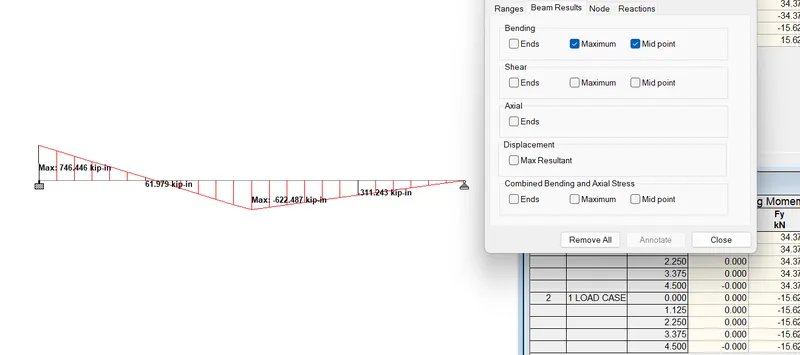

  5. Explain the different ways to view SFD & BMD in STAAD Pro.

There are 2 ways to view SFD and BMD

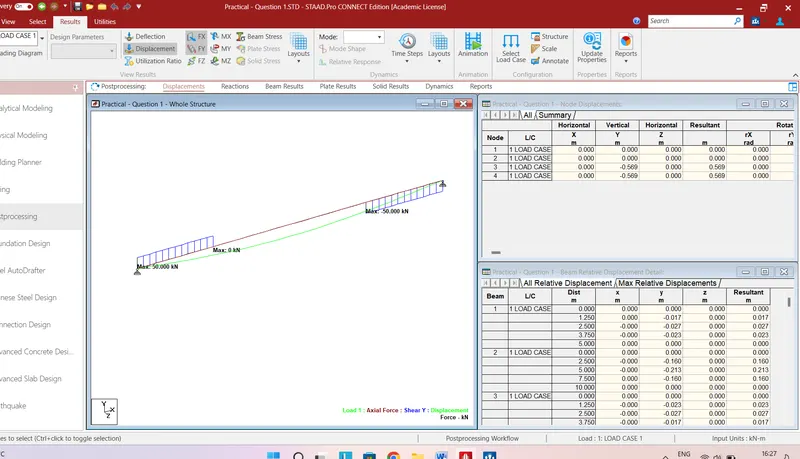

1. By selecting the beam result and deflection after the post processing

2. By graphical method

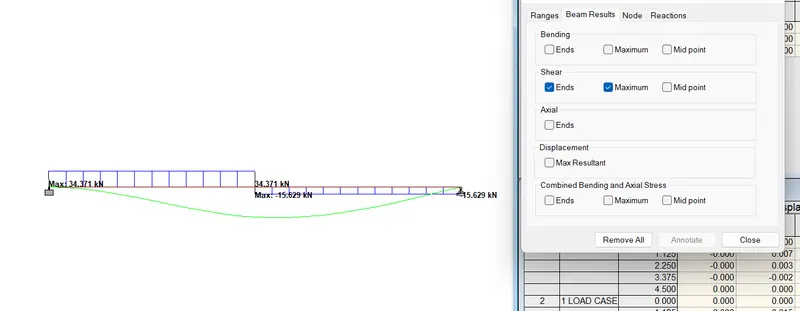

 By selecting the beam result and deflection after the post processing

• After the completion of the analysis the software itself provide the SFD and BMD to get the SFD and BMD
• First Click on the post processing button and click on OK
• Then we get SFD and BMD

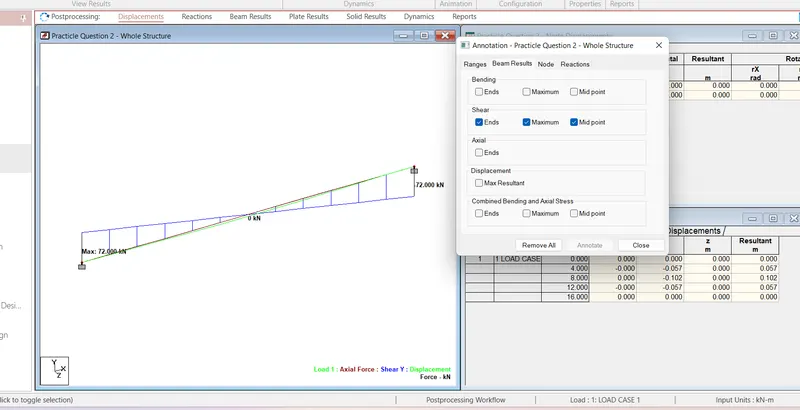

• To get the values for the SFD Select the Deflection there select the Fx,Fy force then click on the annotate, In the annotate go to the beam result search the shear option there click either ends or maximum,midpoint  to get the shear force

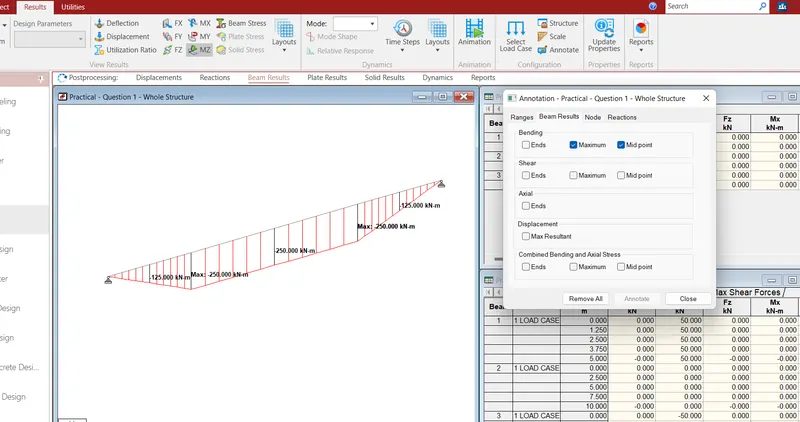

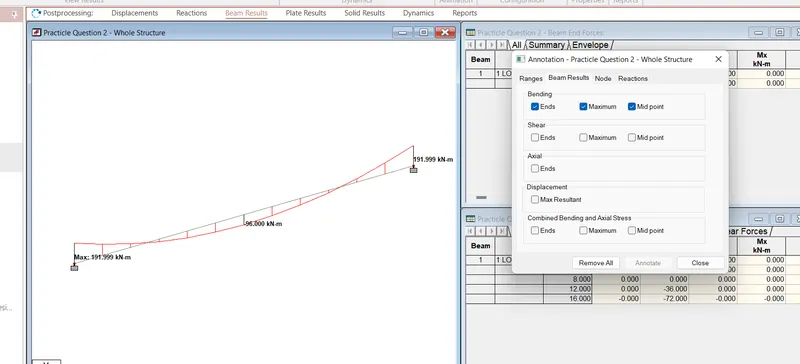

• To get the values for the BMD click on the annotate, In the annotate go to the beam result search the bending option there click either ends or maximum,midpoint  to get the bending moment

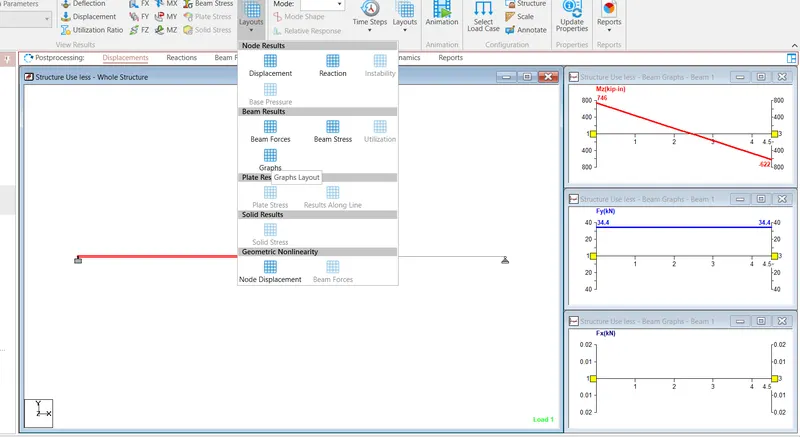

By graphical method

• To get the SFD and BMD in a graphical way
• Click on the Layout tab arrow then we will get some options in that option select the graphical
• Then you can see the SFD and BMD in a graphically



 Result:-

For the listed questions the answers are written above in detail

• Steps involved in anlysis of model
• Two ways for the structural frame work model
• Ellaborate the different support conditions
• Extract the stress distribution for the stair slab
• Different ways to view SFD and BMD





Practical
1. Analyze the following structural elements and validate the results
A. Simply Supported Beam
           a. A Simply supported beam with two point loads symmetrically placed
           b. Span L = 20m

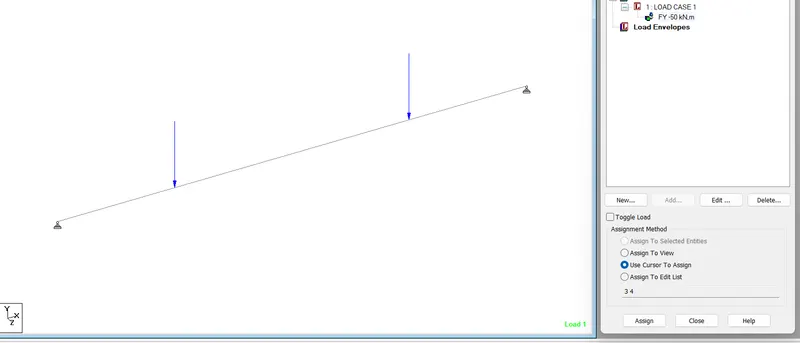

           c. Load P = 50kN each

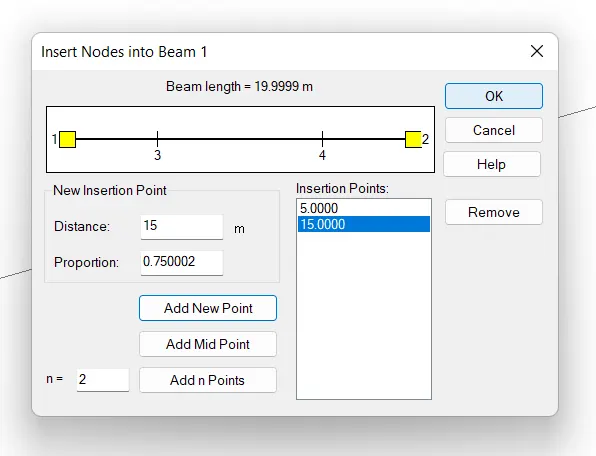

           d. Both P located at 5m from each support



Aim:- To model the simply supported beam by using the STAAD.Pro software

Introduction :-

STAAD.Pro

•  STAAD Pro is one of the popular software that are used for the analysis and design structures like building, towers, Industries, Bridges etc.,
• STAAD Pro stand for Structural Analysis and Design Program
• This software deals with Civil Engineer and Structural Engineer
• They are authorized dealers of Bently System India Pvt.Ltd
• STAAD.Pro helps structural engineer to perform 3D structural analysis and design for both steel and concret structures
• If the design is done in physical model then it can be transformed in to analytical model



Beam:-

• Beam is a structural element that primarily resist load applied laterally
• The mode of deflection is primarily by bending
• Beam is made up of concrete and reinforcement
• Here the load is carried by slab and transfers to the beam then transfer to the column and then for the foundation
• We have different kinds of supports for the beams like simply support, fixed support, hinge support, roller support





Procedure:-

Step1:-

• Open the STAAD software by double clicking on it
• Then the stratup file opens

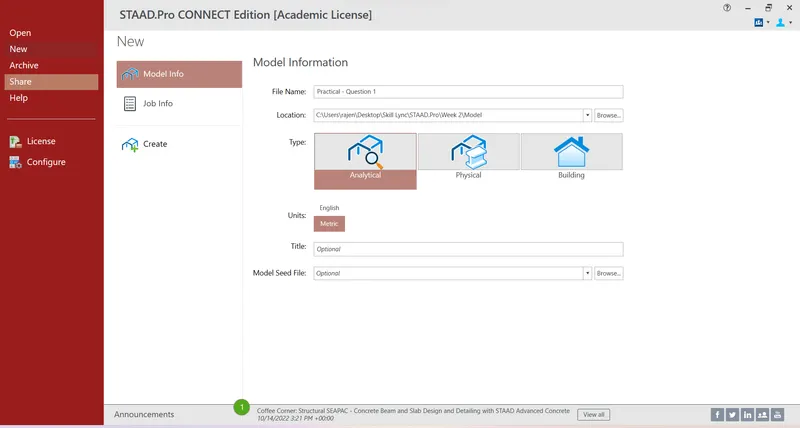

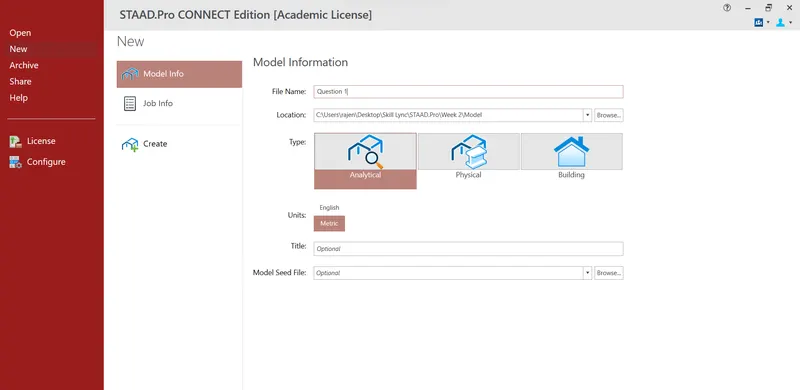

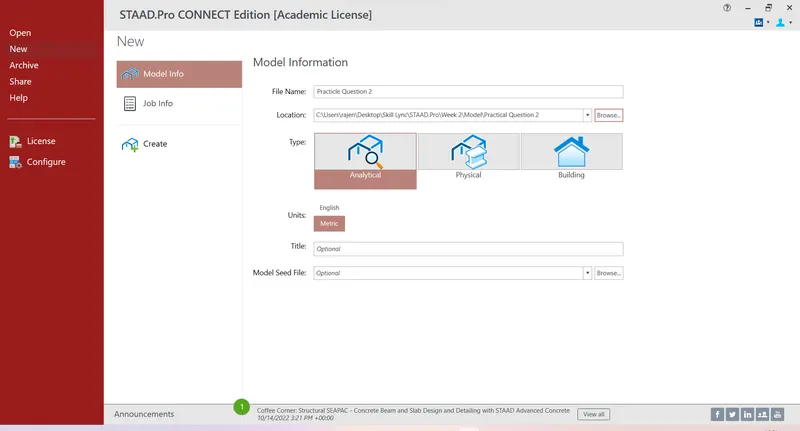

• Click on New option then the screen appears like this
• Give the file name which you want and give the location of where you wnat to save by clicking on the browser option
• Then select the units as a metric
• Then click on the create



Step2:-

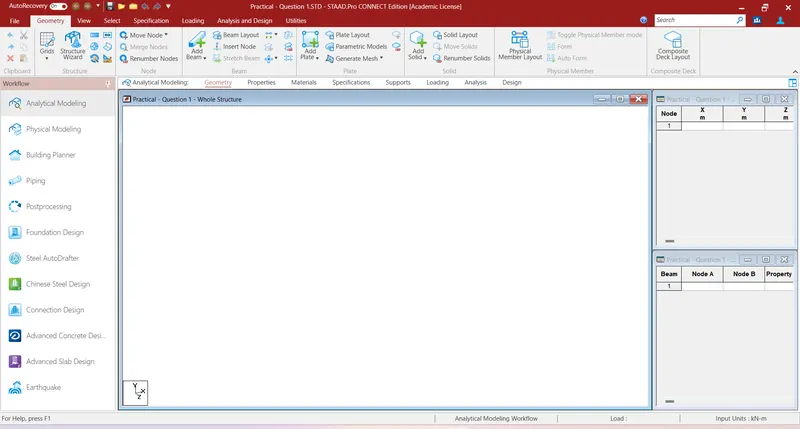

• After clicking on the create option the screen will looks like this
• It includes several parameters like Geometry, Properties, Materials, Specification, Supports, Loading, Analysis, Design



Step3:-

• In this software first we have to provide the grids to the beam for the reference

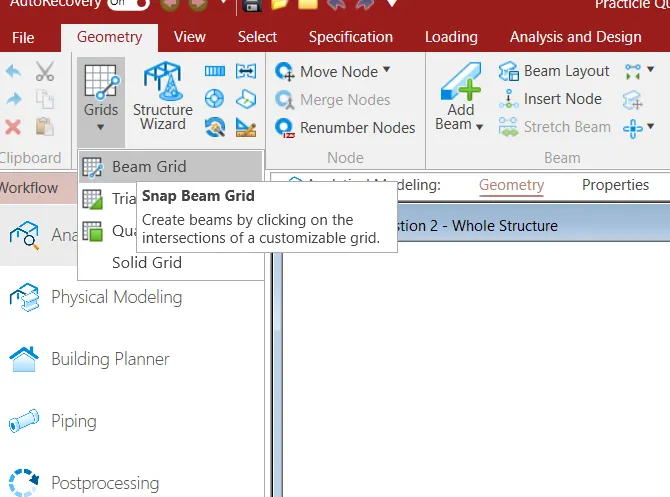

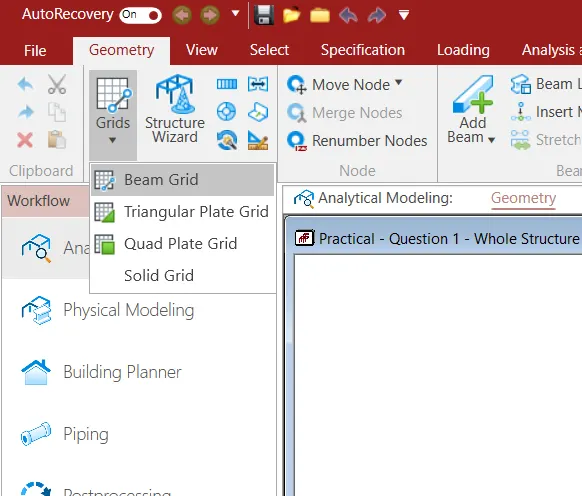

• Click on the Grid ribbon tab then you will find the grids option click the below arrow then we can see 3 options
• Select the beam grid option then the grids will appears





Step4:-

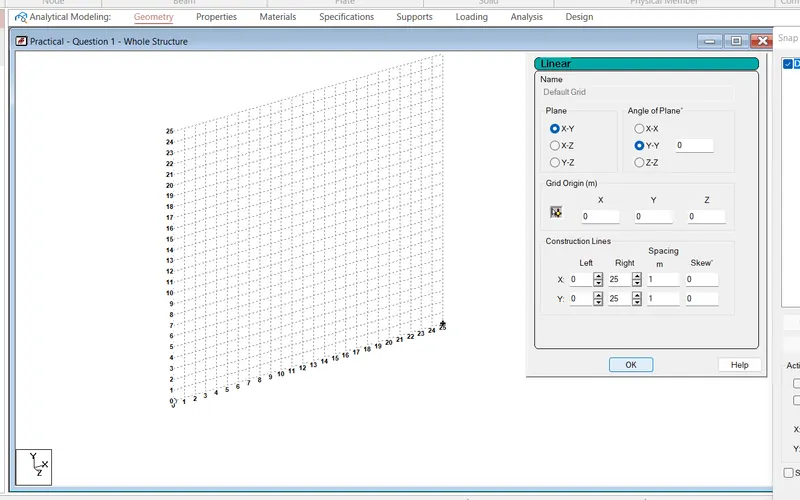

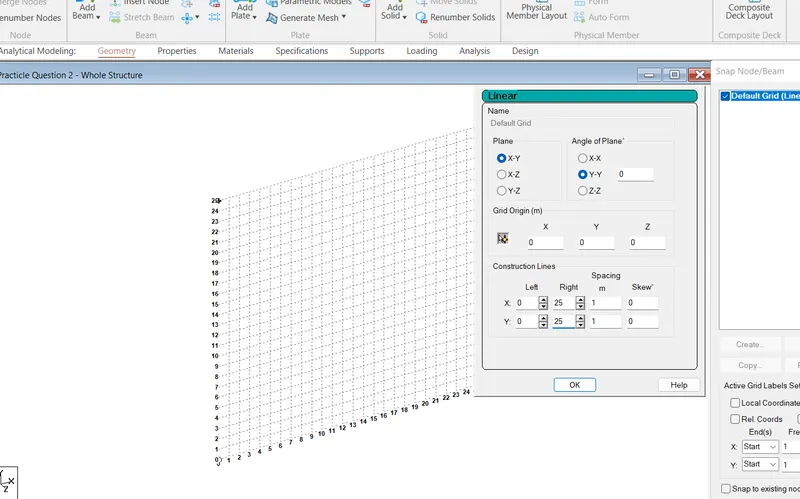

• When we click on the beam grids then we will see the grids with smaller spacing
• Then we should go to the edit option
• Change the construction lines numbers and change the spacing
• Then click on OK
• After changing the grid lines and spacing

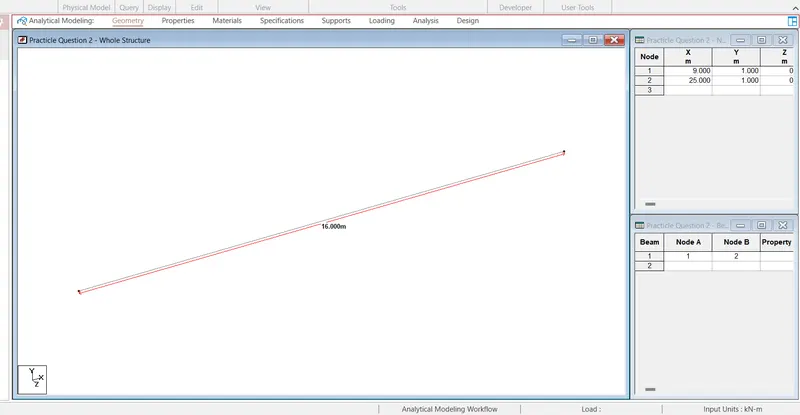

• Draw the beam having a 20m span



Step5:-

• Here the node number is not visible then we have to click our mouse right button
• Then go to the lables
• Then diagram dialouge box opens here select the node number then click on apply and click on OK

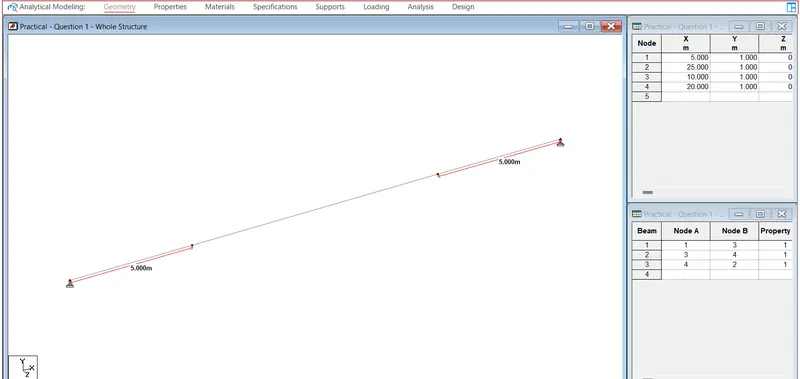

• After applying the node number
• The nodes will looks like this



Step6:-

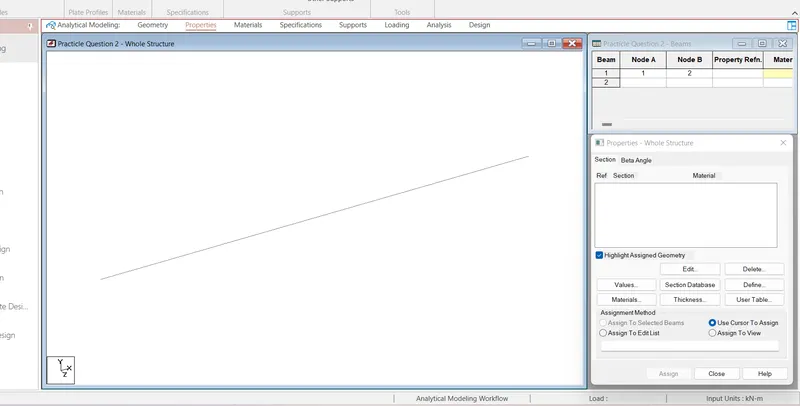

• After creating the beam we have to give the property for the beam

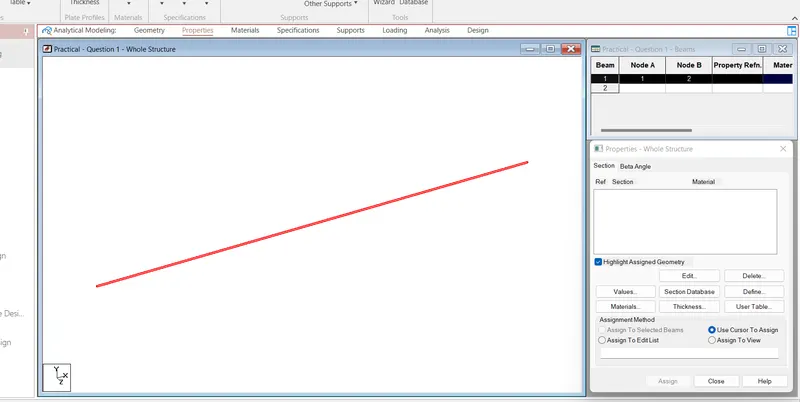

• Click on the property tab then the property dilaouge box opens
• Then click on define to provide the material property



Step7:-

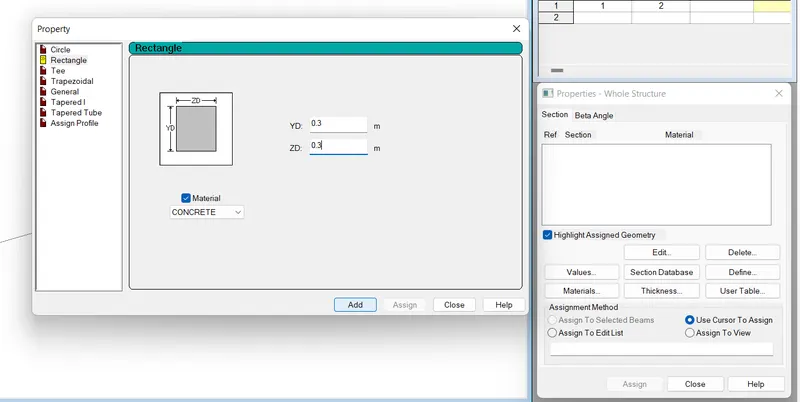

• After clicking on the define option

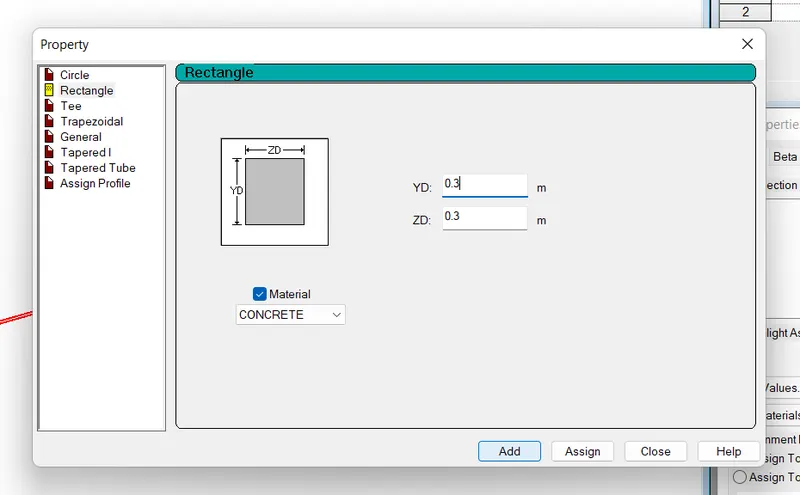

• Then select the rectangular  size and material as concrete and size as 0.3m x 0.3m
• Then click on Add and then assign it to the beam

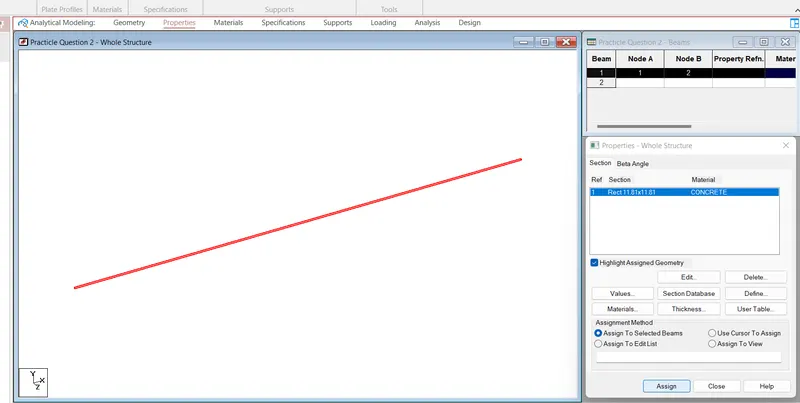

Step8:-

• To assign the beam select the assign to selected beam option in the assignment method tab
• Then click on the assign option
• Then it will be assigned to the beam



Step9:-

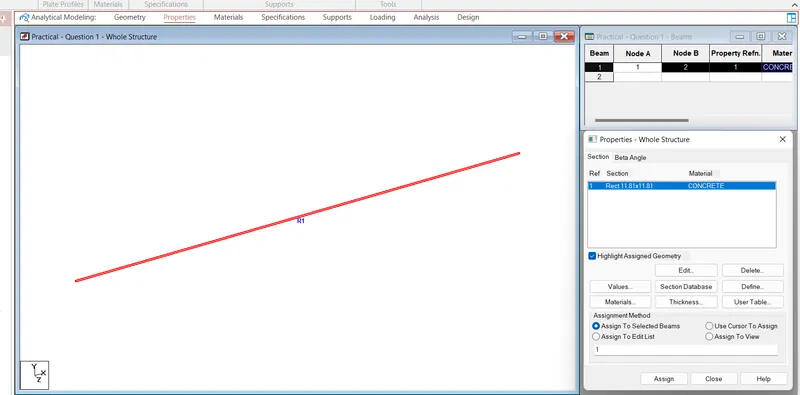

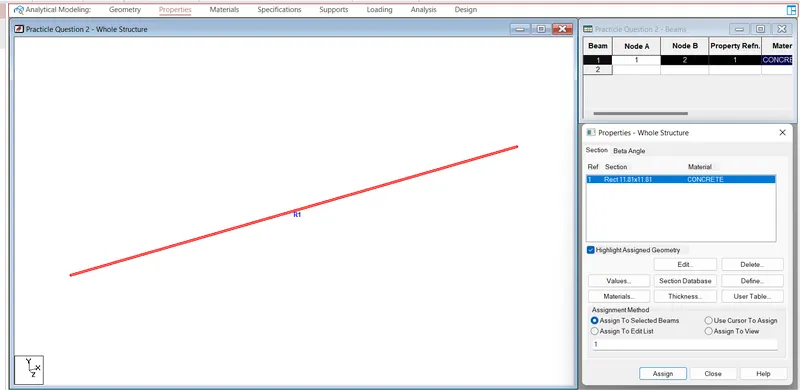

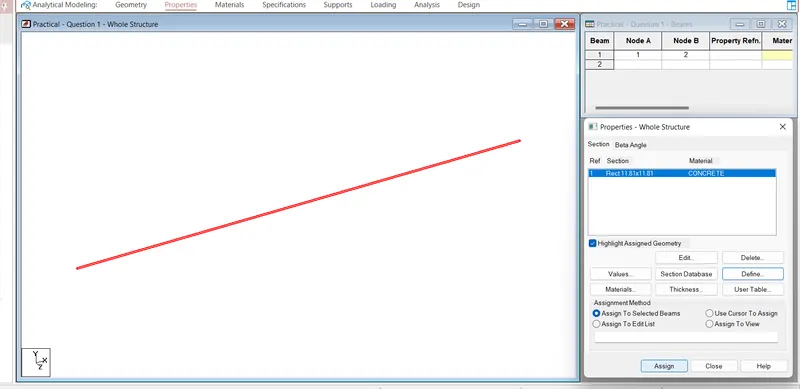

• This is the snap shot of assign of property to the beam
• The rectangular section having 0.3mx0.3m dimension with concrete material is assigned here



Step10:-

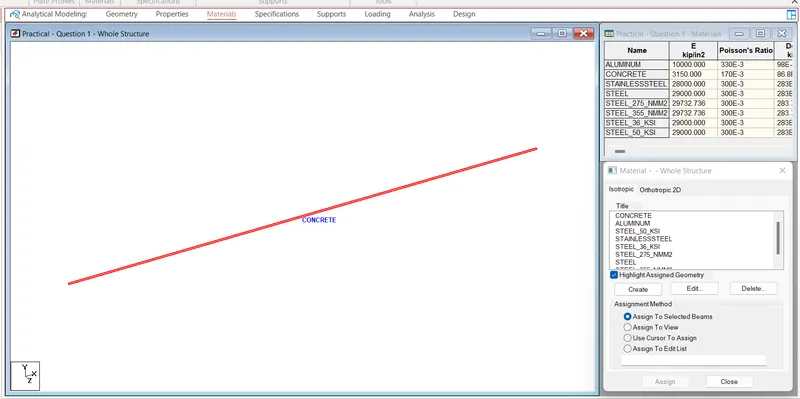

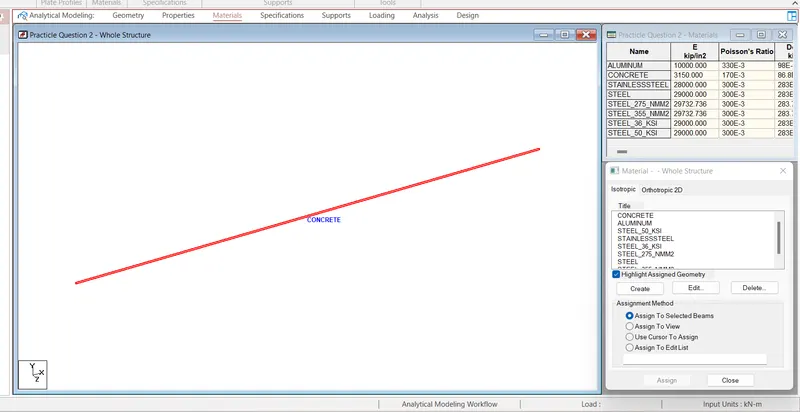

• Now we have to assign the material to the beam
• Click on the material tab then the material dialouge box opens
• In default it's in isotropic keep it as it is
• Select the concrete and click on the member to assign it





Step11:-

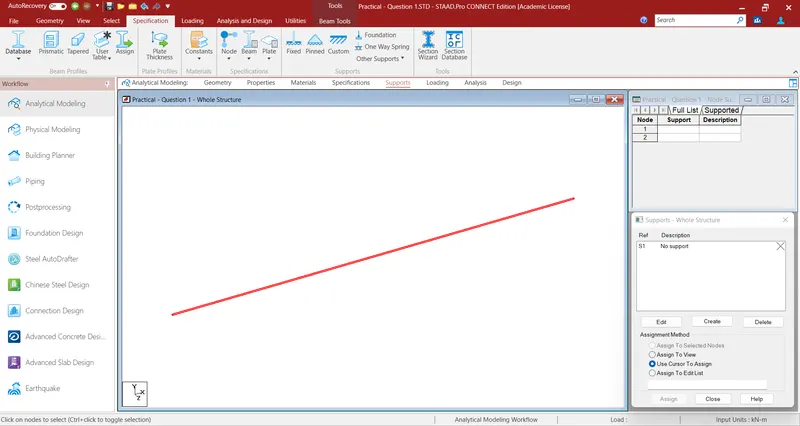

• After the assigning the materials then go to the supports
• Then the support dialouge box opens then click on create option
• Then the create support dialouge box opens





Step12:-

• Here we have to provide the pinned support
• After the click on add then the support appears on the suppport dialouge box



Step13:-

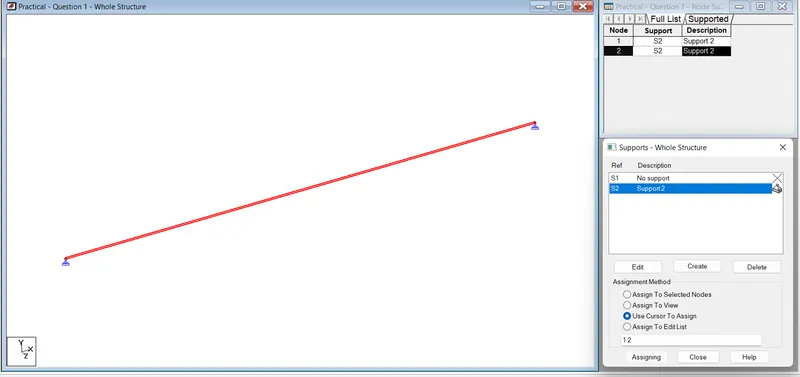

• Select the assign option then click on the node which you want to assign the pinned support
• Then click on Esc button



Step14:-

• Here we need to assign the load P = 50KN, the load P is located at 5m from the each support
• So we are inserting the nodes to assign the load

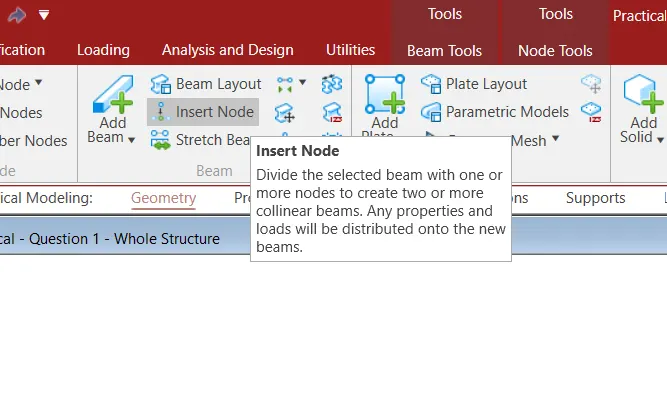

•  In geometry tab click on the insert node option



Step15:-

• After clicing on the insert node option then the insert nodes  into beam tab appears
• Specify the distance 5m and 15m from the first node
• Then click on add new point then click on OK





Step16:-

• Afetr inserting the nodes into the beam
• The snap shot will be look like this



Step17:-

• After assigning the support next assign loads for the beam
• We have to provide the 50KN force at 5m from the each ends (Mentioned in the question)
• To assign the loads go to the loading tab
• First assign the load cases
• Select the load cases details then click on the add button
• After clicking on the add button
• Then the load cases dialouge box opens then select the primary in the left corner
• Select the loading type as dead then click on add button
• After clicking on the add button then select the load case 1
• Then click on add





Step18:-

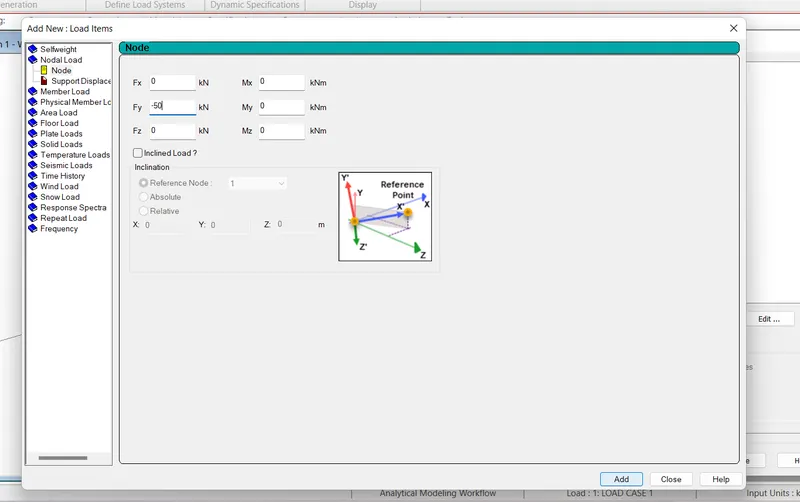

• After selecting add option then add new dialouge box opens then select the nodal load in that select the node
• Where P = 50KN,
• Then click on add



Step19:-

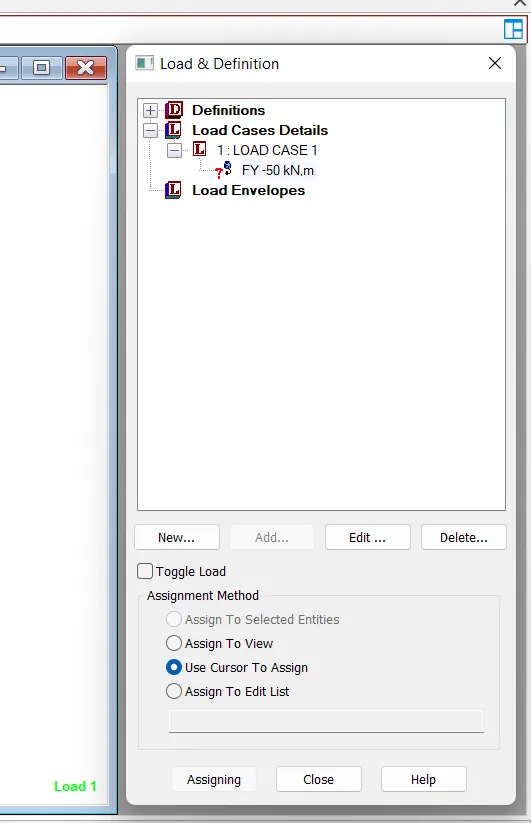

• Select the Fy = -50KN
• Select the use cursor to assign option in the assignment method
• Select the assign to selected view then click on assign
• Then the 50KN is assigned to the mid of the beam



Step20:-

• This is the how the 50KN load acting 5m from the each supports is shown
• The load is acting downward



Step21:-

• After assigning the load to the beam
• Go to the analysis tab then click on the define command



Step22:-

• Then the analysis command dialouge box opens
• Select the performance analysis and click on the no print in the print option
• Then click on add then close it





Step23:-

• After adding the analysis command to the beam
• Then Run the analysis by clicking on the Run analysis tab or use a ctrl+F5 button



Step24:-

• After clicking on the Run analysis then wait for the analysis
• Here the error, warnings and notes should be zero
• But here I'm getting the 1 warning and 1 note
• Click on done





Setep25:-

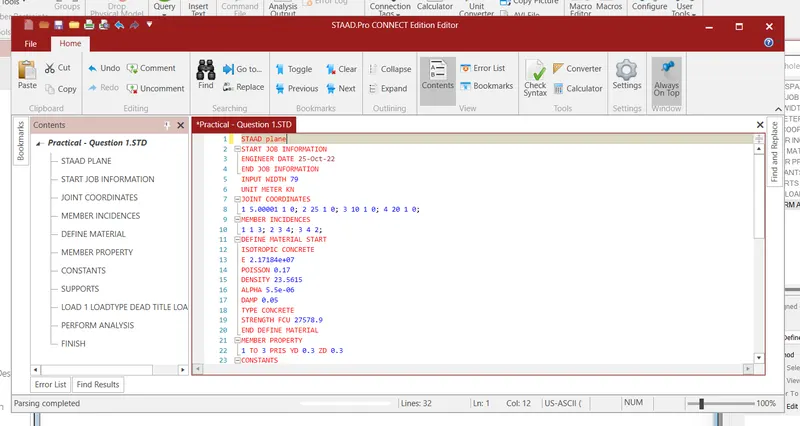

• To solve the waring and notes
• Go to the utilities tab then select the common file
• Then change the option from STAAD space to STAAD plane



Step26:-

• Then Run the analysis again
• After clicking on the Run analysis then wait for the analysis
• Here the error, warnings and notes should be zero
• Then click on view output file
• Then click on done



Step27:-

• In default the envelop of load cases in selected list is selected
• Select the "1 Load case 1" in the selected column
• Then click on apply
• In default we see the displacement of the beam
• Change it to shear force by selecting the Fx,Fy
• The result values are displayed at the right side of the screen
• If in case you are not visible the shear force properly then you should scale the shear force value
• We go to shear force for both y and z axis by right clicking mouse right button then go to the lables then go to the scale then you will get the shear force



Step28:-

• After checking the result of shear force of the beam
• Go to the beam result then you will see the bending moment
• The result values are displayed at the right side of the screen
• If in case you are not visible the bending  moment properly then you should scale the bending Z
• We go to bending Z by right clicking mouse right button then go to the lables then go to the scale then you will get the bending Z





Result:-

• A simply supported beam has modelled by using STAAD.Pro software
• In the result the maximum shear force is 50KN
• In the result the maximum bending moment is 250KNm



                                                                        Shear force







                                                                             Bending moment







B.Fixed Beam
           a. Span L = 16m
           b. Uniformly Distributed Load w=9kN/m



Aim:- To model the fixed beam by using the STAAD.Pro software

Introduction :-

STAAD.Pro

•  STAAD Pro is one of the popular software that are used for the analysis and design structures like building, towers, Industries, Bridges etc.,
• STAAD Pro stand for Structural Analysis and Design Program
• This software deals with Civil Engineer and Structural Engineer
• They are authorized dealers of Bently System India Pvt.Ltd
• STAAD.Pro helps structural engineer to perform 3D structural analysis and design for both steel and concret structures
• If the design is done in physical model then it can be transformed in to analytical model

Beam:-

• Beam is a structural element that primarily resist load applied laterally
• The mode of deflection is primarily by bending
• Beam is made up of concrete and reinforcement
• Here the load is carried by slab and transfers to the beam then transfer to the column and then for the foundation
• We have different kinds of supports for the beams like simply support, fixed support, hinge support, roller support



Step1:-

• Open the STAAD software by double clicking on it
• Then the stratup file opens
• Click on New option then the screen appears like this
• Give the file name which you want and give the location of where you wnat to save by clicking on the browser option
• Then select the units as a metric
• Then click on the create





Step2:-

• After clicking on the create option the screen will looks like this
• It includes several parameters like Geometry, Properties, Materials, Specification, Supports, Loading, Analysis, Design





Step3:-

• In this software first we have to provide the grids to the beam for the reference
• Click on the Grid ribbon tab then you will find the grids option click the below arrow then we can see 3 options
• Select the beam grid option then the grids will appears







Step4:-

• When we click on the beam grids then we will see the grids with smaller spacing
• Then we should go to the edit option
• Change the construction lines numbers and change the spacing
• Then click on OK
• After changing the grid lines and spacing
• Draw the beam having a 16m span





Step5:-

• Here the node number is not visible then we have to click our mouse right button
• Then go to the lables
• Then diagram dialouge box opens here select the node number then click on apply and click on OK
• After applying the node number
• The nodes will looks like this





Step6:-

• After creating the beam we have to give the property for the beam
• Click on the property tab then the property dilaouge box opens
• Then click on define to provide the material property





Step7:-

• After clicking on the define option
• Then select the rectangular  size and material as concrete and size as 0.3m x 0.3m
• Then click on Add and then assign it to the beam







Step8:-

• To assign the beam select the assign to selected beam option in the assignment method tab
• Then click on the assign option
• Then it will be assigned to the beam





Step9:-

• This is the snap shot of assign of property to the beam
• The rectangular section having 0.3mx0.3m dimension with concrete material is assigned here







 Step10:-

• Now we have to assign the material to the beam
• Click on the material tab then the material dialouge box opens
• In default it's in isotropic keep it as it is
• Select the concrete and click on the member to assign it







Step11:-

• After the assigning the materials then go to the supports
• Then the support dialouge box opens then click on create option
• Then the create support dialouge box opens





Step12:-

• Here we have to provide the fixed support
• After the click on add then the support appears on the suppport dialouge box

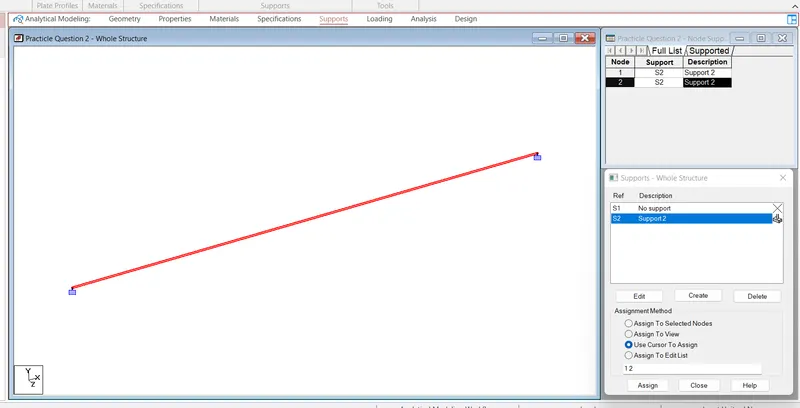

Step13:-

• Select the assign button to assign the fixed support condition to the beam supports
• Then click on the ends of the beam to provide the fixed supports
• Then click on Esc button





Step14:-

• Here we need to assign the uniformly distributed load (UDL) = 9KN/m, throughout the beam
• To assign the uniformly distributed load first create the UDL click on add button and select the uniform force  = 9KN/m
• After assigning the support next assign loads for the beam
• We have to provide the 9KN/m UDL  (Mentioned in the question)
• To assign the loads go to the loading tab
• First assign the load cases
• Select the load cases details then click on the add button
• After clicking on the add button
• Then the load cases dialouge box opens then select the primary in the left corner
• Select the loading type as dead then click on add button
• After clicking on the add button then select the load case 1
• Then click on add







Step15:-

• After selecting add option then add new dialouge box opens then select the uniform force in the member load
• Where UDL = 9KN/m,
• Then click on add





Step16:-

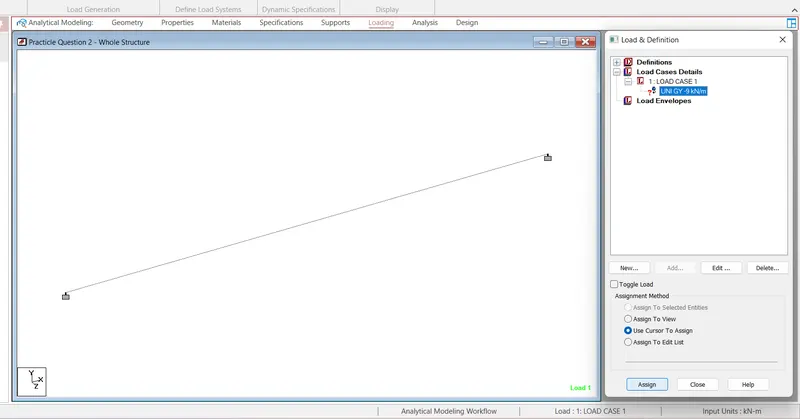

• Select the UDL = 9KN/m
• Select the use cursor to assign option in the assignment method
• Select the assign to selected view then click on assign
• Then the UDL = 9KN/m assigned throughout the beam









Step17:-

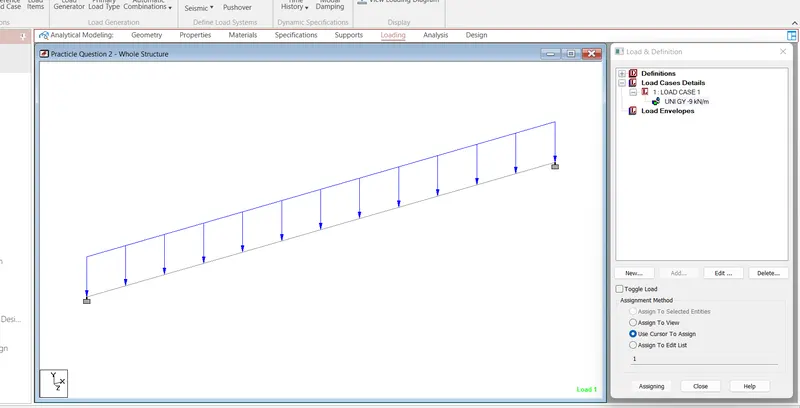

• This is the how the UDL = 9KN/m is assigned to the beam
• The load is acting downward





Step18:-

• After assigning the load to the beam
• Go to the analysis tab then click on the define command





Step19:-

• Then the analysis command dialouge box opens
• Select the performance analysis and click on the no print in the print option
• Then click on add then close it







Step20:-

• After adding the analysis command to the beam
• Then Run the analysis by clicking on the Run analysis tab or use a ctrl+F5 button





Step21:-

• After clicking on the Run analysis then wait for the analysis
• Here the error, warnings and notes should be zero
• But here I'm getting the 1 warning
• Click on done





Setep22:-

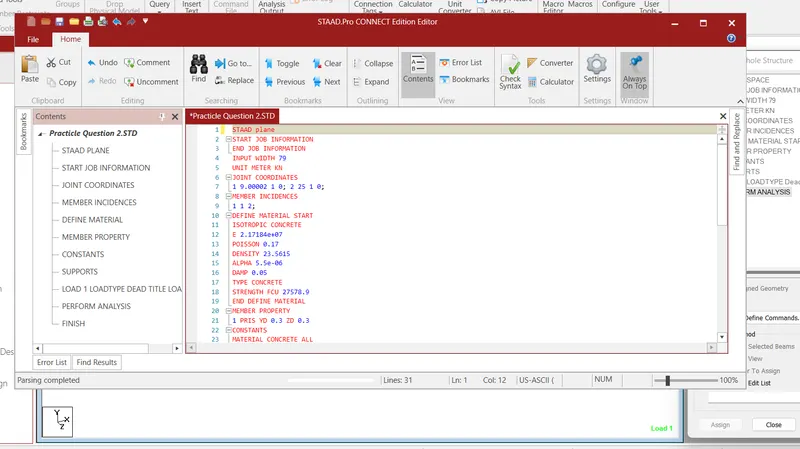

• To solve the waring and notes
• Go to the utilities tab then select the common file
• Then change the option from STAAD space to STAAD plane





Step23:-

• Then Run the analysis again
• After clicking on the Run analysis then wait for the analysis
• Here the error, warnings and notes should be zero

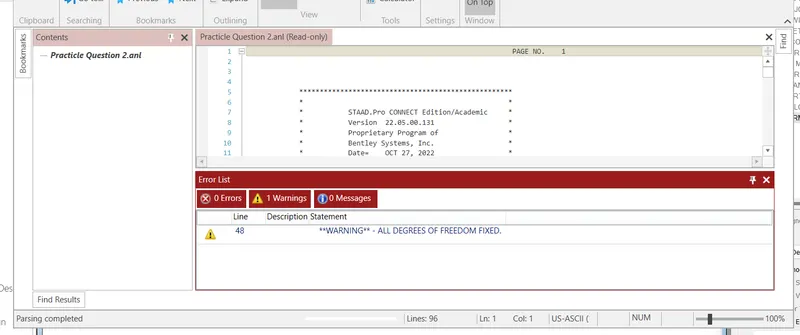

• But here also I'm getting the 1 warning
• Click on done
• The warning is "All degrees of freedom fixed"
• Here we can't edit the foxed support
• So I carryout the modelling of beam with warning





Step24:-

• In default the envelop of load cases in selected list is selected
• Select the "1 Load case 1" in the selected column
• Then click on apply
• In default we see the displacement of the beam
• Change it to shear force by selecting the Fx,Fy
• The result values are displayed at the right side of the screen
• If in case you are not visible the shear force properly then you should scale the shear force value
• We go to shear force for both y and z axis by right clicking mouse right button then go to the lables then go to the scale then you will get the shear force





Step25:-

• After checking the result of shear force of the beam
• Go to the beam result then you will see the bending moment
• The result values are displayed at the right side of the screen
• If in case you are not visible the bending  moment properly then you should scale the bending Z
• We go to bending Z by right clicking mouse right button then go to the lables then go to the scale then you will get the bending Z





Result:-

• A fixed supported beam has modelled by using STAAD.Pro software
• In the result the maximum shear force is 72KN
• In the result the maximum bending moment is 191.999KNm



                                                                        Shear force





                                                                             Bending moment





Conclusion:-

• All the answers for their respective question is writtenn/typed in detail
• All the answers are in detail and all the practical questions are done by using the STAAD.Pro software
