Difference Between wedge and symmetry boundary condition in the last project, we have used the wedge boundary condition, which is used for 2-dimensional axisymmetric cases e.g. a cylinder, the geometry is specified as a wedge of small angle (e.g. < 5o ) and 1 cell thick running along the plane of symmetry, straddling…
Syed Saquib
updated on 11 May 2023
Difference Between wedge and symmetry boundary condition
in the last project, we have used the wedge boundary condition, which is used for 2-dimensional axisymmetric cases e.g. a cylinder, the geometry is specified as a wedge of small angle (e.g. < 5o ) and 1 cell thick running along the plane of symmetry, straddling one of the coordinates planes. The axisymmetric wedge planes must be specified as separate patches of wedge type.
On the contrary, symmetry boundary conditions use for any (non-planar) patch which uses the symmetry plane slip condition. Usually, this boundary condition used on objects which are symmetrical or mirror by its various side. As we are using it for axisymmetrical pipe or object we can use any angle we want, and for a bigger angle, we can also discretize it along that angular portion which gives us finer results. This mostly considers 3D simulation conditions.

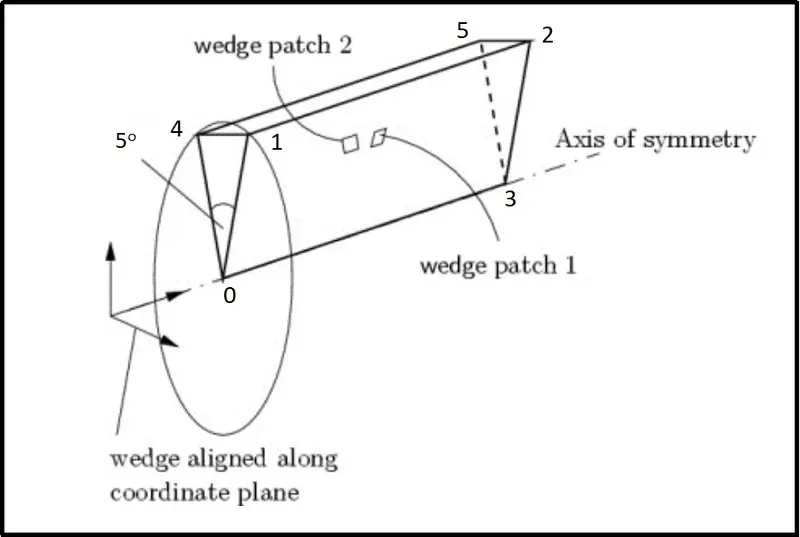

WEDGE BOUNDARY CONDITION USAGE AND APPLICATION:
SYMMETRY BOUNDARY CONDITION USAGE AND APPLICATION:

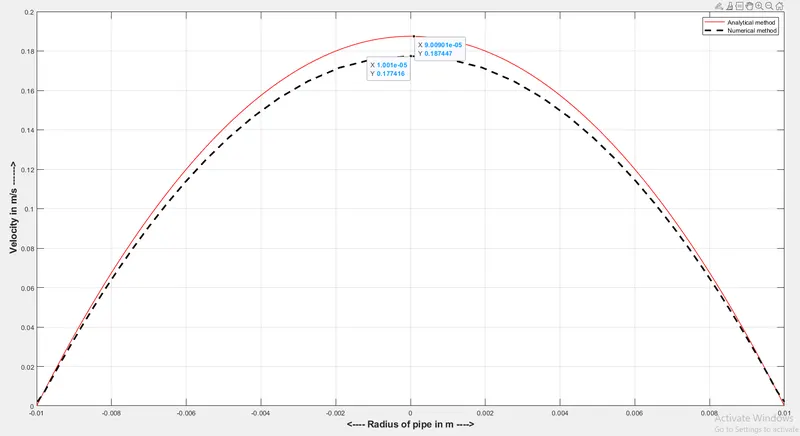

Now, let us compare the results obtained from symmetrical boundary condition simulation on the same previous problem.
Problem statement

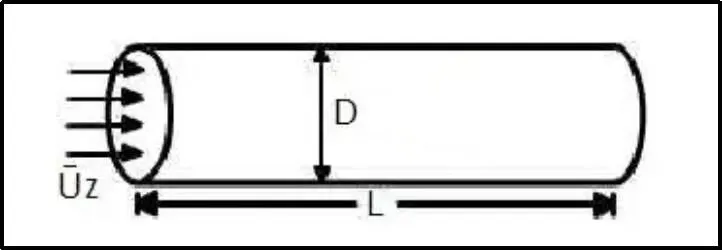

For flow in pipe of diameter D, experimental observations show that for “fully developed” flow, laminar flow occurs when ReD">ReDReD10o,25oand45o < 2300. Therefore, let us consider Re for flow is 2000. Assume diameter of pipe (D)=0.02m and length (L) = 2.5 m. also consider working fluid as water at temperature 25oC so the values of density (rho)=997kg/m3">m3m3vmax=0.177 and Dynamic Viscosity (mu)=8.90X10-4Pa.sec.
Pre-processing
FILE WRITING (in Matlab) for symmetry boundary condition
But, this time, we are going to create blockMeshDict file using Matlab coding by file parsing techniques. Prior, lest define all the given data first in our main program
Condition of working fluid according to problem statement.
Reynolds number (Re">Rele=2.52) = 2000
Diameter of the pipe (D) = 0.02m
Length of the pipe (L) = 2.5m
Density of working fluid (ρ">ρle) = 997 kg/m3">m3m3Re
Dynamic viscosity of working fluid (μ">μvmax) = 8.9X10^-4 Pa.sec
%% Input parameters
% Reynold's Number
Re = 2000;
% Total Length of pipe(m)
L = 2.5;
% Diameter of pipe in meters
D = 0.02;
% Wedge Angle in degrees
th = input('<0> Wedge Angle in degrees - ');
% Density (kg/m^3)
rho = 997;
% Dynamic Viscosity (Pa.sec)
mu = 8.90e-4;
% Radius of pipe(m)
R = D/2;
Now, let us create separate function file to write blockMeshDict file in Matlab program. Create blockMeshDict file and start writing it using following ‘fopen’ command.
function[f1] = blockMesh(R,th,L,nx,ny,nz)
%% Writing BlockMeshDict file for openFoam
f1 = fopen('blockMeshDict','w');
Before defining any data we are going to state with printing header information in the form of comment which is not executable in OpenFoam
fprintf(f1,"/*--------------------------------*- C++ -*----------------------------------*\n");
fprintf(f1,' ========= | \n');
fprintf(f1,' \\ / F ield | OpenFOAM: The Open Source CFD Toolbox \n');
fprintf(f1,' \\ / O peration | Website: https://openfoam.org \n');
fprintf(f1,' \\ / A nd | Version: 8 \n');
fprintf(f1,' \\/ M anipulation |\n');
fprintf(f1,"\*---------------------------------------------------------------------------*/\n");
Next, we set units in meter, by converting all type of length in to meter.
fprintf(f1,'convertToMeters 1; \n');
Vertices:-

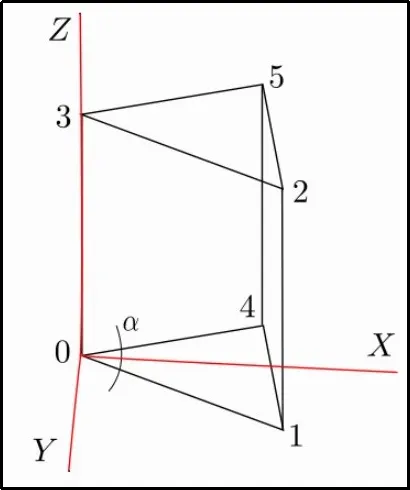

Afterward, in codes, we provide list of vertices by providing x,y,and z coordinates locations; its always start from vertex (0,0,0). so we have to create following geometry.
Mesh generation
The mesh of the Pipe case includes a new feature: a block with fewer than 8 vertices will be used. There is an axi-symmetry in the case so it is not necessary to mesh the whole pipe but only a wedge of it. Since ∂∂θ=0">∂∂θ=0∂∂θ=0Δp for the whole domain, the results of the simulation will be the same while the number of elements of the mesh will be lower. Following figure represents a schematic view of the geometry that it is going to be created:
First of all, it is important to comprehend the collapsing of the vertices. It can be seen that vertices 0 and 3 are repeated in an adequate position within the parentheses to indicate that the two vertices that would be occupying this position have been collapsed.
Secondly, in the patches definition, the same vertices 0 and 3 are joined creating an empty patch forming the axis of the pipe. The patch type wedge is used in two faces to indicate that an axi-symmetry exists and there are no physical walls.
fprintf(f1,'vertices(\n');
fprintf(f1,' (0 0 0)\n');
fprintf(f1,(' (%f %f 0)\n'),R*cosd(th/2),R*sind(th/2));
fprintf(f1,(' (%f %f %f)\n'),R*cosd(th/2),R*sind(th/2),L);
fprintf(f1,(' (%f 0 0)\n'),L);
fprintf(f1,(' (%f %f 0)\n'),R*cosd(th/2),-R*sind(th/2));
fprintf(f1,(' (%f %f %f)\n);\n'),R*cosd(th/2),-R*sind(th/2),L);
Next, we are going to define block for meshing. If we look at he mesh format first letter, in block parenthesis, is ‘hex’ which define type of mesh which is hexahedral mesh.
Then, again in parenthesis, we provide vertices number according to order which follow right hand thumb rule, meaning, thumb is the z axis and order of vertices follow rotational order of our other finger.
Then comes, number of mesh grid that we want to divide along x, y, and z length. We define it as (nx,ny,nz) format in main program.
Given mesh specification:
% Number of cells in x,y,z Directions
nx = 20;
ny = th/5;
nz = 500;
Lastly, we give simple grading which is cell expansion ratios
Grading factor or expansion ratios:-

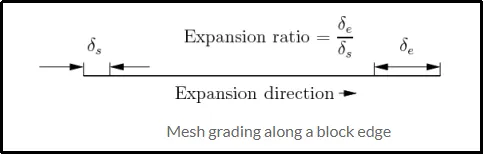

The expansion ratios enables the mesh to be graded, or refined, in specified directions. The ratio is that of the width of the end cell δe">δeδeτw along one edge of a block to the width of the start cell δs">δsδs along the edge as shown in below figure.
In simple format,
Expansion ratio = (size of end cell) / (size of starting cell)
The simple description specifies uniform expansion in the local x1">(,x2">)2and x3">x3 directions respectively with only 3 expansion ratio. So here, we have 1 wedge shape block so we have to define hex mesh for 1 block.
There is a grading towards the wall to compute a more exact value of wall shear stress and towards the inlet where the flow is not fully developed and therefore the velocity profile changes.
fprintf(f1,('hex (0 4 1 0 3 5 2 3) (%d %d %d) simpleGrading (0.2 1 1)\n);\n'),nx,ny,nz);
In this case, for edge 4-1 and 5-2 we have radius curve so we will define this in edges section following way.
fprintf(f1,'edges(\n');
fprintf(f1,' arc 4 1 (0 %f 0)\n',R);
fprintf(f1,' arc 5 2 (%f %f 0)\n);\n',L,R);
Next, define boundary of the problem, in this we have to define faces of the our 3D block this should be in order according to right hand thumb rule. So set faces for this problem following way.
fprintf(f1,'boundary(\n');
fprintf(f1,' inlet\n');
fprintf(f1,' {\n');
fprintf(f1,' type patch;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (0 4 1 0)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' outlet\n');
fprintf(f1,' {\n');
fprintf(f1,' type patch;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (3 5 2 3)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' front\n');
fprintf(f1,' {\n');
fprintf(f1,' type symmetry;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (0 1 2 3)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' back\n');
fprintf(f1,' {\n');
fprintf(f1,' type symmetry;\n');
fprintf(f1,' faces \n');
fprintf(f1,' (\n');
fprintf(f1,' (0 3 5 4)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' pipewall\n');
fprintf(f1,' {\n');
fprintf(f1,' type wall;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (1 4 5 2)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' axis\n');
fprintf(f1,' {\n');
fprintf(f1,' type empty;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (0 3 3 0)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,');\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* // \n');
After running this MATLAB code for different angles

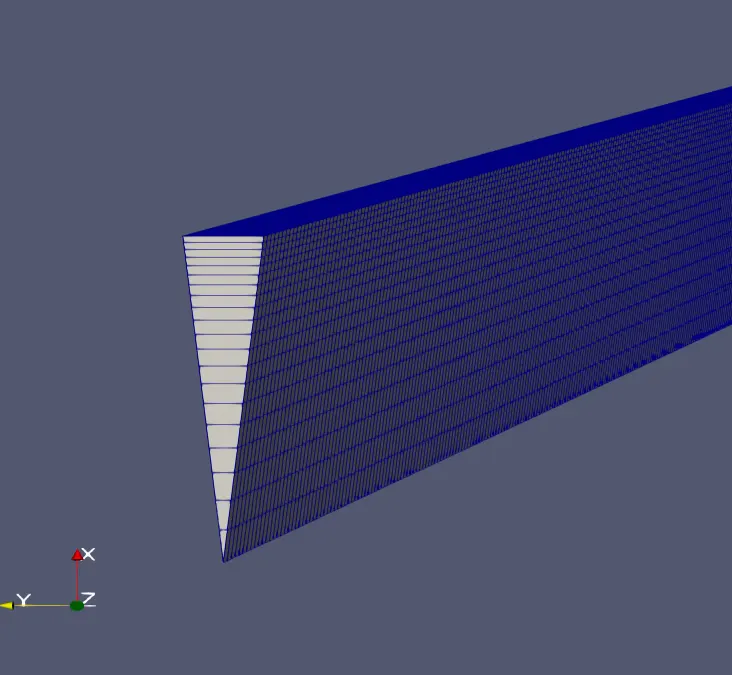

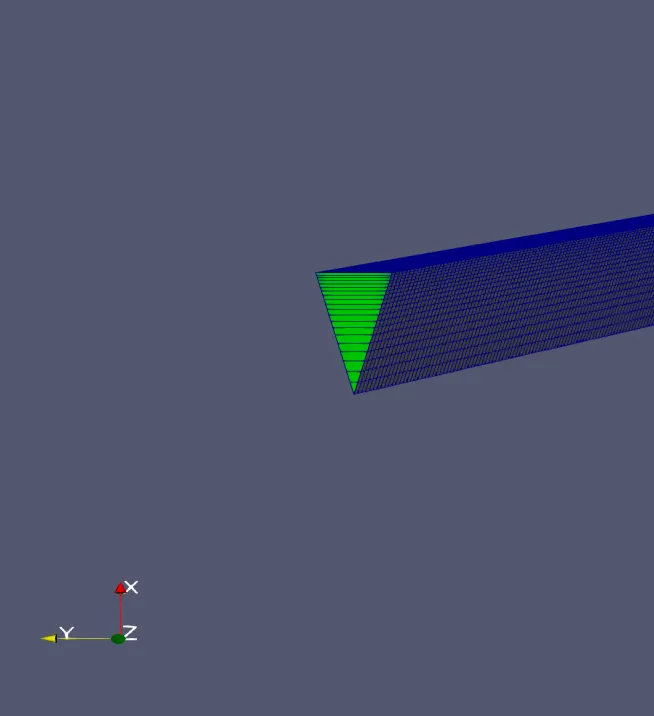

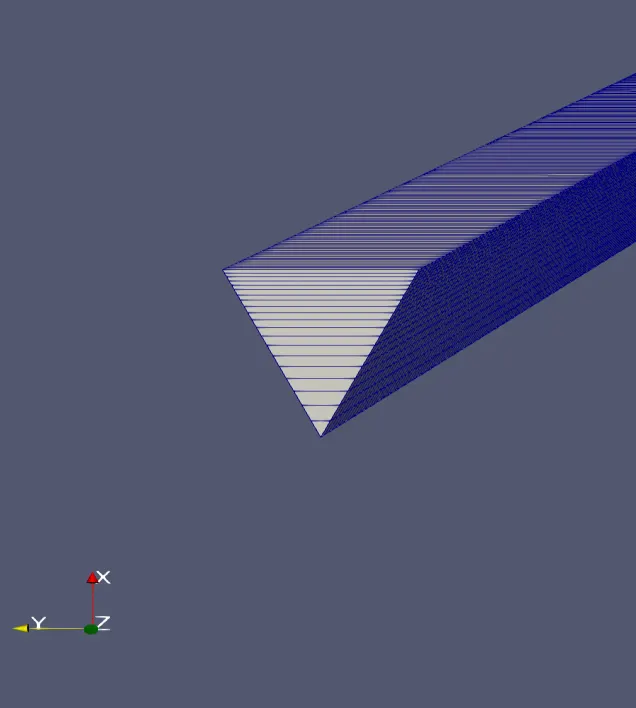

Copy blockMeshDict file and replace it in the system directory
Furthermore, we are editing the ‘controlDict’ file to provide time limits - start time and end time. Also to represent δt">δtVavg=ReμρD. While the selection of δt">δtvavg=0.0937 CFL value should be less than 1. otherwise, the solution could be stopped forcibly or it may diverge at the time of converging. So make the following changes in the ‘controlDict’ file.
Boundary and initial conditions
Then, we have to define the initial value for pressure and velocity. In order to do that, we have to go back to Pipe(45) directory using the ‘cd ..’ command and select a folder named ‘0’, which stands for initial values. In this case initial value for pressure and velocity.
When solving circulating internal flow, the most common boundary conditions are to fix an inlet velocity and an outlet pressure.
And for symmetry boundary condition just define to side faces to symmetry.
Initial setting for pressure
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
front
{
type symmetry;
}
back
{
type symmetry;
}
axis
{
type empty;
}
pipewall
{
type zeroGradient;
}
}
// ************************************************************************* //
In the U dictionary, one can find out a new type of boundary condition: inlet and outlet. It switches U and p between fixed value and zero gradients: the first when the flow is in-going and the second when it is outgoing.
For example: in a circular pipe case, the outlet velocity will always be adapted to the conditions according to zero gradients except if there is an inflow at the outlet patch. If this happens, to this inflow velocity it is assigned the value specified under the inlet-outlet instruction and so the flow will always be outgoing.
Lastly, define side faces to symmetry instead of wedge boundary condition.
Initial setting for Velocity
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0 0 0.09373);
}
outlet
{
type zeroGradient;
}
front
{
type symmetry;
}
back
{
type symmetry;
}
axis
{
type empty;
}
pipewall
{
type noSlip;
}
}
// ************************************************************************* //
Next, we are going to keep the same dynamic viscosity as we kept in the previous project of wedge boundary condition.
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.90e-4;
// ************************************************************************* //
After deploying mesh, now we are ready to run the simulation. Like last time, this time also we are running the simulation for viscus-laminar flow that's why we will choose our solver as icoFoam. Hence, just type ‘icoFoam’ and simulation will start.
results are same to all different angles
Hydro-dynamic length

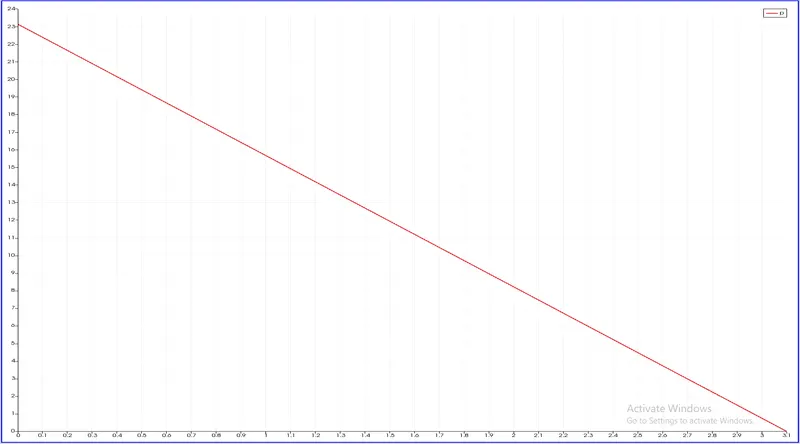

PRESSURE ALONG THE PIPE

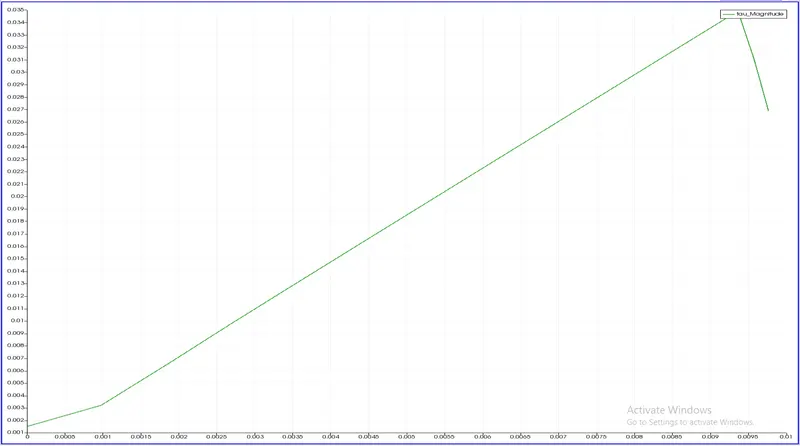

SHEAR STRESS NEAR THE WALL

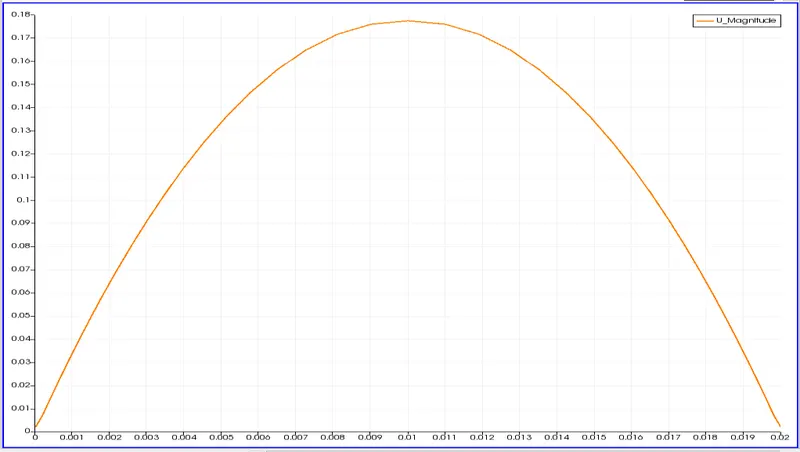

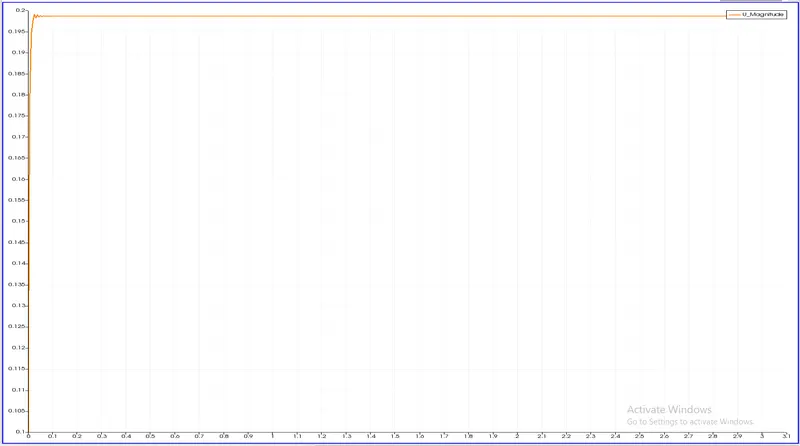

velocity profile at length 2.5m
FILE WRITING (in Matlab) for wedge boundary condition
function[f1] = blockMesh(R,th,L,nx,ny,nz)
%% Writing BlockMeshDict file for openFoam
f1 = fopen('blockMeshDict','w');
%% Input parameters
% Reynold's Number
Re = 2100;
% Total Length of pipe(m)
L = 3.1;
% Diameter of pipe in meters
D = 0.02;
% Wedge Angle in degrees
th = input('<0> Wedge Angle in degrees - ');
% Density (kg/m^3)
rho = 997;
% Dynamic Viscosity (Pa.sec)
mu = 8.90e-4;
% Radius of pipe(m)
R = D/2;
% Number of cells in x,y,z Directions
nx = 20;
ny = 1;
nz = 500;
fprintf(f1,"/*--------------------------------*- C++ -*----------------------------------*\n");
fprintf(f1,' ========= | \n');
fprintf(f1,' \\ / F ield | OpenFOAM: The Open Source CFD Toolbox \n');
fprintf(f1,' \\ / O peration | Website: https://openfoam.org \n');
fprintf(f1,' \\ / A nd | Version: 8 \n');
fprintf(f1,' \\/ M anipulation |\n');
fprintf(f1,"/*---------------------------------------------------------------------------*/\n");
fprintf(f1,'FoamFile \n');
fprintf(f1,'{ \n');
fprintf(f1,' version 2.0;\n');
fprintf(f1,' format ascii;\n');
fprintf(f1,' class dictionary;\n');
fprintf(f1,' object blockMeshDict;\n');
fprintf(f1,'} \n');
fprintf(f1,'// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *// \n');
fprintf(f1,'convertToMeters 1; \n');
fprintf(f1,'vertices\n');
fprintf(f1,'( \n');
fprintf(f1,' (0 0 0)\n');
fprintf(f1,(' (%f %f 0)\n'),R*cosd(th/2),R*sind(th/2));
fprintf(f1,(' (%f %f %f)\n'),R*cosd(th/2),R*sind(th/2),L);
fprintf(f1,(' (0 0 %f)\n'),L);
fprintf(f1,(' (%f %f 0)\n'),R*cosd(th/2),-R*sind(th/2));
fprintf(f1,(' (%f %f %f)\n);\n'),R*cosd(th/2),-R*sind(th/2),L);
fprintf(f1,'blocks\n');
fprintf(f1,'( \n');
fprintf(f1,('hex (0 4 1 0 3 5 2 3) (%d %d %d) simpleGrading (0.2 1 1)\n);\n'),nx,ny,nz);
fprintf(f1,'edges\n');
fprintf(f1,'( \n');
fprintf(f1,' arc 4 1 (0 %f 0)\n',R);
fprintf(f1,' arc 5 2 (%f %f 0)\n);\n',L,R);
fprintf(f1,'boundary\n');
fprintf(f1,'( \n');
fprintf(f1,' inlet\n');
fprintf(f1,' {\n');
fprintf(f1,' type patch;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (0 4 1 0)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' outlet\n');
fprintf(f1,' {\n');
fprintf(f1,' type patch;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (3 5 2 3)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' front\n');
fprintf(f1,' {\n');
fprintf(f1,' type wedge;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (0 1 2 3)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' back\n');
fprintf(f1,' {\n');
fprintf(f1,' type wedge;\n');
fprintf(f1,' faces \n');
fprintf(f1,' (\n');
fprintf(f1,' (0 3 5 4)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' pipewall\n');
fprintf(f1,' {\n');
fprintf(f1,' type wall;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (1 4 5 2)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,' axis\n');
fprintf(f1,' {\n');
fprintf(f1,' type empty;\n');
fprintf(f1,' faces\n');
fprintf(f1,' (\n');
fprintf(f1,' (0 3 3 0)\n');
fprintf(f1,' );\n');
fprintf(f1,' }\n');
fprintf(f1,');\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* // \n');
fclose(f1);
end
Furthermore, we are going to edit ‘controlDict’ file to provides time limits - start time and end time. Also to represent deltat. While selection of deltat CFL value shoud be less than 1. otherwise, the solution could stopped forcibly or it may diverge at the time of converging. So make following changes in ‘controlDict’ file.
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 2;
deltaT 0.0001;
writeControl timeStep;
writeInterval 10;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
Boundary and initial conditions
Then, we have to define initial value for pressure and velocity. In order to do that, we have to go back in cavity_copy directory using ‘cd ..’ command and select folder named ‘0’, which stand for initial values. In this case initial value for pressure and velocity.
When solving circulating internal flow, the most common boundary conditions are to fix an inlet velocity and an outlet pressure.
Initial setting for pressure
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
front
{
type wedge;
}
back
{
type wedge;
}
axis
{
type empty;
}
pipewall
{
type zeroGradient;
}
}
// ************************************************************************* //
In the U dictionary one can find out a new type of boundary condition: inlet and outlet. It switches U and p between fixedValue and zeroGradient: the first when the flow is in-going and the second when it is outgoing.
Example: in circular pipe case, the outlet velocity will always be adapted to the conditions according to zeroGradient except if there is an inflow at the outlet patch. If this happens, to this inflow velocity it is assigned the value specified under the inletOutlet instruction and so the flow will always be outgoing.
Initial setting for Velocity
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0 0 0.1);
}
outlet
{
type zeroGradient;
}
front
{
type wedge;
}
back
{
type wedge;
}
axis
{
type empty;
}
pipewall
{
type noSlip;
}
}
// ************************************************************************* //
Next, we have to mention dynamic viscosity in transposeProperty in constant directory of the Pipe.
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.90e-4;
// ************************************************************************* //
Hydro-dynamic length
PRESSURE ALONG THE PIPE
SHEAR STRESS NEAR THE WALL
velocity profile
Comparing the both wedge and symmetry we can see that there is no chnage in the results so that we can compare the any of one to the analyatical values
ANALYTICAL CALCULATIONS
Average Velocity:-
% Average Velcity
V_avg = (Re*mu)/(rho*D);
Maximum velocity:-
vmax=2⋅vavg�max=2⋅����
vmax=2⋅0.0937�max=2⋅0.0937
vmax=0.1874�max=0.1874
Pressure drop across the length of pipe:-
ΔP=32μLVavgD2Δ�=32μ������2
length L = 0.5
Δp=3.5Δ�=3.5
Wall Shear stress
τw=4⋅μ⋅vavgR��=4⋅�⋅�����
τw=0.0356��=0.0356
Velocity at various radius(r) near fully developed flow region
Vr=2⋅Vavg(1−r2R2)��=2⋅����(1−�2�2)
% ANALYTICAL
R = 0.01;
r=linspace(-R,R,1000);
V_avg = (Re*mu)/(rho*D);
% Velocity_analytical
V_A=2*V_avg*(1-(r.^2/R^2));
Analytical Hydro-dynamic length
leD=0.06⋅Re���=0.06⋅��
where
entrance length'
D Diameter
renolds number
Comparing the NUMERICAL AND ANALYTICAL CALCULATIONS
comparing the velocity profile using MATLAB
clear all
close all
clc
% Reynold's Number
Re = 2100;
% Total Length of pipe(m)
L = 3.1;
% Diameter of pipe in meters
D = 0.02;
% Density (kg/m^3)
rho = 997;
% Dynamic Viscosity (Pa.sec)
mu = 8.90e-4;
% Radius of pipe(m)
R = D/2;
% ANALYTICAL
R = 0.01;
r=linspace(-R,R,1000);
V_avg = (Re*mu)/(rho*D);
% Velocity_analytical
V_A=2*V_avg*(1-(r.^2/R^2));
%NUMERICAL
v_r = csvread("v_p.csv",1,1);
c = csvread("v_p.csv",1);
for i = 1:1000
%velocity_numerical
V_n(i) = v_r(i)* (1-(c(i)^2));
end
figure(1)
plot(r,V_A,'r','linewidth',1)
hold on
plot(r,V_n,'--','color','k','linewidth',2.5)
xlabel('<---- Radius of pipe in m ---->','fontweight','bold','fontsize',14)
ylabel(' Velocity in m/s ------>','fontweight','bold','fontsize',14)
legend(' Analytical method',' Numerical method')
grid on
Below graph shows the velocity profile comparison between NUMERICAL AND ANALYTICAL
Validate Hydro-dynamic length with the numerical result
ANALYTICAL value is 2.52 m
NUMERICAL value is 0.08 m
ANALYTICAL | NUMERICAL | |
0.1875 | 0.177416 | |
for length 0.5m | 3.5 | 3.8185 |
0.0356 | 0.0301 |
In symmetry BC if we change the cells along the Y axis to 3 cells there will be change in the results along the y direction and there will be change in the velocity profile
Leave a comment
Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.
Other comments...
Week - 4 - 2D meshing for Plastic components
14 Feb 2024 04:24 PM IST
Week 3 - 2D meshing for Sheet metal
14 Feb 2024 04:10 PM IST
Project
AIM: To carry out a system-level simulation of an All-Terrain Vehicle (ATV). OBJECTIVES : To carry out a Simulation of ATV. To prepare a technical report explaining the model properties & comments on the results. THEORY : All-Terrain Vehicle (ATV) An All-Terrain Vehicle (ATV), also known as a light utility…
03 Jan 2024 10:45 AM IST
Project 1
Aim : Develop a double-acting actuator model using Simscape Multibody and Simscape components. Objective : The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components. Theory : The…
16 Oct 2023 03:59 PM IST
Related Courses
Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.
© 2025 Skill-Lync Inc. All Rights Reserved.
